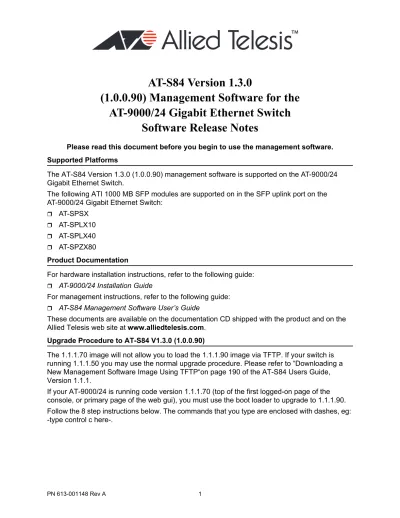

AT-S84 Version ( ) Management Software for the AT-9000/24 Gigabit Ethernet Switch Software Release Notes

(1)

PN 613-001148 Rev A 1

AT-S84 Version 1.3.0

(1.0.0.90) Management Software for the

AT-9000/24 Gigabit Ethernet Switch

Software Release Notes

Please read this document before you begin to use the management software. Supported Platforms

The AT-S84 Version 1.3.0 (1.0.0.90) management software is supported on the AT-9000/24 Gigabit Ethernet Switch.

The following ATI 1000 MB SFP modules are supported on in the SFP uplink port on the AT-9000/24 Gigabit Ethernet Switch:

AT-SPSX AT-SPLX10 AT-SPLX40 AT-SPZX80

Product Documentation

For hardware installation instructions, refer to the following guide: AT-9000/24 Installation Guide

For management instructions, refer to the following guide: AT-S84 Management Software User’s Guide

These documents are available on the documentation CD shipped with the product and on the Allied Telesis web site at www.alliedtelesis.com.

Upgrade Procedure to AT-S84 V1.3.0 (1.0.0.90)

The 1.1.1.70 image will not allow you to load the 1.1.1.90 image via TFTP. If your switch is running 1.1.1.50 you may use the normal upgrade procedure. Please refer to “Downloading a New Management Software Image Using TFTP“on page 190 of the AT-S84 Users Guide, Version 1.1.1.

(2)

AT-S84 Version 1.3.0 Software Release Notes

PN 613-001148 Rev A 2 Allied Telesis, Inc.

Before downloading a new version of the AT-S84 management software onto the switch, note the following:

Your network must have a node with TFTP server software. You must store the new AT-S84 image file on the TFTP server.

You should start the TFTP server software before you begin the download procedure.

You should have a management terminal connected to the DB-9 Serial Management Port of AT-9000/24.

To download the AT-S84 Version1.3.0 (1.0.0.90) image software onto the switch that currently is running Version1.2.0 (1.0.0.70), perform the procedure outlined in Appendix A of this SRN. What’s New in Version 1.3.0 (1.0.0.90)

Operational Notes

Web browser interface: On oversubscribed networks or bandwidth-limited paths, the web browser interface may not always display the front panel graphic. However, you can still access all of the menus.

LACP Loop. When two or more ports are part of an LACP trunk and RSTP is enabled, a loop is created. To avoid this situation, do not enable RSTP and an LACP trunk at the same time. Configuration Data Compatibility. The storage of the configuration data in Version 1.1.028

and up is not backwards compatible with the version of the firmware released prior to this release. When upgrading to Version 1.1.028 (or higher) from any firmware version prior to this release, the switch must be reset to factory defaults and then manually reconfigured. If this is not done, the switch may not behave in the same way as it did with the previous version of firmware.

(3)

New Software Features

Management access can now be restricted to the default VLAN (VLAN 1). This feature is activated when you select ENABLE for the Management VLAN field on the VLAN

Configuration web page. If this field is set to DISABLED, the management access is available on any VLAN.. See the Figure 1 for the location of this feature in the web interface.

Figure 1. Management Access Field in Web Management Interface See Figure 2 for the location of this feature in the menu interface.

(4)

RELEASE HISTORY Version 1.2.0 (1.0.0.70)

Resolved Issues

Packets with Unknown VLAN Tag - When a stream of traffic with an unknown VLAN tag is sent to the switch at a rate exceeding 235 frames/sec, the switch management now continues to respond to ping requests

Known Issues

None.

New Software Features

Remote Management - Remote management access is now limited to VLAN 1.

New Hardware Features

None

Version 1.1.1 (1.0.0.50)

Resolved Issues

The following issues were resolved in Version 1.1.1 (1.0.0.50):

Web browser interface: When the web browser interface was accessed through a heavily used or bandwidth-limited LAN, not all of the main web page was loaded. This situation prevented management access through the web browser interface. This issue has been resolved.

(5)

Contacting Allied Telesis

This section provides Allied Telesis contact information for technical support as well as sales and corporate information.

Online Support

You can request technical support online by accessing the Allied Telesis Knowledge Base: www.alliedtelesis.com/support. You can use the Knowledge Base to submit questions to our technical support staff and review answers to previously asked questions.

Email and Telephone Support

For Technical Support via email or telephone, refer to the Support & Services section of the Allied Telesis web site: www.alliedtelesis.com. Select your country from the list displayed on the website. Then select the appropriate menu tab.

Returning Products

Products for return or repair must first be assigned a return materials authorization (RMA) number. A product sent to Allied Telesis without an RMA number will be returned to the sender at the sender’s expense.

To obtain an RMA number, contact the Allied Telesis Technical Support group at our web site: www.alliedtelesis.com/support/rma.Select your country from the list displayed on the website. Then select the appropriate menu tab.

Sales or Corporate Information

You can contact Allied Telesis for sales or corporate information through our web site:

www.alliedtelesis.com. Select your country from the list displayed on the website. Then select the appropriate menu tab.

Management Software Updates

New releases of management software for our managed products are available from either of the following Internet sites:

Allied Telesis web site: www.alliedtelesis.com Allied Telesis FTP server: ftp://ftp.alliedtelesis.com

If you prefer to download new software from the Allied Telesis FTP server from your

workstation’s command prompt, you will need FTP client software and you must log in to the server. Enter “anonymous” for the user name and your email address for the password.

All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesis, Inc. Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.

(6)

PN 613-001174 Rev A 6

Appendix A

Upgrade Instructions to V1.1.1.90

The 1.1.1.70 image will not allow you to TFTP load the 1.1.1.90 image! If your switch is running 1.1.1.50 you may use the normal upgrade procedure.

If your 9000/24 is running code version 1.1.1.70 (top of the first logged-on page of the console, or primary page of the web gui), you must use the boot loader to upgrade to 1.1.1.90. Follow the instructions below. The commands that you type are enclosed with dashes;

e.g., -type control c here-. Note

Upgrading this switch requires the use of a TFTP server on the same local subnet as the switch.

1. Stop the boot process. Booting...

Memory test...OK Decompressing...OK

MAC and PHY register initialization ...-type control c here- OK System database initialization ... OK

Marvell 88E6218 (Internal switch) : Device ID = 0x0F93, Revision = 0x02 MAC register test ... PASS

PHY register test ... PASS

Internal Loopback test ... PASS Checking Image Bank Integrity ... OK

(7)

Appendix A: Upgrade Instructions to V1.1.1.90 PN 613-001174 Rev A 7 Version 1.00.03 / Jul 18 2007 11:51:54 >>> Main Menu <<< TCP/[I]P Configuration [S]oftware Upgrade [J]ump to Runtime Code

2. Check the IP configuration; Set if necessary. Command> -type i

AT-9000/24 Series Boot System

Switch IP Address: 192.168.1.10 Switch IP Subnet Mask: 255.255.255.0 Switch Default Gateway: 0.0.0.0

BOOTP Mode: Disabled

>>> IP Configuration Menu <<<

Set [I]P Address Set IP Subnet [M]ask Set Default [G]ateway Set [B]OOTP Mode

[Q]uit to Previous Menu

3. When the IP address is set, return to main menu Command> -type q here-

(8)

AT-S84 Version 1.3.0 Software Release Notes PN 613-001174 Rev A 8 Version 1.00.03 / Jul 18 2007 11:51:54 >>> Main Menu <<< TCP/[I]P Configuration [S]oftware Upgrade [J]ump to Runtime Code 4. Select software upgrade Command> -type s

AT-9000/24 Series Boot System

Version 1.00.03 / Jul 18 2007 11:51:54

Remote Server IP: 0.0.0.0 Remote File Name:

>>> Software Upgrade Menu <<< Set Remote [S]erver IP Address Set Remote [F]ile Name

[D]ownload software and Execute Download [B]ootcode and Execute [Q]uit to Previous Menu

5. Set the TFTP server address. Command> -type s

Enter Server IP Address: -type IP address of server

(9)

Appendix A: Upgrade Instructions to V1.1.1.90

PN 613-001174 Rev A 9

Version 1.00.03 / Jul 18 2007 11:51:54

Remote Server IP: 192.168.1.14 Remote File Name:

>>> Software Upgrade Menu <<<

Set Remote [S]erver IP Address Set Remote [F]ile Name

6. Set the file name.

Command> -type f

Enter File Name: -type name of file

here-AT-9000/24 Series Boot System

Version 1.00.03 / Jul 18 2007 11:51:54

Remote Server IP: 192.168.1.14 Remote File Name: s84v11190.rom

(10)

PN 613-001174 Rev A 10

Set Remote [S]erver IP Address Set Remote [F]ile Name

7. Download the file.

Command> -type d

here-BOOTP-TFTP Booting, type ^c to stop boot loader

TFTP server: 192.168.1.14

File name: s84v11190.rom

Bytes received : 1754159

Downloading file was completed! Checking Image file integrity ... OK

Checking model name of RunTime code ... OK Version: 1.1.1.90

Date Time: Dec 8 2008 11:55:42 Description: Allied Telesis, Inc. Signature: ATI

Model Name: AT9000 8. Boot the switch.

(11)

here-Appendix A: Upgrade Instructions to V1.1.1.90

PN 613-001174 Rev A 11

Updating the runtime image ... OK Decompressing ...OK

... OK

========================================================================= AT-9000/24 Management System Version 1.1.1.90

Local - Console

=========================================================================

Login Menu
