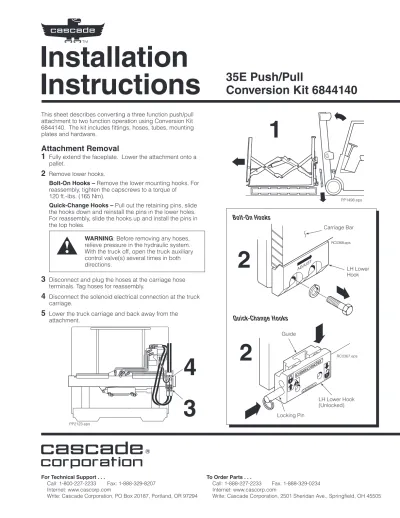

Installation Instructions

(1)

Installation Instructions

c

cascade

^W

corporation

For Technical Support . . . To Order Parts . . .

Call: 1-800-227-2233 Fax: 1-888-329-8207 Call: 1-888-227-2233 Fax: 1-888-329-0234

35E Push/Pull

Conversion Kit 6844140

This sheet describes converting a three function push/pull attachment to two function operation using Conversion Kit 6844140. The kit includes fittings, hoses, tubes, mounting plates and hardware.

Attachment Removal

1

Fully extend the faceplate. Lower the attachment onto a pallet.

2

Remove lower hooks.

Bolt-On Hooks – Remove the lower mounting hooks. For reassembly, tighten the capscrews to a torque of

120 ft.-lbs. (165 Nm).

Quick-Change Hooks – Pull out the retaining pins, slide the hooks down and reinstall the pins in the lower holes.

For reassembly, slide the hooks up and install the pins in the top holes.

WARNING: Before removing any hoses, relieve pressure in the hydraulic system.

With the truck off, open the truck auxiliary control valve(s) several times in both directions.

3

Disconnect and plug the hoses at the carriage hose terminals. Tag hoses for reassembly.

4

Disconnect the solenoid electrical connection at the truck carriage.

5

Lower the truck carriage and back away from the attachment.

PP1498.eps

1

3

2

PP2123.eps

ADJUST

RC0368.eps

cascad e^®

C-675514- 1

RC0367.eps

Guide

LH Lower Hook (Unlocked) Locking Pin

Carriage Bar

LH Lower Hook

Bolt-On Hooks

Quick-Change Hooks

4

(2)

Conversion Kit Installation

1

Remove attachment as described in previous section,

“Attachment Removal”.

2

Remove existing solenoid valves, push/pull valve, junction block, check valve, tubes, hoses, fittings, cables, mounting bracket and hardware.

NOTE: Tubes, fittings and plugs can remain on the cylinder.

The kit does contain replacement tubes and fittings.

Replace if necessary.

3

Mark the locations, as shown, on the attachment frame using the provided dimensions.

4

Drill and tap the left flange with three M8 x 1.25 mm thread through.

5

Drill the middle bracket with two holes with the diameter between 0.43-0.46 in. (11.0-11.8 mm).

6

Mount bracket on each attachment flange. Tighten capscrews to 15 ft.-lbs. (20 Nm).

7

Install fittings to the brackets and middle frame bracket.

8

Install fittings to the push/pull valve.

9

Install push/pull valve on the arm. Tighten capscrews to 15 ft.-lbs. (20 Nm).

1 1 2

4 6 7

3 5

PP2124.eps

M8 x 1.25 mm thread,

through (three places) Diameter:

0.43-0.46 in.

(11.0-11.8 mm)

Location Dimensions

1

.39 ±.04 in.

(10 ±1 mm)

2

.59 ±.04 in.

(15 ±1 mm)

3

_{(100 mm)}^{3.94 in.}

4

_{(50 mm)}^{1.97 in.}

5

4.04 ±.04 in.

(102.5 ±1 mm)

6

_{(28 mm)}^{1.10 in.}

7

.55 ±.04 in.

(14 ±1 mm)

4 6 7

7

8 8 9

5

PP2128.eps

Mounting Bracket

Mounting Bracket Capscrews

PP2127.eps

(3)

PB

EXT

RET PB

PR GB

GR

GB

GR PR

EXT

RET

PP2130.eps

10

Install tubes for supply connections.

11

Install tubes from frame to the sideshift cylinder.

12

Install hoses from the frame to the push/pull valve.

13

Install hoses from the push/pull valve to the cylinders and gripper valve.

PP2129.eps

10 12 13

13 13 11

If required, replace tubes and fittings.

(Push/Pull Cylinder Base)

(Push/Pull Cylinder Rod)

(Gripper Cylinder Rod) Gripper

Valve

Push/Pull Valve (Gripper

Cylinder Base)

IMPORTANT: Take note of valve port locations and connection points for the hoses.

(4)

B D A C

GA0005.eps

14

Install the attachment onto the truck. Refer to Installation Instructions 684944 for complete installation procedure.

15

Prepare and install supply hoses.

NOTE: Flush hoses prior to connecting the hoses from the attachment to the truck.

16

Cycle attachment functions.

• With no load, cycle all attachment functions several times.

• Check for operation in accordance with ANSI (ISO) standards.

• Push/Pull a maximum load and sideshift left and right.

Check for smoothness and adequate speed.

• Check for leaks at fittings, valves and cylinders.

PP2133.eps

PP0325.eps

B A

C D

PP2134.eps

Push Sideshift Pull

Left Sideshift Right

PP0325.eps

Push/Pull with Sideshift A

Sideshift Left

B

Sideshift Right

C

Faceplate Push/Extend

D

Faceplate Pull/Retract

Hoist Down

Hoist Up

Tilt Forward

Tilt Back

(5)

Hydraulic Conversion Kit Parts

1 2

3

5 6 7 8 90

!

@

#

$

% 4

PP2131.eps

REF QTY PART NO. DESCRIPTION 6844140 Hydraulic Conversion Kit

1 1 6844113 Tube

2 1 6844112 Tube

3 1 6844075 Bracket – LH 4 1 6844033 Bracket – RH 5 6 765329 Capscrew, M8 x 20

6 2 2680 Fitting, 6-6

7 2 2375 Fitting, 6-6

8 4 2453 Fitting, 6-6

l See Hydraulic Group page for parts breakdown.

Reference: SK-32183.

REF QTY PART NO. DESCRIPTION

9 2 2669 Fitting, 4-6

10 2 2617 Nut

11 2 2451 Fitting, 4-4

12 1 6844076 Tube

13 1 6844077 Tube

14 1 6844041 Tube

15 1 6844042 Tube

6086064 Hydraulic Group l

(6)

EXT PB

GB

GR

PR

PP1629.eps

2 4 !

@

0 !

1 4

!

$

%

!

3

5

67 4 8 4 9

RET

Hydraulic Group

REF QTY PART NO. DESCRIPTION 6086064 Hydraulic Group (R1) 1 1 685831 Hose, Twinline, 39.60 in.

2 2 683173 u Hose, 15.50 in.

3 1 2375 u Fitting, 6-6 4 2 604511 u Fitting, 6-6

6 604511 Fitting, 6-6 5 1 6085927 Valve Body n

6 1 6045016 Relief Valve Cartridge n n Included in Valve Assembly 6085925.

Reference: SK-5385, SK-5386.

REF QTY PART NO. DESCRIPTION 7 1 682170 Service Kit

8 2 787373 u Capscrew, M8 x 25 9 2 685978 Hose, 19.40 in.

10 2 684956 Cable Tie 11 4 605235 u Fitting, 6-6

12 1 200647 u Tube

13 1 200649 u Tube

14 1 200648 u Tube

u Included in Hydraulic Components Group 200581-R7.
