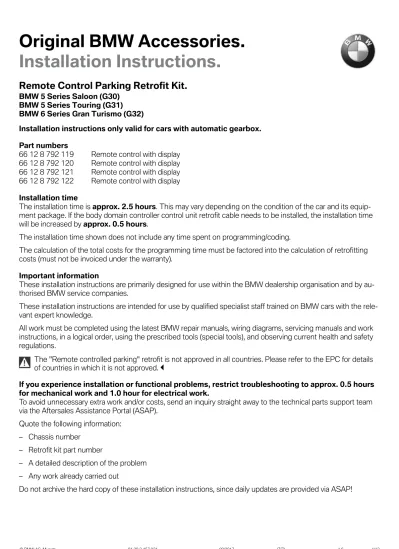

Original BMW Accessories. Installation Instructions.

(1)

Original BMW Accessories.

Installation Instructions.

Remote Control Parking Retrofit Kit.

BMW 5 Series Saloon (G30) BMW 5 Series Touring (G31) BMW 6 Series Gran Turismo (G32)

Installation instructions only valid for cars with automatic gearbox. Part numbers

66 12 8 792 119 Remote control with display 66 12 8 792 120 Remote control with display 66 12 8 792 121 Remote control with display 66 12 8 792 122 Remote control with display Installation time

The installation time is approx. 2.5 hours. This may vary depending on the condition of the car and its equip- ment package. If the body domain controller control unit retrofit cable needs to be installed, the installation time will be increased by approx. 0.5 hours.

The installation time shown does not include any time spent on programming/coding.

The calculation of the total costs for the programming time must be factored into the calculation of retrofitting costs (must not be invoiced under the warranty).

Important information

These installation instructions are primarily designed for use within the BMW dealership organisation and by au- thorised BMW service companies.

These installation instructions are intended for use by qualified specialist staff trained on BMW cars with the relevant expert knowledge.

All work must be completed using the latest BMW repair manuals, wiring diagrams, servicing manuals and work instructions, in a logical order, using the prescribed tools (special tools), and observing current health and safety regulations.

! The "Remote controlled parking" retrofit is not approved in all countries. Please refer to the EPC for details of countries in which it is not approved.

If you experience installation or functional problems, restrict troubleshooting to approx. 0.5 hours for mechanical work and 1.0 hour for electrical work.

To avoid unnecessary extra work and/or costs, send an inquiry straight away to the technical parts support team via the Aftersales Assistance Portal (ASAP).

Quote the following information: – Chassis number

– Retrofit kit part number

– A detailed description of the problem – Any work already carried out

Do not archive the hard copy of these installation instructions, since daily updates are provided via ASAP!

(2)

Pictograms

! Denotes instructions that draw your attention to dangers.

Denotes instructions that draw your attention to special features. Denotes the end of the instruction or other text.

Installation information

Ensure that the cables and/or lines are not kinked or damaged as you install them in the car. Costs incurred by this will not be reimbursed by BMW AG.

Additional cables/wires that are installed must be secured with cable ties. If the specified PIN chambers are occu- pied, bridges, double crimps, or twin-lead terminals must be used.

All illustrations show LHD (left-hand drive) cars; proceed similarly on RHD (right-hand drive) cars. After the installation work, the retrofit must be programmed/coded via the – Conversions – path. Ordering instructions

The remote controlled parking retrofit is not a retrofit kit. All the parts required for the remote controlled parking retrofit must be ordered separately for the appropriate car version and year of manufacture (for part numbers and instructions, see EPC).

List of special equipment

The following special equipment must be used during the installation work: SA 322 Comfort Access

SA 5DN Park Assist Plus

SA 205 Automatic transmission SA 2TB Sport automatic transmission

SA 2TE Automatic transmission with paddle shifters Special tools required

Details of the special tools required can be found in the relevant ISTA repair manual.

(3)

1. Parts list

Legend

A Retrofit wiring harness B Exterior antenna C Cable tie

D Remote control with display (to be given to the customer) E Integrated key (to be given to the customer)

F USB cable (to be given to the customer)

G Body domain controller control unit (depending on the equipment in the car)

(5)

2. Preparatory work

ISTA No.

Disconnect all negative battery cables 61 20 900

Release and disconnect various plug connections 61 13 ...

Cut, strip and crimp cables 61 11 ...

Open the plug housing and remove the contacts from various connection systems 61 13 ... Instructions for handling the documents: Repair manual, technical data, tightening torques 00 11 ...

Instructions for handling wiring harnesses and cables 61 00 ...

The following components must be removed first of all

Luggage compartment wheel arch trim panels, left and right 51 47 161

Rear bumper trim 51 12 156

Rear bumper reinforcement 51 12 ...

Rear seat backrest side section, right (release) 52 26 008

Rear right (interior) door sill cover strip 51 47 030

Trim for right door pillar (bottom) 51 43 150

Front right (interior) door sill cover strip 51 47 000

Bottom right dashboard trim 51 45 195

Right footwell side trim (A-pillar) 51 43 070

Replace body domain controller (BDC) control unit (depending on

the equipment in the car) ^{61 35 278}

(6)

3. Retrofit wiring harness connection diagram

Item Designation Signal Cable colour/

Cross-section Connection location in the car Abbreviation/ Slot

A Retrofit wiring harness --- --- --- ---

A1 SW 2-pin socket housing --- --- To exterior antenna B ---

A2 Socket contact CE_ANT_

SF_A 0.35 mm²^WS/GR To the plug from BDC A258 A258*9B

PIN 11

A3 Socket contact CE_ANT_

SF_B 0.35 mm²^WS/RT To the plug from BDC A258 A258*9B

PIN 29

(7)

4. Installation and cabling diagram

A Retrofit wiring harness B Exterior antenna

1 BDC A258, plug A258*9B, SW 54-pin socket housing

2 Rubber grommet

(8)

5. Install the exterior antenna and route and connect the retrofit wiring harness

For G30 cars only

Ensure that the exterior antenna B is located in the guide (1) so that it cannot slide.

Place the exterior antenna B on the guide (2).

Clip the exterior antenna B as shown into the existing mounts (3).

Clip the exterior antenna B as shown into the existing guide (1).

Ensure that the exterior antenna B is located between the guides (1) so that it cannot slide. Place the exterior antenna B on the guide (2).

Clip the exterior antenna B as shown between the existing guide (1).

Ensure that the exterior antenna B is located between the guides (1) so that it cannot slide. Place the exterior antenna B on the guide (2).

Clip the exterior antenna B as shown between the existing guide (1).

For all cars

Route the branches A2-A3 of retrofit cable A along the standard wiring harness to the rubber grommet box (1).

Secure the retrofit wiring harness A to the standard wiring harness using cable ties C.

(9)

5. Install the exterior antenna and route and connect the retrofit wiring harness

! When drilling, make sure that no parts behind drilling point are damaged.

Drill a hole in the rubber grommet (1) at the mark (2) with a 5 mm drill bit.

Route branches A2-A3 through the borehole into the boot.

Seal the borehole with suitable sealant so it is water- tight.

Route retrofit wiring harness A along the standard wiring harness and through the cable duct (1) into the car's interior.

Secure the retrofit wiring harness A to the standard wiring harness using cable ties C.

Route retrofit wiring harness A along the right-hand side of the car to the site of the BDC A258.

Secure retrofit wiring harness A at suitable points us- ing cable ties C.

Prepare plug A258*9B, SW 54-pin socket housing, as follows:

– Disconnect the cable from PIN 11 and connect it to PIN 12

– Disconnect the cable from PIN 29 and connect it to PIN 30

Connect branches A2-A3 as follows to plug A258*9B, SW 54-pin socket housing: – Branch A2, WS/GR cable, to PIN 11 – Branch A3, WS/RT cable, to PIN 29

(10)

6. Concluding work and coding

The retrofit system requires programming/coding. – Connect the battery

– Connect the battery charger to the car

– Connect the car to the ISTA workshop system – Open the ISTA/P car programming facility

– If using ISTA/P, please refer to the instructions provided in the ISTA/P application documentation

– Select the "Remote controlled parking" retrofit using the – Conversions – path and work through the action plan

– If necessary, carry out a vehicle test using the ISTA system, and note, or work through, any errors that has been recorded

– Conduct a function test – Re-assemble the car

– Check integrated owner's manual (IBA) to ensure it contains "Park Assist Plus: Remote Control Parking" – Give the remote control with display D, integrated key E and USB cable F to the customer

– Print out the "Important information for the customer" section at the end of these installation instructions and give it to the customer

(11)

7. Initialise the remote control display

Initialise the remote control display – Connect the battery charger to the car

– Connect the car to the ISTA workshop system – Open the ISTA car diagnostic system

– Open the service function using the "Car treatment" path

Open the initialisation process using the ISTA service function as follows: – >Body<

– >Locking and security functions< – >Remote control, key<

– >Initialise display key<

Follow the instructions for the initialisation procedure.

Initialise the remote control display heating and air conditioning functions – Open the service function using the car treatment path

Open the initialisation process using the ISTA service function as follows: – >Body<

– >Heating and air conditioning functions< – >Initialise Telestart transmitter<

Follow the instructions for the initialisation procedure.

(12)

8. Wiring diagram

Legend

A1*/E416*1B SW 2-pin socket housing, to exterior antenna B*

A2* Socket contact, WS/GR cable, to PIN 11 of plug A258*9B on BDC A258 A3* Socket contact, WS/RT cable, to PIN 29 of plug A258*9B on BDC A258 B*/E416 Exterior antenna

A258 Body domain controller (BDC) control unit A258*9B SW 54-pin socket housing to BDC A258

All of the designations marked with * apply only to these installation instructions or this wiring diagram.

Cable colours

BL Blue GR Grey RT Red

BO Bordeaux L-GN Light green SW Black

BR Brown NT Natural TR Transparent

GE Yellow OR Orange VI Violet

GN Green RO Pink WS White

(13)

9. Important information for the customer

The installation of the "Remote controlled parking" retrofit will make the additional "Remote controlled parking" menu point appear on the standard remote control display depending on its hardware version. The function is not possible as a result of the fact that there is no RCP key.

The use of the function is described in the original car owner's handbook.
