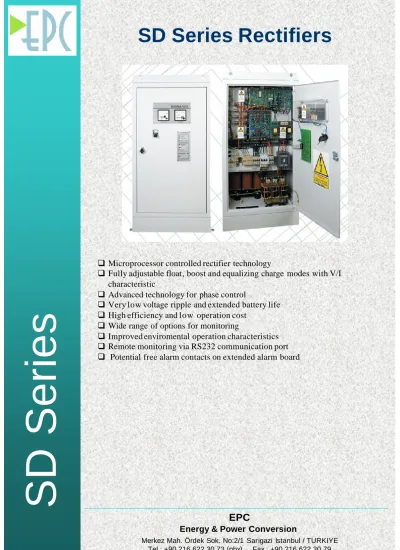

SD Series
SD Series Rectifiers
q Microprocessor controlled rectifier technology
q Fully adjustable float, boost and equalizing charge modes with V/I characteristic
q Advanced technology for phase control
q Very low voltage ripple and extended battery life q High efficiency and low operation cost
q Wide range of options for monitoring
q Improved enviromental operation characteristics
q Remote monitoring via RS232 communication port
q Potential free alarm contacts on extended alarm board
SD Series
EPC SD Series rectifiers provide pure and regulated DC power for load, charging of Lead-Acid and Nicel-Cadmium batteries. SD series rectifers are used for very wide range of DC power applications such as power plants, telecommunication, power generation and distribution, traction, emergency lighting, automation systems and petrochemical plants.
SD Series Rectifiers are equipped with thyristors, which are used in
Semiconductor Controller Rectifier technology. Phase control and regulation are made by microprocessor controled eletronic boards. SD series has also output voltage regulation features with automatic current limiting.
SD Series rectifiers are flexible for different applications. Optional N+1 paralleling redundancy can be obtained by paralleling diodes. By adding
optional load circuit and current limiting unit, SD Series rectifier can be used as DC UPS, which provides DC power to load from battery, when the AC input is not available. When the AC input is recovered, rectifier will feed your DC load and charge your batteries. A load circuit for this purpose can be build by diode drop blocks or by a DC/DC converter, depending on requirements of the customer.
SD Series Rectifiers
SD Series
+ Battery Circuit Breker Status
21
+ Input Circuit Breaker
20
Additional Control & Monitoring Options
+ RS-232 Communication
19
+ Customized Alarm (NC, C, NO)
18b
+ Common Alarm (NC,C,NO)
18a
Alarm Terminals (Fuse Protected Dry Contacts) 18
+ LCD Panel
17b
+ Simple Control & Display Panel
17a
Paremeter Adjustments, Monitoring & Alarms 17
User Interfaces
+ AC Input Voltameter (Only Analog 72x72 )
16
+ LCD Panel
15b
+ Analog Voltmeter & Ampermeter
15a
Rectifier Output (Battery ) Voltage & Current 15
Measurements
STATUS MONITORING
& CONTROL
+ Termic Magnetic Circuit Breaker (MCB/MCCB)
14e
+ Ampermeter
14d
+ Voltmeter
14c
+ Diod Voltage Drop Block
14b
+ Voltage & Current Limiting Block
14a
Load Circuit
+ Termic Magnetic Circuit Breaker (MCB/MCCB)
13
+ Parallelling Block
12
Battery Circuit
OUTPUT
+ Main Logic Board
11
Control Boards
+ DC Capacitor
10
+ DC Inductor
9
DC Regulation Units
+ Regulated & Full Controlled SCR
8
+ Galvanic Isolated Input Transformer
7
RECTIFIER
+ Unused Neutral Connection
6b
+ Used Neutral Connection
6a
Neutral Connection
+ Inductor
5
+ Harmonic Filter
4
+ RFI Filter
3
+ Termic Magnetic Circuit Breaker (MCB/MCCB)
2
+ High Voltage Absorber (MOV)
1
INPUT
OPTIONAL STANDART
Standart and Optional Features
SD Series
SD Series Rectifiers
0 – 1000 m Operation Altitude
0-90% Non condensing Relative Humidity
- 40 ºC to +50ºC Storage Temperature
-5 ºC to +50 ºC Operation Temperature
ENVIROMENTAL CHARACTERISTICS Floor Mounting
Bottom (Top inlet optional) Cable Inlet
RAL 7032 (Other colors optional) Color
Forced cooling with termic controlled fan Cooling
IP20 (Higher IP Class Optional) Protection Class
GENERAL
90% - 115% adjustable Boost Charge Voltage Range
90% - 115% adjustable Float Charge Voltage Range
Float / Boost (Manual equalizing charge - optional) Charge Type
Automatic / Manual U-I Characteristic Charger Mode
CHARGE CHARACTERISTICS
< 1% (10% to 100% load) Voltage Regulation
< 1% (with or without battery) (<0,5 % optional) Voltage Ripple
220 VDC > 90%
110 VDC > 90%
48 VDC > 80%
24 VDC > 80%
Efficiency (at full load)
Termic Magnetic Circuit Breaker (Ic > 16 kA) Circuit Protection
Current Trip adjustable between 10% to 250%
Current Limiting adjustable between 10% to 115%
Current Limiting & Trip
15Adc / 30Adc / 60Adc / 100Adc / 150Adc / 200Adc / 300Adc Nominal
Current
24Vdc / 48Vdc / 110Vdc / 220Vdc Nominal Voltage
OUTPUT
High Voltage Protection (Metal Oxide Varistor) MCB or MCCB
Circuit Protection
< 0,8 Power Factor
50Hz / 60Hz Selectable +5%
Frequency
380Vac / 400Vac / 420Vac / +10% -15% 3P+N 4W (3P 3W Optional)
Voltage
INPUT
Technical Specifications
SD Series
SD Series Rectifiers
DC Undervoltage & Overvoltage Protection Automatic Recovery After Alarm
Language Selection (Only with LCD – Optional) Charge Type Adjustment
Periodical Boost Charge (Only with LCD – Optional) Charge Mode Adjustment
Time Controlled Boost Charge , adjustable up to 72 hours Output Voltage Adjustment
Date & Time (Only with LCD – Optional) Eletronic Control, Start & Stop
CONTROL (Simple Panel or LCD Panel) Common Alarm
Breaker Status (Optional) Operation Status
Load Current (Optional with load circuit , only analog 72x72) AC OK Sign
Load Voltage (Optional with load circuit, only analog 72x72) Charge Type
Input Voltage (Optional – Only Analog 72x72) Charge Mode
RS-232 Communication Output Current ( Analog 72x72 or LCD Panel)
Log Record / Alarm History (Only with LCD – Optional) Output Voltage (Analog 72x72 or LCD Panel)
STATUS MONITORING (Simple Panel or LCD Panel, Leds)
800 / 800 / 1600 Size 4
750 / 700 / 1600 Size 3
600 / 600 / 1300 Size 2
500 / 450 / 1000 Size 1
Dimensions
- -
- 280 300A
- -
- Size 4 300A
- 500 270
240 200A
- Size 4 Size 3
Size 3 200A
- 485 260
230 150A
- Size 4 Size 3
Size 3 150A
490 300
230 180
100A Size 4
Size 3 Size 2
Size 2 100A
295 240
185 110
60A Size 3
Size 2 Size 2
Size 1 60A
240 150
110 -
30A Size 2
Size 1 Size 1
- 30A
190 -
- -
15A Size 1
- -
- 15A
220V 110V
48V 24V
220 V 110 V
48 V 24 V
Weigth (kg) Availibility Matrix
