(±) trans 1,2,3,4,4a,9a Hexa­hydro­anthrone

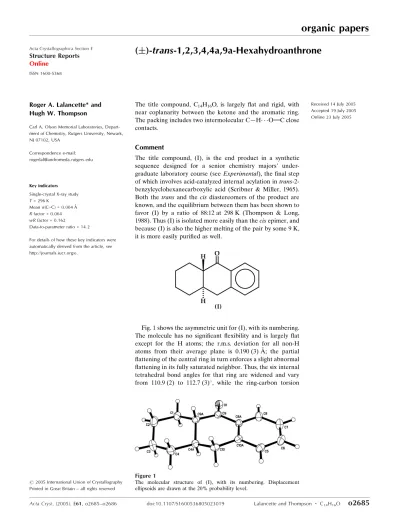

organic papers

Acta Cryst.(2005). E61, o2685–o2686 doi:10.1107/S1600536805023019 Lalancette and Thompson _C

14H16O

o2685

Acta Crystallographica Section E Structure Reports Online

ISSN 1600-5368

(

)-

trans

-1,2,3,4,4a,9a-Hexahydroanthrone

Roger A. Lalancette* and Hugh W. Thompson

Carl A. Olson Memorial Laboratories, Depart-ment of Chemistry, Rutgers University, Newark, NJ 07102, USA

Correspondence e-mail: [email protected]

Key indicators

Single-crystal X-ray study

T= 296 K

Mean(C–C) = 0.004 A˚

Rfactor = 0.064

wRfactor = 0.162

Data-to-parameter ratio = 14.2

For details of how these key indicators were automatically derived from the article, see http://journals.iucr.org/e.

#2005 International Union of Crystallography Printed in Great Britain – all rights reserved

The title compound, C14H16O, is largely flat and rigid, with

near coplanarity between the ketone and the aromatic ring. The packing includes two intermolecular C—H O C close contacts.

Comment

The title compound, (I), is the end product in a synthetic sequence designed for a senior chemistry majors’ under-graduate laboratory course (seeExperimental), the final step of which involves acid-catalyzed internal acylation intrans -2-benzylcyclohexanecarboxylic acid (Scribner & Miller, 1965). Both the transand the cisdiastereomers of the product are known, and the equilibrium between them has been shown to favor (I) by a ratio of 88:12 at 298 K (Thompson & Long, 1988). Thus (I) is isolated more easily than thecisepimer, and because (I) is also the higher melting of the pair by some 9 K, it is more easily purified as well.

Fig. 1 shows the asymmetric unit for (I), with its numbering. The molecule has no significant flexibility and is largely flat except for the H atoms; the r.m.s. deviation for all non-H atoms from their average plane is 0.190 (3) A˚ ; the partial flattening of the central ring in turn enforces a slight abnormal flattening in its fully saturated neighbor. Thus, the six internal tetrahedral bond angles for that ring are widened and vary from 110.9 (2) to 112.7 (3)_{, while the ring-carbon torsion}

Received 14 July 2005 Accepted 19 July 2005 Online 23 July 2005

Figure 1

angles all have absolute values between 51.6 (3) and 56.5 (4)_,

rather than the 60 _{expected for cyclohexane. The dihedral}

angle for the ketone (C8A/C9/C9A/O1) versus the aromatic ring is 8.69 (11)_{. This coplanarity provides almost the fullest}

possible degree of conjugation, reflected in the C O stretching frequency of the IR spectrum (KBr, 1676 cm1).

Fig. 2 shows the packing arrangement, involving centro-symmetric pairing of molecules. Despite the short interplanar separations for the aromatic rings (3.87 A˚ within the chosen cell, 3.67 A˚ across thebcface),–stacking is absent because of the offset of the aromatic rings from one another, evident in Fig. 2. Within the 2.7 A˚ range we routinely survey for non-bonded dipolar packing interactions (Steiner, 1997), two intermolecular C—H O C close contacts were found, involving H9A (2.66 A˚ ) in a centrosymmetrically related molecule, and H5A (2.61 A˚ ) in a molecule translationally related alongb(Table 1).

Experimental

Friedel–Crafts acylation of benzene with cis -cyclohexane-1,2-dicar-boxylic acid anhydride (AlCl3) yielded

2-benzoylcyclohexane-carboxylic acid, which was subjected to intentional base-catalyzed stereochemical equilibration to provide thetransepimer (Scribner & Miller, 1965; Lalancette et al., 1996). Subsequent catalytic hydrogenolysis, employing Pd/C in acetic acid, gave trans -2-benzyl-cyclohexanecarboxylic acid, and this was then cyclized at room temperature with H2SO4(Scribner & Miller, 1965). Sublimation of (I)

and recrystallization from hexane provided material of X-ray quality (m.p. 382 K).

Crystal data

C14H16O

Mr= 200.27 Triclinic,P1

a= 7.533 (5) A˚

b= 8.067 (7) A˚

c= 9.317 (5) A˚

= 82.06 (6)

= 80.95 (3)

= 81.31 (7)

V= 548.9 (7) A˚3

Z= 2

Dx= 1.212 Mg m

3

MoKradiation Cell parameters from 25

reflections

= 3.4–9.7

= 0.07 mm1

T= 296 (2) K

Parellelepiped, colourless 0.500.250.07 mm

Data collection

SiemensP4 diffractometer

!/2scans

Absorption correction: numerical (SHELXTL; Sheldrick, 1997)

Tmin= 0.981,Tmax= 0.989 2406 measured reflections 1926 independent reflections 1101 reflections withI> 2(I)

Rint= 0.035

max= 25.0

h=8!1

k=9!9

l=11!11 3 standard reflections

every 97 reflections

intensity decay: variation <2.5%

Refinement

Refinement onF2 R[F2_{> 2(F}2_{)] = 0.064}

wR(F2_{) = 0.162}

S= 1.03 1926 reflections 136 parameters

H-atom parameters constrained

w= 1/[2

(Fo2) + (0.0559P)2 + 0.1357P]

whereP= (Fo2+ 2Fc2)/3 (/)max<0.001

max= 0.13 e A˚

3

min=0.14 e A˚

3

Table 1

Hydrogen-bond geometry (A˚ ,_).

D—H A D—H H A D A D—H A

C9A—H9A O1i 0.98 2.66 3.413 (4) 134 C5—H5A O1ii

0.98 2.61 3.354 (4) 133

Symmetry codes: (i)xþ1;yþ2;zþ1; (ii)x;y1;z.

All H atoms were found in electron density difference maps but were placed in calculated positions and allowed to refine as riding on their respective C atoms [C—H = 0.98 A˚ for the aromatic and methine H atoms, C—H = 0.97 A˚ for the methylene H atoms, and

Uiso(H) = 1.2Ueq(C)].

Data collection: XSCANS (Siemens, 1996); cell refinement:

XSCANS; data reduction: XSCANS; program(s) used to solve structure: SHELXTL (Sheldrick, 1997); program(s) used to refine structure:SHELXTL; molecular graphics:SHELXTL; software used to prepare material for publication:SHELXTL.

References

Lalancette, R. A., Cote´, M. L. & Thompson, H. W. (1996).Acta Cryst.C52, 244–246.

Scribner, J. D. & Miller, J. A. (1965).J. Chem. Soc.pp. 5377–5380.

Sheldrick, G. M. (1997).SHELXTL. Version 5.10. Bruker AXS Inc., Madison, Wisconsin, USA.

Siemens (1996).XSCANS. Version 2.2. Siemens Analytical X-ray Instruments Inc., Madison, Wisconsin, USA.

Steiner, T. (1997).Chem. Commun.pp. 727–734.

Thompson, H. W. & Long, D. J. (1988).J. Org. Chem.53, 4201–4209.

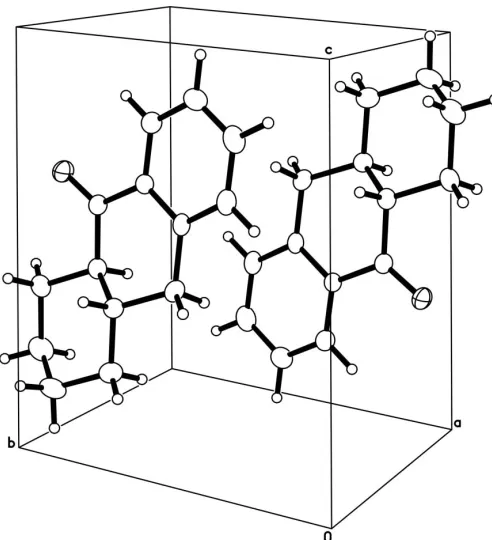

Figure 2

supporting information

sup-1 Acta Cryst. (2005). E61, o2685–o2686

supporting information

Acta Cryst. (2005). E61, o2685–o2686 [https://doi.org/10.1107/S1600536805023019]

(

±

)-

trans

-1,2,3,4,4a,9a-Hexahydroanthrone

Roger A. Lalancette and Hugh W. Thompson

(±)-trans-1,2,3,4,4a,9a-Hexahydroanthrone

Crystal data

C14H16O Mr = 200.27 Triclinic, P1 Hall symbol: -P 1

a = 7.533 (5) Å

b = 8.067 (7) Å

c = 9.317 (5) Å

α = 82.06 (6)°

β = 80.95 (3)°

γ = 81.31 (7)°

V = 548.9 (7) Å3

Z = 2

F(000) = 216

Dx = 1.212 Mg m−3

Melting point: 382 K

Mo Kα radiation, λ = 0.71073 Å

Cell parameters from 25 reflections

θ = 3.4–9.7°

µ = 0.07 mm−1

T = 296 K

Parellelepiped, colourless 0.50 × 0.25 × 0.07 mm

Data collection

Siemens P4 diffractometer

Radiation source: fine-focus sealed tube Graphite monochromator

2θ/θ scans

Absorption correction: numerical (SHELXTL; Sheldrick, 1997)

Tmin = 0.981, Tmax = 0.989

2406 measured reflections

1926 independent reflections 1101 reflections with I > 2σ(I)

Rint = 0.035

θmax = 25.0°, θmin = 2.2°

h = −8→1

k = −9→9

l = −11→11

3 standard reflections every 97 reflections intensity decay: variation <2.5%

Refinement

Refinement on F2

Least-squares matrix: full

R[F2 _{> 2σ(F}2_{)] = 0.064} wR(F2_{) = 0.162}

S = 1.03

1926 reflections 136 parameters 0 restraints

Primary atom site location: structure-invariant direct methods

Secondary atom site location: difference Fourier map

Hydrogen site location: inferred from neighbouring sites

H-atom parameters constrained

w = 1/[σ2_(F

o2) + (0.0559P)2 + 0.1357P]

where P = (Fo2 + 2Fc2)/3

(Δ/σ)max < 0.001

Δρmax = 0.13 e Å−3

Special details

Experimental. crystal mounted on glass fiber using cyanoacrylate cement

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 _{against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F}2_,

conventional R-factors R are based on F, with F set to zero for negative F2_{. The threshold expression of F}2 _{> σ(F}2_{) is used}

only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2

are statistically about twice as large as those based on F, and R-factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2₎

x y z Uiso*/Ueq

O1 0.2615 (3) 0.9955 (2) 0.6283 (2) 0.0638 (7)

C1 0.2729 (4) 1.0875 (3) 0.3302 (3) 0.0608 (9)

H1A 0.3500 1.1529 0.3672 0.073*

H1B 0.1477 1.1303 0.3627 0.073*

C2 0.3074 (6) 1.1091 (4) 0.1631 (4) 0.0851 (12)

H2A 0.2743 1.2266 0.1269 0.102*

H2B 0.4356 1.0787 0.1306 0.102*

C3 0.2000 (5) 1.0009 (4) 0.1016 (3) 0.0840 (12)

H3A 0.2285 1.0132 −0.0042 0.101*

H3B 0.0716 1.0384 0.1264 0.101*

C4A 0.2094 (4) 0.7881 (3) 0.3264 (3) 0.0506 (7)

H4AA 0.0795 0.8183 0.3579 0.061*

C4 0.2413 (5) 0.8169 (4) 0.1608 (3) 0.0677 (9)

H4A 0.1657 0.7513 0.1223 0.081*

H4B 0.3669 0.7768 0.1268 0.081*

C5 0.2265 (4) 0.4159 (3) 0.6212 (4) 0.0582 (8)

H5A 0.2174 0.3234 0.5658 0.070*

C6 0.2182 (5) 0.3862 (4) 0.7704 (4) 0.0711 (10)

H6A 0.2057 0.2725 0.8204 0.085*

C7 0.2272 (5) 0.5156 (4) 0.8506 (4) 0.0745 (10)

H7A 0.2192 0.4946 0.9575 0.089*

C8A 0.2567 (4) 0.7041 (3) 0.6288 (3) 0.0456 (7)

C8 0.2475 (4) 0.6738 (3) 0.7796 (3) 0.0623 (9)

H8A 0.2554 0.7658 0.8359 0.075*

C9 0.2747 (4) 0.8783 (3) 0.5567 (3) 0.0477 (7)

C9A 0.3110 (4) 0.9025 (3) 0.3921 (3) 0.0494 (7)

H9A 0.4408 0.8669 0.3645 0.059*

C10A 0.2475 (4) 0.5746 (3) 0.5476 (3) 0.0454 (7)

C10 0.2602 (4) 0.6054 (3) 0.3841 (3) 0.0524 (8)

H10A 0.1810 0.5375 0.3525 0.063*
