Dopaminium nitrate
Sofian Gatfaoui,aHouda Marouani,aThierry Roisnelband Hassouna Dhaouadic*
a
Laboratoire de Chimie des Mate´riaux, Faculte´ des Sciences de Bizerte, 7021 Zarzouna Bizerte, Tunisia,bCentre de Diffractome´trie X, UMR 6226 CNRS, Unite´ Sciences Chimiques de Rennes, Universite´ de Rennes I, 263 Avenue du Ge´ne´ral Leclerc, 35042 Rennes, France, andcLaboratoire des Mate´riaux Utiles, Institut
National de Recherche et d’Analyse Physico-chimique, Pole Technologique de Sidi-Thabet, 2020 Tunis, Tunisia
Correspondence e-mail: [email protected]
Received 10 April 2014; accepted 12 April 2014
Key indicators: single-crystal X-ray study;T= 150 K; mean(C–C) = 0.002 A˚; Rfactor = 0.043;wRfactor = 0.113; data-to-parameter ratio = 13.9.
The asymmetric unit of the title salt [systematic name: 2-(3,4-dihydroxyphenyl)ethanaminium nitrate], C8H12NO2
+
NO3
, contains two independent cations and two independent nitrate anions. The crystal structure consists of discrete nitrate ions stacked in layers parallel to (010). These layers are linkedvia the dopaminium cations by O—H O, N—H O and weak C—H O hydrogen bonds, forming a three-dimensional supramolecular network.
Related literature
For pharmacological properties of dopamine, see: Joneset al. (1999); Salamone & Correa (2002). For related structures, see: Gatfaoui et al. (2013, 2014a, 2014b); Marouani et al.(2012); Kefiet al.(2013). For the perchlorate salt of the title cation, see: Boghaei et al. (2008). For background to hydrogen bonding and aromatic– stacking interactions, see: Brown (1976); Blessing (1986); Janiak (2000).
Experimental
Crystal data
C8H12NO2+NO3
Mr= 216.20
Triclinic,P1
a= 8.3066 (4) A˚
b= 10.4856 (5) A˚
c= 11.2303 (7) A˚ = 79.623 (2) = 89.868 (2)
= 82.357 (2)
V= 953.37 (9) A˚3
Z= 4
MoKradiation = 0.13 mm1
T= 150 K
0.560.440.27 mm
Data collection
Bruker APEXII diffractometer Absorption correction: multi-scan
(SADABS; Bruker, 2006)
Tmin= 0.870,Tmax= 0.966
10787 measured reflections 4339 independent reflections 3583 reflections withI> 2(I)
Rint= 0.038
Refinement
R[F2> 2(F2)] = 0.043
wR(F2) = 0.113
S= 1.05 4339 reflections 312 parameters
H atoms treated by a mixture of independent and constrained refinement
max= 0.31 e A˚3
[image:1.610.314.564.357.515.2] [image:1.610.83.223.579.752.2]min=0.26 e A˚3
Table 1
Hydrogen-bond geometry (A˚ ,).
D—H A D—H H A D A D—H A
O1—H1O O8i
0.86 (2) 1.96 (2) 2.7871 (15) 163 (2) O2—H2O O5ii 0.89 (2) 1.80 (2) 2.6863 (16) 169.7 (19) O3—H3O O7iii
0.89 (2) 1.94 (2) 2.8017 (15) 164 (2) O4—H4O O9iv
0.89 (2) 1.83 (2) 2.7196 (16) 176.6 (19) N1—H1N O1iv
0.94 (3) 2.10 (3) 3.0125 (19) 163.3 (19) N1—H2N O6v
0.90 (2) 2.10 (2) 2.9893 (17) 172.1 (17) N1—H3N O8iv
0.88 (2) 2.26 (2) 2.9867 (17) 139.6 (17) N1—H3N O2vi
0.88 (2) 2.42 (2) 3.0223 (16) 126.6 (15) N2—H4N O7ii 0.92 (2) 2.28 (2) 3.0020 (16) 135.2 (15) N2—H4N O8i
0.92 (2) 2.59 (2) 3.2672 (18) 131.3 (14) N2—H5N O10vii
0.93 (2) 1.98 (2) 2.9079 (17) 175.7 (18) N2—H5N O9vii
0.93 (2) 2.50 (2) 3.1400 (17) 126.3 (15) N2—H6N O6viii
0.93 (2) 2.17 (2) 2.8608 (17) 130.2 (15) N2—H6N O3ii
0.93 (2) 2.30 (2) 3.0236 (17) 134.5 (14) C1—H1B O5v
0.97 2.40 3.0783 (19) 126 C2—H2A O4 0.97 2.46 3.4090 (19) 166
Symmetry codes: (i) xþ2;y;zþ1; (ii) xþ1;yþ1;z; (iii) xþ1;yþ2;z; (iv) xþ2;yþ1;zþ1; (v)xþ1;y;z; (vi)x;yþ1;z; (vii)
x1;y;z; (viii)x;y1;z.
Data collection:APEX2(Bruker, 2006); cell refinement:SAINT (Bruker, 2006); data reduction:SAINT; program(s) used to solve structure:SIR97(Altomare et al., 1999); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: ORTEP-3 for Windows (Farrugia, 2012) and DIAMOND (Bran-denburg & Putz, 2005); software used to prepare material for publication: WinGX (Farrugia, 2012) and CRYSCAL (T. Roisnel, local program).
Supporting information for this paper is available from the IUCr electronic archives (Reference: BG2526).
organic compounds
Acta Cryst.(2014). E70, o571–o572 doi:10.1107/S1600536814008265 Gatfaouiet al.
o571
Acta Crystallographica Section E
Structure Reports
Online
Altomare, A., Burla, M. C., Camalli, M., Cascarano, G. L., Giacovazzo, C., Guagliardi, A., Moliterni, A. G. G., Polidori, G. & Spagna, R. (1999).J. Appl. Cryst.32, 115–119.
Blessing, R. H. (1986).Acta Cryst.B42, 613–621.
Boghaei, D. M., Baniyaghoob, S., Najafpour, M. M. & McKee, V. (2008).Acta Cryst.E64, o2268.
Brandenburg, K. & Putz, H. (2005).DIAMOND. Crystal impact GbR, Bonn, Germany.
Brown, I. D. (1976).Acta Cryst.A32, 24–31.
Bruker (2006).APEX2,SAINTandSADABS.Bruker AXS Inc., Madison, Wisconsin, USA.
Gatfaoui, S., Dhaouadi, H., Roisnel, T., Rzaigui, M. & Marouani, H. (2014b).
Acta Cryst.E70, o398–o399.
Gatfaoui, S., Marouani, H. & Rzaigui, M. (2013).Acta Cryst.E69, o1453. Gatfaoui, S., Rzaigui, M. & Marouani, H. (2014a).Acta Cryst.E70, o198. Janiak, J. (2000).J. Chem. Soc. Dalton Trans.pp. 3885–3896.
Jones, S. R., Joseph, J. D., Barak, L. S., Caron, M. G. & Wightman, R. M. (1999).J. Neurochem.73, 2406–2414.
Kefi, C., Marouani, H. & Rzaigui, M. (2013).Acta Cryst.E69, o1475. Marouani, H., Raouafi, N., Toumi Akriche, S., Al-Deyab, S. S. & Rzaigui, M.
(2012).Eur. J. Chem.9, 772–779.
supporting information
sup-1
Acta Cryst. (2014). E70, o571–o572
supporting information
Acta Cryst. (2014). E70, o571–o572 [doi:10.1107/S1600536814008265]
Dopaminium nitrate
Sofian Gatfaoui, Houda Marouani, Thierry Roisnel and Hassouna Dhaouadi
S1. Introduction
Dopamine is an important regulator of many physiological functions, including control of locomotion, cognition, affect,
and neuroendocrine hormone secretion. The dopamine transporter (DAT) plays an important role in calibrating the
duration and intensity of dopamine neurotransmission in the central nervous system (Jones et al., 1999). In addition,
dopamine is an important signal transmitter between the neurons and muscles (Salamone & Correa, 2002).
S2. Experimental
S2.1. Synthesis and crystallization
An aqueous solution containing 1 mmol of HNO3 in 10 ml of water was added to 1 mmol of dopamine hydrochloride in
10 ml of water. The obtained solution was stirred for 15 min and then left to stand at room temperature. Colorless single
crystals of the title compound were obtained after some days.
S2.2. Refinement
The hydrogen atoms bonded to oxygen and nitrogen atoms were located from a difference map and were allowed to
refine. The rest of the H atoms were treated as riding, with C—H = 0.97 Å (methylene), or 0.93 Å (methine), with Uiso(H)
= 1.2Ueq(C).
S3. Results and discussion
In this work, we report the preparation and the structural investigation of the dopaminium nitrate, C8H12NO2·NO3 (I).
The asymmetric unit of (I) is composed of two independent dopaminium cations and two independent nitrate anions
(Figure 1). The structure of the compound consists of discrete nitrate ions stacked in layers parallel to the (010) plane
separated by organic cations (Figure 2). The structural cohesion is established by a three-dimensional network of N—
H···O, O—H···O and weak C—H···O hydrogen bonds (Brown, 1976; Blessing, 1986).
Interatomic bond lengths and angles of the nitrate anions spread respectively within the ranges [1.2448 (16)–1.2596 (15)
Å] and [119.50 (12)–120.87 (12)°]. These geometrical features have also been noticed in other crystal structures
(Marouani et al., 2012; Kefi et al., 2013; Gatfaoui et al., 2013, 2014a, 2014b).
In this atomic arrangement two independent dopaminium cations are present. Examination of the organic cations shows
that the bond distances and angles show no significant difference from those obtained in other salt involving the same
organic groups (Boghaei et al., 2008). The aromatic rings are planar with an average deviation of 0.0014 Å and form a
dihedral angle of 7.81°. The interplanar distance between nearby phenyl rings is in the vicinity of 4.16 Å, a bit longer than
required for a medium strength π–π interaction (Janiak, 2000).
The established H-bonds of types O—H···O, N—H···O and C—H···O (Table 1) involve oxygen atoms of the nitrate

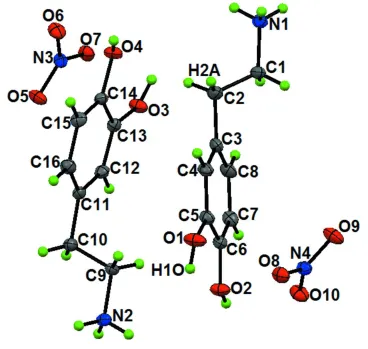

Figure 1
supporting information
sup-3
[image:5.610.122.482.70.407.2]Acta Cryst. (2014). E70, o571–o572
Figure 2

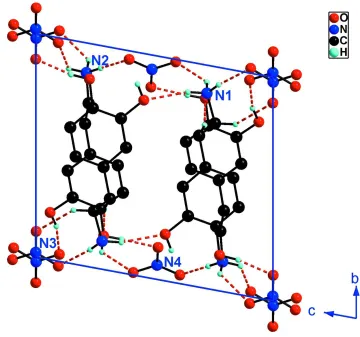

Projection of (I) along the a axis. The H-atoms not involved in H-bonding are omitted. N atoms labelled with their
generic names (No symmetry codes applied)
2-(3,4-dihydroxyphenyl)ethanaminium nitrate
Crystal data
C8H12NO2+·NO3−
Mr = 216.20
Triclinic, P1
Hall symbol: -P 1
a = 8.3066 (4) Å
b = 10.4856 (5) Å
c = 11.2303 (7) Å
α = 79.623 (2)°
β = 89.868 (2)°
γ = 82.357 (2)°
V = 953.37 (9) Å3
Z = 4
F(000) = 456
Dx = 1.506 Mg m−3
Mo Kα radiation, λ = 0.71073 Å
Cell parameters from 3958 reflections
θ = 2.5–27.5°
µ = 0.13 mm−1
T = 150 K
Prism, colorless 0.56 × 0.44 × 0.27 mm
Data collection
Bruker APEXII diffractometer
Graphite monochromator
CCD rotation images, thin slices scans
Absorption correction: multi-scan
(SADABS; Bruker, 2006)
Tmin = 0.870, Tmax = 0.966
Rint = 0.038
θmax = 27.5°, θmin = 3.0°
k = −13→13
l = −14→14
Refinement
Refinement on F2
Least-squares matrix: full R[F2 > 2σ(F2)] = 0.043
wR(F2) = 0.113
S = 1.05
4339 reflections 312 parameters 0 restraints
Primary atom site location: structure-invariant direct methods
Secondary atom site location: difference Fourier map
Hydrogen site location: inferred from neighbouring sites
H atoms treated by a mixture of independent and constrained refinement
w = 1/[σ2(F
o2) + (0.0546P)2 + 0.2245P]
where P = (Fo2 + 2Fc2)/3
(Δ/σ)max < 0.001
Δρmax = 0.31 e Å−3
Δρmin = −0.26 e Å−3
Extinction correction: SHELXL97 (Sheldrick,
2008), Fc*=kFc[1+0.001xFc2λ3/sin(2θ)]-1/4
Extinction coefficient: 0.061 (4)
Special details
Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.
Refinement. Refinement of F2 against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F2,
conventional R-factors R are based on F, with F set to zero for negative F2. The threshold expression of F2 > σ(F2) is used
only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2
are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.
Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2)
x y z Uiso*/Ueq
O1 0.88256 (15) 0.20879 (11) 0.45485 (10) 0.0270 (3)
O2 0.89365 (13) 0.15989 (10) 0.22563 (10) 0.0231 (3)
O3 0.52188 (13) 0.78884 (10) 0.05973 (9) 0.0218 (2)
O4 0.50913 (13) 0.84937 (9) 0.28522 (10) 0.0199 (2)
O5 0.13563 (13) 0.88517 (10) 0.00083 (10) 0.0240 (3)
O6 0.23349 (13) 1.02198 (11) 0.09420 (10) 0.0247 (3)
O7 0.27175 (12) 1.03129 (10) −0.09879 (9) 0.0212 (2)
O8 1.24531 (13) 0.01122 (10) 0.58958 (10) 0.0240 (3)
O9 1.39421 (14) 0.14414 (11) 0.48499 (10) 0.0283 (3)
O10 1.24180 (13) 0.03858 (11) 0.39320 (10) 0.0264 (3)
N1 1.03491 (17) 0.87415 (12) 0.27899 (14) 0.0202 (3)
N2 0.47018 (16) 0.13341 (12) 0.21268 (13) 0.0181 (3)
N3 0.21404 (14) 0.97956 (11) −0.00085 (11) 0.0170 (3)
N4 1.29264 (14) 0.06439 (11) 0.48912 (11) 0.0189 (3)
C1 1.02008 (18) 0.74577 (14) 0.24467 (15) 0.0226 (3)
H1A 1.1233 0.6897 0.2606 0.027*
H1B 0.9964 0.7590 0.1584 0.027*
C2 0.89005 (19) 0.67827 (14) 0.31175 (16) 0.0252 (4)
H2A 0.7850 0.7292 0.2887 0.030*
