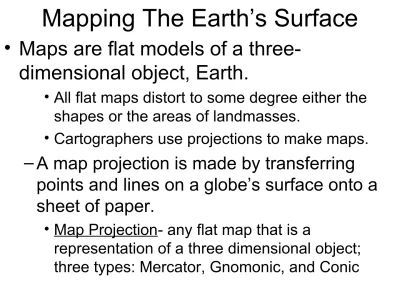

Mapping The Earth’s Surface

• Maps are flat models of a

three-dimensional object, Earth.

• All flat maps distort to some degree either the shapes or the areas of landmasses.

• Cartographers use projections to make maps.

– A map projection is made by transferring

points and lines on a globe’s surface onto a

sheet of paper.

(2)

Mercator Projection

Mercator_Mercator- a map projection in which both the _{- a map projection in which both the}

meridians (evenly spaced) and parallels (unevenly

spaced) are straight and parallel, forming a grid. Use to

be used for navigation. Normally used for areas near

the equator

(3)

Gnomonic Projection

Gnomonic

Gnomonic- parallels appear unevenly spaced, - parallels appear unevenly spaced, concentric circles;

concentric circles; meridians_meridians appear as straight appear as straight lines radiating from a central point; all great circles

lines radiating from a central point; all great circles

appear as straight lines.

(4)

Conic Projections

•Conic_Conic- meridians _{- meridians}

converge at the poles; the

parallels appear as equally

spaced, concentric curves

spaced, concentric curves •Polyconic Projection_{Polyconic Projection}- -

several conic projections

put together to form a

larger map

(5)

Map Reading

• Legend- the portion of a

map that lists all symbols and their meanings,

distances, and intervals; aides map reading

• Map Direction- maps are usually drawn with north at the top of the page and

south at the bottom

• Scale- the comparison of the distance on the map to the actual distance covered

(6)

Topographic Maps

• Topographic Map- scientific maps that show

surface features (such as mountains and

valleys) by using contour intervals; changes 3D

into 2D

– Topographic maps use lines, symbols, and colors to represent changes in elevation and features on Earth’s surface.

– Topography- surface features of the earth

• Elevation- the height, in feet or meters, above

or below sea level

(7)

(8)

Making Topo Maps

• Contour Lines-lines on a map that connect points of the same elevation

• Contour Interval- the difference (in feet or meters) from one contour line to the next

• Relief- the change in elevation from the lowest to the highest points of an area; sometimes referred to as vertical relief

(9)

(10)

Section Assessment

Match the following terms with their

definitions.

___ projection

___ contour interval ___ map scale

___ map legend

A. the difference in elevation between two side-by-side contour lines

B. a diagram that explains what the symbols on a map represent

C. a map made by transferring points and lines on a globe’s surface onto a sheet of paper

D. the ratio between distances on a map and actual distances on the surface of Earth

(11)

TOPOGRAPHIC MAPS

• Topo maps that show elevation above sea level with contour lines.

• Contour lines are lines that connect points of equal elevation.

(12)

What you see on a Topo

• The Contour interval is the change in elevation between isolines.

• This varies from map to map and is always listed in the key.

• Distance: A key is usually provided giving a scale, where 1 inch is equal to a set distance. • The compass direction on contour maps is

provided using a compass rose.

• Man made objects are also displayed on

(13)

Topographic Map Rules

!

• 1) Isolines NEVER cross!!!! The lines connect points of equal value!!

• 2) Moving from one regular contour line to another ALWAYS represents a change in elevation

• 3) On a hill with a consistent slope, there are ALWAYS four intermediate contours for every index contour.

(14)

• A series of

closed contours (the contours make a circle) represents a hill. • If the closed

contours are hachured it indicates a closed

(15)

Depression Contours

–Depression contour lines are used to represent features that are lower than the surrounding area.

–On a map, depression

(16)

The Rule of V’s

• Contour lines

crossing a stream valley will form a "V" shape pointing in

the uphill (and

upstream) direction. • Think of the V as

being an arrow pointing in the

(17)

(18)

TOPOGRAPHIC

PROFILES

• To determine what the actual land

shape would be

• 1) First lay a strip of paper along the line that you wish to turn into a profile

(19)

COMPLETING THE PROFILE

(20)

Completed Profile:

(21)

Calculating a Slope

• 1) Decide on an area for which you want to

calculate the slope (note, it should be an area where the slope direction does not change; do not cross the top of a hill or the bottom of a valley).

• 2) Once you have decided on an area of interest, draw a straight line perpendicular to the contours on the slope. For the most accuracy, start and end your line on, rather than between, contours on the map. • ₃₎ _{Measure the length of the line you drew and,}

(22)

•

4)

Determine the total elevation

change along the line you drew

(subtract the elevation of the lowest

contour used from the elevation of the

highest contour used).

– You do not need to do any conversions on this measurement, as it is a real-world

elevation change.

•

5)

To calculate the angle of the slope,

divide the elevation change in feet by

(23)

The elevation of Raleigh is 282 feet. The elevation at Morganton is 1634 feet.

What is the gradient in feet/mile?

Distance between the two cities is 115 miles. Show all work.

gradient = change in elevation

distance

= 1634 ft -282 ft

115 miles

(24)

The elevation of Whiteville is 99ft.

The elevation at Lumberton Hill is 144ft. What is the gradient in ft/mi?

The distance between the two cities is 75 miles. Show all work.

gradient = change in elevation

distance

= 144ft– 99ft

75 mi

= 45 ft

75 mi
