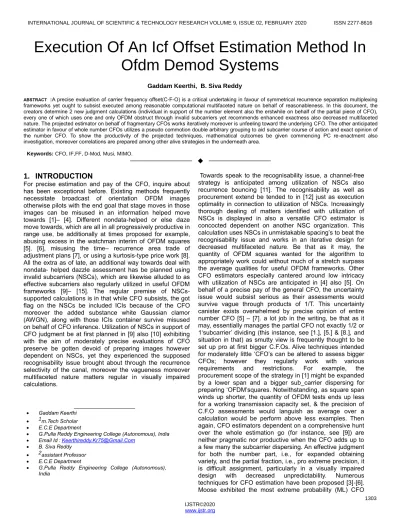

Execution Of An Icf Offset Estimation Method In
Ofdm Demod Systems
Gaddam Keerthi, B. Siva Reddy
ABSTRACT :A precise evaluation of carrier frequency offset(C-F-O) is a critical undertaking in favour of symmetrical recurrence separation multiplexing frameworks yet ought to subsist executed among reasonable computational multifaceted nature on behalf of reasonableness. In this document, the creators determine 2 new judgment calculations (individual in support of the number element also the erstwhile on behalf of the partial piece of CFO), every one of which uses one and only OFDM obstruct through invalid subcarriers yet recommends enhanced exactness also decreased multifaceted nature. The projected estimator on behalf of fragmentary CFOs works iteratively moreover is unfeeling toward the underlying CFO. The other anticipated estimator in favour of whole number CFOs utilizes a pseudo commotion double arbitrary grouping to aid subcarrier course of action and exact opinion of the number CFO. To show the productivity of the projected techniques, mathematical outcomes be given commencing PC re-enactment also investigation, moreover correlations are prepared among other alive strategies in the underneath area.
Keywords: CFO, IF,FF, D-Mod, Musi, MIMO.
—————————— ——————————
1.
INTRODUCTION
For precise estimation and pay of the CFO, inquire about has been exceptional before. Existing methods frequently necessitate broadcast of orientation OFDM images otherwise pilots with the end goal that stage moves in those images can be misused in an information helped move towards [1]– [4]. Different nondata-helped or else daze move towards, which are all in all progressively productive in range use, be additionally at times proposed for example, abusing excess in the watchman interim of OFDM squares [5]. [6], misusing the time– recurrence area trade of adjustment plans [7], or using a kurtosis-type price work [8]. All the extra as of late, an additional way towards deal with nondata- helped dazzle assessment has be planned using invalid subcarriers (NSCs), which are likewise alluded to as effective subcarriers also regularly utilized in useful OFDM frameworks [9]– [15]. The regular premise of NSCs-supported calculations is in that while CFO subsists, the got flag on the NSCs be included ICIs because of the CFO moreover the added substance white Gaussian clamor (AWGN), along with those ICIs container survive misused on behalf of CFO inference. Utilization of NSCs in support of CFO judgment be at first planned in [9] also [10] exhibiting with the aim of moderately precise evaluations of CFO preserve be gotten devoid of preparing images however dependent on NSCs, yet they experienced the supposed recognisability issue brought about through the recurrence selectivity of the canal, moreover the vagueness moreover multifaceted nature matters regular in visually impaired calculations.
Towards speak to the recognisability issue, a channel-free strategy is anticipated among utilization of NSCs also recurrence bouncing [11]. The recognisability as well as procurement extend be tended to in [12] just as execution optimality in connection to utilization of NSCs. Increasingly thorough dealing of matters identified with utilization of NSCs is displayed in also a versatile CFO estimator is concocted dependent on another NSC organization. This calculation uses NSCs in unmistakable spacing‘s to beat the recognisability issue and works in an iterative design for decreased multifaceted nature. Be that as it may, the quantity of OFDM squares wanted for the algorithm to appropriately work could without much of a stretch surpass the average qualities for useful OFDM frameworks. Other CFO estimators especially cantered around low intricacy with utilization of NSCs are anticipated in [4] also [5]. On behalf of a precise pay of the general CFO, the uncertainty issue would subsist serious as their assessments would survive vague through products of 1/T. This uncertainty canister exists overwhelmed by precise opinion of entire number CFO [5] – [7]. a lot job in the writing, be that as it may, essentially manages the partial CFO not exactly 1/2 or 1‗subcarrier‘ dividing (this instance, see [1.], [5.] & [8.], and situation in that) as smutty view is frequently thought to be set up pro at first bigger C.F.Os. Alive techniques intended for moderately little ‗CFO‘s can be altered to assess bigger CFOs; however they regularly work with various requirements and restrictions. For example, the procurement scope of the strategy in [1] might be expanded by a lower span and a bigger sub_carrier dispersing for preparing ‗OFDM‘squares. Notwithstanding, as square span winds up shorter, the quantity of OFDM tests ends up less for a working transmission capacity set, & the precision of C.F.O assessments would languish as average over a calculation would be perform above less examples. Then again, CFO estimators dependent on a comprehensive hunt over the whole estimation go (for instance, see [9]) are neither pragmatic nor productive when the CFO adds up to a few many the subcarrier dispersing. An effective judgment for both the number part, i.e., for expanded obtaining variety, and the partial fraction, i.e., pro extreme precision, it
_________________
Gaddam Keerthi
1m.Tech Scholar
E.C.E Department
G.Pulla Reddy Engineering College (Autonomous), India
Email Id : [email protected]
B. Siva Reddy
2assistant Professor
1304 exactness in the CFO estimation, the majority of the
techniques referenced above require a particular preparing image structure so their application to the summed up preparing image is constrained. As of late, a proficient three-advance CFO estimation technique for which the presentation is autonomous from the structure of the preparation image has been created by Ren et al. [7]. The Ren's technique does give the precise estimation, yet in addition has an estimation extend as enormous as generally speaking sign data transfer capacity without loss of exactness. Nonetheless, the Ren's strategy has an issue that the likelihood of discovery of the whole number recurrence balance (IFO) differs as indicated by the partial recurrence counterbalance (FFO) change.
2.
EXISTED
METHOD
Symmetrical recurrence Division_Multiplexing (O.F.D.M) is an adjustment conspires for more- rate message image broadcast. A plan utilizes lot of symmetrical sub frequencies to utilize the accessible transmission capacity. The OFDM likewise embeds a cyclic_prefix (C.P) to relieve the impact of multiple path engendering. Be that as it may, the OFDM is touchy to transporter recurrence balanced (C.F.O). The C.F.O compresses symmetry among sub.carrier& presents between transporter impedance. For twist less recuperation of MSG images, the C.F.O should be resolved ahead of de_modulation isdone at the collector. The C.F.O can be part into the number part called IFO and the fragmentary part called FFO. After the FFO is redressed, the IFO can be dictated by assessing the invalid subspace range of estimation in Equation (4) of [1] with z being supplanted by similarly separated focuses on the unit circle. The thought was utilized in [2]. Another I.F.O opinion strategy was future in [3], by assessing the sizes of the considerable number of components in the demodulated estimation (separate Fourier change (sfc) of the estimation). The earlier will be
Our finding is that the Demod-IFO is progressively touchy to channel zero (or profound blur) areas than the MUSIC-IFO, as appeared hypothetical investigation in above and thus the presentation of the Demod-IFO is more terrible than that of the MUSICIFO, from reenactment results in beneath. The Demod-IFO is guaranteed [3] to be quick as contrasted and the MUSIC-IFO. The FFO might move the IFO gauge far commencing the genuine esteem. An IFO move throughuniform one example can reason an enormous piece blunder rate (BER). In this way, the FFO ought to be remunerated before the IFO estimation. The creators in [3] proposed to utilize the technique in [6] for the FFO estimation. The strategy in [6] decides the FFO from the stage contrast amongst the CP portion of the estimation of a block and the last Ncp got tests of a similar square where Ncp is the distance of the CP (for example figure of tests in the CP). Nonetheless, that technique Mechanism for single path channels. The SUI-3 direct [7] was utilized in the recreation portion of [3]. It encompasses=III taps through deferrals of 0, 0.5 and 1ms. As indicated by IEEE 802.16 gauges, the permitted inspecting recurrence aimed at the SUI-3 divert is in the scope of 1 ¡ 32 MHz. At that point the
examining interim reaches commencing 1 to 0.03125ms also the SUI-3 channel is a multi-way station through the length of at any rate 2. Hence, that strategy is certainly not an appropriate decision.
3.
ALGORITHM
DESCRIPTION
Figure: 1offset method
A relationship among‘s the gotten data bearing OFDM flag also is major registered as well as probability work takes the type of
In pilot-supported estimators talked about in [14], [15], its estimation go for recurrence equivocalness isn't constrained, while estimation scope of our methodology relies upon the parameters and on the grounds that a mind boggling plane is partitioned into areas as appeared (14). In this way, the recurrence estimation scope of the proposed estimator is constrained by Which is because of the way to facilitate the example of stage pivot is rehashed each subcarrier. The estimation execution of strategies created in [14], [15] vigorously relies upon the quantity of flyer images identified at the collector not just on the quantity of utilized subcarriers, subsequently the length of connection is restricted to the quantity of pilot images. With the expansion of, its guesstimate execution is upgraded. To accomplish a decent effectiveness in regular frameworks, be that as it may, the proportion of the quantity of pilot images on behalf of consideration assessment to the quantity of data images obligation be reserved to a base, while in our technique, the limitation is autonomous of the quantity of pilot images as appeared (14), which container be reached out to the distance of FFT. Along these lines, we canister imagine that the projected estimator accomplishes progressively precise execution at the expense of the calculation load. In our methodology, information can be either pilot information or data information since they are basically rehashed more than two back to back OFDM squares. Along these lines, the projected estimator container be one or the other pilot-helped or else non-pilot-pilot-helped. On account of required. the non-pilot-helped estimator, as talked about over, a few adjustments of image structure. The NSCs of the signal square canister be non- continuous. The recognisability situation son behalf of the non-sequential instance are additional troublesome than to facilitate in favor of the continuous event. In this manner in the continuation, just
Demod- IFO arrangement canister be outlined as in the accompanying hypothesis. Hypothesis 3.1: Undertake that the NSCs of the reference point square are back to back. On the off chance that (1) Hn1 1 6¼ 0, (2) HnN Pþ1 6¼ 0 and (3) definitely not channel recurrence reactions aimed atevery N
1306 EbNo = 3 dB, 6894 errors, BER = 0.068941
EbNo = 4 dB, 3971 errors, BER = 0.039711 EbNo = 5 dB, 2171 errors, BER = 0.02171 EbNo = 6 dB, 978 errors, BER = 0.0097802
Figure: 2 estimation of offset signal
EbNo = 7 dB, 354 errors, BER = 0.0035401 EbNo = 8 dB, 104 errors, BER = 0.00104 EbNo = 9 dB, 14 errors, BER = 0.00014
Fig.2 estimate that signal from selected source here the frequency is estimated based on ICI scenario timing offset estimation is done with CFO.
Figure: 3 BER of offset signal
Fig.3 estimation is done with BER here 1st one is BER with offset and fraction BER without offset, semi log scale is established between these two curve.
Figure: 4 BER for conventional offset signal
Fig.4 BER of conventional graphical representation is shown here the smooth curve is observed the SNR is
Figure: 5 BER vs. SNR of curve
Fig.5 discussed about BER and SNR these parameters are analyzed with fitness curve these are mainly empirical and exponential.
Figure: 6 p(E) detection curve
Demod analysis done here IFO is an factor discussed
Figure: 7 IFO detection error curve
Fig.7. explains that improved music and demod correlation with beak estimation methods are discussed here the values based on p=250,p=200
Figure: 8 p(E) length detection curve
1308
Figure: 10.RMSE of CFO OSCF-CFO
Figure: 11.TOA performance
Figure: 13.NT=NR=6 BER performance
6.
CONCLUSION
This work abstains been built up an IFO estimator on behalf of OFDM frameworks. The exhibition of the anticipated estimator is contrasted and that of ordinary estimators, also it is appeared by reproduction that the anticipated estimator provides exact appraisals of IFO deprived of the guide of aviator images. In the meantime, it is discovered that there are exchange offs amongst the estimation execution in addition to approximation go, contingent upon the distance of CP as well as measure of returning move. A technique in place of the IFO assessment dependent on the range of demodulated estimation takes remained contrasted and the single dependent on the invalid subspace range of estimation through investigation in addition to reproduction. The previous is produced aimed at an altered OFDM NSC arrangement where NSCs are situated amidst the accessible data transfer capacity, while the last depends on the ordinary OFDM NSC structure.
