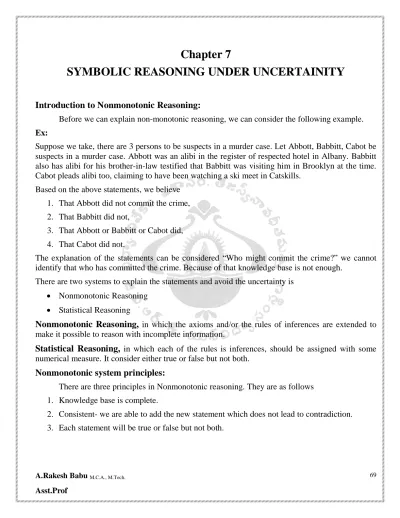

Chapter 7
SYMBOLIC REASONING UNDER UNCERTAINITY
Introduction to Nonmonotonic Reasoning:
Before we can explain non-monotonic reasoning, we can consider the following example.
Ex:
Suppose we take, there are 3 persons to be suspects in a murder case. Let Abbott, Babbitt, Cabot be suspects in a murder case. Abbott was an alibi in the register of respected hotel in Albany. Babbitt also has alibi for his brother-in-law testified that Babbitt was visiting him in Brooklyn at the time. Cabot pleads alibi too, claiming to have been watching a ski meet in Catskills.
Based on the above statements, we believe 1. That Abbott did not commit the crime, 2. That Babbitt did not,
3. That Abbott or Babbitt or Cabot did, 4. That Cabot did not.
The explanation of the statements can be considered “Who might commit the crime?” we cannot identify that who has committed the crime. Because of that knowledge base is not enough.
There are two systems to explain the statements and avoid the uncertainty is Nonmonotonic Reasoning
Statistical Reasoning
Nonmonotonic Reasoning,
in which the axioms and/or the rules of inferences are extended tomake it possible to reason with incomplete information.
Statistical Reasoning,
in which each of the rules is inferences, should be assigned with some numerical measure. It consider either true or false but not both.Nonmonotonic system principles:
There are three principles in Nonmonotonic reasoning. They are as follows 1. Knowledge base is complete.
2. Consistent- we are able to add the new statement which does not lead to contradiction. 3. Each statement will be true or false but not both.
Logics for Nonmonotonic reasoning
Monotonicity is fundamental to the definition of first-order predicate logic, we need some logics to support nonmonotonicity.
The formal approach should posses all the features given,
Defines the set of possible words according to the facts we have.
Provides a way to say, it is preferable to believe in some model rather others. Provides the basis for implementation.
Nonmonotonic Reasoning:
It is basically extension of first order predicate logic to include model operator say M. the purpose of this is allow for consistency.
Ex: (x): play-instrument(x) ^ Mimprovise (x) musician (x)
It states that for all x if play an instrument and the fact that x can improve consistent with all other knowledge then we can infer that x is musician. How we can define consistency? One common solution is, to show that fact p is true attempt to prove, &p. If we fail we may say that p is consistent.
Ex: x: Republican(x) ^ M pacifist(x) pacifist(x)
DEFAULT REASONING:
Default reasoning is one type of non-monotonic reasoning, which treats conclusions as, believed until a better reason is found to believe something else.
Two different approaches to deal with non-monotonic system are: Nonmonotonic logic
Default logic
Nonmonotonic logic:
Nonmonotonic logic is one in which the language of first order predicate logic is augmented with a modal operator M, which can be read as “is consistent”.Non-monotonic Logic defines the set of theorems that can be derived from a set of wff’s A to be the intersection of the sets of theorems that results from the various ways in which the wff’s of A might be combined.
A Λ MB B ¬A Λ MB B
We conclude:
Default Logic:
Default reasoning is another form of non-monotonic reasoning .it eliminates the need to explicitly store all the facts regarding a situation. Default logic introduces a new inferences rule.
A:B C
This states that if A is provable and it is consistent to assume B then conclude C. This is similar to Nonmonotonic logic. In the place of ‘M’ in NML, we substitute ‘:’ in Default Logic.
Based on the above example, we can provide the 2 rules as
1. A:B C 2. ¬A:B C
Similarly, we can write these statements as
If A is a republican: if we assume that B is not pacifist B is not Pacifist
If A is a Quaker: if we assume that B is not pacifist B is Pacifist
Two kinds of Nonmonotonic reasoning that can define in these logics are:
1. Abduction 2. Inheritance
Abduction:
It is opposite process of deduction. We present the abductive inference rule as Assertion Q
Implication PC Q Conclusion P
The arrow mark () represent the possible casual relationship.abductive inference in based on the issue of known casual knowledge to explain a conclusion or to justify a conclusion.
Inheritance:
Inheritance is a basis for inheriting attribute values from a prototype description of a class to individual entities that belong to the class. Inheritance says that “An object inherits attribute values from all the classes which it is member unless doing so leads to contradiction, in which case a value from a more restricted class has precedence over a value from a broader class”.
Ex: Base Ball Game
In this we can combine more than one statement in the following way.
1. Adult Male (x): height (x, 5’10”)
Height (x, 5’10”)
2. Baseball player (x): height(x, 6’ 1”) Height(x, 6’ 1”)
If it is considered to assume that, x is not a baseball player then x height is 5’ 10”.
x:Adult Male (x): ¬Baseball player (x) ^ Height (x, 5’10”)
Height (x, 5’10”)
MINIMALIST REASONING:
Minimalist reasoning follows the idea that “there are many fewer true statements than false ones. If something is true and relevant it makes sense to assume that is has been entered into our knowledgebase. Therefore, assume that the only true statements are those that necessarily must be true in order to maintain the consistency of knowledge base”.
Two kinds of minimalist reasoning are:
(1) Closed world assumption (CWA). (2) Circumscription.
Closed world assumption:
Another form of assumption made with regard to incomplete knowledge, is more global in nature than single defaults. This type of assumption is useful in application where most of the facts are and it is, therefore, reasonable to assume that if a proposition cannot be proven, it is false. This is known as the closed world assumption with failure as negation. This means that in a kb if the ground literal p(a) is not provable, then ~p(a) is assumed to hold true. CWA is another form of non-monotonic reasoning. CWA is essentially the formalism under which prolog operates and prolog has been shown to be effective in numerous application.Disadvantages:
1. A knowledge base augmented with CWA is not consistent. 2. CWA assumptions are not always true in the world.
3. CWA forces completion of a knowledge base by adding the negation assertion ¬P whenever it is consistent to do so. But the assignment of a property to some predicate P and its complement to the negation of P may be arbitrary.
Example:
Define a predicate SINGLE and create knowledge base. SINGLE (john)
SINGLE (Mary)
Now if we ask about john then answer may be ¬
SINGLE (john). Suppose we choose the predicate married. Then the knowledge base may be ¬Married (john)
¬Married (Mary)
If we ask about john the CWA may give the answer as ¬ Married (john)
Circumscription:
Circumscription is a procedure in which we add new axioms to the existing knowledge base and the effect of these is to force a minimal interpretation on a selected portion of the knowledge base. Each specific axiom describes a way that the set of values for which a particular axiom of the original theory is true is to be circumscribed.
CWA does not capture all of the idea. It has two limitations:
CWA operates on individual predicates with out considering the interactions among predicates that are there in the knowledge base.
CWA assumes that all predicates have all of their instances listed. But this is not true in many knowledge-based systems.
Circumscription overcomes that above limitations.
Example:
Suppose we have a university world situation in which there are two known students. We may wish to state that the known students are the only students to circumscribe the students.
i.e. Student (a) Student (b)
We have the circumscriptive inferences as even Student (a) & Student (b) infer as,
Augmenting problem solver:
It deals with how we can write a program that solves problems using these facts. We will now discuss how to write programs for logical formulas. We knew that the problem solving can be done using either forward or backward reasoning. Problem can be solved by using uncertain knowledge can also be done by using these two methods.
Reason forward from what is known. Treat monotonically derivable conclusions the same way monotonically derivable ones are handled. Nonmonotonic reasoning systems that support this kind of reasoning allow standard forward chaining rules to be augmented with unless clauses, which introduce a basis for reasoning by default. Control is handled in the same way that all other control decisions in the systems are made.
Reason backward to determine whether some expression P is true. Nonmonotonic reasoning systems that support this type of reasoning may do either one or both of the following two things.
Allow default clauses in backward reasoning rules.
Support a kind old discussion in which an attempt is made to construct argument both in favor of p and opposed to that.
DFS and BFS:
DFS:
In this first search, the search proceeds along with a branch of tree. This method can be implemented in three ways as follows.
1. Dependency Directed Backtracking.
2. Justification Based Truth Maintenance System. 3. Logic Based Truth Maintenance System.
1. Dependency Directed Backtracking
The effective depth first search tree may be reduced by doing one search from in an abstract to get rough solution and then doing another search formalism in the actual space to refine the solution.
Backtracking in ordinary depth-first search is called chronological backtracking because decisions are retracted and changed according to the order in which they were made, with the most recent decision being changed first. In some domains this is appropriate, since there is a time dependency between actions. In chess, for example, moves must be made in order. Other domains, however, do not have this restriction.
Example:
The dependency directed backtracking can use in finding the route such as search for a path between two locations first on a map that includes only major cities and inter state highways, then refine paths to get to the inter state highways
2. Justification Based Truth Maintenance System
The idea of truth maintenance system or TMS arose as a way of providing the ability to do dependency directed backtracking and to support Nonmonotonic reasoning.
The main job of the TMS is to maintain consistency of the knowledge being used by the problem solves and not to perform any inference functions. The TMS also gives the inference component the latitude to perform Nonmonotonic inferences. When new discovers are made, this more recent information can displace previous conclusions that are no longer valid .in this way the set of beliefs available to the problem solver will continue to be current and consistent.
Diagram:
Tell
Ask
Fig: Architecture of the problem solver with a TMS
The role played by the TMS a part of the problem solver. the inference engine solves domain problems based on its current belief set, while the TMS maintains the currently active belief set .the updating process is incremented .after each inference ,information is exchanged between the 2 components .the IE tells the TMS what the deductions has made. The TMS in turn, asks questions about current beliefs and reasons for failures. It maintains a consistent set of beliefs for the I.e. to work with even if now knowledge is added & removed.
The TMS maintains complete records of reasons of justifications for beliefs. Each proposition having at least 1 valid justification is made a part of current belief set. Statements lacking acceptable justifications are excluded from this set. When a contradiction is discovered the statements responsible for the contradiction are identified & an appropriate one is retracted. This in turn may result in other retractions & additions. The procedure used to perform this process is called dependency back tracking.
The TMS maintains records to reflect retractions and additions & that will always know its current belief set. The records are maintained in the form of dependency network. The node in the network represents KB entries such as premises, conclusions, inference rules and the like. Attached
Knowledge
to the nodes are justifications, which represent steps from which the node was derived. Nodes in the belief set must have valid justifications. a premise is a fundamental belief which is assumed to be always true. Premises need no justifications. They form a base from which all other currently active nodes can be explained in terms of valid justifications.
Example: ABC murder story.
Initially Abbottt is believed to be the primary suspect the reason is non-monotonic. The three assertions believed initially are.
Suspect Abbottt (Abbottt is the primary suspect)
Beneficiary Abbott (Abbottt is a beneficiary of the victim) Alibi Abbottt (Abbottt was at on Albany hotel at that time.)
Representation in TMS:
A TMS dependency network offers a purely syntactic, domain-independent way to represent belief and change it consistently.
Suspect Abbott [IN] ] supported belief
Justification
Beneficiary Abbott Alibi Abbott Justification:
1. The assertion “Suspect Abbott” has an associated TMS justification. An arrow to the assertion it supports connects the justification.
2. Assertions in a TMS dependency network are believed when they have a valid justification. 3. Each justification has two parts:
a. An IN-list [connected to justification by ‘+’] b. An OUT-list [connected to justification by ‘-‘]
4. If the assertion corresponding to the node should be believed, then in the TMS it is labeled IN.
5. If there is no reason to believe the assertion, then it is labeled OUT.
Premise Justification: Premise justifications are always considered to valid. Premises need no
justifications.
Labeling task of a TMS: The labeling task of a TMS is to label each node so that three major
criteria of dependency network are met. 1. Consistency
2. Well-founded-ness
Ex : Consistency criterions:
The following two cases show how consistency is maintained while changing Abbott’s state.
Case (i).Abbott is beneficiary. We have no further justification for this fact. We simply accept it. The following figure shows a consistent labeling for the network with premise justification.
Suspect Abbott [IN]
+ _
Beneficiary Alibi Abbott [Out] Abbott [IN]
Empty IN and OUT lists
Fig: Labeled nodes with premise Justification.
Case (ii): If Abbott’s alibi is obtained, and then some more justifications are added. Then consistency is maintained in the following ways, by making the following inclusions.
Abbott was registered is a hotel Premise justification So IN Hotel is far away Premise justification. SO IN Register might be forged Lacks any justification. SO OUT
Above 3, shows that “Suspect about” no longer has a justification SO OUT
Suspect Abbott [OUT]
+ _
Beneficiary Alibi Abbott [IN]
Abbott [IN]
Registered Abbott [in] Far away [in] Register forged[OUT]
Well-Founded ness criterion:
(1) It is defined as the proper grounding of a chain of justifications on a set of nodes that do not themselves depend on the nodes they support.
(2) For example: Cabot justification for his alibi that he was at a ski show is hardly valid.
The only support for the alibi of attending the ski show is that Cabot is telling the truth. --- (1) The only support for his telling the truth would be if we knew he was at the ski show. ---(2)
Above (1) and (2) statements show a chain of IN- List links to support the “Alibi Cabot “ Node. So, in such cases the node should be labeled OUT for well-founded ness.
Suspect Cabot [IN]
+
Beneficiary Cabot [IN] Alibi Cabot [OUT] +
+ TellsTruthCabot [OUT]
Cabot Justification --- Well Founded ness.
Resolving Contradictions Criterion:
(1) A contradiction in TMS is a state of the database explicitly declared to be undesirable. (2) Example: In our example, a contradiction occurs if we do not have at least one murder
suspect or if there are suspects other than Abbott, Babbitt, and Cabot.
Contradiction [out]
Suspect Abbott Suspect Babbit Suspect Cabot
(3) Initially there is no valid justification for other suspects so, contradiction is labeled OUT.
(4) Suppose Cabot was seen on T.V that he was at the ski slopes, and then is causes “Alibi Cabot” node to be labeled IN. So, it makes ‘Suspect Cabot’ node to be labeled OUT.
(5) The above point gives a valid justification for contradiction and hence is labeled IN.
Contradiction [IN]
Alibi Abbott Alibi Babbit Alibi Cabot [IN] Other suspects
(6) The job of TMS is to determine how the contradiction can be made OUT. I.e. The justification should be made invalid.
(7) Non monotonic justifications can be invalidated, by asserting some fact whose absence is required by the justification
(8) That is we should install a justification that should be valid only as long as it needs to be.
(9) A TMS have algorithms to create such justifications, which is called Abductive justification.
3. Logic Based Truth Maintenance System
LTMS stands for logic based truth maintenance system. It is combination of both DDB and JTMS. In ABC murder story example in an LTMS system, we would not have created an explicit contradiction corresponding to the assertion that there was no suspect.
BFS:
The breadth first search proceeds by employing all the nodes at a given depth before proceeding to the next level. Here all immediate children of nodes are explored before any of the children.
The Assumption-based truth maintenance system (ATMS) is an alternative way of implementing Nonmonotonic reasoning. In both JTMS and LTMS systems a single line of reasoning is pursued at a time, and dependency directed backtracking occurs whenever it is necessary to change the system’s assumptions. In an ATMS, alternative paths are maintained in parallel. Backtracking is avoided at the expense of maintaining multiple contexts
Chapter 9
WEAK SLOT AND FILLER STRUCTURES
A Weak Slot and Filler Structures are data structures to identify different objects in a statement and also provide the relationship between the objects using of “isa” and “instance” classes.
Weak Slot and Filler Structures can be divided into two types. 1. Semantic nets
2. Frames
Semantic Nets
In a semantic net, information is represented as a set of nodes connected to each other by a set of labeled arcs, which represent relationship among the nodes.
Network representations provide a means of structuring and exhibiting the structure in knowledge. In a network, pieces of knowledge are clustered together into coherent semantic groups. Networks also provide a more natural way to map to and from natural language than do other representation schemes. Network representation gives a pictorial presentation of objects, their attributes and the relationships that exist between them and other entities. These are also known as associative networks. Associative networks are directed graph with label nodes and arcs or arrows. A semantic network or semantic net is a structure for representing knowledge as a pattern of interconnected nodes and arcs. It is also defined as a graphical representation of knowledge.
The example of semantic net as follows.
isa
has-part
Uniform instance
Color team
Fig: A semantic Network
This network contains examples of both the isa and instance relations. The domain specific relations like team and uniform-color. We would use inheritance to derive the additional relation.
has-part (Pee-Wee-Reese, Eyes) Mammal
Persons Eyes
A semantic Net can be further classified into different techniques as follows.
1. Intersection search.
2. Representing Nonbinary Predicates. 3. Making some important distinctions. 4. Partitioned Semantic Nets.
5. The evolution into frames.
Intersection search
Semantic nets were used to find relation ship among objects by spreading activation out from each of two nodes seeing where the activation meets.
Representing Nonbinary Predicates:
Semantic nets are a natural way to represent nonbinary predicates. It would be similar to isa and instance. Some of the arcs in the below example are as follows.
isa Visiting team score home-team
fig: A semantic Net for an n-place Predicate
isa (G23, Game)
home-team (G23, Dodgers) visiting team (G23, Cubs) Score (G23, 5-3)
In this example, we can represent an arc more than 2 objects is Score (Cubs, Dodgers, 5-3)
The above statement is binary predicate. Suppose we take a unary predicate Man (Marcus), it can be converted into a binary predicate as
Game
G23 5-3
Cubs
Making some important distinctions
In this we can show difference between two semantic nets. Ex:
1. John height is 72.
height
2. John is taller than Bill.
Height height
Greater than
The above two statements can we represent in only one form is
Height height
Greater than
Partitioned Semantic net
Suppose we want to represent simple quantified expressions in semantic nets. One way to do this is to partition the semantic net into a hierarchical set of spaces, each of which corresponds to the scope of one or more variables. This net corresponds to the statement
The dog bit the mail carrier.
John 72 JOHN Bill H1 H2 JOHN Bill H1 H2 72
The nodes dog, bite and mail carrier represent the class of dog, biting and mail carriers respectively, while the nodes d, b and m represent a particular biting and a particular mail carrier. This fact can be easily be represented by a single net with no partitioning.
But now suppose that we want to represent the fact
Every dog has bitten a mail carrier.
To represent this fact, it is necessary to encode the scope of the universally quantified x. The node g stands for the assertion given above. Node g is an instance of the special class GS of general statement about the world. Every element of GS has as least two attributes. A form, which states the relation that is being asserted, and one or more connections, one for each of the universally quantified variables. There is only one such variable d., which and stand for any element of the class dogs. The other two variables in the form, b and m are under stood to be existentially quantified. In other words, for every dog d, there exists a betting event b, and mail Carrie n, such that d is the assailant of b and m is the victim.
Every dog in town has bitten the constable
Isa isa isa Assailant victim
Dog Bite Mail-carrier
d b m
SA
form
Isa isa isa SI
Assailant victim
d b m
Dogs Bite Mail carrier
g GS
In this net, the node c representing the victim lies out side the form of the general statement. Thus it is not viewed as an existentially quantified variable whose value may depend on the value of d, instead it is interpreted as standing for a specific entity. (In this case, a particular constant), just as do other nodes in a standard, non partitioned.
Every dog has bitten every mail carrier
In this case, g has two links, one pointing to d, which represents any dog, and one pointing to m, representing any mail carrier.
SA
isa isa isa SI assailant victim
Dogs Bite Mail-carrier
d b m
g GS
Gs Dogs Bite Constables
Town-Dogs d b c g isa isa isa assailant victim SI SA isa form isa
Frames:
Frames were first introduced by Marvin Minsky (1975) and a data structure to represent a mental model of a stereotypical situation such as driving a car, attending a meeting or eating in a restaurant.
Frames are general record like structures, which consist of a collection of slots and slot values. The slots may be of any size and any type. Slots typically have names and any number of values.
A frame can be defined as a data structure that has slots for various objects and collection of frames consists of expectations for a given situation.
A frame structure provides facilities for describing objects, facts about situations, procedures on what to when a situation is encountered because of these facilities a frame provides, frames are used to represent the two types of knowledge.
A general structure of a frame system as follows.
Person Isa: Mammal Cardinality: 6,000,000,000 *handed: Right Adult-Male Isa: Person Cardinality: 2,000,000,000 *height: 5-10 ML-Base-ball Player Isa: Adult-Male Cardinality: 624 *height: 6-1
*Bats: equal to handed *batting-avg: .252
*team:
*uniform Color: Fielder
Isa: ML-Base-ball Player
Cardinality: 376 *batting-avg: .262
Pee-Wee-Reese
Instance: Fielder Height: 5-10
Bats: right Batting-avg: .309 Team: Brooklyn-Dodgers Uniform-Color: Blue ML-BaseBall-Team Isa: team Cardinality: 26 *team-size: 24 *manager: Brooklyn-Dodgers Instance: ML-BaseBall-Team Team-size: 24 Manager: Leo-Durocher Players: { Pee-Wee-Reese,… }
Suppose we want to represent the classes of all teams as a Meta classes. We have two classes, which does not have any cardinality.
Class Instance: class Isa: class *cardinality: Team Instance: class Isa: class
Cardinality: {the number of teams that exist} *team-size: {each team has a size}
ML-BaseBall-Team
Instance: class Isa: class
Cardinality: {the number of teams that exist} *team-size: {each team has a size}
*manager: Brooklyn-Dodgers Instance: class Isa: class team-size: 24 manager: Leo-Durocher uniform-color: blue
Pee-Wee-Reese
Instance: Brooklyn-Dodgers
Instance: Fielder
Batting-avg: .309 Uniform-Color: Blue
Suppose we have to represent the relationship among the classes as follows.
Isa isa isa isa isa
Instance instance
ML-Baseball-Player
Is-covered-by: {pitcher. Catcher, Fielder},
{American-Leaguer, National-Leaguer}
Pitcher
Isa: ML-baseball-Player
Mutually-disjoint-with: {Catcher, Fielder}
Catcher:
Isa: ML-Baseball-Player
Mutually-disjoint-with: {pitcher, Fielder}
Fielder:
Isa: ML-Baseball-Player Mutually-disjoint-with: {pitcher, Fielder}
American-Leaguer Isa: ML-Baseball-Player Mutually-disjoint-with: {National-Leaguer} ML-Baseball-Player American- Leaguer National Leaguer Three-Finger-Brown
National-Leaguer Isa: ML-Baseball-Player Mutually-disjoint-with: {American-Leaguer} Three-finger-brown Instance: pitcher Instance: National-leaguer
Reasoning using frames:
The task of action frames is to provide facility for procedural attachment and help transforming from initial to goal state. It also helps in breaking the entire problem in to sub-tasks, which can be described as top-down methodology. It is possible for one to represent any tasks using these action frames.
Reasoning using frames is done by instantiation. Instantiation process begins when the given situation is batches with frames that already exist. The reasoning process tries to match the frame with the situation and latter fills up slots for which values must be assigned. The values assigned to the slot depict a particular situation and but this reasoning process tries to move from one frame to another to match the current situation. This process builds up a wide network of frames, there by facilitating one to build a knowledge base for representing knowledge about common sense.
Frame-based representation language:
Frame representations have become popular enough that special high level frame-based representation languages have been developed. Most of languages use LISP as the host language. They typically have functions to create access, modify updates and display frames.
Implementation of frame structures:
One way to implement frames is with property lists. An atom is used as the frame name and slots are given as properties. Facts and values with in slots become lists of lists for the slot property.
Another way to implement frames is with an association list ( an-a-list), that is, a list of sub lists where each sub list contains a key and one or more corresponding values.
It is also possible to represent frame like structures using Object oriented programming extensions to LISP languages such as Flavors.
Chapter
Strong Slot and Filler Structure
Frame-based representation language:
Frame representations have become popular enough that special high level frame-based representation language has been developed. Most of languages use LISP as the host language. They typically have functions to create access, modify updates and display frames.
Implementation of frame structures: One way to implement frames is with property lists. An atom is used as the frame name and slots are given as properties. Facets and values with in slots become lists of lists for the slot property.
Putprop ‘train((type(value passenger))
(class(value first second sleeper)) (food(restaurant(value hot-meals))
(fast-food(value cold snacks)))’ land transport)
Another way to implement frames is with an association list ( an-a-list), that is, a list of sub lists where each sub list contains a key and one or more corresponding values. The same train frame would be represented using an a-list as
(set Q train ‘((AKO land transport) (type(value passenger))
(class(value first second sleeper)) (food(restaurant(value hot-meals))
(fast-food(value cold snacks)))
It is also possible to represent frame like structures using Object oriented programming extensions to LISP languages such as Flavors.
Scripts:
Scripts are another structures representation scheme introduced by “Roger Schank” (1977). They are used to represent sequences of commonly accruing events. They were originally developed to capture the meanings of stories or to understand natural language test.A script is a predefined frame-like structure, which contains expectations, inferences and other knowledge that is relevant to a stereotypical situation.
Frames represented a general knowledge representation structure, which can accommodate all kinds of knowledge. Scripts on the other hand help exclusive in representing stereotype events that takes place in day-to-day activity.
2. Going to theatre, getting a ticket, viewing the film and leaving.
3. Going to super market, with a list of items to be purchased, putting the items needed on a trolley, paying for them.
4. Leaving home for office in a two-wheeler, parking the two-wheeler at the railway station, boarding the train to the place of work and going to the place of work.
5. Going the bank for with drawl, filling the with drawl slip/check, presenting to the cashier, getting the money and leaving the bank.
All the situations are stereotype in nature and specific properties of the restricted domain can be exploited with special purpose structures.
A script is a knowledge representation structure that is extensively used for describing stereo typed sequences of action. It is a special case of frame structure. These are interested for capturing situations in which behavior is very stylized. Scripts tell people what can happen in a situation, what events follow and what role every actor plays. It is possible to visualize the same and scripts present a way of representing them effectively what a reasoning mechanism exactly understand what happens at that situation.
Reasoning with Scripts:
Reasoning in a script begins with the creation of a partially filled script named to meet the current situation. Next a known script which matches the current situation is recalled from memory. The script name, preconditions or other key words provide index values with which to search for the appropriate script. An inference is accomplished by filling in slots with inherited and defaults values that satisfy certain conditions.
Advantages:
1. Permits one to identify what scenes must have been proceed when an event takes place.
2. It is possible using scripts to describe each and every event to the minutest detail so that enough light is thrown on implicitly mentioned events.
3. Scripts provide a natural way of providing a single interpretation from a variety of observations. 4. Scripts are used in natural language understanding system and serve their purpose effectively in
areas for which they are applied.
Disadvantages:
2. It is difficult to share knowledge across scripts what is happening in a script is true only for that script.
3. Scripts are designed to represent knowledge in stereo type situations only and hence cannot be generalized.
Important components:
1. Entry condition: Basic conditions that must be fulfilled. Here customer is hungry and has money to pay for the eatables.
2. Result: Presents the situations, which describe what, happens after the script has occurred. Here, the customer after satisfying his hungry is no hungrier. The amount of money he has is reduced and the
owner of the restaurant has now more money. Captioned results can also be stated here like the customer is pleased with the quality of food, quality of service etc., or can be displeased.
3. Properties: These indicate the objects that ate existing in the script. In a restaurant on has tables, chairs, menu, food money, etc..
4. Roles: What various characters play is brought under the slot of roles. These characters are implicitly involved but some of them play an explicit role. For example waiter and cashier play an explicit role where the cook and owner are implicitly involved.
5. Track: Represents a specific instance of a generic pattern. Restaurant is a specific instance of a hotel. This slot permits one to inherit the characteristics of the generic node.
6. Scenes: Sequences of activities are described in detail.
Ex1: Going to a restaurant
Script: Going to a restaurant
Entry Conditions: Customer is hungry Customer has money Owner has food Props: Food, tables, menu, money Roles: 1.Explicit: customer, waiter,
cashier 2. Implicit: Owner, Coocker Track: Restaurant
Results: Customer is not hungry Owner has more money Customer has less money Owner has less food.
Scene 1: Entering the restaurant Customer enter into the restaurant . Customer PTRANS restaurant Customer scans the tables.
Customer ATTEND eyes to the tables Customer decides where to sit.
Customer MBUILD to sit there Scene 2: Ordering the food
Customer asks for menu. Customer MTRANS for menu Waiter brings it. Waiter PTRANS the menu
Customer decides choice of food. Customer MBUILD choice of food
Customer orders that food. Customer MTRANS that food. Scene 3: Eating the food
Cook gave food to waiter. Cook ATRANS food to waiter. Waiter gave the food to customer.
Waiter ATRANS food to customer. Customer eats the food with a spoon. Customer INGESTS the food with a spoon. Scene 4: Paying the bill
Customer asks for bill. Customer MTRANS for bill. Waiter brings it. Waiter PTRANS it.
Customer gave a check to waiter. Customer ATRANS a check to waiter. Waiter brings the balance amount. Waiter PTRANS the balance amount.
Customer gave tip to waiter. Customer ATRANS to him Customer moves out. Customer PTRANS out .
Ex 2 : Going to super market
Conceptual Dependency (CD): Conceptual dependency is a theory of how to represent the kind of
knowledge about events that is usually contained in natural sentences. The goal is to represent the knowledge in a way that
Facilitates drawing interference from the sentences.
Is independent of the language in which the sentences were originally stated.
The theory was first described in Schank 1973 and was further developed in Schank 1975. It has been implemented in a variety of programs that read and understand natural language text. Unlike semantic nets provide only a structure in to which nodes representing information at any level can be placed. Conceptual dependency provides both structure and a specific set of primitives, at a particular level of granularity out of which representations of particular pieces of information can be constructed.
Conceptual dependency (CD) is a theory of natural language processing which mainly deals with representation of semantics of a language. The main motivation for the development of CD as a knowledge representation techniques are given below.
To construct computer programs that can understand natural language. To make inferences from the statements and also to identify conditions in which two sentences can have similar meaning.
To provide facilities for the system to take part in dialogues and answer questions.
To provide a necessary plank those sentences in one language can be easily translated into other languages. To provide means of representation which are language dependent
Knowledge is represented in CD by elements what are called as conceptual structures. Scene 1: Enter market
Shopper Ptrans into market
Shopper Ptrans shopping cart to shopper Scene 2: Shop for items
Shopper MOVES shopper through aisles Shopper ATTENDS eyes to display items Shopper Ptrans items to shoppers’ cart Scene 3 : Check out
Shopper MOVES to check out stand Shopper ATTENDS eyes to charges Shopper Atrans money to cashier Sacker Atrans bags to shopper Scene 4: Exit market
Shopper Ptrans shopper to exit to market Script: Going to a super market
Track: Super market
Roles: Implicit Roles: Owner of supermarket.
Producer of items. Explicit Roles: Shopper, attendants, Clerks, cashier.
Entry Conditions: Shopper needs groceries food market open
Prop: Shopping cart, display aisles, Market items, checkout stands, cashier, money
Results: Shopper has less money Shopper has grocery items Market has less grocery items Market has more money
Apart from the primitive CD actions one has to make use of the six following categories of objects
PP’s (Picture producers): Only physical objects are physical procedures. Acts: Actions are done by an actor to an object.
O - Object case relationship R - Recipient case relationship P - Past tense F - Future tense T - Transition Ts - Start transition Tf - finished transition K - Continuing ? - Interrogative
/ - negative, nil-present, delta-timeless, c-conditional
CD brought forward the notation of language independence because all acts are language independent primitives.
CD is a special purpose of semantic networks in which specific primitives are used in rebuilding representations. It still remains today as a fundamental knowledge representation structure in natural language processing system.
Ex : PP ACT Bird Ptrans Bird flew
PP PP Joe student Joe is a student
Act PP Joe PROPEL door Joe pushed the door
PP Sue
Act Joe Atrans Joe gave a flower sue
PP Joe
flower
Joe
Act Joe INGEST
do soup
spoon Joe ate some soup
CD is a theory of representing fairly simple actions.
CD representation is to
man
I ATRANS o book
I from Where the symbols have the following meanings
Arrows indicate direction of dependency
Double arrow indicates two way link between actor and action. P Indicates past tense.
A trans is one of the primitive acts used by the theory, it indicates transfer possession
O indicates the direct case relation R indicates the recipient case relation Since smoking can kill you, I stopped.
ONE
One
INGEST o smoke
I CIGARETTE
C
T
fPI INGEST o smoke
ONE DEAD CIGARETTE
ALIVE
The vertical causality link indicates that smoking kills one. Since it is marked, however we know only that smoking can kill one, hot that it necessarily does.
The horizontal causality link ordinates that it is first causality that made me stop smoking. The qualification p attached to the depending between I and INGEST indicates that the smoking has stopped and that the stopping happened.
There are three important ways in which representing knowledge using the CD model facilities reasoning with the knowledge.
1. Fewer inference rules are needed would be required if knowledge were not broken down into primitives.
2. Many inferences are already contained in the representation it self.
3. The initial structure that is built to represent the information contained in one sentence will have that need to be billed. These holes can serve as an attention focuser for the program that must understand using sentences.
Chapter
Planning
Planning problems are hard problems:
They are certainly non-trivial. Solutions involve many aspects that we have studied so far:
o Search and problem solving strategies.
o Knowledge Representation schemes.
o Problem decomposition -- breaking problem into smaller pieces and trying to solve these first.
We have seen that it is possible to solve a problem by considering the appropriate form of knowledge representation and using algorithms to solve parts of the problem and also to use searching methods.
Search in Planning
Search basically involved moving from an Initial state to a Goal State. Classic search techniques could be applied to planning state in this manner:
A* Algorithm
-- best first search,
Problem decomposition
-- Synthesis, Frame Problem.
AO* Algorithm
-- Split problem into distinct parts.
Heuristic reasoning
-- ordinary search backtracking can be hard so introduce reasoning to devise heuristics and to control the backtracking.
The first major method considered the solution as a search from the initial state to a goal state through a state space. There are many ways of moving through this space by using operators and the A* algorithm described the best first search through a graph. This method is fine for simpler problems but for more
realistic problems it is advisable to use problem decomposition. Here the problem is split into smaller sub problems and the partial solutions are then synthesised. The danger in this method occurs when certain paths become abortive and have to be discarded. How much of the partial solution can be saved and how much needs to be recomputed.
The frame problem -- deciding which things change and which do not -- gave some guidance on enabling us to decide on what stays the same and on what changes as we go from state to state. If the problem concerned designing a robot to build a car then mounting the engine on the chassis would not affect the rear of the car nowadays.
The AO* algorithm enabled us to handle the solution of problems where the problem could be split into distinct parts and then the partial solutions reassembled. However difficulties arise if parts interacted with one another. Most problems have some interaction and this implies some thought into the ordering of the steps; for example if the robot has to move a desk with objects on it from one room to another; or to move a sofa from one room to another and the piano is near the doorway. The thought process involved in recombining partial solutions of such problems is known as planning. At this point we run into a discussion about the role of the computer in the design of a plan as to how we can solve a problem. It is extremely unlikely at this stage that a computer will actually solve the problem unless it is a game and here some interaction with a person is needed.
Generally the computer is used to decide upon or to offer words of wisdom on the best method of approaching the solution of a problem. In one sense this can be interpreted as a simulation; if we are considering the handling of queues at an airport or a post office there are no actual people and so we can try a range of possibilities; likewise in a traffic control problem there are no cars or aircraft piling up at a junction or two miles over an airport. Once the computer based investigation has come up with the best solution we can then implement it at the real site.
This approach assumes that there is continuity in the way of life. It cannot budget for rapid change or revolution. How can this approach cater for unexpected events such as a faulty component or a spurious happening such as two items stuck together or a breakdown in the path somewhere vital such as in a camera reel. When a fault or some unrecognizable state is encountered it is not necessary to restart for much of what has been successfully solved is still useful. Consider a child removing the needles from a partially
completed knitted sweater. The problem lies in restarting from a dead end and this will need some backtracking. This method of solution is pursued to reduce the level of complexity and so to ensure successful handling we must introduce reasoning to help in the backtracking required to cater for faults. To assist in controlling backtracking many methods go backward from the goal to an initial state.
Blocks World Planning Examples
What is the Blocks World? -- The world consists of:
A flat surface such as a tabletop
An adequate set of identical blocks which are identified by letters.
The blocks can be stacked one on one to form towers of apparently unlimited height.
The stacking is achieved using a robot arm which has fundamental operations and states which can be assessed using logic and combined using logical operations.
The robot can hold one block at a time and only one block can be moved at a time. We shall use the four actions:
UNSTACK(A,B)
-- pick up clear block A from block B;
STACK(A,B)
-- place block A using the arm onto clear block B;
PICKUP(A)
-- lift clear block A with the empty arm;
PUTDOWN(A)
-- place the held block A onto a free space on the table.
and the five predicates:
ON(A,B)
-- block A is on block B.
ONTABLE(A)
-- block A is on the table.
-- block A has nothing on it.
HOLDING(A)
-- the arm holds block A.
ARMEMPTY
-- the arm holds nothing.
Using logic but not logical notation we can say that If the arm is holding a block it is not empty If block A is on the table it is not on any other block If block A is on block B,block B is not clear.
Why Use the Blocks world as an example?
The blocks world is chosen because:
it is sufficiently simple and well behaved.
easily understood
yet still provides a good sample environment to study planning:
o problems can be broken into nearly distinct subproblems
o we can show how partial solutions need to be combined to form a realistic complete solution.
Planning System Components
Simple problem solving tasks basically involve the following tasks:
1. Choose the best rule based upon heuristics. 2. Apply this rule to create a new state. 3. Detect when a solution is found.
4. Detect dead ends so that they can be avoided.
More complex problem solvers often add a fifth task:
1. Detect when a nearly solved state occurs and use special methods to make it a solved state.
Now let us look at what AI techniques are generally used in each of the above tasks. We will then look a t specific methods of implementation.
Choice of best rule
Methods used involve
finding the differences between the current states and the goal states and then
choosing the rules that reduce these differences most effectively.
Means end analysis good example of this. If we wish to travel by car to visit a friend
the first thing to do is to fill up the car with fuel.
If we do not have a car then we need to acquire one.
The largest difference must be tackled first.
Rule application
Previously rules could be applied without any difficulty as complete systems were specified and rules enabled the system to progress from one state to the next.
Now we must be able to handle rules which only cover parts of systems.
A number of approaches to this task have been used.
Green's Approach (1969)
Basically this states that we note the changes to a state produced by the application of a rule.
Consider the problem of having two blocks A and B stacked on each other (A on top).
Then we may have an initial state which could be described as:
ON(
ONTABLE(
If we now wish to UNSTACK(A, B). We express the operation as follows:
[CLEAR(x,s) ON(x, y, s)]
[HOLDING(x, DO(UNSTACK(x,y),s))
CLEAR(y,DO(UNSTACK(x,y),s))]
where x,y are any blocks, s is any state and DO() specifies that an new state results from the given action.
The result of applying this to state to give state then we get:
HOLDING( ) CLEAR( ).
There are a few problems with this approach:
The frame problem
-- In the above we know that B is still on the table. This needs to be encoded into frame axioms that describe components of the state not affected by the operator.
The qualification problem
-- If we resolve the frame problem the resulting description may still be inadequate. Do we need to encode that a block cannot be places on top of itself? If so should this attempt fail?
If we allow failure things can get complex -- do we allow for a lot of unlikely events?
The ramification problem
-- After unstacking block A, previously, how do we know that A is no longer at its initial location?
Not only is it hard to specify exactly what does not happen ( frame problem) it is hard to specify exactly what does happen.
STRIPS
STIPS proposed another approach:
Basically each operator has three lists of predicates associated with it:
o a list of things that become TRUE called ADD.
o a list of things that become FALSE called DELETE.
o a set of prerequisites that must be true before the operator can be applied.
Anything not in these lists is assumed to be unaffected by the operation.
This method initial implementation of STRIPS -- has been extended to include other forms of reasoning/planning (e.g. Nonmonotonic methods, Goal Stack Planning and even Nonlinear planning -- see later)
Consider the following example in the Blocks World and the fundamental operations:
STACK
-- requires the arm to be holding a block A and the other block B to be clear. Afterwards the block A is on block B and the arm is empty and these are true -- ADD; The arm is not holding a block and block B is not clear; predicates that are false DELETE;
UNSTACK
-- requires that the block A is on block B; that the arm is empty and that block A is clear. Afterwards block B is clear and the arm is holding block A - ADD; The arm is not empty and the block A is not on block B -- DELETE;
See Exercises for more examples.
We have now greatly reduced the information that needs to be held. If a new attribute is introduced we do not need to add new axioms for existing operators. Unlike in Green's method we remove the state indicator and use a database of predicates to indicate the current state
Thus if the last state was:
ONTABLE(B) ON(A,B) CLEAR(A)
ONTABLE(B) CLEAR(B) HOLDING(A) CLEAR(A)
Detecting Progress
The final solution can be detected if
we can devise a predicate that is true when the solution is found and is false otherwise.
requires a great deal of thought and requires a proof. Detecting false trails is also necessary:
E.g. A* search -- if insufficient progress is made then this trail is aborted in favour of a more hopeful
one.
Sometimes it is clear that solving a problem one way has reduced the problem to parts that are harder than the original state.
By moving back from the goal state to the initial state it is possible to detect conflicts and any trail or path that involves a conflict can be pruned out.
Reducing the number of possible paths means that there are more resources available for those left. Supposing that the computer teacher is ill at a school there are two possible alternatives
transfer a teacher from mathematics who knows computing or
bring another one in. Possible Problems:
If the maths teacher is the only teacher of maths the problem is not solved. If there is no money left the second solution could be impossible.
If the problems are nearly decomposable we can treat them as decomposable and then patch them, how?
Consider the final state reached by treating the problem as decomposable at the current state and noting the differences between the goal state and the current state and the goal state and the initial state and use appropriate Means End analysis techniques to move in the best direction.
Better is to work back in the path leading to the current state and see if there are options. It may be that one optional path could lead to a solution whereas the existing route led to a conflict.
Generally this means that some conditions are changed prior to taking an optional path through the problem.
Another approach involves putting off decisions until one has to, leaving decision making until more information is available and other routes have been explored. Often some decisions need not be taken as these nodes are never reached.
Goal Stack Planning
Basic Idea to handle interactive compound goals uses goal stacks, Here the stack contains :
goals,
operators -- ADD, DELETE and PREREQUISITE lists
a database maintaining the current situation for each operator used. Consider the following where wish to proceed from the start to goal state.
Fig. 24 Goal Stack Planning Example
We can describe the start state:
ON(B, A) ONTABLE(A) ONTABLE(C) ONTABLE(D) ARMEMPTY
and goal state:
ON(C, A) ON(B,D) ONTABLE(A) ONTABLE(D)
Initially the goal stack is the goal state.
With the other two -- there are two ways to proceed: 1. ON(C,A) 2. 3. ON(B,D) 4. 5. ON(C,A) ON(B,D) 6. 7. ONTABLE(A) 8. ONTABLE(D) 9. 10. 11. ON(B,D) 12. 13. ON(C,A) 14. 15. ON(C,A) ON(B,D) 16. 17. ONTABLE(A) 18. ONTABLE(D) 19. 20. The method is to
Investigate the first node on the stack ie the top goal.
If a sequence of operators is found that satisfies this goal it is removed and the next goal is attempted.
This continues until the goal state is empty. Consider alternative 1 above further:
The first goal ON(C,A) is not true and the only operator that would make it true is STACK (C,A) which replaces ON(C,A) giving:
B<>STACK (C,A) ON(B,D) ON(C,A) ON(B,D) ONTABLE(A) ONTABLE(D)
STACK has prerequisites that must be met which mean that block A is clear and the arm is holding block C. So we must do:
B<>CLEAR(A) HOLDING(C) CLEAR(A) HOLDING(C) STACK (C,A) ON(B,D) ON(C,A) ON(B,D) ONTABLE(A) ONTABLE(D)
Now top goal is false and can only be made true by unstacking B. This leads to:
B<>ON(B,A)
ARMEMPTY ON(B,A) CLEAR(B) ARMEMPTY UNSTACK(B,A) HOLDING(C) CLEAR(A) HOLDING(C)
Now the first goal is true, the second is universally true, and the arm is empty. Thus all top three goals are true means that we can apply the operator UNSTACK(B,A) as all prerequisites are met. This gives us the first node in database
ONTABLE(A) ONTABLE(C) ONTABLE(D) HOLDING(C) CLEAR(A)
Note as a future reference of the use of UNSTACK(B,A) that HOLDING(B) is true as well as CLEAR(A)
The goal stack becomes
HOLDING(C) CLEAR(A) HOLDING(C) STACK (C,A) ON(B,D)
ONTABLE(D)
There are two ways we can achieve HOLDING(C) by using the operators PICKUP(C) or UNSTACK(C,x) where x is an unspecified block. This leads to two alternative paths:
1. ON(C, x) 2. 3. CLEAR(C) 4. 5. ARMEMPTY 6. 7. ON(C, x) CLEAR(C) 8. 9. ARMEMPTY 10. 11. UNSTACK(C,x) 12. 13. CLEAR(A) HOLDING(C) 14. 15. STACK (C,A) 16. 17. ON(B,D) 18.
19. ON(C,A) ON(B,D) ONTABLE(A)
20. 21. 22. ONTABLE(D) 23. 24. 1. ONTABLE(C) 2. 3. CLEAR(C) 4. 5. ARMEMPTY 6. 7. ONTABLE(C) CLEAR(C) 8. 9. ARMEMPTY 10. 11. PICKUP(C)
13. CLEAR(A) HOLDING(C) 14. 15. STACK (C,A) 16. 17. ON(B,D) 18. ONTABLE(D) 19. 20.
21. ON(C,A) ON(B,D) ONTABLE(A)
22.
23.
24. ONTABLE(D)
In this first route we can see three references to some block, x and these must refer to the same block, although in the search it is conceivable several blocks will become temporarily attached. Hence the binding of variables to blocks must be recorded. Investigating further we need to satisfy the first goal and this requires stacking C on some block which is clear.
CLEAR(x) HOLDING(C) CLEAR(x) HOLDING(C) STACK (C, x) CLEAR(C) ARMEMPTY
We now notice that one of the goals created is HOLDING(C) which was the goal we were trying to achieve by applying UNSTACK(C, some block) in this case and PICKUP(C) in the other approach. So it would appear that we have added new goals and not made progress and in terms of the A* algorithm it seems best to try the other approach.
So looking at the second approach
We can see that the first goal is achieved block C is on the table.
The second goal is also achieved block C is clear. Remember that HOLDING(B) is still true which means that the arm is not empty. This can be achieved by placing B on the table or planting it on block D if it is clear.
Lookahead could be used here to compare the ADD lists of the competing operators with the goals in the goal stack and there is a match with ON(B,D) which is satisfied by STACK (B,D). This also binds some block to block D.
Applying STACK (B,D) generates extra goals CLEAR(D) and HOLDING(B) The new goal stack becomes;
CLEAR(D)
HOLDING(B)
CLEAR(D) HOLDING(B)
STACK (B, D)
ONTABLE(C) CLEAR(C) ARMEMPTY
PICKUP(C)
At this point the top goal is true and the next and thus the combined goal leading to the application of STACK (B,D), which means that the world model becomes
ONTABLE(A) ONTABLE(C) ONTABLE(D) ON(B,D) ARMEMPTY
This means that we can perform PICKUP(C) and then STACK (C,A)
Now coming to the goal ON(B,D) we realise that this has already been achieved and checking the final goal we derive the following plan
1. UNSTACK( 2. PICKUP(C)
3. STACK (C,A) B,A) 4. STACK (B,D)
This method produces a plan using good Artificial Intelligence techniques such as heuristics to find matching goals and the A* algorithm to detect unpromising paths which can be discarded.
Reasoning with qualitative information
Fig. 25 Sussman's Anomaly The start state is given by:
ON(C, A) ONTABLE(A) ONTABLE(B) ARMEMPTY The goal by:
ON(A,B) ON(B,C)
This immediately leads to two approaches as given below
1. ON(A,B) 2. 3. ON(B,C) 4. 5. ON(A,B) ON(B,C) 6. 7. 8. ON(B,C) 9. 10. ON(A,B) 11. 12. ON(A,B) ON(B,C) 13. 14.
Choosing path 1 and trying to get block A on block B leads to the goal stack:
ON(C,A)
CLEAR(C) ARMEMPTY
ON(C,A) CLEAR(C) ARMEMPTY UNSTACK(C,A) ARMEMPTY CLEAR(A) ARMEMPTY PICKUP(A) CLEAR(B) HOLDING(A) STACK(A,B) ON(B,C) ON(A,B) ON(B,C)
This achieves block A on block Bwhich was produced by putting block C on the table. The sequence of operators is
1. UNSTACK(C,A) 2. PUTDOWN(C)
3. PICKUP(A) 4. STACK (A,B)
Working on the next goal of ON(B,C) requires block B to be cleared so that it can be stacked on block C. Unfortunately we need to unstack block A which we just did. Thus the list of operators becomes
1. UNSTACK(C,A) 2. PUTDOWN(C) 3. PICKUP(A) 4. STACK (A,B) 5. UNSTACK(A,B) 6. PUTDOWN(A) 7. PICKUP(B) 8. STACK (B,C)
To get to the state that block A is not on block B two extra operations are needed:
1. PICKUP(A) 2. STACK(A,B)
Analysing this sequence we observe that
Steps 4 and 5 are opposites and therefore cancel each other out, Steps 3 and 6 are opposites and therefore cancel each other out as well.
So a more efficient scheme is:
1. UNSTACK(C,A) 2. PUTDOWN(C) 3. PICKUP(B) 4. STACK (B,C) 5. PICKUP(A) 6. STACK(A,B)
To produce in all such cases this efficient scheme where this interaction between the goals requires more sophisticated techniques.
Chapter
Commonsense
True Intelligent systems exhibit common sense -- they possess more than enough knowledge to be able to work in a given environment.
We have already mentioned the CYC system which is an ambitious attempt to code up common sense. However as this example illustrates you require a very large knowledge base for this type of system.
Common sense systems need to support:
Descriptions of everyday objects -- Frames. Typical sequences of everyday events -- Scripts. Default reasoning -- Nonmonotonic logics.
Common sense strategies illustrate many important AI topics. We will study how this can be implemented drawing on many of the topics we have studied previously.
The Physical World -- Qualitative Physics
Qualitative Physics is an area of AI concerned with reasoning about the behavior of physical systems. It is a good area to study since humans know a great deal about this world:
They can predict that a falling ball will bounce many times.
They can predict the projection of cricket ball and even catch it.
They know a pendulum swings back and fore finally coming to rest in the middle.
However most humans whilst being to operate in this world have no notion of the laws of physics that govern this world.
We can clearly look up the information and derive equations to describe, say pendulum motion. Indeed computers are very good at this sort of computation when they have been programmed by experienced programmers.
Is this how an intelligent system functions in this world?
Three year old children can and cannot even read or do elementary math’s?
One other motivation is that whilst complex computer models can be assembled many problems remain difficult or impossible to solve analytically. Systems of equations (differential etc.) might hard to derive and even impossible to solve.
