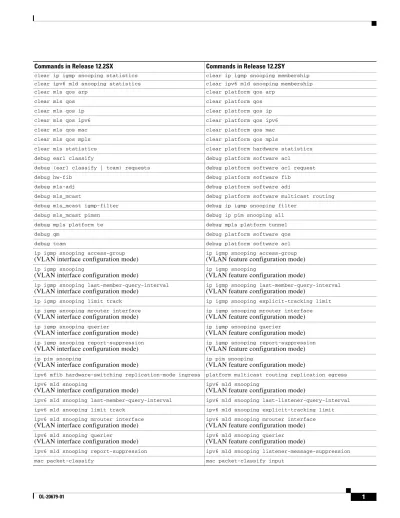

clear ip igmp snooping statistics clear ip igmp snooping membership clear ipv6 mld snooping statistics clear ipv6 mld snooping membership
clear mls qos arp clear platform qos arp
clear mls qos clear platform qos
clear mls qos ip clear platform qos ip
clear mls qos ipv6 clear platform qos ipv6
clear mls qos mac clear platform qos mac
clear mls qos mpls clear platform qos mpls
clear mls statistics clear platform hardware statistics
debug earl classify debug platform software acl
debug (earl classify | tcam) requests debug platform software acl request
debug hw-fib debug platform software fib
debug mls-adj debug platform software adj
debug mls_mcast debug platform software multicast routing
debug mls_mcast igmp-filter debug ip igmp snooping filter
debug mls_mcast pimsn debug ip pim snooping all
debug mpls platform te debug mpls platform tunnel
debug qm debug platform software qos
debug tcam debug platform software acl
ip igmp snooping access-group
(VLAN interface configuration mode)
ip igmp snooping access-group
(VLAN feature configuration mode)
ip igmp snooping
(VLAN interface configuration mode)
ip igmp snooping
(VLAN feature configuration mode)
ip igmp snooping last-member-query-interval
(VLAN interface configuration mode)
ip igmp snooping last-member-query-interval
(VLAN feature configuration mode)
ip igmp snooping limit track ip igmp snooping explicit-tracking limit
ip igmp snooping mrouter interface
(VLAN interface configuration mode)
ip igmp snooping mrouter interface
(VLAN feature configuration mode)
ip igmp snooping querier
(VLAN interface configuration mode)
ip igmp snooping querier
(VLAN feature configuration mode)
ip igmp snooping report-suppression
(VLAN interface configuration mode)
ip igmp snooping report-suppression
(VLAN feature configuration mode)
ip pim snooping
(VLAN interface configuration mode)
ip pim snooping
(VLAN feature configuration mode)
ipv6 mfib hardware-switching replication-mode ingress platform multicast routing replication egress
ipv6 mld snooping
(VLAN interface configuration mode)
ipv6 mld snooping
(VLAN feature configuration mode)
ipv6 mld snooping last-member-query-interval ipv6 mld snooping last-listener-query-interval
ipv6 mld snooping limit track ipv6 mld snooping explicit-tracking limit
ipv6 mld snooping mrouter interface
(VLAN interface configuration mode)
ipv6 mld snooping mrouter interface
(VLAN feature configuration mode)
ipv6 mld snooping querier
(VLAN interface configuration mode)
ipv6 mld snooping querier
(VLAN feature configuration mode)
ipv6 mld snooping report-suppression ipv6 mld snooping listener-message-suppression
mls aclmerge odm optimizations [qos] platform aclmerge odm optimizations [qos]
mls acl tcam default-result platform hardware acl default-result
mls acl tcam log-update platform software acl log-update
mls ip cef load-sharing full platform ip cef load-sharing full
mls ip directed-broadcast platform ip directed-broadcast
mls ip multicast platform multicast forwarding ip
mls ip multicast platform multicast routing ip
mls ip multicast replication-mode egress platform multicast routing replication egress
mls ip multicast replication-mode ingress no platform multicast routing replication egress
mls ip multicast stub no ip mfib forwarding input
mls mpls gb-te-burst platform mpls gbte burst
mls mpls gb-te-cir-ratio platform mpls gbte cir-ratio
mls mpls gb-te-dscp platform mpls gbte dscp
mls mpls gb-te-enable platform mpls gbte enable
mls qos 10g-only platform qos 10g-only
mls qos aggregate-policer platform qos aggregate-policer
mls qos auto qos default
mls qos channel-consistency platform qos channel-consistency
mls qos cos-mutation platform qos cos-mutation
mls qos dscp-mutation platform qos dscp-mutation
mls qos exp-mutation platform qos exp-mutation
mls qos logging bootup platform software qos logging bootup
mls qos map table-map <name> map from
mls qos queueing-only platform qos queueing-only
mls qos queue-mode platform qos queue-mode
no mls qos rewrite ip dscp no platform qos rewrite ip dscp
mls qos statistics-export platform qos statistics-export
mls qos trust platform qos trust
mls qos vlan-based platform qos vlan-based
Note
mls rate-limit
commands are not correctly migrated to
platform rate-limit
commands. Ensure that
platform rate-limit
commands in the Supervisor Engine 2T configuration are correct. In releases where
CSCub46713
is resolved,
mls rate-limit
commands are not migrated to
platform rate-limit
commands.
mls rate-limit all mtu-failure platform rate-limit all mtu-failure
mls rate-limit all ttl-failure platform rate-limit all ttl-failure
mls rate-limit multicast ipv4 connected platform rate-limit multicast ipv4 connected
mls rate-limit multicast ipv4 fib-miss platform rate-limit multicast ipv4 fib-miss
mls rate-limit multicast ipv4 igmp platform rate-limit multicast ipv4 igmp
mls rate-limit multicast ipv4 ip-options platform rate-limit multicast ipv4 ip-options
mls rate-limit multicast ipv4 pim platform rate-limit multicast ipv4 pim
mls rate-limit multicast ipv4 tiny-fragment platform rate-limit multicast ipv4 tiny-fragment
mls rate-limit multicast ipv6 connected platform rate-limit multicast ipv6 connected
mls rate-limit multicast ipv6 mld platform rate-limit multicast ipv6 mld
mls rate-limit platform rate-limit
mls rate-limit unicast ip errors platform rate-limit unicast ip errors
mls rate-limit unicast ip features platform rate-limit unicast ip features
mls rate-limit unicast ip options platform rate-limit unicast ip options
mls rate-limit unicast ip rpf-failure platform rate-limit unicast ip rpf-failure
mls switching platform switching
mls verify ip platform verify ipv4
platform hardware acl downloadable setup static platform feature-manager acl downloadable setup static
platform hardware vsl pfc mode pfc3c platform hardware vsl pfc mode non-xl
show fm dot1x show fm tcam dynamic dot1x
show fm <feature name> show platform software feature-manager <feature name>
show fm features [brief] show platform software feature-manager features [brief]
show fm fie all show platform software feature-manager fie all
show fm fie fidb show platform software feature-manager fie fidb
show fm fie interface show platform software feature-manager fie interface
show fm fie mergetable show platform software feature-manager fie mergetable
show fm fie summary show platform software feature-manager fie summary
show fm interface <interface name> show platform software feature-manager interface <interface name>
show fm ip-admission show platform software feature-manager ip-admission
show fm label show platform software feature-manager label
show fm nat netflow data show platform software feature-manager nat netflow data
show fm netflow show platform software feature-manager netflow
show fm private-hosts show platform software feature-manager private-hosts
show fm summary show platform software feature-manager summary
show fm tcam dynamic show platform software feature-manager tcam dynamic
show ip igmp snooping filter interface show ip igmp snooping filter vlan
show ip igmp snooping statistics show ip igmp snooping membership
show ipv6 mld snooping statistics show ipv6 mld snooping membership
show mac-address-table multicast show mac addres-table multicast
show mls acl capmap show platform hardware acl capmap
show mls acl entry show platform hardware acl entry
show mls acl i2k_dvlan show platform hardware acl label2sel
show mls acl i2k_sidx show platform hardware acl label2sel
show mls acl i2k_svlan show platform hardware acl label2sel
show mls acl lou show platform software acl lou
show mls acl tcp_flag show platform hardware acl tcp-flags-tbl
show mls cef ip multicast show platform hardware multicast
show mls cef platform hardware cef
show mls ip multicast capability show platform multicast routing replication
show mls ip multicast interface show ip mfib interface
show mls ip multicast met show platform software met summary
show mls ip multicast rp-mapping show platform software multicast routing cmrp df cache
show mls ip multicast summary show ip mrib route summary
show mls ip multicast vrf show ip mfib
show mls qos aggregate-policer show platform qos aggregate-policer
show mls qos agid show platform software qos agid
show mls qos arp show platform qos arp
show mls qos counter show platform software qos counter
show mls qos flid show platform software qos flid
show mls qos hw-policymap show platform software qos hw-policymap
show mls qos ip show platform qos ip
show mls qos ipv6 show platform qos ipv6
show mls qos label show platform software qos label
show mls qos last show platform software qos last
show mls qos mac show platform qos mac
show mls qos module show platform qos module
show mls qos mpls show platform qos mpls
show mls qos policymap show platform software qos policymap
show mls qos protocol show platform qos protocol
show mls qos show platform software qos
show mls qos statistics-export info show platform qos statistics-export info
show mls qos subblock show platform software qos subblock
show mls rate-limit show platform hardware rate-limit
show mls statistics show platform hardware statistics
show mls vlan-stats vlan <vlan> show platform hardware lif l3 stats interface <interface>
show mmls gc gce show platform software multicast snooping l2mm cookie
show mmls gc process show platform software multicast snooping l2mm
process status
show mmls gc vdb show platform software multicast snooping l2mm cookie
vdb
show mmls met show platform software met detail
show mmls mltl show platform software ltl allocation
show mmls mrouter show ip igmp snooping mrouter
show mmls msc show platform software
show mmls msc statistics show xdr client mfibv4 statistics
show platform hardware superman config show platform hardware earl eureka config <all|module>
show platform hardware superman dump show platform hardware earl layer2 forwarding-table dump all
show platform hardware superman fwdstats show platform hardware earl eureka statistics<all|clear|module>
show platform hardware superman interrupts show platform hardware earl eureka interrupts<all|module|clear>
show platform hardware superman l2addr show platform hardware earl layer2 forwarding-table l2addr
show platform hardware superman poke show platform hardware earl eureka poke
show platform hardware superman register show platform hardware earl eureka register
show platform met info show platform software met detail
show platform software ipv6-multicast capability show platform multicast routing replication
show platform software ipv6-multicast connected show platform hardware cef ipv6 | include receive
show platform software ipv6-multicast icroif-queue show platform software multicast routing edc client cache
show platform software ipv6-multicast retry-queue show platform software multicast routing cmfib failed ipv6
show platform software ipv6-multicast search cef show platform hardware cef ipv6 multicast tcam
show platform software ipv6-multicast search mfib show platform hardware multicast routing ipv6
show platform software ipv6-multicast statistics show platform software multicast routing cmfib ipv6 statistics
show platform software ipv6-multicast summary show ipv6 mfib summary
show [platform software] tcam adj show platform hardware acl adj-rit
show [platform software] tcam and-or show platform software acl tcp-flags-tbl
show [platform software] tcam capability-map show platform software acl capmap
show [platform software] tcam details show platform hardware acl tcam
show [platform software] tcam global show platform hardware acl entry
show [platform software] tcam interface show platform hardware acl entry interface
show [platform software] tcam label show platform software acl label
show [platform software] tcam lou show platform software acl lou
show [platform software] tcam or-and show platform software tcp-flags-tbl
show [platform software] tcam redirects show platform hardware acl destinfo
show qm-sp aggregate-ram show platform software qos aggregate-ram
show qm-sp port-data show platform software qos port-data
show qm-sp pup-count show platform software qos pup-count
show qm-sp tcam-result show platform software qos tcam-result
show qm-sp test show platform software qos test
show qm-sp threshold-register show platform software qos threshold-register
test hal info show platform software multicast routing hal
statistics
test mcast ltl-info show platform hardware ltl index
test mcast rd-met slot <slot#> show platform hardware met <addr>
test mcast wr-met slot <slot#> test platform hardware met {write | fill} slot <slot#>
test mls cef test platform hardware cef
test mls qos threshold-reg clear test platform software qos threshold-reg clear
test mls qos threshold-reg set test platform software qos threshold-reg set
test [platform hardware] acl content test platform hardware acl entry_mask
