9 Solar Water heating systems

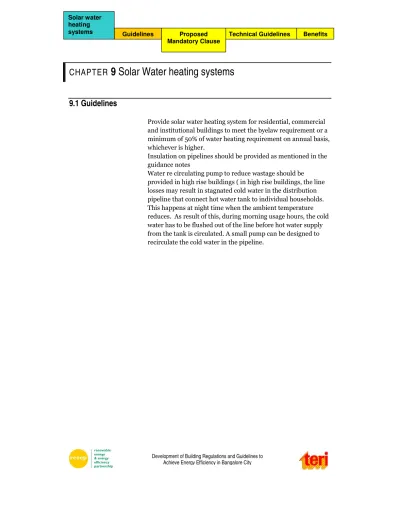

9.1 Guidelines

! "

#

(2)

9.2 Mandatory clause

$ " % & ' ( " ) * ' +

Figure 9.2.1: Solar water heating

system

Table 9.2.1: (Bye law 3.4.10) Solar lighting and water heater requirements Sl.

No.

Type of use 100 liters per day shall be

provided for every unit 1 Restaurants serving food and drinks with seating / serving area of more than 100 sq.

m and above

40 sq. m. of seating or serving area

2 Lodging establishments and Tourist Homes 3 rooms

3 Hostel and guest houses 6 beds / persons capacity

4 Industrial canteens 50 workers

5 Nursing homes and hospitals 4 beds

6 Kalyana Mandira, Community Hall and Conventional hall (with dining hall and kitchen) 30 sq. m of floor area

7 Recreational clubs 100 sq. m of floor area

8 Residential buildings

a)Single dwelling unit measuring 200 sq.m of floor area or site area of more than 400 sq.m whichever is more

9 b) Solar photovoltaic lighting systems shall be installed in multi unit residential buildings (with more than five units for lighting the set back areas and drive ways)

(3)

3

Development of Building Regulations and Guidelines to

Achieve Energy Efficiency in Bangalore City

,

' , &

Hot water demand can be assumed as follows.

• For bathing (using bucket water) = 15 litres per person per bath (one bucket)

• For shower bath = 25 litres per person per bath

• For tub bath = 35–50 litres per person per bath

• For cooking = 5 litres per person per day

• For washing clothes = 10 litres per person per day

• For washing utensils = 5 litres per person per meal

• For making tea/coffee = 150 ml per person per cup

(Consumption figures may vary, depending on the lifestyle, age, habits, and weather conditions)

UNDP/GEF is conducting a study (under publication) on assessing the potential of solar water heating systems in India. Some indicative benchmark numbers that are available for estimation of solar water heating requirement for various applications are as follows:

Hotels:

4 star and above: 150lpd/room 3 star : 125 lpd/room 2 star and below: 50 lpd/room

Hospitals:

30lpd/bed for government/private hospitals 190lpd/bed for multi speciality hospitals

Hostels:

30lpd/student

Applying the above , the hot water demand per bed/person for hostel/guest houses can be estimated as follows:

• For bathing (using bucket water) = 15 litres per person per bath (one bucket)

• For washing clothes = 10 litres per person per day

Hence total hot water demand can be estimated as 30-35lpcd and hence 6 beds would require a minimum of 180-210lpd (say 200lpd) instead of 100lpd specified in the current byelaw. The current byelaw provision shall meet 50% of the water heating requirement

Similarly, for industrial canteens,

Applying the above , the hot water demand per worker can be estimated as follows:

Hence per person requirement is about 10lpd and hence one 100 lpd is required per 10 workers, in place of 50 workers. The current byelaw provision would thus meet 20% of the hot water need for this application. The apartment blocks that have dwelling units lower than 200 sqm should also be covered by byelaw and provision for solar water heating system should be mandated. In case of apartment buildings, the available roof area could determine the capacity of solar water heating systems to be provided. " & -# ! . /0 1
