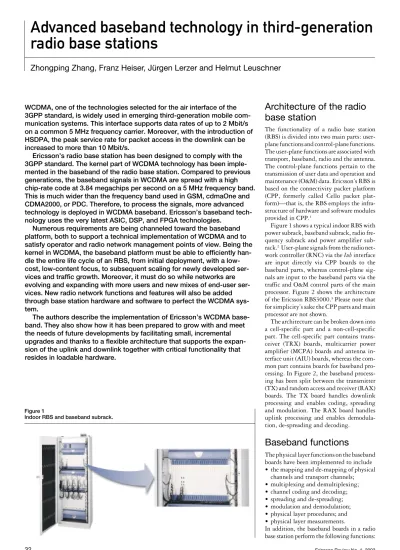

Advanced baseband technology in third-generation
radio base stations
Zhongping Zhang, Franz Heiser, Jürgen Lerzer and Helmut Leuschner
WCDMA, one of the technologies selected for the air interface of the 3GPP standard, is widely used in emerging third-generation mobile com-munication systems. This interface supports data rates of up to 2 Mbit/s on a common 5 MHz frequency carrier. Moreover, with the introduction of HSDPA, the peak service rate for packet access in the downlink can be increased to more than 10 Mbit/s.
Ericsson’s radio base station has been designed to comply with the 3GPP standard. The kernel part of WCDMA technology has been imple-mented in the baseband of the radio base station. Compared to previous generations, the baseband signals in WCDMA are spread with a high chip-rate code at 3.84 megachips per second on a 5 MHz frequency band. This is much wider than the frequency band used in GSM, cdmaOne and CDMA2000, or PDC. Therefore, to process the signals, more advanced technology is deployed in WCDMA baseband. Ericsson’s baseband tech-nology uses the very latest ASIC, DSP, and FPGA technologies.
Numerous requirements are being channeled toward the baseband platform, both to support a technical implementation of WCDMA and to satisfy operator and radio network management points of view. Being the kernel in WCDMA, the baseband platform must be able to efficiently han-dle the entire life cycle of an RBS, from initial deployment, with a low-cost, low-content focus, to subsequent scaling for newly developed ser-vices and traffic growth. Moreover, it must do so while networks are evolving and expanding with more users and new mixes of end-user ser-vices. New radio network functions and features will also be added through base station hardware and software to perfect the WCDMA sys-tem.
The authors describe the implementation of Ericsson’s WCDMA base-band. They also show how it has been prepared to grow with and meet the needs of future developments by facilitating small, incremental upgrades and thanks to a flexible architecture that supports the expan-sion of the uplink and downlink together with critical functionality that resides in loadable hardware.
Figure 1
• radio base station configuration; • cell control;
• the distribution of system information; • radio link configuration for dedicated and
common channels;
• Iub data-stream handling; and
• node synchronization and distribution. The baseband functions in the radio base sta-tion thus provide a platform for radio net-work functions, configuration functions, and O&M functions. Accordingly, the base-band constitutes a platform of resources for handling common and dedicated channels for higher layers.
Figure 3 gives an overview of standard channel mapping between logical channels, transport channels and physical channels.4,5 The upper part pertains to the downlink channels and the lower part (shown in dark blue) pertains to the uplink channels. The Third-generation Partnership Project6 (3GPP) has defined the
• synchronization procedures for cells, com-mon channels and dedicated channels; • random-access procedures; and
• inner- and outer-loop power control pro-cedures.
To improve the performance of the radio link connection, the 3GPP has recom-mended possible enhancements, such as open-loop and closed-loop transmit diversi-ty. After the baseband boards have been con-figured properly with respect to the inter-faces to other subsystems, they can be put into traffic operation. If the traffic load on the baseband is light, all or part of the board can be put into power save mode to reduce power consumption. By contrast, supervi-sion and protection mechanisms reduce the risk of dropped calls when the traffic load on the baseband boards is too heavy.
Baseband design aspects
Ericsson’s baseband has been designed to comply with 3GPP standards for WCDMA. In addition, the baseband architecture has been designed to meet requirements for op-erating radio base stations. These include configuration flexibility, effective use of re-sources, easy roll-out, compatibility and future-proof hardware. By introducing the very latest in digital signal processor (DSP), field-programmable gate array (FPGA) and application-specific integrated circuit (ASIC) technologies, Ericsson has signifi-cantly increased the capacity for traffic and control signaling, measured in terms of channel elements for the dedicated physical
TX board From RNC (user plane) To RNC (user plane) Random access and RX board
Data and/or “fast” control Baseband bus Interface between downlink and
uplink baseband processing
Baseband
TXB
TRXB MCPA andAIUB
TRXB MCPA andAIUB
TRXB MCPA andAIUB RAXB
Cell
Cell
Cell Transciever
board Multicarrier power amplifierand antenna interface unit board
Figure 2
Baseband in RBS and interfaces.
RNC RBS
RNC control
Logical channel
Logical
channel Transportchannel RBS/RNC control link lub data stream Physical channel Downlink channels Uplink channels PCCH DCCH CCCH DTCH DTCH DCCH DCCH RACH DCH FACH PCH BCH BCCH SCH P-CCPCH CPICH PICH S-CCPCH S-CCPCH DPDCH DPCCH AICH PRACH DPDCH/ DPCCH MAC-hs HS-DSCH HS-SCCH HS-PDSCH HS-PDCCH DCH CCCH DTCH DTCH DCCH RBS control Figure 3
channels. A channel element is defined as the equivalent baseband resource (hardware and software) needed to transmit a voice channel at 30 kbit/s.
Configuration flexibility and efficient use of resources
Operators want a radio base station that can be adapted to handle different site and radio configurations. Ericsson’s baseband imple-mentation gives operators this flexibility, allowing them to change radio configura-tions without having to physically visit the site. Flexible interfaces have been provided between the subsystems of the radio base sta-tion, and the baseband parts have been de-signed in a modular fashion. Each baseband unit provides a certain amount of traffic ca-pacity for dedicated and common transport channels. This modular design enables
op-erators to configure the radio base station for various traffic scenarios and load.
Baseband board types—TX board and RAX board
Obviously, the use of separate baseband downlink and uplink modules makes it eas-ier to upgrade the system and to better adapt it to the asymmetric traffic associated with third-generation services. Ericsson’s RBS3000 has two baseband board types: the TX board handles downlink traffic, and the RAX board handles uplink traffic.
Traffic over the air interface is expected to be asymmetrical—that is, there will be more traffic in the downlink than in the uplink. By adding separate TX and RAX boards, operators can increase capacity in small or large increments either symmetrically or asymmetrically.
3GPP Third-generation Partnership Project
AICH Acquisition indication channel AIU Antenna interface unit ASIC Application-specific integrated
circuit
BCCH Broadcast control channel BCH Broadcast channel BP Board processor CCCH Common control channel CCH Common channel
CCTrCH Coded composite transport channel
CDMA Code-division multiple access CPICH Common pilot channel CPP Connectivity packet platform CRC Cyclic redundancy check DCCH Dedicated control channel DCH Dedicated channel DL-TPC Downlink TPC DP Data processing
DPCCH Dedicated physical control channel
DPCH Dedicated physical channel DPDCH Dedicated physical data channel DSCH Downlink shared channel DSP Digital signal processor DTCH Dedicated traffic channel DTX Discontinuous transmission FACH Forward access channel FP Frame protocol
FPGA Field-programmable gate array GPRS General packet radio service GSM Global system for mobile
communication
HS-DPCCH High-speed dedicated physical control channel
HS-PDSCH High-speed physical downlink shared channel
HSDPA High-speed downlink packet-data access
HS-SCCH High-speed shared control channel
MCPA Multicarrier power amplifier MUX Multiplexing unit
O&M Operation and maintenance PCCH Paging control channel P-CCPCH Primary common control
physical channel PCH Paging channel P-CPICH Primary CPICH PDC Personal digital cellular PICH Paging indicator channel PRACH Physical random access channel RACH Random access channel RAKE Name of WCDMA receiver RAX Random access and receiver RBS Radio base station
RF Radio frequency RNC Radio network controller S-CCPCH Secondary common control
physical channel SCH Synchronization channel SIR Signal-to-interference ratio TFCI Transport format combination
indicator
TPC Transmission power control TrCH Transport channel TRX Transceiver TX Transmitter UE User equipment UL-TPC Uplink TPC WCDMA Wideband CDMA
Modularity of the baseband
Traffic load and distribution vary over time in different sectors and frequencies. The Ericsson baseband architecture employs pooling to optimize the use of available re-sources. This approach also guarantees that configurations can be flexible. Figure 4 shows the advantages of modularity and pooled resources in two different radio con-figurations.
Some operators require redundancy in the radio base station. The modular baseband design easily restricts the loss of traffic due to, say, a faulty component or unit in base-band processing.
Easy roll-out of third-generation infrastructure
Established GSM and GSM/GPRS operators can more easily roll out third-generation frastructure by reusing site locations and in-frastructure. Most operators starting out in the third-generation business want low-cost, low-capacity RBSs. Later, when the number of subscribers has increased and more advanced services are to be introduced, they will need RBSs that can handle greater traffic capacity in individual cells. The base-band boards have been designed with scal-ability in mind—greater capacity can be had by adding hardware units (TX boards and RAX boards).
Another way of increasing traffic capaci-ty is to deliver and install prepared hardware on site. As operator needs grow, more ca-pacity can be activated successively by means of software functions. This approach advocates the use of simple, standard hard-ware configurations.
A further advantage of baseband scalabil-ity is that the RBS can be equipped with as many baseband units as needed to satisfy traffic, site conditions, and air-interface ca-pacity for a given frequency band. This helps operators to avoid wasting unnecessary re-sources.
Future-proof and compatible
As mentioned above, most operators just starting out in the third-generation business want low-cost, low-content RBSs. Later, however, apart from increasing capacity in the RBS, they will also need more func-tionality and more advanced features. In de-signing the baseband, Ericsson has careful-ly considered various evolution scenarios, making allowances for customer-specific re-quirements for functions, services, capacity, redundancy, and site conditions.
In general, the functions in the physical layer have been implemented in hardware (ASIC) or close to hardware (DSP); the con-trol functions have been implemented in software on DSPs and board processors. To avoid the logistical problems and costs as-sociated with frequent on-site updates or upgrades, Ericsson has prepared the hard-ware for future functions—these can be-come available via remote software and firmware updates. Ericsson calls this feature forward hardware compatibility.
On the other hand, new baseband boards must work in environments that use old baseband boards. This is called backward hardware compatibility. Ericsson’s base-band hardware and software are forward hardware and backward hardware compat-ible. Future-proofness—in terms of addi-tional radio configurations, services, func-tions, and greater capacity—is an impor-tance aspect of Ericsson’s baseband design. Figure 5 illustrates the forward hardware compatibility concept. Function Z has been provided in hardware. A remote software upgrade can thus activate the entire
func-Baseband resources
Number of users in a cell Frequency 1 Frequency 2 Frequency 1 Frequency 2 Baseband resources Change in traffic Figure 4
Baseband modularity and pooled resources.
Function A Function B Function C Function D
Function Z (forward hardware prep.)
Function A
Function B
Function C Function D Function Z
(forward hardware prep.) Remote software upgrade Software
Hardware Figure 5
tion. Figure 6 shows the backward hardware compatibility concept. The baseband unit, C, is added to the existing RBS to improve functionality and capacity.
Downlink processing
board—TX board
Downlink processing functionsFigure 7 shows the main function blocks for processing the downlink. Each of these blocks also contains other baseband func-tions (not pictured). The first process is frame protocol (FP) handling (pictured left). After confirming when the data frames on the com-mon channels (paging channel, PCH, and forward access channel, FACH) and the ded-icated channels (DCH) arrived from the Iub interface, the frame protocol handler aligns the frames and extracts the payload part of the data frame. The payload part contains the data of the uncoded transport channels.
For the dedicated channels, the encoding function block
• generates the cyclic redundancy check (CRC);
• concatenates the transport blocks; • segments the coding blocks;
• performs convolutional coding or turbo coding;
• inserts the first discontinuous transmis-sion (DTX);
• matches rates; and
• performs the first interleaving.
To fit the 10 ms radio frame, the transport blocks from different transport channels are multiplexed in the multiplexing unit (MUX) function block. This activity is fol-lowed by insertion of the second DTX, the second interleaving, and multicode split-ting. Data and control information are then sent to the cell-split function block. The control information contains transport for-mat combination indicator (TFCI) bits and corresponding transmission power control (TPC) commands which have been mapped with pilot bits onto the dedicated physical control channel (DPCCH).
After the frame protocols have been han-dled, the broadcast channel (BCH, which is mapped to the primary common control physical channel, P-CCPCH, and to PCH and FACH) and PCH and FACH (which are mapped to the secondary common control physical dedicated channel, S-CCPCH) are processed in a manner similar to that de-scribed for the dedicated channels. The cell-split function identifies the common and dedicated physical channels that belong to one cell carrier. These processes are followed by modulation, spreading and weighting, BB unit A BB unit B
Hardware addition Software
Hardware
BB unit A BB unit B BB unit C (new)
Figure 6
with power information for the downlink power control, and scrambling.
TX board implementation
Figure 8 shows the downlink processing board (TX board), which is divided into two main parts: the board processor and board-specific hardware. The board processor con-trols the board and parts of the traffic. The board-specific hardware, which processes user data sent to the air interface, contains the Iub user-plane interface handler, symbol-rate processor, chip-rate processor, and the physical layer processing controller.
The Iub user-plane interface handler han-dles the Iub interface user-plane protocol for the DCH and CCH data streams to the radio network controller.
The symbol-rate processor handles the transport channel (TrCH), the coded com-posite transport channel (CCTrCH), the physical channel for the primary and sec-ondary common control physical channels, the paging indicator channel (PICH), and the dedicated physical channel (DPCH).
The chip-rate processor handles the dis-tribution of physical channels, generates the synchronization channel (SCH), the prima-ry common pilot channel (P-CPICH) and acquisition indicator channel (AICH), and transmits the distributed output sequences
to the TRX. It also measures the transmit-ted code power and handles all cell-carrier processing-related functionality.
The physical layer processing controller handles the configuration of the
symbol-PCH FP FACH FP DCH FP DCH encoding BCH encoding Modulation spreading PCH encoding FACH encoding MUX Cell split lub l/f l/f to TRX
DL/UL l/f Figure 7Downlink processing function blocks.
Figure 8
and chip-rate processing parts with respect to the control of measurements, set-up, re-lease, and reconfiguration of cell-carriers and channels.
The functionality of the Iub user-plane in-terface handler and the physical layer pro-cessing controller is implemented in DSPs to give flexible implementation of • the controller functions;
• external interfaces to the RNC for the user data interface; and
• interfaces to the board processor for the control interface.
The symbol-rate processing functionality is implemented in FPGAs due to processing delay and varying requirements put on the throughput of user data. Some flexibility is also provided in view of changing require-ments for the implemented functionality.
The chip-rate processing functionality is implemented in ASICs. This approach em-ploys parallel processing to meet the de-mand for limited processing delay. It also allows synchronous transmission of the dis-tributed output sequence to the TRX.
Figure 9 shows a TX board used in an RBS3000. The board can handle multiple cell-carriers with more than one antenna branch.
Interface between the TX and RAX boards
The interface between the TX and RAX boards supports fast signaling for controlling
call set-up and power. When the user equip-ment (UE) sets up a call to the RBS, the cor-responding RAX board in the RBS reserves sufficient resources. The RAX board then sends a layer-1 acknowledgement signal via the TX board to the UE, indicating that the UE may send the RACH message part. To control power in the downlink, the RAX board detects the TPC commands and sends them to the TX board, which adjusts down-link transmission power.
To control power in the uplink, the RAX board compares the signal-to-interference ratio (SIR) target with the SIR of the re-ceived signals and generates the TPC com-mands, which it sends to the UE in the downlink DPCCH.
Uplink processing
board—RAX board
Uplink processing functionsIn the uplink, the signals received from the air interface are input to the baseband in a digital signal format from the TRX radio part of the RBS (Figure 10). For the dedi-cated physical channel (DPCH), the incom-ing signals from the TRX are processed in the demodulator function block, which con-tains a searcher and RAKE receiver. The de-modulator
• performs de-spreading; Figure 9
• recovers the uplink control channel data and DPDCH data;
• generates uplink TPC (UL-TPC) com-mands;
• detects downlink TPC (DL-TPC) com-mands; and
• decodes and de-maps the TFCI.
Searcher
In multipath propagation environments, the RAKE receiver must know when the multipath rays arrive—that is, it must de-termine the position of the multipath rays along the delay axis, so that it can allocate the RAKE fingers to positions where the multipath components hit with signal power. The task of the searcher in the base-band is to synchronize the RAKE fingers.
To speed up the searching process, a nar-row searcher window is placed where the multipath rays are expected. However, in some cases, such as soft-handover set-up, the propagation delay is unknown; therefore, a wide searcher window is needed that corre-sponds to the entire cell range. The searcher also estimates the profiles of radio channel delay and sends them to the RAKE receiver.
RAKE receiver
The RAKE receiver separates the multipath components and combines them coherently into a large signal vector that provides good demodulation conditions. This increases the
probability of making correct decisions and improves receiver performance.
Given the proper spreading code, the RAKE receiver can de-spread all detected multipath rays. Using the pilot bits to es-timate channel amplitude, phase, frequen-cy offset and Doppler spread, the RAKE re-ceiver processes the multipath rays with the corresponding weighting, and combines the rays. Before combining the rays, how-ever, each ray is processed by one RAKE finger.
To make efficient use of the hardware re-sources, the RAKE fingers can be treated as a pool of hardware resources. They can also be flexibly allocated between users on the same RAX. This allocation is made according to the position information delivered by the searcher. Fewer RAKE fingers are needed in rural settings with a line-of-sight connection between UEs and the radio base station than in urban settings with multipath fading.
During softer handover, which is the handover between cells in the same RBS and on the same carrier, the detected signals are combined.
The DPCH signals are demultiplexed and de-mapped to the DCH of the transport channel for the next step of processing in the decoder. The decoder input signal consists of interleaved soft bits from the demodula-tor. The following tasks are performed in the decoder block: RACH FP DCH FP DCH decoder Cell combiner DMUX RACH decoder RACH demodulator RAKE Searcher RAKE Searcher DCH demodulator Preamble detection lub l/f l/f to TRX DL/UL l/f Figure 10
• the second de-interleaving;
• desegmentation of the physical channel; • service demultiplexing;
• rate matching;
• radio frame de-segmentation; • the first de-interleaving;
• convolutional and turbo decoding; and • error detection by the CRC.
When the UE tries to contact a radio base station, the random-access receiver detects the preamble that contains the signature used for the RACH message part. When it has detected the preamble, it determines which signature the RACH message part is using, and whether sufficient baseband re-sources are available. If so, it sends a layer-1 Ack or Nack message to the UE via downlink processing and begins processing the RACH message part in a similar man-ner as described for the DCH.
The frame protocol function for the DCH and RACH assembles frame protocol data, which consists of a header part and a pay-load part (user data). Frame protocol data frames are sent to the RNC via the Iub user plane.
The RAX board recovers and restores the information originally transmitted from the incoming radio signal for random access and dedicated channels. The 3GPP has defined the requirements put on uplink reception
performance.7 Reception sensitivity, signal-to-interference performance, and the capacity of the physical channels determine the characteristics of the receiver.
RAX board implementation
The uplink processing board (RAX board) is divided into two main parts: the board processor (BP), and board-specific user-data-processing (DP) hardware. The board processor controls the board and parts of the traffic. The DP hardware processes user data received from the air interface to the Iub in-terface. Figure 11 shows the blocks on a RAX board in the RBS3000.
The DP part contains blocks for process-ing the CCH chip rate, DCH chip rate, CCH symbol rate, and DCH symbol rate.
The CCH chip-rate processing block de-tects the preamble, generates the acquisition indicator, and detects and extracts the mes-sages (DPDCH/DPCCH) for the physical random access channel (PRACH) from the data received on the air interface.
The DCH chip-rate processing block de-tects and extracts the DPCH (DPDCH/DPCCH) from the data available on the air interface, including power control support.
The CCH symbol-rate processing block processes the CCTrCH provided by the CCH chip-rate processing block into de-coded TrCH, which is sent via the Iub frame protocol to the radio network controller.
The DCH symbol-rate processing block processes the CCTrCH provided by the DCH chip-rate processing blocks into decoded TrCH, which is sent via the Iub frame protocol to the radio network controller.
Algorithms and functionality for process-ing stable user data have been implement-ed in fiximplement-ed hardware (ASIC) to yield high capacity. By contrast, algorithms for pro-cessing variable user data, such as channel estimation, are allocated in loadable hard-ware (DSP or FPGA). New functionality, due to enhancements to 3GPP standards, is also implemented in loadable hardware (DSP and FPGA).
The block structure (Figure 11) and the mix of fixed and loadable hardware results in a future-proof architecture:
• Reception sensitivity can be improved by upgrading the algorithms in loadable hardware and software.
• The hardware has been prepared to sup-port future 3GPP functions (future re-leases). This means that basic
functional-CCH symbol-rate processing ASIC DSP/FPGA
DCH symbol-rate processing
Iub control frames from TXB Synchronization, power control and feedback information to TXB
Iub user plane to RNC UU L1 data from TRX ASIC DSP/FPGA BP CCH chip-rate processing ASIC DSP/FPGA DCH chip-rate processing ASIC DSP/FPGA L1 acknowledge to TXB Figure 11
ity and extensions of the 3GPP physical layer can be upgraded.
• The scalable nature of the DCH and CCH ensures that the capacity of each block can be increased using new ASIC, FPGA, and DSP technologies.
• The block structure supports integra-tion within as well as between process-ing blocks. This also leads to greater ca-pacity.
Ericsson’s use of modular building blocks enables operators to vary the implementa-tion as needed. For example, a low-capacity DCH/CCH solution would make use of separate low-capacity DCH/CCH chip-rate processing and combined symbol-chip-rate processing, whereas a high-capacity DCH/CCH solution would make use of separate, scalable, high-capacity DCH chip- and symbol-rate processing and com-bined CCH chip- and symbol-rate pro-cessing.
Figure 12 shows a RAX board used in the RBS3000. The board supports two-way diversity and can handle multiples of 16-channel elements serving up to six cell car-riers.
Future baseband
enhancements
High-speed downlink packet-data access
High-speed downlink packet-data access (HSDPA) can be introduced in the down-link for best-effort services. This enhance-ment can increase the bit rate to more than 10 Mbit/s in the existing frequency band.3
HSDPA can be implemented in the TX board for the downlink by exploiting more advanced baseband technology.
Interference cancellation
Interference cancellation can be introduced in the uplink DCH receiver to improve cov-erage or to increase capacity. The main ef-fect of interference cancellation is reduced interference received from users in the same cell as the target user. This technique can either increase the amount of uplink traffic or reduce the interference margin in the di-mensioning, thus increasing coverage.
The configuration can be serial or paral-lel. Serial configurations yield the greatest improvement in performance and require less processing power, but result in greater delay. Parallel configurations, which offer a reasonable improvement in performance,
re-quire greater processing power, but result in shorter delay. Parallel configurations are thus preferred for voice service.
Conclusion
The baseband part of Ericsson’s RBS3000 provides a hardware platform for third-generation radio network functions and complies in full with the 3GPP WCDMA standard. All physical layer functions and frame protocol processing are implemented on the baseband boards.
The baseband design supports free alloca-tion of baseband resources to frequency and sectors, thereby supporting operator needs for flexibility in configuring the radio net-work for different sites. The architecture scales easily to meet operator demands for capacity. The baseband software and hard-ware support forward hardhard-ware prepara-tion—for future functional enhancements. The baseband architecture is also backward compatible—that is, operators will be able to insert future-generation hardware into an existing platform running the RBS infra-structure.
Planned enhancements to the baseband include HSDPA, to increase the bit rate for best-effort service in the downlink, and in-terference cancellation, to improve coverage or capacity in the uplink.
1 Kling, L., Lindholm, Å., Marklund L. and Nilsson G: CPP—Cello packet platform, Ericsson Review Vol. 79(2002):2, pp. 68-75
2 Zune, P.: Family of RBS 3000 products for WCDMA systems, Ericsson Review Vol. 77(2000):3, pp. 170-177
3 Hedberg, T. and Parkvall, S.: Evolving WCDMA, Ericsson Review Vol. 77(2000):2, pp. 124-131
4 3GPP WCDMA Technical Specification 25.211
5 3GPP WCDMA Technical Specification 25.301
6 3GPP WCDMA Technical Specification 25.214
7 3GPP WCDMA Technical Specification 25.104
REFERENCES
Figure 12
