Project Report on Lan-Chat Application in Java-MySQL

(1)

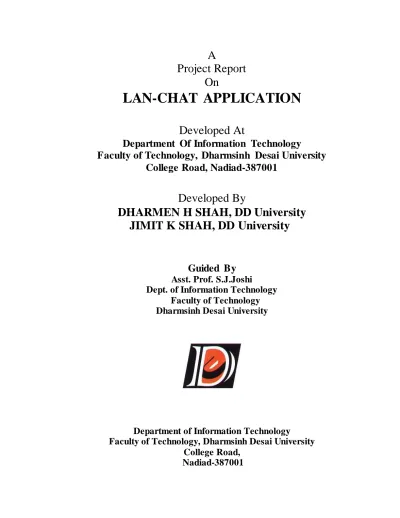

A

Project Report

On

LAN-CHAT APPLICATION

Developed At

Department Of Information Technology

Faculty of Technology, Dharmsinh Desai University

College Road, Nadiad-387001

Developed By

DHARMEN H SHAH, DD University

JIMIT K SHAH, DD University

Guided By

Asst. Prof. S.J.Joshi

Dept. of Information Technology

Faculty of Technology

Dharmsinh Desai University

Department of Information Technology

Faculty of Technology, Dharmsinh Desai University

College Road,

(2)

DDU(Faculty of Tech., Dept. of IT) i

CANDIDATE’S DECLARATION

We declare that final semester report entitled “LAN-CHAT APPLICATION” is our own work conducted under the supervision of the Asst. Prof. S.J.Joshi, Dept. of Information Technology, Faculty of Technology, Dharmsinh Desai University.

We further declare that to the best of our knowledge the report for B.E. final semester does not contain part of the work which has been submitted for the award of B.E. Degree either in this or any other university without proper citation.

Candidate’s Signature:

Candidate’s Name: Dharmen H. Shah Branch: Information Technology Student ID: 106093

Candidate’s Signature:

Candidate’s Name: Jimit K. Shah Branch: Information Technology Student ID: 106097

Submitted To:

Asst. Prof. S.J.Joshi (Project Guide) Department of Information Technology, Faculty of Technology,

Dharmsinh Desai University, Nadiad State: Gujarat

(3)

DDU(Faculty of Tech., Dept. of IT) ii

DHARMSINH DESAI UNIVERSITY

NADIAD-387001, GUJARAT

CERTIFICATE

This is to certify that the project carried out in the subject of Software Design Project entitled “LAN-CHAT APPLICATION” and provided in this report is a bonafied report of the work carried out by Mr. Dharmen H. Shah (ID No: 106093) & Mr. Jimit K. Shah (ID No: 106097) of Department of Information Technology, semester VII, under the guidance and supervision for the award of the Degree of Bachelor of Technology at Dharmsinh Desai University, Nadiad (Gujarat). They were involved in Project training during academic year 2013-2014.

Asst. Prof S.J.Joshi (Project Guide)

Department of Information Technology, Faculty of Technology,

Dharmsinh Desai University, Nadiad Date:

Prof. R.S.Chhajed (Head of Department)

Department of Information Technology, Faculty of Technology,

Dharmsinh Desai University, Nadiad Date:

(4)

DDU(Faculty of Tech., Dept. of IT) iii

Acknowledgement

It is indeed a great pleasure to express our thanks and gratitude to all those who helped us during this project. This project would have been materialized without the help from many who asked us good questions and rescued from various red tape crisis.

Theoretical knowledge is of no importance if one doesn’t know the way of its implementation. We are thankful to our institute that provided us an opportunity to apply our theoretical knowledge through the project. We feel obliged in submitting this project as part of our curriculum.

We would like to take the opportunity to express our humble gratitude to our guide Mrs.S.J.Joshi, Assistant Professor, Faculty of IT Department, DDU, under whom we undertook our project. Her constant guidance and willingness to share her vast knowledge made us enhance our knowledge and helped us to complete the assigned tasks to perfection. Without her effort and full support & an astonishing testing ability this project may not have succeeded.

Although, there may be still many who are unacknowledged in this humble vote of thanks, there are none who remain unappreciated.

With Sincere Regards,

Dharmen H. Shah

Jimit K. Shah

(5)

DDU(Faculty of Tech., Dept. of IT) iv

6 Implementation Planning 35 6.1 Implementation Environment 35 6.2 Program/Modules Specification 35 6.3 Coding Standards 36 7 Testing 37 7.1 Testing Plan 37 7.2 Testing Strategy 38 7.3 Testing Methods 39 8 User Manual 42 9 Limitation and Future Enhancement 50 10 Conclusion and Discussion 51 10.1 Conclusions 51 10.2 Discussion 51 10.2.1 Self Analysis of Project Viability 51 10.2.2 Problem Encountered and Possible solutions 51

10.2.3.Summary of Project Work 52

(7)

DDU(Faculty of Tech., Dept. of IT) vi

List of Figures:

Fig 2.2.1.1 Prototyping model for the project development 7

Fig 2.3.1 Gantt chart 9

Fig 4.3.1 DFD level 0 18

Fig 4.4 Use case diagram 21

Fig 4.5 Activity Diagram 22

Fig 5.1.1Class Diagram 23

Fig 5.1.2.1 Sequence of Admin Login 24

Fig 5.1.2.2 Sequence of User Login 25

Fig 5.1.2.3 Sequence of Disconnect User 25

Fig 5.1.2.4 Sequence of Chat History 26 Fig 5.1.2.5 Sequence of Send Document 26

Fig 5.1.2.6 Sequence of Send Message 27

Fig 5.1.2.7 Sequence of Edit Profile 27

Fig 5.1.2.8 Sequence of Disconnect All 28

Fig 5.1.3 Component Diagram 29

Fig 5.1.4 State Chart 30

Fig 5.2.1 ER Diagram 34

Fig 7.1 Test plan 37

Fig 8.1 Welcome 41

Fig 8.2 Login 42

Fig 8.3 User Chatting Window 43

Fig 8.4 User Chatting Window with error 43

Fig 8.5 Edit Profile 44

Fig 8.6 Check Files 45

Fig 8.7 Check Messages 45

Fig 8.8 Add Lab 46

Fig 8.9 Forgot Password 47

Fig 8.10 Forgot Password with mail sent 47

Fig 8.11 Registration 48

List of Tables:

Table 2.2.3 Milestones and deliverable 8

Table 5.1.1 student 32 Table 5.1.2 faculty 33 Table 5.1.3 stu_detail 33 Table 5.1.4 sem_faculty 33 Table 5.1.5 message 34

Table 5.1.6 files 34

(8)

DDU(Faculty of Tech., Dept. of IT) vii

Abstract

Nowadays no one has time, Lan-Chat Application is a desktop based project which is provided to improve & enhance the use of the LAN, mostly available in almost of the college.

Teleconferencing or Chatting, is a method of using technology to bring people and ideas “together” despite of the geographical barriers. The technology has been available for years but the acceptance it was quit recent. Our project is an example of a client-server application. It is made up of 2 applications the client application, which runs on the user’s Pc and server application, which runs on any Pc on the network. To start chatting client should get connected to server where they can practice two kinds of chatting, public one (message is broadcasted to all connected users) and private one (between any 2 users only) and during the last one security measures were taken.

The idea of creating a lan-chat application was initiated and it has two

dimensions, one to have an experience in network programming and the other is to let people conduct meetings with others in different locations. Such that it crosses time zones, can reach many people, and reduce the paper flood.

(9)

Introduction

DDU(Faculty of Tech., Dept. of IT) 1

1 INTRODUCTION

1.1 Project Details

The project entitled “Lan -Chat Application” is a Desktop Application that enables different type of users like Students and Faculties to do interaction with all other user and enables them to documents with this application.

Main aim of this application is to provide an easy way to do conversation and announce any event to all or specific user.

1.2 Purpose

In Today’s world the important thing which is required is time. Now every universities like DDU has so many resources available for everyone. But to manage them and to manage student-faculty conversation, it takes so much efforts if done manually.

This project is developed mainly to reduce that efforts by making it automatically as much as possible. Which reduces the efforts.

1.3 Scope:

This Desktop based application would be used by any well established lan network and server which is created by us, has to be deployed on the local server of the lan network.

1.4 Objective:

Using this application user can do:

 Can do Chatting

 Can send file

 User can’t register or get username by themselves admin has to provide username and password manually in order to provide authorization to user.

(10)

Introduction

1.5 Technology and Literature Review

1.5.1 Why JAVA?

Java™ has significant advantages over other languages and environments that make it suitable for just about any programming task.

The advantages of Java are as follows:  Java is easy to learn.

Java was designed to be easy to use and is therefore easy to write, compile, debug, and learn than other programming languages.

 Java is object-oriented.

This allows you to create modular programs and reusable code.  Java is platform- independent.

One of the most significant advantages of Java is its ability to move easily from one computer system to another. The ability to run the same program on many different systems is crucial to World Wide Web software, and Java succeeds at this by being platform- independent at both the source and binary levels.

Because of Java's robustness, ease of use, cross-platform capabilities and security features, it has become a language of choice for providing worldwide Internet solutions.

1.5.2 NetBeans IDE Features

1.5.2.1 Best Support for Latest Java Technologies

NetBeans IDE provides first-class comprehensive support for the newest Java technologies and latest Java specification enhancements before other IDEs. It is the first free IDE providing support for JDK 8 previews, JDK 7, Java EE 7 including its related HTML5 enhancements, and JavaFX 2.

With its constantly improving Java Editor, many rich features and an extensive range of tools, templates and samples, NetBeans IDE sets the standard for developing with cutting edge technologies out of the box.

(11)

Introduction

1.5.2.2 Fast & Smart Code Editing

An IDE is much more than a text editor. The NetBeans Editor indents lines, matches words and brackets, and highlights source code syntactically and semantically. It also provides code templates, coding tips, and refactoring tools.

1.5.2.3 Easy & Efficient Project Management

Keeping a clear overview of large applications, with thousands of folders and files, and millions of lines of code, is a daunting task. NetBeans IDE provides different views of your data, from multiple project windows to helpful tools for setting up your applications and managing them efficiently, letting you drill down into your data quickly and easily, while giving you versioning tools via Subversion, Mercurial, and Git integration out of the box.

1.5.2.4 Write Bug Free Code

The cost of buggy code increases the longer it remains unfixed. NetBeans provides static analysis tools, especially integration with the widely used FindBugs tool, for identifying and fixing common problems in Java code. In addition, the NetBeans Debugger lets you place breakpoints in your source code, add field watches, step through your code, run into methods, take snapshots and monitor execution as it occurs.

1.5.3. Network Application

Network application exchange data between physically separated machines.

For this to occur the machines must be connected by a transmission media. There are many different types of communication links and new ones continue to be developed. Coaxial cables, phone lines, digital phone lines, fiber optic cable, satellite beam, and infrared waves are all used as transmission media for exchange data between computers.

A network includes a group of computers connected by a physical link

allowing data to be exchanged between them. A local area network on LAN is a network of computers in close physical proximity, usually a single building, but can be a group of adjacent buildings. Over the last decades LANs have become an important component of the computer workplace.

(12)

Introduction

1.5.3.1. Protocol Stacks

Very Early in the history of computer network development the concept of separating the problem into multiple levels was adapted. With a multilevel

architecture each layer can handle a different aspect of networking and provide that functionality to the above layer. TCP/IP is a specific implementation of a multi level network architecture. In both, the first and second chapter, we are always repeating the same sentence, which is TCP/IP protocol. It is now the time to dissect this sentence.

1.5.3.2. TCP

TCP (the “Transmission Control Protocol “) has the responsibility for

breaking up the message into datagrams, reassembling them at the other end, resending anything that gets lost, and putting things back in the right order. It may seem that TCP is doing all the work. And in small network it is true. With TCP, there is no maximum message length. When a message is passed to the TCP protocol, if it is too large to be sent in one peace, the message is broken up into chunks or packets and sent one at a time to the destination address. The TCP packet contains the addressing information. The TCP message also contains a packet number and total number of packets. Because of the nature of the TCP/IP protocol, the packet may travel different paths and may arrive in a different order than sent. TCP reassemble the packets in the proper order and requests the retransmission of any missing or corrupted packets. TCP enables you to create and maintain a connection to a remote computer. By using the connection, both computers can stream data between each other.

(13)

Introduction

1.5.3.3. IP

As the number of computers networked become larger, a system becomes necessary to give remote computers the capability to recognize other remote computers; thus the IP addressing method was born. Therefore, simply an IP address uniquely identifies any computer connected to a network. This address is made up of 32 bits divided into 4 four bytes. But since the number of connected computers is too large and since it is difficult to remember all their IP addresses, the Domain Name Service (DNS) was designed. It has the job of transforming the unique computer names (host name) into an IP address. Therefore, whenever in our project we run the client application and enter the host name, this means that we are writing the IP address of the remote computer we want to connect to indirectly. In general, TCP/IP is a set of protocols developed to allow cooperating computers to share resources across the network.

1.5.3.4. Service Port

Till now, we have seen that TCP/IP forms the backbone for communication between computers, but do you know how these computers speak to each other? The answer is Ports. A port is a special location in the computer’s memory that exists when two computers are communicating via TCP/IP. Application uses a port number to communicate and the sending and receiving computers use this same port to exchange data. To make the job of communication easier, some port numbers have been standardized, ex, (www Port 80, Ftp Port 20, 21, Etc.). Our application uses a constant named IP-echoport = 7.

1.5.3.4. Sockets

The world is defining itself as a largely Intel-processor, windows-based set of desktops communicating with back end servers of various types. Hardware and software technology advances are pushing PC’s into the role of every where communications devices. For software applications to take advantage of increasingly sophisticated and feature-rich communications technology, they require an Application Programming Interface (API) which provides a simple and uniform access to this technology.

(14)

Project Management

2.0 PROJECT MANAGEMENT

2.1 Feasibility Study:

2.1.1 Technical Feasibility:

 Since the project is designed with Java in front end and My SQL in back end so, it is easy to install in all the systems wherever needed. It is more efficient, easy and user-friendly to understand by almost everyone. Huge amount of data can be handled efficiently using My SQL Server as back end. Hence this project has good technical feasibility.

2.1.2 Time Schedule Feasibility:

 The project has simple working and the basic requirement can be satisfied within the allotted time period so the time development feasibility for this is satisfied

2.1.3 Operational Feasibility:

 The number of users to such application is very vast and every student/faculty can use this type of application. These kinds of systems are becoming more common day by day for evaluation of the software engineers. Hence, this system is operationally feasible. As this system is technically economically and operationally feasible, this system is feasible.

2.1.4 Implementation Feasibility

 The project checks whether the overall functioning is reliable and feasible and the development of the project is easy going

(15)

Project Management

2.2 Project Planning

2.2.1 Project Development Approach and Justification:

Fig. 2.2.1.1 Prototyping Model for the Project Development

Here we are not hosting our own application. We have made this application for our client. Initially if the project is found to be feasible as observed from the initial requirements, design is prepared. Next we build a prototype from the design.

Prototype is reviewed and if there are any changes to be done in that case prototype is updated with a new design till we are satisfied. The development commences after the approval phase. The development phase is lead by testing and maintenance phase.

(16)

Project Management

2.2.2 Project Plan:

1. Gather the definition.

2. Check whether the definition is feasible or not in given deadline. 3. Requirement gathering.

4. Analysis on gathered requirements. 5. Designing.

6. Coding. 7. Testing.

2.2.3 Milestones and Deliverables

 Milestones are identified in order to complete the entire project in the time duration.

 Milestones are identified for every module of Lan-Chat Application.

PHASE

DELIVERABLES

PURPOSE

System Requirement and Analysis  Requirement Gathering and analysis.  Functional Specifications  Non Functional Specifications

It gives exact understanding of the user’s requirements.

System Design  Use Case diagram

 Class diagram  Sequence diagram  Activity diagram  State diagram  Collaboration diagram

It gives the logical structure that describes the system.

Implementation and Testing The output obtained for the required functionality after implementing and doing various types of testing

It gives the required module

T

(17)

Project Management

2.3 PROJECT SCHEDULING

Project Scheduling Chart:

(18)

System Requirements Study

3.0 SYSTEM REQUIREMENTS STUDY

3.1 Study of Current System

 Manually work done in most of software development companies.

 If you can see current system in market, there is not secure way to register a user.

 Also, in current systems there is no restriction over chatting (live messaging).

3.2 Problems and Weakness of Current System

 The current system is not that efficient. The user has to have internet connection whenever he wants to access the application within college. User can’t get access to resources directly. First they have to register themselves to admin, then they would get their passwords for chatting.

 GUI is not improved.

3.3User Characteristics

The all functionality is performed by the admin only. 1) Admin :

 Assign Id & Password to User.

2) User:

 User should be registered.

 User can send messages, see old messages, edit profile and download files only one time.

3.4 Hardware and Software Requirements:

3.4.1 Hardware Requirement

 OS: Windows XP/2000/vista/7/8

 Hardware: 1Pc with 512MB RAM and Sufficient memory support

3.4.2 Software Requirement

 JRE 6.x.x or higher

(19)

3.5 CONSTRAINTS

3.5.1 Hardware Limitations

 There is no hardware limitations to the system.

3.5.2 Interface to Other Application

 No interface with other application

3.5.3 Higher Order Language Requirement

 Language to be used was the JAVA.

3.5.4 Reliability Requirements

 The application does demand much reliability and it is fully assured that the particular information about the user should be secured and flow is maintained and accessed according to the rights.

3.5.5 Safety and Security Considerations

 The system provides a tight security to admin’s account. Admin account is secure by password mechanism which are encrypted and stored to database.

3.5.6 Criticality of Applications

 The application deals with the user’s personal tasks so the task and respective details should be highly confidential and in proper flow.

(20)

3.6 ASSUMPTIONS AND DEPENDENCIES

Assumptions are described below:-

 User has sufficient privileges to access lan.  Server is running correctly.

 Server is running in the same network as in users are logged in.  Database transactions are giving expected results.

 Database transactions are secure and reliable.

Dependencies are described as below:-

 This system is dependent upon that the student or faculty must be authorized by the admin. If they are not authorized then they will not be able to register their account with this application.

 This application depends on the server. So if server works correctly then only this application can run in proper way.

 Must require latest update regarding all stuff from admin as per work done.

(21)

System Analysis

4.0 SYSTEM ANALYSIS

4.1 Requirements of New System (SRS)

4.1.1 User Requirements

User requirements include not many things, but important thing is user must be aware that system works properly with full availability, reliability, security and safety. The user responsibilities are as follows:

 Should know how to use the software.Should adhere to guidelines and prescribed standards

4.1.2 System Requirement Specification (S.R.S.)

 The project’s aim is to provide communication between faculty and students.

 It is Java-based desktop lan-application that can be accessed throughout the university.

 All the faculties can chat with all students and all other faculties.

 All students can ask their doubt and give solutions to their respective lab faculties.

 There will be group for each batch\branch, if any announcement related to any batch\branch is shown for that batch\branch only, but if that is for university then it will show to all branch.

 Students cannot chat with other students.

(22)

System Analysis

Functional Requirement:

R1: Login:-

Precondition: - Student/professor must register; if not then he/she has to register

first.

Input: - Give Student/Professor ID & Password. Output: - User successfully login simple-user/Admin.

Process: - Check Student/professor ID & Password to the database, if one of them is

wrong then invalid & prompt again for ID & Password again, else valid user.

Post condition: - Student/professor logged in & can change his/her password & able

to share what he/she wants.

R2: Registration:-

Precondition: - No professor/student should be registered first.

Input: - Name, Student/Professor ID, Password, E-mail, Branch, contact number etc. Output: - Successfully Creation of Account.

Process: - Server store specified data in database and allow Student/professor to log in.

Description: - User must have to enter Name, ID, strong Password, E-mail and

register it.

R3: Creating a group by Batch & Semester wise. R3.1: Select or create group.

Precondition: Group can be created by Admin. Input: Select group name

Output: Pop up window to that group is created.

R3.2: Naming the group.

Input: Enter group Name, Branch, Semester and create it. Output: Display message that group is created.

Process: Make group and make database for the group.

R3.3: Add member to the group.

Input: Select student from database by given batch and semester. Output: Students are added.

Process: Select the students from main database by given batch and semester and add to Database of group.

(23)

System Analysis

R4: Post or Upload document. R4.1: Select option for upload.

Input: Select file or document to be uploaded. Output: Prompt user to select a document. R4.2: Select a document.

Input: The document which we want to post.

Output: Prompt message: Your document is successfully uploaded /posted. Process: Upload to server.

R5: Account suspend by an Admin. Precondition: Student must pass out. Input: Student Id.

Output: Account is suspended.

Process: Inactivate the data from database. R6: Conversation.

R6.1: Select faculty/student.

Input: Select faculty/student. Output: Show chatting messages. R6.2: Send a message.

Input: Write a message

Output: Display message is sent.

Process: Send a message to receiver through network and store in database.

R7: Change password. R7.1: Select account setting.

Input: Select account setting.

Output: Display general account setting list. R7.2: Select password change.

Input: Select password change link.

Output: Prompt user to enter new, confirm and old password. R7.3: Change password.

Input: Old password, new password and confirming password

Output: Your password is successfully changed/ Try again password doesn’t

match.

Process: Matching an old password from database and match confirming

(24)

System Analysis

R8: Profile picture changes. R8.1: Select new profile picture.

Input: New profile picture and click on upload. Output: Your profile picture is changed.

Process: Replacing old Profile picture by new one. R8.2: Select profile picture change.

Input: Select profile picture change link.

Output: Suggest user to select another picture which he/she want to change Profile picture.

R9: Profile visibility.

Input: Enter Name or ID to see profile.

Output: Profile must be shown according to its privacy. R10:E-mail verification.

Process: send initial password using mail.

Overall Non-Functional requirements:

ID Description

1 Shall be able to provide a user friendly GUI 2 Shall make use of existing software & hardware

3 Shall run server side operations on windows server 2008 OS and IIS7 4 Shall run client side operations on Windows XP/7/8/Linux

5 Shall facilitate to access records concurrently

6 _{Should run as a multi user system for client side interfaces} 7 Should provide a flexible and reliable backup system 8 Should provide a flexible recovery mechanism 9 Should take resources as minimum as possible 10 Should provide proper security

(25)

System Analysis

4.2 FEATURES OF NEW SYSTEM

 Easy to use

 Reliable and accurate

 Provides functionalities of sending documents and messages to faculties or students, view old messages, view received files and provide ability to download it, edit profile and basic functionalities.

 Secure, as it sends passwords to authorized email-ids only.

 User friendly GUI.

4.3 DFD

Level 0

(26)

System Analysis

Level 1

(27)

System Analysis

Level 2

(28)

System Analysis

4.4 USE CASE DIAGRAM

(29)

System Analysis

4.5 ACTIVITY DIAGRAM

(30)

System Design

5.0 SYSTEM DESIGN

5.1 System Architecture Design

5.1.1 Class Diagram

(31)

System Design

5.1.2 Sequence Diagrams

1. Admin Login

(32)

System Design

2. User Login

Fig 5.1.2.2 Sequence of User Login

3. Disconnect User

(33)

System Design

4. See chat history

Fig 5.1.2.4 Sequence of Chat History

5. Send document

(34)

System Design

6. Send message

Fig 5.1.2.6 Sequence of Send Message

7. Edit Profile

Fig 5.1.2.7 Sequence of Edit Profile

(35)

System Design

8. Disconnect all

(36)

System Design

5.1.3 Component Diagram

Admin GUI

Main Application

DB management

Client GUI

(37)

System Design

(38)

System Design

(39)

System Design

5.2 DATABASE DESIGN

5.2.1 Database Table and Relationship Table Name: student

Purpose: This table is used to store the details of students.

Table 5.1.1

Table Name: faculty

Purpose: This table is used to store the details of faculties.

(40)

System Design

Table Name: stu_detail

Purpose: The authorized email-id of students are stored in this table.

Table 5.1.3

Table Name: sem_faculty

Purpose: This table is used to store the details of time tables of faculties’ labs.

(41)

System Design

Table Name: message

Purpose: This table is used to store all the messages sent via this application.

Table 5.1.5

Table Name: files

Purpose: This table is used to store all the documents sent via this application.

(42)

System Design

(43)

Implementation Planning

6.0 IMPLEMENTATION PLANNING

6.1 IMPLEMENTATION ENVIRONMENT

The implementation objectives are as follows:

 The customized version with duly incorporated acceptance testing comments is installed.

 Ensure smooth functioning of the installed application.

 Better GUI, so that users can easily use this application.

 With our experience of implementation at various sites of similar systems, we found that the skill level on computers and processes varies on a wide range at various levels. Also, the drive and motivation of the guide heading the particular would really boost the implementation and ensure that the activities are completed on time and execution would be faster.

6.2 MODULES SPECIFICATION

This project has been divided into many modules for making its implementation faster. This system is divided into:

1. Registration for users

 This module provides functionality for registration.

 It collects information of user (Student or Faculty) and submits it to the server database.

 It generates password for users and send them to their respective email-ids.

2. Login for Users

 This module having functionality of all Users (Students and Faculties) to login and start chatting.

 Forgot password functionality is added. Users can get their new password to their registered email-id.

(44)

Implementation Planning

3. Chatting

 This module provides the main purpose of our application.

 Through this module students can ask their doubts and send important documents to their respective lab faculties.

 Through this module faculties can discuss their important topics, send some important messages to their whole batch or to a particular student.

 This module also provides functionality of profile editing, see old messages, se files and signing out.

4. Server

 It is the core part our application.

 All the modules above this run on this module.

 Communication between above modules and server is done using TCP sockets in Java.

6.3 Coding Standards

 Naming conventions for global and local variables: A possible naming convention can be that global variables names always start with a capital letter and local variables names are made of small letters.

 Error return conventions and exception handling mechanisms: the way error conditions are reported by different functions in a program and the way common exception conditions are handled, should be standard. For e.g.: different functions while encountering an error condition or exception returns a proper error/exception message.

(45)

Testing

7.0 TESTING

Testing is the process carried out on software to detect the differences between its behavior and the desired behavior as stipulated by the requirements specifications. Testing is advantageous in several ways. Firstly, the defects found help in the process of making the software reliable. Secondly, even if the defects found are not corrected, testing gives an idea as to how reliable the software is. Thirdly, over time, the record of defects found reveals the most common kinds of defects, which can be used for developing appropriate preventive measures such as training, proper design and reviewing

7.1 TESTING PLAN

The testing sub-process includes the following activities in a phase dependent manner:

a) Create Test Plans.

b) Create Test Specifications.

c) Review Test Plans and Test Specifications.

d) Conduct tests according to the Test Specifications, and log the defects. e) Fix defects, if any.

f) When defects are fixed continue from activity.

F Fiigg..77..11 TTeessttPPllaan n UNIT TESTING M ODULE TESTING SUB-SYSTEM TESTING SYSTEM TESTING TESTINGG ACCEPTANCE TESTING

(46)

Testing

NO. ACTION INPUT EXPECTED

OUTPUT

OUTPUT RESULT COMMENT

1 Run the application Click on "Click here to continue"

Login screen Server not ready Fail Server must be satrted 2 Start the server Click on Start Server should be

started

Server started Pass Waiting for connections 3 Run the application Click on "Click

here to continue"

Login screen Login screen Pass Now, user can login

4 Attempt to login Enter user-ID and password Click on Login User should be logged in Chatting screen Username or password is incorrect or Select Proper option

Fail User must be registred first. He should select proper option i.e. student or faculty. 5 Attempt to register Click on

Register

Registered successfully

Please select proper options and enter valid details

Fail Authenticated details should be entered. 6 Attempt to register Enter valid,

authenticated details Click on register Password sent to registered mail-id. Registered successfully. Password sent to registered mail-id. Registered successfully.

Pass Initial password for login is sent to registered email-id 7 Attempt to login Enter user-ID

and password Click on Login User should be logged in Chatting screen User should be logged in Chatting screen

Pass Now, user can send message, files and receive message,files. 8 Edit Profile Click on Edit

Profile

Edit Profile Window

Pass User can edit profile. 9 See history Click on See

history Messages should be displayed Message window displayed

Pass User can see old received messages 10 Check files Click on Check

Files Received files should be displayed List of files is displayed

Pass User can download files only once 11 Attempt to edit profile Fetched data removed and no data inserted and click on submit

Enter valid data Enter valid data Pass User should enter valid data

12 Attempt to forget password Enter user-ID and secure answer. New password should be generated Please enter correct answer.

Fail User must enter correct secure answer. 13 Attempt to sign out Click on sign

out

User should be signed out successfully

Login screen Pass New user can login or register

(47)

Testing

7.2 TESTING STRATEGY

The development process repeats this testing sub-process a number of times for the following phases.

a) Unit Testing. b) Integration Testing

Unit Testing tests a unit of code (module or program) after coding of that unit is completed. Integration Testing tests whether the various programs that make up a system, interface with each other as desired, fit together and whether the interfaces between the programs are correct. System Testing ensures that the system meets its stated design specifications. Acceptance Testing is testing by the users to ascertain whether the system developed is a correct implementation of the Software Requirements Specification.

Testing is carried out in such a hierarchical manner to ensure that each component is correct and the assembly/combination of components is correct. Merely testing a whole system at the end would most likely throw up errors in components that would be very costly to trace and fix.

We have performed both Unit Testing and System Testing to detect and fix errors.

7.3 TESTING METHODS

7.3.1 Black-box and White-box Testing

In black-box testing a software item is viewed as a black box, without knowledge of its internal structure or behavior. Possible input conditions, based on the specifications (and possible sequences of input conditions), are presented as test cases.

In white-box testing knowledge of internal structure and logic is exploited. Test cases are presented such that possible paths of control flow through the software item are traced. Hence more defects than black-box testing are likely to be found.

The disadvantages are that exhaustive path testing is infeasible and the logic might not conform to specification. Instrumentation techniques can be used to determine the structural system coverage in white box testing. For this purpose tools or compilers that can insert test probes into the programs can be used.

(48)

Testing

7.3.2 Code Coverage

The way to make sure that you have got all the control flow covered is to cover all the paths in the program during the testing (via white-box testing). This implies that both branches are exercised for an ‘if’ statement, all branches are exercised for a case statement, the loop is taken once or multiple times as well as ignored for a while statement, and all components of complicated logical expressions are exercised. This is called Path Testing. Branch Testing reports whether entire Boolean expression tested in control structures evaluated to both true and false.

Additionally it includes coverage of switch statement cases, exception handlers and interrupts handlers. Path testing includes branch testing as it considers all possible combination of individual branch conditions. A simpler version is Statement Testing which determines if each statement in the program has been executed at least once. The coverage via Path Testing includes the coverage via Statement Testing.

(49)

User Manual

8.0 USER MANUAL

Figure 8.1 Welcome

 When user will run the application, this screen will be displayed.

(50)

User Manual

Figure 8.2 Login

 User can do login or register through this window.

(51)

User Manual

Figure 8.3 User Chatting Window

 User can send messages and documents, see old messages and files, edit profile and sign out.

(52)

User Manual

Fig 8.5 Edit Profile

(53)

User Manual

Fig 8.6 Check Files

Fig 8.7 Check Messages

(54)

User Manual

Fig 8.8 Add Lab

(55)

User Manual

Fig 8.9 Forgot password

Fig 8.10 Forgot password with mail sent

(56)

User Manual

Fig 8.11 Registration

(57)

Limitations

9.0 LIMITATIONS

The part of the system can be implemented using the current technology although some modifications had to be done at various places. At various places some

alterations with the prototypes and functionalities would be done in order to work out the cost constraints and to cope with the scheduling constraints.

 User cannot register itself to do it, it should has authorization provided by admin.

 Application may take time to run on server because SQL data source has been used.

9.1 Future Enhancement

 Some more inbuilt functionality can be added to make project more robust

 User authorization can be done by using other ways

 GUI can be improved

(58)

Bibliography

10.0 CONCLUSION AND DISCUSSION

10.1 CONCLUSION

Every project work, doesn’t matter software project or any other project, could not be the result of sole effort. We think that the success of any project doesn’t depend only on better software development skills but also, zeal to listen and help the users. We experienced that developing this software helped enhance our technical skills of programming.

10.2 DISCUSSION

10.2.1 Self Analysis of Project Viabilities

According to us, this projected is completed with the primary functionalities as specified earlier but then again there is lot more than this which can be done. The project is well capable to handle the given job for some particular task but not all of them. So then it is a challenge to further develop it in to a well flagged software as it was challenge to develop upto this very stage.

10.2.2 Problem Encountered

There were many problems encountered during the design and the development phase of the project.

 The problem to maintain priorities

 The problem to maintaining and accessing the database

 The problem for using sockets in Java.

(59)

Bibliography

10.2.3. Summary of Project Work

We have completed our project work using software engineering, system analysis and design approach. We have done work with preplanned scheduling related with time constraints and result oriented progress in project development.

10.3 BIBLIOGRAPHY

www.msdn.microsoft.com www.jqueries.com www.codeproject.com www.w3school.com www.docs.oracle.com

Project Report on Lan-Chat Application in Java-MySQL

A

Project Report

On

LAN-CHAT APPLICATION

Developed At

Department Of Information Technology

Faculty of Technology, Dharmsinh Desai University

College Road, Nadiad-387001

Developed By

DHARMEN H SHAH, DD University

JIMIT K SHAH, DD University

Guided By

Asst. Prof. S.J.Joshi

Dept. of Information Technology

Faculty of Technology

Dharmsinh Desai University

Department of Information Technology

Faculty of Technology, Dharmsinh Desai University

College Road,

CANDIDATE’S DECLARATION

DHARMSINH DESAI UNIVERSITY

NADIAD-387001, GUJARAT

CERTIFICATE

Acknowledgement

With Sincere Regards,

Dharmen H. Shah

Jimit K. Shah

Contents

List of Figures:

List of Tables:

Abstract

1 INTRODUCTION

1.1 Project Details

1.2 Purpose

1.3 Scope:

1.4 Objective:

1.5 Technology and Literature Review

1.5.1 Why JAVA?

1.5.2 NetBeans IDE Features

1.5.3. Network Application

2.0 PROJECT MANAGEMENT

2.1 Feasibility Study:

2.2 Project Planning

PHASE

DELIVERABLES

PURPOSE

2.3 PROJECT SCHEDULING

Project Scheduling Chart:

3.0 SYSTEM REQUIREMENTS STUDY

3.1 Study of Current System

3.2 Problems and Weakness of Current System

3.3User Characteristics

3.4 Hardware and Software Requirements:

3.5 CONSTRAINTS

3.6 ASSUMPTIONS AND DEPENDENCIES

4.0 SYSTEM ANALYSIS

4.1 Requirements of New System (SRS)

4.1.1 User Requirements

4.1.2 System Requirement Specification (S.R.S.)

Functional Requirement:

Overall Non-Functional requirements:

4.2 FEATURES OF NEW SYSTEM

4.3

DFD

Level 0

Level 1

Level 2

4.4 USE CASE DIAGRAM

4.5 ACTIVITY DIAGRAM

5.0 SYSTEM DESIGN

5.1 System Architecture Design

Admin GUI

Main Application

DB management

Client GUI

5.2 DATABASE DESIGN

6.0 IMPLEMENTATION PLANNING

6.1 IMPLEMENTATION ENVIRONMENT

6.2 MODULES SPECIFICATION
