The technical designers are all well known in their respective disciplines not only as designers and specifiers, but also as day to day practitioners within the Music and Events Industry. From the outset the intention has been to use that experience to create a venue that enables even international touring acts to utilise elements of the system in an easy to use and functional manner.
We hope you will enjoy using this equipment…

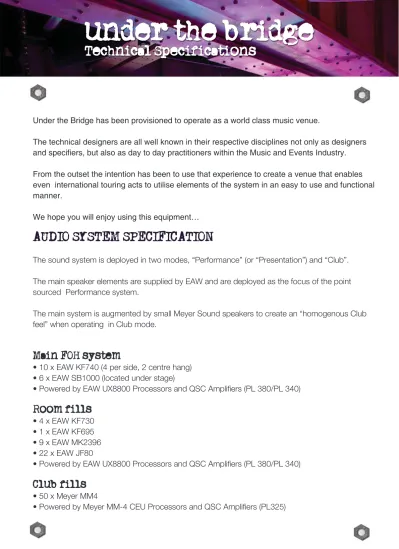

AUDIO SYSTEM SPECIFICATION
The sound system is deployed in two modes, “Performance” (or “Presentation”) and “Club”. The main speaker elements are supplied by EAW and are deployed as the focus of the point sourced Performance system.
The main system is augmented by small Meyer Sound speakers to create an “homogenous Club feel” when operating in Club mode.
Main FOH system
• 10 x EAW KF740 (4 per side, 2 centre hang) • 6 x EAW SB1000 (located under stage)
• Powered by EAW UX8800 Processors and QSC Amplifiers (PL 380/PL 340)
Room fills
• 4 x EAW KF730 • 1 x EAW KF695 • 9 x EAW MK2396 • 22 x EAW JF80
• Powered by EAW UX8800 Processors and QSC Amplifiers (PL 380/PL 340)
Club fills
• 50 x Meyer MM4
Front of house
• 1 x Yamaha PM5D-RH (please see notes in “Automation – Console Lifts”) • 1 x Apogee “Big Ben” External Digital Clock
• 1 x Klark Teknik DN360 Graphic Equaliser • 1 x Tascam MD-02B Mini Disc Player • 1 x Tascam CDRW900 CD Player/Recorder
• 2 x Avalon VT747 Twin Signal Path Valve Compressor
Monitors
• 1 x Yamaha PM5D-RH (please see notes in “Automation – Console Lifts”) • 1 x Tascam CDRW900 CD Player/Recorder
• 2 x KF850 (Stage Side Fills) • 2 x SB330 (Stage Side Subs) • 16 x EAW MW15 Microwedge • 2 x EAW Microsub
• Powered by QSC Amplifiers (PL340 /PL325)
• 6 x Shure PSM900 IEM Systems c/w IEM TX Combiner
• 6 x Sennheiser SR/EK 2000 IEM Systems c/w IEM TX Combiner
Radio microphones
• Shure UR4D/UR2/UR1 Radio System
• 6 x Shure UR4D Radio Mic Receivers (12 Channels) • 6 x Shure UR2 Handheld Transmitter (B58 Head) • 6 x Shure UR1 Bodypack Transmitter
• 4 x Headset Mic System (WBH54B) • 6 x Lavalier Microphone (WL50B)
• 1 x Shure UHF ADA (UA845UK) c/w Cables and Antennae • Sennheiser System 2000 Series Radio System
• 6 x Sennheiser EM2000 Radio Mic Receivers (12 Channels) • 6 x Sennheiser SKM2000 Handheld Transmitter (B58 Head) • 6 x Sennheiser SK2000 Bodypack Transmitter
• 6 x Lavalier Microphone (MKE2 Gold)
• 1 x Sennheiser UHF ADA via EM2000 System c/w Cables and Antennae All radio equipment is site licensed via JFMG
Wired microphones & stands
• 1 x Shure Beta 52• 1 x Shure Beta 91 • 2 x Shure Beta 56 • 6 x Shure Beta 57A • 3 x Shure SM 57
• 2 x Shure SM81 • 5 x Shure Beta 98 D/S • 1 x Shure 55SH • 2 x Shure KSM 32 – SL • 3 x Shure Switch SM58 • 6 x Sennheiser e904 • 1 x Sennheiser e901 • 6 x Sennheiser e935 • 2 x Sennheiser e905 • 4 x Sennheiser e906 • 2 x AKG C414-EB • 6 x Neumann KM140
• 2 x Neumann U87 c/w Suspension Kit • 2 x Neumann TLM103 (as Studio Set) • 2 x Shertler SS DYN GPS (as Piano Pair) • 4 x Audio Technica AT4050
• 1 x Audio Technica AT4041 • 12 x Radial J48 DI Box
• 18 x K&M Tall Tripod Boom Stands • 6 x K&M Tall Round Based Boom Stands • 4 x K&M Tall Round Base Stands (no boom) • 6 x K&M Short Tripod Boom Stands
• 10 x K&M Short Round Based Boom Stands • 4 x K&M Small “Banquet” Table Mic Stand • 4 x Shure MX418SE/C Lectern Mic
• 3 x LA Audio DBT Plus Stereo Passive DI Box • 3 x Hive Industries PC Balancing Box
System control - not user adjustable
• 4 x BSS Soundweb BLU80• 1 x BSS Soundweb BLU32
Line and patch
The venue possesses and extensive line and patch system with total flexibility.
The design includes 84 lines (in both directions) between the permanently installed stage boxes and the patch bay.Additionally there are 12x Radio Mic channels. In total 96 lines can be patched to 48 input lines for FOH and/or 48 input lines for Monitors. FOH Outputs are fixed, while Monitor Outputs can be patched as required to side fills, floor monitors, stage sub bass or In Ear Monitors.
There is an extensive tie line system as well as a dedicated communications line system. A suitable number of microphone cables and sub boxes are held in house.
Communications
• 1 x Clearcom CC-HMS4X Helixnet Main Station fitted with 1 off 2x 2 Wire, 1 off 2 x 4 Wire and 1 off Ethernet Modules
• 8 x Clearcom HBP2X Helixnet 2 Channel (Selectable of 4 Channels) Beltpack • 4 x Clearcom CC95 Single Muff Headset
• 6 x Clearcom CC260 Double Muff Headset
• 1 x Telex BTR700-C6 Radiocom UHF Base Station • 4 x Telex TR700-C6 Radiocom Wireless UHF Beltpacks • 1 x Telex HR1 Telex Single Muff Headset
• 4 x Telex HR2 Telex Double Muff Headset • Shout System FOH – Monitors
• 2 x Shure Switch SM58 • 4 x Meyer MM4 –XP
• 1 x Allen & Heath GR05 Mixer
Dj equipment
• 2 x Pioneer CDJ2000 • 1 x Pioneer DJM800 • 1 x DJ “Coffin”
Recording interface
• 48 x Channels of BSS MSR-604 Active Splits
Mains system
The venue audio system is isolated via a 120kVA transformer, and can supply 240V and 110V at various locations, including; across the stage as 240V 13A, 16A and 32A, as well as 110V as Edison strips, or 16A and 32A connections; at Monitors and at FOH.
A suitable number of mains drops and mains cables are held in house.
LIGHTING SPECIFICATION
Front lighting
• 8 x Source 4 26dg Profile • 4 x Martin Mac 401 RGB&W
Stage lighting
• 16 x Martin Mac 700 (12 in air/4 on floor) • 8 x Martin Mac 401 RGB&W
• 20 x iPix Satellite LED Fixtures • 6 x Source 4 Par on floorstand • 1 x JEM Hazer
We have a good stock of primary colours, diffusion and colour correction
Control
• 1 x MA Lighting Grand MA2 Light • 1 x MA Lighting Grand MA2 Faderwing
DMX
• 6 x Universes out of Grand MA with 2 lines available for touring production
Dimmers and mains
Dimming is via an Avolites 24 way dimmer (48 way patchable)
Upstage Left is fitted with a Patch box containing 1 x Socapex conection with “Hot Mains” and 1 x Socapex connection with “Dimmed Mains”
Upstage Right is fitted with a Patch box containing 1 x Socapex conection with “Hot Mains” and 1 x Socapex connection with “Dimmed Mains”
Trussing
• 4 x Automated Lighting Trusses above the stage, equidistant running upstage – downstage sited between Mi-Strip “Fingers”
• 1 x Automated Rear Truss with three cords suitable for drapes, backdrops or other flown elements
• 1 x Fixed Front Bar
Cad / desk files
Stage Lighting plot in various formats (DWG/PDF/Vectorworks/Wysiwyg) and GrandMA Desk Patch File available upon request
House lighting
• Full LED system, Pharos controlled via AMX Cue System Please see the separate lighting plot drawing attached.
VISUAL SPECIFICATION
Video control
• 1 x Catalyst with HDSDI Capture Card & Stock Footage • 1 x Full HDSDI Matrix – Blackmagic
• 4 x Panasonic AW-HE100 Remote Cameras • 1 x Panasonic AV-HS400 Vision Mixer • 1 x Panasonic Multiviewer
• 6 x AJA KI-Pro HD Recorders • 1 x Folsom Image Pro
• 1 x Panasonic AG-HPX171 Camera • 1 x Mac Mini for playback
LED displays
• 1 x Rear of Stage 10mm SMD LED Screen - 9m wide x 2.5m high - 864 pixels wide x 240 pixels high
• 5 x Over stage Mi Strip “Fingers” – Custom Built Panels used for Lighting and Video Effects • 14 x F-10 LED portable panels; each tile measuring 500mm x 500mm | 48 pixels x 48 pixels • 1 x Catalyst media Server driving both displays – Controlled by Lighting console via ArtNet • 1 x Resolume Arena media server Capable of driving both displays - Controlled by Lighting console via ArtNet
Venue displays
• 17 x Samsung LCD/LED Displays Various Sizes From 22” up to 50”
Mains
There is a 63A 3 supply in the upstage right position available for LED power.
Staging specification - Stage size & automation
The stage has been designed to provide as many flexible elements as possible within the physical constraints of the building. Effectively divided into six sections, the two outer wings are static at a nominal height of 800mm, while the centre of the stage is divided into four lifts.
The downstage half of the stage is one lift that can be adjusted in height from 700mm through 1200mm, while the upstage half is divided into three lifts that can each be adjusted in height from 700mm to 1400mm. Please see the attached stage layout drawing.
Drapes
The stage has a rear “Austrian Curtain” system that works independently of the rear truss. The curtain is 9m wide and the fabric is Silver “Liquid Lame”.
entrances – referred to as “Half Moon Features”. Dressed in a “Silver Silk Organza” these are also internally backlit to provide a soft glowing effect.
Alternatively, both the stage drape and the two structures can be covered with a black drape.
Console lifts
No one Audio Console satisfies the needs of all users, so for instances where a touring engineer feels unable to use the in house Yamaha PM5D-RH Consoles we have provided a convenient solution - both the FOH and Monitor Consoles are on adjustable lifts.
By lowering the lifts and covering the in house consoles with custom made decks an outside “touring” console can be placed above the in house console in the same mix position. Even consoles with “remote brains” should be able to use the in house line system.
A note on access
Under the Bridge is a small venue with extremely limited access.
Backline cases can be brought into the venue via a passenger elevator, but to do so must be narrower than a standard door width. Where bulkier items must be brought in then these must be carried down stairs.
There are no additional flying points other than those already used or afforded by the in house truss system.
There is no facility to easily route an additional “Multicore” without being visually intrusive.
Technicians/engineers
All systems should ONLY to be operated by suitably qualified engineers aided by house engineers and technicians.
Under the Bridge will provide appropriate technical staffing for all events undertaken in the venue.
Other
Under the Bridge can provide a partition structure across the draught bar nearest to the toilets to reduce capacity. Please contact us for further information.
