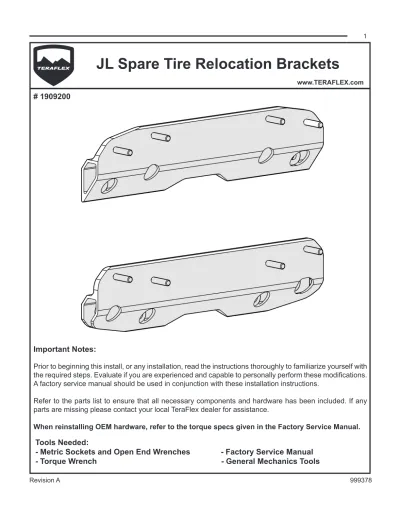

JL Spare Tire Relocation Brackets

(1)

Important Notes:

Prior to beginning this install, or any installation, read the instructions thoroughly to familiarize yourself with

the required steps. Evaluate if you are experienced and capable to personally perform these modifications.

A factory service manual should be used in conjunction with these installation instructions.

Refer to the parts list to ensure that all necessary components and hardware has been included. If any

parts are missing please contact your local TeraFlex dealer for assistance.

When reinstalling OEM hardware, refer to the torque specs given in the Factory Service Manual.

Tools Needed:

- Metric Sockets and Open End Wrenches - Factory Service Manual

- Torque Wrench - General Mechanics Tools

(2)

www.TERAFLEX.com

2

Item #

Part No.

Description

QTY

1

15-08-001-100

Upper Tire Carrier Bracket, Wheel Mount Relocator

1

2

15-08-001-200

Lower Tire Carrier Bracket, Wheel Mount Relocator

1

3

57-01-001-001

Spacer (S), Spare Tire Bumper, Jeep JL Wrangler, 0.50" Height

2

4

57-01-001-002

2

5

57-01-001-003

2

5122

Hardware Pack, Spare Tire Relocation Bracket, Jeep JL Wrangler

6

23-07-03-002

Fuji Nut / Flanged, M8 x 1.25 / Yellow Zinc

8

7

45-01-002-004

Hex Cap Screw, M6-1 X 100mm

2

8

730

Washer M6 18-8 Stainless Steel

2

9

45-08-006-001

Well Nut, Brass/Neoprene, M6X1

2

1

2

8

7

3

4

5

6

9

(3)

1

2

INSTALL THE RELOCATION BRACKETS USING THE FACTORY HARDWARE

3

DISCONECT THE CAMERA CABLE

REMOVE THE SPARE TIRE

ISOLATORS FROM THE

TAILGATE

TORQUE

25 FT-LBS

BOLT 13mm

REINSTALL THE TIRE CARRIER WITH THE PROVIDED NUTS

TORQUE

25 FT-LBS

BOLT 12mm

1 2 6

(4)

www.TERAFLEX.com

4

5

INSTALL THE SPARE TIRE ISOLATOR WITH THE NECESSARY SPACERS

MODIFY THE FACTORY SPARE TIRE ISOLATORS

CUT OFF THE BOTTOM STUB

FROM THE FACTORY

ISOLATOR TO ALLOW THE

BOLT TO PASS THROUGH

RETORQUE ALL HARDWARE AFTER THE FIRST 300 MILES

AND EVERY 3,000 MILES AFTERWARDS.

REINSTALL THE SPARE TIRE AND TORQUE TO 90 FT-LBS

TEST FIT THE SPARE TIRE TO SEE HOW MUCH SPACER IS

REQUIRED TO KEEP THE TIRE FIRMLY IN PLACE

7 8 9

TORQUE

15 IN-LBS

BOLT 10mm

INSTALL THE WELL NUTS

INTO THE ISOLATOR SLOTS

FACTORY ISOLATOR

INSTALL THE MAIN SPACER WITH

THE ISOLATOR FOLLOWED BY

ADDITIONAL SPACERS AS NEEDED

(5)
