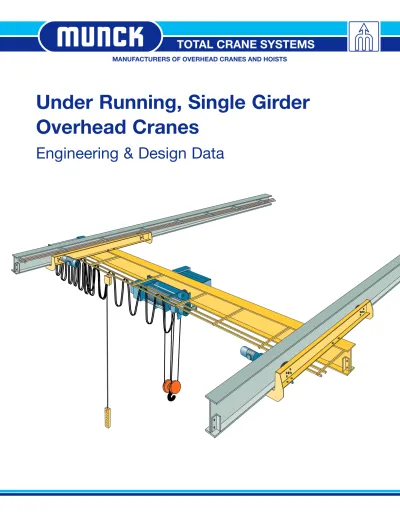

(1)TOTAL CRANE SYSTEMS MANUFACTURERS OF OVERHEAD CRANES AND HOISTS. Under Running, Single Girder Overhead Cranes Engineering & Design Data.

(2) TOTAL CRANE SYSTEMS. Crane Reference Diagram All data may be referenced to the following crane diagram. Travel speeds are nominal and may vary ±10%. Other travel speeds are available on request. Dimensions E & F are given at high hook and are measured from the end of the bridge girder to the centerline of the hoist hook and do not take into consideration the downshop conductor system.. Span. Pendant Track. 3" min. A B. Conductor Track. U/S Lowest Obstruction. 12" E. 52". 3" min. Height of Lift. C. D. U/S Runway Beam. 12" F. 3" min. T/O Finished Floor. Munck Cranes Inc. assumes no responsibility for, but not limited to, any events or damages which occur as a result of the use of any data contained in this brochure. It should be noted that these figures are supplied to give a general understanding of the specifications relating to any particular capacity of under running, single girder, overhead crane and should not be taken as a basis for construction of any kind. All calculations for actual work to be performed should be done so only by a recognized professional in the industry and only after the unique situations and circumstances to the particular job or job site are considered.. 2.

(3) Crane Capacity (Tonnes). 1. 2. 3. 5. Hoist Model. HOIST DATA Available Trolley Lift Height Hoist Weight (ft.) (lbs.). CRANE DATA E. F. 3101-1223 3101-2223 3101-3223 3101-4223 3101-5223. 42 60 74 100 126. 740 765 785 835 850. 1'-10" 2'-5" 2'-11" 3'-9" 4'-7". 1'-11" 1'-11" 1'-11" 1'-11" 1'-11". 3111-1223 3111-2223 3111-3223 3111-4223 3111-5223. 42 60 73 100 126. 765 820 870 965 1030. 1'-10" 2'-5" 2'-11" 3'-9" 4'-7". 2'-0" 2'-0" 2'-0" 2'-0" 2'-0". 3101-1423 3101-2423 3101-3423 3101-4423 3101-5423. 21 30 37 50 63. 750 810 860 955 1015. 1'-8" 2'-3" 2'-9" 4'-3" 4'-5". 2'-1" 2'-1" 2'-1" 2'-1" 2'-1". 3111-1423 3111-2423 3111-3423 3111-4423 3111-5423. 21 30 37 50 63. 800 860 910 1005 1070. 1'-9" 2'-4" 2'-9" 3'-8" 4'-6". 2'-4" 2'-4" 2'-4" 2'-4" 2'-4". Hoist Speed (ft./min.). Single Speed: 32 Two Speed: 32 & 10. Single Speed: 32 Two Speed: 32 & 10. Single Speed: 16 Two Speed: 16 & 4. Single Speed: 16 Two Speed: 16 & 4. SPAN (ft.) -20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60 61-65 66-70 71-75 76-80 81-85 86-90 91-95 96-100 -20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60 61-65 66-70 71-75 76-80 81-85 86-90 91-95 96-100 -20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60 61-65 66-70 71-75 76-80 81-85 86-90 91-95 96-100 -20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60 61-65 66-70 71-75 76-80 81-85 86-90 91-95 96-100. A. B. 5'-11" 5'-11" 6'-5" 8'-1" 8'-1" 10'-7" 10'-7" 10'-7" 10'-7" 11'-11" 11'-11" 12'-7" 15'-7" 15'-7" 17'-9" 17'-9" 17'-9" 5'-11" 5'-11" 6'-5" 8'-1" 8'-1" 10'-7" 10'-7" 10'-7" 10'-7" 11'-11" 11'-11" 12'-7" 15'-7" 15'-7" 17'-11" 17'-11" 17'-11" 6'-5" 6'-5" 6'-5" 8'-1" 8'-1" 10'-7" 10'-7" 10'-7" 10'-7" 11'-11" 11'-11" 12'-7" 15'-9" 15'-9" 17'-11" 17'-11" 17'-11" 8'-3" 8'-3" 8'-3" 8'-3" 8'-3" 10'-9" 10'-9" 10'-7" 10'-7" 11'-11" 11'-11" 12'-7" 15'-9" 15'-9" 16'-5" 16'-5" 16'-5". 4'-6" 4'-6" 5'-0" 6'-8" 6'-8" 9'-2" 9'-2" 9'-2" 9'-2" 10'-6" 10'-6" 11'-2" 14'-2" 14'-2" 16'-4" 16'-4" 16'-4" 4'-6" 4'-6" 5'-0" 6'-8" 6'-8" 9'-2" 9'-2" 9'-2" 9'-2" 10'-6" 10'-6" 11'-2" 14'-2" 14'-2" 16'-4" 16'-4" 16'-4" 5'-0" 5'-0" 5'-0" 6'-8" 6'-8" 9'-2" 9'-2" 9'-2" 9'-2" 10'-6" 10'-6" 11'-2" 14'-2" 14'-2" 16'-4" 16'-4" 16'-4" 6'-8" 6'-8" 6'-8" 6'-8" 6'-8" 9'-2" 9'-2" 9'-2" 9'-2" 10'-6" 10'-6" 11'-2" 14'-2" 14'-2" 18'-0" 18'-0" 18'-0". D (in.) 12 12 12 14 16 18 18 20 20 34 35 39 41 43 46 48 51 12 12 14 14 18 18 20 23 23 34 36 39 41 43 46 48 50 12 14 14 18 18 20 23 29 31 34 36 39 41 43 46 48 50 14 14 16 18 20 23 23 29 31 33 36 38 41 43 45 48 50. C (in.) 29 29 29 29 29 29 29 29 29 37 37 37 41 41 41 41 41 29 29 29 29 29 29 29 29 29 37 37 37 41 41 41 41 41 21 21 21 21 21 21 21 25 28 28 28 28 32 32 32 32 32 21 21 21 21 21 21 21 25 28 28 28 28 32 32 32 32 32. Crane Weight Maximum Static Excluding Hoist Wheel Load (lbs.) (lbs.) 1095 1800 1330 1860 1780 1970 2275 2095 2520 2155 3025 2285 3740 2460 4345 2615 5535 2910 6835 3235 7975 3520 9270 3845 10968 4270 12205 4580 13812 4980 15315 5355 16715 5705 1240 3025 1710 3145 2105 3245 2975 3460 2975 3460 4030 3725 4875 3935 5615 4120 6470 4335 7540 4600 8780 4910 10180 5260 11995 5715 13345 6055 15565 6610 17095 6990 18510 7345 1390 4155 1730 4240 2340 4395 2820 4515 3530 4690 4475 4930 5315 5140 5710 5235 6590 5455 7540 5695 8780 6005 10625 6465 12437 6920 13789 7255 15564 7700 17095 8085 18506 8435 1870 6495 2335 6610 3000 6775 3785 6975 4465 7145 5445 7390 6210 7580 7140 7810 8150 8065 9365 8370 10730 8710 12240 9085 13800 9475 15310 9855 17390 10375 19270 10845 20825 11235. 3.

(4) TOTAL CRANE SYSTEMS. Crane Capacity (Tonnes). 7.5. 10. 12.5. 15. 4. Hoist Model. HOIST DATA Available Trolley Lift Height Hoist Weight (ft.) (lbs.). CRANE DATA E. F. 3121-1423 3121-2423 3121-3423 3121-4423 3121-5423. 22 29 40 55 69. 1345 1390 1520 1685 1960. 2'-0" 2'-6" 3'-2" 4'-2" 5'-1". 3'-3" 3'-3" 3'-3" 3'-3" 3'-3". 3122-1423 3122-2423 3122-3423 3122-4423 3122-5423. 22 29 40 55 69. 1345 1390 1520 1685 1960. 2'-0" 2'-6" 3'-2" 4'-2" 5'-1". 3'-5" 3'-5" 3'-5" 3'-5" 3'-5". 3131-1423 3131-2423 3131-3423 3131-4423. 3131-1423 3131-2423 3131-3423 3131-4423. 26 36 50 70. 26 36 50 70. 1850 2035 2170 2510. 1850 2035 2170 2510. 2'-6" 3'-3" 4'-3" 5'-8". 2'-6" 3'-3" 4'-3" 5'-8". 4'-0" 4'-0" 4'-0" 4'-0". 4'-1" 4'-1" 4'-1" 4'-1". Hoist Speed (ft./min.) -20. Single Speed: 16 Two Speed: 16 & 5. Single Speed: 16 Two Speed: 16 & 5. Single Speed: 16 Two Speed: 16 & 5. Single Speed: 16 Two Speed: 16 & 5. SPAN (ft.) 8'-3" 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60 61-65 66-70 71-75 76-80 81-85 86-90 91-95 96-100 -20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60 61-65 66-70 71-75 76-80 81-85 86-90 91-95 96-100 -20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60 61-65 66-70 71-75 76-80 81-85 86-90 91-95 96-100 -20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60 61-65 66-70 71-75 76-80 81-85 86-90 91-95 96-100. A. B. 6'-8" 8'-3" 8'-3" 8'-3" 8'-3" 10'-9" 10'-9" 10'-7" 10'-7" 11'-11" 11'-11" 12'-7" 15'-11" 15'-11" 18'-1" 18'-1" 18'-1" 8'-5" 8'-5" 8'-5" 8'-5" 8'-5" 10'-11" 10'-11" 10'-7" 10'-7" 11'-11" 11'-11" 12'-7" 16'-1" 16'-1" 18'-3" 18'-3" 18'-3" 8'-7" 8'-7" 8'-7" 8'-7" 8'-7" 11'-1" 11'-1" 10'-7" 10'-7" 11'-11" 11'-11" 12'-7" 16'-1" 16'-1" 16'-5" 16'-5" 16'-5" 8'-7" 8'-7" 8'-7" 8'-7" 8'-7" 11'-1" 11'-1" 10'-7" 10'-7" 11'-11" 11'-11" 12'-7" 16'-1" 16'-1" 18'-6" 18'-6" 18'-6". 20 6'-8" 6'-8" 6'-8" 6'-8" 9'-2" 9'-2" 9'-2" 9'-2" 10'-6" 10'-6" 11'-2" 14'-2" 14'-2" 16'-4" 16'-4" 16'-4" 6'-8" 6'-8" 6'-8" 6'-8" 6'-8" 9'-2" 9'-2" 9'-2" 9'-2" 10'-6" 10'-6" 11'-2" 14'-2" 14'-2" 16'-4" 16'-4" 16'-4" 6'-8" 6'-8" 6'-8" 6'-8" 6'-8" 9'-2" 9'-2" 9'-2" 9'-2" 10'-6" 10'-6" 11'-2" 14'-2" 14'-2" 17'-6" 17'-6" 17'-6" 6'-8" 6'-8" 6'-8" 6'-8" 6'-8" 9'-2" 9'-2" 9'-2" 9'-2" 10'-6" 10'-6" 11'-2" 14'-2" 14'-2" 16'-4" 16'-4" 16'-4". D (in.) 28 20 20 23 23 23 29 31 32 34 36 38 41 43 45 49 51 23 23 23 23 26 27 29 29 32 34 36 39 41 44 46 48 51 17 20 22 23 24 25 26 29 31 34 37 39 42 46 47 50 52 23 25 26 28 31 32 34 36 38 41 41 41 44 46 48 50 54. C (in.) 2155 28 28 28 28 28 33 38 38 38 38 43 43 43 43 43 43 28 28 28 28 33 38 38 38 38 43 43 43 43 43 44 45 46 31 31 31 31 31 31 33 33 33 37 37 37 37 37 39 39 40 31 31 31 31 31 33 33 33 33 37 37 37 38 38 39 39 39. Crane Weight Maximum Static Excluding Hoist Wheel Load (lbs.) (lbs.) 9670 3000 9880 3600 10030 4475 10250 5520 10510 6755 10820 7045 10895 8075 11150 9375 11475 10695 11805 12050 12145 14410 12735 16110 13160 17755 13570 20875 14350 23350 14970 25365 15475 2820 12630 3755 12865 4575 13070 5610 13330 7210 13730 7405 13780 8560 14065 9925 14410 11240 14735 12490 15050 13810 15380 16240 15985 17970 16420 19970 16920 23305 17755 25365 18270 27415 18780 3185 15805 3920 15985 4720 16185 5755 16445 6870 16725 8210 17060 9560 17395 11050 17770 12535 18140 14230 18565 16060 19020 19150 19795 21230 20315 23875 20975 25995 21505 28840 22215 32045 23020 3375 18600 4180 18800 5065 19025 6130 19290 7270 19575 8630 19915 9905 20235 11285 20580 12840 20965 14880 21475 16600 21905 19700 22680 21825 23215 24505 23885 27970 24750 31720 25685 35925 26740.

(5) Trolley Hoist Reference Diagram D. A. B=Bottom Flange Width. C. B. E. Crane Capacity (Tonnes). 1. 2. 3. 5. 7.5. 10. 12.5. 15. 20. Hoist Model 3101-1223 3101-2223 3101-3223 3101-4223 3101-5223 3111-1223 3111-2223 3111-3223 3111-4223 3111-5223 3101-1423 3101-2423 3101-3423 3101-4423 3101-5423 3111-1423 3111-2423 3111-3423 3111-4423 3111-5423 3121-1423 3121-2423 3121-3423 3121-4423 3121-5423 3122-1423 3122-2423 3122-3423 3122-4423 3122-5423 3131-1423 3131-2423 3131-3423 3131-4423 3131-1423 3131-2423 3131-3423 3131-4423 3141-1423 3141-2423 3141-3423 3141-5423. Available Lift Height (ft.) 42 60 74 100 126 42 60 73 100 1268 21 30 37 50 63 21 30 37 50 63 22 29 40 55 69 22 29 40 55 69 26 36 50 70 26 36 50 70 25 39 63 82. Trolley Hoist Weight (lbs.) 740 765 785 835 850 765 820 870 965 1030 750 810 860 955 1015 800 860 910 1005 1070 1345 1390 1520 1685 1960 1345 1390 1520 1685 1960 1850 2035 2170 2510 1850 2035 2170 2510 3335 3765 4180 4490. F MONORAIL TROLLEY DATA Hoist Speed A B =< 8” B =< 12” (ft./min.) 3'-10" 32 4'-5" or 4'-11" 2'-4" 2'-4" 32 & 10 5'-9" 6'-7" 3'-11" 32 4'-6" or 4'-11" 2'-4" 2'-4" 32 & 10 5'-10" 6'-8" 3'-10" 16 4'-5" or 4'-11" 1'-8" 1'-8" 16 & 4 5'-9" 6'-7" 3'-11" 16 4'-6" or 5'-0" 1'-8" 1'-8" 16 & 4 5'-10" 6'-8" 4'-9" 16 5'-3" or 6'-0" 2'-4" 2'-3" 16 & 5 7'-0" 7'-11" 4'-10" 16 5'-4" or 6'-0" 2'-4" 2'-3" 16 & 5 7'-0" 7'-11" 16 5'-9" or 6'-6" 2'-4" 2'-4" 16 & 5 7'-6" 9'-0" 16 5'-9" or 6'-6" 2'-4" 2'-4" 16 & 5 7'-6" 8'-11" 16 6'-2" or 7'-0" 3'-2" 3'-1" 16 & 5 8'-6" 9'-8". C B =< 16”. B =<20”. B =<24”. D. 2'-8". 3'-0". 3'-3". 4'-3". 2'-8". 3'-0". 3'-3". 4'-3". 1'-11". 2'-3". 2'-7". 4'-3". 1'-11". 2'-3". 2'-7". 4'-3". 2'-8". 3'-1". 3'-6". 4'-4". 2'-8". 3'-1". 3'-6". 4'-4". 2'-7". 2'-11". 3'-4". 4'-9". 2'-7". 2'-11". 3'-4". 4'-9". 2'-11". 2'-10". 3'-2". 5'-6". E. F. 2'1" 2'-8" 3'-2" 4'-0" 4'-10" 2'1" 2'-8" 3'-2" 4'-0" 4'-10" 2'-0" 2'-7" 3'-0" 3'-11" 4'-9" 2'-0" 2'-7" 3'-0" 3'-11" 4'-9" 2'-2" 2'-8" 3'-5" 4'-5" 5'-4" 2'-2" 2'-8" 3'-5" 4'-5" 5'-4" 2'-8" 3'-5" 4'-5" 5'-10" 2'-8" 3'-5" 4'-5" 5'-10" 2'-9" 3'-7" 5'-1" 6'-3". 1'-9" 1'-9" 1'-9" 1'-9" 1'-9" 1'-9" 1'-9" 1'-9" 1'-9" 1'-9" 1'-11" 1'-11" 1'-11" 1'-11" 1'-11" 1'-11" 1'-11" 1'-11" 1'-11" 1'-11" 2'-7" 2'-7" 2'-7" 2'-7" 2'-7" 2'-8" 2'-8" 2'-8" 2'-8" 2'-8" 3'-1" 3'-1" 3'-1" 3'-1" 3'-1" 3'-1" 3'-1" 3'-1" 3'-6" 3'-6" 3'-6" 3'-6". Munck Cranes Inc. assumes no responsibility for, but not limited to, any events or damages which occur as a result of the use of any data contained in this brochure. It should be noted that these figures are supplied to give a general understanding of the specifications relating to any particular capacity of trolley and should not be taken as a basis for construction of any kind. Contact Munck Cranes Inc. to confirm dimensions.. 5.

(6) TOTAL CRANE SYSTEMS. Under Running, Single Girder Overhead Cranes Crane Component Diagram. DOWNSHOP CONDUCTORS HOIST. TROLLEY FRAME COUNTER WEIGHT BRIDGE GIRDER. BRIDGE IDLER WHEEL BRIDGE DRIVE WHEEL. PENDANT FESTOON TROLLEY FESTOON. BRIDGE DRIVE. END TRUCK. PENDANT TRACK PENDANT CABLE. WIRE ROPE. TROLLEY CONDUCTOR TRACK TROLLEY END STOPS. HOOK BLOCK PENDANT RUNWAY BEAM. END STOPS. 6.

(7) Technical Description • MUNCK CRANES INC. is recognized as a quality manufacturer of wire rope hoists and overhead traveling cranes. • MUNCK cranes are in use in a wide range of lifting applications from the lightest duty to severe industrial applications. • The New Generation of Heavy Industrial Cranes from MUNCK is a result of over 80 years of experience and a total devotion to this market. • Utilizing the latest technology, the MUNCK line of Heavy Duty Electric Wire Rope Hoists and Cranes are manufactured to provide a high performance lifting system. • The MUNCK product provides reliable service in more than 60 countries world wide. • The MUNCK crane is a heavy duty, low maintenance crane. Its rugged construction and space saving design provide maximum utilization of available area. STEEL CONSTRUCTION • The bridge girder of every MUNCK crane is designed to the current CMAA specifications and can be engineered to meet other local codes and regulations. • Both rolled structural shapes and welded plate box girder designs are used depending on design requirements. • Box girders are fabricated from 44W steel. END TRUCKS • The crane end trucks are manufactured from structural sections and are jig assembled to ensure alignment of bearings and axles. • Dual motor bridge drives are standard. Other drive types are available upon request. • Bridge to End Truck connections are bolted. • Bridge wheels are flanged with anti-friction bearings. • Rail sweeps and rubber bumpers are standard on all end trucks. HOISTING MACHINERY • The hoisting machinery consists of a MUNCK heavy duty industrial type standard wire rope hoist unit mounted on a low headroom type trolley. • Motors are totally enclosed fan cooled, hoist duty with Class “F” insulation. • Gears are precision machined from alloy steel and induction hardened. All gearing is enclosed in a rugged steel housing and is oil splash lubricated. • Steel wire rope drums are precision machined. • Rope drums are available in both single & double grooved configurations. • Hoists are equipped with rope guides to prevent over lapping of the rope on the drum and to extend rope life. • Upper and lower hoisting limit switches are standard equipment. • The trolley is fabricated from structural shapes and plates to suit the application.. MOTORS • All motors are specifically designed for hoist and crane duty. • All motors are totally enclosed fan cooled with Class “F” insulation. BRAKES • All trolley and bridge drive motors have disc brakes as standard equipment. • All hoists have two braking systems, one control brake and one holding brake. CONTROLS • Each crane is controlled from a push-button station suspended from a track allowing the operator to remain clear of the load during lifting and traveling. • Other types of controls such as radio, infrared and cab controls are available. • Contactors, fuses, transformers and other associated equipment are mounted in electrical cabinets to suit the applicable environment. • All cranes are equipped with an emergency stop button that operates a mainline contactor shutting off the power to the crane. BRIDGE ELECTRIFICATION • Bridge electrification is provided via a flat cable festoon system suspended from a track as standard equipment. SURFACE TREATMENT • The hoist is finished in enamel paint. • The crane steel structure is thoroughly wire brushed and finished with anti-corrosion paint. OPTIONAL FEATURES The following features can be supplied: • Overload Switch • Power Circuit Limit Switch • Rotation Warning Beacon • Anti-Collision Equipment • Runway Electrification • Travel Limits for Bridge & Trolley • Weighing Equipment • Variable Speed Control • Remote Control • Bridge Lights • Warning Horn or Bell Other options are available on request. RUNWAY SYSTEMS • Custom designed to suit many applications as part of a “Total Crane System” package.. 7.

(8) Munck Cranes Inc. 403 Dewitt Rd. Stoney Creek, Ontario Canada L8E 4B9 Phone: (905) 561-2100 Toll Free: 1-800-461-4509 Fax: (905) 561-1238 Internet: www.munckcranes.com E-mail: sales@munckcranes.com. Cat#: US1001-CAN.
