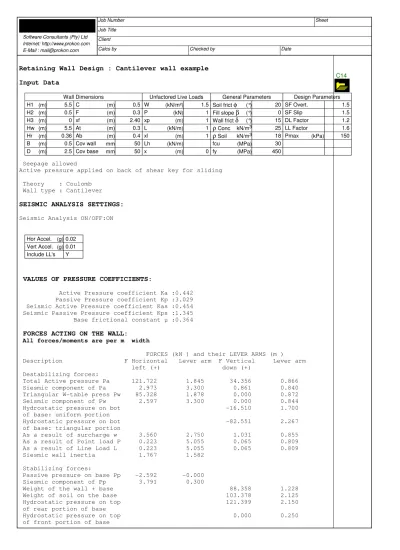

Calcs by Checked by Date E-Mail : [email protected]

Retaining Wall Design : Cantilever wall example

C14

Input Data

Wall Dimensions Unfactored Live Loads General Parameters Design Parameters

H1 (m) 5.5 C (m) 0.5 W (kN/m²) 1.5 Soil frict φ (°) 20 SF Overt. 1.5

H2 (m) 0.5 F (m) 0.3 P (kN) 1 Fill slope β (°) 0 SF Slip 1.5

H3 (m) 0 xf (m) 2.40 xp (m) 1 Wall frict δ (°) 15 DL Factor 1.2

Hw (m) 5.5 At (m) 0.3 L (kN/m) 1 ρ Conc kN/m3 25 LL Factor 1.6

Hr (m) 0.36 Ab (m) 0.4 xl (m) 1 ρ Soil kN/m3 18 Pmax (kPa) 150

B (m) 0.5 Cov wall mm 50 Lh (kN/m) fcu (MPa) 30

D (m) 2.5 Cov base mm 50 x (m) 0 fy (MPa) 450

Seepage allowed

Active pressure applied on back of shear key for sliding Theory : Coulomb

Wall type : Cantilever

SEISMIC ANALYSIS SETTINGS:

Seismic Analysis ON/OFF:ON

Hor Accel. (g) Vert Accel. (g) Include LL's 0.02 0.01 Y

VALUES OF PRESSURE COEFFICIENTS:

Active Pressure coefficient Ka :0.442 Passive Pressure coefficient Kp :3.029 Seismic Active Pressure coefficient Kas :0.454 Seismic Passive Pressure coefficient Kps :1.345 Base frictional constant µ :0.364

FORCES ACTING ON THE WALL:

All forces/moments are per m width

FORCES (kN ) and their LEVER ARMS (m ) Description F Horizontal Lever arm F Vertical Lever arm left (+) down (+)

Destabilizing forces:

Total Active pressure Pa 121.722 1.845 34.356 0.866 Siesmic component of Pa 2.973 3.300 0.861 0.840 Triangular W-table press Pw 85.328 1.878 0.000 0.872 Seismic component of Pw 2.597 3.300 0.000 0.844 Hydrostatic pressure on bot -16.510 1.700 of base: uniform portion

Hydrostatic pressure on bot -82.551 2.267 of base: triangular portion

As a result of surcharge w 3.560 2.750 1.031 0.855 As a result of Point load P 0.223 5.055 0.065 0.809 As a result of Line Load L 0.223 5.055 0.065 0.809 Siesmic wall inertia 1.767 1.582

Stabilizing forces:

Passive pressure on base Pp -2.592 -0.000 Siesmic component of Pp 3.791 0.300

Weight of the wall + base 88.358 1.228 Weight of soil on the base 103.378 2.125 Hydrostatic pressure on top 121.399 2.150 of rear portion of base

Hydrostatic pressure on top 0.000 0.250 of front portion of base

(2)

Calcs by Checked by Date E-Mail : [email protected]

Point load of 0.99 kN on backfill 0.090 1.500 Line load of 0.99 kN/m on backfill 0.990 1.500 UDL of 1.5 kPa 3.861 2.100

EQUILIBRIUM CALCULATIONS AT SLS

All forces/moments are per m width

1.Moment Equilibrium

Point of rotation: bottom front corner of base. For Overturning moment Mo calculate as follows:

Mo = Sum(hor. forces x l.a.) - Sum(vert. forces x l.a.) For Stabilizing moment Mr calculate as follows:

Mr = -Sum(hor. forces x l.a.) + Sum(vert. forces x l.a.) where l.a. = lever arm of each force.

Stabilizing moment Mr : 598.93 kNm Destabilizing moment Mo : 583.24 kNm

Safety factor against overturning = Mr/Mo = 1.027

*** SAFETY FACTOR IS LOWER THAN SPECIFIED MINIMUM OF 1.5 ***

2.Force Equilibrium

Sum of Vertical forces Pv : 254.48 kN Frictional resistance Pfric : 92.62 kN Passive Pressure on shear key : 5.15 kN Passive pressure on base : 2.59 kN => Horizontal resistance Fr : 100.37 kN

Horizontal sliding force on wall Fhw : 212.64 kN Horizontal sliding force on shear key Fht : -23.28 kN => Total Horizontal sliding force Fh : 189.37 kN Safety factor against overall sliding = Fr/Fh = 0.530

*** SAFETY FACTOR IS LOWER THAN SPECIFIED MINIMUM OF 1.50 ***

SOIL PRESSURES UNDER BASE

Maximum pressure :2750.33 kPa

Minimum pressure : 0 kPa at 3.21 m from right hand side of base. Maximum pressure occurs at left hand side of base

*** MAXIMUM PRESSURE EXCEEDS SPECIFIED ALLOWABLE PRESSURE BY 2600.3 kPa ***

WALL MOMENTS (ULS) AND REINFORCEMENT TO BS8110 - 1997

Position from Moment Front Reinforcing Back Reinforcing Nominal (0.13%) base top (m ) (kNm ) (mm²/m ) (mm²/m ) (mm²/m ) 0.00 366.56 0.00 2901.92 522.60 0.10 346.82 0.00 2740.12 520.00 0.20 326.82 0.00 2576.72 517.40 0.30 307.61 0.00 2421.20 514.80 0.40 289.16 0.00 2273.15 512.20 0.50 271.47 0.00 2132.20 509.60 0.60 254.51 0.00 1998.00 507.00 0.70 238.27 0.00 1870.24 504.40 0.80 222.74 0.00 1748.64 501.80 0.90 207.90 0.00 1632.93 499.20 1.00 193.74 0.00 1522.88 496.60 1.10 180.23 0.00 1418.24 494.00 1.20 167.37 0.00 1318.81 491.40 1.30 155.13 0.00 1224.39 488.80 1.40 143.50 0.00 1134.79 486.20 1.50 132.47 0.00 1049.83 483.60

(3)

Calcs by Checked by Date E-Mail : [email protected] 1.60 122.02 0.00 969.35 481.00 1.70 112.14 0.00 896.48 478.40 1.80 102.80 0.00 827.21 475.80 1.90 94.00 0.00 761.34 473.20 2.00 85.71 0.00 698.82 470.60 2.10 77.93 0.00 639.58 468.00 2.20 70.63 0.00 583.57 465.40 2.30 63.80 0.00 530.70 462.80 2.40 57.42 0.00 480.93 460.20 2.50 51.49 0.00 434.18 457.60 2.60 45.98 0.00 390.37 455.00 2.70 40.87 0.00 349.44 452.40 2.80 36.16 0.00 311.31 449.80 2.90 31.82 0.00 275.90 447.20 3.00 27.85 0.00 243.14 444.60 3.10 24.21 0.00 212.94 442.00 3.20 20.91 0.00 185.23 439.40 3.30 17.92 0.00 159.90 436.80 3.40 15.23 0.00 136.88 434.20 3.50 12.82 0.00 116.08 431.60 3.60 10.68 0.00 97.40 429.00 3.70 8.79 0.00 80.74 426.40 3.80 7.13 0.00 66.00 423.80 3.90 5.69 0.00 53.09 421.20 4.00 4.46 0.00 41.89 418.60 4.10 3.41 0.00 32.30 416.00 4.20 2.54 0.00 24.20 413.40 4.30 1.82 0.00 17.48 410.80 4.40 1.24 0.00 12.02 408.20 4.50 0.79 0.00 7.70 405.60 4.60 0.44 0.00 4.38 403.00 4.70 0.22 0.00 2.14 400.40 4.80 0.09 0.00 0.87 397.80 4.90 0.02 0.00 0.20 395.20 5.00 0.00 0.00 0.01 392.60

BASE MOMENTS (ULS) AND REINFORCEMENT TO BS8110 - 1997

Position from Moment Top Reinforcing Bot Reinforcing Nominal (0.13%) left (m ) (kNm ) (mm²/m ) (mm²/m ) (mm²/m ) 0.07 -0.00 0.00 0.00 650.00 0.14 -1.90 0.00 10.64 650.00 0.20 -7.61 0.00 42.57 650.00 0.27 -17.12 0.00 95.78 650.00 0.34 -30.43 0.00 170.28 650.00 0.41 -47.54 0.00 266.06 650.00 0.48 -68.46 0.00 383.13 650.00 0.54 -93.19 0.00 521.49 650.00 0.61 -121.71 0.00 681.13 650.00 0.68 -154.04 0.00 862.05 650.00 0.75 -190.18 0.00 1064.26 650.00 0.82 -209.67 0.00 1173.35 650.00 0.88 273.79 1542.19 0.00 650.00 0.95 253.88 1423.55 0.00 650.00 1.02 241.03 1348.83 0.00 650.00 1.09 228.51 1278.77 0.00 650.00 1.16 216.32 1210.58 0.00 650.00 1.22 204.47 1144.26 0.00 650.00 1.29 192.96 1079.81 0.00 650.00 1.36 181.77 1017.22 0.00 650.00 1.43 170.92 956.51 0.00 650.00 1.50 160.41 897.66 0.00 650.00 1.56 150.23 840.68 0.00 650.00 1.63 140.38 785.57 0.00 650.00 1.70 130.86 732.33 0.00 650.00 1.77 121.68 680.95 0.00 650.00 1.84 112.84 631.44 0.00 650.00 1.90 104.32 583.81 0.00 650.00

(4)

Calcs by Checked by Date E-Mail : [email protected] 1.97 96.14 538.04 0.00 650.00 2.04 88.30 494.13 0.00 650.00 2.11 80.79 452.10 0.00 650.00 2.18 73.61 411.93 0.00 650.00 2.24 66.77 373.64 0.00 650.00 2.31 60.26 337.21 0.00 650.00 2.38 54.08 302.64 0.00 650.00 2.45 48.24 269.95 0.00 650.00 2.52 42.73 239.13 0.00 650.00 2.58 37.56 210.17 0.00 650.00 2.65 32.72 183.08 0.00 650.00 2.72 28.21 157.86 0.00 650.00 2.79 24.04 134.51 0.00 650.00 2.86 20.20 113.02 0.00 650.00 2.92 16.69 93.41 0.00 650.00 2.99 13.52 75.66 0.00 650.00 3.06 10.68 59.78 0.00 650.00 3.13 8.18 45.77 0.00 650.00 3.20 6.01 33.63 0.00 650.00 3.26 4.17 23.35 0.00 650.00 3.33 2.67 14.95 0.00 650.00 3.40 1.50 8.41 0.00 650.00

SHEAR CHECK AT WALL-BASE JUNCTION TO BS8110 - 1997

Shear force at bottom of wall V = 259.7 kN

Shear stress at bottom of wall v = 0.76 MPa INADEQUATE

Allowable shear stress vc = 0.66 MPa (based on Wall tensile reinf.)

Sketch of Wall

5

.5

0

0.99kN

0.99kN/m

0

.3

0

0

.5

0

5

.5

0

0

.5

0

0.00°

0.50

0.30

0.40

2.50

1.00

1.00

1.49

2.40

1

5

.0

0

°

20.00°

kh =0.02g

kv =0.01g

Wall type: Cantilever

Theory: Coulomb

Design code: BS8110 - 1997

SFovt = 1.03

SFslip = 0.53

Kas=0.45

Kps=1.34

V=259.7kN

v= 0.76MPa

vc= 0.66MPa

µ=0.36

2750.3kPa

(5)

Calcs by Checked by Date E-Mail : [email protected]

Wall Bending Moments

Wall Moments M o m e n t m a x = 3 6 7 k N m @ -.5 0 0 m .500 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 0 .0 0 5 0 .0 1 0 0 1 5 0 2 0 0 2 5 0 3 0 0 3 5 0 H e ig h t (m ) Bending moment (kNm)

(6)

Calcs by Checked by Date E-Mail : [email protected]

Base Bending Moments

Base Moments

Moment max = 274 kNm @ .703m

-200

-150

-100

-50.0

50.0

100

150

200

250

300

.2

0

0

.4

0

0

.6

0

0

.8

0

0

1

.0

0

1

.2

0

1

.4

0

1

.6

0

1

.8

0

2

.0

0

2

.2

0

2

.4

0

2

.6

0

2

.8

0

3

.0

0

3

.2

0

3

.4

0

B

e

n

d

in

g

m

o

m

e

n

t

(k

N

m

)

Position (m)

Wall Reinforcement

Wall Reinforcement R e in f. m a x = 2 9 0 0 m m ²/ m @ 0 .0 0 m .500 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 5 0 0 1 0 0 0 1 5 0 0 2 0 0 0 2 5 0 0 3 0 0 0 H e ig h t (m ) Reinforcement (mm²/m) Front Nominal Back

(7)

Calcs by Checked by Date E-Mail : [email protected]

Base Reinforcement

Base Reinforcement

Reinf. max = 1540mm²/m @ .703m

200

400

600

800

1000

1200

1400

1600

.2 0 0 .4 0 0 .6 0 0 .8 0 0 1 .0 0 1 .2 0 1 .4 0 1 .6 0 1 .8 0 2 .0 0 2 .2 0 2 .4 0 2 .6 0 2 .8 0 3 .0 0 3 .2 0 3 .4 0 R e in fo rc e m e n t (m m ²/ m )

Position (m)

Top

Bottom

Nominal

Schematic Reinforcement

T12@200

T12@200 (EF)

T12@200 (EF)

T32@250 (NF)

T12@200 (Hor)

T12@200 (FF)

T12@200 (Hor)

1-R10/m2 clips

1-R10/m2 clips

T12@200 starters

T32@220 starters

T20@200 (T1)

T16@300 (T2)

T20@250 (B1)

T16@300 (B2)
