(1)

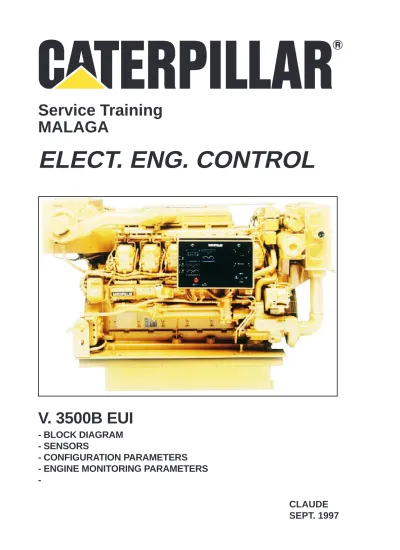

ELECT. ENG. CONTROL

CLAUDE

SEPT. 1997

V. 3500B EUI

- BLOCK DIAGRAM

- SENSORS

- CONFIGURATION PARAMETERS

- ENGINE MONITORING PARAMETERS

(2)

-BLOCK DIAGRAM

2 Page: 1 2 3 -B S D +B droop Crankcase Pressure Jacket Water Temp Filtered Fuel Pressure Unfiltered Fuel Pressure Filtered Oil Pressure Unfitered Oil Pressure Speed/Timming

Left Turbo Inlet Press Right Turbo Inlet Press Turbo Outlet Press Atmospheric Press Left Exhaust Temp Right Exhaust Temp Aftercooler Temp Sensor TDC Probe

+ _ 24V

Ether Start Ether Hold Prelube

Starting Motor Air Shutoff

GSC

Service Tool Connector Prelube Press Switch Ether Aid Switch CAT Data Link EMCPII 8/12/16 INJECTORS

(3)

ANALOG SENSOR

3 Page:

(4)

DIGITAL SENSOR

4 Page:

(5)

RIGHT TURBO PRESS SENSOR

5 Page:

(6)

LEFT TURBO INLET PRESS SENSOR

6 Page:

(7)

TURBO OUTLET PRESS SENSOR

7 Page:

(8)

LEFT TURBO INLET EXHAUST TEMP

8 Page:

(9)

RIGHT TURBO INLET TEMP SENSOR

9 Page:

(10)

FILTERED OIL PRESS SENSOR

10 Page:

(11)

UNFILTERED OIL PRESS SENSOR

11 Page:

(12)

FILTERED FUEL PRESS SENSOR

12 Page:

(13)

UNFILTERED FUEL PRESS SENSOR

13 Page:

(14)

ATMOSPHERIC PRESS SENSOR

14 Page:

(15)

JACKET WATER TEMP SENSOR

15 Page:

(16)

CRANCKCASE PRESSURE SENSOR

16 Page:

(17)

A/C WATER TEMP SENSOR

17 Page:

(18)

AIR SHUTOFF SYSTEM

18 Page:

(19)

STARTING MOTOR SYSTEM

19 Page:

(20)

EMERGENCY-STOP SWITCH

20 Page:

(21)

PRELUBE SYSTEM

21 Page:

(22)

ENGINE CONTROL SWITCH

22 Page:

(23)

ETHER INJECTION SYSTEM

23 Page:

(24)

CONFIGURATION PARAMETERS

24 Page:

ACCELERATION DELAY :

During startup the engine will stay at low idle until oil pressure is above 70 kPa or until the "time-0ut" of the programmed Acceleration Delay .

Programming to 0 will disable this function MIN 0 s MAX 10 s

ACCELERATION RAMP RATE :

This parameter defines the acceleration ramp rate from Actual speed to Desired speed.

MIN 1RPM/s MAX 200RPM/s

TIME

R

P

M

HI LI ACCELERATION DELAY ACCELERATION RAMP RATE RPM / S SECONDS

(25)

CONFIGURATION PARAMETERS

25 Page:

COOLDOWN TIME :

The amount of time the engine will run at the cooldown speed . Programming this parameter to 0 will disable this function.

* If there is an EMCPII to this engine , this parameter could be programmed to 0 as the EMCPII performs this function as well.

MIN 0mn MAX 30mn LOW IDLE :

Minimum RPM at which the engine can operate. MIN 810rpm MAX 990rpm

COOLDOWN SPEED :

RPM at which the engine will run during the cooldown period.

MIN 810rpm MAX 1800rpm

MIN 0s MAX 210s PRELUBE TIME :

Time the engine control will prelube the engine. Programmed to 0 will disable this function.

(26)

CONFIGURATION PARAMETERS

26 Page:

MIN 0s MAX 60 CYCLE CRANK TIME:

The time the starting motor will be energized

& the amount of cool down time both time being EQUAL.

* If there is an EMCPII to this engine , this parameter could be programmed to 0 as the EMCPII performs this function as well.

TOTAL NUMBER OF CRANK CYLES :

The number of crank cycles that will be preformed. MIN 0 MAX 10

MIN 100rpm MAX 1000rpm CRANK TERMINATE SPEED :

Engine RPM at which the starting motor is disengaged.

AIR SHUTOFF and ETHER CONTROL :

If there is no air shutoff install on the engine then it should be programmed to OFF , that will prevent diagnostic from being logged on the air Shutoff driver in the ECM .

(27)

E-TRIM FEATURE

27 Page:

ALL ENGINES BUILD STARTING MAY 15, 1996 HAVE THE E-TRIM FEATURE ON THEIR PERSONALITY MODULE AND INJECTORS CODED WITH AN E-TRIM CODE

THE SOFTWARE COMPENSATES FOR INJECTOR VARIATION IN TIMING AND DISCHARGE. THE E-TRIM IS A 4 DIDGIT CODE ETCHED ON THE INJECTOR TAPPET

WHEN AN INJECTOR IS CHANGED THE NEW INJECTOR'S E-TRIM CODE MUST BE

PROGRAMMED . IF THE NEW CODE IS NOT PROGRAMMED THEN THE PREVIOUS CODE IS ASSUMED

IF AN OLD INJECTOR ( NO E-TRIM CODE ) IS INSTALLED , THEN ENTER THE DEFAULT CODE 1100

IF IT IS NOT POSSIBLE TO REPROGRAM AN INJECTOR CODE IMMEDIATELY THE ENGINE WILL NOT BE SEVERELY HARMED , ALTHOUGH IT SHOULD BE REPROGRAMMED AS SOON AS POSSIBLE TO OPTIMIZE ENGINE PERFORMANCE AND PREVENT ANY LONG TERM DETRIMENTAL EFFECTS

INJECTOR P/N

NEW PREVIOUS APPLICATION

E-TRIM NON E-TRIM

132-0202 126-7992 3500B 50 Hz

132-0204 126-7995 3500B 60 Hz and HW Marine 132-0205 124-6351 3500B LW Marine

CAT Electronic technician - Calibrations

CAT Electronic technician - Calibrations

Select Calibration

ENGINE 3508B

Pressure Sensor Calibration

Timing Calibration

Injector Code calibration

Injector 1 1100 Injector 2 1100 Injector 3 1100 Injector 4 1100 Injector 5 1100 Injector 6 1100 Injector 7 1100 Injector 8 1100

Injector

Code

Change

(28)

E -TRIM CODE READING

28 Page: PART No. TRADE MARK SERIAL No.

(29)

FRC OFFSET

29 Page:

VALID NUMBERS -25 +25

-25

+25

LESS SMOKE

SLOWER RESPONSE

MORE SMOKE

FASTER RESPONSE

(30)

PROGRAMMING PARAMETER

30 Page:

(31)

ENGINE MONITORING SYSTEM

31 Page:

CHANGE VALUE PRINT

Change

Parameter Enabled? Trip Point delay Time Limits

High Coolant Temperature Off

Warning X 95 C 5 Seconds 90-125 C 1-60 Seconds

Derate X 97 C 5 Seconds 90-125 C 1-60 Seconds Shutdow X 100 C 10 Seconds 90-125 C 1-60 Seconds

o o o o o o 900 RPM 0 RPM 100 C 97 Co 50 C o o 95 Co 5S WARNING 5S 700 RPM 10S SHUTDOWN

(32)

HYSTERESIS

32 Page:

NOTE: THE ENGINE MONITORING SYSTEM PARAMETERS ARE DISABLE IF A DIAGNOSTIC IS ACTIVE FOR THAT PARAMETERS

PARAMETER HYSTERESIS

. ECM VOLTAGE 3 VOLTS

. OIL PRESSURE 50 kPa (7 psi)

. HIGH JACKET WATER 3 C (5.5 F)

. LOW JACKET WATER 3 C (5.5 F)

. OVERSPEED 100 rpm

. AIR INLET RESTRICTION N/A

. ALTITUDE N/A

. HIGH EXHAUST TEMP. 50 C (122 F)

. OIL FILTER DIFFERENTIAL 10 kPa

. FUEL FILTER DIFFERENTIAL 10 kPa (1.5 psi)

. CRANKCASE PRESSURE N/A

. AFTERCOOLER WATER TEMP. 3 C (5.5 F)

900 RPM 0 RPM 100 C 97 Co 50 C o o 95 Co 5S 700 RPM 5S 5S 5S

TRIP POINTS

WARNING

HYSTERESIS

OFF

(33)

COLD START LOGIC

33 Page:

ECM automaticalty stop injection

to non- firing injectors until the

engine warm up based on water temp.

ECM cutout each cylinder for a

brief amount of time to see if that

injector is contributing to power.

If not, injection will be stop to that

cylinder, ECM will retest any cutout

cylinder every so often.

HELPS REDUCE WHITE SMOKE DURING ENGINE WARM UP

(34)

ENGINE ROTATION

34 Page:

Standard Rotation

Reverse Rotation

- SOFTWARE SUPPORTS

BOTH

-

Harness code IS DIFFERENT and will tell the software

which is the firing order

- If there is the wrong harness the engine may start/run

giving poor performance and an active code will be

generated : 190-f04 342 f07

3508-- 1-2-7-3-4-5-6-8 3512-- 1-12-9-4-5-8-11-2-3-10-7-6 3516-- 1-2-5-6-3-4-9-10-15-16-11-12-13-14-7-8 1-8-7-2-6-5-4-3 1-4-9-8-5-2-11-10-3-6-7-12 1-6-5-4-3-10-9-16-15-12-11-14-13-8-7-2
