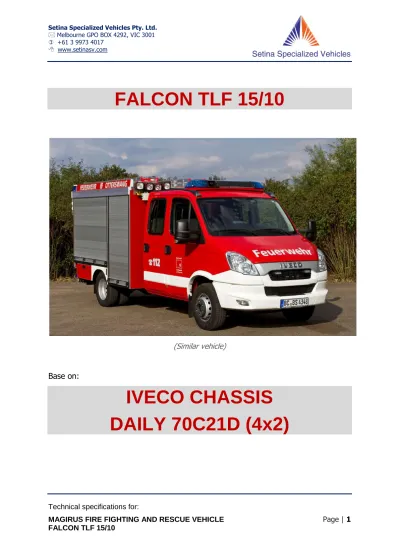

Technical specifications for:

MAGIRUS FIRE FIGHTING AND RESCUE VEHICLE Page | 1

FALCON TLF 15/10

FALCON TLF 15/10

(Similar vehicle)

Base on:

IVECO CHASSIS

DAILY 70C21D (4x2)

(2)

CHASSIS SPECIFICATIONS

CHASSIS

Manufacturer: IVECO

Model: 70C21 D

Front axles admissible weight: 2.500 Kg Rear axles admissible weight: 5.350 Kg

G.V.W.: 6.700 kg

Transmission: 4x2

Steering: Right-hand power steering

Wheelbase: 3.450 mm

ENGINE

Type: IVECO diesel engine, Euro 5, 4-stroke, 4 cylinders in line, 16 valves, turbocharged and after cooled, with high pressure 1800 bar Unijet common rail system.

Displacement: 2.998 cm3

Max. Output: 205 HP (150 kW) at 3500 rpm

Max. Torque: 470 Nm (48 kgm) at 1400 rpm

Cooling system: Water-cooled system

GEAR-BOX

Manual synchronised transmission, 6 forward-speeds

plus 1 reverse.

TYRES

Single at front and double at rear, size 225/75R16

BRAKE SYSTEM

Hand brake: Mechanical type, acting on rear wheels

ESP9: The ESP9 systems include and provide the following safety systems: ABS (Anti lock braking system), EBD

(3)

Regulator)

Disc type on front and rear axles

ELECTRICAL SYSTEM

Alternator: 180 A (12 volt)

The vehicle is equipped with Nr. 1 battery 12V of 110 Ah

PERFORMANCES

(4)

DRIVER’S & CREW CAB

Type: Original Iveco double cab (1+4 seats) forward control type in steel main construction, suitable for one driver plus four crew members, protected against corrosion by Cataphoresis treatment

The cabin is equipped with special arrangements in order to allow storage of 3 B.A. integrated in the rear crew seats

Doors: - Nr. 4 (2 on each side), with opening windows

Accommodation: - Nr.1 adjustable driver's seat - Nr.1 co-driver seat

- Nr.1 bench for 3 men, at the rear of the cab including B.A. integrated in the back of the seats

Internal equipment: - Handholds

- Nr.1 storage locker under the rear bench - Rear cab floor covered

- Lamp for illumination

Controls: Emergency equipment switches (beacons and siren) Storage lockers opened warning light

Miscellaneous: Windshield wiper, heater, ventilation fan tachometer, rear view mirrors, sun visors, windshield washers

(5)

BODYWORK

The entire superstructure is fixed on the chassis by means of a steel sub-frame elastically mounted by means of silent-blocks on the chassis frame in order to avoid the transmission of torsion stress.

Material: Body frame in all aluminium construction ALU-FIRE SYSTEM, panelled with aluminium sheets, in order to have lightweight and absolutely no-rust bodywork Protecting treatment by sound-deadening paint

Storage lockers: N.2 on each side of the vehicle, closed by anodised light alloy

MAGIRUS roller shutters with double-handle grip and internal illumination

They are designed to contain all the materials and rescue equipment mentioned

The new type of shutter assures a better safety to the operator during the utilization because it is possible to stop it at every position; they are totally water and dust proof

Pump storage: Fitted at the rear, closed by light alloy roller shutter Working deck: The surface above the storage lockers and pump

compartment is covered with slip-proof light alloy chequered plates

Ladder: At the rear the rear part of the body a retractable aluminium ladder allows getting onto the top of the vehicle

(6)

FIRE FIGHTING EQUIPMENT

WATER TANK

Capacity: 1000 litres

Material: Made of high quality GRP

Equipment: Internal anti-surge baffle plates mm Manhole for internal inspection Ø 500 mm

Overflow and ventilation pipe

Over-pressure device

Nr.1 hydrant in-let at the rear of the vehicle STORZ B (65 mm)

Visual level indicator on the pump control panel and also visual on the pump locker

Draining device

FOAM TANK

Capacity: 50 litres

Material: Made of polypropylene

Equipment: Manhole for internal inspection Ø 250 mm;

Visual level indicator

Filling line from external source with non-return valve 1 ½”

Draining device

PUMP UNIT

Model: MAGIRUS MPH120A located at the rear of the vehicle Type: Centrifugal type, multi-stage suitable for medium

pressure

Material: Light alloy, with shaft made of special stainless steel Pump drive: By PTO of truck's engine, this can be engaged from,

inside the cabin

Fittings: Nr. 1 suction line from vehicle’s tank 110mm with butterfly valve

(7)

and chain

Nr. 1 line to fill vehicle’s tank from external source using vehicle’s fire pump

Nr. 2 discharge outlets for medium pressure STORZ B (65mm)

Nr. 1 high pressure discharge outlets pre-connected to the high pressure hose-reel

Nr. 1 drain plug

Pump output: 1.500 lpm at 10 bars

250 lpm at 40 bars

Priming system: MAGIRUS primatic automatic priming system

FOAM PROPORTIONER

Type: Around the pump, adjustable for the production of water/foam compound mixture

Useful for all types of foam compounds, it allows the water/foam mixing 3 and 6% selected by the pump panel

HIGH PRESSURE HOSE REEL

Material: N° 1 made of corrosion proof alloy

Construction: Axial feed rotating hose reel, fitted with mechanical brake for holding the hose during running of the vehicle, fed from the delivery outlet of the pump with ball valve

Hose: High-pressure non-collapsible heavy – duty rubber hose 25mm x 60 m length, bursting pressure minimum 90 bar

Branch Pipe: Free end of the hose is constantly connected to branch pipe with high pressure fog gun with a nominal output of 200 L/min at 40 bars. It can be adjusted from straight stream to water fog

Rewinding System: Automatic by means of chain mechanism actuated by electric motor

(8)

Location: At the rear of the vehicle above the pump

Control Valve: By electro-pneumatic operated valve from the pump control panel

TYRES AND CABIN SELF PROTECTION

The vehicle is equipped with cabin and wheels self protection by sprinklers located on each tire and at each left and right side and at front to enhance the crew security

Sprinklers are supplied by the pump with suction connection from the water reserve of the vehicle

(9)

ELECTRICAL EQUIPMENT

In addition to the standard electrical equipment, the following units are provided:

- Nr. 1 light-bar with flashing lights red colour located on the cab top and one flashing beacon located at the rear with electric ignition control, by switch on the cab panel. In addition 4 red strobo lights multi led type are located 2 at front and 2 at the rear of the vehicle

- Nr. 1 alarm system makes FEDERAL PA 300 + Speaker TS 100 multi-tone type electrical siren located on the roof of the cabin

- A set of ceiling lamp for each storage locker, equipped with automatic ignition for storage lockers internal lighting

FINISHING & PAINTING

Bodywork and cab colour: Exterior, in red RAL 3000 Bumpers, fenders and mirrors: White colour

Chassis frame: Manufacturer standard colour

OTHERS: Nr.1 tools box

Nr.1 warning triangle

Nr.1 spare wheel with carrying device Nr.2 wheel stopper

Ancillary Equipment list: to be defined at the time of order according to space and weight availability.
