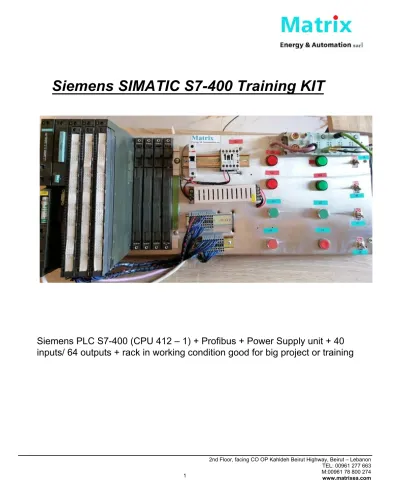

Siemens SIMATIC S7-400 Training KIT

Siemens SIMATIC S7-400 Training KIT

2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com 2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon

TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com 2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon

TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com 2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon

TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com 2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon

TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com 2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon

TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com 2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon

TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com

Siemens PLC S7-400 (CPU 412 – 1) + Profibus + Power Supply unit + 40

inputs/ 64 outputs + rack in working condition good for big project or training

2222 1

03

05

07

09

11

TABLE OF CONTENTS

SIMATIC S7-400, Power supply PS407

TIC S7-400, CPU 412-1 96 KB

SIMATIC S7-400, digital input SM 421

SIMATIC S7-400, digital output SM 422

SIMATIC DP, BASIC MODULE BM141

ET 200ECO: 8DI 24V DC; 8 X M12,

Data sheet

6ES7407-0KA02-0AA0

SIMATIC S7-400, Power supply PS407: 10 A, wide range, UC 120/230V, 5 V DC/10 A

Supply voltage

Rated value (DC)

● 120 V DC Yes ● 230 V DC Yes Rated value (AC)

● 120 V AC Yes ● 230 V AC Yes Line frequency

● Rated value 50 Hz Yes ● Rated value 60 Hz Yes ● permissible range, lower limit 47 Hz ● permissible range, upper limit 63 Hz Mains buffering

● Mains/voltage failure stored energy time 20 ms ● Mains buffering according to NAMUR

recommendation Yes Input current Rated value at 120 V DC 1 A Rated value at 230 V DC 0.5 A Rated value at 120 V AC 0.9 A Rated value at 230 V AC 0.5 A

Inrush current, max. 63 A; Full width at half maximum 1 ms Leakage current, max. 3.5 mA

Output voltage

Type of output voltage DC Rated value (DC)

● 5 V DC Yes

● 24 V DC Yes

Output current

for backplane bus (5 V DC), max. 10 A; no base load required for backplane bus (24 V DC), max. 1 A; idling-proof

Short-circuit protection Yes

Power

Active power input, typ. 95 W

Power loss

Power loss, typ. 20 W

2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com 3

Battery

Backup battery

● Backup battery (optional) Yes; 1x lithium AA; 3.6 V / 2.2 Ah

Hardware configuration Slots ● required slots 2 Potential separation primary/secondary Yes Isolation Overvoltage category II EMC

Compliance with line harmonic distortion limits

● Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3 Yes

Degree and class of protection

Equipment protection class I, with protective conductor

Standards, approvals, certificates

FM approval Yes; Ta: 0 °C to 70 °C T4

Ambient conditions

Ambient temperature during operation

● min. 0 °C

● max. 60 °C

Connection method

Design of electrical connection 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm Dimensions Width 50 mm Height 290 mm Depth 217 mm Weights Weight, approx. 1 200 g

Data sheet

6ES7412-1XF03-0AB0

SIMATIC S7-400, CPU 412-1 96 KB WORKING MEMORY (48 KB CODE, 48 KB DATA) INTERFACE MPI/DP 12 MBIT/S

Supply voltage

Rated value (DC) Power supply via system power supply

Input current

from backplane bus 5 V DC, typ. 1.5 A from backplane bus 5 V DC, max. 1.6 A

from backplane bus 24 V DC, max. 150 mA; Total current consumption of the components connected to the MPI/DP interfaces, but no more than 150 mA per interface

Power loss

Power loss, typ. 7.5 W

Memory

Type of memory RAM Work memory

● integrated 96 kbyte ● integrated (for program) 48 kbyte ● integrated (for data) 48 kbyte ● expandable No Load memory

● expandable FEPROM Yes; with Memory Card (FLASH) ● expandable FEPROM, max. 64 Mbyte

● integrated RAM, max. 256 kbyte

● expandable RAM Yes; with Memory Card (RAM) ● expandable RAM, max. 64 Mbyte

Backup

● present Yes ● with battery Yes; all data ● without battery No

Battery

Backup battery

● Backup current, typ. 40 µA ● Backup current, max. 300 µA

● Feeding of external backup voltage to CPU 5 V DC to 15 V DC

Hardware configuration

Number of expansion units, max. 21; of which 6 ER with K-bus

connectable OPs 16 without message processing, 8 with message processing Multicomputing Yes; 4 CPUs max. (with UR1 or UR2)

Communication functions

PG/OP communication Yes Global data communication

● supported Yes ● Number of GD packets, transmitter, max. 8 ● Number of GD packets, receiver, max. 16 ● Size of GD packets, max. 64 byte S7 basic communication

● supported Yes ● User data per job, max. 76 byte S7 communication

● supported Yes ● as server Yes ● as client Yes ● User data per job, max. 64 kbyte S5 compatible communication

● supported Yes; via CP and FC AG_SEND and FC AG_RECV ● User data per job, max. 8 kbyte

Standard communication (FMS)

● supported Yes; Via CP and loadable FB

— STL Yes — SCL Yes — CFC Yes — GRAPH Yes — HiGraph® Yes Know-how protection

● User program protection/password protection Yes

Dimensions Width 25 mm Height 290 mm Depth 219 mm Weights Weight, approx. 720 g

Data sheet

6ES7421-1BL01-0AA0

SIMATIC S7-400, digital input SM 421, isolated 32 DI; 24 V DC

Input current

from backplane bus 5 V DC, max. 20 mA

Power loss

Power loss, typ. 6 W

Digital inputs

Number of digital inputs 32 Number of simultaneously controllable inputs

● Number of simultaneously controllable inputs 32 Input voltage

● Type of input voltage DC ● Rated value (DC) 24 V

● for signal "0" -30 V DC to +5 V DC ● for signal "1" 13 V DC to 30 V DC Input current

● for signal "0", max. (permissible quiescent current) 1.3 mA ● for signal "1", typ. 7 mA Input delay (for rated value of input voltage)

for standard inputs

— at "0" to "1", min. 1.2 ms — at "0" to "1", max. 4.8 ms — at "1" to "0", min. 1.2 ms — at "1" to "0", max. 4.8 ms Cable length ● shielded, max. 1 000 m ● unshielded, max. 600 m Encoder Connectable encoders

● 2-wire sensor Yes — permissible quiescent current (2-wire sensor),

max. 1.5 mA

Interrupts/diagnostics/status information

Diagnostics function No Diagnostics indication LED

● Status indicator digital input (green) Yes

Potential separation

Potential separation digital inputs

● between the channels No

● between the channels, in groups of 32 ● between the channels and backplane bus Yes

Isolation

Isolation tested with 500 V DC

Dimensions

Width 25 mm

Height 290 mm

Data sheet

6ES7422-1BL00-0AA0

SIMATIC S7-400, digital output SM 422, isolated 32 DO; 24 V DC, 0.5 A

Supply voltage

Load voltage L+

● Rated value (DC) 24 V ● permissible range, lower limit (DC) 20.4 V ● permissible range, upper limit (DC) 28.8 V

Input current

from load voltage L+ (without load), max. 30 mA from backplane bus 5 V DC, max. 200 mA

Power loss

Power loss, typ. 4 W

Digital outputs

Number of digital outputs 32

Short-circuit protection Yes; Clocked electronically ● Response threshold, typ. 0.7 to 1.5 A

Controlling a digital input Yes; possible Switching capacity of the outputs

● on lamp load, max. 5 W Load resistance range

● lower limit 48 Ω ● upper limit 4 kΩ Output voltage

● for signal "1", min. L+ (-0.3 V) Output current

● for signal "1" rated value 0.5 A ● for signal "1" permissible range, min. 5 mA ● for signal "1" permissible range, max. 0.6 A ● for signal "0" residual current, max. 0.3 mA Output delay with resistive load

● "0" to "1", max. 1 ms ● "1" to "0", max. 1 ms Parallel switching of two outputs

● for uprating Yes; possible (only outputs of the same group) ● for redundant control of a load Yes; possible (only outputs of the same group) Switching frequency

● with resistive load, max. 100 Hz ● with inductive load, max. 0.5 Hz

● with inductive load (acc. to IEC 60947-5-1, DC13),

max. 2 Hz; 2 Hz at 0.3 A; 0.5 Hz at 0.5 A ● on lamp load, max. 10 Hz

Total current of the outputs (per group) all mounting positions

— up to 40 °C, max. 4 A

— up to 60 °C, max. 2 A; 8 adjacent outputs each Cable length ● shielded, max. 1 000 m ● unshielded, max. 600 m Interrupts/diagnostics/status information Diagnostics function No Potential separation

Potential separation digital outputs

● between the channels No ● between the channels, in groups of 32 ● between the channels and backplane bus Yes

Isolation

Isolation tested with 500 V DC

Dimensions Width 25 mm Height 290 mm Depth 210 mm Weights Weight, approx. 600 g

Data sheet

6ES7141-3BF00-0XA0

SIMATIC DP, BASIC MODULE BM141 ET 200ECO: 8DI 24V DC; 8 X M12, SINGLE-ASSIGNEMENT, DEGREE OF PROTECTION IP65/67; CONNECTING BLOCK 6ES7194-3AA00-0.A0 MUST BE ORDERED SEPARTELY

General information

Vendor identification (VendorID) 80DBh

Supply voltage

Rated value (DC) 24 V Reverse polarity protection Yes

Input current

from supply voltage 1L+, max. 70 mA; Typical

Encoder supply

Number of outputs 8 Type of output voltage 24 V DC Short-circuit protection Yes; Electronic Output current

● Rated value 1 A; Aggregate current up to 55 °C

Power loss

Power loss, typ. 2.4 W

Digital inputs

Number of digital inputs 8

2nd Floor, facing CO OP Kahldeh Beirut Highway, Beirut – Lebanon TEL: 00961 277 663 M:00961 78 800 274 www.matrixea.com 11

Input characteristic curve in accordance with IEC 61131, type 1

Yes Number of simultaneously controllable inputs

all mounting positions

— up to 55 °C, max. 8 Input voltage

● Type of input voltage DC ● Rated value (DC) 24 V ● for signal "0" -3 to +5V ● for signal "1" 13 to 30V Input current

● for signal "1", typ. 7 mA Input delay (for rated value of input voltage)

for standard inputs

— at "0" to "1", max. 3 ms; Typical — at "1" to "0", max. 3 ms; Typical Cable length ● unshielded, max. 30 m

Encoder

Connectable encoders

● 2-wire sensor Yes — permissible quiescent current (2-wire

sensor), max.

1.5 mA

Interfaces

PROFIBUS DP

● Transmission rate, max. 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s

Protocols

PROFIBUS DP Yes

Interrupts/diagnostics/status information

Alarms No Diagnostic messages

● Diagnostic information readable Yes Diagnostics indication LED

● Group error SF (red) Yes ● Status indicator digital input (green) Yes ● Channel fault indicator F (red) No

Potential separation

● between the channels No

Permissible potential difference

between different circuits 75 V DC/60 V AC

Isolation

Isolation tested with 500 V DC

Degree and class of protection

IP degree of protection IP65/67

Standards, approvals, certificates

Suitable for safety functions No

Dimensions

Width 60 mm Height 210 mm Depth 28 mm

Weights

Weight, approx. 210 g
