GGF STANDARDS

(1)

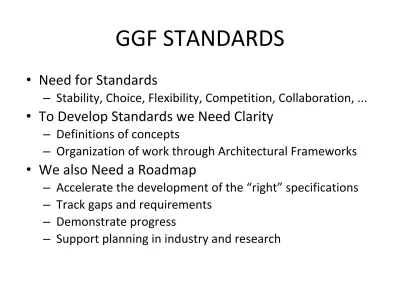

GGF STANDARDS

• Need for Standards

– Stability, Choice, Flexibility, Competition, Collaboration, ...

• To Develop Standards we Need Clarity

– Definitions of concepts

– Organization of work through Architectural Frameworks

• We also Need a Roadmap

– Accelerate the development of the “right” specifications – Track gaps and requirements

– Demonstrate progress

– Support planning in industry and research

(2)

Notions of Grid

• Collaboration Grids

– Multiple institutions, secure, widely distributed, VOs – Service level agreements & commercial partnerships – Business model: Increase overall revenue

• Enterprise Grids

– Virtualization of enterprise resources and applications – Aggregation and centralization of management

– Business model: Reduce total cost of ownership

• Clusters

– Networks of Workstations, Blades, etc.

– Cycle scavenging, Homogeneous workload – Business model: Lower marginal costs

• Parallel Processing Systems

– Parallel processing for single applications

Increasing Complexity and Revenue

(3)

Parallel Processing and Cluster Grids

• Parallel Processing

– Tightly coupled distributed systems – Standards:

• MPI and OpenMP

– Aimed at HPC

– Code portability and performance!

• Cluster Grids

– Loosely coupled distributed systems

– Efficient scheduling of nodes for throughput – No standards, lots of players

• Queuing systems: LSF, PBS, LoadLeveler, ...

• Specialist systems: CyberGRIP, gridMatrix, ...

(4)

Enterprise Grids Today

• Enterprise Grids are about

– Virtualization: Uniform encapsulation of resources:

• Compute, data, applications, support, ...

– Integration: Creation of a structured whole from the parts.

– Automation: Most management tasks, mostly automatic.

• Examples

– Fujitsu’s Triole Strategy – Oracle’s 10g Platform – Sun’s N1 Suite

– HP’s Adaptive Enterprise

– IBM’s “On Demand” Business

• Run your required services as

efficiently as possible.

(5)

Collaboration Grids Today

• Production First Generation Collaboration Grids

– UK National Grid Service and TeraGrid

• Running Globus GT2

– Team Shosholoza and others

• Running Unicore

• Web Service Collaboration Grids

– Experimental Deployment

• Globus GT4, Unicore/GS

– Barriers

• Confusion wrt Plain Web Services

• Politics of the Standards Process

• Create new business opportunities through collaboration

– Enterprise Grid technology as a basis.

– Requirements beyond Enterprise Grids:

• Discovery, Security, Virtual Organizations (VOs), Decoupling, Composition ...

(6)

† http://www.forrester.com/go?docid=38314

Convergence: Enterprise & Collaboration Grids

• Technical Convergence

– From Enterprise Grids

• Sophisticated virtualization

• Management infrastructure

• Automation

– From Collaboration Grids

• Multi-domain security

• Cyber partnerships (VOs)

• Outsourcing

• The Need for Standards

– Within the Enterprise

• Flexibility!

– Between Enterprises

• Interoperability!

• Forrester’s

– “Digital Business Networks”

^†

(7)

GGF and the Nature of Interoperability

• GGF is about

– Enabling the pervasive adoption of grid computing for research and industry by:

• Defining grid specifications that lead to broadly adopted standards and interoperable software

• Fostering and broadening an international community for the exchange of ideas, experiences, requirements, and best practices

• Implicit process:

– Requirements ⇒ Specifications ⇒ Standards ⇒ Interoperability – Note: Implementations are required do do the last three steps well.

• Definitions:

– Specifications: Normative document sufficient for implementation

– Standards: Specifications plus an open process.

(8)

Interoperability

• In a SOA context, this is very precise

– Implementations interact “on the wire” between different implementations, languages, and

environments

• WS-SOA Offers Unprecedented QoS in this respect

– Better than http, not quite as good as hardware

• Only possible by agreeing on a single specification

– For GGF this specification is an Open Standard

(9)

Interoperation

• Adaptor Based Interaction Possible

– A simple service wrapper for each client type

• e.g. JSDL to Unicore AJO to Globus JDL converters

– Service composer frameworks possible

• e.g. NAREGI Grid composes Unicore, GT2, GT4, and WSs

• There is a Notion of “Abstract Service Equivalence”

– OGSA V1.0 and V1.5 are instances of this

– Greatly facilitates adaptor development and deployment

– Language specific standards help build better adaptors

• e.g. a Java API for the OGSA Base Profile or SAGA API.

– If all clients (or services) implement adaptors for all

services (or clients) it creates a pleasant illusion of

interoperability

(10)

The GGF Roadmap Process

•

^{End User}^&

Technolog y Communit

y

Standards Groups/Or

gs Vendor

and Open Source Communit

ies

Use Cases and Requirements

Architectures and Specifications Solutions

and

Building Blocks

Create Value Deliver

Value Manage and steer

standards development Communicate status

and progress

Input to implementation

& deployment planning

(11)

Roadmap Organization

• Organized by Area, Group, and then Document

• Content for each Document

– Document name and short description – GGF Document Type

– Progress against key millstones

• Planned and completed dates for First Draft, Public Comment, and publication

– Key Words

• Informs Grid Design, Defines Grid Architecture, OGSA, Applications, Generic grid Component, Other, ...

– Adoption Levels

• Unimplemented, Implemented, Interoperable, Community,

Adopted, and Ubiquitous.

(12)

Adoption Level Definitions

• Unimplemented

– Although the specification exists and may be viewed as stable, no implementation exists. There may be prototypes under development within various organizations, which are not available outside that organization.

• Implemented

– There exists at least one implementation that is generally available for testing and/or deployment that according to the authors (or third

parties) implement the specification.

• Interoperable

– There exists at least two implementations, as defined above, that interoperate. There must be a report detailing at least one

interoperability workshop.

(13)

Adoption Level Definitions Continued

• Community

– At least one of the interoperable implementations, as defined above, is deployed and used on a regular basis by a specific community. This may be due to either a lack of acceptance of the specification by the community at large or due to the specialist nature of a specific

specification.

• Adopted

– There exists more than one interoperable implementation, as defined above, and each implementation is used across several communities.

Commercially supported implementations are available. This may be either as a product or support for an open source implementation.

There may be some restriction on which platforms support the

implementations or other aspects that restrict the availability of the implementations.

• Ubiquitous

– Interoperable implementations exist for virtually all platforms.

Commercial support is available, but provided transparently as part of

the supporting infrastructure.

(14)

Some Roadmap Statistics

• Roadmap Documents by Type

– Recommendation Documents 26 – Informational Documents 30 – Experimental Documents 3

• Roadmap Documents by Area

– Applications 9

– Architecture 6

– Compute 9

– Data 13

– Infrastructure 6

– Management 9

– Security 7

(15)

Some More Statistics

• Published Documents

– Compute/SRM 6

– Data 10

– Architecture 7

– Applications/APME 7

– Infrastructure/ISP/P2P 8

– Security 10

– Management 2

– GFSG 5

• Published Draft-Recommendations Documents 9

(16)

The Current Pipeline

• Statistics:

– Published since GGF 15 9

– In or after Public Comment 22 – Others in the pipeline 5

• Publication Highlights

– GFD.53: OGSA Roadmap – GFD.56: JSDL 1.0

– GFD.58: Namespaces for XML Infosets – GFD.59: OGSA Profile Definition

• Progress Highlights

– GWD.xx: WSRF OGSA Base Profile through Public Comment – GWD.xx: WS-Agreement through Public Comment

• Highlights from Public Comment

– GWD.xx: ByteIO Suite - 2 specs – GWD.xx: DAI Suite - 3 specs

18 Documents

in 12 Months

(17)

OGSA: Status November 2004

SYSTEMS

MANAGEMEN T

UTILITY COMPUTING GRID

COMPUTING

Core Services

Base Profile

WS-Addressing

Privacy

WS-BaseNotificatio n

CIM/JSIM WSRF-RAP

WSDM

WS-Security

Naming OGSA-EMS

OGSA Self Mgmt

GFD-C.16 GGF-UR

Data Model

HTTP(S)/SOAP

Discovery

SAML/XACML WSDL

WSRF-RL Trust

WS-DAI VO

Management

Information

Distributed query processing

ASP

Data Centre

Use Cases &

Applications

Collaboration Persistent Archive Multi Media

Data Transport WSRF-RP

X.509

Standard Evolving

Gap Hole

Warning: Data may be inaccurate

(18)

OGSA: Status February 2006 (or soon)
