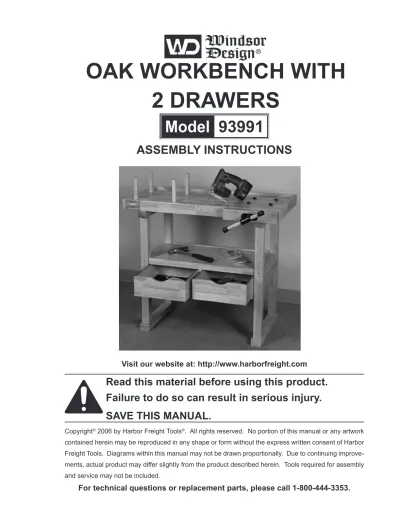

OAK WORKBENCH WITH

2 DRAWERS

Model

93991

ASSEMBLY INSTRuCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANuAL.

Copyright© 2006 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork

(2)

SPECIFICATIONS

SAVE THIS MANuAL

You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice number on the inside of the front cover. Keep the manual and invoice in a safe and dry place for future reference.

SAFETY WARNINGS AND PRECAuTIONS

1. KEEP WORK AREA CLEAN. Cluttered areas invite injuries.

2. OBSERVE WORK AREA CONDITIONS. Keep work area well lit.

3. SuPERVISE CHILDREN AROuND THIS PRODuCT. Do not allow children to climb

upon this table top.

4. CHECK FOR DAMAGED PARTS. Before using any product, any part that appears

damaged should be carefully checked to determine that it will perform its intended function. Check for any broken or damaged parts and any other conditions that may affect its operation. Replace or repair damaged or worn parts immediately.

5. uSE SAFETY EquIPMENT. WEAR ANSI APPROVED SAFETY IMPACT EYE GOGGLES WHEN ASSEMBLING THIS PRODuCT.

6. REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only identical

replacement parts. Use of any other parts will void the warranty.

7. ALWAYS CHECK HARDWARE AND ASSEMBLED PARTS AFTER ASSEMBLING.

All connections should be tight and hardware tightened.

8. DO NOT OVERREACH. Keep proper footing and balance at all times when

assembling this product. It is recommended that two people lift and position this product.

9. STAY ALERT. Watch what you are doing at all times. Use common sense.

Do not assemble this product when you are tired or distracted from the job at hand.

ITEM DESCRIPTION

Overall Dimensions 39.3”L x 24.6”W x 34”H

Materials China Hardwood with Medium Density Fiber Board-Molded Rubber Handle Grips-Matte Finish

Drawer Dimensions and Features Qty 2 Drawers-13.6”L X 13.1”W X 4.75”H Green Felt Lined Drawers-Stainless Steel Screws Table Top Dimension 39.3”L x 19.2”W

Cast Iron Vise 2-1/8”L X 12-3/4”W X 2-3/8”H-Vise Capacity 7”

Includes 4 Metal Pegs-10 Pre-cut Dog Holes @.616” Ea.-4 Wood Dog Holes Max. Workbench Weight Capacity 230 Lbs.

(3)

10. uSE THE CORRECT PRODuCT FOR YOuR APPLICATION. The correct

equipment will do the job better and safer at the rate for which it is designed. Do not use small equipment, tools, or attachments to do the work of larger industrial equipment, tools, or attachments. Do not use this product for a purpose for which it was not intended.

11. Do not exceed the maximum weight capactiies for the Workbench and shelves - see specifications on page 2.

Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.

uNPACKING

When unpacking this product check to make sure that all parts are included as shown in the parts list. If any parts are missing or broken, please call Harbor Freight Tools at the number below.

ASSEMBLY INSTRuCTIONS

NOTE: All parts below refer to the parts listed on page 15 of this manual. Because of

(4)

STEP 1

STEP 2

See the sticker “Front” on the Shelf (B) and Cross Brace (C) and Shelf (D). This

sticker must be positioned at the front of the Table. Use Screws H to attach, using Hex Wrench O. See Figure 1B.

Figure 1B

Figure 1A

Table Assembly:

See the sticker “Front” on the Shelf (B) and Cross Brace (C). This sticker must be positioned at the front of the Table. Use Screws H to attach, using Hex Wrench O. See

(5)

Figure 2

Position the two Legs (F1, F2) and Parts B, C, & D so that the “Front” sticker on

each part faces the front of the Table. Use Screws H to attach, using Hex Wrench O.

See Figure 2.

(6)

Figure 3

Attach the Back Panel (E) to the Table’s Side Leg assemblies and the Shelf (D). Use Screws H and the Hex Wrench O. See Figure 3.

(7)

Assemble the Vise (N) with Washer and Screw (M) to the Top (A) as shown in Figure 4.

STEP 5

(8)

STEP 6

Place the Table Top (A) face down on the floor that has a smooth surface. Match up the pre-drilled holes of the assembled Legs (F1 and F2). Secure with Screws (I) using Hex Wrench O. Turn the Table right side up. Position it in your choosen location, using two people to lift the Table. See Figure 5.

(9)

STEP 7A

STEP 7B

Assemble each Drawer by sliding the Drawer Bottom (G3) into the grooves in Drawer the Sides (G1), (G2), Drawer Front (G4) and Drawer Back (G5). Note: Felt side of Bottom Drawer (G3) is positioned UP. See Figure 6.

Figure 6

Figure 7

(10)

STEP 8

Slide each Drawer into place along the guide rails of the Shelf (B) assembly. Flip up the Drawer Stop at the back of each Drawer to prevent it from falling when pulled out too far. Caution: Do not overload the Drawers. See Figure 8.

(11)

STEP 9

Figure 9

(12)
(13)
(14)
(15)

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

PLEASE READ THE FOLLOWING CAREFuLLY

Parts Identification

Part D Part C Part G1,2, & 3 Part E Part N

For Hardware locations (Parts H, I, L, & M, ) see inside drawings. Part K

Part J Part A

Part G4 Part F1

Part F2

PART DESCRIPTION qTY

A Top 1 B Shelf 1 C Cross Brace 1 D Shelf 1 E Back Panel 1 F1 Left Leg 1 F2 Right Leg 1 G1 Drawer Side 2 G2 Drawer Side 2 G3 Drawer Bottom 2

PART DESCRIPTION qTY

G4 Drawer Front 2

G5 Drawer Back w/Drawer Stop 2 H Screw 30mm (1.18”) 16

I Screw 30mm (1.97”) 6

J Wood Post 4

K Small Anvil 4

L Phillips Head Screw 30mm (1.18”) 16 M Small Screw & Washer 1

N Vice 1

(16)

LIMITED 1 YEAR WARRANTY

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from the date of purchase (90 days if used by a professional contractor or if used as rental equipment). This warranty does not apply to damage due directly or indirectly, to misuse, abuse, neg-ligence or accidents, repairs or alterations outside our facilities, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
