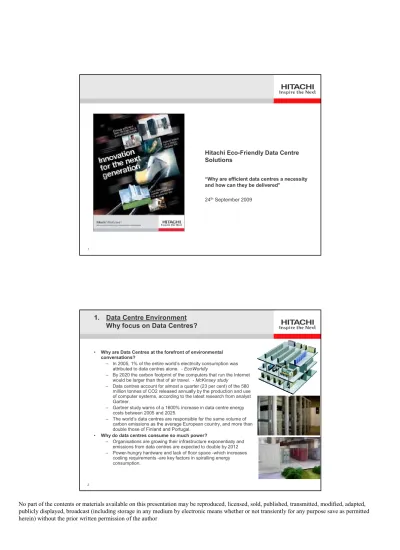

1. Data Centre Environment Why focus on Data Centres? Hitachi Eco-Friendly Data Centre Solutions

1

Hitachi Eco-Friendly Data Centre Solutions

“Why are efficient data centres a necessity and how can they be delivered”

24th_{September 2009}

2

1. Data Centre Environment

Why focus on Data Centres?

• Why are Data Centres at the forefront of environmental conversations?

– In 2005, 1% of the entire world’s electricity consumption was attributed to data centres alone. - EcoWorldly

– By 2020 the carbon footprint of the computers that run the Internet would be larger than that of air travel. - McKinsey study

– Data centres account for almost a quarter (23 per cent) of the 580 million tonnes of CO2 released annually by the production and use of computer systems, according to the latest research from analyst Gartner.

– Gartner study warns of a 1600% increase in data centre energy costs between 2005 and 2025.

– The world’s data centres are responsible for the same volume of carbon emissions as the average European country, and more than double those of Finland and Portugal.

• Why do data centres consume so much power?

– Organisations are growing their infrastructure exponentially and emissions from data centres are expected to double by 2012 – Power-hungry hardware and lack of floor space -which increases

3

1. Data Centre Environment

Current efficiency initiatives

What is being done to improve ICT’s carbon footprint?

• As a result of current and planned power consumptions the ICT and supporting industries are employing new products, technologies and methodologies to address growing concerns. Examples include, but are not limited to the following:

– Products

• Efficient Chillers, Room Oriented, Rack Type, and Door Mounted cooling systems

• Best in breed Transformers – e.g. Amorphous Transformer • Diesel Rotary Uninterruptable Power Supplies (DRUPS) – Technologies

• Virtualisation aimed at improving server capacity management – Methodologies

• Use of free cooling in cooler climates can reduce and almost eliminate the need for legacy cooling equipment

• The use of wind farms are being considered

• Different technology companies have been in news for their varied attempts to use nature’s bounties to their benefit.

– Google’s “sea-faring solution”

– Fujitsu’s hybrid cooling approach in Sydney. – Hewlett-Packard’s Dynamic Smart Cooling initiative.

– Many others have sought cooler climates to render cooling-costs zero

4

2. Current Green IT Challenges

Source: Metrrics to Characterize Data centre & IT Equipment Energy Use (C Malanoe and C Belady) INDUSTR Y EXAMPL E INDUSTR Y EXAMPL

E DATA CENTRE POWER USAGE

EFFICIENCY (PUE) METRICS

5

CoolCenter50

CoolCenter50

Reduce Data Center power consumptions by 50% in 5 years Reduce Data Center power consumptions by 50% in 5 years

3. Hitachi’s Environmental Track Record

Application • Operation • Device • Component • Operation • Device • Component Power-saving technologies for IT products Power-saving technologies for IT products

Plans for IT products power-saving technologies

Reduce CO

emission by 330K tons over 5 years

Transformer Transformer UPS UPS Air-Conditioner Air-Conditioner 6 COOL CENTRE 50

Yokohama 3, the new state-of-the-art data center brings together the collective product innovations of the Hitachi Information & Technology Systems Group (ITSG) companies to achieve a 1.6 PUE (Power Usage Effectiveness) rating by The Green Grid

The 10,750 square meter green facility is rated as being as robust and reliable as a Tier IV data centre which according to the Uptime Institute is the current highest level of availability

This sophisticated architecture is designed to offer the highest levels of energy efficiency and reduce carbon emissions by 20 percent, while also lowering IT management costs.

Optimized to deliver even greater power efficiencies, the facility also features cutting-edge Hitachi products:

Thermal hydraulic cooling devices
Uninterruptible power supply (UPS) systems
Highly advanced power supply converters are

designed to work in concert to contribute significant power savings

Leading-edge patented Hitachi Finger Vein authentication and other RFID technologies
Hitachi Adaptable Modular Storage and Workgroup

Modular Storage midrange systems delivery breakthrough Power Savings capabilities (20% cost of operation advantage against competitors) Artist Impressions of Exterior and Interior

Components of Yokohama Data Centre

7

3. Hitachi’s Environmental Track Record

［ ［ ［ 0 20 40 60 80 100 Optimized (2012) Air Conditioning Improved Present (2007) 20% 50% • Virtualization Technologies • IT-Linked Air Conditioning Control • Cooling Simulation • Efficient Air Conditioning Others Power supply Cooling system IT equipment 8 Equipment/control in equipment, racks System management

software Air conditioning/_{airflow analysis power supply}Building/ Operation/

management

Low-power equipments/system

Optimization of operational environment

Efficient air conditioning system IT-linked air conditioning control New energy, natural energy utilization

Server Rooter/_switch Storage Virtualization technology utilization

Cooling simulation

Efficient transformer/UPS

Hitachi: Information and

Telecommunication Systems Hitachi: Power Systems/ Urban Planning and Development Systems

9

No. Category Technology Examples Hitachi Products

1 Server Utilization of energy-saving parts, server cooling

technology, server integration technology by virtualization BladeSymphony, Virtage

2 Middleware Monitoring, displaying, and control of energy by operation

management software linked to the IT equipments JP1

3 Storage Virtualization of storages, HDD power control, and utilization of energy-saving memory media

Universal Storage Platform Storage Array

4 Rooter/ Switch

Centralized engine method highly integrated to LSI and

reduction of heat generating parts AX Series

5 Air Conditioner High sensible heat/high COP* air conditioners optimized for data center

FMACS, Natural Circulation Rack & Rear

Door Mounted

6 Transformer

High lamination factor winding wire technology, improvement/downsizing of coil shapes, and optimized design of iron cores

Super Amorphous/ Top runner Series

7 UPS Improvement of scalability by efficient equipments and

these parallel connections UNIPARA UPS

4. Achieving the Eco Data Centre

10

5. Data Centre products availability in Europe

Infrastructure products

Inverter PAC（（（（FMACS））））

Server Storage

cooling rear door

Rack type air-con

Hot aisle

Cold aisle

Hot aisle

• Although US vendors are developing similar systems, European market is still yet to come • More environment friendly and improvement in

TCO by adding free cooling function

• PAC for newly developed DC • Inverter control realizes less TCO

compared to chillers and free cooling which are major in Europe • More value added by IT/air-con

linkage control option

SAMURAI Chiller

• General-purpose chiller made in Europe

• Ready to enter market

P

D

U

Hitachi Modular Data Centre

Eco-friendly air-conditioning equipment for DC environment

• Prototype built in European demo-room

• 20% energy conservation according to Central Research Lab • Developed as main project within the YUGO-HON framework • Need to be packaged which can be coordinated with partners

both in function/performance aspect

IT IT AC IT operation management software (JP1) Temp.sensor Control software Optimum operation pattern calculation

Cool air flow Dynamic zone control

IT/Air-con Linkage Control System

Server load schedule IT/Air-con Linkage Control System Refrigerant Natural Circulation Technology

Refrigerant

cooling tower Cooled water-refrigerant Heat exchanger

Cool water

High efficient heat source

Refrigerant

Ｒ134a Server Server rack rack

Refrigerant natural circulation

Local cooling unit Local cooling

unit

11
