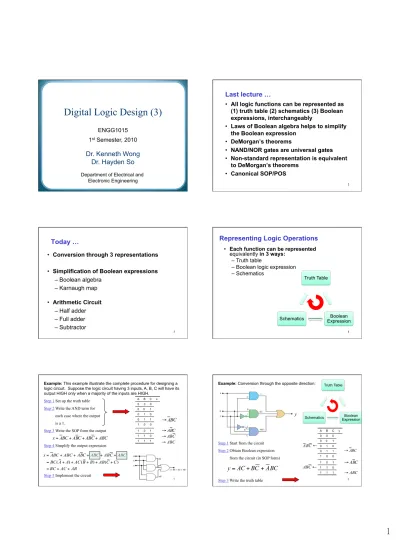

Digital Logic Design (3)
ENGG1015 1
stSemester, 2010 Dr. Kenneth Wong
Dr. Hayden So
Department of Electrical and Electronic Engineering
2 2
Last lecture …
• All logic functions can be represented as (1) truth table (2) schematics (3) Boolean expressions, interchangeably
• Laws of Boolean algebra helps to simplify the Boolean expression
• DeMorgan’s theorems
• NAND/NOR gates are universal gates
• Non-standard representation is equivalent to DeMorgan’s theorems
• Canonical SOP/POS
3 3
Today …
• Conversion through 3 representations
• Simplification of Boolean expressions – Boolean algebra
– Karnaugh map
• Arithmetic Circuit – Half adder – Full adder – Subtractor
4 4
Representing Logic Operations
• Each function can be represented equivalently in 3 ways:
– Truth table
– Boolean logic expression – Schematics
Truth Table
Boolean Expression Schematics
5
Example: This example illustrate the complete procedure for designing a logic circuit. Suppose the logic circuit having 3 inputs, A, B, C will have its output HIGH only when a majority of the inputs are HIGH.
Step 1 Set up the truth table Step 2 Write the AND term for each case where the output is a 1.
Step 3 Write the SOP form the output
Step 4 Simplify the output expression
Step 5 Implement the circuit
A B C x
0 0 0 0
0 0 1 0
0 1 0 0
0 1 1 1
1 0 0 0
1 0 1 1
1 1 0 1
1 1 1 1
BC
→A C B A
→ C AB
→
→ABC
( ) ( ) ( )
x ABC ABC ABC ABC ABC ABC BC A A AC B B AB C C BC AC AB
= + + + + +
= + + + + +
= + +
x ABC ABC ABC ABC= + + +
6
Example: Conversion through the opposite direction:
Step 1 Start from the circuit Step 2 Obtain Boolean expression from the circuit (in SOP form)
Step 3 Write the truth table
A B C y
0 0 0 0
0 0 1 0
0 1 0 1
0 1 1 1
1 0 0 0
1 0 1 1
1 1 0 1
1 1 1 1
BC A
→
C B A
→ C←
AB
→ABC
BC A C B AC y = + +
C← B A
Truth Table
Boolean Expression Schematics
y
7
Forms of Boolean Expressions
• There are two general forms of logic expression: SOP, POS
• Sum-of-products form (SOP)
– first the product (AND) terms are formed then these are summed (OR)
– eg: ABC + DEF + GHI
• Product-of-sum form (POS)
– first the sum (OR) terms are formed then the products are taken (AND)
– eg: (A+B+C)(D+E+F)(G+H+I)
• It is possible to convert between these two forms using Boolean algebra
8
Simplifying Logic Circuits
• Once the expression for a logic circuit is obtained, we may try to simplify it, so that the implementation requires fewer gates
• Example: below two circuits are the same, but the second one is much more simpler
• Two methods for simplifying
– Algebraic method (use Boolean algebra theorems)
– Karnaugh mapping method (systematic, step-by-step approach)
9
Minimization by Boolean Algebra
• Make use of relationships and theorems of Boolean algebra to simplify the expressions
– this method relies on your algebraic skill
• Mainly consists of two steps:
– The original expression is put into SOP form by repeated application of DeMorgan’s theorems and multiplication of terms
– Once the original expression is in SOP form, the product terms are checked for common factors, and factoring is performed wherever possible
• Example: Simplify z ABC AB AC= + ⋅( ) ( ) [by DeMorgan thm]
( ) [cancel double inverions]
[multiply out]
[ ] ( )
z ABC AB A C
ABC AB A C ABC ABA ABC
ABC AB ABC A A A AC B B AB
AC AB
= + ⋅ +
= + ⋅ +
= + +
= + + ⋅ =
= + +
= + [ 1]
( )
B B A C B
+ =
= + 10
• Example: Simplify
– The expression is already in SOP form
• Example: Simplify
z ABC ABC ABC= + +
( )
(1)
( )
( ) [by rule 11 in previous chapter]
z AB C C ABC AB ABC AB ABC A B BC A B C
= + +
= +
= +
= +
= +
( )( )
x= A B A B D D+ + +
[multiply out]
[ 0 and 0]
( 1) [factoring]
x AAD ABD ADD BAD BBD BDD
ABD BAD BD AA DD
BD A A BD
= + + + + +
= + + = =
= + +
= [A A+ =1 and 1+1=1]
11
• Example: Simplify – First expand it into SOP form
– Then look for the largest common factor between any two or more product terms: first and last terms have , while the second and third terms share
– Grouping the terms gives
• We might think that the above expression is the simplest since it cannot be simplified further
• However, in fact, the simplest form of this equation is
• It turns out that we missed an operation earlier that could have led to the simpler form
• Question: How could we have known that we missed a step??
• Ans: There is no way we can know. This illustrate the frustration often encountered in Boolean simplification
( ) ( )
( ) [by 1, ] z BC A A AD C BC
BC AD C B A A C BC C B
= + + +
= + + + = + = +
( )
z AC ABD= +ABCD ABC+
AD BC
( ) [DeMorgan thm]
[multiply out]
[ 0]
z AC A B D ABCD ABC ACA ACB ACD ABCD ABC ACB ACD ABCD ABC AA
= + + + +
= + + + +
= + + + =
z ABD BC= +
12
Minimization by Karnaugh Maps
• What is a Karnaugh map?
– Karnaugh map (K map) is a graphical tool used to simplify a logic equation or to convert a truth table to its corresponding logic circuit – With a simple and orderly process, the resulting logic expression will be
in its simplest SOP form !!!
• K map format:
– 3 Variable K map:
– A grid of squares
– Each square represents one product term
• eg: top-left represents , bottom-right represents – The variables are ordered according to Gray code
• only one variable changes between adjacent squares
– Squares on edges are considered adjacent to squares on opposite edges A B C⋅ ⋅ A B C⋅ ⋅
A\BC 00 01 11 10
0 1
13
– 4 Variable K map
– The square marked ? represents – The square marked ?? represents – Note that they differ in only the C variable.
– Karnaugh maps become clumsier to use with more than 4 variables
AB\CD 00 01 11 10
00
01 ? ??
11 10
A B C D⋅ ⋅ ⋅ A B C D⋅ ⋅ ⋅
• General procedure for using K map:
1. Fill out the K map for a given Boolean expression
2. Simplify the expression by properly combining those squares in the K map that contains 1s. This process is called looping
14
Filling out a Karnaugh Map
• Given an initial (unsimplified) logic Boolean expression
• Write the expression in SOP form
• For each product term, write a 1 in all the squares which are included in the term, 0 elsewhere
– All variables present in the product term: one square – One variable missing: two adjacent squares – Two terms missing: 4 adjacent squares
• Example 1:
• Example 2:
• Example 3:
A\BC 00 01 11 10
0 0 0 1 0
1 0 1 1 1
X=ABC+ABC+ABC+ABC
X=BC+ABC+AC
A\BC 00 01 11 10
0 1 0 0 0
1 1 1 1 1
X=B+ABC+A
A\BC 00 01 11 10
0 1 1 0 1
1 1 1 1 1
15
Looping
• Minimization is done by spotting patterns of 1's and 0's
• Pairs of adjacent 1's (Looping groups of two)
– remember that adjacent squares differ by only one variable – hence the combination of 2 adjacent squares has the form – this can be simplified (from before) to just P
) (A A P +
• Example 1 (continue)
-- the adjacent squares A B C and differ only in A -- hence they can be combined into just BC, indicated by the blue loop -- looping can also be done by grouping and A B C to give AC, as indicated by the red loop
-- furthermore, looping can also be done by grouping A B C and to give AB, as indicated by the yellow loop
-- The simplified Boolean equation is one that sums all the terms corresponding to each of the group:
A\BC 00 01 11 10
0 0 0 1 0
1 0 1 1 1
ABC
ABC ABC
X=ABC+ABC+ABC+ABC
AB BC AC
X= + +
16
More examples on looping of two
17
Looping group of four (quads)
• A K map may contain a group of four 1s that are adjacent to each other.
This group is called quad
• Looping a quad of adjacent 1s eliminates the two variables that appear in both complemented and uncomplemented form
• Examples:
18
Looping group of eight (Octets)
• A group of eight 1s that are adjacent to one another is called an octet
• Looping an octet of adjacent 1s eliminates the three variables that appear in both complemented and uncomplemented form
• Examples:
19
Complete Simplification Process
1. Construct the K map and place 1s and 0s in the squares according to the truth table.
2. Group the isolated 1s which are not adjacent to any other 1s.
(single loops)
3. Group any pair which contains a 1 adjacent to only one other 1.
(double loops)
4. Group any octet even if it contains one or more 1s that have already been grouped.
5. Group any quad that contains one or more 1s that have not already been grouped, making sure to use the minimum number of groups.
6. Group any pairs necessary to include any 1s that have not yet been grouped, making sure to use the minimum number of groups.
7. Form the OR sum of all the terms generated by each group.
20
• Examples:
AB\CD 00 01 11 10
00 0 1 0 0
01 0 1 0 0
11 1 1 1 1
10 0 1 0 0
AB\CD 00 01 11 10
00 0 0 0 0
01 1 0 0 1
11 1 0 1 1
10 0 0 0 0
AB+C D BD+ABC
Step2. Isolated 1: None Step3. Adjacent to only one 1: None Step4. Octet: None
Step5. Quad: Blue and red loops Step6. All 1s have been looped => skip this step
Step2. Isolated 1: None Step3. Adjacent to only one 1: red loop Step4. Octet: None
Step5. Quad: Green loops
Step6. All 1s have been looped => skip this step
21
• More examples
S2. Isolated 1: loop 4 S3. Adjacent to only one 1: loop 11,15 S4. Octet: None
S5. Quad: loop 6,7,10,11 S6. All 1s have been looped => skip
S2. Isolated 1: None S3. Adjacent to only one 1: loop 3,7 S4. Octet: None
S5. Quad: loop 5,6,9,10 and loop 5,6,7,8 S6. All 1s have been looped => skip
S2. Isolated 1: None
S3. Adjacent to only one 1: loop 2,6, loop 7,8, loop 11,15 and loop 9,10 S4-S6. All 1s have been looped => skip
28
Arithmetic circuit
• Recall the binary addition process
• LS Column has 2 inputs 2 outputs – Inputs:
– Outputs:
• Other Columns have 3 inputs, 2 outputs – Inputs:
– Outputs:
– We use a "half adder" to implement the LS column – We use a "full adder" to implement the other columns – Each column feeds the next-most-significant column.
A 1 0 0 1
+B 0 0 1 1
S 1 1 0 0
C1 S0 A0 B0
An Bn Cn Sn Cn+1
29
Half Adder
• Truth Table
• Boolean Equations
• Implementation
– Note also XOR implementation possible for S
A B S C
0 0 0 0
0 1 1 0
1 0 1 0
1 1 0 1
AB C
B A B A B A S
=
⊕
= +
=
A B
&
&
A B
≥1 S A & C
B
30
Full Adder
• Truth Table
• Boolean Equations
A B Ci S Co
0 0 0 0 0
0 0 1 1 0
0 1 0 1 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1
) (
. . . . . . . .
B A C AB
BC AC AB
ABC C AB C B A BC A C
C B A
C B A C B A C B A C B A S
i i i
i i i i o
i
i i i i
+ +
= + +
=
+ + +
=
⊕
⊕
=
+ + +
=
• Complete circuitry for a FA
31
Parallel Adder
• The full adder obtained in the previous slide can only add two single bit (plus a carry bit)
• In order to add two multi-bit numbers, we use 1 full adder per bit of the numbers
• The carry is propagated from one stage to the next most significant stage
– takes some time to work because of the carry propagation delay which is n times the propagation delay of one stage
4-bit Parallel Binary Adders (74LS283)
2-bit Parallel Binary Adders
32
Parallel Subtraction using Parallel Adder
• Subtraction can be achieve by adding the complement
– E.g.: 6 - 3 = 6 + (-3) = 3
• 2's complement :- invert all bits and then add 1
– Invert all the inputs bits of B – Use Carry-in of first stage for
the "add 1"
