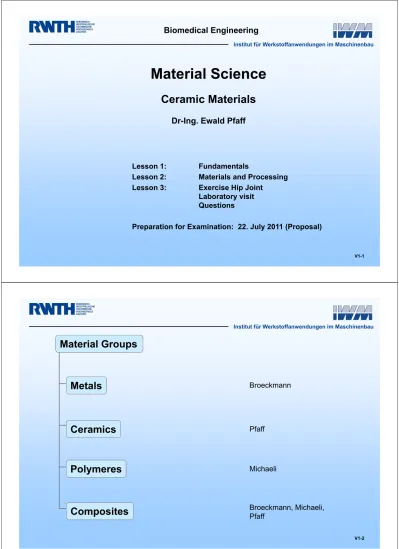

Biomedical Engineering. Ceramic Materials. Dr-Ing. Ewald Pfaff. Materials and Processing. Laboratory visit

(1)

Institut für Werkstoffanwendungen im Maschinenbau

Biomedical Engineering

Material Science

ate a Sc e ce

Ceramic Materials

Dr-Ing. Ewald Pfaff

Lesson 1: Fundamentals

Lesson 2:

Materials and Processing

Lesson 3:

Exercise Hip Joint

Laboratory visit

Q estions

Questions

Preparation for Examination: 22. July 2011 (Proposal)

V1-1

Institut für Werkstoffanwendungen im Maschinenbau

Material Groups

Metals

Broeckmann

Ceramics

Pfaff

Polymeres

Michaeli

(2)

Institut für Werkstoffanwendungen im Maschinenbau

Complementary Sciences from Powder to Component

3 Si + 2 N₂₂

Si₃N₄

Atoms

Molecules Powder Microstructure Sample Component

Chemistry Physics 100 nm m mm m Material Science Chemistry, Physics 100 g 100 mg Engineering Science 1 kg V1-3

Institut für Werkstoffanwendungen im Maschinenbau

Materials

Metals (metallic)

Ductile (> 5 slide systems)

A B C

3m m Dense sphere packing (density)

Ductile (> 5 slide systems)

Chemically reactive

Conductive (therm. und electric)

Gl

(i

i /

l

t)

0,3

amorph = near regularity

Glas (ionic / covalent)

Direction independed properties

Optical transparency

Isolator

amorph = near regularity

without distant regularity

Isolator

Ceramics (ionic / covalent)

Breaking elongation 1‰, strain

polycrystalline =

near regularity

and distant regularity

Chemical resistant, temperature resistant, hard

Polymeres (covalent; Dipole-Dipole strengths,

van-der-Waals)

Z

0

Elastic and plastic deformable

Chemical resistant

Isolating (electr. and therm.)

Y

0

Si 0

(3)

Institut für Werkstoffanwendungen im Maschinenbau

Types of Bonding

Metal Bonding

Undirected, not dedicated

Very high coordination numbers

Bonding electron

belongs to …

Very high coordination numbers

Dense sphere packing

i.e. iron, messing

a lot of atoms

Ionic Bonding

Undirected, dedicated

High coordination numbers

… a lot of atoms

High coordination numbers

Sphere packing

i.e. Al

₂

O

₃

, ZrO

₂

Covalent Bonding

Directed and dedicated

- Density



E M d l



… to one atom

- E-Modulus



- Melting point



- Corrosion resistance



- Thermal expansion



to t o atoms

V1-5

p

i.e. SiC, Si

₃

N

₄

… to two atoms

Institut für Werkstoffanwendungen im Maschinenbau

Ionic (heteropolar) Bonding

•

Atom 1 emits one or more electrons and becomes electropositiv

•

Atom 2 absorbs one or more electrons and becomes electronegativ

•

Coulomb attraction bonds Ions

Example

ZrO

Example

ZrO

₂

(4)

Institut für Werkstoffanwendungen im Maschinenbau

Covalent Bonding

Electrons are shared between 2 atoms similar Electronegativity

Source: TU Freiberg, Institut für Werkstoffwissenschaften

Example: SiC

V1-7

Source: library.thinkquest.org/05aug/o1o87/bond.html

Institut für Werkstoffanwendungen im Maschinenbau

Bond Strengths in Comparison

1,2337

1,4

covalent

]

1

1,2

0

15

N/mol

0,622

0,8

ionic

F [1

0,4

0,6

metallic

Van

Van--der

der--Waals

Waals

0

0,1852

0,0608

0,2

0

1

2

3

r/r

0

[-]

0

(5)

Institut für Werkstoffanwendungen im Maschinenbau

Ion Radius

Ion

Radius [Å]

r

_cat

/r

_an

Al

3+

0,51

0,39

Si

4+

0,42

0,32

Zr

4+

0,79

0,59

Ti

4+

0,68

0,52

Mg

2+

0 66

0 50

Mg

0,66

0,50

Ni

2+

0,69

0,52

O

2-(Anion)

1,32

V1-9

Institut für Werkstoffanwendungen im Maschinenbau

Stable and unstable Ion Configuration

unstable

stable

unstable

(6)

Institut für Werkstoffanwendungen im Maschinenbau

Stability Areas of Coordination Polyeder in

Ion Crystals

0,414

coordination number

Octa-

TiO

6

AlO

Al

3+

Fe

3+

r

cat

/r

an

6

hedron

Octa

AlO

6

MgO

6

Fe

Mn

3+

Li

3+

0,732

Zr

4+

8

Cubes

CaO

8

ZrO

8

Na

1+

1,00

V1-11

Institut für Werkstoffanwendungen im Maschinenbau

C

i

ll

l

i

i l

Definition Ceramic

Ceramic are all non metal anorganic materials

or:

Ceramic Materials are compositions of metal or semi metal elements with

t l l

t

(7)

Institut für Werkstoffanwendungen im Maschinenbau

C

i

Definition Ceramic

Cearamis are:

Wear resistant

Bio compatible

Pump components

HIP joint balls

hard

p

Corosion resistant

j

Cutting tools

Membranes

V1-13

Institut für Werkstoffanwendungen im Maschinenbau

Definition Ceramic

C

i

Ceramics are:

dense

or

porous

p

•SiC

•TiATi

•200µm

•SiC

•50µm

•TiATi

•200µm •20µm

(8)

Institut für Werkstoffanwendungen im Maschinenbau

Functional Cavities

Ceramic Membranes

Filters

V1-15

Institut für Werkstoffanwendungen im Maschinenbau

Ceramic Bearings in MRT

Non magnetic properties

(9)

Institut für Werkstoffanwendungen im Maschinenbau

Composites, schematic

Fibre compound

Particle compound

Penetration

compound

Layer compound

compound

C-fibres in SiC for car breaks



ZrO₂in Al₂O₃



Si in SiC Ceramic-Metal in multilayer capacitors

Glass with polymer p y films in bullet-proof glass

V1-17

Institut für Werkstoffanwendungen im Maschinenbau

Material data in comparison (1)

Density Bending Strength Tensile Strength Critical stress intensity f t Impact toughness Ultimate strain Young-modulus Hardness factor Material ρ [g/cm3_] σh [MPa] σz [MPa] KIc [MPa m1/2_] -[J/m2_]  [%] GPa -[HV] St l 7 8 360 140 105 ₁₀6 _{10 20} ₂₀₀ _{200 400} Steel 7.8 -σ_t 360 – 700 140 105_{– 10}6 _{10 – 20} ₂₀₀ _{200 – 400} High-temp. steel 7.8 -σ_t 500 – 1000 50 – 154 – – 200 < 900 Cast iron 7.3 300 – 600 150 – 400 15 – 25 104 _{< 2} _{70 - 130} _{150 – 250} Aluminum 2.8 150 - 300 350 45 105 _{5 – 20} ₇₀ _{30 – 140} alloys Plastics 0.9 – 2.2 10 – 150 10 – 705 0,3 – 4 104 _{2 – 1200} ₁₀ _– Str ct ral 2 25 30 2 8 10 5 106 ₁₀8 _{< 0 1} _{30 450} ₁₂₀₀ Structural ceramics 2.25 – 5.98 30 – 1200 – 2.8 – 10.5 106_{– 10}8 _{< 0.1} _{30 – 450} _{1200 –} 3200 Porcelain 2.4 50 – 70 50 – 100 1 – – 2.5 – Glass 2.2 – 2.5 70 70 – 100 < 1 10 – 2.5 200 – 800

(10)

Institut für Werkstoffanwendungen im Maschinenbau

Material data in comparison (2)

thermal electric

Material Max. working cte Heat Spec. Electr. Relative temperature conductivity Resistivity Permittivity

Tmax [°C] α(RT-1000°C) [10-6_K-1_] λ [W/mK] ξ [Ωcm] εr [ - ] St l 400 > 10 > 30 > 105 Steel 400 > 10 > 30 > 10-5 High-temperature steel 800 > 6 > 30 > 10-5 steel Cast iron 400 5 - 18 13 - 60 (0,5 – 1,7) 10-4 Aluminum alloys 250 20 - 26 70 - 130 (0,03 – 0,1) 10-4 Plastics 200 20 - 180 0,14 - 025 1015_{- 10}18 _{2,2 – 4,6} Structural ceramic 1000 - 2000 1 – 10,9 1,4 - 155 10-2_{- 10}14 _{8 - 10} ceramic Porcelain 1000 2 – 6 1 - 6 > 1013 _{5 – 6,5} Glass 200 - 1200 3 - 10 1 - 2 > 1013 _{3 - 19} V1-19 Glass 200 - 1200 3 - 10 1 - 2 > 10 3 - 19

Material data of ceramics

* *  cp

* * * E  _b4 m _0V K_IC log A n

Properties (short- and longtime reliability )

g/cm3_GPa _- _{MPa -} _{MPa MPa} _{[ ]*} _{- 10}-6_K-1_{W/mK J/gK} _Open

p

orosity Shrin- kage Electr

. con-d uctive Material m

g/cm GPa MPa MPa MPa [ ] 10 K W/mK J/gK _p S E _d at high m 0,90 0,40 0,40 Al₂O₃(99%) ZrO₂(MgO) ZrO₂(Y₂0₃) 3,99 5,65 5,90 410 210 210 0,30 0,25 0,30 330 520 950 10 25 20 4,9 8,1 10,5 1082 456 572 -40 60 30 2,5 2,5 10,7 10,9 8 g temp. , 0,70 0,73 0,70 no ZrO₂(Y₂0₃) Al₂TiO₅ CORDIERIT SiSiC 5,90 3,10 2,10 3,06 210 30 80 360 0,30 0,22 0,19 950 30 105 330 20 20 10 13 , 4,0 1082 34 145 416 -95 160 yes yes ,5 1,4 3 140 0,9 1,5 2,0 4,5 yes , 0,60 0,95 HPSiC HlPSiC SSiC B₄C 3,10 3,18 3,20 2,51 440 440 400 450 0,16 0,16 , 0,17 0,18 610 610 430 400 12 12 10 5,5 5,5 4,8 3,5 789 789 595 110 110 100 50 5,0 5,0 , 4,7 5,0 0,70 0 78 SSN HPSN HIPSN BN RBSN 3,25 3,30 3,30 2 10 2,40 290 300 300 75 150 0,26 0,26 0,26 0,20 600 660 800 80 220 15 20 20 15 6,0 7,0 7,0 2,8 727 752 911 267 -95 -43,5 -43 130 73 80 yes 30 35 35 50 10 no 3,2 3,2 3,2 4 0 3,0 0,78 0,80 AIN BN 2,10 3,25 75 350 80 335 3,25 50 155 4,0 5,7 *: A in units for v [m/s] und K [M Pa _m]; v = A× Kn

(11)

Basic Equations (1)









_t _B



_c_B _B

to

(

10

20

)

1

40

20

1

,



(1)

σt,B tensil stress at breakage σ_c,B compressive stress at b k breakage



_B shear stress

(2)

E

t









E

Stress-Strain-Curve

σ_t tensile stress



strain E E-modulus

(2)

E

t



t



E

E E-modulus IC

K

Fracture Mechanics



A



J



R

sharp

σ

t,c critical tensil stress

K

IC critical stress intensity

factor



A R J IC c t Y a

K

_ _ _   ,

(3)

2 a

factor a length of crack Y dimansional factor σ_A application stress V1-21 σ_R residual stress σ_J joining stress

Basic Equations (2)

ln



Size Effect

(5)

m const V

V

F

Z Z B t t 1 1 2 2 1 ) ( _        



Size Effect

σt1,σt2 peak stresses of two distributions

lnV

_V two distributions Z1,VZ2 volumes

S b iti l C

k G

th

ln v a length of crack

(6)

n

da

Subcritical Crack Growth

n n1 A t time K_I stress intensity factor K_IC critical stress n I

K

A

dt

da

v





ln K_I K_IC A1 KI K_IC critical stress intensity factor

(12)

Institut für Werkstoffanwendungen im Maschinenbau

Stress-Strain-Curves

MNm

-2

600

Fibre reinforced Ceramic

(Fest Load Capacity)

ootnote 2)

otnote 1) 400

500

(Fest Load Capacity)

2

Stress (f

o

S

tress (fo

o

300

400

Monolithic Ceramic

2

Bending

Tensile

S

200

Steel

1

100

Polypropylene

1

Strain

0,1

% 0,2

5 10 15 20

200 400 600

yp py

1 V1-23

Strain

Institut für Werkstoffanwendungen im Maschinenbau

l

f

i bl d

f

Development of new Ceramic blades for

cataract surgery (Eyes)

Movie of an operation at a Berlin hospital

AVT GmbH

Bleichstraße 12

45468 Mülheim an der Ruhr
