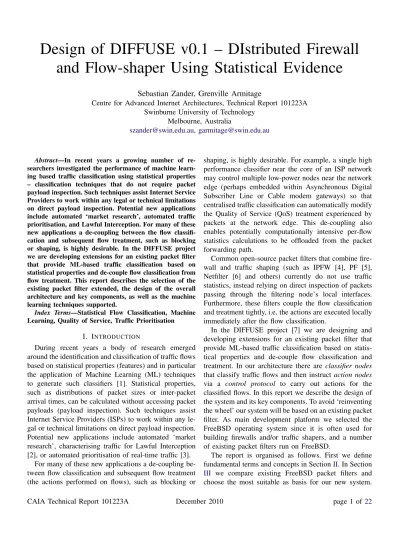

Design of DIFFUSE v0.1 – DIstributed Firewall
and Flow-shaper Using Statistical Evidence
Sebastian Zander, Grenville Armitage
Centre for Advanced Internet Architectures, Technical Report 101223A Swinburne University of Technology
Melbourne, Australia
[email protected], [email protected]
Abstract—In recent years a growing number of re-searchers investigated the performance of machine learn-ing based traffic classification uslearn-ing statistical properties – classification techniques that do not require packet payload inspection. Such techniques assist Internet Service Providers to work within any legal or technical limitations on direct payload inspection. Potential new applications include automated ‘market research’, automated traffic prioritisation, and Lawful Interception. For many of these new applications a de-coupling between the flow classifi-cation and subsequent flow treatment, such as blocking or shaping, is highly desirable. In the DIFFUSE project we are developing extensions for an existing packet filter that provide ML-based traffic classification based on statistical properties and de-couple flow classification from flow treatment. This report describes the selection of the existing packet filter extended, the design of the overall architecture and key components, as well as the machine learning techniques supported.
Index Terms—Statistical Flow Classification, Machine Learning, Quality of Service, Traffic Prioritisation
I. INTRODUCTION
During recent years a body of research emerged around the identification and classification of traffic flows based on statistical properties (features) and in particular the application of Machine Learning (ML) techniques to generate such classifiers [1]. Statistical properties, such as distributions of packet sizes or inter-packet arrival times, can be calculated without accessing packet payloads (payload inspection). Such techniques assist Internet Service Providers (ISPs) to work within any le-gal or technical limitations on direct payload inspection. Potential new applications include automated ‘market research’, characterising traffic for Lawful Interception [2], or automated prioritisation of real-time traffic [3].
For many of these new applications a de-coupling be-tween flow classification and subsequent flow treatment (the actions performed on flows), such as blocking or
shaping, is highly desirable. For example, a single high performance classifier near the core of an ISP network may control multiple low-power nodes near the network edge (perhaps embedded within Asynchronous Digital Subscriber Line or Cable modem gateways) so that centralised traffic classification can automatically modify the Quality of Service (QoS) treatment experienced by packets at the network edge. This de-coupling also enables potentially computationally intensive per-flow statistics calculations to be offloaded from the packet forwarding path.
Common open-source packet filters that combine fire-wall and traffic shaping (such as IPFW [4], PF [5], Netfilter [6] and others) currently do not use traffic statistics, instead relying on direct inspection of packets passing through the filtering node’s local interfaces. Furthermore, these filters couple the flow classification and treatment tightly, i.e. the actions are executed locally immediately after the flow classification.
In the DIFFUSE project [7] we are designing and developing extensions for an existing packet filter that provide ML-based traffic classification based on statis-tical properties and de-couple flow classification and treatment. In our architecture there are classifier nodes that classify traffic flows and then instruct action nodes via a control protocol to carry out actions for the classified flows. In this report we describe the design of the system and its key components. To avoid ‘reinventing the wheel’ our system will be based on an existing packet filter. As main development platform we selected the FreeBSD operating system since it is often used for building firewalls and/or traffic shapers, and a number of existing packet filters run on FreeBSD.
The report is organised as follows. First we define fundamental terms and concepts in SectionII. In Section III we compare existing FreeBSD packet filters and choose the most suitable as basis for our new system.
In Section IV we describe the overall architecture of the system and its key components, and show example scenarios illustrating how the system could be used.
In the remaining sections we describe the design of the system components in more detail. In Section VI we describe the extended command language that enables the configuration of classifier and action nodes. In Section VII we describe the design of the control protocol used to exchange data between classifier and action nodes.
In Section VIII we describe the initial choice of ML techniques supported. Since our system is designed to be flexible other ML techniques can be added in the future. In SectionVwe outline the software design of DIFFUSE v0.1. Section IX concludes the report.
II. DEFINITIONS
First we define some fundamental terms and concepts used throughout the report.
A. Flows
A flow is a number of consecutive packets that have the same values for a defined set of packet header fields within a certain time frame. The set of packet header fields is usually the commonly used 5-tuple (source and destination IP addresses, source and destination ports, protocol), but it could be a different set of fields (such as only the source and destination IP addresses).
For connection-oriented protocols (like TCP) the flow start and end is usually marked by the establishment and teardown of a connection. For non connection-oriented protocols (like UDP) the first packet seen marks the start and no packets arriving for a certain duration (flow timeout) marks the end of the flow.
A unidirectional flow is a flow where packets flow only in one direction (e.g. only packets matching a 5-tuple), whereas abidirectionalflow is packets flowing in both directions (e.g. all packet matching a 5-tuple and the same 5-tuple with source/destination addresses and ports reversed).
Asubflowis part of a flow. For our purposes a subflow is a sliding window of n consecutive packets within a unidirectional flow (as in [8]).
Bidirectional flows have two directions which we refer to as forward and backward. For connection-oriented protocols (and if the initial handshake can be observed) packets from the originator of the connection are going in the forward direction, and packets from the other end are going in the backward direction. For connection-less
protocols or when the handshake could not be observed the first packet defines the forward direction.
If a rule defines a source or a destination (by speci-fying a match pattern, e.g. matching against the source IP address), packets matching the pattern are considered to flow forward, whereas packets that are going in the reverse direction are considered to flow backward. B. Features
Previous work usually used the two level hierarchy of featuresandfeature sets, where a feature is a characteris-tic of a flow or subflow (such as the mean packet length) and a feature set is a number of different features. For the DIFFUSE v0.1 architecture we extended this hierarchy. Feature statistics are statistics of a series of feature values (such as the minimum, mean or maximum), features are characteristics of flows, subflows or packets (such as packet length or inter-arrival times) and feature sets are a number of features (as before).
The main reason for this three-level hierarchy is that DIFFUSE v0.1 supports different independent feature modules, but for performance reasons different statistics of the same feature are part of the same module.
III. CHOICE OFFIREWALL
Here we discuss our choice of the existing packet filter we extended. Since DIFFUSE v0.1 is based on FreeBSD we have a choice between three packet filters: IP Firewall (IPFW) [4], IPFilter (IPF) [9], [10] and Packet Filter (PF) [5]. We compare these based on a number of criteria. A. Functionality
All three packet filters support the basic functions of filtering based on network and transport layer informa-tion, network address translainforma-tion, logging etc. IPFW and PF can tag packets for implementing policy-based rules and have interfaces to traffic shapers that can queue and prioritise packets. IPFW mostly uses Dummynet [11] but also has an interface to ALTQ [12], whereas PF uses ALTQ. IPFW/Dummynet can also be used to emulate certain network link conditions by limiting link capacity, emulating delay and packet loss etc.
PF has more advanced functionality than IPFW and IPF, most notably the ability to implement redundant firewalls (state transfer and failover protocol [5]), load-balancing, logging to tcpdump files, and filtering on operating system fingerprints. However, IPFW now also supports tables and in-kernel NAT and has reduced the functionality gap to PF.
DIFFUSE needs packet queuing and prioritising sup-port, which rules out IPF. While the advanced functions of PF are nice they are not really required for DIFFUSE. B. Portability
IPFW has been developed and used in FreeBSD over many years, is the network firewall in MacOSX, and has recently been ported to Linux and Windows [13]. IPF runs on the BSD family (FreeBSD, OpenBSD, NetBSD) as well as on Solaris, HP-UX, IRIX and Linux. PF is the main firewall of OpenBSD, and it has been ported to FreeBSD and NetBSD.
As far as portability is concerned IPFW and IPF are the best options for DIFFUSE. PF falls behind as the number of operating systems it runs on is very limited. C. Support
IPFW is the FreeBSD sponsored firewall; it is au-thored and maintained by FreeBSD volunteer staff mem-bers. IPF was the main packet filter of OpenBSD, before it was replaced by PF in 2001. Given that we have chosen FreeBSD as development platform in terms of future support IPFW is most promising. The PF firewall comes second being OpenBSD’s official firewall and given that it is part of the FreeBSD source tree. IPF is also part of the FreeBSD source tree.
However, the PF sources part of FreeBSD are al-ways lagging behind the latest OpenBSD version. For example, the PF version in FreeBSD-9.0-current checked out in July 2010 are the PF sources from March 2007. Similarly, the IPF sources in FreeBSD lack one major version behind the latest release. For example, the IPF version in FreeBSD-9.0-current checked out in July 2010 are the IPF sources from October 2007 (version 4.1) and much older than the latest release from May 2010 (version 5.1). For IPF this is less of a problem because the IPF sources are released independently of FreeBSD and should compile on all supported operating systems. All three packet filters are actively maintained and used. For DIFFUSE IPFW and PF have a slight edge as they are the main packet filters of FreeBSD/OpenBSD. D. Performance
Measuring the performance of packet filters is not straightforward, as the performance depends heavily on the scenario, i.e. the actual firewall rules and network traffic. Nevertheless, one can compare different packet filters in particular scenarios. Previous work compared IPF, PF and Linux Netfilter [14], [15]. According to these studies PF performs similar to IPF and whether
they performs better or worse than Netfilter depends on the scenario. We were unable to find a study of IPFW or a recent performance comparisons of all three firewalls. The performance of the packet filter should be rea-sonably good, but this criteria is not of very high importance for DIFFUSE. Since IPFW, IPF, and PF are are all deployed we believe they all provide sufficient performance in practice.
E. Usability
The rule set language of PF is better designed than the languages of IPF and IPFW, which both look somewhat organically grown. The structure of PF and IPF rulesets differs from IPFW (and Linux Netfilter). By default for IPF and PF the last rule that matches determines the action, whereas for IPFW (and Netfilter) the first rule that matches determines the action. This makes it more difficult to convert IPF and PF rulesets to IPFW rulesets and vice versa.
While the rule language of PF is better designed, the languages of IPF and IPFW are still logical, easy to read and use. As far as usability is concerned all three firewalls are adequate for DIFFUSE.
F. Extensibility
IPFW, IPF and PF have nicely written user docu-mentation, but for all three there is not much devel-oper documentation. None of them has a fully modular framework that can be extended easily. However, IPFW’s Dummynet now has a modular framework for adding schedulers. All three packet filters have nicely written code, but IPFW stands out because it also has a lot of useful comments inside the code, whereas comments in IPF and PF code are rather sparse. Furthermore, here at CAIA we have some in-house expertise for extending IPFW. Hence, IPFW wins this category.
G. Decision
IPF does not have functions for packet queuing and prioritisation and hence cannot be used. We chose IPFW over PF because IPFW supports the three arguably most popular operating systems (FreeBSD, Linux, Windows) and it appeared to be easier to extend than the others due to well documented code, relatively modular structure and existing in-house expertise.
IV. SYSTEMDESCRIPTION A. Architecture
In order to provide ML-based traffic classification and de-couple the classification from the subsequent action our system has several key components:
• AClassifier Node(CN) computes statistical features from flows identified by their 5-tuple and classifies them based on local machine-learning rules. • An Action Node(AN) performs configured actions
(block, redirect, rate shape, etc.) on packets belong-ing to flows that have been classified by a local or remote CN.
• An IP-layer Control Protocol (CP) between CNs and ANs to enable real-time coordination, such as alerting ANs when to start and stop acting on identified flows.
• An extended set of Packet Filter Rules (PFRs) to express ML-based traffic matching based on statis-tical attributes at CNs and specify the actions to be taken by nominated ANs.
A CN records flow identification information (5-tuple) and computes flow characteristics, such as packet length and inter-arrival time statistics. A CN continuously com-pares the statistics of observed flows to a configured set of rules and uses this information to generate traditional header-only inspection rules for ANs. When a flow (flow X) matches a statistical rule, the CN passes the flow’s 5-tuple and class to AN(s) to actually instantiate the flow class’ associated action. The action is then applied to all subsequent packets belonging to flowX. The rule is removed from the AN(s) once flowX has stopped.
CNs and ANs automatically establish IP based control links via a CP to share information as matching flows come and go. CNs and ANs are different logical entities, but they can be co-located on the same physical network device. For example, a traditional packet filter combines them in a single device. If CN and AN are instantiated on the same host, equivalent to a traditional packet filter, this control link is inside the host.
Small networks with a few CNs and ANs can be con-figured manually by creating and distributing rulesets. In large networks comprising many CNs and ANs it is de-sirable to have a management system that automatically translates network policies into rulesets and distributes these rulesets to CNs and ANs. Such a management system is out of scope of this project, but it can be designed and build on top of our developed system in future work.
B. Classifier Node
A CN consists of an extended packet Filter/Classifier in kernel space and an userspace daemon process (called Exporter) that exports the flow specification (5-tuple), class and (optionally) an action to the AN(s) via the CP (see Figure 1). We call this information flow rules.
ĐƚŝŽŶ ůĂƐƐŝĨŝĞƌ hƐĞƌƐƉĂĐĞ <ĞƌŶĞů &ŝůƚĞƌͬ ^ŚĂƉĞƌ &ŝůƚĞƌͬ ůĂƐƐŝĨŝĞƌ džƉŽƌƚĞƌ ŽŶƚƌŽůWƌŽƚŽĐŽů ŽůůĞĐƚŽƌ
Figure 1. Classifier node and action node components, and control protocol
The extended packet filter computes statistical features for packet flows. These features can be used directly as patterns for matching packets or as input for an ML-based classifier that assigns classes to packets ML-based on these features.
The feature computation and classification is done on a per-packet basis inside the kernel to maximise performance. The sending of flow rules to remote ANs is done by a userspace daemon, because this task is less performance critical1and a userspace daemon is easier to develop, test, and port to other operating systems (OSs). Also it has access to a much larger set of functionality via libraries.
The Exporter needs access to flow information gener-ated by the classifier. Since the IPFW control interface (based on socket options) does not allow unsolicited messages from kernel to userspace and frequent polling of the in-kernel classifier is impractical, a separate inter-face (UDP socket) is used to convey the flow information from classifier to Exporter (see Section V).
C. Action Node
The AN consists of an userspace daemon (called Collector) that listens for flow information from CNs and configures the packet filter and traffic shaper ac-cordingly using the existing configuration interface(s). The Collector consists of a frontend and a backend. The frontend handles the control protocol communication and manages the addition/removal of flow rules stored in an internal database. The backend is responsible for generating packet filter or traffic shaper specific rules based on the flow rules in the database.
The advantage of a userspace daemon is that no kernel code needs to be modified, again easing development, testing, porting to other OS and access to userspace li-braries. Furthermore, different firewalls or traffic shapers 1We assume the number of simultaneous active flows that trigger remote actions is typically only a few thousand and there is a limit on how often actions are updated.
can be supported by modifying or extending the backend of the Collector. Besides packet filter or traffic shaper specific actions, other actions could be implemented, such as logging of classified traffic in a database. D. Ruleset operations
On the CN the rule language of the packet filter needs to be extended to allow the specification of features to be computed, use of feature values in match patterns, use of ML classifiers, and the configuration of remote ANs (see Section VI). On the AN only the existing packet filter and traffic shaping functionality is used and no rule set language modifications are required.
However, in addition to the extended rule set language we need new commands to configure the Exporter and Collector (see Section VI).
E. Control protocol operations
CNs send “add rule” messages to ANs (see Figure 3), which contain (partial) rules that have a match part (flow specification), one or more class tags, and optionally an action part. Our notion of “add rule” messages includes the updating of existing rules. If a CN sends an “add rule” message to an AN with the same flow specification but different action as a rule sent previously, the AN must replace the previous rule with the new rule.
If a CN is configured such that it does not send actions in “add rule” messages, the receiving AN(s) must be configured so that they have a list of flow classes and associated actions. In this case the AN(s) will determine the actions based on the classes identified by the CN. If the AN(s) are configured with such action lists, the configured actions always overrule any actions specified in “add rule” messages.
Rules can have a timeout which will cause the AN to remove rules after a specified duration has elapsed since the rule became active (rule timeout), or when no packets have matched the rule for the specified duration (flow timeout). This is shown in Figure2. If rule timeouts are used CNs need to periodically refresh rules (so that long running flows are properly handled).
CNs can also send explicit “remove rule” messages to ANs (see Figure 3). An AN will remove all rules that match the rule specification in the message. If the rule specification is broad, e.g. only the protocol is specified, this may trigger the removal of many rules. If one wants to remove exactly one rule, the flow specification in the “remove rule” message must be specified exactly as in the “add rule” message.
ůĂƐƐŝĨŝĞƌEŽĚĞ ĐƚŝŽŶEŽĚĞ ĚĚƌƵůĞ ůĂƐƐŝĨŝĞƌ džƉŽƌƚĞƌ ŽůůĞĐƚŽƌ &ŝůƚĞƌͬ^ŚĂƉĞƌ
͙
&ůŽǁƐƚĂƌƚ ŝƉĨǁ ĂĚĚ ŝƉĨǁ ĚĞůĞƚĞ &ůŽǁƚŝŵĞŽƵƚ &ůŽǁƚŝŵĞŽƵƚFigure 2. Rule creation and timeout based rule removal
ůĂƐƐŝĨŝĞƌEŽĚĞ ĐƚŝŽŶEŽĚĞ ĚĚƌƵůĞ ůĂƐƐŝĨŝĞƌ džƉŽƌƚĞƌ ŽůůĞĐƚŽƌ &ŝůƚĞƌͬ^ŚĂƉĞƌ
͙
&ůŽǁƚŝŵĞŽƵƚ &ůŽǁƐƚĂƌƚ ŝƉĨǁ ĂĚĚ ZĞŵŽǀĞƌƵůĞ &ůŽǁƚŝŵĞŽƵƚ ŝƉĨǁ ĚĞůĞƚĞ Figure 3. Rule creation and explicit rule removal messagesThe use of flow timeouts has advantages over ex-plicit “remove rule” messages. Firstly, they save network capacity as the number of messages can be reduced. Secondly, they can also prevent control loops that may occur otherwise because actions like blocking or shaping affect packet flows and their characteristics and hence the decisions of CNs.
Imagine the following scenario. A CN identifies a flow to block, triggers an AN, and the AN blocks the flow. The flow times out at the CN triggering a rule removal from the AN, which unblocks the flow. The CN identifies the flow again and so on. If the AN does the flow timeout locally (using a timeout provided by the CN), the rule will be active as long as packets are matching and then it will timeout. This approach presupposes that the flow times out at the AN before it does time out at the CN, but the CN can ensure this by controlling the AN’s timeout value. This approach also covers the case when the rule is (prematurely) removed due to resource constraints at the AN.
However, flow timeouts may not be available every-where (they may not be efficient to implement on all
devices) and then “remove rule” messages must be used. But the delivery of “remove rule” messages cannot be guaranteed in all cases, e.g. a CN may crash. To avoid rules living forever in the AN, the AN purges old rules based on last recently used information (flow timeout). Should the AN run out of memory it is up to the AN to decide what to do, i.e. what rules to purge, unless it was advised by the CN what to do. For example, if the CN attached priorities to rules, then the AN must purge rules according to their priority.
In our prototype implementation by default the CN uses explicit “remove rule” messages, and the AN uses flow timeouts to time out rules. Explicit “remove rule” messages can be turned off, then both the CN and AN use flow timeouts.
The CN classifies flows all the time (in the extreme case for each packet arriving), but the CN will only notify AN(s) for new flows or changed flows (same flow specification but different class or action). Note, that a new flow may have the same flow specification as a previous flow if the previous flow has ended before the new flow started. Furthermore, there are options to limit the sending of rules even further, see SectionVI-H. The protocol developed for communication between classifier nodes and action nodes is described in Section VII. F. Example Scenarios
We illustrate the DIFFUSE v0.1 architecture in an example scenario, where the ISP differentiates a cus-tomer’s traffic into real-time and non-real-time traffic and subsequently uses this information to prioritise the real-time traffic. Figure 4 shows the customer and the ISP network. A CN with a rule database is located on or connected to an edge router inside the ISP’s network. Two ANs are located on the ISP’s edge router and customer’s router.
During operation the system does the following. The CN continuously classifies traffic flowing between the customer and ISP networks based on statistical charac-teristics and stored rules. For each new real-time flow detected, the CN sends the flow’s 5-tuple, class and action to the ANs. The ANs then create a new rule for the real-time flow that will prioritise its traffic over non-real-time flows. After the non-real-time flow has stopped, the rule is removed from the ANs.
V. SOFTWAREDESIGN
Now we briefly describe the software design of DIF-FUSE v0.1. Figure 5 shows the main building blocks of the CN. Inside the kernel there is a new DIFFUSE
module. At load time the DIFFUSE module registers a new raw socket option which is used to configure feature, classifier and export instances, as well as for showing and deleting them using the raw socket interface. This is the same interface used by IPFW and Dummynet.
The DIFFUSE module also registers itself with the IPFW module (which must be loaded before DIFFUSE can be loaded). After DIFFUSE has registered the IPFW module will call DIFFUSE hooks every time an IPFW rule is added or removed with an action or option unknown to IPFW. This allows the DIFFUSE module to handle the instantiation and removal of new rule actions and options, such as themlclass action or the
match-if-class option.
The IPFW module also calls a DIFFUSE hook for every packet that is checked when there are rule actions and options unknown to IPFW. This allows the DIFFUSE module to process the new actions or options, and decide whether a packet matches or not.
The raw socket interface is a pull interface only. Unsolicited messages from kernel to userspace are not possible. However, for exporting flow information, a push interface is needed. The DIFFUSE module exports flow information via the control protocol over a UDP socket, if there are any rules with export actions. The Ex-porter receives the flow information and forwards them to ANs, possibly using different transport protocols, such as SCTP or TCP.
Users use DIFFUSE specific config, show and delete commands as well as new rule actions and options via an extended ipfw userspace tool. A modified version of WEKA is used to generate classifier models based on previously collected and labelled traffic data. The extended ipfw userspace application parses the model files and sends the data to the DIFFUSE kernel module as part of the classifier instance configuration.
Figure6shows the internals of the DIFFUSE module (dashed lines indicate relations between objects and solid lines indicate message flows). DIFFUSE feature and classifier algorithms are separate modules. The config commands create configured instances of these algo-rithms, which are kept in linked lists. Configured export instances are also stored in a linked list. DIFFUSE actions and options in IPFW rules point to the instances. Flow information, such as 5-tuples, flow state (e.g. TCP state, timeouts), computed features and flow classes are stored in a flow table, which is realised as hash table with last recently used sorting of the bucket lists. Export rules create flow rules that are stored in a first in first out (FIFO) list and later exported via the control protocol.
ƵƐƚŽŵĞƌEĞƚǁŽƌŬ /^WEĞƚǁŽƌŬ ůĂƐƐŝĨŝĞƌEŽĚĞ ĐƚŝŽŶEŽĚĞ ϭ͘dƌĂĨĨŝĐůĂƐƐŝĨŝĐĂƚŝŽŶ Ϯ͘^ĞŶĚĐƚŝŽŶƐ /ŶƚĞƌŶĞƚ ϯ͘dƌĂĨĨŝĐ ƵƐƚŽŵĞƌEĞƚǁŽƌŬ ϯ͘dƌĂĨĨŝĐ /^WEĞƚǁŽƌŬ WƌŝŽƌŝƚŝƐĂƚŝŽŶ
Figure 4. Using the DIFFUSE architecture for distributed traffic prioritisation
/W&t hƐĞƌƐƉĂĐĞ <ĞƌŶĞů ĚĚ͕ĚĞůĞƚĞ͕ƐŚŽǁ ŽŶĨŝŐ͕ƐŚŽǁ /&&h^ ZĂǁƐŽĐŬĞƚŽƉƚŝŽŶƐ /W&tͲyW hW^ŽĐŬĞƚ EZƵůĞƐ t< DŽĚĞů &ŝůĞ /&&h^ /W&t ,ŽŽŬƐ ŚĞĐŬƌƵůĞ ĚĚƌƵůĞ ĞůĞƚĞƌƵůĞ ŚĞĐŬƉĂĐŬĞƚ WĂĐŬĞƚƐ
Figure 5. Classifier node design, main building blocks
Figure 7 shows the main building blocks of the AN. The Collector receives classified flows from CNs and stores them in an internal database (hash table). For new flows the collector creates according IPFW/Dummynet rules via command line (ipfw add command). Flow information is deleted based on rule removal mes-sages or timeouts. When rules are removed from the database the Collector also removes the corresponding IPFW/Dummynet rules using the ipfw delete command. On the AN an unmodified IPFW/Dummynet can be used (without DIFFUSE extensions).
The kernel part of DIFFUSE must be implemented using the C programming language. To be able to share code between userspace and kernel and achieve high per-formance we decided to also implement the Exporter and Collector using C/C++. Since WEKA is implemented in Java, our WEKA extension is also implemented in Java.
VI. DESIGN OFCOMMANDSETEXTENSIONS Here we describe the extended IPFW command set used to configure CN and AN.
A. Notation
We use the following notation based on ABNF [16]. Bold typewriter font identifies parameter names (terminal symbols) and italic typewriter font identifies parameter values chosen by the user (non-terminal symbols that do not contain spaces). Sym-bols in double quotes “” are also terminal symSym-bols.
Normal typewriter font identifies
non-terminal symbols that are broken down into parameter names and values at a later point. Parameters and values in square brackets [] are optional, a slash / defines alternatives, and round brackets () are used for grouping. A preceding n*m means a symbol or group is repeated a minimum n and a maximum m times. If n is zero it is omitted, and if m is infinity it is omitted as well. This allows shortforms such as * for 0–infinity or 1* for 1– infinity.
B. Existing IPFW rules
First we define existing IPFW rules and a number of symbols for parts of existing IPFW rules that we later use
&ĞĂƚƵƌĞ ůŐŽƌŝƚŚŵƐ /&&h^ ůĂƐƐŝĨŝĞƌƐ &ĞĂƚƵƌĞƐ ŽŶĨŝŐ͕ƐŚŽǁ EZƵůĞƐ &ĞĂƚƵƌĞƐ ůĂƐƐŝĨŝĞƌƐ &ĞĂƚƵƌĞ ůŐŽƌŝƚŚŵƐ &ĞĂƚƵƌĞ ůĂƐƐŝĨŝĞƌ /W&t &ĞĂƚƵƌĞƐ/W&t ZƵůĞƐ džƉŽƌƚƐ ůĂƐƐŝĨŝĞƌƐ ĚĚͬĚĞůĞƚĞ ƌƵůĞ ŚĞĐŬ ƉĂĐŬĞƚ &ůŽǁ dĂďůĞ ůĂƐƐŝĨŝĞƌƐ džƉŽƌƚƐ EZƵůĞ >ŝƐƚ &ĞĂƚƵƌĞ ůŐŽƌŝƚŚŵƐ ůĂƐƐŝĨŝĞƌ ůŐŽƌŝƚŚŵƐ
Figure 6. Classifier node design, DIFFUSE module
/W&t hƐĞƌƐƉĂĐĞ <ĞƌŶĞů ŽŶĨŝŐ͕ĂĚĚ͕ĚĞůĞƚĞ͕ƐŚŽǁ ZĂǁƐŽĐŬĞƚŽƉƚŝŽŶƐ /W&tͲK> ŽŵŵĂŶĚƐ ŽŵŵĂŶĚ ůŝŶĞ /W&tͬƵŵŵLJŶĞƚ WĂĐŬĞƚƐ
Figure 7. Action node design
in the definitions of extended rules (see Figure 8). The symbol ipfw-rule-id is the optional rule number, the rule set number and it also includes IPFW’s match probability. The symbol ipfw-log-altq-tag com-prises the log, ALTQ and tag options. ipfw-action is one of the actions executed when the pattern part of the rule matches (note that ... is a placeholder for the other actions not shown here [4]). The symbol
ipfw-patterns describes the patterns that are used
to match a packet and options describes all possible options, such askeep-state, tagged [4].
C. Configure, delete and show features
Figure 9 shows the command to configure a feature. The argumentfeature-nameis an user-defined name
for the feature. The argument module-name is the name of the feature as defined in the feature’s imple-mentation (basically an implemented feature module is the class and a configured feature is an instance of the class). The feature’s kernel module must be available, i.e. loaded into the kernel.
The symbol options stands for further options provided by the feature module. Each option is either a flag (enabling or disabling a property of a feature) or a parameter name followed by an argument. Our prototype implementation creates default instances for all existing features with feature-name equal to
ipfw-rule = ipfw-rule-id ipfw-action ipfw-log-altq-tag ipfw-patterns
ipfw-rule-id = [rule-number] [set set-number] [prob probability]
ipfw-log-altq-tag = [log [logamount number]] [altq queue] [(tag / untag) number] ipfw-action = (allow / deny / count / ...)
ipfw-patterns = proto from source to destination [ipfw-options] ipfw-options = (keep-state / tagged tag-list / ...)
Figure 8. Existing IPFW rules ipfw feature feature-name config module module-name [options] options = *((option-flag / (option-name option-value)) ) ipfw feature ( delete / show ) feature-name
Figure 9. Configure, delete and show features
default options are deemed acceptable the default feature instances can be used straight-away.
A feature can be viewed or deleted with the commands shown in Figure9. The reserved feature name all can be used to show or delete all defined features.
D. Current feature options
There are two types of features: unidirectional and bidirectional. Unidirectional features compute statistics for unidirectional flows. For bidirectional flows these are computed separately for each direction. Bidirectional features compute statistics over both directions of bidi-rectional flows (or only one direction of unidibidi-rectional flows).
The initial protype has the features shown in Table I. All of our initially implemented features provide the
window and partial-window options. The option
window defines the window in packets over which
a feature is computed. By default features are only computed for full windows, unlesspartial-window is set. Any match for a feature statistic that has not been computed yet due to a partial window will fail. Note that a feature does not necessarily need to be computed over windows of packets, i.e. there could be features computed for single packets only.
By default the packet length computed by “plen” is the packet length of an IP packet including the IP header. If the option ipdata-len is used, the packet length computed is the length of an IP packet excluding the IP header. If the option payload-len is used the length computed is the payload length (UDP or TCP data).
The “iat” (inter-packet arrival time) feature has an
op-tion accurate-time. If set the computed timestamps
are more accurate, at the cost of more processing time.
Figure 10 shows examples how features are defined. E. Compute and use features for matching
Features are computed and used for matching as shown in Figure 11. Such rules compute the specified features for all subflows that match ipfw_patterns. Once the feature statistics are available they can be used for matching and when all IPFW patterns and feature patterns match the rule’s action will be executed.
Afeature-list is a comma-separated list of one
or more feature names, specifying the features to be computed. Note that if one or more feature-test are present all features used in the tests will be implic-itly added to feature-list if not already present. This means that normally one does not need to specify
feature-list.
By default (without unidirectional) unidirec-tional features are computed separately for both di-rections of bidirectional subflows and feature tests can be used with an optional direction attribute. If
unidirectional is specified, features are computed
for unidirectional subflows and hence a rule matches unidirectional subflows (“fwd” or “bck” are not used in feature matches). Bidirectional features are computed over both directions of bidirectional flows and hence “fwd” or “bck” are also not used in feature matches.
If feature matches are used but features is not specified an implicit features is generated, listing all features used in the tests and producing bidirectional flows. Note that if unidirectional is not set rules match against features computed in both directions and if a rules matches the action will be executed for packets in both directions as well. With unidirectional a rule’s action is only applied to unidirectional flows.
Table I
FEATURES AND THEIR OPTIONS
Feature Type Options
plen uni window size, partial-window, payload-len, ipdata-len iat uni window size, partial-window, accurate-time pcnt bidir window size, partial-window
ipfw feature myplen config plen window 10
ipfw feature myiat config iat window 20 accurate-time
Figure 10. Feature configuration examples
ipfw add ipfw-rule-id ipfw-action ipfw-log-altq-tag ipfw-patterns [features feature-list] [1*feature-test] [unidirectional] [every / once / sample packets]
feature-list = feature-name[*(”,”feature_name)]
feature-test = [(fwd / bck)”.”]feature-statistic”.”feature-name(<=/</=/>/>=)value
Figure 11. Matching with features
Features are often computed for subflows and not for separate packets. Hence the matching is usually more on a per-flow basis rather than on the basis of separate packets. Mutually-exclusive options exist for controlling how often rules are re-evaluated. By default and if
every is used a rule is evaluated for every packet. If
once is specified a rule is evaluated only once (when all feature statistics have been computed for the first time). Withsamplea rule is evaluated everypackets packets.
If a rule uses these options and based on them rules are not evaluated for a packet, the checking for the packet terminates immediately and the packet will be treated the same as the last packet for which the complete checking was performed. Note that these parameters only limit how often rules are evaluated, features are still computed for each and every packet.
The ipfw commandsdelete,flush,list,show,
zero and resetlog work with feature-enabled rules
as before. Figure12shows example commands for using feature matches.
F. Use machine learning classifier
An ML classifier takes a set of features of a subflowF (n=|F|) as input and returns a classificationc, wherec is exactly one class out of the set of classesC(m=|C|). A classifier is configured as shown in Figure13.
The argument classifier-name is the name of the classifier. The argumentalgorithm-namedefines the classification algorithm to use (e.g. C4.5, see Section VIII) and must be a name of a classifier module present (loaded into the kernel). The argument ofmodeldefines
the classifier model to use for the classification. The model file is a text file created by a modified version of WEKA [17] (see Section VIII-C). The model file is parsed and the resulting classifier is setup in the kernel. The model file contains the list of statistics needed, but the names may not be valid DIFFUSE names. Hence the parameteruse-feature-statsallows to specify the list of features statistics the classifier uses for classifying flows. This parameter is also handy if one wants to use the same classifier model with differently generated feature statistics, for example the same statistics but gen-erated over different window sizes. If used this parameter always overrules the statistics listed in the model file.
The argument of use-feature-stats must list the same number of feature statistics in exactly the same order they were used when building the classifier. Feature statistics are listed in the same format as for feature matches explained above. As for feature matches, for unidirectional features and bidirectional flows the direction is assumed to be forward (fwd) if not specified. The parameter class-names can be used to over-write the class names specified in the model file. The class names are used to match packets based on their class (see below).
Classification results can be used to match packets as shown in Figure 14. One can either use rules with the new mlclass action and use IPFW tags, or use rules with the new match-if-class option, or a combination of both.
For rules with mlclass action or
ipfw feature myplen config plen window 25
ipfw add deny udp from any to any features myplen min.myplen<100 bidirectional ipfw add deny udp from any to any fwd.min.myplen<100 # same as above rule
Figure 12. Feature matching examples
ipfw mlclass classifier-name config algorithm algorithm-name model file-name
[use-feature-stats feature-stat(n-1)*(“,”feature-stat)] [class-names name(m-1)*(“,”name)] feature-stat = [(fwd / bck)”.”]feature-statistic”.”feature-name
ipfw mlclass ( delete / show ) feature-name
Figure 13. Configure, delete show classifier
ipfw add ipfw-rule-id ( mlclass classifier-name / ... ) ipfw-log-altq-tag ipfw-patterns [class-tags tag(m-1)*(“,”tag)] [match-if-class class-name:class[*(m-1)(“,”class)]] [every / once / sample packets]
class = ( name / “#”number )
Figure 14. Classes-based matching
in the same way as for feature matches (see previous sub section). For bidirectional flows actions of matching rules will be applied to both directions of flows.
The parameter classifier_name references a classifier configured previously. The parameter
class-tags defines a list of IPFW tags, where each
tag is associated to one class in C. As the result of the classification each packet is tagged with the tag configured for the class it matches. The tags can be used in subsequent rules for matching (with the tagged option of IPFW).
The new match-if-class parameter specifies a classifier name and a list of class names or in-dices that make a rule match. A preceding hash sym-bol “#” differentiates between class names and class numbers (see Figure 14). If the current class of a packet or subflow matches any of the classes listed the
match_if_class option matches.
The optional every/once/sample was discussed in Section VI-E. A classifier can be viewed or deleted with the commands shown in Figure 13. The reserved classifier name all can be used to show or delete all defined classifiers. Note that classifier models are only shown for single classifiers, but not whenall is used.
Without IPFW tags one can write rules that use an ML-based classifier as shown in Figure15. If IPFW tags are used one can write rules as shown in Figure 16.
Flows can be classified by multiple classifiers. Hence multiple match-if-class with different
class-name can be used in one rule. The standard
IPFW options can be used to select what type of flows are classified. For example, if one wants to classify only UDP flows the “ip” in the example rules can be replaced by a “udp”.
Note that classification is only performed once all feature statistics needed are available. For example, if one or more of the statistics have not been computed yet because windows are only filled partially, the flow will not be classified. (In future work some of the classifiers may be extended to handle missing features.)
Besides recording a flow’s class for each classifier that classified the flow, our prototype implementation also keeps track of the number of consistent consecutive clas-sifications. This allows adding hysteresis to the export of rules and prevents flapping. For example, “rule add” messages are only send after a flow was classified as class X for the n-th time.
G. Flow table
State for all flows for which features are computed is stored in a flow table. The flow table can be displayed with the show command (see Figure17). This command shows information for all flows, such as the rule that generated the flow, packet and byte counters, the 5-tuple, a list of all computed features and their current values and a list of all class labels. By default only active flows are shown, but if the expired parameter is specified expired flows are also shown. (Expired flows are no longer active but their state is still in the table. State is not immediately deleted when flows expire, but only when more space is needed for adding new flows.)
ipfw mlclass myclass config algorithm c4.5 model /etc/ipfw/realtime.model use-feature-stats fwd.min.myplen,fwd.mean.myplen,fwd.max.myplen,bck.min.myplen,bck.mean.myplen,bck.max.myplen class-names rt,nonrt
ipfw add pipe 1 ip from any to any match-if-class myclass:rt ipfw add pipe 2 ip from any to any match-if-class myclass:nonrt
Figure 15. Matching using the new match-if-class option
ipfw mlclass myclass config algorithm c4.5 model /etc/ipfw/realtime.model use-feature-stats fwd.min.myplen,fwd.mean.myplen,fwd.max.myplen,bck.min.myplen,bck.mean.myplen,bck.max.myplen class-names rt,nonrt
ipfw mlclass myclass ip from any to any class-tags 1,2 ipfw add pipe 1 ip from any to any tagged 1
ipfw add pipe 2 ip from any to any tagged 2
Figure 16. Matching using IPFW tags ipfw flowtable show [expired]
ipfw flowtable ( zero / flush )
Figure 17. Flow table commands
All entries in the flow table can be removed (flushed) or the packet and byte counters can be zeroed by using the flush or zero commands (see Figure 17).
H. Export flow rules to ANs
On the CN we need to configure rules that decide what information the classifier sends to the Exporter or to remote AN(s).
Firstly, an export target needs to be configured as shown in Figure 18. The argument export-name is the name of the new export target instance. The argument
of target is the destination of the flow rules. The
protocol must be UDP, host is the fully qualified host name (or IP address), and port is the port number the target is listening on. The arguments action-name
and action-params-val are the action name and
parameters that are send for matching flows. Note that action name and parameters must specify valid IPFW actions2. Note that the receiving AN(s) may overrule these with locally specified actions.
The argument of min-batchis the minimum num-ber of flow rules exported in one batch. Similarly, the argument of max-batch is the maximum number of flow rules exported in one batch (must be equal or larger
than min-batch). Note that increasing min-batch
also increases the delay for delivering flow rules. The argument of max-delay specifies a maximum delay between the generation of flow rules and their 2In the initial prototype implementation these are opaque values that are not checked.
export. Note that ifmax-delayis set (value larger than zero) the minimum batch size is still enforced, but the maximum batch size can now be exceeded (if at the time of exporting more rules are over the maximum delay than the size of the maximum batch).
The argument ofconfirmspecifies how many times a flow has to be consecutively classified as the same class before flow information is exported. For example,
if confirm is set to 2, information is only exported
if the class was confirmed twice (three consecutive classifications resulting in the same class).
By default ANs treat flows as bidirectional, i.e. apply actions to both directions of a flow, or not. Setting
unidirectional instructs ANs to treat flows as
unidirectional, but only if they were unidirectional at the CN as well. However, based on local configuration the receiving AN(s) may still decide to treat flows differently.
Secondly, we need to define the rules that, if they match, will send flow rules to the configured AN(s) as shown in Figure18. A rule with the newexporttarget will export flow rules according to the configured ex-porter export-name for all flows that match the rule. Figure 19 shows an example where all flows classified as real-time are exported to localhost.
The classifier in the kernel can only export information via the UDP transport protocol. If UDP is sufficient the classifier can send rules to ANs directly. However, in many cases UDP will not be appropriate, for example if reliable transport is required (see Section VII). In
ipfw export export-name config target udp://host:port [action action-name] [action-params action-params-val] [min-batch number] [max-batch number] [max-delay delay] [confirm number] [unidirectional]
ipfw add ipfw-rule-id ( export export-name / ... ) ipfw-log-altq-tag ipfw-patterns diffuse-patterns
Figure 18. Configure export target and trigger export of rules
ipfw export myexp config target udp://localhost min-batch 1 max-batch 5 ipfw add export myexp ip from any to any match-if-class myclass:rt
Figure 19. Export flow rules example
this case the classifier needs to send the information to the userspace Exporter via UDP, which then forwards the information to the Collector via SCTP or TCP (see Section VII).
The Exporter is configured as shown in Figure 20. By default the Exporter listens for flow rules from any (kernel) classifier on the default port 3191. The -c switch can be used to specify a particular classifier host and change the default port number3. The flow information is forwarded to a number of ANs specified as list of URLs with the-aswitch. The-qswitch turns off any output to stdout.
Note that not only the 5-tuple describing the flow, the class tags and the action is exported to ANs. A number of other data is sent as well, such as a bidirectional flag that specifies if actions should be executed for both directions of bidirectional flows, rule timeouts etc. (see Section VII).
I. Listen to remote CN
On the AN we need to configure the Collector to listen to remote Exporter(s) as shown in Figure 21. The parameters-s,-tand-uspecify on which SCTP, TCP, UDP ports the Collector is listening (at least one of these must be specified). The -n switch turns off the IPFW rule generation (useful for testing as non-root). The -q switch turns off any output to stdout. The -r switch specifies the IPFW rule number space used by rules generated by the Collector (default 1000–2000). The Collector will create as many IPFW rules as fit into this space. Note that it is the users responsibility to ensure that the range specified is available.
The -c switch defines a file that defines a mapping between classes and actions (actions file). If flow rules are received with one of the classes specified in the 3Typically the Exporter runs on the same host as the kernel classifier, but it could run on a different host.
actions file, the specified actions will always overrule any actions given by the CN. The syntax of the actions file is shown in Figure 22. Figure23 shows an example actions file.
The Collector is independent of the firewall or traffic shaper used to treat flows. However, the initial version of the Collector can only be used with IPFW. Note that in the first version of the prototype action names and parameters are opaque values, which are not checked by the Collector.
The Collector has its own dynamic flow table. For each rule received from a CN via an “add rule” command the Collector checks if the rule is already present in the table. If a flow rule is present with same flow specification and action, the collector only updates the timeouts (if any). If a flow rule is present with the same flow specification but different action and there is no actions file, the Collector replaces the old rule with the new rule and updates timeouts (if any). If no rule is present with the same flow specification the collector inserts the new rule into the table.
If a new rule was inserted or an existing rule was updated the Collector will create a new IPFW rule or update an existing IPFW rule by using the IPFW command line interface. Removal of rules occurs upon timeout or explicit request (“remove rule” messages). In both cases the Collector removes the rule from its internal database and then removes the IPFW rule via IPFW’s command line interface.
Figure 24 shows an example for configuring an Ex-porter and Collector.
VII. DESIGN OFREMOTEACTIONSPROTOCOL We first discuss requirements on the transport protocol and message encoding. Then we describe the design of the protocol used to transmit flow rules from CNs to ANs.
ipfw_exp [-c host:port] [-a list-of-urls] [-q] list-of-urls = url*(“,”url)
url = (udp / tcp / sctp)”://”host”:”port
Figure 20. Userspace exporter configuration
ipfw_col [-c actions-file] [-r min-rule-no[“-”max-rule-no]] [-s sctp-port] [-t tcp-port] [-u udp-port][-nq]
Figure 21. Collector configuration
actions-file = 1*line
line = ( # comment / default / classifier-name:class_number) action [action_parameters]
Figure 22. Actions file syntax
# class 0 is rt and class 1 is non-rt default queue 2
myclass:0 queue 1 myclass:1 queue 2
Figure 23. Actions file example
A. Transport Protocol
UDP and TCP are the main transport protocols cur-rently used in IP networks. UDP is a connectionless protocol providing unreliable data transport without flow and congestion control. Due to its simplicity the over-head (both in terms of network capacity and CPU utilisation) is lower than for TCP. Furthermore, it allows more precise timing of messages by the sender.
TCP on the other hand is a connection-oriented proto-col and provides flow and congestion control as well as reliable transport of data at the cost of higher overhead and less control for the sender. TCP overhead can be somewhat reduced by measures such as persistent connections (e.g. used between web browsers and web servers).
SCTP is a newer transport protocol that provides a number of advanced features that are very useful for DIFFUSE v0.1. SCTP is more reliable than TCP, as it has a stronger checksum, and supports transparent fail-over a) fail-over different network interfaces of one host and b) over different hosts due to its multi-homing capability. SCTP allows out of order delivery of data which prevents the head of the line blocking problem inherent in TCP. Furthermore, SCTP allows to bundle different independent data transfers (called streams) into one connection (called association), so only a single socket is needed. PR-SCTP is an extension of SCTP that
also provides timely unreliable data transport (avoiding unnecessary retransmissions) with congestion control.
By default SCTP will use multiple network interfaces for one association, so it provides fail-over in case an interface on either side of an association becomes (temporarily) unusable. Furthermore, SCTP allows one-to-many socket associations, which can be used by a CN to transmit the same message to multiple ANs simultane-ously. One-to-many socket associations can also be used to provide fail-over, e.g. if there are redundant ANs.
Our main criteria for the transport protocol are re-liability, timeliness of message reception, congestion control and overhead (network and computational at the sender/receiver). We now discuss our requirements on the transport protocol taking into account different scenarios.
For traffic prioritisation one might not need maxi-mum reliability, but it depends on the business case. If customers pay money for an improved QoS then it should be a very reliable service. For security-based applications often very high reliability is required. For market research high reliability is probably not needed. Very importantly a timely message delivery is needed for traffic prioritisation or security-based applications.
In a closed network which is dimensioned properly congestion control may not be necessary. But the In-ternet Engineering Taskforce (IETF) mandates the use of congestion control in the Internet (as demonstrated
ipfw_exp -c localhost -a sctp://action1.node:5000 -q
ipfw_col -c class_actions.txt -r 10000-20000 -s 5000 -t 5000 -q
Figure 24. Exporter and Collector configuration example
during the standardisation of the IPFIX protocol [18]). The overhead of the transport protocol is a less important criteria, since we usually would not have extremely short messages. With SCTP reliability is tunable and inverse proportional to overhead, but even when completely unreliable SCTP still has more overhead than UDP.
Another issue is current deployment. UDP and TCP are generally supported by every end host and network device. SCTP is generally available on all end hosts using common modern operating systems and supported by many network devices [19]. Table II classifies UDP, TCP, and SCTP according to the criteria identified above on the scale: −− (worst), −, +, ++ (best).
In conclusion we select SCTP as default transport protocol for DIFFUSE v0.1 because it is very reliable, provides timely message delivery, with SCTP-PR re-liability and overhead can be tuned, and it provides congestion control even in unreliable mode. In situations where reliability is not an issue or there is no packet loss and congestion control is not an issue (closed well dimensioned network), UDP may be used to provide a timely message delivery with minimum overhead. TCP may be used if reliability or congestion control are required and SCTP is not available (backwards compatibility). Which transport protocol is used can be controlled by the configuration of CNs and ANs. B. Message encoding
Text-based protocols are easier to read and debug, easier to extend with new commands or fields and easier to handle with high-level script languages, which are often used to develop prototypes. While they facilitate quick prototyping they are likely less efficient in terms of processing time. Binary encoding on the other hand has less overhead and is more efficient to parse with low-level programming languages (like C) that generate more efficient code than script languages.
Since we decided to use C/C++ for implementing DIFFUSE (see Section V), we decided to use binary encoding because with C/C++ binary protocols can be handled more easily and efficiently than text-based protocols. Also since many data fields are stored as binary numbers inside the kernel classifier, a text-based protocol would require a large number of binary to text conversions and vice versa.
Furthermore, binary encoding has significantly less network overhead compared to text-based encoding. To minimise overhead but still have a flexible and extensible protocol we decided to use a template-based encoding, where templates define the fields present in datasets and datasets only contain the actual data.
C. Protocol format
The protocol is designed to have minimum overhead while still being flexible enough to allow further exten-sion in the future. Flexibility is crucial, because although we outlined some scenarios for which the DIFFUSE architecture could be used, we think there are many other possible scenarios.
To avoid gratuitously reinventing a wheel, our protocol is conceptually based on the IP Flow Information Export (IPFIX) protocol [18], which was developed for very similar requirements [20]. Our protocol uses the same template-based approach and similar binary encoded messages. However, the format of protocol headers and fields is not identical to IPFIX.
1) Fixed header: Every message of the protocol has a fixed header comprised of (see Figure 25):
• Version (16 bit)
• Message length (16 bit) • Sequence number (32 bit) • Timestamp (32 bit)
Version specifies the protocol version. Message length is the total length of the message in octets including the fixed header. The sequence number numbers all mes-sages. It is required to determine the order of messages (in case UDP or unordered SCTP is used and packets are reordered), can be used for retransmission of information over UDP and also provides weak security against inser-tion attacks with UDP as packets with sequence numbers out of the acceptable window will be silently ignored.
The Timestamp contains the time the message was generated (in seconds since Unix epoch). It allows the Collector to determine when a message was sent by the Exporter, i.e. how old the information is (assuming clocks are synchronised). The collector can use this information to adjust timeouts or ignore outdated infor-mation.
Table II
CRITERIA OF TRANSPORT PROTOCOLS
Protocol Reliability Timeliness Cong. Control Overhead Deployment UDP − + − ++ ++ TCP + − + − ++ PR-SCTP −to ++ + + + to−− + sĞƌƐŝŽŶ >ĞŶŐƚŚ ^ĞƋƵĞŶĐĞŶƵŵďĞƌ dŝŵĞƐƚĂŵƉ ^Ğƚ/сϭ ^ĞƚůĞŶŐƚŚ dĞŵƉůĂƚĞ/сϮϱϲ &ůĂŐƐ /с^ƌĐ /W /сƐƚ /W ͙ Ϭ ϴ ϭϲ Ϯϰ ϯϭ /сĐƚŝŽŶ /сĐƚŝŽŶWĂƌĂŵƐ ͙ ^Ğƚ/сϮϱϲ ^ĞƚůĞŶŐƚŚ ϭϵϮ͘ϭϲϴ͘Ϭ͘ϭ ϭϵϮ͘ϭϲϴ͘Ϭ͘Ϯ ƉŝƉĞ ϭ ͙ ϭϵϮ͘ϭϲϴ͘Ϭ͘ϯ ϭϵϮ͘ϭϲϴ͘Ϭ͘Ϯ ƉŝƉĞ Ϯ ͙
Figure 25. Fixed header of the DIFFUSE v0.1 control protocol
2) Templates and data sets: After the fixed header each message contains a number of sets. Currently there are three types of sets:
• Options template • Flow rule template • Option and flow rule data
Flow rule data sets are used to transmit flow rules. Option data sets are used to transmit optional data. Optional data can be transmitted with different frequencies, e.g. on a per connection/association basis or on a per message basis. Options and flow templates specify the types of information elements (IEs) contained in options/flow datasets.
Each dataset has a fixed header which contains the following fields:
• Set ID (16 bit) • Length of set (16 bit)
Set ID specifies whether the data is an options template (set ID = 0), a flow rule template (set ID = 1) or data (set ID ≥ 256). Length is the length of a template or data set in octets including the set header.
An options or flow rule template set contains the following fields:
• Template ID (16 bit) • Flags/reserved (16 bit)
• A number of field definitions each consisting of an IE ID (16 bit) and optionally the length of the data in octets (16 bits)
The template ID specifies an ID for the particular tem-plate that is then referenced in a dataset (values 256– 65535). The following 16 bits are reserved for future use. Each IE ID specifies an information element, e.g. the source IP address. The length defines the length of
the data in octets, e.g. length is 4 bytes for an IPV4 source address.
There are three types of IEs: fixed-length, variable-length and dynamic-variable-length. For fixed-variable-length IEs the IE ID also specifies the length (e.g. source IP address) and the next field is another IE ID. For variable-length IEs (e.g. a string) the length of the IE must be specified in the template in the length field following the IE ID. The length of dynamic-length IEs varies with each entry in a dataset. The first octet of a dynamic-length field in a dataset specifies the length of the field in octets (including the length field).
Whenever possible fixed-length and variable-length IEs should be used. Dynamic-length IEs should only be used if the IE length is unknown in advance and can vary significantly between entries in a data set. The highest two bits of the IE ID specify the type. If set to 00 or 01 the IE is fixed-length, if set to 10 the IE is variable length, and if set to 11 the IE is dynamic-length. This means IDs 0–32767 are for fixed-length IEs, IDs 32768– 49151 are for variable-length IEs, and IDs 49152–65535 are for dynamic length IEs.
A dataset contains the data for all the IEs specified in the template in exactly the same order as specified in the template. Note that sets must aligned on 32-bit boundaries. Padding octets must be added at the end of sets as needed to ensure this.
One could reduce the overhead of the protocol by using 8-bit integers instead of 16-bit integers for IDs. However, it has been shown many times that original protocol designers severely underestimated the future need for numbering space thus necessitating protocol redesign or the use of bad hacks later on. Instead of trying very hard to optimise the overhead by reducing
the size of fields one could use lossless compression to reduce the size of the data on the wire, e.g. adaptive Huffman coding is successfully used by First-person Shooter Games to reduce message sizes. However, com-pression increases the complexity and requires extra computational resources at the sender/receiver.
3) Template management: Depending on the transport protocol there are two ways of handling templates:
• Transmit templates in every packet (UDP)
• Transmit templates only at the start of connections (SCTP, TCP)
If UDP is used, templates are transmitted in each packet. Packets are self-contained and loss of packets with templates will never cause loss of data beyond the lost packet (data that cannot be used because the template is not known). No additional reliability is needed for templates and there are no issues if an AN restarts. Also, an AN does not need to store templates. However, network protocol overhead is higher.
If TCP is used the Exporter only needs to transmit templates once at the start of a connection, because TCP provides ordered reliable transport. The Collector must store the templates for the duration of the TCP connection. However, if a connection is closed and re-established, the Exporter must send all templates at the start of the new connection again, because it cannot know if only the connection was closed or the Collector had to restart and may have lost templates. Transmitting the templates only at the start reduces the overhead, but requires ANs to store the templates.
If SCTP is used templates and data are transmitted reliably as for TCP. If SCTP-PR is used templates only need to be transmitted once at the start, but they must be transmitted reliably using ordered reliable SCTP. The receiver must store templates for the duration of an association. Data may be transmitted unreliably if reliable data transport is not needed. Templates and data must be send over two different SCTP streams, so there will be two streams per SCTP association (templates are send over stream 0 and data is send over stream 1).
4) Information elements (IEs): The following IEs are defined (the numbers in parenthesis are the ID and the size in octets or “V” for variable-length or “D” for dynamic-length IEs):
• IPv4 source address (1, 4) • IPv4 destination address (2, 4) • Source port (3, 2)
• Destination port (4, 2) • Protocol (5, 1)
• IPv6 source address (6, 16) • IPv6 destination address (7, 16) • IPv4 Type of Service (ToS) (8, 1) • IPv6 flow label (9, 4)
• Class label (10, 2) • Match direction (11, 1) • Message type (12, 1) • Timeout type (13, 1) • Timeout (14, 4) • Action flags (15, 1) • Action (32768, V) • Action parameters (32769, V) • Classifier name (32770, V) • Export name(32771, V) • Class tags (49152, D)
A number of IEs are fields taken straight from the IPv4 or IPv6 headers. Other IEs are explained briefly in the following paragraphs. Class label is the flow’s class assigned by the classifier. Classifier name specifies the classifier that classified the flow. Match direction indicates whether matched flows are unidirectional or bidirectional. Message type specifies whether a message is an “add” or “remove” message. Timeout type specifies whether the timeout is a flow timeout or a rule timeout. Timeout is the timeout value in seconds.
Action flags are used to indicate whether the AN should apply actions to unidirectional or bidirectional flows. Action is the action name and action parameters specify the parameters of the action. Export name is the name of the export that generated the flow rule. Class tags defines a list of classifier name and class tuples (if flows were classified by multiple classifiers).
The prototype implementation uses a standard tem-plate with the following fields: export name, message type, IPv4 source and destination address, source and destination port, protocol, list of classes, timeout type and value, action name, flags and parameters. With a single class tag the size of one entry is 54 bytes. (Note that IPv6 is not fully suppported yet.)
5) Keep-alive: To minimise the overhead of estab-lishing and shutting down connections repeatedly, a connection between CN and AN is kept open even if there is nothing to send for a while. If PR-SCTP or TCP is used this keep-alive mechanism is based on the SCTP association or TCP connection keep-alive mechanism. UDP is connection-less and there is no overhead, hence no keep-alive mechanism is used in the case of UDP.
D. Example
Figure 26 shows an example message consisting of the fixed header, a template set defining the IEs for template 256, and a flow rule data set for template 256 with multiple rules.
E. Security Considerations
We assume that often CNs and ANs are part of the same trusted network, which includes being connected via a secure Virtual Private Network (VPN). This pre-vents alteration or eavesdropping attacks on messages in flight. However, if CNs and ANs are connected via an untrusted network the integrity of messages must be protected against attackers by using digital signatures or encryption. If messages contain sensitive information encryption must be used to preserve message confiden-tiality.
An AN needs to authenticate messages; it must verify that messages were created by a trusted CN. Otherwise, attackers could send fake messages to ANs for various purposes including but not limited to obtaining services that they have not paid for (e.g. prioritisation of traffic) or mounting Denial of Service (DoS) attacks by blocking a victim’s legitimate flows.
In the first version of our prototype message au-thentication is based on IP addresses. An AN only accepts messages from specified CN IP addresses on the specified ports using the specified protocols. If IP spoofing can be prevented the system will be reasonably secure. If IP spoofing is possible the sequence numbers provide some protection against blind insertion attacks. However, if strong protection against such attacks is required cryptographic authentication of messages must be used.
Like IPFIX strong security for our protocol can be provided by the Transport Layer Security (TLS) [21] or Datagram Transport Layer Security (DTLS) [22] protocols. For UDP and PR-SCTP DTLS must be used. For TCP TLS must be used.
VIII. SELECTED ML TECHNIQUE
We leverage the Waikato Environment for Knowledge Analysis (WEKA) [17] to perform the initial data analy-sis and to build classifier models used for classification. WEKA provides an easy to use GUI as well as a com-mand line interface to inspect the data, experiment with different classification techniques and build models from training data. After a classifier model has been trained in WEKA it can be saved and used with DIFFUSE v0.1.
WEKA provides access to many different classifica-tion techniques, but our first prototype only supports two algorithms because of the effort required for implement-ing them. Not only must we port WEKA’s classification functions, but we must do this working around the restrictions imposed on kernel modules, such as the absence of floating point arithmetic and mathematical functions in the kernel. For each classifier we must also implement functions to parse and output a model.
There are many different ML algorithms [1]. Previous research showed that for classification of network traffic the better techniques provide similar accuracy, but differ greatly regarding training time and classification speed [23]. Our initial implementation supports the C4.5 and Naïve Bayes techniques.
We use the C4.5 decision tree classifier [24] because it provided good accuracy for network traffic classification previously [23], the classification function is fast (tree search) and relatively easy to implement (unlike other algorithms it does not require mathematical functions not implemented in the FreeBSD kernel). Using a decision tree algorithm has the advantage that a human can inter-pret the resulting classifier (classification tree), although with increasing size this becomes difficult.
The Naïve Bayes technique also was previously used to classify network traffic [23]. While the achieved accuracy of Naïve Bayes was lower than for C4.5, the classification function is fast and very easy to implement. Due its simplicity Naïve Bayes is significantly quicker than C4.5 in building a classifier (training).
It may be hard to implement more complex classifiers in kernel because of the lack of mathematical functions. Future work could investigate ways of diverting packets (or a list of features) to a userspace application that performs the classification.
A. C4.5
C4.5 creates a classifier based on a tree structure of nodes, branches and leaves [24]. Nodes in the tree represent features, and branches represent value tests. A series of nodes and branches is terminated by a leaf, which represents the class. Determining the class of an instance is simply a matter of tracing the path of nodes and branches to a terminating leaf node.
C4.5, as other decision tree learners, uses the ‘divide and conquer’ method to construct a tree from a set of training instancesS. If all cases inS belong to the same class, the decision tree is a leaf labelled with that class. Otherwise the algorithm will use tests to divide S into several non-trivial partitions.
