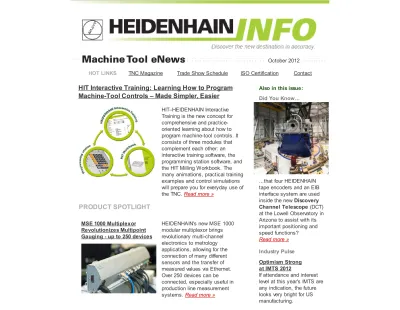

October 2012 HOT LINKS TNC Magazine Trade Show Schedule ISO Certification Contact
HIT Interactive Training: Learning How to Program
Machine-Tool Controls – Made Simpler, Easier
HIT–HEIDENHAIN Interactive Training is the new concept for comprehensive and practice-oriented learning about how to program machine-tool controls. It consists of three modules that complement each other: an interactive training software, the programming station software, and the HIT Milling Workbook. The many animations, practical training examples and control simulations will prepare you for everyday use of the TNC. Read more »
PRODUCT SPOTLIGHT
MSE 1000 Multiplexor Revolutionizes Multipoint Gauging - up to 250 devicesHEIDENHAIN's new MSE 1000 modular multiplexor brings revolutionary multi-channel electronics to metrology applications, allowing for the connection of many different sensors and the transfer of measured values via Ethernet. Over 250 devices can be connected, especially useful in production line measurement systems. Read more »
Also in this issue: Did You Know...
...that four HEIDENHAIN tape encoders and an EIB interface system are used inside the new Discovery Channel Telescope (DCT) at the Lowell Observatory in Arizona to assist with its important positioning and speed functions?
Read more » Industry Pulse Optimism Strong at IMTS 2012
If attendance and interest level at this year's IMTS are any indication, the future looks very bright for US manufacturing.
NEWS
HEIDENHAIN HISTORY
For over 100 years, HEIDENHAIN has been a significant force in the precision measurement and motion control industry. This is the first in a series of columns to share the company's origins, background and impact. Read more »Read more » Technical Tidbit
Power Consumption with Feedback Devices
Don't overlook the position feedback system when evaluating the total power usage of a machine. Read more »
