How to download and install ISE® WebPACK
National Science Foundation Funded in part, by a grant from the National Science Foundation DUE 1003736 and 1068182Acknowledgements
Developed by Craig Kief, Bassam Matar, and Alexandria Haddad at the Configurable Space Microsystems Innovations & Applications Center (COSMIAC). Funded by the National Science Foundation (NSF).

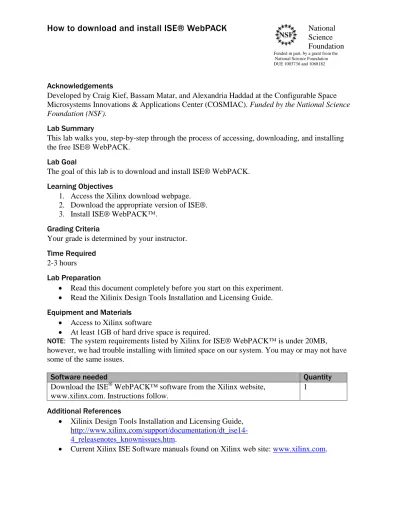

Lab Summary
This lab walks you, step-by-step through the process of accessing, downloading, and installing the free ISE® WebPACK.
Lab Goal
The goal of this lab is to download and install ISE® WebPACK. Learning Objectives
1. Access the Xilinx download webpage. 2. Download the appropriate version of ISE®. 3. Install ISE® WebPACK™.
Grading Criteria
Your grade is determined by your instructor. Time Required
2-3 hours Lab Preparation
• Read this document completely before you start on this experiment.
• Read the Xilinix Design Tools Installation and Licensing Guide. Equipment and Materials
• Access to Xilinx software
• At least 1GB of hard drive space is required.
NOTE: The system requirements listed by Xilinx for ISE® WebPACK™ is under 20MB, however, we had trouble installing with limited space on our system. You may or may not have some of the same issues.
Software needed Quantity
Download the ISE® WebPACK™ software from the Xilinx website, www.xilinx.com. Instructions follow.
1 Additional References
• Xilinix Design Tools Installation and Licensing Guide, http://www.xilinx.com/support/documentation/dt_ise14-4_releasenotes_knownissues.htm.
2 What is WebPACK?
WebPACK is the free version of the Xilinx ISE® Design Suite. Xilinx says that WebPACK is “The industry's only free, fully featured front-to-back FPGA design solution for Linux, Windows XP, and Windows Vista.” WebPACK provides a free FPGA and CPLD logic design solution, it is easily upgradeable to any of the ISE Design Suite Editions if you should decide to do so at a later time. The following table provides a feature comparison.
ISE Design Suite Comparison Table ISE WebPAC K Tool Logic Edition Embedde d Edition DSP Edition System Edition ISE Foundation ™ Tools with
ISE Simulator (ISim)
Plan Ahead ™ Design
Analysis Tool
ChipScope ™ Pro Logic
Analyzer
ChipScope Pro Serial I/O
Toolkit
Embedded Development Kit
(EDK)
*
*
*
Software Development Kit
(SDK)
System Generator for DSP
* Device limited to Zynq-7000 EPP – Z7010, Z7020, Z7030 devices only
NOTE: If you are an instructor or are looking to install software in a laboratory or server environment, first contact Mr. Craig Kief ([email protected]).
3 Download WebPack:
Xilinx provides an Installation and Licensing Guide that gives a more condensed version of these instructions in addition to other useful information. Visit the Release Notes and Known Issues page (http://www.xilinx.com/support/documentation/dt_ise14-4_releasenotes_knownissues.htm) to download and read this document.
1. Navigate your browser to http://www.xilinx.com/.
2. At the Xilinx page, click the download link to navigate to the downloads page.
3. On the download page ensure the Design Tools tab is selected.
4. As of this writing, the newest version of ISE is 14.4. New versions are released regularly. The download instructions may differ slightly. Currently there are two ways to download ISE (and ISE Webpack):
4
• Multi-file Download (at the top of the download list, circled in blue)
• Single file download (circled in green).
• Both options will take some time, depending on your connection speed.
• Start the download, make a pot of coffee and get comfortable.
NOTE: If your connection speed is slow and the download will take more than a few hours, make sure your computer will not shut off or go into sleep mode.
• Make sure to read the Important Information for each download option.
• ISE Webpack is part of the download.
5. Once you click a download option you will be asked to sign in to your Xilinx account.
• If you do not have a Xilinx account you will need to create one, by clicking the Create Account link.
5
• Fill in the account information.
• An email will be sent to your email account with a link to activate your account. Click the link and log into Xilinx.
6. Fill in the Download Center Information, click next.
7. The Download Manager message page displays, and the Open File dialog box opens.
8. Select Save file in the Open File dialog box. Click the Ok button.
6
Once the download(s) is complete you can install WebPack on your computer(s).
Remember if you chose multi-file download you need to download all the files and follow the instructions in the Important Message section of the download page.
The following instructions are for the single file download. You should have a single .tar file saved to some location on your computer. You will need a zip application to open the .tar file. There are several good ones available, such as 7-zip.
7 Install WebPack:
1. Browse the folder were you saved the downloaded file. You should see something similar to the figure below:
2. Double-click the .tar file to open it in your zip application (we use 7-zip).
3. Extract the files to a known location on your hard drive.
4. After the extraction is completed, open the extracted folder. Ours was
Xilinx_ISE_DS_Win_14.4_P.49d.3.0 (since the version we downloaded was the windows version of ISE 14.4).
8
5. You should see an xsetup.exe file. Double-click the file to start the setup.
6. If your computer has any messages to verify that you want to install the program, click yes. 7. The ISE and Vivado installer opens.
8. On the Welcome screen click Next.
9. Accept the License Agreement by clicking the checkbox and clicking Next (we had two screens).
9 11. On the Select Installation Options screen click Next.
12. On the Select Destination Directory click Next (you can choose a different directory if you want. We left it at the default).
WARNING: Make sure you have enough disk space to install WebPACK. At the time of this writing, Xilinx specified that the system requirements need was 15.5 GB of space. However, we found that we needed 20 GB.
10
14. Sit back, get a cup of coffee. The installation takes a good bit of time.
15. Once the installation is complete click the Finish button.
16. The Xilinx Configuration Manager will display. Select Get Free ISE WebPACK License and click Next.
17. Follow the onscreen instructions. You must have an internet connection and you will need to log onto your Xilinx account previously created.
11
