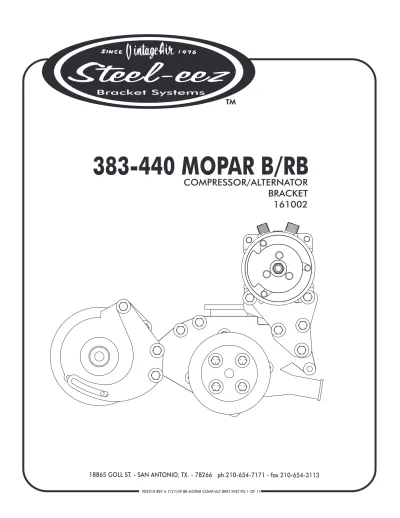

383-440 MOPAR B/RB
COMPRESSOR/ALTERNATOR
BRACKET
161002
TMBracket Systems
-TM
2
Table of Contents
PAGES
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11.
COVER
TABLE OF CONTENTS PACKING LIST / DISCLAIMER
COMPRESSOR INSTALLATION FOR 383-440 MOPAR FIGURE 1
LONG BOSS WITHOUT POWER STEERING FIGURE 2
LONG BOSS WITH POWER STEERING FIGURE 3
SHORT BOSS WITHOUT POWER STEERING FIGURE 4
SHORT BOSS WITH POWER STEERING FIGURE 5
ALTERNATOR INSTALLATION FOR 383-440 MOPAR FIGURE 6
ALTERNATOR BRACKET INSTALLATION FIGURE 7
Bracket Systems
TM
BRACKET KIT 161002
No. 1. 2. 3. 4. 5.
QTY. 1 1 1 1 1
PART No. 166000 166001 166002 166003 191014
DESCRIPTION
BB MOPAR FRONT COMP BRACKET BB MOPAR REAR COMP BRACKET BB MOPAR FRONT ALT BRACKET BB MOPAR REAR ALT BRACKET
383-440 MOPAR COMP/ALT HARDWARE KIT
**BEFORE BEGINNING INSTALLATION OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS, VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS.
1
2
3
TM
4
COMPRESSOR INSTALLATION FOR 383-440 MOPAR
THIS BRACKET IS DESIGNED FOR 383-440 MOPAR WITH POWER STEERING OR WITHOUT POWER STEERING. USE WITH OEM 2 GROOVE WATER PUMP PULLEY / OEM 4 GROOVE CRANKSHAFT PULLEY. IF PULLEYS NEEDED: BOUCHILLON PERFORMANCE ENGINEERING- PART 4005- COMBINATION PULLEY SET
1-4013 4 GR CRANKSHAFT 1-4016 2 GR WATER PUMP
LONG BOSS COMPRESSOR/BRACKET INSTALLATION
POWER STEERING ONLY
BELT (2) 1/2 - 57 1/2
SHORT BOSS COMPRESSOR/BRACKET INSTALLATION
IDENTIFY WATER PUMP HOUSING BEFORE PROCEEDING TO COMPRESSOR/BRACKET INSTALLATION INSTRUCTIONS.
WATER PUMP HOUSING WITH LONG BOSS 2⅓”, WITHOUT POWER STEERING. INSTALL COMPRESSOR/BRACKET AS SHOWN IN FIGURE 2, PAGE 5.
WATER PUMP HOUSING WITH LONG BOSS 2⅓”, WITH POWER STEERING. INSTALL COMPRESSOR/BRACKET AS SHOWN IN FIGURE 3, PAGE 6.
REMOVE WELDED NUT FROM REAR POWER STEERING BRACKET BEFORE INSTALLING COMPRESSOR REAR BRACKET AS SHOWN IN FIGURE 1 BELOW.
REMOVE WELDED NUT FROM REAR POWER STEERING BRACKET BEFORE INSTALLING COMPRESSOR REAR BRACKET AS SHOWN IN FIGURE 1 BELOW.
VINTAGE AIR RECOMMENDS A BELT LENGTH OF 57 1/2, HOWEVER, THIS CAN VARY DUE TO THE DIAMETER OF YOUR WATER PUMP & CRANKSHAFT PULLEYS.
REAR POWER STEERING BRACKET IS IN OEM POSITION. ADDITIONAL SPACING MAY BE NECESSARY BETWEEN FRONT POWER STEERING BRACKET AND POWER STEERING PUMP.
ADD WASHERS IF NECESSARY. REMOVE
WELDED NUT
OEM REAR POWER STEERING
BRACKET NOTCH FRONT POWER STEERING BRACKET FOR BOLT CLEARANCE. SEE FIGURE 3 & 5, FRONT VIEW. WATER PUMP HOUSING WITH SHORT BOSS 2⁄”, WITHOUT POWER STEERING. INSTALL
COMPRESSOR/BRACKET AS SHOWN IN FIGURE 4, PAGE 7.
WATER PUMP HOUSING WITH SHORT BOSS 2⁄”, WITH POWER STEERING. INSTALL COMPRESSOR/BRACKET AS SHOWN IN FIGURE 5, PAGE 8.
LONG BOSS SHORT BOSS
2⁄” 2⅓”
Bracket Systems
TM
LONG BOSS WITHOUT POWER STEERING
WATER PUMP HOUSING
18210-VUB
¾” SPACER
18201-VUB
¼” SPACER
180916-SSR
⁄” SPACER
LONG BOSS
LONG BOSS 166000
BB MOPAR FRONT COMPRESSOR
BRKT 18361-VUB
1½” HEX BOLT W/FLAT WASHER
18372-VUB
4” HEX BOLT W/FLAT WASHER
18371-DSR
3¾” HEX BOLT W/FLAT WASHER
18365-VUB
2¼” HEX BOLT W/FLAT WASHER 18155-VUB
3/8-16 LOCK-NUT W/FLAT WASHER
18155-VUB 3/8-16 LOCK-NUT
W/FLAT WASHER
166001 BB MOPAR REAR COMPRESSOR
BRKT
FRONT VIEW
FIGURE 2
FLAT WASHER
TM
6
LONG BOSS WITH POWER STEERING
18210-VUB
¾” SPACER
180916-SSR
⁄” SPACER LONG BOSS
FLAT WASHER
FLAT WASHER
POWER STEERING BRACKET 166000
BB MOPAR FRONT COMPRESSOR
BRKT 18361-VUB
1½” HEX BOLT W/FLAT WASHER
18372-VUB
4” HEX BOLT W/FLAT WASHER
18371-DSR
3¾” HEX BOLT W/FLAT WASHER
18365-VUB
2¼” HEX BOLT W/FLAT WASHER 18155-VUB
3/8-16 LOCK-NUT W/FLAT WASHER
18155-VUB 3/8-16 LOCK-NUT
W/FLAT WASHER 166001 BB MOPAR REAR COMPRESSOR
BRKT
2⅓”
LONG BOSS
FIGURE 3
WATER PUMP HOUSING
FRONT VIEW
Bracket Systems
TM
WATER PUMP HOUSING
18210-VUB
¾” SPACER
18201-VUB
¼” SPACER 18200-VUB
⅛” SPACER
180916-SSR
⁄” SPACER 166000
BB MOPAR FRONT COMPRESSOR
BRKT 18361-VUB
1½” HEX BOLT W/FLAT WASHER
18372-VUB
4” HEX BOLT W/FLAT WASHER
18371-DSR
3¾” HEX BOLT W/FLAT WASHER
18365-VUB
2¼” HEX BOLT W/FLAT WASHER
FLAT WASHER 18155-VUB 3/8-16 LOCK-NUT
W/FLAT WASHER
18155-VUB 3/8-16 LOCK-NUT
W/FLAT WASHER
166001 BB MOPAR REAR COMPRESSOR
BRKT
FRONT VIEW
5
FIGURE 4
SHORT BOSS
2⁄”
TM
8
WATER PUMP HOUSING FLAT
WASHER
18210-VUB
¾” SPACER
18200-VUB
⅛” SPACER POWER STEERING
BRACKET 166000
BB MOPAR FRONT COMPRESSOR
BRKT 18361-VUB
1½” HEX BOLT W/FLAT WASHER
18372-VUB
4” HEX BOLT W/FLAT WASHER
18371-DSR
3¾” HEX BOLT W/FLAT WASHER
18365-VUB
2¼” HEX BOLT W/FLAT WASHER 18155-VUB
3/8-16 LOCK-NUT W/FLAT WASHER
18155-VUB 3/8-16 LOCK-NUT
W/FLAT WASHER 166001 BB MOPAR REAR COMPRESSOR
BRKT
FIGURE 5
SHORT BOSS
2⁄” FRONTVIEW
5
180916-SSR
Bracket Systems
TM
ALTERNATOR INSTALLATION FOR 383-440 MOPAR
THIS BRACKET IS DESIGNED FOR 383-440 MOPAR WITH POWER STEERING OR WITHOUT POWER STEERING. INSTALL ALTERNATOR BRACKET AS SHOWN IN FIGURE 7, PAGE 10.
IT WILL BE NECESSARY TO TRIM THE TOP REAR ALTERNATOR EAR BUSHING ON SOME AFTERMARKET ALTERNATORS TO ¾” TO ENSURE BOLT WILL THREAD INTO ENGINE BLOCK. SEE FIGURE 6 ABOVE. OEM ALTERNATOR EAR BUSHING ¾” LONG.
ALTERNATOR TOP VIEW ALTERNATOR
EAR BUSHING
ALTERNATOR EAR BUSHING ENGINE
BLOCK
ENGINE
BLOCK
TM
10
OEM BOLT
18002-AUA
⁄” SPACER 18361-VUB
1 ½” HEX BOLT W/FLAT WASHER
18360-VUB
1 ¼” HEX BOLT W/FLAT WASHER
18210-VUB
¾” SPACER
FRONT VIEW TOP VIEW
166003 BB MOPAR REAR ALTERNATOR
BRKT
18369-BHA
3 ½” HEX BOLT W/FLAT WASHER
ENGINE BLOCK
ENGINE BLOCK
FIGURE 7
18365-VUB
2 ¼” HEX BOLT W/FLAT WASHER
18155-VUB LOCK-NUT W/FLAT WASHER
166002 BB MOPAR FRONT ALTERNATOR
Bracket Systems
TM
CHECKED BY: PACKED BY: DATE:
CHECK LIST
BRACKET KIT 161002
No. 1. 2. 3. 4. 5.
QTY. 1 1 1 1 1
PART No. 166000 166001 166002 166003 191014
DESCRIPTION
BB MOPAR FRONT COMP BRACKET BB MOPAR REAR COMP BRACKET BB MOPAR FRONT ALT BRACKET BB MOPAR REAR ALT BRACKET
383-440 MOPAR COMP/ALT HARDWARE KIT
