Create large-scale project drawings directly
within AutoCAD, the standard in the A&D
community
n
Accurately space plan with complex
furniture lines using accurate Design
Automation™ tools
n
Export drawings into the industry’s most
robust specification tool for product
optioning and pricing
n
Access over 500,000 2D and 3D furniture
symbols representing over 70 leading
manufacturers
Strategic technology for the interiors industry.
Strategic technology for interior design

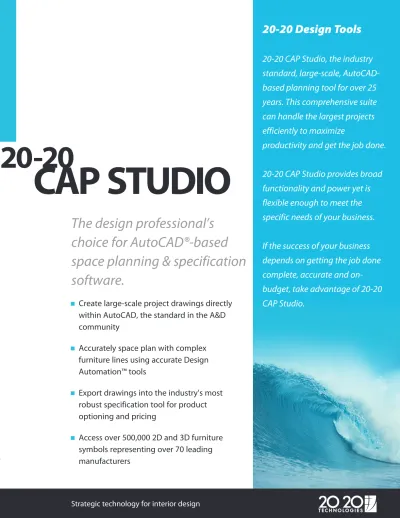

20-20 Design Tools
20-20 CAP Studio, the industry
standard, large-scale,
AutoCAD-based planning tool for over 25
years. This comprehensive suite
can handle the largest projects
efficiently to maximize
productivity and get the job done.
20-20 CAP Studio provides broad
functionality and power yet is
flexible enough to meet the
specific needs of your business.
If the success of your business
depends on getting the job done
complete, accurate and
on-budget, take advantage of 20-20
CAP Studio.
The design professional’s
choice for AutoCAD®-based
space planning & specification
software.
20-20
20-20 CAP Studio is an integrated package of applications that
automate the design and specification process. It contains two base
applications, 20-20 CAP Designer and 20-20 CAP Worksheet. CAP
Designer is a CAD-based design tool operated within AutoCAD. CAP
Worksheet is a power specification tool used for product pricing,
specification and estimating.
Where 20-20 CAP Studio Adds Value
THE SALES PROCESS
Bringing value to
your business.
The largest dealers and design
firms in the country depend on
20-20 CAP Studio. Why?
Because it’s a sound
technology investment,
decreasing operating costs,
errors, and design time while
increasing productivity and
profits.
Sound Technology
20-20 CAP Studio has been the
industry-standard for
CAD-based space planning for over
20 years. Building on that
legacy, 20-20 CAP Studio
continues to develop
revolutionary tools on this
established platform.
Decreased Operating Costs,
and Errors
20-20 CAP Studio’s time-saving
Design Automation™ tools and
wizards reduce both design
time and costly errors. And
20-20’s professional Customer
Solutions team helps reduce
downtime with expert support
and training.
Integrated Project Data
Project Exchange, part of
20-20’s new Integrated Dealer
Solution, connects the sales
and design roles within your
business. Information built in
20-20 GIZA or 20-20 Office
Sales during the sales process
can be electronically passed to
the design team using CAP
Studio and vice versa. The
bottom line: your efficiency
and communication increase
while your sales cycle shortens.
20-20
CAP STUDIO
THE DESIGN PROCESS
FACILITIES MANAGEMENT
INFORMATION TECHNOLOGY
n Speed quoting by quickly navigating manufacturer catalogs within CAP Worksheet™ to select, price and quote products and projects.
n Ease the “hand-off” process by enabling sales to electronically transfer all project information contained in 20-20 CAP Studio, 20-20 GIZA, and 20-20 Office Sales to design using Project Exchange™.
n Space plan directly inside AutoCAD combining the strength of AutoCAD with CAP Designer to handle large-scale projects with ease.
n Communicate files with A&D firms in the standard DWG format.
n Automate redundant error-prone tasks with Design Automation™ tools.
n Import complete large-scale space plans and layouts into CAP Worksheet for full specification, discounting and order entry.
n Accelerate the specification process while accurately handling large-scale projects.
n Create an open link of communication between you, you’re A&D firm, contractors and your furniture dealer using a common AutoCAD environment.
n Manage in-use and offsite inventory using CAP Compare for move management and reconfigurations.
n Depend on on-time, accurate data updates every month and clean, efficient installations.
n Operate on industry-standard operating systems, software and hardware.
n Speed the monthly update process through standardized network installations.
CAP Custom Catalogs Data Development
CAP Worksheet
Manufacturer Catalog & Graphic Data
Take-Off from CAP Designer CAP Designer
Man ufactur
er Data Manufactu
rer
2 0 - 2 0 C A P D E S I G N E R
CAP Architectural™
Easily create building shells and place walls, doors and windows. Easy menu-driven visuals save time. CAP Standards™
Save time, reduce errors and eliminate repetitive tasks by setting up standards, quickly and easily.
Custom Catalogs
Eliminate duplicate work and reduce errors by pulling standards from user-defined Custom Catalogs.
CAP AutoConnectors™ Save time and reduce errors by automatically placing panel connectors and end trim. Automates “rules-based” placement and tracking of panel connectors, covers and caps for many furniture lines.
CAPAutoBracketry™
Automatically analyzes designs and inserts all required mounting bracketry and leg columns into a drawing. CAP Frame Validation™Tool
Identifies common problems with panels or frames and their connectors, e.g., mirrored, duplicated or overlaid frames. Options in the Drawing
Specify individual CAP parts within a drawing when it saves time or when needed. Capture critical options in the drawing like panel tiles, schemes and finishes.
Block Preview Window
Preview a plan-view or 3D symbol of your selected item before it goes into your drawing.
Multiple Graphics Support When a single part number may be represented by many different possible graphics, CAP Studio automatically determines the best graphic to use in the drawing.
Design & Specification Wizards
Use CAP Studio’s wizards to assist and guide you throughout the design and specification process. Metric Functionality
Recognizes drawings and symbols constructed in metric measurements and correctly calculates the scale.
Block Replace
When changes must be made, swap selected areas or replace a block throughout an entire drawing to save time and reduce costs.
CAPTile™
Tag frames with a Tile Configuration name, insert graphic blocks of the front and back elevations, and update elevations. Output CAPTile configurations to print and provide to installers on-site.
Panel Builder™
Assemble components and control properties of stackable panels by saving them in a single Custom Catalog; then drag-and-drop them into your drawing.
2 0 - 2 0 C A P W O R K S H E E T
Task Pane
New to CAP Studio, this new feature of the UI is a new kind of tool bar, where
functionality is grouped into pages in a task-oriented nature.
Option Clipboard
This feature enables options to be copied from items in the worksheet and placed on the option clipboard. The contents of the clipboard can then be saved away in an Option Set. One or more option trails in an option set can be pasted to one or more items in the worksheet.
Import/Export
Export CAP Worksheet data as CAP SIF, SIF for order entry, CSV (EXCEL) or new OFDA XML.
CAP Compare™
Compare existing inventory against new configurations to determine reusable and excess product, and new requirements.
Printing
Print all worksheet levels – outlines and standards – in a single step. Customize cover pages, headers and footers. CAP Search
Perform powerful searches by part number or description across manufacturer catalogs, custom catalogs or CAP Worksheet files. This shared tool works in both CAP Designer and CAP Worksheet. Subtotals
You can subtotal at any place in the worksheet, subtotal by a selection set, or have Worksheet insert your subtotals for you as your items are sorted.
Product Categorization
Sort products by type of product such as “seating”, “panels” or “filing” to speed the optioning process and better track costs attached to these individual project elements.
Worksheet Templates
Standardize worksheet formats in your organizations and quickly organize columns and other worksheet data for various user needs.
Currency Conversions
Utilizes a user-defined character for currency and to reflect adjustments to pricing for currency conversions.
CAP Options™
View option numbers, descriptions and prices while selecting finishes. Discount Schedules
Create discounts by criteria, then save and apply discount schedules as negotiated.
nImproved Accuracy
Improve the accuracy of your design team by supplying them with the most powerful planning tool in the industry.
nScalable Planning
Create large-scale project drawings directly within AutoCAD®, the standard in the A&D community.
nSpeed in Service
Deliver more detailed, accurate quotes and space plans faster than your competition.
nUnprecedented Support
Expert trainers and technical support specialists help keep your design team operational and efficient.
nRobust Content
Access over 500,000 2D and 3D furniture symbols representing more than 70 leading manufacturers.
nMaximum Flexibility
Adapt CAP Studio to your design process and product lines. Then improve your processes to take full advantage of the power of AutoCAD and 20-20 CAP Studio.
B E N E F I T S
nCAP Designer™
Build large-scale projects with easy using the most advanced AutoCAD-based space planning tool in the industry.
nCAP Worksheet™
Accurately and quickly specify, price and organize products with the industry’s choice for specification software.
nProject Exchange™
Open the communication channels in your company. Freely exchange project information between 20-20 GIZA, 20-20 CAP Studio and 20-20 Office Sales
nMini-Explorer™
Control all your project data from one powerful interface including manufacturer content, project hierarchy, custom catalogs, bookmarks, and last search results.
nCAP Architectural™
Rapidly draw walls, doors, windows, curved walls, reflected ceiling plans, custom windows and doors directly within AutoCAD®.
nCAP Compare™
Compare existing inventory against new configurations to determine reusable and excess product and new requirements.
nDesign Automation™ Tools
Save time and reduce errors during the space planning process by automating design tasks that are prone to error.
nCustom Catalogs
Capture, manage, and re-use furniture configurations. Accessed from both CAP Designer and CAP Worksheet, user-defined custom catalogs can contain both full and partial furniture specifications.
nStandards
A powerful tool to save time, reduces errors, and eliminates repetitive tasks. Created in either CAP Designer or CAP Worksheet, Standards are groups of product that are combined to represent complete assemblies like workstations.
nDrawing Takeoff
Effortlessly generate a bill of materials from a project drawing. Drawing “takeoffs” automatically gather all the information from each furniture part including manufacturer, product line, quantity and price, then utilizes that data to build a bill of materials in CAP Worksheet.
Meeting w/ client or A&D firm
Identify project requirements, budget
and needs
Pass project information and data
to Design Team
Import Architectural from A&D firm
Build Architectural in 20-20 CAP Studio
Create space plans & typicals
Import space plan into 20-20 CAP Worksheet
Specify options & finishes
Present design concept & quote to
client/A&D firm
Receive “go ahead” from client/A&D firm
Finalize space plan and finishes
Prepare final drawings and contract docs
Receive P.O. from client/A&D firm
Prepare installation plans
Export furniture order into DBOS
20-20 CAP Studio
Sales Cycle
= Sales Process Step using 20-20 CAP Studio
= Step in Sales Cycle
Client change requests and designmodifications
20-20 CAP Architectural Import DWG file from
A&D firm into AutoCAD
20-20 CAP Designer CAP AutoConnectors Block Swap™, tagging, CAPTile™, AutoBracketry™ Drawing “take-off” into 20-20 CAP Worksheet
20-20 CAP Worksheet CAP Options™ block assign discount schedule enhanced discounting Mini-Explorer™
20-20 CAP Designer Frame Validation Tool Draw Schedule
20-20 CAP Designer plot blueprints & typicals build final pricing 20-20 Project Exchange™ 20-20 Integrated Dealer Solution
Need more information? Contact us at: www.2020.net
n20-20 CAP Studio automates the design and specification of CAD-based space planning projects.
© 1998-2004 – 20-20 Technologies Inc. All rights reserved. The names 20-20 Technologies, 20-20, 20-20 Design, 2020.net, CAP Studio and Giza, are registered, pending or common law trademarks of 20-20 Technologies Inc. and/or any of its subsidiaries. All reference to other brands and products appearing herein are trademarks of their respective holder(s). 20-20 Technologies Inc. reserves the right to alter specifications and other product information without prior notice. The software and information contained herein are subject to the terms and conditions of the License Agreement included with the media.
World Headquarters and Residential Sales & Service: 20-20 Technologies Inc. 400 Armand-Frappier Blvd. Suite 2020
Laval, QC Canada H7V 4B4
Commercial Sales & Service: 20-20 Technologies 99 Monroe Avenue, NW Suite 400
Grand Rapids, MI USA 49503-2651
P R O D U C T D I A G R A M
Phone: (514) 332-4110 FAX: (514) 334-6043 Sales Toll Free: (866) 698-2020 E-mail: [email protected]
Phone: (616) 454-0000 FAX: (616) 454-4140 Sales Toll Free: (800) 227-0038 E-mail: [email protected]
060404_rev.1-1
MANUFACTURING
DESIGN MANAGEMENT CONTENT INTERNET
Strategic technology for
CAP, CAP Studio, CAP Designer and CAP Worksheet are trademarks of 20-20 Technologies, Inc. AutoCAD is a trademark of Autodesk, Inc. Windows is a trademark of Microsoft.
S Y S T E M R E C O M M E N D A T I O N S
v e r s i o n 2 . 6
n Processor: Intel Pentium® II or AMD-K6® with 450 MHz processor or higher
n Operating System: Windows ® NT4 SP3, 2000, or XP
n RAM: 128 MB
n Video Card: SVGA graphics card w/ 8 MB video memory
n Resolution: 1024 x 768
n Hard Drive: 2 GB or more free space
