Continuous miniaturization and increasing quality
and reliability demands drive the need for high
resolution inspection tools. As a leading supplier of
industrial X-ray inspection systems for microfocus
and non-destructive testing, YXLON International is
taking up this challenge. Across various domains,
including electronics, micro-systems, assemblies
and materials, product integrity can be ensured
through deployment of the Feinfocus product
family – high performance X-ray solutions
optimized for the use in research and development,
prototyping, failure analysis, process monitoring
and higher volume production testing.
Y.Tiger is the ergonomic Feinfocus X-ray solution
especially designed for high volume inspection
tasks.
YXLON. The reason why.
YXLON. The reason why

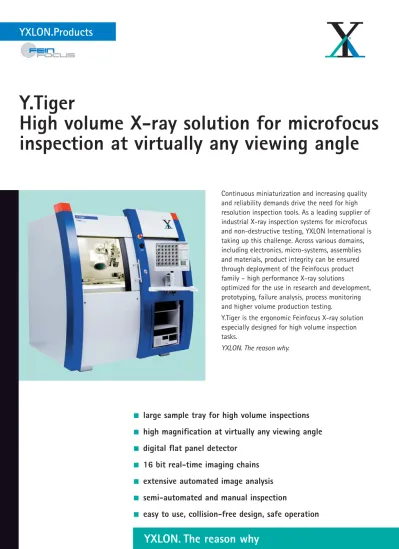

Y.Tiger
High volume X-ray solution for microfocus
inspection at virtually any viewing angle
■
large sample tray for high volume inspections
■
high magnification at virtually any viewing angle
■
digital flat panel detector
■
16 bit real-time imaging chains
■
extensive automated image analysis
■
semi-automated and manual inspection
■
easy to use, collision-free design, safe operation
YXLON.Products
Y.Tiger X-ray solution
Designed to meet the rigorous needs of the printed circuit board assembly (PCBA), automotive, telecom, military and aerospace, medical device, and storage markets, the award-winning Y.Tiger X-ray solution ensures that only the highest quality assemblies leave the production floor. The com-prehensive expertise acquired by the pioneer of microfocus X-ray inspection technology with more than 2500 system installations worldwide steered the development of a user-friendly high volume microfocus inspection solution, the Y.Tiger.
The result is a sophisticated X-ray solution offering extensive functionality for thorough inspection supported by advanced technological solutions for easy operation.
The Y.Tiger series is the ideal solution for real-time microfocus X-ray inspections offering outstanding ergonomics.
Bonding wires with ball and wedge bonding Medical implant, micro motor gear box, aluminum casting, and relais
YXLON.Products
Applications
Trends in printed circuit board, micro-system and semi-conductor packaging technologies commonly go toward small and compact assemblies. Three dimensional packaging is increasingly becoming the manufacturing method to meet these needs. Shrinking geometries with increasing component density in multiple planes require inspection of these assemblies at a variety of viewing angles under high magni-fication. Quality control and process analysis of these production lines have never been more important, and manufacturers are increasingly demanding inspection solutions that ensure high quality.
Y.Tiger systems particularly address these inspection needs in terms of inspection area and magnification while providing high flexibility and outstanding ergonomics in application. Ranging from failure analysis to volume production test, Y.Tiger systems enable in-depth inspection across a wide range of applications:
• Electronics assemblies
• Printed circuit boards (PCB) including multilayer boards • Semiconductor packages and interconnects
• High-Density Interconnects (HDI)
• Sensors, micro-systems and encapsulated components • Medical devices
• Micro-Electro-Mechanical Systems (MEMS, MOEMS) • Cables and harnesses
Ball grid array (BGA) in oblique views Measurements for wire sweep, barrel fill (THT), and BGA voiding in single ball
Configuration and specifications
The Y.Tiger is ideal for any 24/7 production environment, as the unique and ergonomic design of the system maximizes inspection area while minimizing required floor space. The superior anti-collision capability eliminates the need for distracting viewing windows. All information is displayed through the Feinfocus Graphical User Interface (Y.FGUI) on the flat screen.
• Anti-collision design for damage-free inspection • High geometric magnification of up 727 x,
total magnification of up to 2,800 x
• Tilt and rotate detector for oblique viewing at up to 70° with 360° rotation for inspections at virtually any angle • Optional multifocus X-ray tube (MFT) offering three
operating modes:
- Microfocus (µf) for microfocus applications - Nanofocus (nf) for sub-micron applications - High Power (HP) for inspection of denser materials • Detail detectability down to < 500 nm
• Large sample tray of up to 610 mm x 610 mm (24” x 24”) • 16 bit real-time image processing with more than
65,000 gray-scales as standard
• Optional high speed digital flat panel detector (Panel 1313 HS) or high definition image intensifier (II 150 HD) • Optional automatic BGA and SMT (QFP) analysis, voiding
calculation, universal Automatic Defect Recognition (ADR), and AVI recording
• Full CNC capabilities for X-ray, manipulation, and image processing as standard
Ergonomics, easy usage and safety
Y.Tiger systems represent a significant advancement in user-friendly operation. Easy usage and ideal ergonomics are achieved through the deployment of advanced technological solutions. These reduce the strain of operating a high-tech X-ray inspection system yet still provide highest quality inspection results.
• Easy-to-use mouse manipulation and navigation by “Click & Center” or via optional joysticks
• Auto Isocentric Motion (AIM), a Feinfocus exclusive smart manipulation technology automatically keeping the region of interest in the center of view – regardless of magnification, viewing angle and tilt/rotate • Intuitive-to-use Feinfocus Graphical User Interface
(Y.FGUI) for image analysis and system control • Easy Teach-In enabling code free programming of
customer inspection routines yet maintaining additional customization through Visual Basic
• Easy-View, a dedicated, flexibly configurable operator workspace supporting single-click execution of numerous customer inspection routines
• True X-ray Intensity (TXI) technology achieving sharp, consistent image quality through continuous feedback of X-ray source status
• Virtually unlimited X-Ray tube life due to open tube design
• Operator console adjustable in height and position • Easy access sliding door (automatic option) with
automatic X-ray off for safe and efficient sample loading • Radiation safety < 1 µSV/h
®
Surface mount technology: chip passive, MLF, PLCC, and SOIC Automatic analyses: voiding calculation, SMT analysis (QFP), and BGA analysis
Manipulation
Y.Tiger systems offer ultimate real-time viewing capabilities: • Detector tilt and full rotation
• Sample tray X/Y manipulation • Tube Z-axis for magnification • Sample rotation (optional)
Inspection workflow
Y.Tiger systems offering high magnification even for oblique viewing and easily taught CNC inspections are ideally suited for advanced applications in failure analysis, process moni-toring and volume inspection of single samples and larger volumes. Samples can be placed on the inspection area without usage of any special fixtures. The sliding door with an automatic option allows comfortable loading of single devices and trays. X-ray can only be activated when the sliding door has been closed. Immediate visual feedback is given on the flat screen display through the use of the real-time imaging chain.
■ Manual inspection workflow
For manual inspection, the system can be fully controlled via the software interface; the joystick operator console is optional:
• “Click & Center” - global X/Y sample manipulation upon mouse click in overview image that is available immediately after sample loading
• “Click & Center” – fine X/Y sample manipulation upon mouse click in X-ray image
• “Steer & Fly” – continuous X/Y sample manipulation with direction and throttle control by mouse positioning • “Frame & Zoom” – zoom and manipulate sample to
inspect the region marked by mouse operation • Tilt and rotate are controlled by a single mouse click on
the manipulation globe or through the usage of software joysticks in the manipulation panel
A rich library of software operators allows image manipulation and analysis supported by convenient wizard functions.
■ Automated inspection workflow
Y.Tiger systems are supported by a code-free Easy Teach-In function which allows fast definition of X-ray workflows (inspection routines) by a few mouse clicks. The corresponding Visual Basic script generated automatically in the background is ideally suited for further customization where desired. Libraries of taught inspection routines are comfortably available in the Easy-View operator mode.
®
Y.FGUI
The Y.FGUI (Feinfocus Graphical User Interface) offers an ideal solution regarding easy operation and advanced system control while placing an emphasis on the real-time X-ray image. Easily associated icons and controls, supported by clutter-free workspaces enable intuitive usage and fast operator training.
■Overall structure
The large X-ray image is accompanied by ergonomically separated workspaces for the Easy-View operator mode, advanced image processing and CNC teaching, display of manipulation details and advanced tube and system control. Main tube parameters are controlled at the common upper workspace region. Overview, manipulation and parameter panels are positioned at the lower right.
■Easy-View Workspace • Control of main tube settings • Automatic contrast on/off • Sharpening on/off
• Display settings in X-ray image • Add freely editable text • Save image
• Access to a library of CNC inspection workflows • Enables quick and easy operator training
■ Easy Teach-In
Code-free Teach-In by a few mouse clicks is accomplished following a straightforward recipe:
■ Image Process (IP) Workspace
• Easy-to-use operators and analysis tools as standard including contrast, sharpening, average, OSD with spatial, wire sweep and THT measurements, etc.
• Additional optional operators for image analysis (BGA, QFP, voiding calculation) supported by configuration wizards
• Straightforward drag & drop composition of image chain and adjustment operator parameters
• Control of detector settings
• Ergonomic arrangement for all typical inspection workflows
1. Load sample and activate X-ray 2. Position sample and set system parameters for region of interest 3. Optionally compose image
process including image analysis 4. Select “Set & save-image”
5. Go back to step 2 for further inspection points 6. Select “Finish” in Teach-In menu
®
