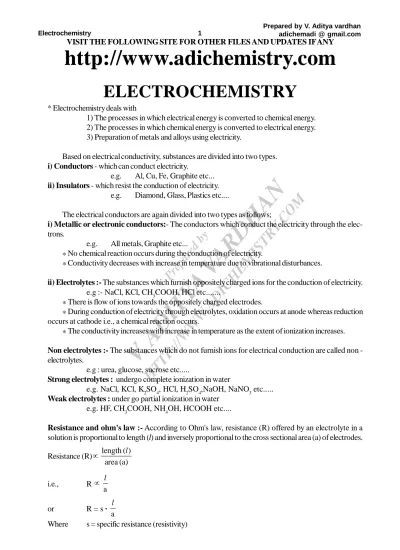

ELECTROCHEMISTRY

* Electrochemistry deals with

1) The processes in which electrical energy is converted to chemical energy. 2) The processes in which chemical energy is converted to electrical energy. 3) Preparation of metals and alloys using electricity.

Based on electrical conductivity, substances are divided into two types.

i) Conductors - which can conduct electricity.

e.g. Al, Cu, Fe, Graphite etc...

ii) Insulators - which resist the conduction of electricity.

e.g. Diamond, Glass, Plastics etc....

The electrical conductors are again divided into two types as follows;

i) Metallic or electronic conductors:- The conductors which conduct the electricity through the

elec-trons.

e.g. All metals, Graphite etc...

* No chemical reaction occurs during the conduction of electricity.

* Conductivity decreases with increase in temperature due to vibrational disturbances.

ii) Electrolytes :- The substances which furnish oppositely charged ions for the conduction of electricity.

e.g :- NaCl, KCl, CH₃COOH, HCl etc...

* There is flow of ions towards the oppositely charged electrodes.

* During conduction of electricity through electrolytes, oxidation occurs at anode whereas reduction occurs at cathode i.e., a chemical reaction occurs.

* The conductivity increases with increase in temperature as the extent of ionization increases.

Non electrolytes : The substances which do not furnish ions for electrical conduction are called non

-electrolytes.

e.g : urea, glucose, sucrose etc...

Strong electrolytes : undergo complete ionization in water

e.g. NaCl, KCl, K₂SO₄, HCl, H₂SO₄,NaOH, NaNO₃ etc...

Weak electrolytes : under go partial ionization in water

e.g. HF, CH₃COOH, NH₄OH, HCOOH etc....

Resistance and ohm's law :- According to Ohm's law, resistance (R) offered by an electrolyte in a

solution is proportional to length (l) and inversely proportional to the cross sectional area (a) of electrodes. Resistance (R) length ( ) area (a) l  i.e., R a l  or R = s . a l

(2)

2

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

 s = R. a l When a = 1 cm2 _{and l = 1 cm} Then s = R

Specific resistance (s) : The resistance shown by a material of 1 cm length and 1 cm2_{of cross sectional}

area is called specific resistance (or) resistivity. Units of 's' s = R . a l  ohm . 2 cm cm  ohm . cm. (in CGS) or  ohm . m (in SI)

Conductance (C) :- It is the reciprocal of resistance.

C = 1 R C = 1 ax s l C = k x a l Where k = 1

s = specific conductance (conductivity)

Cell constant : The quantity, l

a is called cell constant.

cell constant = distance between two electrodes

area of cross section of electrodes

l a



Specific conductance (k) :- The conductance of 1 cm3_{solution is called specific conductance or}

conductivity.

Units of 'k' = ohm-1_cm-1_{or mho cm}-1 _(C.G.S)

= Siemen. m-1_{or S.m}-1 _{(S I)}

Equivalent conductance (_) :- The conductance of a solution containing one equivalent weight of

electrolyte present between two parallel electrodes separated by a unit distance of 1 cm (or) 1 m is called equivalent conductance (_). k x 1000 N   Where N = Normality k = Specific conductance Units of '' -1 -1 -3 Ohm . cm equivalents . cm 

(3)

3

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

= ohm-1_cm2_equivalents-1 _(CGS) or = Siemen. m2_{. equivalent}-1 _{(S I)}

Molar conductance (μ or Λ ) :- The conductance shown by a solution containing 1 mole of electrolytem

present between two parallel electrodes separated by a unit distance of 1 cm or 1m is called molar conductance

k x 1000 M

 

M = Molarity Units : ohm-1_{. cm}2_{. mol}-1

or Siemen . m2_{. mol}-1

Factors affecting conductivity of electrolytes :

* Strong electrolytes undergo complete ionization and hence show higher conductivities whereas weak electrolytes undergo partial ionization and hence show low conductivities in their solutions.

* The ionic mobility decreases with increase in its size and hence conductivity also decreases. * In aqueous solutions the extent of hydration affect the mobility of the ion, which in turn affect the conductivity. Heavily hydrated ions show low conductance values.

E.g.,In aqueous solutions Li+_{ion (with high charge density) is heavily hydrated than Cs}+_{ion (with low}

charge density). Hence hydrated Li+_{bigger than hydrated Cs}+_{. As a result, lithium salts show lower}

conductivities compared to those of cesium salts in water.

* Specific conductance (k) decreases with decrease in concentration of solution as the number of ions per unit volume decreases.

* Equivalent or molar conductances increase with decrease in concentration (upon dilution) as the extent of ionization increases

* Weak electrolytes undergo complete dissociation at infinite dilution and show the maximum con-ductance. The equivalent conductance and molar conductance of solutions at infinite dilutions are denoted by  (or) _  and µ₀ _ (or)  respectively.._o

Debye - Huckel - Onsagar equation

It is possible to determine the equivalent conductances of electrolytes at given concentration by using Debye - Huckel - Onsagar equation.

c o

Λ = Λ  A c

Where Λ = equivalent conductance at given concentration._c

o

Λ = equivalent conductance at infinite dilution. c = concentration









5 o 1 3 2 2 82.4 8.2 x 10 A = a constant = + Λ DT DT

D = Dipole moment of water

A straight line with negative slope is obtained when equivalent conductance values are plotted against different concentrations. The equivalent conductance at infinite dilution can be determined by extending this straight line to zero concentration.

(4)

4

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

c C

Λ

0



Conductance ratio () : The ratio of the equivalent conductance (Λ ) at given concentration to that at_c infinite dilution (Λ ) is called conductance ratio (o )

c o

Λ Λ

 

For weak electrolytes, '' is called degree of ionization.

KOHLRAUSCH LAW OF INDEPENDENT MIGRATION OF IONS

The equivalent conductance of an electrolyte at infinite dilution is the algebraic some of equiva-lent conductances of constituent ions (cations and anions) at infinite dilution.

electrolyte   =   +    

= equivalent conductance of cation at infinite dilution



 = equivalent conductance of anion at infinite dilution



 and  

 are also called ionic conductances at infinite dilution. These are proportional to ionic

mobilities + o u and -o u . i.e., + o u    and -o u    or + + o λ_ k u and - -o λ_ = k u

'k' is a proportionality constant and its value is equal to one Faraday (96,500 coulombs)

 λ+ = F uo+ and

-

-o

λ_ = F u

Hence Kohlrausch law can be written as

+ -o o F u F u electrolyte     or



+ -



o o F u u electrolyte     Applications :

1) It is not possible to experimentally determine the equivalent conductances of weak electrolytes at infinite dilution. But by using this law it is possible to calculate the equivalent conductance of weak electro-lytes at infinite dilution.

The equivalent conductance of acetic acid at infinite dilution can be calculated as follows e.g. CH COOH3 _λCH COO3 - _λH+

      - + 3 3 CH COONa _λCH COO _λNa       + -HCl _λH _λCl       + -NaCl

_λ

Na

_λ

Cl    





(5)

5

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

Therefore CH COOH3 CH COONa3 HCl NaCl

   

      

2) The degree of ionization of a weak electrolyte () can be calculated by using Kohlrausch law as follows.

equivalent conductance of solution of given concentration ( ) Degree of ionization ( ) =

equivalent conductance of solution at infinite dilution ( )

c     i.e.,  c    

Problems:-1) At 250_{C, the specific conductance of acetic acid of 0.01N concentration is 0.000163 ohm}-1 _cm-1_{. What}

is  at this concentration ?_c

2) At 250_{C, the equivalent conductances of CH}

3COONa, HCl and NaCl at infinite dilution respectively

are 91.0, 426.16 & 126.45 ohm-1_._cm2_{. eq}-1_{. What is}

o

 of CH₃COOH ?

3)  of acetic acid at 25_c 0_{C is 16.3 ohm}-1_cm2_eq-1_{. The ionic conductances of H}+_{and CH}

3COO -are

349.83 & 40.89 ohm-1_cm2_eq-1_._{What is}

_

_{of CH}

3COOH ?

ELECTROLYSIS

The decomposition of chemical compound in the molten state or in solution state into it's constituent elements under the influence of an applied E.M.F is called electrolysis.

Electrolysis is carried out in an electrolytic cell, provided with two electrodes. The electrode con-nected to negative end of a battery is called cathode and which is concon-nected to positive end is called anode.

An electrolyte either in molten state or in solution state is taken into this cell and electrolyzed by applying E.M.F. The cations are reduced at cathode and anions are oxidized at anode.

Battery e- e -+ -+ Anode cathode electrolyte Examples: Electrolysis of molten KCl

Following reactions will occur at electrodes when molten KCl is electrolyzed using platinum elec-trodes. + -KCl K + Cl molten  At cathode + -K +1e  K Reduction At anode - -2 2Cl  Cl  2e oxidation

(6)

6

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

Complete redox reaction

2

2KCl  2K + Cl

Electrolysis of aqueous solution of KCl

In this case, hydrogen gas is evolved at cathode as K+ _{ions can not undergo reduction in presence of}

water. The electrode reactions are shown below.

+

-(aq) (aq) (aq)

KCl  K + Cl At cathode - -2 2 2H O + 2e  H + 2OH At anode -2 2Cl  Cl  2e Overall reaction is 2 2 2 2KCl + 2H O H + 2KOH + Cl Electrolysis of water

Following reactions will occur during the electrolysis of water. At cathode 4H₂O + 4e-___2H 2 + 4OH -At anode  2H₂O  O₂ + 4H+_{+ 4e} -Net reaction 2H₂O  2H₂ + O₂

Hence 4 Faradays of electricity is required to electrolyze 2 moles of water. Some important aspects in electrolysis

1) The ions of highly reactive metals like alkaline and alkali earth metals do not undergo reduction in presence of water. These metals have low reduction potentials than water and hence, water molecules undergo reduction by liberating H₂ gas at cathode.

2) The metals with low reactivity, like transition metals, can undergo reduction even in presence of water. These metals have higher reduction potentials than water.

3) Oxy anions like -2 4 SO , -3 NO , 2-3 CO , 3-4

PO etc. are very stable and can not undergo oxidation at anode. Instead water molecule is oxidized by liberating oxygen gas.

E.g., In the electrolysis of aqueous solution of AgNO₃by using platinum electrodes, silver can be deposited at cathode as it is less reactive metal. But NO₃-_{ion cannot be oxidized. Instead, water is}

oxidized by liberating oxygen gas.

(aq) (aq) (aq)

+ -3 3 AgNO  Ag  NO At cathode: Ag+_(aq)  1e- Ag At anode: + -2 2 2H O  4H + O + 4e

4) Electrodes which do not participate in the electrochemical reaction are called inert or passived electrodes. Usually platinum and graphite electrodes are used as inert electrodes.

But some electrodes may participate in the electrochemical reaction. These are said to be active electrodes.

e.g. When aqueous solution of AgNO₃is electrolysed by using copper electrodes, silver is deposited at cathode and dissolved at anode.

(7)

7

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

At cathode: Ag+_(aq)  1e- Ag Deposition of silver on cathode At anode: AgAg+_(aq)  1e- Dissolution of silver anode In this case, silver electrode is acting as active electrode.

FARADAY'S LAWS OF ELECTROLYSIS

First law : When an electrolyte, either in molten state or solution state is electrolyzed, the amount of

substance deposited or dissolved at electrodes is directly proportional to the quantity of electricity passed through the electrolyte.

Mathematically

amount of substance (m)



quantity of electricity in coulombs (q)

mq m  eq

Where e = electrochemical equivalent But q = ct

Where c = current in amperes t = time in seconds

 m = ect

When q = 1 Coulomb or when c=1 ampere and t = 1 sec Then e = m

Hence

Electrochemical equivalent :- The amount of substance deposited or liberated or dissolved at

elec-trodes when 1 coulomb of electricity is passed through the electrolyte in molten or solution state is called electrochemical equivalent of that substance.

or

The amount of substance deposited or liberated or dissolved at electrodes when 1 ampere current is passed through the electrolyte in molten or solution state for one second is called electrochemical equivalent of that substance.

Faraday :- The amount of charge transported during the migration of 1 mole of electrons is called

Faraday.

Faraday (F) = 1.602 x 10-19_{C x 6.022 x 10}23

= 96,500 coulombs

Equivalent weight (E) :- The amount of substance formed at electrodes when one Faraday of electricity

is passed through the electrolyte. Hence E = F x e or e = E F  Ect m F  _or m Eq F  Where E = Atomic weight

Valency

(8)

8

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

connected in series containing different electrolytic solutions or melts, the amounts of substances deposited or liberated or dissolved are directly proportional to their equivalent weights.

m E

or 1 1

2 2

m E

m  E

Illustration :- When three electrolytic cells containing different electrolytes i.e., CuSO₄, AgNO₃and H₂SO₄ in aqueous solutions are connected in series and same quantity of electricity is passed through them, then from Faraday's second law the ratio of amounts of Cu, Ag, H₂and O₂ formed at different electrodes can be given as follows.

2 2 2 2 Cu Ag H O Cu Ag H O m : m : m : m = E : E : E : E or Cu Cu Ag Ag m E m  E or 2 2 2 2 H H O O m E m  E or 2 2 Cu Cu O O m E = m E etc... CuSO₄ AgNO₃ H₂SO₄ Battery -+ + - + -Problems :

1) A current of 10 amperes is passed through molted AlCl₃ for 96.5 sec. Calculate the mass of aluminium deposited at cathode.

2) What is the ratio of weights of Ag and Al deposited at respective cathodes when the same current is passed for same period through aqueous AgNO₃ and Al₂(SO₄)₃ solutions.

GALVANIC CELLS (OR) VOLTAIC CELLS

The device which makes use of a spontaneous redox reaction for the generation of electrical energy is called galvanic cell or voltaic cell or electrochemical cell.

Construction of a galvanic cell : A galvanic cell consists of two half cells called single electrodes which

are connected to each other.

Single electrode: A single electrode consists of a metal or a non metal in contact with their ions.

While representing a single electrode, the metal or non metal and its ion are written by separating with a vertical line.

e.g: Metal electrodes Zn2+_{/ Zn}

(9)

9

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

Ag+ / Ag Non Metal electrodes

+ 2 1 H H , Pt 2 Cl₂, Pt / Cl -Br₂, Pt / Br -Daniel cell :

This cell contains two half cells divided into two compartments by a porous diaphragm. A zinc rod immersed in ZnSO₄ solution in one half cell acts as anode. Another half cell is provided with a copper rod immersed in CuSO₄ solution. It acts as cathode. These are connected by a metallic wire externally.

When connected, following reactions occur in the two half cells and thus by producing electricity. In Zn half cell (anode) Zn  Zn+2_{+ 2e}- _oxidation

In Cu half cell (cathode) Cu2+_{+ 2e}-_{ Cu} _Reduction

Total reaction Zn + Cu+2_{ Zn}2+_{+ Cu}

Note: In galvanic cell, anode is indicated by negative sign whereas cathode is indicated by positive sign.

ZnSO₄ solution e -e -e -Anode Cathode Zn-2 ions Cu+2 ions CuSO₄ solution Zn rod _{Cu rod} Ammiter Porous diaphragm Reactive resistance Voltaic cell :

Daniel cell is modified by connecting two half cells internally by a salt bridge. One half cell contains a zinc rod immersed in ZnSO₄ solution and another half cell consist of a copper rod immersed in CuSO₄ solution.

These two half cells are connected externally by a metallic wire whereas a salt bridge is used to connect them internally.

Salt bridge is a U-shaped tube filled with Agar - Agar solution of KCl or NH₄NO₃. This is used to avoid junction potential.

Following reactions occur in this cell.

In Zn half cell (anode) Zn  Zn+2_{+ 2e}- _oxidation

In Cu half cell (cathode) Cu2+_{+ 2e}-_{ Cu} _Reduction

(10)

10

P

re

pa

re

d

by

V. A

D

IT

YA

V

ARD

H

A

N

H

T

P

:/

/W

W

.A

D

IC

H

E

M

IST

R

Y. C

O

M

e -e -e -e -Electrolyte - I _{Electrolyte - II}

Anode half cell Cathode half cell

Anode cathode

salt bridge

Reactive resistance Ammeter

Representation of galvanic cell :- According to IUPAC convention the oxidation half cell is written on

the left hand side and reduction half cell is written on the right hand side. Two vertical lines are used to indicate the salt bridge. Negative sign is used to indicate the oxidation half cell (anode) and a positive sign is used to indicate the reduction half cell (cathode).

e.g : Above galvanic cell can be represented as follows. Zn / Zn2+_{// Cu}2+

/ Cu 

Where Zn / Zn2+ ₌ _{Zn half cell}

Cu2+ _{/ Cu} ₌ _{Cu half cell}

// = salt bridge

Differences between electrolytic and galvanic cells

Electrolytic cell Galvanic cell

1) Electrical energy is converted to chemical energy

1) Chemical energy is converted to electrical energy.

2) A non spontaneous reaction is carried out by using electrical energy.

2) A spontaneous reaction occurs. 3) Anode is indicated by positive sign whereas

cathode is indicated by negative sign.

3) Anode is indicated by negative sign whereas cathode is indicated by positive sign.

4) Both oxidation and reduction reactions occur in one cell

4) Oxidation and reduction reactions occur in different half cells.

Note: 1) Oxidation occurs at anode and reduction occurs at cathode in both the cells. 2) The flow of electrons is always from anode to cathode in both the cells.

Single electrode potential (E) :- The potential difference existing at the surface of contact between

metal (or) non metal and its ionic solution is called single electrode potential.

Standard electrode potential (E0_{) :- The potential difference at the surface of contact between metal}

(or) non metal and its ionic solution at unit concentration and at 250_{C is called standard electrode potential}

(E0_).

Single electrode potential can be written for oxidation half cell or reduction half cell. Both oxidation electrode potential and reduction electrode potential have same magnitude but have opposite signs.

e.g : Zn / Zn2+_{is oxidation half cell and its E}0_{value is + 0.762V.}

Zn2+_{/ Zn is reduction half cell and its E}0_{value is - 0.762V.}

Standard hydrogen electrode (SHE) (or) Normal hydrogen electrode (NHE)

In this cell, hydrogen gas at 1atm pressure is continuously bubbled into an acid solution of unit activity ( 1M HCl ) along a platinum rod, which is coated by platinum black.
