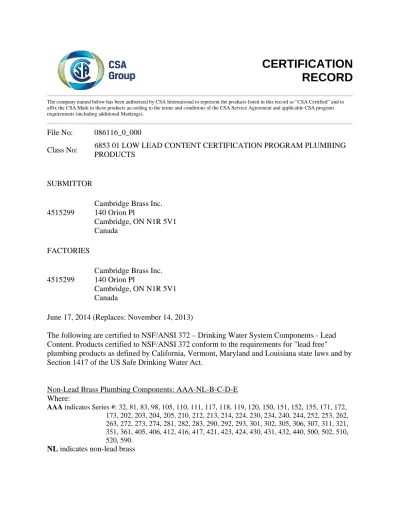

CERTIFICATION RECORD LOW LEAD CONTENT CERTIFICATION PROGRAM PLUMBING PRODUCTS. Class No: SUBMITTOR

(1)

The company named below has been authorized by CSA International to represent the products listed in this record as “CSA Certified” and to affix the CSA Mark to these products according to the terms and conditions of the CSA Service Agreement and applicable CSA program requirements (including additional Markings).

File No:

086116_0_000

Class No:

6853 01 LOW LEAD CONTENT CERTIFICATION PROGRAM PLUMBING

PRODUCTS

SUBMITTOR

4515299

Cambridge Brass Inc.

140 Orion Pl

Cambridge, ON N1R 5V1

Canada

FACTORIES

4515299

Cambridge Brass Inc.

140 Orion Pl

Cambridge, ON N1R 5V1

Canada

June 17, 2014 (Replaces: November 14, 2013)

The following are certified to NSF/ANSI 372 – Drinking Water System Components - Lead

Content. Products certified to NSF/ANSI 372 conform to the requirements for "lead free"

plumbing products as defined by California, Vermont, Maryland and Louisiana state laws and by

Section 1417 of the US Safe Drinking Water Act.

Non-Lead Brass Plumbing Components: AAA-NL-B-C-D-E

Where:

AAA indicates Series #: 32, 81, 83, 98, 105, 110, 111, 117, 118, 119, 120, 150, 151, 152, 155, 171, 172,

173, 202, 203, 204, 205, 210, 212, 213, 214, 224, 230, 234, 240, 244, 252, 253, 262, 263, 272, 273, 274, 281, 282, 283, 290, 292, 293, 301, 302, 305, 306, 307, 311, 321, 351, 361, 405, 406, 412, 416, 417, 421, 423, 424, 430, 431, 432, 440, 500, 502, 510, 520, 590.

(2)

B/D indicate Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I,

ID, IP, J, K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS.

C/E indicates Inlet/Outlet size: 1 to 7 (½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 2”)

Plumbing Components, Other materials: AAA-B-C-D-E

Where:

AAA indicates Series #: 41, 44, 81, 84, 85, 86, 87, 88, 89, 90, 422, 425, 435, 825, 835, 1625, 1635, 8403,

8405, 8407.

B/D indicate Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I,

ID, IP, J, K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS.

C/E indicate Inlet/Outlet size: 1 to 7 (½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 2”)

Non-lead Brass Meter Setters: AAAA-NL-B-CC-D-E-F-G-H-I

Where:

AAAA indicates Series #: 6000, 6010, 6011, 6012, 6013, 6020, 6022, 6029, 6030, 6031, 6032,

6033, 6034, 6035, 6040, 6050, 6051, 6052, 6060, 6065, 7010, 7011, 7020, 7025.

NL indicates non-lead brass

B indicates meter size code

CC indicates height in inches

D/F indicates Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I,

ID, IP, J, K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS

E/G indicates Inlet/Outlet size: 1 to 7 (½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 2”)

H/I indicates Inlet/Outlet valves

Note: Products shall be installed in Accordance with the Local Code of the Authority having

Jurisdiction.

(3)

Certificate: 2253386 Master Contract: 160622

Project: 2720384 Date Issued: June 17, 2014

Issued to: Cambridge Brass Inc. 140 Orion Pl

Cambridge, ON N1R 5V1 Canada

Attention: Brian Chapman

The products listed below are eligible to bear the CSA

Mark shown with adjacent indicators 'C' and 'US' for

Canada and US or with adjacent indicator 'US' for

US only or without either indicator for Canada only.

Low Lead Content

Brook Hatton Issued by: Brook Hatton

PRODUCTS

CLASS 6853 01 - LOW LEAD CONTENT CERTIFICATION PROGRAM - PLUMBING PRODUCTS

Non-Lead Brass Plumbing Components: AAA-NL-B-C-D-E (Cold 23 °C) Where:

AAA indicates Series #: 32, 81, 83, 98, 105, 110, 111, 117, 118, 119, 120, 150, 151, 152, 155, 171, 172, 173, 202, 203, 204, 205, 210, 212, 213, 214, 224, 230, 234, 240, 244, 252, 253, 262, 263, 272, 273, 274, 281, 282, 283, 290, 292, 293, 301, 302, 305, 306, 307, 311, 321, 351, 361, 405, 406, 412, 416, 417, 421, 423, 424, 430, 431, 432, 440, 500, 502, 510, 520, 590.

NL indicates non-lead brass

B/D indicate Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I, ID, IP, J, K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS.

(4)

Project: 2720384 Date Issued: June 17, 2014

DQD 507 Rev. 2012-05-22 Page: 2

Plumbing Components, Other materials: AAA-B-C-D-E** (Cold 23°C) Notes:

AAA indicates Series #: 41, 44, 81, 84, 85, 86, 87, 88, 89, 90, 422, 425, 435, 825, 835, 1625, 16358403, 8405, 8407.

B/D indicate Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I, ID, IP, J, K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS.

C/E indicate Inlet/Outlet size: 1 to 7 (½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 2”) Non-lead Brass Meter Setters: AAAA-NL-B-CC-D-E-F-G-H-I

Where:

AAAA indicates Series #: 6000, 6010, 6011, 6012, 6013, 6020, 6022, 6029, 6030, 6031, 6032, 6033, 6034, 6035, 6040, 6050, 6051, 6052, 6060, 6065, 7010, 7011, 7020, 7025.

NL indicates non-lead brass B indicates meter size code CC indicates height in inches

D/F indicates Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I, ID, IP, J, K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS

E/G indicates Inlet/Outlet size: 1 to 7 (½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 2”) H/I indicates Inlet/Outlet valves

Note: Products shall be installed in Accordance with the Local Code of the Authority having Jurisdiction. APPLICABLE REQUIREMENTS

NSF/ANSI 372-2010 – Drinking Water System Components – Lead Content

Note: Products certified to NSF/ANSI 372 conform to the requirements for "lead free" plumbing products as defined by California, Vermont, Maryland and Louisiana state laws and by Section 1417 of the US Safe Drinking Water Act.

(5)

The products listed, including the latest revision described below, are eligible to be marked in accordance with the referenced Certificate.

Product Certification History

Project Date Description

2720384 Jun 17, 2014 Class 6853 01 - evaluate new models fittings and alternate materials for Low Lead Content as per NSF/ANSI 372-2010.

2669929 Nov 14, 2013 Class 6853 01 - report update; move listed products from 6861 18 to 6853 01; add new I/O connector to Low Lead Content requirements of NSF/ANSI 372-2010

2253386 Feb 16, 2010 Verification of low lead content (California Health and Safety Code 116875 (AB1953-2006) and Vermont Bill S. 152)

(6)

Descriptive Report

and Test Results

This report shall not be reproduced, except in full, without the approval of CSA Group.

178 Rexdale Boulevard, Toronto, ON, Canada M9W 1R3

Telephone: 416.747.4000 1.800.463.6727 Fax: 416.747.4149 www.csagroup.org DQD 507.10 Rev. 2013-06-19

MASTER CONTRACT: 160622 (LM086116) REPORT: 2253386 PROJECT: 2720384 Edition 1: February 16, 2010; Project 2253386 – Toronto

Issued by Brook Hatton

Edition 2: November 14, 2013; Project 2669929 – Toronto Issued by Brook Hatton

Edition 3: June 17, 2014; Project 2720384 – Toronto Issued by Brook Hatton

Report pages reissued

Contents: Certificate of Compliance - Page 1 to 3

Supplement to Certificate of Compliance – Page 1 Description and Tests - Pages 1 to 8

Attachment 1: Figures 1 to 59

PRODUCTS

Class: 6853 01 LOW LEAD CONTENT CERTIFICATION PROGRAM - PLUMBING PRODUCTS

Non-Lead Brass Plumbing Components: AAA-NL-B-C-D-E (Cold 23 °C)

Where:

AAA indicates Series #: 32, 81, 83, 98, 105, 110, 111, 117, 118, 119, 120, 150, 151, 152, 155, 171, 172,

173, 202, 203, 204, 205, 210, 212, 213, 214, 224, 230, 234, 240, 244, 252, 253, 262, 263, 272, 273, 274, 281, 282, 283, 290, 292, 293, 301, 302, 305, 306, 307, 311, 321, 351, 361, 405, 406, 412, 416, 417, 421, 423, 424, 430, 431, 432, 440, 500, 502, 510, 520, 590.

NL indicates non-lead brass

B/D indicate Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I, ID, IP, J,

K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS.

C/E indicates Inlet/Outlet size: 1 to 7 (½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 2”)

Plumbing Components, Other materials: AAA-B-C-D-E** (Cold 23°C)

(7)

AAA indicates Series #: 41, 44, 81, 84, 85, 86, 87, 88, 89, 90, 422, 425, 435, 825, 835, 1625, 1635, 8403, 8405, 8407.

B/D indicate Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I, ID, IP, J,

K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS.

C/E indicate Inlet/Outlet size: 1 to 7 (½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 2”)

Non-lead Brass Meter Setters: AAAA-NL-B-CC-D-E-F-G-H-I

Where:

AAAA indicates Series #: 6000, 6010, 6011, 6012, 6013, 6020, 6022, 6029, 6030, 6031, 6032, 6033,

6034, 6035, 6040, 6050, 6051, 6052, 6060, 6065, 7010, 7011, 7020, 7025.

NL indicates non-lead brass B indicates meter size code CC indicates height in inches

D/F indicates Inlet/Outlet Connection Type: A, B, C, CE, CK, CS, D, F, FM, GJ, H, HE, HI, I, ID, IP, J,

K, KE, M, MF, MY, N, NY, O, P, PE, PF, PJ, R, S, SR, T, U, W, XS

E/G indicates Inlet/Outlet size: 1 to 7 (½”, 5/8”, ¾”, 1”, 1 ¼”, 1 ½”, 2”) H/I indicates Inlet/Outlet valves

Note: Products verified by CSA International to the above standards shall also be subject to the safety requirements of the local inspection authorities having jurisdiction.

APPLICABLE REQUIREMENTS

NSF/ANSI 372-2010 – Drinking Water System Components – Lead Content

Note: Products certified to NSF/ANSI 372 conform to the requirements for "lead free" plumbing products as defined by California, Vermont, Maryland and Louisiana state laws and by Section 1417 of the US Safe Drinking Water Act.

(8)

MASTER CONTRACT: 160622 (LM086116) REPORT: 2253386

PROJECT: 2720384

Page No: 3 Date Issued: June 17, 2014

MARKINGS

The manufacturer is required to apply the following markings:

• Products shall be marked with the markings specified by the particular product standard.

• Products certified for Canada shall have all Caution and Warning markings in both English and French. Additional bilingual markings not covered by the product standard(s) may be required by the Authorities Having Jurisdiction. It is the responsibility of the manufacturer to provide and apply these additional markings, where applicable, in accordance with the requirements of those authorities.

All markings required by CSA must be permanent and legible. Devices or components shall be labeled in a manner to ensure that all markings are visible after installation. Where it is not practical to place the markings directly on the device, component or material, the markings shall be located on the container or packaging and/or literature accompanying the device, component or material. The content consists of:

• manufacturer's identification; • CSA Mark with “C”, “US” indicator;

• Qualifiers “NSF/ANSI 372” or "LLC" or "LOW LEAD CONTENT" below or adjacent the CSA Mark*; • product identification (optional).

*The word “ONLY” shall be adjacent to the qualifier if the product is being certified only for lead content and bears no other CSA certification.

Products shall be installed in Accordance with the Local Code of the Authority having Jurisdiction.

Note: In addition to the marking requirements other symbols used by industry (such as but not limited to: a grey dot, "low lead", circle with a check mark) are permissible.

ALTERATIONS

The markings shall be as specified above.

FACTORY TESTS

No factory tests required.

SPECIAL INSTRUCTIONS FOR FIELD SERVICES

1. Component descriptions marked with either the “(INT)” or “(INT*)” identifiers may be substituted with other components providing the requirements specified under the notes in the “Description” are complied with.

2. Samples to be picked up for on-going conformity testing as per DQD 313.03

COMPONENT SPECIAL PICKUP

1. Component descriptions marked with the identifier “(CT)” are subject to annual pickup and Conformity Testing.

2. No component special pickup.

(9)

DESCRIPTION

All models are component compliant and use materials containing less than 0.25% Lead by weight. The weighted average lead content is less than 0.25% by weight.

Water contacting materials and their respective maximum lead contents are listed in the following tables:

Category Material Supplier Supplier Address

Maximum Lead Content (%) Metals C89833 Ingot Metals 111 Fenrnar Drive Weston Ontario Canada M9L 1M3 0.9 H. Kramer 1345 West 21" St Chicaao Illinois 60608 USA Federal Metals 7250 Division Street Bedford Ohio 44146 USA I. Schumann 22500 Alexander Road Bed10rd Ohio 44146 USA Oriton 5FL‐2 NO. 268 Fu‐Hsing S Rd. Sec 2 Taipei Taiwan Sage Metals 346. F.I.E Patpargani. Delhi‐ 110092 India C23000 Oriton 5FL‐2 NO. 268 Fu‐Hsing S Rd. Sec 2 Taipei Taiwan 0.07 C26000 C51000 C65100 SS302 0 SS304 SS316 Ductile Iron 0 Rubbers NBR SN‐819F Hun‐Yi No.38 Lane. 193 HochenRoad. Mo Mei Chen. Changhua. TWN 0 EPDM SE‐819F 0 SBR SS‐719F 0 NBR N7101 Fannteer 68‐8f Kuangfu North Road Taipei 105 Taiwan 0 EPDM EP7101 0 TPE Santoprene 241‐55 Industrial Rubber ltd (component) 6300 Edwards Blvd. Mississaoau Ontario Canada. 0 Exxon Mobile Chemical Company

(material) 388 South Main Street Akron OH United _States

(10)

PROJECT: 2720384

Category Material Supplier Supplier Address

Maximum Lead Content (%) NBR compound Silicaucho Silicaucho S.A. Corp. La Estrella, Antioquia, Columbia 0 Polymers Teflon PTFE 8 Lan Shiuon PTFE Ind NO.7 Swan Fong Road Shin‐Chuang City Taipei Hsien Taiwan 0 Hi‐Tech seals 1180 Kerrisdale Blvd Unit 8 Newmarket Ontario L3Y 8Z9 0 Acetal Copolymer Celcon M90 White AY McDonald (component) 4800 Chavenelle Road Dubuque IA 52004 0 Celanese (Ticona) (material) 8040 Dixie Highway, Florence KY 0 Nylon 6 PolyOne Corporation Avon Lake General Chemical 33587 Walker Road Avan Lake OH 44012 0 Noryl 731 Duron Plastics (component) 965 Wilson Ave Kitchener Ontaro Canada Sabic Innovative Plastics (material) One Plastic Avenue Pittsfield MA 01201 0 Sealants, Adhesives, Threadlock Loctite 263 Acklands Grainger 100 Raglin Road Cmbridge Ontario Canada 0 Henkel Corporation One Henkel Way Rocky Hill CT 06067 0 Loctite 243 Acklands Grainger 100 Raglin Road Cmbridge Ontario Canada 0 Henkel Corporation One Henkel Way Rocky Hill CT 06067 0 Loctite 480 Acklands Grainger 100 Raglin Road Cmbridge Ontario Canada 0 Henkel Corporation One Henkel Way Rocky Hill CT 06067 0 Loctite 565 Acklands Grainger 100 Raglin Road Cmbridge Ontario Canada 0 Henkel Corporation One Henkel Way Rocky Hill CT 06067 0 Weicon VA 110 Weicon Inc. 20 Steckle Place Kitchener Ontario Canada 0 Weicon Germany Konigsberger Strasse 255 DE‐48157 Munster Germany 0

Weicon AN301‐38 Weicon Inc. 20 Steckle Place Kitchener Ontario 0

(11)

Category Material Supplier Supplier Address Maximum Lead Content (%) Canada Weicon Germany Konigsberger Strasse 255 DE‐48157 Munster Germany 0 Weicon AN301‐43 Weicon Inc. 20 Steckle Place Kitchener Ontario Canada 0 Weicon Germany Konigsberger Strasse 255 DE‐48157 Munster Germany 0 Weicon AN301‐65 Weicon Inc. 20 Steckle Place Kitchener Ontario Canada 0 Weicon Germany Konigsberger Strasse 255 DE‐48157 Munster Germany 0

111 Silicon Dow Corning Midland MI48686‐0994 0

Coolants (for machining process) Fuchs Chemplex 862 Fuchs Lubricant Co. 405 Dobbie Drive Cambridge Ontario 0 Fuchs Chemplex 862 Fuchs Lubricant Co. 2140 South 88th Street Kansas City KS 66111 0 Fuchs Ecocool S4039 Fuchs Lubricant Co. 405 Dobbie Drive Cambridge Ontario 0 Nocosol HDCF Noco Energy Corp. 2440 Sheridan Dr Tonawanda NY 14150 0

Note: No substitution of any material or change of suppliers is allowed without the prior written approval of CSA

(12)

PROJECT: 2720384

Table 8: Inlet/Outlet Connection types:

Type Description Short description

A AWWA AWWA

B CAMPAK CAMPAK

C COPPER FLARE CF

CE COPPER FLARE ELECTRICAL TAIL NUT CF ELECT TAIL

CK CORNER HORN K-STYLE CK

CS CHICAGO SPECIAL PURPOSE THREAD CHICAGO SPEC

D DUAL PURPOSE DP

F FEMALE IRON PIPE FIP

FM FEMALE & MALE FM

GJ GRIP JOINT GRIP JNT

H CB COMPRESSION CB

HE CB COMPRESSION ELECTRICALTAIL NUT CB ELECT TAIL

HI CB COMPRESSION INSULATED CB INSLTD

I INSULATED INSLTD

ID INSIDE DRIVING THREAD ID THRD

IP IRON PIPE PACK NUT IP PACK NUT

J HAYSTITE HAYSTITE

K KITEC COMPRESSION KITEC

KE KITEC COMPRESSION ELECTRICAL TAIL NUT KITEC ELECT TAIL

M MALE IRON PIPE MIP

MF METER FLANGE MTR FLG

MY METER YOKE MTR YK

N METER THREAD MTR THRD

NY FEMALE NPT FE NPT

O FEMALE COMPRESSION THREAD FE COMP THRD

P FEMALE COPPER FLARE THREAD FE CF THRD

PE PEP CAMPAK PEP CAMPAK

PF PUSHFIT PUSHFIT

PJ PVC CAMPAK PVC CAMPAK

R FEMALE METER THREAD FE MTR THRD

S SOLDER SOLDER

SR YOKE NOSE YK NOSE

T METER SWIVEL NUT MTR SWL NUT

U CAMBRIDGE COUPLING CAMBRIDGE

W PEX PEX

XS EXTRA STRONG LEAD CAMPAK XS CAMPAK

(13)

TESTS

Project 2253386:

No was testing performed. The maximum specified lead content of Meter Setters series #6010, 6011, 6012, 6020, 6022, 6029, 6030, 6031, 6032, 6033, 6034, 6035, 6040, 6050, 6051, 6052, 6060, 6065, 7010, 7020 and 7025 as per the declared alloy grades was used in determining the percent weighted average of lead. The calculated percent weighted average of lead was found to be compliant to California Health and Safety Code 116875 (Assembly Bill 1953 - 2006) and Vermont Bill S.152 “An Act Relating to the Prevention of Lead Poisoning Exposure to Lead in Consumer Products”. All files related to the certification of the Meter Setters are kept at CSA International -Toronto Facility under Project 2253386.

Models previously verified as Low Lead (Class 8853 01) under project 160622-2195234 moved to Class 6853 01 based on previous evaluation. Model series 800, 810, 811 and 812 were removed from the listing as low-lead versions of these models are not currently produced.

Project 2669929

Additional models (Series 41, 44, 81, 83, 98, 110, 155, 173, 205, 213, 230, 240, 244, 281, 292, 307, 311, 321, 351, 361, 424, 430, 431, 432, 84, 85, 86, 87, 88, 89, 90, 8405 and 8407) were added to the list of certified products. The additional models are manufactured using the same materials as the previously evaluated models and are therefore component compliant and meet the requirements of NSF/ANSI 372-2010. No additional testing was required.

All documentation supporting this project is kept on file at CSA Group – Toronto under file 160622-2669929.

Project 2720384

New alternate rubber material, NBR compound from Silicaucho of La Estrella, Columbia, evaluated and approved. This material is currently listed by WQA to NSF/ANSI 61 and therefore meets the Lead Content requirements of NSF/ANSI 372.

Service saddles and repair clamps series 425, 435, 825, 835, 1625 and 1635 evaluated for Low Lead content. The wetted materials in the models are SS 304 and NBR which have all been previously evaluated and approved. New models are component compliant having a Weighted Average Lead Content of <0.25%. No testing is required.

Subject models meet the Lead Content requirements of NSF/ANSI 372-2010.

All documentation supporting this project is kept on file at CSA Group – Toronto under file 160622-2720384.

END OF REPORT

(14)

MASTER CONTRACT: 160622 REPORT: 2253386

PROJECT: 2728034

Figure 1 – Model 105 Ell Coupling:

(15)

Figure 3 – Model 117 Adaptor coupling:

Figure 4 – Model 118 coupling:

(16)

PROJECT: 2728034

Figure 6 – Model 120 Two-part Coupling:

Figure 7 – Model 150 Service Tee:

(17)

Figure 9 – Model 153 Wye-branch Tee:

(18)

PROJECT: 2728034

Figure 11 – Model 172 U-branch:

(19)

Figure 13 – Model 406 Eight Bend Meter Couplings:

Figure 14 – Model 412 Meter Swivel Nut:

(20)

PROJECT: 2728034

Figure 16 – Model 421/422 Meter Flange:

Figure 17 – Model 423 Solder Meter Flange:

(21)

Figure 19 – Model 202 Ball-style Curb Stop:

Figure 20 – Model 203 Ball-style Curb Stop, Draining:

(22)

PROJECT: 2728034

Figure 22 – Model 210 Full port Angle Meter Valves:

(23)

Figure 24 – Model 214 Ball-style Reduced Port Angle Meter Valve:

(24)

PROJECT: 2728034

Figure 26 – Model 234 Ball-style Reduced Port Double Angle Meter Valve:

(25)

Figure 28 – Model 253 Ball-style Draining Open Right Ball Curb Stop:

Figure 29 – Model 262 Minneapolis Pattern Ball Curb Stop:

(26)

PROJECT: 2728034

Figure 31 – Model 272/273/274 Double Curb Stop Ball Valves:

(27)

Figure 33 – Model 290/293 Plug-style Inverted Key Curb Stop:

(28)

PROJECT: 2728034

Figure 35 – Model 302 Plug-style Corporation Main Stop:

(29)

Figure 37 – Model 306 Eighth Bend Adaptors:

(30)

PROJECT: 2728034

Figure 39 – Model 502 Angle Dual Cartridge Check Valve, Horizontal Inlet/Outlet:

(31)

Figure 41 – Model 520 Straight Dual Cartridge Check Valve (non-accessible):

Figure 42 – Model 590 Angle Single Cartridge Check Valve:

(32)

PROJECT: 2728034

Figure 44 – Model 810 Saddle with Double Straps:

Figure 45 – Model 811 Brass Saddle with Wide SS Strap:

(33)

Figure 47 – Model 311 Corporation Main Stop, Ball style with Cap

(34)

PROJECT: 2728034

Figure 49 – Model 361 Corporation Main Stop, Ball style with Open Right Cap

(35)

Figure 51 – Model 822 – Brass Saddle with Single Stainless Steel Strap

(36)

PROJECT: 2728034

Figure 53 – Model 292 Angle Meter Plug Valve

Figure 54 – Model 430 Iron Yoke Expansion Wheel

(37)

Figure 56 – Model 424 Meter Flange X Iron Pipe

Figure 57 – Model 83 Brass Bushings for Corporation Stops

(38)

PROJECT: 2728034
