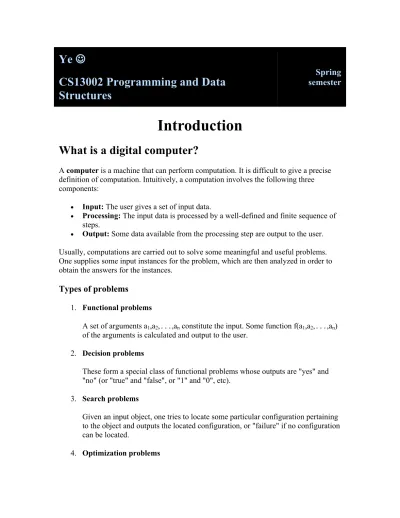

CS13002 Programming and Data
Structures
Spring
semester
Introduction
What is a digital computer?
A computer is a machine that can perform computation. It is difficult to give a precise definition of computation. Intuitively, a computation involves the following three components:
• Input: The user gives a set of input data.
• Processing: The input data is processed by a well-defined and finite sequence of steps.
• Output: Some data available from the processing step are output to the user. Usually, computations are carried out to solve some meaningful and useful problems. One supplies some input instances for the problem, which are then analyzed in order to obtain the answers for the instances.
Types of problems
1. Functional problems
A set of arguments a1,a2,...,an constitute the input. Some function f(a1,a2,...,an)
of the arguments is calculated and output to the user. 2. Decision problems
These form a special class of functional problems whose outputs are "yes" and "no" (or "true" and "false", or "1" and "0", etc).
3. Search problems
Given an input object, one tries to locate some particular configuration pertaining to the object and outputs the located configuration, or "failure" if no configuration can be located.
Given an object, a configuration and a criterion for goodness, one finds and reports the configuration pertaining to the object, that is best with respect to the goodness criterion. If no such configuration is found, "failure" is to be reported.
Specific examples
1. Polynomial root finding Category: Functional problem
Input: A polynomial with real coefficients
Output: One (or all) real roots of the input polynomial
Processing: Usually, one involves a numerical method (like the Newton-Raphson method) for computing the real roots of a polynomial.
2. Matrix inversion
Category: Functional problem
Input: A square matrix with rational entries
Output: The inverse of the input matrix if it is invertible, or "failure"
Processing: Gaussian elimination is a widely used method for matrix inversion. Other techniques may also be conceived of.
3. Primality testing
Category: Decision problem Input: A positive integer
Output: The decision whether the input integer is prime or not
Processing: For checking the primality of n, it is an obvious strategy to divide n by integers between 2 and square root of n. If a divisor of n is found, n is declared "composite" ("no"), else n is declared "prime" ("yes").
This obvious strategy is, however, very slow. More practical primality testing algorithms are available. The first known (theoretically) fast algorithm is due to three Indians (Agarwal, Kayal and Saxena) from IIT Kanpur.
4. Traveling salesman problem (TSP) Category: Optimization problem
Input: A set of cities, the cost of traveling between each pair of cities, and the criterion of cost minimization
Output: A route through all the cities with each city visited only once and with the total cost of travel as small as possible
Processing: Since the total number of feasible routes for n cities is n!, a finite quantity, checking all routes to find the minimum is definitely a strategy to solve the TSP. However, n! grows very rapidly with n, and this brute-force search is impractical. We do not know efficient solutions for the TSP. One may, however, plan to remain happy with a suboptimal solution in which the total cost is not the smallest possible, but close to it.
5. Weather prediction
Category: Functional problem
Input: Records of weather for previous days and years. Possibly also data from satellites.
Output: Expected weather of Kharagpur for tomorrow
Processing: One statistically processes and analyzes the available data and makes an educated extrapolating guess for tomorrow's weather.
6. Web browsing
Category: Functional problem
Input: A URL (abbreviation for "Uniform Resource Locator" which is colloquially termed as "Internet site")
Output: Display (audio and visual) of the file at the given URL
Processing: Depending on the type of the file at the URL, one or more specific programs are run and the desired output is generated. For example, a web browser can render an HTML page, images in some formats etc. For displaying a movie, a separate software (or its plug-in) need be employed.
7. Chess : Can I win? Category: Search problem
Input: A configuration of the standard 8x8 chess board and the player ("white" or "black") who is going to move next
Output: A winning move for the next player, if existent, or "failure"
Processing: In general, finding a winning chess move from a given state is a very difficult problem. The trouble is that one may have to explore an infinite number of possibilities. Even when the total possibilities are finite in number, that number is so big that one cannot expect to complete exploration of all of these
possibilities in a reasonable time. A more practical strategy is to investigate all possible board sequences involving a small number of moves starting from the given configuration and to identify the best sequence under some criterion and finally prescribe the first move in the best sequence.
A computer is a device that can solve these and similar problems. A digital computer accepts, processes and outputs data in digitized forms (as opposed to analog forms).
• A computer is a fundamental discovery of human mind. It does not tend to mimic other natural phenomena (except perhaps our brain).
• A computer can solve many problems. This is in sharp contrast with most other engineering gadgets.
• Computers are programmable, i.e., one can solve one's own problems by a computer.
The basic components of a digital computer
In order that a digital computer can solve problems, it should be equipped with the following components:
• Input devices
These are the devices using which the user provides input instances. In a programmable computer, input devices are also used to input programs. Examples: keyboard, mouse.
• Output devices
These devices notify the user about the outputs of a computation. Example: screen, printer.
• Processing unit
The central processing unit (CPU) is the brain of the computing device and performs the basic processing steps. A CPU typically consists of:
o An arithmetic and logical unit (ALU): This provides the basic operational units of the CPU. It is made up of units (like adders, multipliers) that perform arithmetic operations on integers and real numbers, and of units that perform logical operations (logical and bitwise AND, OR etc.).
o A control unit: This unit is responsible for controlling flow of data and instructions.
o General purpose registers: A CPU usually consists of a finite number of memory cells that work as scratch locations for storing intermediate results and values.
• External memory
The amount of memory (registers) resident in the CPU is typically very small and is inadequate to accommodate programs and data even of small sizes.
Out-of-the-processor memory provides the desired storage space. External memory is classified into two categories:
o Main (or primary) memory: This is a high-speed memory that stays close to the CPU. Programs are first loaded in the main memory and then executed. Usually main memory is volatile, i.e., its contents are lost after power-down.
o Secondary memory: This is relatively inexpensive, bigger and low-speed memory. It is normally meant for off-line storage, i.e., storage of programs and data for future processing. One requires secondary storage to be permanent, i.e., its contents should last even after shut-down. Examples of secondary storage include floppy disks, hard disks and CDROM disks. • Buses
A bus is a set of wires that connect the above components. Buses are responsible for movement of data from input devices, to output devices and from/to CPU and memory.
The interconnection diagram for a simple computer is shown in the figure below. This architecture is commonly called the John von Neumann architecture after its
discoverer who was the first to give a concrete idea of stored program computers. Surprisingly enough, the idea of computation (together with a rich theory behind it) was proposed several decades earlier than the first real computer is manufactured. John von Neumann proposed the first usable draft of a working computer.
Figure : The John von Neumann architecture
How does a program run in a computer?
The inputs, the intermediate values and the instructions defining the processing stage reside in the (main) memory. In order to separate data from instructions the memory is divided into two parts:
• Data area
The data area stores the variables needed for the processing stage. The values stored in the data area can be read, written and modified by the CPU. The data
area is often divided into two parts: a stack part and a heap part. The stack part typically holds all statically allocated memory (global and local variables), whereas the heap part is used to allocate dynamic memory to programs during run-time.
• Instruction area
The instruction area stores a sequence of instructions that define the steps of the program. Under the control of a clock, the computer carries out a fetch-decode-execute cycle in which instructions are fetched one-by-one from the instruction area to the CPU, decoded in the control unit and executed in the ALU. The CPU understands only a specific set of instructions. The instructions stored in memory must conform to this specification.
The fetch-decode-execute cycle works as follows:
1. For starting the execution of a program, a sequence of machine instructions is copied to the instruction area of the memory. Also some global variables and input parameters are copied to the data area of the memory.
2. A particular control register, called the program counter (PC), is loaded with the address of the first instruction of the program.
3. The CPU fetches the instruction from that location in the memory that is currently stored in the PC register.
4. The instruction is decoded in the control unit of the CPU.
5. The instruction may require one or more operands. An operand may be either a data or a memory address. A data may be either a constant (also called an immediate operand) or a value stored in the data area of the memory or a value stored in a register. Similarly, an address may be either immediate or a resident of the main memory or available in a register.
6. An immediate operand is available from the instruction itself. The content of a register is also available at the time of the execution of the instruction. Finally, a variable value is fetched from the data part of the main memory.
7. If the instruction is a data movement operation, the corresponding movement is performed. For example, a "load" instruction copies the data fetched from
memory to a register, whereas a "save" instruction sends a value from a register to the data area of the memory.
8. If the instruction is an arithmetic or logical instruction, it is executed in the ALU after all the operands are available in the CPU (in its registers). The output from the ALU is stored back in a register.
9. If the instruction is a jump instruction, the instruction must contain a memory address to jump to. The program counter (PC) is loaded with this address. A jump may be conditional, i.e., the PC is loaded with the new address if and only if some condition(s) is/are true.
10. If the instruction is not a jump instruction, the address stored in the PC is incremented by one.
11. If the end of the program is not reached, the CPU goes to Step 3 and continues its fetch-decode-execute cycle.
Figure : Execution of a program
Why need one program?
The electronic speed possessed by computers for processing data is really fabulous. Can you imagine a human prodigy manually multiplying two thousand digit integers
flawlessly in an hour? A computer can perform that multiplication so fast that you even do not perceive that it has taken any time at all. It is wise to exploit this instrument to the best of our benefit. Why not, right?
However, there are many programs already written by professionals and amateurs. Why need we bother about writing programs ourselves? If we have to find roots of a
polynomial or invert/multiply matrices or check primality of natural numbers, we can use standard mathematical packages and libraries. If we want to do web browsing, it is not a practical strategy that everyone writes his/her own browser. It is reported that playing chess with the computer could be a really exciting experience, even to world champions like Kasparov. Why should we write our own chess programs then? Thanks to the free (and open-source) software movement, many useful programs are now available in the public domain (often free of cost).
Still, we have to write programs ourselves! Here are some compelling reasons: • There are so many problems to solve!
Simple counting arguments suggest that computers can solve infinitely many problems. Given that the age of the universe and the human population are finite, we cannot expect every problem to be solved by others. In other words, each of us is expected to encounter problems which are so private that nobody else has even bothered to solve them, let alone making the source-codes or executables freely available for our consumption. Sometimes programs are available for solving some of our problems, but these programs are either too costly to satisfy our budget or so privately solved by others that they don't want to share their
programs with us. If we plan to harness the electronic speed of computers, there seems to be no alternative way other than writing the programs ourselves. A stupendous example is provided by the proof of the four color conjecture, a curious mathematical problem that states that, given the map of any country, one can always color the states of the country using only four colors in such a way that no two states that share some boundary receive the same color. That five colors are sufficient was known long back, but the four color conjecture remained unsolved for quite a long time. Mathematicians reduced the problem to checking a list of configurations. But the list was so huge that nobody could even think of hand-calculating for all these instances. A computer program helped them explore all these possibilities. The four color conjecture finally came out to be true.
Conservatives raised a huge hue and cry about such filthy methods of
mathematical problem solving. But a problem solved happens to be a problem solved. Let the cynic cry!
Computers can aid you solving many problems of various flavors ranging from mundane to practical to esoteric to deeply theoretical. Moreover, anybody may benefit from programming computers, irrespective of his/her area of study. It's just your own sweet will whether you plan to exploit this powerful servant. • Hey, we can write better programs than them!
Yes, we often can. Available programs may be too general and we can solve instances of our interest by specific programs much more efficiently than the general jack-of-all-trades stuff. Moreover, you may occasionally come up with brand-new algorithms that hold the promise of outperforming all previously known algorithms. You would then desire to program your algorithms to see how they perform in reality. Designing algorithms is (usually) a more difficult task than programming the algorithms, but the two may often go hand-in-hand before you jump to a practical conclusion.
How can one program?
Given a problem at hand, you tell the computer how to solve it and the machine does it. Unfortunately, telling the computer your processing steps is not that easy. Computers can be communicated with only in the language that they understand and are quite stubborn about that.
You have to specify the exact way in which the fetch-decode-execute cycle is to be carried out so that your problem is solved. The CPU of a computer supports a primitive set of instructions (typically, data movement, arithmetic, logical and jump instructions). Writing a program using these instructions (called assembly instructions) has two major drawbacks:
• The assembly language is so low-level that writing a program in this language is a very formidable task. One ends up with unmanageably huge codes that are very error-prone and extremely difficult to debug and update.
• The assembly language varies from machines to machines. The assembly codes suitable for one machine need not be understood by another machine. Moreover, different machines support different types of assembly instructions and there is no direct translation of instructions of one machine to those of another. For example, the ALU of Computer A may support integer multiplication, whereas that of Computer B does not. You have to translate each single multiplication instruction for Computer A to your own routine (say, involving additions and shifts) for doing multiplication in Computer B.
A high-level language helps you make your communication with computers more abstract and simpler and also widely machine-independent. You then require computer programs that convert your high-level description to the assembly-level descriptions of individual machines, one program for each kind of CPU. Such a translator is called a compiler.
Therefore, your problem solving with computers involves the following three steps: 1. Write the program in a high-level language
You should use a text editor to key in your program. In the laboratory we instruct you to use the emacs editor. You should also save your program in a (named) file.
We are going to teach you the high-level language known as C. 2. Compile your program
You need a compiler to do that. In the lab you should use the C compiler cc (a.k.a. gcc).
cc myprog.c
If your program compiles successfully, a file named a.out (an abbreviation of "assembler output") is created. This file stores the machine instructions that can be understood by the particular computer where you invoked the compiler. If compilation fails, you should check your source code. The reason of the failure is that you made one or more mistakes in specifying your idea. Compilers are very stubborn about the syntax of your code. Even a single mistake may let the compiler churn out many angry messages.
3. Run the machine executable file This is done by typing
./a.out
(and then hitting the return/enter button) at the command prompt.
Your first C programs
• The file intro1.c
This program takes no input, but outputs the string "Hello, world!" in a line. #include <stdio.h>
main () {
printf("Hello, world!\n"); }
• The file intro2.c
This program accepts an integer as input and outputs the same integer. #include <stdio.h>
main () {
scanf("%d",&n); printf("%d\n",n); }
• The file intro3.c
This program takes an integer n as input and outputs its square n2. #include <stdio.h> main () { int n; scanf("%d",&n); printf("%d\n",n*n); }
• The file intro4.c
This program takes an integer n as input and is intended to compute its reciprocal 1/n. #include <stdio.h> main () { int n; scanf("%d",&n); printf("%d\n",1/n); }
Unfortunately, the program does not print the desired output. For input 0, it prints "Floating exception". (Except for really esoteric situations, division by 0 is a serious mathematical crime, so this was your punishment!) For input 1 it outputs 1, whereas for input -1 it outputs -1. For any other integer you input, the output is 0. That's too bad! But the accident is illustrating. Though your program compiled gracefully and ran without hiccups, it didn't perform what you intended. This is because you made few mistakes in specifying your desire.
• The file intro5.c
A corrected version of the reciprocal printer is as follows: #include <stdio.h>
main () {
scanf("%d",&n);
printf("%f\n",1.0/n); }
For input 67 it prints 0.014925, for input -32 it prints -0.031250. That's good work! However, it reports 1.0/0 as "Inf" (infinity). Mathematicians may now turn very angry because you didn't get the punishment you deserved.
CS13002 Programming and Data
Structures
Spring
semester
Variables and simple data types
The first abstraction a high-level language (like C) offers is a way of structuring data. A machine's memory is a flat list of memory cells, each of a fixed size. The abstraction mechanism gives special interpretation to collections of cells. Think of a collection of blank papers glued (or stapled) together. A piece of blank paper is a piece of paper, after all. However, when you see the neatly bound object, you leap up in joy and assert, "Oh, that's my note book!" This is abstraction. Papers remain papers and their significance in a note book is in no way diminished. A special meaning of the collection is a thing that is rendered by the abstraction. There is another point here -- usage convenience. You would love to take class notes in a note book instead of in loose sheets. A note book is abstract in yet another sense. You call it a note book irrespective of the size and color of the papers, of whether there are built-in lines on the papers, of what material is used to manufacture the papers, etc.
The basic unit for storage of digital data is called a bit. It is an object that can assume one of the two possible values "0" and "1". Depending on how one is going to implement a bit, the values "0" and "1" are defined. If a capacitor stands for a bit, you may call its state "0" if the charge stored in it is less than 0.5 Volt, else you call its state "1". For a switch, "1" may mean "on" and "0" then means "off". Let us leave these implementation details to material scientists and VLSI designers. For us it is sufficient to assume that a computer comes with a memory having a huge number of built-in bits.
A single bit is too small a unit to be adequately useful. A collection of bits is what a practical unit for a computer's operation is. A byte (also called an octet) is a collection of eight bits. Bigger units are also often used. In many of today's computers data are
transfered and processed in chunks of 32 bits (4 bytes). Such an operational unit is often called a word. Machines supporting 64-bit words are also coming up and are expected to replace 32-bit machines in near future.
Basic data types
Bytes (in fact, bits too) are abstractions. Still, they are pretty raw. We need to assign special meanings to collections of bits in order that we can use those collections to solve our problems. For example, a matrix inversion routine deals with matrices each of whose elements is a real (or rational or complex) number. We then somehow have to map memory contents to numbers, to matrices, to pairs of real numbers (complex numbers), and so on. Luckily enough, a programmer does not have to do this mapping
himself/herself. The C compiler already provides the abstractions you require. It is the headache of the compiler how it would map your abstract entities to memory cells in your
machine. You, in your turn, must understand the abstraction level which is provided to you for writing programs in C.
For the time being, we will look at the basic data types supported by C. We will later see how these individual data types can be glued together to form more structured data types. Back to our note book example. A paper is already an abstraction, it's not any collection of electrons, protons and neutrons. So let us first understand what a paper is and what we can do with a piece of paper. We will later investigate how we can manufacture note books from papers, and racks from note books, and book-shelfs from racks, drawers, locks, keys and covers.
Integer data types
Integers are whole numbers that can assume both positive and negative values, i.e., elements of the set:
{ ..., -3, -2, -1, -, 1, 2, 3, ... }
This set is infinite, both the ellipses extending ad infinitum. C's built-in integer data types do not assume all possible integral values, but values between a minimum bound and a maximum bound. This is a pragmatic and historical definition of integers in C. The reason for these bounds is that C uses a fixed amount of memory for each individual integer. If that size is 32 bits, then only 232 integers can be represented, since each bit has only two possible states.
Integer data type Bit
size Minimum value Maximum value
char 8 -27=-128 27-1=127
short int 16 -215=-32768 215-1=32767
int 32 -231=-2147483648 231-1=2147483647
long int 32 -231=-2147483648 231-1=2147483647
long long int 64 -2
63 =-9223372036854775808 263 -1=9223372036854775807 unsigned char 8 0 28-1=255
unsigned short int 16 0 216-1=65535
unsigned int 32 0 232-1=4294967295
unsigned long int 32 0 232-1=4294967295
unsigned long long int 64 0 2
64
-1=18446744073709551615 Notes
• The term int may be omitted in the long and short versions. For example, long int can also be written as long, unsigned long long int also as unsigned long long.
• ANSI C prescribes the exact size of int (and unsigned int) to be either 16 bytes or 32 bytes, that is, an int is either a short int or a long int. Implementers decide which size they should select. Most modern compilers of today support 32-bit int.
• The long long data type and its unsigned variant are not part of ANSI C
specification. However, many compilers (including gcc) support these data types.
Float data types
Like integers, C provides representations of real numbers and those representations are finite. Depending on the size of the representation, C's real numbers have got different names.
Real data type Bit size
float 32
double 64
long double 128
Character data types
We need a way to express our thoughts in writing. This has been traditionally achieved by using an alphabet of symbols with each symbol representing a sound or a word or some punctuation or special mark. The computer also needs to communicate its findings to the user in the form of something written. Since the outputs are meant for human readers, it is advisable that the computer somehow translates its bit-wise world to a human-readable script. The Roman script (mistakenly also called the English script) is a natural candidate for the representation. The Roman alphabet consists of the lower-case letters (a to z), the upper case letters (A to Z), the numerals (0 through 9) and some punctuation symbols (period, comma, quotes etc.). In addition, computer developers planned for inclusion of some more control symbols (hash, caret, underscore etc.). Each such symbol is called a character.
In order to promote interoperability between different computers, some standard encoding scheme is adopted for the computer character set. This encoding is known as ASCII (abbreviation for American Standard Code for Information Interchange). In this scheme each character is assigned a unique integer value between 32 and 127. Since eight-bit units (bytes) are very common in a computer's internal data representation, the code of a character is represented by an 8-bit unit. Since an 8-bit unit can hold a total of 28=256 values and the computer character set is much smaller than that, some values of this 8-bit unit do not correspond to visible characters. These values are often used for representing invisible control characters (like line feed, alarm, tab etc.) and extended
Roman letters (inflected letters like ä, é, ç). Some values are reserved for possible future use. The ASCII encoding of the printable characters is summarized in the following table.
Decimal Hex Binary Character Decimal Hex Binary Character
32 20 00100000 SPACE 80 50 01010000 P 33 21 00100001 ! 81 51 01010001 Q 34 22 00100010 " 82 52 01010010 R 35 23 00100011 # 83 53 01010011 S 36 24 00100100 $ 84 54 01010100 T 37 25 00100101 % 85 55 01010101 U 38 26 00100110 & 86 56 01010110 V 39 27 00100111 ' 87 57 01010111 W 40 28 00101000 ( 88 58 01011000 X 41 29 00101001 ) 89 59 01011001 Y 42 2a 00101010 * 90 5a 01011010 Z 43 2b 00101011 + 91 5b 01011011 [ 44 2c 00101100 , 92 5c 01011100 \ 45 2d 00101101 - 93 5d 01011101 ] 46 2e 00101110 . 94 5e 01011110 ^ 47 2f 00101111 / 95 5f 01011111 _ 48 30 00110000 0 96 60 01100000 ` 49 31 00110001 1 97 61 01100001 a 50 32 00110010 2 98 62 01100010 b 51 33 00110011 3 99 63 01100011 c 52 34 00110100 4 100 64 01100100 d 53 35 00110101 5 101 65 01100101 e 54 36 00110110 6 102 66 01100110 f 55 37 00110111 7 103 67 01100111 g 56 38 00111000 8 104 68 01101000 h 57 39 00111001 9 105 69 01101001 i 58 3a 00111010 : 106 6a 01101010 j 59 3b 00111011 ; 107 6b 01101011 k 60 3c 00111100 < 108 6c 01101100 l 61 3d 00111101 = 109 6d 01101101 m 62 3e 00111110 > 110 6e 01101110 n 63 3f 00111111 ? 111 6f 01101111 o 64 40 01000000 @ 112 70 01110000 p 65 41 01000001 A 113 71 01110001 q 66 42 01000010 B 114 72 01110010 r
67 43 01000011 C 115 73 01110011 s 68 44 01000100 D 116 74 01110100 t 69 45 01000101 E 117 75 01110101 u 70 46 01000110 F 118 76 01110110 v 71 47 01000111 G 119 77 01110111 w 72 48 01001000 H 120 78 01111000 x 73 49 01001001 I 121 79 01111001 y 74 4a 01001010 J 122 7a 01111010 z 75 4b 01001011 K 123 7b 01111011 { 76 4c 01001100 L 124 7c 01111100 | 77 4d 01001101 M 125 7d 01111101 } 78 4e 01001110 N 126 7e 01111110 ~ 79 4f 01001111 O 127 7f 01111111 DELETE
Table : The ASCII values of the printable characters
C data types are necessary to represent characters. As told earlier, an eight-bit value suffices. The following two built-in data types are used for characters.
char
unsigned char
Well, I mentioned earlier that these are integer data types. I continue to say so. These are both integer and character data types. If you want to interpret a char value as a character, you see the character it represents. If you want to view it as an integer, you see the ASCII value of that character. For example, the upper case A has an ASCII value of 65. An eight-bit value representing the character A automatically represents the integer 65, because to the computer A is recognized by its ASCII code, not by its shape, geometry or sound!
Pointer data types
Pointers are addresses in memory. In order that the user can directly manipulate memory addresses, C provides an abstraction of addresses. The memory location where a data item resides can be accessed by a pointer to that particular data type. C uses the special character * to declare pointer data types. A pointer to a double data is of data type double *. A pointer to an unsigned long int data is of type unsigned long int *. A character pointer has the data type char *. We will study pointers more elaborately later in this course.
Constants
Having defined data types is not sufficient. We need to work with specific instances of data of different types. Thus we are not much interested in defining an abstract class of
objects called integers. We need specific instances like 2, or -496, or +1234567890. We should not feel extravagantly elated just after being able to define an abstract entity called a house. We need one to live in.
Specific instances of data may be constants, i.e., values that do not change during the execution of programs. For example, the mathematical pi remains constant throughout every program, and expectedly throughout our life-time too. Similarly, when we wrote 1.0/n to compute reciprocals, we used the constant 1.0.
Constants are written much in the same way as they are written conventionally.
Integer constants
An integer constant is a non-empty sequence of decimal numbers preceded optionally by a sign (+ or -). However, the common practice of using commas to separate groups of three (or five) digits is not allowed in C. Nor are spaces or any character other than numerals allowed. Here are some valid integer constants:
332 -3002 +15
-00001020304
And here are some examples that C compilers do not accept: 3 332
2,334 - 456 2-34 12ab56cd
You can also express an integer in base 16, i.e., an integer in the hexadecimal
(abbreviated hex) notation. In that case you must write either 0x or 0X before the integer. Hexadecimal representation requires 16 digits 0,1,...,15. In order to resolve ambiguities the digits 10,11,12,13,14,15 are respectively denoted by a,b,c,d,e,f (or by
A,B,C,D,E,F). Here are some valid hexadecimal integer constants: 0x12ab56cd
-0X123456 0xABCD1234 +0XaBCd12
Since different integer data types use different amounts of memory and represent different ranges of integers, it is often convenient to declare the intended data type explicitly. The following suffixes can be used for that:
Suffix Data type
L (or l) long LL (or ll) long long
U (or u) unsigned UL (or ul) unsigned long ULL (or ull) unsigned long long Here are some specific examples:
4000000000UL 123U
-0x7FFFFFFFl
0x123456789abcdef0ULL
Real constants
Real constants can be specified by the usual notation comprising an optional sign, a decimal point and a sequence of digits. Like integers no other characters are allowed. Here are some specific examples:
1.23456 1. .1
-0.12345 +.4560
And here are some non-examples (invalid real constants): .
- 1.23 1 234.56 1,234.56 1.234.56
Real numbers are sometimes written in the scientific notation (like 3.45x1067). The following expressions are valid for writing a real number in this fashion:
3.45e67 +3.45e67 -3.45e-67 .00345e-32 1e-15
You can also use E in place of e in this notation.
Character constants
Character constants are single printable symbols enclosed within single quotes. Here are some examples:
'A' '7' '@' ' '
There are some special characters that require you to write more than one printable characters within the quotes. Here is a list of some of them:
Constant Character ASCII value
'\0' Null 0 '\b' Backspace 8 '\t' Tab 9 '\n' New line 13 '\'' Quote 39 '\\' Backslash 92
Since characters are identified with integers in the range -127 to 128 (or in the range 0 to 255), you can use integer constants in the prescribed range to denote characters. The particular sequence '\xuv' (synonymous with 0xuv) lets you write a character in the hex notation. (Here u and v are two hex digits.) For example, '\x2b' is the integer 43 in decimal notation and stands for the character '+'.
Pointer constants
Well, there are no pointer constants actually. It is dangerous to work with constant addresses. You may anyway use an integer as a constant address. But doing that lets the compiler issue you a warning message. Finally, when you run the program and try to access memory at a constant address, you are highly likely to encounter a frustrating mishap known as "Segmentation fault". That's a deadly enemy. Try to avoid it as and when you can!
Incidentally, there is a pointer constant that is used widely. This is called NULL. A NULL pointer points to nowhere.
Variables
Constants are not always sufficient to reflect reality. Though I am a constant human being and your constant PDS teacher, I am not a constant teacher for you or this classroom. Your or V1's teacher changes with time, though at any particular instant it assumes a constant value. A variable data is used to portray this scenario.
A variable is specified by a name given to a collection of memory locations. Named variables are useful from two considerations:
• Variables bind particular areas in the memory. You can access an area by a name and not by its explicit address. This abstraction simplifies a programmer's life dramatically. (If you want to tell a story to your friend about your pet, you would like to use its name instead of holding the constant object all the time in front of your friend's bored eyes.)
• Names promote parameterized computation. You change the value of a variable and obtain a different output. For example, the polynomial 2a2+3a-4 evaluates to different values, as you plug in different values for the variable a. Of course, the particular name a is symbolic here and can be replaced by any other name (b,c etc.), but the formal naming of the parameter allows you to write (and work with) the function symbolically.
Naming conventions
C does not allow any sequence of characters as the name of a variable. This kind of practice is not uncommon while naming human beings too. However, C's naming conventions are somewhat different from human conventions. To C, a legal name is any name prescribed by its rules. There is no question of aesthetics or meaning or sweet-sounding-ness.
You would probably not name your (would-be) baby as "123abc". C also does not allow this name. However, C allows the name "abc123". One usually does not see a human being with this name. But then, have you heard of "Louis XVI"?
Well, you may rack your brain for naming your baby. Here are C's straightforward rules. • Any sequence of alphabetic characters (lower-case a to z and upper-case A to Z)
and numerals (0 through 9) and underscore (_) can be a valid name, provided that: o The name does not start with a numeral.
o The name does not coincide with one of C's reserved words (like double, unsigned, for). These words have special meanings to the compilers and so are not allowed for your variables.
o The name does not coincide with the same name of another entity (declared in the same scope).
o The name does not contain any character other than those mentioned above.
• C's naming scheme is case-sensitive, i.e., teacher, Teacher, TEACHER, TeAcHeR are all different names.
• C does not impose any restriction on what name goes to what type of data. The name fraction can be given to an int variable and the name submerged can be given to a float variable.
• There is no restriction on the minimum length (number of characters) of a name, as long as the name is not the empty string.
• Some compilers impose a restriction on the maximum length of a name. Names bigger than this length are truncated to the maximum allowed leftmost part. This may lead to unwelcome collisions in different names. However, this upper limit is usually quite large, much larger than common names that we give to variables. In C, names are given to other entities also, like functions, constants. In every case the above naming conventions must be adhered to.
Declaring variables
For declaring one or more variables of a given data type do the following: • First write the data type of the variable.
• Then put a space (or any other white character).
• Then write your comma-separated list of variable names. • At the end put a semi-colon.
Here are some specific examples: int m, n, armadillo; int platypus;
float hi, goodMorning;
unsigned char _u_the_charcoal;
You may also declare pointers simultaneously with other variables. All you have to do is to put an asterisk (*) before the name of each pointer.
long int counter, *pointer, *p, c; float *fptr, fval;
double decker; double *standard;
Here counter and c are variables of type long int, whereas pointer and p are pointers to data of type long int. Similarly, decker is a double variable, whereas standard is a pointer to a double data.
Initializing variables
Once you declare a variable, the compiler allocates the requisite amount of memory to be accessed by the name of the variable. C does not make any attempt to fill that memory with any particular value. You have to do it explicitly. An uninitialized memory may contain any value (but it must contain some value) that may depend on several funny things like how long the computer slept after the previous shutdown, how much you have browsed the web before running your program, or may be even how much dust has accumulated on the case of your computer.
We will discuss in the next chapter how variables can be assigned specific values. For the time being, let us investigate the possibility that a variable can be initialized to a constant value at the time of its declaration. For achieving that you should put an equality sign immediately after the name followed by a constant value before closing the declaration by a comma or semicolon.
int dint = 0, hint, mint = -32; char *Romeo, *Juliet = NULL;
Here the variable dint is initialized to 0, mint to -32, whereas hint is not initialized. The char pointer Romeo is not initialized, whereas Juliet is initialized to the NULL pointer. Notice that uninitialized (and unassigned) variables may cause enough sufferings to a programmer. Take sufficient care!
Names of constants
So far we have used immediate constants that are defined and used in place. In order to reuse the same immediate constant at a different point in the program, the value must again be explicitly specified.
C provides facilities to name constant values (like variables). Here we discuss two ways of doing it.
Constant variables
Variables defined as above are read/write variables, i.e., one can both read their contents and store values in them. Constant variables are read-only variables and can be declared by adding the reserved word const before the data type.
const double pi = 3.1415926535;
const unsigned short int perfect1 = 6, perfect2 = 28, perfect3 = 496;
These declarations allocate space and initialize the variables like variable variables, but don't allow the user to alter the value of PI, perfect1 etc. at a later time during the execution of the program.
#define'd constants
These are not variables. These are called macros. If you #define a value against a name and use that name elsewhere in your program, the name is literally substituted by the C preprocessor, before your code is compiled. Macros do not reside in the memory, but are expanded well before any allocation attempt is initiated.
#define PI 3.1415926535 #define PERFECT1 6 #define PERFECT2 28 #define PERFECT3 496
Look at the differences with previous declarations. First, only one macro can be defined in a single line. Second, you do not need the semicolon or the equality sign for defining a macro.
Parameterized macros can also be defined, but unless you fully understand what a macro means and how parameters are handled in macros, don't use them. Just a wise tip, I believe! You can live without them.
Typecasting
An integer can naturally be identified with a real number. The converse is not immediate. However, we can adopt some convention regarding conversion of a real number to an integer. Two obvious candidates are truncation and rounding. C opts for truncation. In order to convert a value <val> of any type to a value of <another_type> use the following directive:
(<another_type>)<val>
Here <val> may be a constant or a value stored in a named variable. In the examples below we assume that piTo4 is a double variable that stores the value 97.4090910340.
Typecasting command Output value
(int)9.8696044011 The truncated integer 9 (int)-9.8696044011 The truncated integer -9
(float)9 The floating-point value 9.000000
(int)piTo4 The integer 97
(char)piTo4 The integer 97, or equivalently the character 'a'
(int *)piTo4 An integer pointer that points to the memory location 97.
(double)piTo4 The same value stored in piTo4
Typecasting also applies to expressions and values returned by functions.
Representation of numbers in memory
Binary representation
Computer's world is binary. Each computation involves manipulating a series of bits each realized by some mechanism that can have two possible states denoted "0" and "1". If that is the case, integers, characters, floating point numbers need also be represented by bits. Here is how this representation can be performed.
For us, on the other hand, it is customary to have 10 digits in our two hands and
consequently 10 digits in a number system. The decimal system is natural. Not really, it is just the convention. From our childhood we have been taught to use base ten
representations to such an extent that it is difficult to conceive of alternatives, in fact to even think that any natural number greater than 1 can be a legal base for number
representation. (There also exists an "exponentially big" unary representation of numbers that uses only one digit better called a "symbol" now.)
Binary expansion of integers
Let's first take the case of non-negative integers. In order to convert such an integer n from the decimal representation to the binary representation, one keeps on dividing n by 2 and remembering the intermediate remainders obtained. When n becomes 0, we have to write the remainders in the reverse sequence as they are generated. That's the original n in binary. n Remainder 57 Divide by 2 28 1 Divide by 2 14 0 Divide by 2 7 0 Divide by 2 3 1 Divide by 2 1 1 Divide by 2 0 1 57 = (111001)2
For computers, we usually also specify a size t of the binary representation. For example, suppose we want to represent 57 as an unsigned char, i.e., as an 8-bit value. The above algorithm works fine, but we have to
• either insert the requisite number of leading zero bits,
• or repeat the "divide by 2" step exactly t times without ever looking at whether the quotient has become 0.
n Remainder 57 Divide by 2 28 1 Divide by 2 14 0 Divide by 2 7 0 Divide by 2 3 1 Divide by 2 1 1 Divide by 2 0 1 Divide by 2 0 0 Divide by 2 0 0 57 = (00111001)2
What if the given n is too big to fit in a t-bit place? Now also you can "divide by 2" exactly t times and read the t remainders backward. That will give you the least significant t bits of n. The remaining more significant bits will simply be ignored.
n Remainder 657 Divide by 2 328 1 Divide by 2 164 0 Divide by 2 82 0 Divide by 2 41 0 Divide by 2 20 1 Divide by 2 10 0 Divide by 2 5 0 Divide by 2 2 1 657 = (...10010001)2
Signed magnitude representation of integers
Now we add provision for sign. Here is how this is conventionally done. In a t-bit signed representation of n:
• The most significant (leftmost) bit is reserved for the sign. "0" means positive, "1" means negative.
• The remaining t-1 bits store the (t-1)-bit representation of the magnitude (absolute value) of n (i.e., of |n|).
Example: The 7-bit binary representation of 57 is (0111001)2.
• The 8-bit signed magnitude representation of 57 is (00111001)2.
• The 8-bit signed magnitude representation of -57 is (10111001)2.
Back to decimal
Given an integer in unsigned or signed representation, its magnitude and sign can be determined. For the sign, the most significant bit is consulted. For the magnitude, a sum of appropriate powers of 2 is calculated.
Let the magnitude be stored in l bits. The bits are numbered 0,1,...,l-1 from right to left. The i-th position (from the right) corresponds to the power 2i. One simply adds the powers of 2 corresponding to those positions that hold 1 bits in the binary representation.
Signed integer 0 0 1 1 1 0 0 1 Position Sign 6 5 4 3 2 1 0 Contribution + 0 25 24 23 0 0 20 +(25+24+23+20) = +(32+16+8+1) = +57 Signed integer 1 0 0 1 0 0 0 1 Position Sign 6 5 4 3 2 1 0 Contribution - 0 0 24 0 0 0 20 -(24+20) = -(16+1) = -17 Unsigned integer 1 0 0 1 0 0 0 1 Position 7 6 5 4 3 2 1 0 Contribution 27 0 0 24 0 0 0 20 27+24+20 = 128+16+1 = 145 Notes:
• The t-bit unsigned representation can accommodate integers in the range 0 to 2t-1. • The t-bit signed magnitude representation can accommodate integers in the range
-(2t-1-1) to +(2t-1-1).
• In the signed magnitude representation 0 has two renderings: +0 = 0000...0 and -0=1000...0.
1's complement representation
1's complement of a t-bit sequence (at-1at-2...a0)2 is the t-bit sequence (bt-1bt-2...b0)2,
where for each i we have bi = 1 - ai, i.e., bi is the bit-wise complement of ai. Here (bt-1b t-2...b0)2= 2t-1-(at-1at-2...a0)2.
The t-bit 1's complement representation of an integer n is a t-bit signed representation with the following properties:
• The most significant (leftmost) bit is the sign bit, 0 if n is positive, 1 if n is negative.
• The remaining t-1 bits are used to stand for the absolute value |n|.
o If n is positive, these t-1 bits hold the (t-1)-bit binary representation of |n|. o If n is negative, these t-1 bits hold the (t-1)-bit 1's complement of |n|.
Example: The 7-bit binary representation of 57 is (0111001)2. The 7-bit 1's complement
of 57 is (1000110)2.
• The 1's complement representation of +57 is (00111001)2.
• The 1's complement representation of -57 is (11000110)2.
Notes:
• The tbit 1's complement representation can accommodate integers in the range -(2t-1-1) to +(2t-1-1).
• 0 has two representations: +0 = (0000...0)2 and -0 = (1111...1)2.
2's complement representation
The t-bit 2's complement of a positive integer n is 1 plus the t-bit 1's complement of n. Thus one first complements each bit in the t-bit binary expansion of n, and then adds 1 to this complemented number. If n = (at-1at-2...a0)2, then its t-bit 1's complement is (bt-1b t-2...b0)2 with each bi = 1 - ai, and therefore the 2's complement of n is n' = 1+(bt-1b t-2...b0)2 = 1+(2t-1)-n = 2t-n. In order that n' fits in t-bits we then require 0<=n'<=2t-1,
i.e., 1<=n<=2t.
The t-bit 2's complement representation of an integer n is a t-bit signed representation with the following properties:
• The most significant (leftmost) bit is the sign bit, 0 if n is positive, 1 if n is negative.
• The remaining t-1 bits are used to stand for the absolute value |n|.
o If n is positive, these t-1 bits hold the (t-1)-bit binary representation of |n|. o If n is negative, these t-1 bits hold the (t-1)-bit 2's complement of |n|. Example: The 7-bit binary representation of 57 is (0111001)2. The 7-bit 1's complement
of 57 is (1000110)2, so the 7-bit 2's complement of 57 is (1000111)2.
• The 2's complement representation of +57 is (00111001)2.
• The 2's complement representation of -57 is (11000111)2.
Notes:
• The tbit 2's complement representation can accommodate integers in the range -2t-1 to +(2t-1-1).
• 0 has only one representation: (0000...0)2.
• The 2's complement representation simplifies implementation of arithmetic (in hardware).
Example: The different 8-bit representations of signed integers are summarized in the following table:
Decimal Signed magnitude 1's complement 2's complement +127 01111111 01111111 01111111 +126 01111110 01111110 01111110 +125 01111101 01111101 01111101 ... ... ... ... +3 00000011 00000011 00000011 +2 00000010 00000010 00000010 +1 00000001 00000001 00000001 0 00000000 or 10000000 00000000 or 11111111 00000000 -1 10000001 11111110 11111111 -2 10000010 11111101 11111110 -3 10000011 11111100 11111101 ... ... ... ... -126 01111110 10000001 10000010 -127 01111111 10000000 10000001 -128 No rep No rep 10000000
Hexadecimal and octal representations
Similar to binary (base 2) representation, one can have representations of integers in any base B>=2. In computer science two popular bases are 16 and 8. The representation of an integer in base 16 is called the hexadecimal representation, whereas that in base 8 is called the octal representation of the integer.
For any base B, the base B representation of n can be obtained by successively dividing n by B until the quotient becomes zero. One then writes the remainders in the reverse sequence as they are generated. Since division by B leaves remainders in the range 0,1,...,B-1, one requires these many digits for the base B representation. If B=8, the natural (octal) digits are 0,1,...,7. For B=16, we have a problem; we now require 16 digits 0,1,...,15. Now it is difficult to distinguish, for example, between 13 as a digit and 13 as the digit 1 followed by the digit 3. We use the symbols a,b,c,d,e,f (also in upper case) to stand for the hexadecimal digits 10,11,12,13,14,15.
n Remainder 413657 Divide by 16 25853 9 Divide by 16 1615 13 Divide by 16 100 15 Divide by 16 6 4 Divide by 16 0 6 413657 = 0x64fd9 Example: Octal representation
n Remainder 413657 Divide by 8 51707 1 Divide by 8 6463 3 Divide by 8 807 7 Divide by 8 100 7 Divide by 8 12 4 Divide by 8 1 4 Divide by 8 0 1 413657 = (1447731)8
Since 16 and 8 are powers of two, the hexadecimal and octal representations of an integer can also be computed from its binary representation. For the hexadecimal representation, one generates groups of successive 4 bits starting from the right of the binary
representation. One may have to add a requisite number of leading 0 bits in order to make the leftmost group contain 4 bits. One 4 bit integer corresponds to an integer in the range 0,1,...,15, i.e., to a hexadecimal digit. For the octal representation, grouping should be made three bits at a time.
Example: The binary representation of 413657 is (1100100111111011001)2. Arranging
this bit-sequence in groups of 4 gives: 110 0100 1111 1101 1001
Thus 413657 = 0x64fd9, as calculated above. The grouping with three bits per group is:
1 100 100 111 111 011 001 Thus 413657 = (1447731)8.
IEEE floating point standard
Now it's time for representing real numbers in binary. Let us first review our decimal intuition. Think of the real number:
n = 172.93 = 1.7293 x 102 = 0.17293 x 103
By successive division by 2 we can represent the integer part 172 of n in binary. For the fractional part 0.93 we use repeated multiplication by two in order to get the bits after the binary point. After each multiplication, the integer part of the product generates the next bit in the representation. We then replace the old fractional part by the fractional part of the product. Integral part Remain der 172 Divide by 2 86 0 Divide by 2 43 0 Divide by 2 21 1 Divide by 2 10 1 Divide by 2 5 0 Divide by 2 2 1 Divide by 2 1 0 Divide by 2 0 1 172 = (10101100)2 Fractional part Integral part 0.93 Multiply by 2 0.86 1 Multiply by 2 0.72 1 Multiply by 2 0.44 1 Multiply by 2 0.88 0 Multiply by 2 0.76 1 Multiply by 2 0.52 1 Multiply by 2 0.04 1 Multiply by 2 0.08 0 Multiply by 2 0.16 0 Multiply by 2 0.32 0
0.93 = (0.1110111000... )2
172.93 = (10101100.1110111000...)2 = (1.01011001110111000...)2 x 27 = (0.1010110
01110111000...)2 x 28
It turns out that the decimal fraction 0.93 does not have a terminating binary expansion. So we have to approximate the binary expansion (after the binary point) by truncating the series after a predefined number of bits. Truncating after ten bits gives the approximate value of n to be: (1.0101100111)2 x 27 = (20 + 2-2 + 2-4 + 2-5 + 2-8 + 2-9 + 2-10) x 27 = 27 + 25 + 23 + 22 + 2-1 + 2-2 + 2-3 = 128 + 32 + 8 + 4 + 0.5 + 0.25 + 0.125 = 172.875
This example illustrates how to store approximate representations of real numbers using a fixed amount of bits. If we write the expansion in the normal form with only one 1 bit (and nothing else) to the left of the binary point, then it is sufficient to store only the fractional part (0101100111 in our example) and the exponent of 2 (7 in the example). This is precisely what is done by the IEEE 754 floating-point format. This is a 32-bit representation of signed floating point numbers. The 32 bits are used as follows:
31 30 29 ... 24 23 22 21 ... 1 0 S E7 E6 ... E1 E0 M22 M21 ... M1 M0
The meanings of the different parts are as follows:
• S is the sign bit, 0 represents positive, and 1 negative.
• The eight bits E7E6...E1E0 represent the exponent. For usual numbers it is
allowed to lie in the range 1 to 254.
• The rightmost 23 bits M22M21...M1M0 represent the mantissa (also called
significand). It is allowed to take any of the 223 values between 0 and 223-1. Normal numbers
The normal number that this 32-bit value stores is interpreted as: (-1)S x (1.M22M21...M1M0)2 x 2[(E7E6...E1E0)2-127]
The biggest real number that this representation stores corresponds to 0 11111110 1111111 11111111 11111111
which is approximately 2128, i.e., 3.403 x 1038. The smallest positive value that this format can store corresponds to
0 00000001 0000000 00000000 00000000 which is
1.00000000000000000000000 x 2-126 = 2-126, i.e., nearly 1.175 x 10-38.
Denormal numbers
The IEEE standard also supports a denormal form. Now all the exponent bits E7E6...E1E0 must be 0. The 32-bit value is now interpreted as the number:
(-1)S x (0.M
22M21...M1M0)2 x 2-126
The maximum positive value that can be represented by the denormal form corresponds to
0 00000000 1111111 11111111 11111111 which is
0.11111111111111111111111 x 2-126 = 2-126 - 2-149.
This is obtained by subtracting 1 from the least significant bit position of the smallest positive integer representable by a normal number. Denormal numbers therefore correspond to a gradual underflow from normal numbers.
The minimum positive value that can be represented by the denormal form corresponds to
0 00000000 0000000 00000000 00000001 which is 2-149, i.e., nearly 1.401 x 10-45.
Special numbers
Recall that the exponent bits were not allowed to take the value 1111 1111 (255 in decimal). This value corresponds to some special numbers. These numbers together with some other special ones are listed in the following table.
32-bit value Interpretation
0 1111 1111 0000000 00000000 00000000 +Inf 1 1111 1111 0000000 00000000 00000000 -Inf
0 1111 1111 Any nonzero 23-bit value NaN
0 0000 0000 0000000 00000000 00000000 +0 1 0000 0000 0000000 00000000 00000000 -0 0 0111 1111 0000000 00000000 00000000 +1.0 1 0111 1111 0000000 00000000 00000000 -1.0 0 1000 0000 0000000 00000000 00000000 +2.0 1 1000 0000 0000000 00000000 00000000 -2.0 0 1000 0000 1000000 00000000 00000000 +3.0 1 1000 0000 1000000 00000000 00000000 -3.0 0 1111 1110 1111111 11111111 11111111 2255 - 2231 0 0000 0001 0000000 00000000 00000000 2-126 0 0000 0000 1111111 11111111 11111111 2-126 - 2-149 0 0000 0000 0000000 00000000 00000001 2-149
Introduction to arrays
Arrays are our first example of structured data. Think of a book with pages numbered 1,2,...,400. The book is a single entity, has its individual name, author(s), publisher, bla bla bla, but the contents of its different pages are (normally) different. Moreover,
Page 251 of the book refers to a particular page of the book. To sum up, individual pages retain their identities and still we have a special handy bound structure treated as a single entity. That's again abstraction, but this course is mostly about that.
Now imagine that you plan to sum 400 integers. Where will you store the individual integers? Thanks to your ability to declare variables, you can certainly do that. Declare 400 variables with 400 different names, initialize them individually and finally add each variable separately to an accumulating sum. That's gigantic code just for a small task. Arrays are there to help you. Like your book you now have a single name for an entire collection of 400 integers. Declaration is small. Codes for initialization and addition also become shorter, because you can now access the different elements of the collection by a unique index. There are built-in C constructs that allow you do parameterized (i.e., indexed) tasks repetitively.
Declaring arrays
Simple! Just as you did for individual data items, write the data type, then a (legal) name and immediately after that the size of the array within square brackets. For example, the declaration
int intHerd[400];
creates an array of name intHerd that is capable of storing 400 int data. A more stylistic way to do the same is illustrated now.
#define HERD_SIZE 400 int intHerd[HERD_SIZE];
Here are two other arrays, the first containing 123 float data, the second 1024 unsigned char data.
float flock[123];
unsigned char crowd[1024];
You can intersperse declaration of arrays with those of simple variables and pointers. unsigned long man, society[100], woman, *ptr;
This creates space for two unsigned long variables man and woman, an array called society with hundred unsigned long data, and also a pointer named ptr to an unsigned long data.
Note that all individual elements of a single array must be of the same type. You cannot declare an array some of whose elements are integers, the rest floating-point numbers. Such heterogeneous collections can be defined by other means that we will introduce later.
Accessing individual array elements
Once an array A of size s is declared, its individual elements are accessed as A[0],A[1],...,A[s-1]. It is very important to note that:
Array indexing in C is zero-based.
This means that the "first" element of A is named as A[0] (not A[1]), the "second" as A[1], and so on. The last element is A[s-1].
Each element A[i] is of data type as provided in the declaration. For example, if the declaration goes as:
int A[32];
each of the elements A[0],A[1],...,A[31] is a variable of type int. You can do on each A[i] whatever you are allowed to do on a single int variable.
If an array A of size s is declared, the element A[i] belongs to the array (more correctly, to the memory locations allocated to A) if and only if 0 <= i <= s-1. However, you can use A[i] for other values of i. No compilation errors (nor warnings) are generated for that. Now when you run the program, the executable attempts to access a part of the memory that is not allocated to your array, nor perhaps to (the data area allocated to) your program at all. You simply do not know what resides in that part of the memory.
Moreover, illegal memory access may lead to the deadly "segmentation fault". C is too cruel at certain points. Beware of that!
Initializing arrays
Arrays can be initialized during declaration. For that you have to specify constant values for its elements. The list of initializing values should be enclosed in curly braces. For the declaration
int A[5] = { 51, 29, 0, -34, 67 };
A[0] is initialized to 51, A[1] to 29, A[2] to 0, A[3] to -34 and A[4] to 67. Similarly, for the declaration
char C[8] = { 'a', 'b', 'h', 'i', 'j', 'i', 't', '\0' };
C[0] gets the value 'a', C[1] the value 'b', and so on. The last (7th) location receives the null character. Such null-terminated character arrays are also called strings. Strings can be initialized in an alternative way. The last declaration is equivalent to:
char C[8] = "abhijit";
Now see that the trailing null character is missing here. C automatically puts it at the end. Note also that for individual characters, C uses single quotes, whereas for strings, it uses double quotes.
If you do not mention sufficiently many initial values to populate an entire array, C uses your incomplete list to initialize the array locations at the lower end (starting from 0). The remaining locations are initialized to zero. For example, the initialization
int A[5] = { 51, 29 }; is equivalent to
int A[5] = { 51, 29, 0, 0, 0 };
If you specify an initialization list, you may omit the size of the array. In that case, the array will be allocated exactly as much space as is necessary to accommodate the
initialization list. You must, however, provide the square brackets to indicate that you are declaring an array; the size may be missing between them.
int A[] = { 51, 29 };
creates an array A of size 2 with A[0] holding the value 51 and A[1] the value 29. This declaration is equivalent to
int A[2] = { 51, 29 }; but not to
int A[5] = { 51, 29 };
There are a lot more things that pertain to arrays. You may declare multi-dimensional arrays, you may often interchange arrays with pointers, and so on. But it's now too early for these classified topics. Wait until your experience with C ripens.
CS13002 Programming and Data
Structures
Spring
semester
Assignments
Assignments and imperative programming
Initialization during declaration helps one store constant values in memory allocated to variables. Later one typically does a sequence of the following:
• Read the values stored in variables. • Do some operations on these values. • Store the result back in some variable.
This three-stage process is effected by an assignment operation. A generic assignment operation looks like:
variable = expression;
Here expression consists of variables and constants combined using arithmetic and logical operators. The equality sign (=) is the assignment operator. To the left of this operator resides the name of a variable. All the variables present in expression are loaded to the CPU. The ALU then evaluates the expression on these values. The final result is stored in the location allocated to variable. The semicolon at the end is mandatory and denotes that the particular statement is over. It is a statement delimiter, not a statement separator.
Animation example : expression evaluation
A C program typically consists of a sequence of statements. They are executed one-by-one from top to bottom (unless some explicit jump instruction or function call is encountered). This sequential execution of statements gives C a distinctive imperative flavor. This means that the sequence in which statements are executed decides the final values stored in variables. Let us illustrate this using an example:
int x = 43, y = 15; /* Two integer variables are declared and initialized */
x = y + 5; /* The value 15 of y is fetched and added to 5.
The sum 20 is stored in the memory location for x. */ y = x; /* The value stored in x, i.e., 20 is fetched and stored back in y. */
After these statements are executed both the memory locations for x and y store the integer value 20.
Let us now switch the two assignment operations.
int x = 43, y = 15; /* Two integer variables are declared and initialized */
y = x; /* The value stored in x, i.e., 43 is fetched and stored back in y. */
x = y + 5; /* The value 43 of y is fetched and added to 5.
The sum 48 is stored in the memory location for x. */
For this sequence, x stores the value 48 and y the value 43, after the two assignment statements are executed.
The right side of an assignment operation may contain multiple occurrences of the same variable. For each such occurrence the same value stored in the variable is substituted. Moreover, the variable in the left side of the assignment operator may appear in the right side too. In that case, each occurrence in the right side refers to the older
(pre-assignment) value of the variable. After the expression is evaluated, the value of the variable is updated by the result of the evaluation. For example, consider the following: int x = 5;
x = x + (x * x);
The value 5 stored in x is substituted for each occurrence of x in the right side, i.e., the expression 5 + (5 * 5) is evaluated. The result is 30 and is stored back to x. Thus, this assignment operation causes the value of x to change from 5 to 30. The equality sign in the assignment statement is not a mathematical equality, i.e., the above statement does not refer to the equation x = x + x2 (which happens to have a single root, namely
x = 0). It similarly makes sense to write z = z + 2;
to imply an assignment (increment the value of z by 2). Mathematically, it makes little sense, since no numbers you know seem to satisfy the equation z = z + 2. (But I know some of them!) Notice that in C there is a different way for checking equality of two expressions. The single equality sign is not that.
Floating point numbers, characters and array locations may also be used in assignment operations.
float a = 2.3456, b = 6.5432, c[5]; /* Declare float variables and arrays */
char d, e[4]; /* Declare character variables and arrays */
