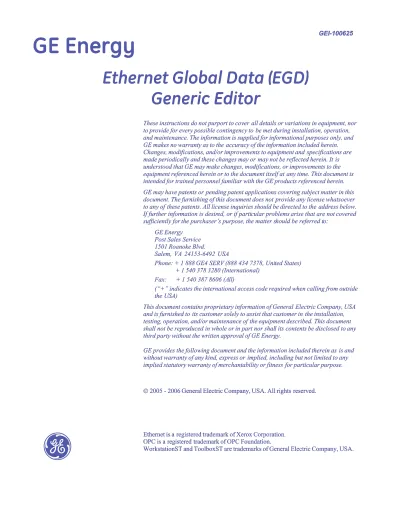

Ethernet Global Data (EGD)
Ethernet Global Data (EGD)
Generic Editor
Generic Editor
These instructions do not purport to coverThese instructions do not purport to cover all details or variations in equipment, norall details or variations in equipment, nor to provide for every possible contingency to
to provide for every possible contingency to be met during installation, operation,be met during installation, operation, and maintenance. The information is supplied for informational purposes only, and and maintenance. The information is supplied for informational purposes only, and GE makes no warranty as to the
GE makes no warranty as to the accuracy of the information included herein.accuracy of the information included herein. Changes, modifications, and/or improvements to equipment and
Changes, modifications, and/or improvements to equipment and specifications arespecifications are made periodically and these changes may or
made periodically and these changes may or may not be reflected herein. It may not be reflected herein. It isis understood that GE may make changes, modifications, or improvements to the understood that GE may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at
equipment referenced herein or to the document itself at any time. This document isany time. This document is intended for trained personnel familiar with the GE products referenced herein. intended for trained personnel familiar with the GE products referenced herein. GE may have patents or
GE may have patents or pending patent applications covering subject matter in thispending patent applications covering subject matter in this document. The furnishing of this document does not
document. The furnishing of this document does not provide any license whatsoeverprovide any license whatsoever to any of
to any of these patents. All license inquiries should be directed to the these patents. All license inquiries should be directed to the address below.address below. If further infor
If further information is desirmation is desired, or if partied, or if particular problems cular problems arise that are not arise that are not coveredcovered sufficiently for
sufficiently for the purchaser’s purpose, the purchaser’s purpose, the matter sthe matter should be referred thould be referred to:o: GE Energy
GE Energy Post Sales Ser Post Sales Servicevice
1501 Roanoke Blvd. 1501 Roanoke Blvd.
Salem, VA 24153-6492 USA Salem, VA 24153-6492 USA Phone: + 1 888
Phone: + 1 888 GE4 SERV GE4 SERV (888 434 7378, Uni(888 434 7378, United States)ted States) + 1 540 378 3280 (International)
+ 1 540 378 3280 (International) Fax:
Fax: + 1 540 387 8606 (A+ 1 540 387 8606 (All)ll)
(“+” indicates the international access code required when calling from outside (“+” indicates the international access code required when calling from outside the USA)
the USA)
This document contains proprietary information of General
This document contains proprietary information of General Electric Company, USAElectric Company, USA and is furnished to
and is furnished to its customer solely to assist that customer in its customer solely to assist that customer in the installation,the installation, testing, operation, and/or maintenance of
testing, operation, and/or maintenance of the equipment described. This documentthe equipment described. This document shall not be repro
shall not be reproduced in whole or duced in whole or in part nor shalin part nor shall its contents l its contents be disclosed to be disclosed to anyany third party without the written approval of GE Energy.
third party without the written approval of GE Energy.
GE provides the following document and the information included therein as GE provides the following document and the information included therein as is andis and without warranty of any kind, express or
without warranty of any kind, express or implied, including but not limited to anyimplied, including but not limited to any implied statutory warranty of merchantability or fitness
implied statutory warranty of merchantability or fitness for particular purpose.for particular purpose.
2005 2005 - 2006 - 2006 General Electric Company, USA. All rights General Electric Company, USA. All rights reserved.reserved.
Ethernet is a
Ethernet is a registered trademark of Xerox Corporation.registered trademark of Xerox Corporation. OPC is a
OPC is aregisteredregisteredtrademark of OPC Foundation.trademark of OPC Foundation.
GE Energy
GE Energy
GEI-100625 GEI-100625g
g
Contents
Contents
Section
Page
Section
Page
Introduction Introduction ... 33 Network Adapters.... Network Adapters... 33 EGDEGD ConfigurationConfiguration ... 44 EGD Configuration Server
EGD Configuration Server SettingsSettings ...55 Produced
Produced Pages...Pages... 66 Editing
Editing Produced Produced Pages...Pages... 77 Page
Page CompressionCompression ... 99 Variables...
Variables... 99 Editing Exchange Signatures and Configura
Editing Exchange Signatures and Configuration Timetion Time ... 1010 Referenced
Referenced DevicesDevices... 1111 Implementation
Implementation Profile...Profile... 1313 Viewing Live
Viewing Live Data ValuesData Values ... 1515 Finder
Finder ... 1616 Find
Find MethodsMethods ... 1717 Replace
Replace OptionsOptions ... 2020 Menus
Menus ... 2020 Acronyms
Acronyms and and AbbreviationsAbbreviations ... 2121 Terms...
Terms... 2222
Safety Symbol Legend
Safety Symbol Legend
Indicates a procedure, practice, condition, or statement that, i Indicates a procedure, practice, condition, or statement that, i ff not strictly observed, could result in
not strictly observed, could result in personal injury or death.personal injury or death.
Indicates a procedure or condition that, if not
Indicates a procedure or condition that, if not strictly observed,strictly observed, could result in damage to or destruction of equipment.
could result in damage to or destruction of equipment.
Note
Introduction
The EGD Component Editor for external devices allows you to configure Ethernet® Global Data (EGD) for an external or third-party device. The EGD protocol allows controller components (sometimes known as nodes) to share information in a networked environment. EGD allows one controller device, referred to as the producer of the data, to simultaneously send information to any number of peer
controller devices (consumers) at a fixed periodic rate. This network supports a large number of controller devices capable of both producing and consuming.
Network Adapters
The General tab configures Ethernet adapters for an external EGD-capable device. One adapter is created by default, and up to four adapters can be added.
To add a network adapter
1 From theSystem Editor , right-click an external device, then select Edit EGD. (IfEdit EGD is not available, theEGD Editor Enable property of the
component may be set toFalse. TheEGD Component Editor opens.)
2 From theComponent Editor , select theGeneral tab.
3 From theTree View, right-click the Network Adapters item, then select
Add Adapter .
To remove a network adapter
1 From theSystem Editor , right-click an external device, then select Edit EGD. (IfEdit EGD is not available, theEGD Editor Enable property of the
component may be set toFalse. TheEGD Component Editor opens.)
2 From theComponent Editor , select theGeneral tab.
3 From theTree View, right-click the network adapter to be removed, then select
The following properties are available for configuration when a Network Adapter is selected in the Tree View:
Host Name is the Internet Protocol (IP) host name for the selected network adapter.
IP Address is the IP address for the selected network adapter.
Network Name is the name of the connected network.
Subnet Mask is the subnet mask associated with the connected network.
Wire Speed is the speed of the connected network.
EGD Configuration
To configure EGD for an external device
1 Start theEGD Generic Editor. From theFilemenu, selectOpen and select anEGD Device to open theEGD Component Editor .
2 From theComponent Editor , select theEGDtab.
3 In theTree View, selectEthernet Global Data. The Ethernet Global Data
properties display in theProperty Editor .
In the Tree View, select Ethernet Global Data.
These properties are available for configuration when Ethernet Global Data is selected in the Tree View:
Collectioncontrols the Collection to which this EGD component belongs when viewed in the EMT. This information is published to the EGD Configuration server in the GUI component document,GUIDevice.xml .
Producer ID is assigned when the component is created. The Property Editor displays the EGD Producer ID formatted as an unsigned integer, but dotted and hexadecimal representations are available by clicking the ellipsis button.
EGD Configuration Server Settings
To open the EGD Configuration Server settings
The following settings are available for the Generic EGD Device item in the Tree View:
EGD Configuration Server is set to True to enable the EGD Configuration Server, and to False to disable it.
The following settings are available for theEGD Configuration Server item in the Tree View:
Local Server Cache Path is the path to the local cached directory. If this property is configured, the resulting files from selecting the Get command is copied to this directory. If the server is not available, this cache can be used.
Work Offline is set to True to use the mirror local server cache directory for Get and Publish command. In most situations, this property should be set to False so that the real EGD Configuration server is used. If the server is not available, the mirror cache can be used as a temporary alternative.
When working offline, any configuration saved to the mirror cache must be re-saved to the real configuration server once that server is available. At that time, the Work Offline property must be returned to False.
Base Path is the Uniform Resource Identifier (URI) on the EGD Configuration Server where EGD files reside. This should only be changed b y your system administrator.
Host Nameor IP address of the EGD Configuration server being used for all software on this computer.
Server Port is the server port value to use. The default assigned value is 7938 per the EGD Protocol specification.
Timeout (in milliseconds) is used to communicate to the EGD configuration server. The default value is 10000 ms (10 seconds).
Use IE Proxyhas a default value of False. If True, the Internet Explorer proxy settings are used. Using the proxy is not recommended.
Produced Pages
Produced Pages are data sets configured to be available to other components on the network.
To add a new Produced Page
1 From theTree View, right-click theProduced Pages item, then selectAdd Page.
2 Enter a unique name for the new page in the Page Name dialog box, then click
To delete a Produced Page
From theTree View, right-click the page you wish to delete, then selectDelete.
Editing Produced Pages
To configure a Produced Page
From theTree View, select the EGD tab, then expand theProduced Pages.
Under Produced Pages, select the desired page.
The page
properties display in the Property Editor.
The following properties are available for configuration when a Produced Page is selected in the Tree View:
Ethernet 0, if selected, broadcasts EGD on Ethernet 0. (If more than one Ethernet Adapter has been configured for EGD, additional Ethernet properties displays.)
Mode can be set to Broadcast, Unicast, or Multicast, depending on the modes supported by the device's EGD implementation profile.
Exchanges indicate the number of exchanges in the selected page. It is updated after selecting the Build command.
Allow Editing when False, a variable's exchange ID and offset for variables on a manual page cannot be edited. A page compress will also be disabled. This prevents you from inadvertently editing a page with manual selected as Layout mode.
Name uses this property to rename the selected page.
Period indicates the transmission period of the page in milliseconds.
Skewis used to prevent exchanges with the same period from being produced at exactly the same instant. The skew for the first exchange in the page is set to this value, and each additional exchange skew differs from the previous exchange’s skew by exactly this value. For example, if you have three exchanges in a page and a skew value of 2, the first exchange’s skew is two, the second exchange’s skew is four and the third exchange’s skew is six.
Note The Skew property will not be visible if it is not supported in the implementation profile configuration. (The skew property is measured in nanoseconds.)
Destination IP Address sets the IP address to which the exchanges on this page are unicast or multicast. (If the Mode property is set toBroadcast, this property is not available.)
Page Compression
When a page compress command is performed, the variable locations are optimized. The variables are located in increasing size order, starting with Booleans, then Words, Double Words, and finally all other variables.
To compress a single page
From theTree View, right-click the page to compress, and then select
Compress.
To compress all Produced Pages in a component
From theTree View, right-click Produced Pages, and then selectCompress All.
Variables
To add a variable to a produced page
From theTree View, select a Produced Page to display aData Grid in the
Summary View.
Click the Name cell in the Append row, type a variable name, and then click Enter . The variable will display in a new row, where you can change other properties.
To delete a variable from an EGD Page
From theSummary View, right-click the variable to delete, and then select
Delete Selected Row(s).
To copy variable information from an EGD page to the clipboard
From theSummary View, right-click a variable, and then select Copy Selected/Current Row(s). The data is copied in .csv format.
Editing Exchange Signatures and Configuration Time
Normally, the exchange signature is managed automatically. The major signature must be incremented when the exchange content changes in any way other than additions to the end. If you are using the EGD Device Editor to configure EGD for a device and the device signature changes only when the manufacturer updates the configuration, you may need to manually set the signature.
Note To edit exchange signatures and configuration time, set Layout Mode to Manual .
To edit exchange signatures and configuration time 1 From theEGD tab, select a Produced Page in theTree View.
2 Right-click an exchange in theSummary View, then selectEdit Exchange Signatures and Configuration Time.
3 Review the warning about manualExchange Signature editing, then click
4 Make any desired changes to the signatures and configuration time, then click
OK to close the dialog box.
Referenced Devices
The EGD variables defined in other components can be added to the current component’s variable list by adding a reference. References can only be created to capable devices that are consumers of Produced Pages, and as such only EGD-capable devices are available for referencing.
To select the devices that are referenced
From theTree View, right-click theReferenced Devices item, and then select
Select Devices to display theSelect Devices dialog box.
Select or clear the check boxes next to each component name. Click OK.
The EGD configuration for the selected devices is loaded and the variables display in the Summary View.
When theFilter button is
selected, only variables selected for consumption are visible.
To delete a referenced device
From theTree View, right-click the device to be deleted and selectDelete. When EGD configurations are edited in remote devices, you must refresh the configuration to ensure that the latest variable information is used. This is
automatically done when you use the Bind and Build command, as well as when a configuration is saved.
To refresh the configuration of a referenced device
Implementation Profile
Each EGD node type has a set of supported EGD features. For example, a device might have an EGD implementation that only supports broadcast-produced data. The implementation profile contains details about the EGD implementation of a
particular device.
The following properties are available when editing an Implementation Profile:
Configuration Support configures the operations supported by the device.
Accepts Deletes indicates device support for HTTP deletes.
Multiple Producer IDs indicates device support for multiple producer IDs.
Accepts Puts indicates device support for HTTP Put commands.
Zip Content indicates device support for zipped transfers.
Double Word Alignment indicates that the offset of a DWORD length variable must be evenly divisible by this number.
Word Alignment is set to True if the device requires that all WORD length variables be aligned on an even boundary.
Broadcastis set to True if the device supports broadcast destinations for EGD data or command packets and False otherwise.
Masked Writeis set to True if the device supports the MaskedWrite command and False otherwise.
Max Coherent Data returns the maximum size in bytes of a variable that still is guaranteed coherent transfer. If the attribute is not present then all data is guaranteed coherent transfer regardless of size. It is optional and is initialized to 0.
Max Exchangesreturns the maximum number of exchanges supported by the device. It is optional and is initialized to 0.
Max Stringreturns the maximum size string supported by the device. If the attribute is not present then the device has no set maximum size for strings. It is optional and is initialized to 0.
Multicastis set to True if the device supports multicast destinations for EGD data or command packets and False otherwise.
Skew is a Boolean value representing the capability of the producer to support the skewing of produced exchanges with respect to time.
Unicast is a Boolean value that is set to True if the device supports unicast destinations for EGD data or command packets. Otherwise, it is set to False.
Device Classis defined in the EGD Protocol Specification:
Class Description
0 Supports only the configuration port.
1 Supports the data port and the Data Production PDU.
2 Supports all class 1 services plus at least acts as a responder for the command
port and the commands associated with that port.
3 Supports all class 2 services plus the configuration port and the required
commands associated with that port. Such devices support responding to configuration requests but do not dynamically bind their consumed variables.
4 Supports all class 3 services plus dynamically binding consumed variables.
Viewing Live Data Values
The EGD specification defines a Command Message Protocol (CMP), which allows for reading and writing values. It allows you to obtain statistical and configuration information from an EGD device. The EGD device must be Class 2 or greater for CMP support.
The generic editor uses CMP to display live data values on a produced or referenced device summary grid view. The Connection Toolbar button sends the CMP message to the device to obtain the data.
Once connected, theProduced Pages orReferenced Devices option displays the values. Use the Refresh button in the column header to update the grid.
Finder
The Finder provides a powerful way to search items in the EGD Generic Editor. It can be especially useful to rapidly search through descriptions of items.
To open the Finder
From the toolbar , click the Finder button.
-or- From theEdit menu, selectFind.
-or- PressCTRL+F.
Selects a type of search to perform.(Refer to the next section, Find Methods) Select this box to
distinguish between upper and lower case characters while searching. Select to include descriptions in the search. Click to begin the search. Click to display
added options for replacing text. Enter the text to
Find Methods
A variety of find methods are available that control how the text entered in the Find box is matched to text in the EGD Generic Editor.
Anywhere finds the specified text anywhere within a searchable text string.
A search for matches but does not match:
abc abc abdc
abcde ab
xyzabc bc
zabcz
Begins with finds the specified text only at the beginning of a searchable text string.
A search for matches but does not match:
abc abc xyzabc
abcde abdc
ab bc
Ends with finds the specified text only at the end of a searchable text string.
A search for matches but does not match:
abc abc abcde
abdc
xyzabc ab
bc
Match Exactly finds the specified text only when it is exactly equal to an entire searchable text string.
A search for matches but does not match:
abc abc abcde
xyzabc abdc
ab bc abc cde
Match Whole Word finds the named text only when it is exactly equal to an entire word of a searchable text string, meaning it is surrounded on both sides by either punctuation or white space.
A search for matches but does not match:
abc abc abcde
abc cde xyzabc
spell your abc's. abdc ab bc
spell your abcs.
Wildcards is similar to Match Exactly, except any single letter can substitute for a ? character and any sequence of zero or more letters can substitute for a * character.
A search for matches but does not match:
a?c abc abdc
adc bc
abc cde abcde xyzabc
a* abc bc
adc cde abc
abcde abdc ab abc cde
Regular Expressions processes the text entered in the Find box as a regular expression (sometimes abbreviated regex). A regular expression is an advanced system of wildcards used to match a specific set of text. ToolboxST™ supports a standard set of regular expression commands similar to many p opular third party tools. While a detailed discussion of regular expression syntax is out of the scope of this document, there are many excellent books and online resources available with details about regular expressions.
A search for matches but does not match:
[cvrm]at cat sat
cats bat vat
rat mat
(Mon|Tues|Wednes|Thurs|Fri)day Monday Saturday Tuesday Sunday Wednesday Fries Thursday
Friday Fridays
var[0-9]+ var0 varx
var9 var7a var7 var var48
var[a-zA-Z]* var var5
variable var! varZZZZ
Replace Options
Besides performing simple searches, the Finder also supports search-and-replace operations.
To display the Replace options
In theFinder window, click theReplace button. The window expands to include new options.
Enter the text to search for in this box.
Enter the text to be substituted for the Find text in this box.
Navigate to the next occurrence of the Find text.
Replaces the currently displayed occurrence of the Find text with the Replace With text.
Replaces all
occurrences of the Find text with the Replace With text automatically.
Menus
File Menu
New creates a new EGD device.
Open opens an existing EGD device.
Save updates the EGD configuration files, refreshes consumed exchanges and
variables, assigns produced variables to exchanges, and, if an EGD configuration server has been specified, publishes the configuration to the server.
Close Device closes the current device.
Import and Export allows you to transfer produced data, consumed data, symbols, implementation profiles, and GUI device EGD configuration files to and from a variety of file formats.
Print outputs the summary grid view with the column selection, order, and width currently visible in the view.
Edit Menu
Undo returns the editor to the state it was in before the last action was performed.
Redo performs an action again after an undo command.
Cutmoves the currently selected portion of the data grid to the clipboard.
Copy transfers a duplicate of the currently selected portion of the data grid to the
clipboard.
Paste transfers the contents of the clipboard into the data grid.
Deletedeletes the currently selected item.
Find opens the Finder dialog box. For more information, refer to Chapter , Finder .
Device Menu
Bind and Build refreshes the consumed information for all referenced devices, automatically sets the layout of any unassigned produced variables, and, if no errors occur, publishes the configuration to the EGD Configuration Server.
Options Menu
Settings open a dialog box with configuration settings for the EGD Configuration Server.
Help Menu
Contentsopen this help document.
Submit Problem Report opens a dialog box that you can use to electronically report problems to GE Energy.
Release Notesopens the release notes for the current version of the application.
Aboutshows version and copyright information about the application.
Acronyms and Abbreviations
CMP Command Message Protocol
EGD Ethernet Global Data, a control network and communication protocol
EMT EGD Management Tool
GUI Graphical User Interface
IP Internet Protocol
OPC OLE for Process Control
PDU Protocol Data Unit
Terms
Bind - To establish the correspondence between the data in an exchange and variables in a device.
Bind/Build - To bind the configuration for each consumed exchange and create/update the configuration for any produced exchange.
Collection - More formally, an EGD Collection. A group of devices that constitutes a formal subset of the devices participating in a particular EGD installation. This arbitrary grouping allows users to subdivide the system to make some tasks easier.
Consume - To receive an EGD data message (exchange).
Consumer - An EGD node configured to receive an EGD data message.
EGD- A mechanism that provides access to global data between nodes supporting the EGD protocol.
Exchange- An EGD data message consisting of a header and a body of data. The header contains the producer ID and the exchange ID that uniquely identifies the message. The body of data is a block of bytes in a format agreed upon by the producer and all consumers.
Feature - An element of the WorkstationST™ runtime system, which can be optionally enabled through ToolboxST™. Examples include OPC Server, Recorder, and Alarm Viewer.
Global Data - A concept in which multiple controllers on a network can share information by exchanging portions of their local memory with peer controllers.
OPC® (OLE for Process Control) - A standard for data exchange in the industrial environment (OLE is Microsoft’s Object Language Embedding). The OPC
foundation provides specifications for various OPC standards such as OPC DA (Data Access) and OPC AE (Alarm and Event).
Produce - To send an EGD data message (exchange).
Producer- The EGD node configured to send data messages. The source of the data samples for an exchange.
Refresh - To bind the configuration for each consumed exchange for a particular consumed device.
Runtime - Software stored in the controller’s Flash memory that converts application code (pcode) to executable code.
Unbound Variables - Variables required by a consumer that were not found in the producer configuration during the bind.
