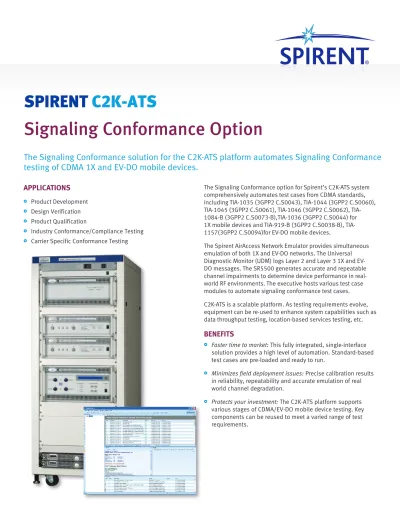

Signaling Conformance Option
APPLICATIONS
• Product Development • Design Verification • Product Qualification • Industry Conformance/Compliance Testing • Carrier Specific Conformance Testing The Signaling Conformance option for Spirent’s C2K-ATS system comprehensively automates test cases from CDMA standards, including TIA-1035 (3GPP2 C.S0043), TIA-1044 (3GPP2 C.S0060), TIA-1045 (3GPP2 C.S0061), TIA-1046 (3GPP2 C.S0062), TIA-1084-B (3GPP2 C.S0073-B),TIA-1036 (3GPP2 C.S0044) for 1X mobile devices and TIA-919-B (3GPP2 C.S0038-B), TIA-1157(3GPP2 C.S0094)for EV-DO mobile devices. The Spirent AirAccess Network Emulator provides simultaneous emulation of both 1X and EV-DO networks. The Universal Diagnostic Monitor (UDM) logs Layer 2 and Layer 3 1X and EV-DO messages. The SR5500 generates accurate and repeatable channel impairments to determine device performance in real-world RF environments. The executive hosts various test case modules to automate signaling conformance test cases. C2K-ATS is a scalable platform. As testing requirements evolve, equipment can be re-used to enhance system capabilities such as data throughput testing, location-based services testing, etc.BeNefITS
• Faster time to market: This fully integrated, single-interface
solution provides a high level of automation. Standard-based test cases are pre-loaded and ready to run.
• Minimizes field deployment issues: Precise calibration results
in reliability, repeatability and accurate emulation of real world channel degradation.
• Protects your investment: The C2K-ATS platform supports
various stages of CDMA/EV-DO mobile device testing. Key components can be reused to meet a varied range of test requirements.
The Signaling Conformance solution for the C2K-ATS platform automates Signaling Conformance
testing of CDMA 1X and EV-DO mobile devices.
Device Under Test Radio Access Network Emulation IP Network & Additional Servers UDM
KeY feATUReS
• Single turnkey system for Signaling Conformance testing of CDMA2000 1X and EV-DO mobile devices • Pre-defined test suites for the following signaling conformance test specifications: TIA-1035, TIA-1044 TIA-1045, TIA-1046, TIA-1084, TIA-919 and TIA-1157 • Pre-defined test suites for inter-operability test specification TIA-1036 • Pre-defined test cases for carrier-specific tests (e.g.‘+’ code dialing) • Closed-loop testing with UDM for real-time device diagnostics and control • Powerful test executive drives test procedure automation • Integrated platform automates and accelerates essential application and performance testing, including 1X data performance, Mobile IP and EV-DO data performance • Intuitive GUI provides a simple interface to quickly set up and run complex test cases • Optimized test execution dramatically reduces test time • Integrated data collection and results reporting C2K-ATS includes all key components for signaling conformance testing.SYSTeM ARCHITeCTURe
C2K-ATS is a complete solution consisting of both hardware and software components. TestDrive II application software configures all system components, executes test procedures, collects test results, and generates reports. AirAccess 1xPLUS emulates an entire 1X and EV-DO network, including core network data components. The SR5500 Wireless Channel Emulator (with AWGN option) provides channel impairments allowing evaluation of real world performance characteristics in a lab environment. The Universal Diagnostic Monitor (UDM) automates the access terminal and adds thorough logging and control of 1X and EV-DO messaging and provides a useful debug/analysis tool.TeSTDRIVe II SOfTWARe
The heart of the C2K-ATS system is application-specific test executive software. TestDrive II software manages and runs test suites (software modules) designed for specific sets of test cases. Each test pack is designed to address a specific set of requirements and is based on a specific hardware configuration.TeST PACKS
Spirent offers software bundles designed to address the most common test requirements. Please contact your Spirent sales representative for more information.
UDM enables closed-loop automation and logging of mobile device messages.
COMPReHeNSIVe TeST ReSULTS
TestDrive SC takes the pain out of collecting, organizing, and formatting data into meaningful reports. Results are automatically stored using the Microsoft Jet database file format, the same format used by MS Access. This file format allows the use of high-level languages such as Visual Basic for post-processing analysis, trend analysis and historical tracking of a specific device. Once a suite of tests is run, analysis of results can begin a few mouse clicks later. TestDrive quickly processes raw results into a professional report in industry-standard formats such as, Adobe Acrobat, Microsoft Excel, or Microsoft Word. Low-level messaging is automatically logged so if an issue arises, the process of investigation is already started. Based on the test case type, TestDrive II intelligently elects to log messages using the AirAccess message logging feature or Spirent’s innovative Universal Diagnostic Monitor (UDM). UDM allows automated control of mobile devices during testing, and also captures and logs message data from the device under test. Unlike chipset-specific diagnostic monitors, UDM uses a device-specific custom device driver allowing the application to access different brands and models of mobile devices. While TestDrive software manages the UDM automatically, UDM also comes with a user-friendly GUI, providing another tool to aid in the analysis of test results.
UNIVeRSAL DIAGNOSTIC MONITOR (UDM)
The Universal Diagnostic Monitor (UDM) enables rapid test configuration by automatically interrogating the network settings of the device under test and setting the corresponding test parameters. This greatly simplifies test setup by eliminating the need to manually enter mobile device settings such as NID, SID, Channel Number, and Band Class. UDM also captures the key mobile device identity data such as ESN, Model Name, Hardware Version, and Software Version used to label mobile device test results. In addition, testing may require run-time control of the mobile device under test. Using the UDM’s powerful software router, the executive software can automate mobile control. This eliminates the need for user intervention when placing mobile-originated calls, and significantly reduces test time. UDM can also monitor device performance, capturing both messaging and measurements. This full-featured diagnostic monitor displays real time mobile device performance parameters during test execution, resulting in complete closed-loop automation.
HARDWARe
AirAccess CDMA Network Emulator
Pilot Relative Level: -63.0 to -0.1 dB (0.1 dB res) Sync Relative Level: -63.0 to -0.1 dB (0.1 dB res) Paging Relative Level: -63.0 to -0.1 dB (0.1 dB res) QPCH Relative Level: -63.0 to -0.1 dB (0.1 dB res) FCH Relative Level: -63.0 to -0.1 dB (0.1 dB res) SCH Relative Level: -63.0 to -0.1 dB (0.1 dB res) OCNS Walsh Code Length: Fixed to 64 OCNS Relative Level Range: Calculated automatically from the relative levels of the other code channels to provide a com-posite power level that is equal to the programmed sector power CDMA Modulation 1X: Parallel BPSK for Pilot, Sync and Paging channels; Complex QPSK for FHS and SCH channels EV-DO: QPSK, 8-PSK, 16-QAM Independent RF Carriers: 1 RF output per SR3452 V2
Frequency Frequency Range: Band Class 0 (869 MHz to 894 MHz)
Band Class 1 (1930 MHz to 1990 MHz) Band Class 3 (832 MHz to 869 MHz) Band Class 4 (1840 MHz to 1870 MHz) Band Class 5 (421 MHz to 494 MHz) Band Class 6 (2110 MHz to 2170 MHz) Frequency Resolution: 500 Hz Frequency Setting: By channel number
Amplitude RF Output Level Range: -100 dBm/1.23 MHz to -38 dBm/1.23 MHz
RF Output Level Resolution: 0.1 dB Absolute Output Level Accuracy: ±1 dB CDMA Modulation Quality: Residual Rho > 0.99
TeCHNICAL SPeCIfICATIONS
HARDWARe
SR5500 Wireless Channel Emulator
RF Channels: 2 (Expandable to 8 under a single interface) Bandwidth: 26 MHz RF Input : Frequency Range: 400 – 2700 MHz Level Range: 0 to -30 dBm RF Input (with 6-GHz Option): Frequency Range: 400 – 2700 MHz, 3350 – 3850 MHz, 4100 – 6000 MHz Level Range (0.1 dB resolution): 0 to -30 dBm @ 400 to 2700 MHz -10 to -30 dBm @ 3350 to 3850 MHz -10 to -30 dBm @ 4100 to 6000 MHz
RF Output: Level Range (0.1 dB resolution): -30 to -110 dBm
RF Output (with 6-GHz Option): Level Range (0.1 dB resolution): -30 to -110 dBm @ 400 to 2700 MHz -40 to -80 dBm @ 3350 to 3850 MHz -40 to -80 dBm @ 4100 to 6000 MHz Independent Paths: 24 Relative Path Delay: 0 – 2000 ms, 0.1 ns resolution Relative Path Loss: 0 – 32 dB Dynamic Power Delay Profiles: Birth-death, Sliding (moving propagation) DEE-Controllable Parameters: State duration, channel output level, path delay, path status (on/off), relative path loss
Fading: Types: Rayleigh, Rician, freq shift, phase shift
Doppler Range: 0.01 – 2000 Hz, 0.01 Hz resolution Repetition Interval: >1700 hours
Relative Phase between Paths: 0 – 360 degrees, 0.1 degree resolution
Rician K-factor: -30 to +30 dB
AWGN (optional): C/N Ratio: -30 to +30 dB (dependent on O/P level)
Bandwidth: 26, 13, 6.5, 3.25, 1.625 MHz Fidelity: Meets or exceeds all 3GPP, 3GPP2 and WLAN requirements Sequence Duration: >2 hours SOfTWARe TestDrive II Test Executive software Universal Diagnostic Monitor Automates control of the Device Under Test AirAccess C2K® Software GUI for AirAccess Network Emulator(s) TestKit 5500 Software GUI for SR5500 Wireless Channel Emulator
TeCHNICAL SPeCIfICATIONS (CONT’D)
3GPP2 Numbering TIA Numbering Document 1x C.S0043 TIA-1035 Signaling Conformance Test Specification for cdma2000 Spread Spectrum Systems C.S0060 TIA-1044 Signaling Conformance Test Specification for Over-the-Air Service Provisioning C.S0061 TIA-1045 Signaling Conformance Test Specification for Short Message Service C.S0062 TIA-1046 Signaling Conformance Test Specification for CDMA2000 Data Services C.S0073 TIA-1084 Signaling Test Specification for Mobile Station Equipment Identifier (MEID) Support for cdma2000 Spread Spectrum Systems C.S0044 TIA-1036 Interoperability Specification for cdma2000 Air Interface
EV-DO Rev. 0 C.S0038 TIA-919 Signaling Conformance Specification for High Rate Packet Data Air Interface
EV-DO Rev. A C.S0038B TIA-919B Signaling Conformance Specification for High Rate Packet Data Air Interface
EV-DO Rev. 0/Rev. A C.S0094 TIA-1157 Signaling Conformance Test Specification for Interworking of cdma2000 1x
and High Rate Packet Data Systems
CDMA2000/eV-DO SIGNALING CONfORMANCe TeST SPeCIfICATIONS
1000 900 800 700 600 500 400 300 200 100 00 Test #23 EV-DO Stress Test
2.12b Stress Test using FTP (IOR=-101dBm/10C=-105dBm)
Transfer Number
Forward Link
2 3 4
Throughput (Kbps)
TestDrive II Performance Test Report Graph
ORDeRING INfORMATION
SYSTeM
Part Number Description
P/N C2K-CFG1-SYS-04 C2K-ATS Platform Config 1 (supports 1X SC) P/N C2K-CFG2-SYS-04 C2K-ATS Platform Config 2 (supports 1X/EV-DO SC) P/N C2K-CFG4-SYS-03 C2K-ATS Platform Config 4 (supports.1X/EV-DO MP+1X SC) P/N C2K-CFG5-SYS-03 C2K-ATS Platform Config 5 (supports 1X/EV-DO MP & SC) P/N C2K-CFG6-SYS-02 C2K-ATS Platform Config 6 (supports 1X SC/LBS W/O MP) P/N C2K-CFG7-SYS-02 C2K-ATS Platform Config 7 (supports1X/EV-DO SC/LBS W/O IMP) P/N C2K-CFG8-SYS-03 C2K-ATS Platform Config 8 (CPBL OF SUPT 1X/EV-DO MP + 1X SC & LBS) P/N C2K-CFG9-SYS-03 C2K-ATS Platform Config 9 (supports 1X/EV-DO MP, SC & LBS) P/N C2K-CFG10-SYS-03 C2K-ATS Platform Config10 (supports 1X/EV-Do MP, 1X SC) P/N C2K-CFG11-SYS-03 C2K-ATS Platform Config11 (supports 1X/EV-DO MP/SC) P/N C2K-CFG12-SYS-03 C2K-ATS Platform Config12 (supports 1X/EV-DO MP, 1X SC/LBS) P/N C2K-CFG13-SYS-03 C2K-ATS Platform Config13 (supports 1X/EV-DO MP/SC/LBS) P/N C2K-CFG15-SYS-01 C2K-ATS Platform Config14 (supports 1X SC w/IMP) P/N C2K-CFG16-SYS-01 C2K-ATS Platform Config15 (supports 1X/EV-DO SC w/IMP) SOfTWARe
Part Number Description
Test Executive The Test Executive is the heart of the software. It manages automation, results databasing and report generation. TD-II TestDrive test executive for Signaling Conformance.
SC Test Packs Spirent offers individual test packs as well as test pack bundles. Please contact your Spirent sales representative for help in selecting the option that best meets your needs.
© 2009 Spirent Communications, Inc. All of the company names and/or brand names and/or product names referred to in this document, in particular the name “Spirent” and its logo device, are either registered trademarks or trademarks pending registration in accordance with relevant national laws. All rights reserved. Specifications subject to change without notice. Rev. A 10/09
AMeRICAS 1-800-SPIRENT • +1-818-676-2683 • [email protected]
eUROPe AND THe MIDDLe eAST +44 (0) 1293 767979 • [email protected]
ASIA AND THe PACIfIC +86-10-8518-2539 • [email protected]
ORDeRING INfORMATION
The 8100 UMTS Location Technology solution is supported on the 8100-A400 (ULTS-ADS), A750, A500, and A600 platform configurations.
Due to the modularity and wide range of available 8100 Mobile Device Test System configurations, please contact your regional Spirent sales representative for detailed ordering information.
SPIReNT GLOBAL SeRVICeS
Spirent Global Services provides a variety of professional services, support services and education services — all focused on helping customers meet their complex testing and service assurance requirements. For more information, visit the Global Services website at www.spirentcom.com/gs or contact your Spirent sales representative. As needs evolve, the system can be expanded to include new C2K-ATS functionality.
