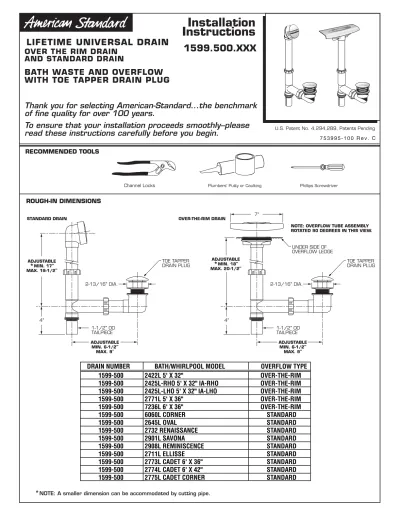

BATH WASTE AND OVERFLOW

WITH TOE TAPPER DRAIN PLUG

Installation

Instructions

1599.500.XXX

Thank you for selecting American-Standard...the benchmark

of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--please

read these instructions carefully before you begin.

U.S. Patent No. 4,294,289, Patents Pending

Plumbers' Putty or Caulking Phillips Screwdriver Channel Locks

OVER THE RIM DRAIN

AND STANDARD DRAIN

LIFETIME UNIVERSAL DRAIN

ROUGH-IN DIMENSIONS RECOMMENDED TOOLS

UNDER SIDE OF OVERFLOW LEDGE

NOTE: OVERFLOW TUBE ASSEMBLY ROTATED 90 DEGREES IN THIS VIEW.

STANDARD DRAIN OVER-THE-RIM DRAIN 7"

1-1/2" OD TAILPIECE

*

NOTE: A smaller dimension can be accommodated by cutting pipe.

TOE TAPPER DRAIN PLUG ADJUSTABLE *MIN. 17" MAX. 19-1/2" ADJUSTABLE *MIN. 18" MAX. 20-1/2" ADJUSTABLE MIN. 6-1/2" MAX. 9" ADJUSTABLE MIN. 6-1/2" MAX. 9" 4" 2-13/16" DIA. 753995-100 Rev. C

DRAIN NUMBER

BATH/WHIRLPOOL MODEL

OVERFLOW TYPE

1599-500

2422L 5' X 32"

OVER-THE-RIM

1599-500

2425L-RHO 5' X 32" IA-RHO

OVER-THE-RIM

1599-500

2425L-LHO 5' X 32" IA-LHO

OVER-THE-RIM

1599-500

2771L 5' X 36"

OVER-THE-RIM

1599-500

7236L 6' X 36"

OVER-THE-RIM

1599-500

6060L CORNER

STANDARD

1599-500

2645L OVAL

STANDARD

1599-500

2732 RENAISSANCE

STANDARD

1599-500

2901L SAVONA

STANDARD

1599-500

2908L REMINISCENCE

STANDARD

1599-500

2711L ELLISSE

STANDARD

1599-500

2773L CADET 6' X 36"

STANDARD

1599-500

2774L CADET 6' X 42"

STANDARD

1599-500

2775L CADET CORNER

STANDARD

1-1/2" OD TAILPIECE TOE TAPPER DRAIN PLUG 4" 2-13/16" DIA.

(2)

1

Apply putty to underside of DRAIN PLUG (1) and drop into

drain outlet.

Slip RUBBER WASHER (2) on from below and thread

DRAIN PLUG (1) into DRAIN ELL ASSEMBLY (3).

PUTTY

BATH DRAIN OUTLET

SEALANT

SEALANT

3

1

2

Loosen SLIP JOINT NUT & SEAL (1) and install onto OVERFLOW TUBE (2). Install

OVERFLOW TUBE ASSEMBLY (2) into the appropriate leg of the DRAIN TEE (3).

Apply sealant to threads of TAILPIECE (6) and thread into DRAIN TEE (3). FIG.1.

Loosen SLIP JOINT NUT & SEAL (4) and install onto DRAIN ELL

ASSEMBLY (5). Install DRAIN ELL ASSEMBLY (5) into the horizontal

leg of the DRAIN TEE (3). FIG. 2.

2

2a

1

4

4

2

3

6

5

INSTALL DRAIN PLUG AND ELL

(STANDARD AND OVER-THE-RIM DRAINS)

INSTALL OVERFLOW ASSEMBLY AND DRAIN TEE (OVER-THE-RIM DRAIN)

INSTALL OVERFLOW ASSEMBLY AND DRAIN TEE (STANDARD DRAIN)

FIG.1

FIG.2

FIG.2

NOTE: TUB IS SHOWN CUT AWAY FOR CLARITY OF INSTALLATION.

NOTE: TUB IS SHOWN CUT AWAY FOR CLARITY OF INSTALLATION.

NOTE: TUB IS SHOWN CUT AWAY FOR CLARITY OF INSTALLATION.

1

2

3

6

FIG.1

Loosen SLIP JOINT NUT & SEAL (1) and install onto OVERFLOW TUBE (2). Install

OVERFLOW TUBE ASSEMBLY (2) into the appropriate leg of the DRAIN TEE (3).

Apply sealant to threads of TAILPIECE (6) and thread into DRAIN TEE (3). Install

OVERFLOW GASKET (4) to OVERFLOW TUBE ASSEMBLY (2). (Adjust OVERFLOW

GASKET (4) to couture of tub. FIG.1.

Loosen SLIP JOINT NUT & SEAL (5) and install onto DRAIN ELL

ASSEMBLY (6). Install DRAIN ELL ASSEMBLY (6) into the horizontal

leg of the DRAIN TEE (3). FIG 2.

5

(3)

Install OVERFLOW GASKET (1) onto OVER FLOW FLANGE (2)

using two strips of double-face tape (included).

Apply a bead of silicone sealant to upper edge of 0VERFLOW GASKET (1).

Push OVER FLOW TUBE ASSEMBLY (3) up flush against

underside of ledge.

Install and align mounting holes in RETAINING PLATE (4) with

holes in OVER FLOW FLANGE (2). Insert MOUNTING SCREWS (5)

through RETAINING PLATE (4) into OVER FLOW FLANGE (2). Note: RETAINING PLATE (4) must be installed as shown with open side facing out.

Tighten SLIP JOINT NUTS (6, 6a) to make water tight connections.

Install OVERFLOW ESCUTCHEON (1) onto RETAINING PLATE (2).

Use MOUNTING SCREWS (3) to secure OVERFLOW

ESCUTCHEON (1). Fig. 1.

Peel protective tape from the AMERICAN STANDARD LOGO (4).

Align LOGO (4) and press into place. Fig. 2.

Thread TOE TAPPER DRAIN PLUG (5) into DRAIN PLUG (6).

4

3

3

1

1

4

5

6

2

1

4

5

2

3

1

4

2

3

6

6a

4

SECURE OVERFLOW ASSEMBLY TO TUB

(OVER-THE-RIM DRAIN)

3a

SECURE OVERFLOW ASSEMBLY TO TUB (STANDARD DRAIN)

INSTALL OVERFLOW ESCUTCHEON (OVER-THE-RIM DRAIN)

FIG.1

FIG.2

NOTE: TUB IS SHOWN CUT AWAY FOR CLARITY OF INSTALLATION.

NOTE: TUB IS SHOWN CUT AWAY FOR CLARITY OF INSTALLATION.

SEALANT

UP FRONT Align the holes in the RETAINING PLATE (1) with those in the OVERFLOW

FLANGE (2). Install SCREWS (3), tighten snugly (do not over tighten). The

overflow gasket (behind tub wall) will begin to seal as the RETAINING PLATE (1) becomes tighter. The overflow gasket can be rotated for

desired fit.

Align the ESCUTCHEON (4) with the RETAINING PLATE (1) and

push onto RETAINING PLATE (1) until the ESCUTCHEON (4)

snaps into place.

Peel protective tape from the AMERICAN STANDARD LOGO (5).

Align LOGO (5) and press into place.

When you are satisfied with the overall fit of the drain, go back and tighten all joints to make a water tight seal.

5

(4)

ROUGH FLOOR TUB

For above floor drain outlet, Rotate DRAIN TEE ASSEMBLY (1) 90 degrees so TAILPIECE (2)

faces out the back from tub as shown.

Note: Waste outlet can be installed either above the floor or below floor. Fig.1.

TYPICAL ABOVE FLOOR INSTALLATION

5

1

2

1

2

ABOVE FLOOR OUTLET INSTALLATION (OVER-THE-RIM DRAIN)

ABOVE FLOOR ROUGH

BELOW FLOOR ROUGH

TUB

NOTE: TUB IS SHOWN CUT AWAY FOR CLARITY OF INSTALLATION.

ROUGH FLOOR TUB

For above floor drain outlet, Rotate DRAIN TEE ASSEMBLY (1) 90 degrees so TAILPIECE (2)

faces out the back from tub as shown.

Note: Waste outlet can be installed either above the floor or below floor. Fig.1.

TYPICAL ABOVE FLOOR INSTALLATION

5

ABOVE FLOOR OUTLET INSTALLATION (STANDARD DRAIN)

ABOVE FLOOR ROUGH

BELOW FLOOR ROUGH

TUB

NOTE: TUB IS SHOWN CUT AWAY FOR CLARITY OF INSTALLATION.

(5)

1599.500.XXX

OVER THE RIM DRAIN

AND STANDARD DRAIN

LIFETIME UNIVERSAL DRAIN

WHITE

SATIN NICKEL 020295 Replace the "XXX" with appropriate finish code

753744-0070A AM. STD. BUBBLE LOGO

754012-XXX0A OVERFLOW ESCUTCHEON W/BUBBLE LOGO 754041-XXX0A OVERFLOW CAP REPAIR KIT 753980-XXXOA TOE TAPPER DRAIN 753983-XXX0A DRAIN PLUG

751977-0070A DRAIN PLUG WASHER

HOT LINE FOR HELP

For toll-free information and answers to your questions, call: 1 (800) 442-1902

Weekdays 8:00 a.m. to 6:00 p.m. EST IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)

Weekdays 8:00 a.m. to 7:00 p.m. EST Product names listed herein are trademarks of American Standard Inc. © AS America, Inc. 2008 754009-0070A RETAINING PLATE WITH SCREWS 754040-0070A OVERFLOW HOLD RING REPAIR KIT

753986-0070A OVERFLOW FITTING 754068-0070A OVERFLOW FITTING IN MEXICO 01-800-839-12-00 UP FRONT PRODUCT NUMBER 753995-100 Rev. C
