(1)

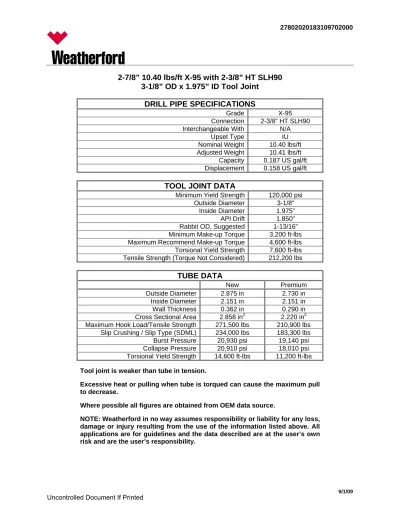

2-7/8” 10.40 lbs/ft X-95 with 2-3/8” HT SLH90

3-1/8” OD x 1.975” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade X-95

Connection 2-3/8” HT SLH90

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.41 lbs/ft

Capacity 0.187 US gal/ft

Displacement 0.158 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1.975”

API Drift 1.850”

Rabbit OD, Suggested 1-13/16”

Minimum Make-up Torque 3,200 ft-lbs

Maximum Recommend Make-up Torque 4,600 ft-lbs

Torsional Yield Strength 7,600 ft-lbs

Tensile Strength (Torque Not Considered) 212,200 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 271,500 lbs 210,900 lbs

Slip Crushing / Slip Type (SDML) 234,000 lbs 183,300 lbs

Burst Pressure 20,930 psi 19,140 psi

Collapse Pressure 20,910 psi 18,010 psi

Torsional Yield Strength 14,600 ft-lbs 11,200 ft-lbs

Tool joint is weaker than tube in tension.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(2)

2-7/8” 10.40 lbs/ft S-135 with 2-3/8” HT SLH90

3-1/8” OD x 1.975” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-3/8” HT SLH90

Interchangeable With N/A

Upset Type EU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.41 lbs/ft

Capacity 0.187 US gal/ft

Displacement 0.159 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1.975”

API Drift 1.850”

Rabbit OD, Suggested 1.788”

Minimum Make-up Torque 3,200 ft-lbs

Maximum Recommend Make-up Torque 4,600 ft-lbs

Torsional Yield Strength 7,600 ft-lbs

Tensile Strength (Torque Not Considered) 212,200 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

NOTE: Tool joint is weaker in tension than tube.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(3)

2-7/8” 10.40 lbs/ft Internal Coated S-135 with 2-3/8” HT SLH90

3-1/8” OD x 1.975” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-3/8” HT SLH90

Interchangeable With N/A

Upset Type IU Internal Coating TK 34 XT Nominal Weight 10.40 lbs/ft Adjusted Weight 10.41 lbs/ft Capacity 0.187 US gal/ft Displacement 0.159 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1.975”

API Drift 1.850”

Rabbit OD, Suggested 1.788”

Minimum Make-up Torque 3,200 ft-lbs

Maximum Recommend Make-up Torque 4,600 ft-lbs

Torsional Yield Strength 7,600 ft-lbs

Tensile Strength (Torque Not Considered) 212,200 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDXL) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(4)

2-7/8” 10.40 lbs/ft Internal Coated S-135 with 2-3/8 HT SL H90

3-3/8” OD x 1.813” ID Arnco 300 XT Hard Band Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection WT 23

Interchangeable With N/A

Upset Type IU

Internal Coating TK 34

Tool Joint Hard Band Arnco 300 XT

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.98 lbs/ft

Capacity 0.186 US gal/ft

Displacement 0.163 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-3/8”

Inside Diameter 1.813”

API Drift 1.688”

Rabbit OD, Suggested 1.625”

Minimum Make-up Torque 4,200 ft-lbs

Maximum Recommend Make-up Torque 6,300 ft-lbs

Torsional Yield Strength 10,600 ft-lbs

Tensile Strength (Torque Not Considered) 269,400 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDXL) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Tube weaker than connection in tension.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(5)

2-7/8” 10.40 lbs/ft E-75 with 2-7/8” PAC

3-1/8” OD x 1-1/2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade E-75

Connection 2-7/8” PAC

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.51 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.160 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 3,400 ft-lbs

Maximum Recommend Make-up Torque 3,800 ft-lbs

Torsional Yield Strength 5,700 ft-lbs

Tensile Strength (Torque Not Considered) 273,000 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 214,300 lbs 166,500 lbs

Slip Crushing / Slip Type (SDML) 184,800 lbs 144,700 lbs

Burst Pressure 16,530 psi 15,110 psi

Collapse Pressure 16,510 psi 14,220 psi

Torsional Yield Strength 11,500 psi 8,900 psi

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(6)

2-7/8” 10.40 lbs/ft X-95 with 2-7/8” PAC

3-1/8” OD x 1-1/2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade X-95

Connection 2-7/8” PAC

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.51 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.160 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 3,400 ft-lbs

Maximum Recommend Make-up Torque 3,800 ft-lbs

Torsional Yield Strength 5,700 ft-lbs

Tensile Strength (Torque Not Considered) 273,000 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 271,500 lbs 210,900 lbs

Slip Crushing / Slip Type (SDML) 234,000 lbs 183,300 lbs

Burst Pressure 20,930 psi 19,140 psi

Collapse Pressure 20,910 psi 18,010 psi

Torsional Yield Strength 14,600 ft-lbs 11,200 ft-lbs

Tool joint is weaker than tube in tension.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(7)

2-7/8” 10.40 lbs/ft G-105 with 2-7/8” PAC

3-1/8” OD x 1-1/2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade G-105

Connection 2-7/8” PAC

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.51 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.160 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 3,400 ft-lbs

Maximum Recommend Make-up Torque 3,800 ft-lbs

Torsional Yield Strength 5,700 ft-lbs

Tensile Strength (Torque Not Considered) 273,000 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 300,100 lbs 233,100 lbs

Slip Crushing / Slip Type (SDML) 258,700 lbs 202,600 lbs

Burst Pressure 23,140 psi 21,150 psi

Collapse Pressure 23,110 psi 19,910 psi

Torsional Yield Strength 16,200 ft-lbs 12,400 ft-lbs

Tool joint is weaker than tube in tension.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(8)

2-7/8” 10.40 lbs/ft S-135 with 2-7/8” PAC

3-1/8” OD x 1-1/2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-7/8” PAC

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.51 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.160 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 3,400 ft-lbs

Maximum Recommend Make-up Torque 3,700 ft-lbs

Torsional Yield Strength 3,800 ft-lbs

Tensile Strength (Torque Not Considered) 273,000 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Tool joint is weaker in tension than tube.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(9)

2-7/8” 10.40 lbs/ft S-135 with 2-7/8” PAC

3-1/8” OD x 1-1/4” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-7/8” PAC

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.62 lbs/ft

Capacity 0.182 US gal/ft

Displacement 0.162 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1-1/4”

API Drift 1-1/8”

Rabbit OD, Suggested 1-1/16”

Minimum Make-up Torque 4,100 ft-lbs

Maximum Recommend Make-up Torque 4,500 ft-lbs

Torsional Yield Strength 6,800 ft-lbs

Tensile Strength (Torque Not Considered) 337,800 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Tool joint is weaker in tension than tube.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(10)

2-7/8” 10.40 lbs/ft S-135 with 2-7/8 HT PAC

3-3/8” OD x 1-5/16” ID Arnco 300 XT Hard Band Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-7/8 HT PAC

Interchangeable With N/A

Upset Type IU

Tool Joint Hard Band Arnco 300 XT

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.88 lbs/ft

Capacity 0.181 US gal/ft

Displacement 0.166 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-3/8”

Inside Diameter 1-5/16”

API Drift 1-3/16”

Rabbit OD, Suggested 1-1/16”

Minimum Make-up Torque 4,200 ft-lbs

Maximum Recommend Make-up Torque 6,300 ft-lbs

Torsional Yield Strength 10,600 ft-lbs

Tensile Strength (Torque Not Considered) 322,700 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in 2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Connection weaker than tube in tension.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(11)

2-7/8” 10.40 lbs/ft S-135 with 2-7/8 HT PAC

3-3/8” OD x 1-1/2” ID Arnco 300 XT Hard Band Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-7/8 HT PAC

Interchangeable With N/A

Upset Type IU

Tool Joint Hard Band Arnco 300 XT

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.53 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.161 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-3/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 3,500 ft-lbs

Maximum Recommend Make-up Torque 5,200 ft-lbs

Torsional Yield Strength 8,700 ft-lbs

Tensile Strength (Torque Not Considered) 273,000 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in 2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Connection weaker than tube in tension.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(12)

2-7/8” 10.40 lbs/ft Internal Coating S-135 with 2-7/8” HT PAC

3-1/4” OD x 1-1/2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-7/8” HT PAC

Interchangeable With N/A

Upset Type IU Internal Coating TK34XT Nominal Weight 10.40 lbs/ft Adjusted Weight 10.70 lbs/ft Capacity 0.182 US gal/ft Displacement 0.164 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/4”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 3,500 ft-lbs

Maximum Recommend Make-up Torque 5,700 ft-lbs

Torsional Yield Strength 8,600 ft-lbs

Tensile Strength (Torque Not Considered) 273,000 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 28,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(13)

2-7/8” 10.40 lbs/ft Internal Coated S-135 with 2-7/8” HT PAC

3-1/8” OD x 1-1/2” ID Arnco 300 XT Hard Band Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-7/8” HT PAC

Interchangeable With N/A

Upset Type IU

Internal Coating TK 34

Tool Joint Hard Band Arnco 300 XT

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.53 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.161 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 3,400 ft-lbs

Maximum Recommend Make-up Torque 5,100 ft-lbs

Torsional Yield Strength 8,500 ft-lbs

Tensile Strength (Torque Not Considered) 273,000 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Tube weaker than connection in tension.

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(14)

2-7/8” 10.40 lbs/ft E-75 with 2-7/8” RFO

3-7/8” OD x 2-5/32” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade E-75 Connection 2-7/8” RFO Interchangeable With 2-7/8” OH Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.06 lbs/ft Capacity 0.189 US gal/ft Displacement 0.166 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-7/8”

Inside Diameter 2-5/32”

API Drift 1.963”

Rabbit OD, Suggested 1-7/8”

Minimum Make-up Torque 5,300 ft-lbs

Maximum Recommend Make-up Torque 5,800 ft-lbs

Torsional Yield Strength 8,800 ft-lbs

Tensile Strength (Torque Not Considered) 347,700 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 214,300 lbs 166,500 lbs

Slip Crushing / Slip Type (SDML) 184,800 lbs 144,700 lbs

Burst Pressure 16,530 psi 15,110 psi

Collapse Pressure 16,510 psi 14,220 psi

Torsional Yield Strength 11,600 ft-lbs 8,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(15)

2-7/8” 10.40 lbs/ft X-95 with 2-7/8” RFO

3-7/8” OD x 2-5/32” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade X-95 Connection 2-7/8” RFO Interchangeable With 2-7/8” OH Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.06 lbs/ft Capacity 0.189 US gal/ft Displacement 0.166 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-7/8”

Inside Diameter 2-5/32”

API Drift 1.963”

Rabbit OD, Suggested 1-7/8”

Minimum Make-up Torque 5,300 ft-lbs

Maximum Recommend Make-up Torque 5,800 ft-lbs

Torsional Yield Strength 8,800 ft-lbs

Tensile Strength (Torque Not Considered) 347,700 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 271,500 lbs 210,900 lbs

Slip Crushing / Slip Type (SDML) 234,000 lbs 183,300 lbs

Burst Pressure 20,930 psi 19,140 psi

Collapse Pressure 20,910 psi 18,010 psi

Torsional Yield Strength 14,600 ft-lbs 11,200 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(16)

2-7/8” 10.40 lbs/ft G-105 with 2-7/8” RFO

3-7/8” OD x 2-5/32” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade G-105 Connection 2-7/8” RFO Interchangeable With 2-7/8” OH Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.06 lbs/ft Capacity 0.189 US gal/ft Displacement 0.166 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-7/8”

Inside Diameter 2-5/32”

API Drift 1.963”

Rabbit OD, Suggested 1-7/8”

Minimum Make-up Torque 5,300 ft-lbs

Maximum Recommend Make-up Torque 5,800 ft-lbs

Torsional Yield Strength 8,800 ft-lbs

Tensile Strength (Torque Not Considered) 347,700 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 300,100 lbs 233,100 lbs

Slip Crushing / Slip Type (SDML) 258,700 lbs 202,600 lbs

Burst Pressure 23,140 psi 21,150 psi

Collapse Pressure 23,110 psi 19,910 psi

Torsional Yield Strength 16,200 ft-lbs 12,400 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(17)

2-7/8” 10.40 lbs/ft S-135 with 2-7/8” RFO

3-7/8” OD x 2-5/32” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135 Connection 2-7/8” RFO Interchangeable With 2-7/8” OH Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.06 lbs/ft Capacity 0.189 US gal/ft Displacement 0.166 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-7/8”

Inside Diameter 2-5/32”

API Drift 1.963”

Rabbit OD, Suggested 1-7/8”

Minimum Make-up Torque 5,300 ft-lbs

Maximum Recommend Make-up Torque 5,800 ft-lbs

Torsional Yield Strength 8,800 ft-lbs

Tensile Strength (Torque Not Considered) 347,700 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(18)

2-7/8” 10.40 lbs/ft S-135 with 2-7/8” RFO Class 2

3-7/8” OD x 2-5/32” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135 Connection 2-7/8” RFO Interchangeable With 2-7/8” OH Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.06 lbs/ft Capacity 0.189 US gal/ft Displacement 0.166 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-7/8”

Inside Diameter 2-5/32”

API Drift 1.963”

Rabbit OD, Suggested 1-7/8”

Minimum Make-up Torque 5,300 ft-lbs

Maximum Recommend Make-up Torque 5,800 ft-lbs

Torsional Yield Strength 8,800 ft-lbs

Tensile Strength 347,700 lbs

TUBE DATA

New Class 2 Outside Diameter 2.875 in 2.658 in Inside Diameter 2.151 in 2.151 in Wall Thickness 0.362 in 0.253 in

Cross Sectional Area 2.858 in2 1.914 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 258,400 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 225,400 lbs

Burst Pressure 29,750 psi 23,800 psi

Collapse Pressure 29,720 psi 23,290 psi

Torsional Yield Strength 20,800 ft-lbs 13,300 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(19)

2-7/8” 10.40 lbs/ft S-135 with 2-7/8” RFO Class 2

3-1/2” OD x 2-5/32” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135 Connection 2-7/8” RFO Interchangeable With 2-7/8” OH Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.06 lbs/ft Capacity 0.189 US gal/ft Displacement 0.166 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-1/2”

Inside Diameter 2-5/32”

API Drift 1.963”

Rabbit OD, Suggested 2-7/8”

Minimum Make-up Torque 3,300 ft-lbs

Maximum Recommend Make-up Torque 3,600 ft-lbs

Torsional Yield Strength 5,500 ft-lbs

Tensile Strength (Torque Not Considered) 390,300 ft-lbs

TUBE DATA

New Class 2

Outside Diameter 2.875 in 2.658 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.253 in

Cross Sectional Area 2.858 in2 1.914 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 258,400 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 225,400 lbs

Burst Pressure 29,750 psi 23,800 psi

Collapse Pressure 29,720 psi 23,290 psi

Torsional Yield Strength 20,800 ft-lbs 13,300 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(20)

2-7/8” 10.40 lbs/ft S-135 with 2-7/8 American Open Hole

3-7/8” OD x 2-5/32” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection 2-7/8” AOH

Interchangeable With N/A

Upset Type EU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.98 lbs/ft

Capacity 0.187 US gal/ft

Displacement 0.167 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-7/8”

Inside Diameter 2-5/32”

API Drift 2-1/32”

Rabbit OD, Suggested 1-31/32”

Minimum Make-up Torque 5,200 ft-lbs

Maximum Recommend Make-up Torque 5,700 ft-lbs

Torsional Yield Strength 8,700 ft-lbs

Tensile Strength (Torque Not Considered) 337,100 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in 2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(21)

2-7/8” 10.40 lbs/ft Internal Coated S-135 with Hydril Wedge Thread 23

3-3/8” OD x 1-1/2” ID Arnco 300 XT Hard Band Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection Hydril WT 23

Interchangeable With N/A

Upset Type IU

Internal Coating TK 34

Tool Joint Hard Band Arnco 300 XT

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.98 lbs/ft

Capacity 0.132 US gal/ft

Displacement 0.116 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-3/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-1/4”

Minimum Make-up Torque 2,200 ft-lbs

Maximum Recommend Make-up Torque 8,300 ft-lbs

Torsional Yield Strength 10,400 ft-lbs

Tensile Strength (Torque Not Considered) 387,100 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in 2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(22)

2-7/8” 10.40 lbs/ft Internal Coated S-135 with Hydril Wedge Thread 23

3-1/8” OD x 1-1/2” ID Arnco 300 XT Hard Band Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection WT 23

Interchangeable With N/A

Upset Type IU

Internal Coating TK 34

Tool Joint Hard Band Arnco 300 XT

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.98 lbs/ft

Capacity 0.132 US gal/ft

Displacement 0.116 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 2,200 ft-lbs

Maximum Recommend Make-up Torque 8,300 ft-lbs

Torsional Yield Strength 10,400 ft-lbs

Tensile Strength (Torque Not Considered) 387,100 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDXL) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(23)

2-7/8” 10.40 lbs/ft E-75 with NC 26

3-5/8” OD x 1-3/4” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade E-75 Connection NC 26 Interchangeable With 2-3/8” IF Upset Type IU Nominal Weight 10.40 lbs/ft Adjusted Weight 10.79 lbs/ft Capacity 0.185 US gal/ft Displacement 0.165 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-5/8”

Inside Diameter 1-3/4”

API Drift 1-5/8”

Rabbit OD, Suggested 1-9/16”

Minimum Make-up Torque 4,250 ft-lbs

Maximum Recommend Make-up Torque 4,700 ft-lbs

Torsional Yield Strength 7,100 ft-lbs

Tensile Strength (Torque Not Considered) 313,700 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 214,300 lbs 166,500 lbs

Slip Crushing / Slip Type (SDML) 184,800 lbs 144,700 lbs

Burst Pressure 16,530 psi 15,110 psi

Collapse Pressure 16,510 psi 14,220 psi

Torsional Yield Strength 11,500 ft-lbs 8,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(24)

2-7/8” 10.40 lbs/ft G-105 with NC 26

3-3/8” OD x 1-3/4” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade G-105 Connection NC 26 Interchangeable With 2-3/8” IF Upset Type IU Nominal Weight 10.40 lbs/ft Adjusted Weight 10.79 lbs/ft Capacity 0.185 US gal/ft Displacement 0.165 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-3/8”

Inside Diameter 1-3/4”

API Drift 1-5/8”

Rabbit OD, Suggested 1-9/16”

Minimum Make-up Torque 4,125 ft-lbs

Maximum Recommend Make-up Torque 4,500 ft-lbs

Torsional Yield Strength 6,875 ft-lbs

Tensile Strength (Torque Not Considered) 303,794 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.731 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.221 in2

Maximum Hook Load/Tensile Strength 300,000 lbs 233,100 lbs

Slip Crushing / Slip Type (SDML) 258,700 lbs 202,600 lbs

Burst Pressure 23,140 psi 21,150 psi

Collapse Pressure 23,110 psi 19,910 psi

Torsional Yield Strength 16,200 ft-lbs 12,400 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease. Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(25)

2-7/8” 10.40 lbs/ft S-135 with NC 26

3-5/8” OD x 1-3/4” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135 Connection NC 26 Interchangeable With 2-3/8” IF Upset Type IU Nominal Weigh 10.40 lbs/ft Adjusted Weight 10.79 lbs/ft Capacity 0.185 US gal/ft Displacement 0.165 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-5/8”

Inside Diameter 1-3/4”

API Drift 1-5/8”

Rabbit OD, Suggested 1-9/16”

Minimum Make-up Torque 4,300 ft-lbs

Maximum Recommend Make-up Torque 4,700 ft-lbs

Torsional Yield Strength 7,100 ft-lbs

Tensile Strength 313,700 lbs

TUBE DATA

New Premium Outside Diameter 2.875 in 2.730 in Inside Diameter 2.151 in 2.151 in Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(26)

2-7/8” 10.40 lbs/ft E-75 with Left Hand NC 26

3-3/8” OD x 1-3/4” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade E-75

Connection Left Hand NC 26

Interchangeable With Left Hand 2-3/8” IF

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.79 lbs/ft

Capacity 0.185 US gal/ft

Displacement 0.165 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-3/8”

Inside Diameter 1-3/4”

API Drift 1-5/8”

Rabbit OD, Suggested 1-9/16”

Minimum Make-up Torque 4,100 ft-lbs

Maximum Recommend Make-up Torque 4,500 ft-lbs

Torsional Yield Strength 6,900 ft-lbs

Tensile Strength (Torque Not Considered) 313,700 ft-lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 214,300 lbs 166,500 lbs

Slip Crushing / Slip Type (SDML) 184,800 lbs 144,700 lbs

Burst Pressure 16,530 psi 15,110 psi

Collapse Pressure 16,510 psi 14,220 psi

Torsional Yield Strength 11,500 ft-lbs 8,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(27)

2-7/8” 10.40 lbs/ft S-135 with HT 26

3-5/8” OD x 1-1/2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection HT 26

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 11.05 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.169 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-5/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 5,400 ft-lbs

Maximum Recommend Make-up Torque 7,900 ft-lbs

Torsional Yield Strength 13,100 ft-lbs

Tensile Strength (Torque Not Considered) 390,300 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(28)

2-7/8” 10.40 lbs/ft Internal Coated S-135 with HT 26

3-1/2” OD x 1-5/8” ID Arnco 300 XT Hard Band Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection HT 26

Interchangeable With N/A

Upset Type EU

Internal Coating TK 34

Tool Joint Hard Band Arnco 300 XT

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.98 lbs/ft

Capacity 0.185 US gal/ft

Displacement 0.169 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-1/2”

Inside Diameter 1-5/8”

API Drift 1-1/2”

Rabbit OD, Suggested 1-7/16”

Minimum Make-up Torque 4,800 ft-lbs

Maximum Recommend Make-up Torque 6,900 ft-lbs

Torsional Yield Strength 11,400 ft-lbs

Tensile Strength (Torque Not Considered) 353,400 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in 2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(29)

2-7/8” 10.40 lbs/ft S-135 with HT 26

3-1/2” OD x 1-1/2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection HT 26

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.89 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.169 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-1/2”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 6,600 ft-lbs

Maximum Recommend Make-up Torque 7,300 ft-lbs

Torsional Yield Strength 12,100 ft-lbs

Tensile Strength (Torque Not Considered) 390,300 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(30)

2-7/8” 10.40 lbs/ft S-135 with Left Hand HT 26

3-5/8” OD x 1-1/2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135

Connection Left Hand HT 26

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 11.05 lbs/ft

Capacity 0.183 US gal/ft

Displacement 0.169 US gal/ft

TOOL JOINT DATA

Outside Diameter 3-5/8”

Inside Diameter 1-1/2”

API Drift 1-3/8”

Rabbit OD, Suggested 1-5/16”

Minimum Make-up Torque 5,400 ft-lbs

Maximum Recommend Make-up Torque 7,900 ft-lbs

Torsional Yield Strength 31,100 ft-lbs

Tensile Strength 390,300 lbs

TUBE DATA

New Premium Outside Diameter 2.875 in 2.730 in Inside Diameter 2.151 in 2.151 in Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(31)

2-7/8” 10.40 lbs/ft VM 95 – SS with Hydril Wedge Thread 26

3-3/8” OD x 1-3/4” Tool Joint

DRILL PIPE SPECIFICATIONS

Grade VM 95 - SS

Connection Hydril WT 26

Interchangeable With N/A

Upset Type IU

Nominal Weight 10.40 lbs/ft

Adjusted Weight 10.98 lbs/ft

Capacity 0.185 US gal/ft

Displacement 0.166 US gal/ft

TOOL JOINT DATA

Minimum Yield Strength 120,000 psi

Outside Diameter 3-3/8”

Inside Diameter 1-3/4”

API Drift 1-5/8”

Rabbit OD, Suggested 1-9/16”

Minimum Make-up Torque 2,800 ft-lbs

Maximum Recommend Make-up Torque 9,800 ft-lbs

Torsional Yield Strength 12,300 ft-lbs

Tensile Strength (Torque Not Considered) 416,000 lbs

TUBE DATA

New Premium

Outside Diameter 2.875 in 2.730 in

Inside Diameter 2.151 in 2.151 in

Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 271,500 lbs 210,900 lbs

Slip Crushing / Slip Type (SDML) 234,000 lbs 183,300 lbs

Burst Pressure 20,930 psi 19,140 psi

Collapse Pressure 20,910 psi 18,010 psi

Torsional Yield Strength 14,600 ft-lbs 11,200 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(32)

2-7/8” 10.40 lbs/ft E-75 with NC 31

4-1/8” OD x 2-1/8” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade E-75 Connection NC 31 Interchangeable With 2-7/8” IF Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.17 lbs/ft Capacity 0.189 US gal/ft Displacement 0.171 US gal/ft

TOOL JOINT DATA

Outside Diameter 4-1/8”

Inside Diameter 2-1/8”

API Drift 2”

Rabbit OD, Suggested 1-7/8”

Minimum Make-up Torque 7,100 ft-lbs

Maximum Recommend Make-up Torque 7,800 ft-lbs

Torsional Yield Strength 11,900 ft-lbs

Tensile Strength (Torque Not Considered) 447,100 lbs

TUBE DATA

New Premium

Outside Diameter 2-7/8” 2.730”

Inside Diameter 2.151” 2.151”

Wall Thickness 0.362” 0.290”

Cross Sectional Area 2.858 sq in 2.220 sq in

Maximum Hook Load/Tensile Strength 214,300 lbs 166,500 lbs

Slip Crushing / Slip Type (SDML) 184,800 lbs 144,700 lbs

Burst Pressure 16,530 psi 15,110 psi

Collapse Pressure 16,510 psi 14,220 psi

Torsional Yield Strength 11,500 ft-lbs 8,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(33)

2-7/8” 10.40 lbs/ft X-95 with NC 31

4-1/8” OD x 2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade X-95 Connection NC 31 Interchangeable With 2-7/8” IF Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.29 lbs/ft Capacity 0.187 US gal/ft Displacement 0.173 US gal/ft

TOOL JOINT DATA

Outside Diameter 4-1/8”

Inside Diameter 2”

API Drift 1-7/8”

Rabbit OD, Suggested 1-13/16”

Minimum Make-up Torque 7,900 ft-lbs

Maximum Recommend Make-up Torque 8,700 ft-lbs

Torsional Yield Strength 13,200 ft-lbs

Tensile Strength 495,700 lbs

TUBE DATA

New Premium Outside Diameter 2.875 in 2.730 in Inside Diameter 2.151 in 2.151 in Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 271,500 lbs 210,900 lbs

Slip Crushing / Slip Type (SDML) 234,000 lbs 183,300 lbs

Burst Pressure 20,930 psi 19,140 psi

Collapse Pressure 20,910 psi 18,020 psi

Torsional Yield Strength 14,600 ft-lbs 11,200 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(34)

2-7/8” 10.40 lbs/ft G-105 with NC 31

4-1/8” OD x 2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade G-105 Connection NC 31 Interchangeable With 2-7/8” IF Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.29 lbs/ft Capacity 0.187 US gal/ft Displacement 0.173 US gal/ft

TOOL JOINT DATA

Outside Diameter 4-1/8”

Inside Diameter 2”

API Drift 1-7/8”

Rabbit OD, Suggested 1-13/16”

Minimum Make-up Torque 7,900 ft-lbs

Maximum Recommend Make-up Torque 8,700 ft-lbs

Torsional Yield Strength 13,200 ft-lbs

Tensile Strength 495,700 lbs

TUBE DATA

New Premium Outside Diameter 2.875 in 2.730 in Inside Diameter 2.151 in 2.151 in Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 300,100 lbs 233,100 lbs

Slip Crushing / Slip Type (SDML) 258,700 lbs 202,600 lbs

Burst Pressure 23,140 psi 21,150 psi

Collapse Pressure 23,110 psi 19,910 psi

Torsional Yield Strength 16,200 ft-lbs 12,400 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

(35)

2-7/8” 10.40 lbs/ft S-135 with NC 31

4-1/8” OD x 2” ID Tool Joint

DRILL PIPE SPECIFICATIONS

Grade S-135 Connection NC 31 Interchangeable With 2-7/8” IF Upset Type EU Nominal Weight 10.40 lbs/ft Adjusted Weight 11.29 lbs/ft Capacity 0.187 US gal/ft Displacement 0.173 US gal/ft

TOOL JOINT DATA

Outside Diameter 4-1/8”

Inside Diameter 2”

API Drift 1-7/8”

Rabbit OD, Suggested 1-13/16”

Minimum Make-up Torque 7,900 ft-lbs

Maximum Recommend Make-up Torque 8,700 ft-lbs

Torsional Yield Strength 13,200 ft-lbs

Tensile Strength 495,700 lbs

TUBE DATA

New Premium Outside Diameter 2.875 in 2.730 in Inside Diameter 2.151 in 2.151 in Wall Thickness 0.362 in 0.290 in

Cross Sectional Area 2.858 in2 2.220 in2

Maximum Hook Load/Tensile Strength 385,800 lbs 299,800 lbs

Slip Crushing / Slip Type (SDML) 332,600 lbs 260,400 lbs

Burst Pressure 29,750 psi 27,200 psi

Collapse Pressure 29,720 psi 25,600 psi

Torsional Yield Strength 20,800 ft-lbs 15,900 ft-lbs

Excessive heat or pulling when tube is torqued can cause the maximum pull to decrease.

Where possible all figures are obtained from OEM data source.

NOTE: Weatherford in no way assumes responsibility or liability for any loss, damage or injury resulting from the use of the information listed above. All applications are for guidelines and the data described are at the user’s own risk and are the user’s responsibility.

Figure

Updating...

References

Updating...

Related subjects :
