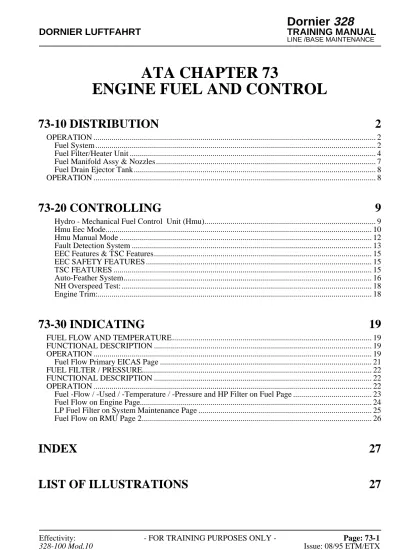

ATA CHAPTER 73
ENGINE FUEL AND CONTROL
73-10 DISTRIBUTION
2
OPERATION ... 2
Fuel System ... 2
Fuel Filter/Heater Unit ... 4
Fuel Manifold Assy & Nozzles... 7
Fuel Drain Ejector Tank... 8
OPERATION ... 8
73-20 CONTROLLING
9
Hydro - Mechanical Fuel Control Unit (Hmu)... 9Hmu Eec Mode... 10
Hmu Manual Mode ... 12
Fault Detection System ... 13
EEC Features & TSC Features... 15
EEC SAFETY FEATURES ... 15
TSC FEATURES ... 15
Auto-Feather System... 16
NH Overspeed Test: ... 18
Engine Trim:... 18
73-30 INDICATING
19
FUEL FLOW AND TEMPERATURE... 19FUNCTIONAL DESCRIPTION ... 19
OPERATION ... 19
Fuel Flow Primary EICAS Page ... 21
FUEL FILTER / PRESSURE... 22
FUNCTIONAL DESCRIPTION ... 22
OPERATION ... 22
Fuel -Flow / -Used / -Temperature / -Pressure and HP Filter on Fuel Page ... 23
Fuel Flow on Engine Page... 24
LP Fuel Filter on System Maintenance Page ... 25
Fuel Flow on RMU Page 2... 26
INDEX
27
73-10 DISTRIBUTION
OPERATION
Fuel System
Fig. 1 Fuel System
Fuel is pumped from the aircraft fuel tanks, to the engine fuel inlet, by either the electrical fuel booster pumps or by the ejector pumps. Fuel is introduced into the engine fuel system at the fuel heater unit. This unit consists of a filter and a fin type heater in two integral housings. The filter housing contains a bypass valve to ensure an adequate fuel flow in the event of blockage and an indicator to wam of impending blockage.
The heater housing is divided into two circuits. RGB lubricating oil flows through one circuit to transfer heat to the fuel, which flows through the other circuit. A themnal sensor in the fuel circuit operates a valve to regulate the oil flow in order to maintain proper fuel temperature. The outlet port incorporates a switch to operate a low pressure waming and a retum port for the fuel drain tank. Fuel transfers to the fuel pump by an extemal transfer tube.
The pump is a positive displacement type. The inlet contains a screen which, when blocked, lifts from it's seat to allow the fuel to bypass. The fuel passes through the inlet screen and is pumped through the outlet filter by a single stage gear type pump. The outlet filter has a bypass valve to divert the fuel flow in the event of filter blockage and an indicator to wam of impending blockage.
To maintain fuel inlet pressure, an amount of fuel is retumed from the HMU to the inlet side of the pump through an ejector nozzle positioned ahead of the main inlet.
Fuel is routed between the HMU and the pump by intemal passages which are sealed by prefommed packings.
The hydromechanical metering unit (HMU) divides the high pressure fuel between the motive flow, metered flow and bypass flow circuits. The motive flow circuit is used to drive airframe ejectors and purge the fuel drain tank. The metered flow circuit provides fuel to the fuel nozzles. The bypass flow circuit retums excess fuel back to the fuel pump inlet. An airframe supplied fuel flow meter measures the amount of fuel flowing through the metered flow circuit.
The flow divider splits metered fuel flow into the primary and the secondary circuits with the engine running. During shut down the dump valve purges remaining fuel, trapped within the manifolds, to the fuel drain tank.
The primary and secondary fuel manifolds carries fuel to the 14 fuel nozzles and in the event of a defective packing, drains fuel leakage. The fuel nozzles delivers fuel to the combustion chamber. The fuel drain tank contains fuel from the previous engine shut down and will be purged, during the next engine run, into the low pressure fuel system at the fuel heater unit .
Types of fuel and additives Ref.: SB20004
Use of AVGAS limited to 150 hours/TBO
Fuel Filter/Heater Unit
Fig. 2 Fuel Filter/Heater Unit
Purpose: Pre-heat the fuel to prevent ice crystal formation
Construction: Consists of a low pressure fuel filter, an impending bypass indicator, a bypass valve (ref. fuel system), a heat exchanger,
a thermal sensor and an oil flow control valve
Operation: The heater housing has two circuits: lubricating oil and fuel.
Heat transfers from oil to fuel. A thermal sensor in the fuel circuit operates an oil flow control valve to maintain the required fuel temperature.
Fuel out temp. below 10°C = full oil flow, max. heating Fuel out temp. above 10°C = reduction of heat transfer Fuel out temp. above 32°C = full bypass, no heating Filter: 70 microns
Cleanable Buble Point test Impending bypass switch: Activates at 1.5 psid
Field replaceable Bypass valve: Opens at 3 psid
Fuel Pump
Fig. 3 Fuel Pump
Purpose: Provide high pressure fuel flow to the mechanical control unit to meet engine fuel requirements at any operating conditions
Description: Single stage gear type pump driven by the HP rotor through the accessory gearbox. The pump incorporates a 74 micron inlet strainer with integral bypass feature, a set of spur gears and a 10 micron outlet filter. The outlet filter is equiped with a bypass valve and an impending bypass switch. 100% NH = 3740 PPH (TYPICAL)
Operation: Rotation of the pump gears draw the low pressure fuel through the inlet strainer. Restricton in the system causes the fuel to pressurize and flow through the outlet filter out to the hydromechanical fuel control (HMU).
When blockage of the pump inlet strainer causes a pressure drop of 1.3 psid, the strainer lift off its seat and allow fuel to bypass the strainer.
When blockage of the pump outlet filter causes a pressure drop of 25 psid, the impending bypass switch sends a warning signal. When the pressure drop reaches 50 psid the bypass valve opens and send unfiltered fuel to the HMU.
Bypass fuel from the mechanical fuel control is returned to the inlet of the pump, through an ejector nozzle, to help maintain the inlet pressure to the pump gears.
Inlet strainer: cleanable (ELECTROSONIC)
Flow Divider Valve
Fig. 4 Flow Divider Valve
Purpose: Divides flow between primary and secondary fuel manifolds and dumps fuel from the manifolds on shutdown
Construction: Two concentric valves spring loaded to dump position Dump position: Purge fuel manifolds and nozzles from any remaining fuel
Prevents contamination of nozzles Fuel returns to engine
Primary flow position: 10 psi closes dump side of primary valve Opens flow to primary manifolds
10 nozzles begin to flow Primary and secondary flow position:
310 psi opens secondary valve Opens flow to secondary manifolds 14 additional nozzles begin to flow
Fuel Manifold Assy & Nozzles
Fig. 5 Fuel Manifold Assy & Nozzles
Purpose: Atomize and deliver fuel to the combustion chamber. Construction: Primary - secondary adapters
Primary flow through center orifice Secondary flow through annular orifice Locating pin on adapter
Secondary adapters Secondary flow only
Locating pin on gas generator case Positions # 1-4-8-12
Drain manifold Prevents fuel from leaking on the gas generator case Collects fuel manifold leakage and drains it overboard
Fuel Drain Ejector Tank
Fig. 6 Fuel Drain Ejector Tank
Purpose: Collect engine drain fuel and return it to the fuel heater upstream of the fuel pump. Construction: Tank
Float Valve Lever
Non- return valve Ejector pump
OPERATION
Fuel drained from the nozzles raises the tank fuel level and the float rises. During its movement, the float body lifts the lever which unseats the valve from the plug orifice.
The fuel pressure, acting on the upper end of the orifice, together with a small depression produced by the annulus at the orifice lower end, causes a pressure drop inside the plug orifice. The pressure drop unseats the non-return valve, permitting fuel to flow to the ejector pump. The fuel then is drawn by the ejector pump venturi action and returned to the engine low pressure fuel system.
73-20 CONTROLLING
Hydro - Mechanical Fuel Control Unit (Hmu)
Fig. 7 Hydro - Mechanical Fuel Control Unit (Hmu)
Features:
Provides metered flow for engine requirements Provides motiv flow for airframe ejector boost pomps Limits min / max fuel flow
Limits acceleration and deceleration rate Back up Nh speed control (manual mode)
Hmu Eec Mode
Fig. 8 Hmu EEC Mode
Motive flow valve: Opens to send fuel to airframe ejector boost pumps when supply pressure exceeds bypass pressure by 270 PSID.
High pressure relief valve: Opens at 1350 PSID to relieve excess pressure in HMU. Power lever valve: Manually controls metering orifice A1 for "manual mode",
and rotates potentiometer for "EEC mode".
Potentiometer: Connected to power lever valve, it reads position of lever and transmits (PLA) signal to EEC.
UP Towards min. WF stop (90 PPH). Closes windows A2 and A3.
DOWN Towards Max. WF stop (1350 PPH)Opens windows at A2 and A3. Pressure regulating valve: Maintains pressure differential of 23 PSID between
supply pressure and regulator pressure.
Torque motor: EEC controls torque motor. Increase current Torque motor valve opens. Decrease current Torque motor valve closes.
Enrichment solenoid: Enriches or de-enriches HMU manual schedule. EEC on - De-enriched - Solenoid up.- Energized EEC off - Enriched - Solenoid down.- De-energized
Min. pressurizing valve: Maintains a minimum pressure of 110 PSID in HMU before allowing fuel flow to the engine.
Cut-off valve: Shuts off flow to the engine, by forcing min pressurizing valve to close.
Note:
Hmu Manual Mode
Fig. 9 Hmu Manual Mode
Manual mode:
EEC off, torque motor de-energizes and closes. Enrichment solenoid de-energizes and moves down. Fixed fuel flow circuit then flows to Most Selector pushing it to the left and continuing to the pressure regulating valve. Differential pressure is now controlled via window A1 in the power lever valve.
Enrichment solenoid:
Up when EEC is on, blocking fixed fuel flow circuit to PRV, and allowing regulator pressure to control PRV via torque motor. Should the enrichment solenoid stay up (de-enriched) during a reversion to manual mode at take-off power, the engine would decelerate to min. flow. To prevent this, the solenoid is enriched (down) during take-off allowing the Most Selector to regulate the flow to the pressure regulating valve between the higher of two pressures.
As the aircraft climbs to higher altitudes and the EEC lowers the fuel flow in an effort to maintain NH constant, it becomes possible for the Most Selector to switch from EEC regulator pressure to manual fixed fuel flow pressure. When this happens the EEC can no longer reduce the fuel to control NH since authority has been switched to the manual schedule. Therefore, the enrichment solenoid must be de-enriched (up) after take-off.
Fault Detection System
Fig. 10 Fault Detection System
The control software contains various fault detection routines which allow the EEC to identify and accommodate system faults. The built-in-test infomms the pilot of the fault by setting the fault indicator. EEC hardware faults are detected by self test routines executed upon control initiation and at regular intervals during nommal operation. Sensor and input signal processing faults are detected by comparison of the input data with normal operating range and rate of change limits. Discrete switch input faults are identified by comparison logical input and output combinations.
The engine is controlled by the EEC (automatic mode) or by the pilot (manual mode) and a reversion from automatic to manual occurs under anyone of the following conditions:
- EEC detects a fault within itself
- EEC detects a fault in one of several components providing input pilot selection The ENG MANUAL light illuminates whenever a reversion has taken place.
The EEC FAULT light illuminates when a fault has been detected within the EEC or within the HMU PLA system
There are two types of reversion to manual: latching and non-latching. Latching fault:
- Once corrected, does not automatically result in the EEC resuming functioning
- The EEC must be pilot reset by cycling the 28 volts reset breaker or the ENG MANUAL switch Non-latching fault:
- Once corrected, results in the EEC resetting itself (ENG MANUAL light OFF) • Example: Loss of Nh signal when CLA is in feather
• EEC resets itself at engine start-up when Nh is > 25% Minor fault:
- Fault affecting accuracy but not integrity of control system Major fault:
- Fault affection integrity of control system - Always revert to manual
Fail fixed:
- Ensures no power loss during reversion to manual when a minor is fault detected
- Available when PLA and CLA are in the take-off range Operation:
During takeoff, upon detection of a minor fault the EEC will freeze the torque motor current at the level it was an instant before detection of the fault. The EEC will then revert to manual but there will be no power loss if fault occurred in steady state.
EEC Features & TSC Features
Fig. 11 EEC Features & TSC Features
EEC FEATURES
Command the handling bleed valve.
Keeps NH constant during cruise through various ambient conditions. Controls accel and decel rate based on Nh.
NP fuel governing functions
Maintain minimum NP at low power.
Schedule NP as a funciton of PLA in reverse. Limits maximum NP in reverse.
EEC SAFETY FEATURES
NH overspeed protection at 103%. -> EEC switches off.
NP > 100% or NP accelerating faster than a predetermined rate, EEC will reduce fuel flow to control NP within 105%. -> Feature enabled when NP > 80%.
TSC FEATURES
Auto-Feather System
Fig. 12 Auto-Feather System
Purpose: Detect an engine failure and signal airframe to feather
the failed engine propeller. System is used during take off only Components: TSC reads torque from sensor and manages auto-feather logic\ Arming: Auto-feather switch ON
Both PLA's in TO range
Both torque > 50.4% (+- 5.1%) "Ammed" light ON
Trigger: One engine torque < 19.4% (+-5.1%) Other engine torque > 50.4% (+-5.1%)
0.5 second later "Armed" light OFF, propeller feathers,
auxiliary pump activates and local NP fuel goveming is cancelled Disarming: Auto-feather switch OFF or
One PLA < TO range or Both PLA's < TO range or
Both engine torque < 50.4% (+- 5.1%) or Auto-feather triggered
Test: Both engines Nnning CLA at MAXIMUM rpm PLA's at flight idle Auto-feather switch ON A/F test switch 1 and 2 ON "Armed" light ON
Release one A/F switch
0.5 second later "Arrned" light off, propeller feathers,
auxiliary pump activates and local NP fuel goveming is cancelled
Governing
PLA:
Position of PLA represents a certain NH speed. The EEC will vary fuel flow to maintain NH as required by a schedule of a rating chart.
Cancel NP(T) Governing:
-When feathering propeller NP(T) fuel governing feature must be cancelled to avoid an overtorque, since EEC would otherwise try and maintain a minimum NP.
NP(T) fuel governing is cancelled whenever prop is feathered by 1. Auto-feather
2. Condition lever selecting electrical feather 3. Manual selecting feather (OHP)
or
NH Overspeed Test: NH OVSP ENG LH LH FI TEST OFF 1 TEST PLA FI PLA FI ENG RH SSEC DISABLE MADC 2 TRIM TEST
Fig. 13 LH Engine Test Panel
Checks EEC's 103% overspeed protection without running engine at high NH. When NH overspeed test switch is on, it resets limit to 60% NH.
Engine Trim:
TEST
LOCK
AUX PUMP
ENG
RH
ENG
LH
RH
3
4
3
4
ENG-TRIM
TAB
LH
GO
ACTR
Fig. 14 RH Engine Test Panel
Purpose: 1. To establish power loss when EEC reverts to manual. 2. To eliminate throttle staggers.
Procedure:
Run engine with EEC's off. Trim switches in minimum position. Set power as recommended by MM Remove power lever stagger by moving both power levers to mid position of stagger.
73-30 INDICATING
FUEL FLOW AND TEMPERATURE
FUNCTIONAL DESCRIPTION
The system indicates the fuel flow rate (consumption) and also the fuel temperature of the LH (RH) engine.
The signals supplied by the fuel flow transmitter and the fuel temperature sensor are indicated on the EICAS display.
The fuel flow transmitter is located on the right side of the engine next to the ignition exciters. The fuel temperature sensor is located on the left side of the engine on the fuel heater valve (fuel outlet).
The fuel flow and temperature indication system consists of the following main components: - Fuel flow transmitter
- Fuel temperature sensor - EICAS on the central displays.
OPERATION
Fuel supplied to the engine flows through the fuel flow transmitter. The transmitter is driven by a turbine driver which generates torque and thus turns the measuring unit.
The fuel flow rate output-signal from the transmitter is proportional to the time displacement between two sinus pulse signals.
This generated signal is supplied for indication processing to the DAU 1 (DAU 2). Subsequently the EICAS display indicates the fuel flow rate (FF) in LBS / HR (or KG / H). The indicating range is between 0 and 1 200 LBS / HR.
The fuel temperature sensor supplies resistance signals which correspond to the temperature of the fuel which is present at the sensor. The signal supplied to the DAU 1
(DAU 2) is indicated on the EICAS display in 0C. The indicating range between - 600C and 990C (+/-20C).
EICAS Indication MFD PAGE Indication Fault or Condition FUEL PAGE digital - 600 to + 990 C white amber
Fuel temperature indicating LH / RH
FUEL PAGE digital / white
0 to 1200 LBS / HR
FF LH / RH
Fuel flow indicating LH / RH
ENGINE PAGE digital / white
0 to 1200 LBS / HR
FF LH / RH
Fuel flow indicating LH / RH
digital / white
0 to 1200 LBS / HR
FF LH / RH
Fuel Flow Primary EICAS Page Honeywell
MAIN
AHRS REF DATA F / O SYSTEM CAPT SYSTEM MSG WSHLD HEAT FAIL PUSHER NO ICE CHECK DU 5 GPWS FAIL AIR COND ON TONE GEN 1-2 FAILEND 2870 500 FF LBS / HR FQ LBS 2870 500 80.3 NH 800 ITT 80.2 NP 97.0 TQ 80.3 800 80.2 0 2000 CAB ALT V / S FT FPM NU ND OIL TEMP OIL PRSS COPY 97.0 0 ° 0 °
FUEL FILTER / PRESSURE
FUNCTIONAL DESCRIPTION
The system monitors the fuel pressure and also the fuel heater inlet (low pressure) and fuel pump outlet (high pressure) filter for clogging. The signals supplied by the low fuel pressure switch or by the HP- or LP - fuel warning switches are indicated on the EICAS display.
The low fuel pressure switch is located on the left side on the fuel heater. The fuel warning switches are also located on the left side. The HP-fuel warning switch is installed on the fuel pump outlet filter and the LP fuel warning switch on the fuel heater inlet filter.
The pressure indication system consists of the following components: - Low fuel pressure switch
- HP-fuel warning switch - LP-fuel warning switch - EICAS on the central display
OPERATION
If the fuel heater inlet filter or fuel pump outlet filter is clogged, the HP-fuel warning switch or LP-fuel warning switch installed in the bypass circuit connects ground to the DAU 1 (DAU 2). The EICAS subsequently displays caution messages.
If the fuel pressure below the minimum value (< 40 +/- 3kPa) the low-fuel pressure switch connects ground to the DAU 1 (DAU 2) and the EICAS displays caution messages.
CAS FIELD Indication MFD PAGE Indication Fault or Condition AMBER
L / R FUEL PRSS LOW
Low fuel pressure condition LH /RH ENGINE Page
AMBER
PRSS LOW (LH) (RH)
Low fuel pressure condition LH /RH
FUEL Page AMBER
PRSS LOW (LH) (RH)
Low fuel pressure condition LH /RH
AMBER
FUEL FILT
BYPASS
Fuel filter (HP) clogged
FUEL Page AMBER
HP FILTER (RH) (RH)
HP - fuel filter LH RH clogged
SYS MAINT AMBER
L R LP FILTER
Fuel -Flow / -Used / -Temperature / -Pressure and HP Filter on Fuel Page Honeywell
FLIGHT
CONTROL
HYDR
ENGINE
FUEL
NEXT
SYSTEM 1/3
2870 LBS 5740 –24 PRESEL QTY TANK TEMP. °C LBS 2870 LBS 1280 1405 JETPMP ON ELPMP OFF X-FEED LH ENG JETPMP ON ELPMP OFF RH ENG APU 500 FF LBS/HR 500 USED LBS 31 °C 30 °C 185 1405 1280 185 123 123 HP FILTER PRSS LOW FAIL FAIL FAIL HP FILTER PRSS LOW TOTAL QTYFuel Flow on Engine Page Honeywell
FLIGHT
CONTROL
HYDR
ENGINE
FUEL
NEXT
SYSTEM 1/3
500 FUEL 60 OIL PRSS 95 OIL TEMP PSI °C 80.4 % 80.3 % 800 °C 80.2 % % TQ NL NH ITT NP 80.4 % 80.3 % 800 °C 80.2 % 100.0 % 61 95 PSI °C 500 FUEL FF LBS/HR TQ OF DAY OAT ALTITUDE MAX TQ ALLOW MODE A - 9 M 100 25000 °C FT % CRZ 100.0LP Fuel Filter on System Maintenance Page Honeywell
SYSTEM 3/3
CPCS/
OXYGEN
DOORS
SYS
MAINT
SENSOR
DATA
NEXT
FUEL
L TRANSFER MON 021292
R TRANSFER MON 021292
CPCS
BACKUP INSTRUMENTS
OXYGEN
QTY ACCURACY
ICE PROTECT
L
R
L
R
SWDW TEMP
SWDW TEMP
FWDW TEMP
FWDW TEMP
HYDRAULICS
FLIGHT CONTROLS
ELECTR
APU
OVERTEMP EGT
OVERCURRENT ECU
OIL TEMP HIGH
ENGINE
L RGB CHIPS DETECT
R RGB CHIPS DETECT
L ENG CHIPS DETECT
R ENG CHIPS DETECT
PROXI MAINT
L LP FILTER
R LP FILTER
L MAIN OIL FILT
R MAIN OIL FILT
L SCAV OIL FILT
R SCAV OIL FILT
Fuel Flow on RMU Page 2
CPCS AUTO FAIL
PITOT S HEAT FAIL
L AOA FAIL
R AOA FAIL
BATT 1 FAIL
BATT 2 FAIL
RUDDER LIMITED
600
FF
600
85
OIL TEMP
84
61
OIL PRS
61
PAGE 1 TUNE Honeywell SQ DIM 1/2 STO ID PGE TST DMEINDEX
Auto-Feather System 16 CONTROLLING 9 DISTRIBUTION 2
EEC Features & TSC Features 15 EEC SAFETY FEATURES 15 Fault Detection System 13 Fuel Drain Ejector Tank 8 Fuel Filter / Pressure 22 Fuel Filter/Heater Unit 4
Fuel -Flow / -Used / -Temperature / -Pressure and HP Filter on Fuel Page 23
Fuel Flow and Temperature 19
Fuel Flow on Engine Page 24 Fuel Flow on RMU Page 2 26 Fuel Flow Primary EICAS Page 21 Fuel Manifold Assy & Nozzles 7 Fuel System 2
Hmu Eec Mode 10 Hmu Manual Mode 12
Hydro - Mechanical Fuel Control Unit (Hmu) 9 INDICATING 19
LP Fuel Filter on System Maintenance Page 25 TSC FEATURES 15
LIST OF ILLUSTRATIONS
Fig. 1 Fuel System ...2
Fig. 2 Fuel Filter/Heater Unit ...4
Fig. 3 Fuel Pump ...5
Fig. 4 Flow Divider Valve...6
Fig. 5 Fuel Manifold Assy & Nozzles...7
Fig. 6 Fuel Drain Ejector Tank...8
Fig. 7 Hydro - Mechanical Fuel Control Unit (Hmu)...9
Fig. 8 Hmu EEC Mode...10
Fig. 9 Hmu Manual Mode ...12
Fig. 10 Fault Detection System ...13
Fig. 11 EEC Features & TSC Features...15
Fig. 12 Auto-Feather System...16
Fig. 13 LH Engine Test Panel ...18
Fig. 14 RH Engine Test Panel ...18
Fig. 15 Fuel Flow Primary EICAS Page ...21
Fig. 16 Fuel -Flow / -Used / -Temperature / -Pressure and HP Filter on Fuel Page ...23
Fig. 17 Fuel Flow on Engine Page ...24
Fig. 18 LP Fuel Filter on System Maintenance Page ...25
