Cost-effectiveness analysis of routine

immunization and supplementary

immunization activity for measles in a health

district of Benin

Landry Kaucley


and Pierre Levy



Background: This study was carried out at district level to describe the cost structure and measure the effectiveness of delivering supplementary immunization activity (SIA) and routine immunization (RI) for measles in Benin, a country heavily affected by this disease.

Methods: This cost-effectiveness study was cross sectional and considered 1-year time horizon. RI consists to vac-cinate an annual cohort of children aged 0–1 year old and SIA consists to provide a second dose of measles vaccine to children aged 0–5 years old in order to reach both those who did not seroconvert and who were not vaccinated through RI. Ingredients approach to costing was used. Effectiveness indicators included measles vaccine doses used, vaccinated children, measles cases averted and disability adjusted life years averted. Data were collected from all the 18 health care centers of the health district of Natitingou for the year 2011. In the analysis, the coverage was 89 % for RI and 104 % for SIA.

Results: SIA total cost was higher than RI total cost (15,796,560 FCFA versus 9,851,938 FCFA). Personnel and vaccines were the most important cost components for the two strategies. Fuel for cold chain took a non-negligible part of RI total cost (4.03 %) because 83 % of refrigerators were working with kerosene. Cost structures were disproportionate as social mobilization and trainings were not financed during RI contrarily to SIA. In comparison with no intervention, the two strategies combined permitted to avoid 12,671 measles cases or 19,023 DALYs. The benefit of SIA was 5601 measles cases averted and 6955 additional DALYs averted. Cost per vaccinated child for SIA (442 FCFA) was lower than for RI (1242 FCFA), in line with previous data from the literature. Cost per DALY averted was 2271 FCFA (4.73 USD) for SIA and 769 FCFA (1.60 USD) for RI. Analysis showed that low vaccine efficacy decreased the cost-effectiveness ratios for the two strategies. SIA was more cost-effective when the proportion of previously unvaccinated children was higher. For the two strategies, costs per DALY were more likely to vary with measles case fatality ratio.

Conclusions: SIA is costlier than RI. Both SIA and RI for measles are cost-effective interventions to improve health in Benin compared to no vaccination. Policy makers could make RI more efficient if sufficient funds were allocated to communications activities and to staff motivation (trainings, salaries).

Keywords: Measles, Efficiency, Supplementary immunization activity, Routine immunization, Benin

© 2015 Kaucley and Levy. This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons. org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Open Access

*Correspondence: tchaland@hotmail.com

1 Health District of Natitingou, Ministry of Health, BP 170, Natitingou,




Measles is one of the most serious infectious human dis-eases as it can cause severe illness, lifelong complications and death. WHO estimated 45 million measles cases and 1.1 million measles related deaths occurring each year in developing countries [1]. Benin is one of the 47 measles high burden countries in the world [2]. To meet measles mortality and morbidity reduction goals, WHO recommended four strategies: (1) strengthening routine immunization to achieve and sustain high coverage, (2) providing a second opportunity for measles immuni-zation, (3) conducting epidemiologic surveillance with high laboratory confirmation of cases and outbreaks and (4) insuring that improved case management is implemented.

Benin is a small country of West Africa (112,622 Km2; 7,862,944 inhabitants) [3]. It is a low income coun-try divided in 33 health districts. The health district of Natitingou is located in the north east region of Benin. It is a mountainous region. It covers an area of 3760 Km2 with 222,785 inhabitants estimated in 2011 (projection from 2002 national census); most of them are farmers [4]. There are 18 health facilities that provide immunization services.

The first dose of measles containing vaccine (MCV) is given in Benin to children at 9 months through Routine Immunization program (RI). The second opportunity for measles immunization is provided through Supple-mentary Immunization Activities (SIAs). These SIAs are follow-up campaigns conducted every 3  years since 2001 and targeting children aged 0–59 months. The sec-ond opportunity for measles vaccination aims at reach-ing children who were not vaccinated through RI and to protect children who did not seroconvert with the first dose. By doing so, the population could reach the 95 % population immunity threshold (herd immunity) neces-sary to stop measles virus circulation. By organizing SIAs campaigns, Benin saw a dramatic fall of measles reported cases with 334 measles cases reported in the first semes-ter of the year 2011 while 5531 cases where annually reported on average during the decade 1991–2000 [5]. RI consists in providing all vaccinations listed in a country immunization program schedule. Services are delivered on an ongoing basis from permanent locations through-out the year. RI usually targets children under 1 year of age. In Benin, the following vaccines are administrated through RI to children under 1  year and to pregnant women: BCG, Pentavalent (DTP-Hep-Hib), OPV, MCV, PCV13, YFV and TT. SIAs are provided from multiple permanent and temporary locations. These campaigns usually have a short duration (1  week) and target chil-dren under 5 or 15. RI target population of chilchil-dren aged 0–12  months was estimated to 8911 children and SIA

target population was estimated to 34,131 children aged 0–59  months, both for the year 2011. During this year, 7933 children under 1 year old were reached through RI corresponding to a coverage of 89  %. SIA permitted to vaccinate 35,564 children aged 0–59 months correspond-ing to a coverage of 104 %. A coverage rate of >100 % is commonly observed during SIAs in Benin, usually related to an inaccurate estimation of the target population because the number of eligible children came from not up-to-date national census data.

In a context of global economic crisis and resources scarcity, efficiency of measles immunization strategies needs to be taken into account in African health dis-tricts heavily affected by this disease. The operational level needs to know the economic value of their activi-ties as this could help them to get more results at a lesser or equivalent costs. Ignorance of measles immunization costs, neglect of these costs, ignorance of the relative weight of cost components and lack of knowledge of the financial needs cause difficulties in planning, resources mobilization and resources allocation. Nothing is known about the efficiency of SIA and RI for measles in Benin. To fill this gap, this work was initiated by the health district of Natitingou using primary data from routine immunization and measles mass campaign for the year 2011.

The first objective of this paper was to describe cost structure of measles immunization strategies (RI and SIA) in a rural health district. Secondary, this study aimed at measuring the benefits of these strategies on population health. Finally, we assessed the efficiency of each strategy and we compared the cost-effectiveness ratios with a ‘no vaccination’ strategy. Effectiveness indi-cators took into account not only the immediate results of immunization (vaccine doses used, vaccinated chil-dren) but also the impact on final health outcomes (mea-sles cases averted, disability adjusted life years averted). This work will help immunization services providers at health facility level to streamline measles immunization practices for a greater efficiency. The results could also provide guidance to policy makers in Benin for resources allocation.


This study was a cross-sectional cost-effectiveness anal-ysis of delivering measles RI and SIA for the year 2011 in the health district of Natitingou. Data were collected retrospectively and the analysis has only considered one-year time horizon. All the 18 health care centers deliv-ering immunization services were included. Data were analyzed by Microsoft Excel software.


provided in the 18 health facilities through two strategies: fixed and outreach strategy. Fixed strategy was planned for children living within less than 5 km from the health center and outreach strategy was planned for children living beyond 5  km from the facility. Health workers planned two fixed strategies sessions and 1 outreach strategy session per week. All health care centers had the same configuration: one dispensary and one mater-nity ward. Staff consisted of 4 persons: a nurse, a midwife and two caregivers. All staffs were equitably involved in immunization activities. Vaccines were supplied monthly by the district team from the regional storehouse to three secondary storehouses of the district. Health workers were responsible for transporting vaccines from the dis-trict storehouses to their respective health facilities by motorcycle. Health facilities were equipped with cold chain materials (refrigerators, cold boxes, vaccines carri-ers) and motorcycles. Data on the number of vaccinated children were collected on tally sheets at each immuni-zation session. A synthesis was made at the end of the month by the head of the health center before transmis-sion to district team.

The Ministry of Health planned SIA for measles to vac-cinate children unreached through RI and to enhance immunity of children remained susceptible despite the first dose of vaccine received. A micro planning was done at district level taking into account human, logistical and financial needs. The strategy adopted was vaccination at fixed locations to which parents should bring children. A total of 29 vaccination posts were set up. Vaccination team at a station consisted of 3 persons (2 health work-ers and 1 volunteer) and should vaccinate at least 250 children per day. Supervision of vaccination teams was ensured by 6 supervisors who should supervise each 6 teams per day. Supervisors and vaccinators had been trained during a 1-day training session. Communication activities were strengthened with involvement of town criers.

Measuring costs

Costs taken into account included recurrent and capi-tal costs. Both economic and financial costs were considered. Some costs were specific to measles immu-nization and others were shared with others activities. Data for SIA specific operational costs came from the campaign financial reports and micro planning tools. Shared costs for measles RI activities were supposed to represent 9  % of RI delivery total costs; as measles vaccine was one of the 11 antigens administrated in Benin RI schedule. RI recurrent costs were analyzed using ingredients approach to costing. Data on vac-cines used, consumables and management tools used were empirically obtained at health facilities level from

vaccine usage reports, tally sheets, vaccine manage-ment databases. Costs for personnel, transport, super-vision, trainings, fuel for cold chain, electricity and maintenance were obtained from interviews, question-naires, direct surface measurement of buildings and exploitation of documents (administrative and financial reports, log books), both at health facilities and district administration level. Costs were expressed in local cur-rency (FCFA) and in USD, using a fixed exchange rate of 480 FCFA for 1  USD (2011 average exchange rate from http://oanda.com).

Recurrent costs components included: vaccines, con-sumables, management tools, personnel, transport, maintenance, supervision, trainings, social mobilization, fuel for cold chain materials functioning and electricity bills:

• Vaccines costs were calculated by multiplying the cost per dose of MCV by the number of doses used. MCV dose unit price was 0.24  USD, derived from National EPI vaccine’s purchase orders.

• Consumables included syringes (auto disable and dilution), safety boxes and cotton. Cost per unit of syringes and safety boxes were derived from WHO’s Pre Qualify Standard (PQS) devices catalogue [6]. The amount of medical accessories used was esti-mated on the basis of immunization management report. The same method was used to estimate the cost of management tools (data collection spread-sheets, registers).

• Personnel costs were defined by wages and allow-ances paid to the staff involved in immunization activities. They were calculated by exploitation of staff payment vouchers and other documents con-sidering the estimated proportion of time spent for immunization activities. Staff devoted 2  days per week to fixed strategy sessions and 1  day per week to outreach strategy sessions. A fixed strategy ses-sion took 4 h corresponding to half of a daily work-ing time. An outreach strategy session took all the daily working time, as vaccination teams had to travel more than 5 km before reaching the village were chil-dren should be vaccinated. Roads in Natitingou were bad and such a distance could take one to 2 h travel-ling by motorcycle.


of a liter of fuel was 625 FCFA for the year 2011 in the health district of Natitingou.

• Maintenance included costs for cold chain, cars and motorcycles reparation and periodic maintenance. For cars and motorcycles, this shared cost was esti-mated applying the proportion of kilometers devoted to immunization activities. Log books available in cars allowed to estimate kilometers covered. For motorcycles, distances covered were estimated from interviews with staff conducting immunization activ-ities.

• Supervision included all costs related to supportive supervision (per diems, fuel, reproducing manage-ment tools). Data for this cost component came from exploitation of district administrative and financial reports.

• Trainings corresponded to total expenditures for trainings organized for SIA or RI (venue hiring charges, training materials, per diems). No training was organized as part of RI. Data for SIA came from exploitation of the campaign financial reports avail-able at district administration level.

• Social mobilization was related to cost of communi-cation activities (advocacy meetings, banners, news release). No expense was performed for social mobi-lization in RI. Data for SIA came from exploitation of the campaign financial reports available at district administration level.

• Fuel for cold chain corresponded to total cost of kerosene used in health facilities where cold chain materials were working with kerosene. There were 18 refrigerators and 3 freezers used for immuniza-tion activities in the health district. The 15 kerosene-functioning refrigerators were all of the same type (RCW50 EK) and consumed on average 35 L of kero-sene per month. The unit price of a liter of kerokero-sene was 700 FCFA for the year 2011 in the health district of Natitingou.

• Electricity was related to the shared cost of electricity for the 3 health care centers where cold chain mate-rials were working with electricity. This cost compo-nent was calculated multiplying the kilowatt-hours (kWh) consumption of the cold chain material used by the unit price of a kWh fixed by the national elec-tricity company. Energy consumption of cold chain equipment were derived from WHO’s PQS devices catalogue [6]: 2.35  kWh per 24  h for freezers and 0.61 kWh per 24 h for refrigerators. Electricity Com-pany pricing was 125 FCFA per kWh.

Using linear amortization method, capital costs for buildings, motorcycles, cars and cold chain materials were estimated by dividing their respective cost by the

useful life time. In the case of SIA, this was later divided by 0.019 (7 days of campaign over 365 days of the year). The result obtained was later multiplied first by the pro-portion of use for immunization activities and secondary by the estimated proportion for measles immunization. Both time and space were considered for buildings (num-ber of days used a week and proportion of surface used). The share of kilometer attributable to immunization activities was considered for cars and motorcycles. Useful life time considered was 50 years for buildings, 10 years for refrigerators, freezers, cold boxes and vaccine carri-ers, 5 years for cars and 3 years motorcycles following the amortization plan of the health district.

Calculating effectiveness

Four effectiveness indicators were estimated: MCV doses used and vaccinated children relate to productive effi-ciency while the number of measles cases averted and disability adjusted life years averted refer to allocative efficiency. The primary effectiveness indicator selected was disability adjusted life years (DALYs) averted. It is a widely used indicator that allows easy comparison with a ‘no vaccination’ strategy and with others public health interventions.

MCV doses used represents the amount of vac-cines used per strategy. This was empirically obtained from district vaccine management tools (vaccine usage reports, tally sheets, vaccine management databases). Vaccinated children corresponds to the total of targeted children that received a shot, having in mind that for RI the target population is defined by children under 1 year whereas the target population for SIA extends to children under 5 years. Measles cases averted depend on both the number of vaccinated persons and vaccine efficacy. MCV efficacy after a single dose depends on the age of vac-cination: 85  % of children seroconvert after receiving a shot when vaccination is done at the age of 9–11 months whereas after 1 year of age, vaccine efficacy raises to 95 % [7]. To facilitate comparison of final outcomes with a ‘no vaccination’, we estimated DALYs averted. DALY’s calcu-lation is explained more in depth in the following section.

Disability adjusted life years


YLL formula is: (N/r) × [1 − exp(rLE)], where N is the number of deaths; LE is standard life expectancy at age of death and r is the discount rate. Measles deaths averted are estimated on the basis of the number of effectively immunized children after being vaccinated and death rate from measles related cause. The number of effectively immunized children depends on vaccine efficacy [7]. Measles case fatality ratios were age specific: 6 % at 6–11 months and 3 % at 1–5 years [10, 11]. Stand-ard life expectancy at birth in Benin is set as 52.5 years [12]. The discount rate used was 3 % in accordance with WHO recommendations. DALYs were calculated with-out age weighting. Figure 1 shows the diagram used to estimate YLL from doses of administrated vaccine per strategy.

The formula for YLD calculation is: YLD  =

× DW × [1 − exp(rL)]/r, where I is the number of incident cases; DW is the disability weight; L is the aver-age duration of disability until remission or death and r is the discount rate. The incident cases were episodes of measles case and the classic complications associ-ated with measles (diarrhea, pneumonia, otitis media, corneal scarring, encephalitis and subacute sclerosing pan encephalitis). Diarrhea is reported in 8  % of mea-sles cases [13]. Six per cent of measles cases are com-plicated by pneumonia and corneal scarring [13]. Otitis media occurs in about 7 % of cases [13]. About 1 child in every 1000 who get measles will develop encephalitis [13]. Subacute sclerosing pan encephalitis (SSE) is a rare degenerative central nervous system disease that occurs on average in 8 per 1,000,000 reported measles cases [13]. Duration and disease disability weights relevant for incident cases were extracted from the Global Burden of Diseases study [14]: measles episode (2 weeks, 0.152); diarrhea (1  week, 0.105); pneumonia (2  weeks, 0.373); otitis media (2 years, 0.023); corneal scarring (34.8 years, 0.277); encephalitis (34.8 years, 0.616); SSE (36.7 years, 0.666).

Sensitivity analysis

A one-way sensitivity analysis was used to test the robustness of the initial results on the cost per DALY averted with alternatives values of key parameters. We explored the variation of some cost components for RI: vaccines cost, staff cost, supervision cost, trainings and communication costs. Vaccine unit dose price varia-tion assumed was ±50 %. We explored effects of twofold increase of the base-case staff cost. Increasing supervi-sion costs by multiplying the supervisupervi-sion frequency from 4 to 6 per annum was tested. Effects of adding trainings and communication costs in RI, the same amount as SIA base-case, was analyzed. To compare our results with studies which used only recurrent cost components, a

sensitivity analysis was conducted to explore effects of excluding capital costs from the base-case analysis. As vaccine efficacy and measles CFR are two key param-eters influencing the number of measles cases averted, we performed a sensitivity analysis for these two vari-ables. A measles post-outbreak survey conducted in Democratic Republic of Congo shows that measles vaccine efficacy could fall to 60  % [15]. Higher mea-sles CFRs are observed during outbreaks, among under 5  years old children, in cases with complications and among children living in rural areas [16]. A review of 25 community-based studies conducted in India shows that measles CFRs vary between 0.00 and 31.25 % [11]. As vaccination coverage affects both RI and SIA effec-tiveness, a sensitivity analysis was performed for this variable. For RI, coverage variation used was 50–98  %, based on extreme levels achieved in the past years after analysis of the health district immunization databases. For SIA, lowest coverage used was 80 %, based on cover-age achieved by the health district during the past SIAs. Because the proportion of previously unvaccinated chil-dren during SIA (‘zero-dose’ chilchil-dren) is a parameter that allows to assess the benefit of SIA, we performed a sensitivity analysis on the percentage of children reached with the second dose. We assumed 0–50 % variation of ‘zero dose’ children respecting the age groups propor-tion of the base-case. Table 1 shows the base-case and alternatives values of parameters used in the sensitivity analysis. Results were presented in tornado diagrams.

Results Costs



SIA was more effective when referring to the number of vaccines used and the number of vaccinated children as it led to vaccinate five times more children than RI (Table 3). There were 742 previously unvaccinated chil-dren (‘zero-dose’ chilchil-dren) among the 35,564 chilchil-dren


to avoid more measles cases, measles deaths and DALYs than SIA (Table 4). The benefits of SIA was 5601 measles cases averted, 185 measles death averted and 6955 addi-tional DALYs averted.

Average costs

Overall, the mean cost per vaccinated child was 590 FCFA (1 USD) but it was 1057 FCFA (2.20 USD) for RI and 431

FCFA (0.90 USD) for SIA (Table 5). SIA had the best cost effectiveness ratios when referring to process outcomes whether considering the cost per MCV dose used or the cost per vaccinated child. In comparison with ‘no vaccina-tion’, cost/DALY averted for RI was 769 FCFA (1.60 USD). The marginal cost was 2271 FCFA (4.73  USD) per sup-plementary DALY averted for SIA. The two strategies put together had a cost/DALY averted of 1297 FCFA (3 USD).

Table 1 Base-case and alternative values of parameters used in the sensitivity analysis

Variations tested Base case values Alternatives values

Routine immunization Vaccines cost (MCV unit dose price) 120 FCFA/Dose 60–180 FCFA/Dose

Supervision cost: Increasing supervision frequency 4 supervisions per annum 6 supervisions per annum Personnel cost : increasing total personnel cost 3,599,536 FCFA 7,199,072 FCFA

Inclusion of communication costs 0 371,000 FCFA

Exclusion of capital costs 14,748,858 FCFA 0

Vaccine efficacy 85 % 60–99 %

Measles CFR 6 % 0.00–31.25 %

RI coverage 89 % 50–98 %

Supplementary immunization activity Vaccines cost (MCV unit dose price) 120 FCFA/Dose 60–180 FCFA/Dose

Exclusion of capital costs 279,694 FCFA 0

Proportion of unvaccinated children (‘zero-dose’) 2 % 0–50 %

Vaccine efficacy 85 % 60–99 %

Measles CFR 6 % 0–31.25 %

SIA coverage 104 % 80–104 %

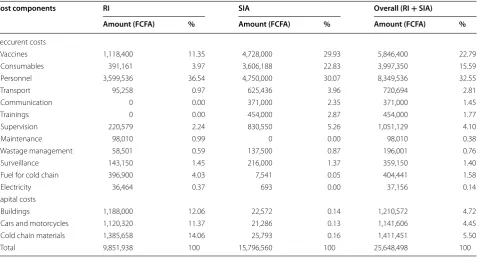

Table 2 Costs by component for measles RI and SIA in the health district of Natitingou in 2011

Cost components RI SIA Overall (RI + SIA)

Amount (FCFA) % Amount (FCFA) % Amount (FCFA) %

Reccurent costs

Vaccines 1,118,400 11.35 4,728,000 29.93 5,846,400 22.79

Consumables 391,161 3.97 3,606,188 22.83 3,997,350 15.59

Personnel 3,599,536 36.54 4,750,000 30.07 8,349,536 32.55

Transport 95,258 0.97 625,436 3.96 720,694 2.81

Communication 0 0.00 371,000 2.35 371,000 1.45

Trainings 0 0.00 454,000 2.87 454,000 1.77

Supervision 220,579 2.24 830,550 5.26 1,051,129 4.10

Maintenance 98,010 0.99 0 0.00 98,010 0.38

Wastage management 58,501 0.59 137,500 0.87 196,001 0.76

Surveillance 143,150 1.45 216,000 1.37 359,150 1.40

Fuel for cold chain 396,900 4.03 7,541 0.05 404,441 1.58

Electricity 36,464 0.37 693 0.00 37,156 0.14

Capital costs

Buildings 1,188,000 12.06 22,572 0.14 1,210,572 4.72

Cars and motorcycles 1,120,320 11.37 21,286 0.13 1,141,606 4.45

Cold chain materials 1,385,658 14.06 25,793 0.16 1,411,451 5.50


In the sensitivity analysis, the cost per DALY for RI varied from 0.37 to 7.98  USD (Fig. 2) and from 0.69 to 15.40  USD for SIA (Fig. 3). In both cases, cost per DALY was more sensitive to changes in measles CFR. Reducing measles CFR from 31.25 to 0.00 % lead to an increase of the cost per DALY averted from 0.37 to 7.98  USD for RI and from 0.69 to 15.40  USD for SIA. Exclusion of capital costs did not affect significantly the cost/DALY for the two strategies. However the analysis showed that cost-effectiveness ratios of the two strategies

Table 3 Vaccine doses used, vaccinated children and  wasted doses of  measles RI and  SIA in  the health district of Natitingou in 2011

RI SIA Overall (RI + SIA)

Children receiving first dose Children receiving second

dose Total SIA

<1 year ≥1 year <1 year ≥1 year

Vaccine doses used 9320 360 400 2110 33,800 36,670 45,990

Vaccinated children 7933 349 393 2092 32,730 35,564 43,497

Wasted doses 1387 11 7 18 1070 1106 2493

Table 4 Measles cases averted, measles deaths averted and  DALYs averted for  RI and  SIA in  the health district of Natitingou in 2011

RI SIA Overall (RI + SIA)

Measles cases averted 6743 5601 12,344

Measles deaths averted 405 185 590

DALYs averted 12,815 6955 19,770

Table 5 Average costs for measles RI and SIA in the health district of Natitingou in 2011

RI SIA Overall (SIA + RI)


Cost per dose used 1057 2.20 431 0.90 558 1

Cost per vaccinated child 1242 2.59 442 0.92 590 1

Cost per measles case averted 1461 3.04 2820 5.88 2078 4

Cost per measles death averted 24,351 50.73 85,422 177.96 43,508 91

Cost per DALY averted 769 1.60 2271 4.73 1297 3

$0 $1 $2 $3 $4 $5 $6 $7 $8 $9

Vaccines cost (MCV unit dose price)

Supervision cost: Increasing supervision frequency

Personnel cost : increasing total personnel cost

Inclusion of training and communication costs

Exclusion of capital costs

Vaccine efficacy

Measles CFR

RI coverage


varied significantly following vaccine coverage and vac-cine efficacy. High vacvac-cine coverage and high measles vaccine efficacy improve the cost-effectiveness of the two interventions. With a twofold increase of the base-case personnel cost, the cost/DALY increased from 1.6 to 2.2  USD. In the same manner, when trainings and communication costs were included in the base-case analysis of RI, the cost/DALY only increased from 1.5 to 1.75  USD. During SIA, when the proportion of ‘zero-dose’ children vary from 0 to 50 %, the cost/DALY decrease from 5.39 to 1.21 USD.

Discussion Regarding costs

Results from the present study are in line with previous studies on the fact that SIAs are costlier than RI [17, 18]. In this study, total cost of SIA for measles was 15,796,560 FCFA (32,909.50 USD) versus 9,851,938 FCFA (20,524.87 USD) for RI. Personnel and vaccines costs took the large part of the two strategies total cost (respectively 36.54 and 11.35 % for RI; 30.07 and 29.93 % for SIA). ‘Person-nel’ is usually cited among the highest cost components in immunization costs analysis [18–21]. In the context of Natitingou, close to that described in a Cameroo-nian health district [21], medical staff was poorly paid. The highest wage for a health professional involved in immunization activities was 100,000 FCFA (208 USD) per month corresponding to 7 USD per day. During SIA, medical staff was paid 7000 FCFA (15 USD) per day. In addition, during SIA, community health workers were recruited and paid 5000 FCFA (10 USD) per day to sup-port health professionals whereas they did not receive any incentives for their involvement in RI activities. This explains why personnel costs of SIA were higher than

that for RI. In addition, savings were made in RI because social mobilization and staff trainings were not financed. A particular attention should be paid to the part took by fuel for cold chain functioning. With 4.03 % of RI total cost, it represents the third cost component behind per-sonnel and vaccines. In fact, 83  % of refrigerators used for immunization activities were working with kerosene. Given, following WHO recommendations, vaccines needs to be permanently stored at health facility level at a temperature between +2 and +8  °C, kerosene supply was a requisite and incompressible expenditure. The use of cold chain material working with solar energy in set-tings without electricity as alternative should be explored by policy makers in Benin. Savings could be possible with this material, as it requires no fuel for functioning and there is no need of regular spare parts replacement (burners, wicks, glasses) unlike kerosene-functioning refrigerators.

Regarding effectiveness

RI permitted to vaccinate 89 % of the target population, under the 95 % recommended by the national immuni-zation program. In contrast, SIA reached 104  % of the target in short time of period (7  days). It permitted to vaccinate 35,564 under-five children and the benefit was 5601 supplementary measles cases averted converted to 6955 additional DALYs averted. SIA permitted to save 185 children who should have probably died from mea-sles despite RI. This strength of SIA to reach usually unreachable children through RI make it an intervention that contributes to equity in health and a preferable plat-form to deliver second dose of MCV in settings where RI is not effective enough [16, 22, 23]. Fewer vaccines were lost during SIA compared to RI (3 % of vaccine wastage

$0 $2 $4 $6 $8 $10 $12 $14 $16 $18

Vaccines cost (MCV unit dose price)

Exclusion of capital costs

Proportion of unvaccinated children ('zero-dose')

Vaccine efficacy

Measles CFR

SIA coverage


rate versus 15 %). It could be the direct consequence of non-financing social mobilization activities in RI. Yet, social mobilization contributes to encourage and moti-vate the public to fully participate in immunization activ-ities. Thus, it helps to gather a lot of targets at vaccination location and then lowers vaccine wastage by applying open vial policy for lyophilized vaccines (MCV should be used within 6 h after the vial being opened).

Regarding efficiency

In accordance with estimations in Niger (190 FCFA for SIA and 573 FCFA for RI) [17] and Uganda (0.58 USD for SIA and 1 USD for RI) [24], the cost per vaccinated child in this study was lower for SIA than RI (431 FCFA versus 1051 FCFA). SIA cost per vaccinated child was similar to findings for poliomyelitis mass campaigns conducted in West Africa [18, 20, 25]. SIA had better productive effi-ciency indicators because more children were reached and fewer vaccines were wasted. To improve RI produc-tive efficiency, more political and community implica-tion should be conjugated to higher health professionals’ motivation, media and local leaders’ mobilization. Unfor-tunately, as shown by cost structures’ analysis, financ-ing communication activities and staff trainfinanc-ings was neglected by the health district.

Whatever is the strategy used, measles immunization is known to be a cost-effective intervention [23, 24]. In our study, in comparison with no intervention, cost per DALY averted was 2271 FCFA (4.73 USD) for SIA; 769 FCFA (1.60 USD) for RI and 1297 FCFA (3 USD) for both strategies combined. These cost-effectiveness ratios are quite under those of interventions known to be the most efficient interventions in Afro-E, a WHO defined region comprising countries in sub-Sahara Africa with high child mortality [26]. Analysis showed that cost per DALY averted never exceeded 16 USD whatever the possible extreme variations of chosen parameters were. The cost per DALY was higher, but still under 16 USD, when measles CFR was very low (0.00 %). But it seems to be an extreme scenario as it is far to be the case in the health district of Natitingou and most of health dis-tricts of Benin, where malnutrition, vitamin A deficiency, poor cases management and intercurrent infections like malaria and HIV contribute to high measles fatality rate. A twofold increase of personnel costs did not impact negatively the cost/DALY for RI neither was inclusion of trainings and communication costs in the base-case anal-ysis. Therefore, there is no need to make savings on these cost components. In contrary, allocating funds to this cost components would increase the attention of health professionals to RI activities and contribute indirectly to a greater efficiency. SIA was more cost-effective when the proportion of previously unvaccinated was higher.

In other words, more RI failed to vaccinate targeted chil-dren, more SIA became a cost-effective intervention.

Implications for decision‑making

Since non-financing communication activities is preju-dicial to RI effectiveness, the health district managers should plan and finance annually social mobilization activities for RI. District administration needs also to organize short-term trainings for health profession-als as it will strengthen their capacity in conducting vaccination activities and it can increase their motiva-tion. There is a need for immunization policy makers in Benin to think about adopting low-cost cold chain materials in terms of energy consumption. As dis-cussed above, there is possibility to make savings with solar system materials. Importantly, vaccine efficacy should be maintained at its highest level to improve the efficiency of both RI and SIA. In other words, vaccine should be properly stored and transported respecting the recommended temperature at all steps of the sup-ply chain. Measles vaccine is very sensitive to heat and rapidly lost its efficacy when exposed to temperature over +8 °C for a long time. Usually, breaks in cold chain occurs at health facility level or at vaccination delivery point where health professionals fail to keep the vac-cine in the right temperature because of poor cold chain materials maintenance.

Health districts in Benin are organized in the same way. Staffing and resources for immunization activities are allocated in the same manner. Moreover, vaccination strategies are the same and measles epidemiologic pro-file is not different from one health district to another. Accordingly, results from this study and the recom-mendations derived from it could be transposed to any other health district of the country. In the same way, the results could be useful to immunization policy mak-ers in other sub-Saharan African countries with similar measles disease burden and with the same health system organization.



for countries with a similar epidemiological profile to Benin regarding measles. Vaccine coverage should be interpreted carefully because denominators used (tar-geted children) came from an old national census. There are shortcomings of relying on old GBD data although GBD-2010 data were available [27]. The comprehensive sensitivity analysis conducted with large ranges of val-ues helped to address these uncertainties (Additional file 1).


Key findings from this operational research, the first to be conducted on the costs and effectiveness of measles vaccination strategies in Benin, could be summarized as followed:

• First, SIA for measles cost more than RI for measles. However, costs structure of the two strategies was disproportionate.

• Second, SIA and RI for measles are cost-effective interventions to improve health in Benin compared to no vaccination. The proportion of ‘zero-dose’ chil-dren affects significantly SIA cost-effectiveness. A twofold increase of personnel costs or inclusion of trainings and communication costs in the base-case analysis do not impact negatively the cost/DALY for RI.

Benin have set measles elimination goal for the year 2020. It is possible to meet this goal if sufficient funds are mobilized and efficiency is taken into account. This work address the question of the costs, the effectiveness and the efficiency of delivering two dose of measles vac-cination combining RI and SIA at district level in Benin. Future studies should be focused on measles immuniza-tion activities financing to identify how to ensure sustain-able funding.


BCG: Bacille de Calmette et Guérin; CER: cost effectiveness ratio; CFR: case fatality ratio; DALY: disability adjusted life year; DTP-Hep-Hib: diphteria, tetanus, pertussis, hepatitis B and Heamophilus Influenza type B vaccine; DW: disability weight; EPI: Expended Program on Immunization; FCFA: Franc de la Commu-nauté Française d’Afrique; HIV: human immunodeficiency virus; Km: kilometer; kWh: kilowatt-hours; LE: life expectancy; MCV: measles containing vaccine; OPV: oral polio vaccine; PQS: Pre Qualify Standard; RI: routine immunization; SIA: supplementary immunization activity; SSE: subacute sclerosing pan encephalitis; TT: tetanus toxoid; USD: United States Dollar; WHO: World Health Organization; YFV: yellow fever vaccine; YLD: years of life disability; YLL: years of life lost.

Additional file

Additional file 1. Excel calculation baseline showing in details how costs and effectiveness indicators were calculated and how tornado diagrams were drawn

Authors’ contributions

LK conceived the study, performed the initial study design, the data collection and analysis and the initial write up. PL critiqued the work and did the final corrections of the manuscript. Both authors read and approved the final manuscript.

Authors’ information

LK is a District Medical Officer with an MSc in Economics and Management of Public Health in Developing Countries (EPIVAC training). Since 2007, his is working in the health district of Natitingou in Benin. PL has a PhD and is lecturer in Economics at Paris Dauphine University (France).

Author details

1 Health District of Natitingou, Ministry of Health, BP 170, Natitingou, Benin. 2 Paris Dauphine University, LEDa-LEGOS, Place du Marechal de Lattre de

Tas-signy, 75016 Paris, France.


This work received a support from the Priority Solidarity Fund of French Ministry of Foreign Affairs through the Agence de Médecine Préventive (AMP). Valuable contributions were provided by Marjorie Nicol, Delphine Adénot and Aristide Aplogan on an earlier version of this paper. Helpful comments on measuring costs were obtained from Franck Bété, Marcel Kounnou and Jean-Bernard Le Gargasson. Thanks also to Maïmouna Sacca Bawa and Karl Dossou for their participation in data’s collection. While the support and contribution of the mentioned institutions and persons is appreciated, the authors are fully responsible for the content and view in this paper.

Compliance with ethical guidelines

Competing interests

The authors declare that they have no competing interest.

Received: 11 December 2014 Accepted: 10 August 2015


1. World Health Organization: Le traitement de la rougeole chez l’enfant. WHO/EPI/LHIS/97.02

2. World Health Organization: Global measles and rubella strategic plan: 2012–2020

3. Ministère de la Santé: Annuaire statistique 2010. Bénin 4. Zone Sanitaire de Natitingou: Annuaire statistique 2010. Bénin

5. Sossou AR (2011) Rapport mensuel de surveillance intégrée. OMS, Bureau Pays Bénin, Juillet

6. World Health Organization: PQS device catalogue. WHO/IVD/11.08. November 2012

7. World Health Organization (2009) Measles vaccines: WHO position paper. Wkly Epidemiolog Rec 84:349–360

8. Murray CJL, Salomon JA, Mathers CD, Lopez AD (eds) (2002) Summary measures of population health: concepts, ethics, measurement and application. WHO, Geneva. http://www.who.int/pub/smph/en/index. htlm. Accessed 9 Feb 2011

9. Murray CJL (1994) Quantifying the burden of disease: the technical basis for disability-adjusted life years. Bull World Health Organ 72(3):429–445 10. Wolfson LJ, Grais RF, Luquero FJ, Birmingham ME, Strebel PM (2009)

Estimates of measles case fatality ratios: a comprehensive review of community-based studies. Int J Epidemiol 38:192–205

11. Sudfield CR, Halsey NA (2009) Measles Case Fatality ratio in India; a review of community based studies. Indian Pediatr 46:983–989

12. World Health Organization (2007) Life table for WHO member states, Africa report, 2007. WHO, Geneva

13. Centers for Disease Control and Prevention (2004) Epidemiology and Prevention of Vaccine-Preventable Diseases, 8th edn. Measles, Chapter 10. http://www.cdc.gov/vaccines/pubs/pinkbook/default.htm. Accessed 1 June 2013


15. Médecins Sans Frontières: Epidémie de rougeole au Sud Kivu (RDC): Enquête de couverture vaccinale. Rapport final. Avril 2011

16. Van den Ent M, Gupta SK, Hoekstra E (2009) Two doses of measles vac-cines reduce measles deaths. Indian Pediatr 46:933–938

17. Manzo ML (2003) Etude de l’efficience de la campagne de vaccination anti-rougeoleuse réalisée dans le district sanitaire de Niamey commune II en décembre 2004. Mémoire du DIU “organisation et management des systèmes publics de vaccination dans les pays en développement”, Uni-versité de Paris Dauphine et UniUni-versité de Cocody Abidjan, 2003. http:// www.epivacplus.org/scientific_articles. Accessed 15 Feb 2013 18. Traore B (2003) Etude comparative des JNV Polio dans la région de

Tom-bouctou de 2000–2002. Mémoire du DIU “organisation et management des systèmes publics de vaccination dans les pays en développement”, Université de Paris Dauphine et Université de Cocody Abidjan. http:// www.epivacplus.org/scientific_articles. Accessed 15 Feb 2013 19. Gning B (2007) Etude des coûts et financement de la campagne de

rattrapage contre la rougeole dans le district sanitaire de Fatick (Sénégal), octobre 2006. Mémoire du DIU “organisation et management des systèmes publics de vaccination dans les pays en développement”, Uni-versité de Paris Dauphine et UniUni-versité de Cocody Abidjan. http://www. epivacplus.org/scientific_articles. Accessed 15 Feb 2013

20. Varwa AO (2006) Analyse des coûts des journées nationales de vaccina-tion polio en 2004 et 2005 en Mauritanie. Mémoire du DIU “organisavaccina-tion et management des systèmes publics de vaccination dans les pays en développement”, Université de Paris Dauphine et Université de Cocody Abidjan. http://www.epivacplus.org/scientific_articles. Accessed 15 Feb 2013

21. Ebong CE, Levy P (2011) Impact of the introduction of new vaccines and vaccine wastage rate on the cost effectiveness of routine EPI: lessons learned from a descriptive study in a Cameroonian health district. Cost Eff Resour Alloc 9:9

22. Vijayaraghavan M, Martin RM, Sangrujee N, Kimani GN, Oyombe S, Kalu A et al (2007) Measles supplemental immunization activities improve mea-sles vaccines coverage and equity: Evidence from Kenya, 2002. Health Policy 83:27–39

23. Dabral M (2009) Cost-effectiveness of Supplementary Immunization for Measles in India. Indian Pediatr 46:957–962

24. Bishai D, Johns B, Nair D, Nabyonga-Orem J, Fiona-Makmot B, Simons E et al (2011) The cost-effectiveness of supplementary immunization activi-ties for measles: a stochastic model for Uganda. J Infect Dis 204(Suppl 1):S107–S115

25. Ziao A (2006) Analyse des coûts des journées nationales de vaccination contre la poliomyélite dans un contexte de crise de la Côte d’Ivoire (Fév.-Mars 2004). Mémoire du DIU “organisation et management des systèmes publics de vaccination dans les pays en développement”, Université de Paris Dauphine et Université de Cocody Abidjan. http://www.epivacplus. org/scientific_articles. Accessed 15 Feb 2013

26. Edejer TT, Aikins M, Black R, Wolfson L, Hutubessy R, Evans DB (2005) Cost effectiveness analysis of strategies for child health in developing countries. BMJ 331(7526):1177

27. Murray CJL, Ezzati M, Flaxman D et al (2012) GBD 2010: design, definitions and metrics. Lancet 380:2063–2066

Submit your next manuscript to BioMed Central and take full advantage of:

• Convenient online submission

• Thorough peer review

• No space constraints or color figure charges

• Immediate publication on acceptance

• Inclusion in PubMed, CAS, Scopus and Google Scholar

• Research which is freely available for redistribution


Fig. 1 Diagram used to estimate the years of life lost
Table 1 Base-case and alternative values of parameters used in the sensitivity analysis
Table 3 Vaccine doses used, vaccinated children and  wasted doses of  measles RI and  SIA in  the health district of Natitingou in 2011
Fig. 3 Tornado diagram showing the range of cost/DALY averted for supplementary immunization activity (SIA)


Related documents

The pitch variation of the airplane is also used to obtain a secondary correction that can be applied to minimize the impact of the systematic variations in the spectra associated

The speed of the motor is compared with its reference value and the speed error is processed in proportional - integral (PI) speed controller. The output of this

MS, motor skills; OOIS, Odense Overweight Intervention Study; PA, physical activity; PF, physical fitness; SIA, Standard Intervention Arm; SES, Socio Economic Status; VO 2Peak ,

Describe the cause of deaths among patients with postdiarrheal hemo- lytic uremic syndrome (HUS) and identify predictors of death at the time of hospital

An improved protocol of using simple in planta transformation methods (Injection method and Cut method) were developed for Gossypium hirsutum. The frequency of transformation was 1.16

analyzing the potential surrounding environment was carried out in the same way by three teachers in three different schools, however, the results have shown

This research work involved the use of 2 levels full factorial design technique to investigate the alkali leaching of oil palm female full factorial design was

We used a mixed-methods study to understand the nature of classroom instruction and the enactments of inquiry with nine teachers after an extensive professional
