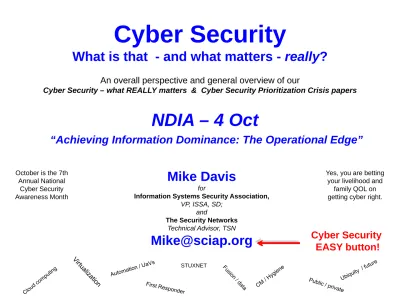

Cyber Security What is that - and what matters - really?

Mike Davis

for

Information Systems Security Association,

VP, ISSA, SD; and

The Security Networks

Technical Advisor, TSN

[email protected]

NDIA – 4 Oct

“Achieving Information Dominance: The Operational Edge”

Cyber Security

What is that - and what matters - really?

An overall perspective and general overview of our

Cyber Security – what REALLY matters & Cyber Security Prioritization Crisis papers

Cyber Security EASY button! October is the 7th Annual National Cyber Security Awareness Month STUXNET

Yes, you are betting your livelihood and

family QOL on getting cyber right.

What’s Wrong With This “Security”?

What level of “cyber” protection is provided here?

Gates were completely locked, properly installed, configured and validated.

I could not get through them, but it seems there are “cyber” issues!

3

Is it really that bad?

•

“If the nation went to war today,

in a cyber war we would

lose

.” (former Director of National Intelligence, Mike

McConnell, 16 Feb 10)

•

The United States would

not be able to defend itself

against a cyber-attack. "Prompt action is necessary”

(James A. Lewis, senior fellow CSIS)

•

Cyber – Shockwave –

we’re not prepared

!

– Very tough to identify WHO is attacking – internet anonymity

– President has little to no overall authority to direct industry actions

– Essentially impossible to prosecute cyber crime, as international borders hinder virtual legal reciprocity and enforcement

YES… and even more so….

Summary

Preview

•

There are MANY IA/cyber initiatives in the works

–

Follow the CNCI trail

,

that approach should prevail…

•

We still need cyber enterprise “R”equirements, just

as we do now for IA and IO and C&A and ….

–

What is needed now,

current issues, will exist in cyber

–

W/o an

enterprise risk management approach

, any / all

paths will do… and we stay in the crisis of prioritization

– Enterprise

Hygiene / CM mgmt

&

access control

are key!

•

We ALL need better collaboration – DOD & Industry

–

Users / leaders must drive

cyber = KISS = commodity

–

YOU - drive

–

we ALL must coalesce,

perfect the basics

!

5

Cyber Security – the Journey

(the B.L.U.F… bottom line up front)

.

BEST POTENTIAL IMPACT / THRUSTS: Education and training; Cyber Hygiene/DCEM; Enterprise risk management; IA / Cyber

Governance; Cyber architecture = Proactive, dynamic CND / IA defense

STRATEGIC GOALS: DoN enterprise IA/cyber vision/strategy; Overall enterprise risk assessment (ERA); Align cyber resources and capabilities; Resolve lack of basic cyber hygiene (DCEM); Trusted enterprise cyber

infrastructure; Integrate / leverage IO / CNO, effective education….

KEY ACTIVITIES: ERA / prioritized mitigations; Reduce IA complexity / enforce the rules; Cyber workforce capital management; Governance / collaboration; key IO/CNO attributes - > genser IA ….

FOUNDATION: Overarching vision / strategy; Common architecture / standards / profiles; enterprise trust model / access control; Integrated IA/CND as an SoS; Lifecycle education / training; Enterprise hygiene / CM (DCEM)…

SO… What / who is the issue?

- Top Cybersecurity Threat Is Customers / Users

, Experts Say

- SANS “Two risks dwarf all others, but organizations fail to

mitigate them….”

•

Priority One: Client-side software that remains

unpatched

.

(but we can’t get into a patch tail chase, as threats morph quickly)

•

Priority Two:

Internet-facing web sites

that are vulnerable.

(we have much SANS / OWASP / NIST guidance – not followed / implemented)

- SANS - trends

•Rising numbers

of zero-day

vulnerabilities

•Application Vulnerabilities

Exceed OS Vulnerabilities

•Web Application Attacks

•Windows: Conficker/Downadup

•Apple

: QuickTime and Six More

7

A few more threat perspectives / scare tactics?

Websense’s 2010 list of security predictions and trends.

1. Web 2.0 attacks will increase in sophistication &prevalence

2. Botnet gangs will fight turf wars

3. Email gains again as a top vector for malicious attacks 4. Targetted attacks on Microsoft properties

5. Don't trust your search results.. Or “Linked in” updates! 6. Smartphones are hackers' next playground

7. Attacks through web advertisements

8. Macs are not immune either

•Cyber crime illegal revenues exceeds all of the drug traffic •Most attacks take place within the US, then from China

•YOUR assets will be comprised, used in other attacks, data / IP stolen,

President's

Cyber

Plan

Cyber requirements from the top

1 - Ensure

accountability

in federal agencies, cyber security

will be designated as a

key management priority

.

2 - Work with

ALL the key players

, including

state and local

governments and the

private sector

.

3 - Strengthen the

public-private partnerships

.

4 - Continue to invest in the

cutting-edge research

and

development necessary for the innovation and discovery.

5 - Begin a national campaign to promote

cyber security

awareness and digital literacy

.

9

• Cyberspace intrusions and attacks

are a real and emerging threat

• U.S. faces a dangerous mixture of

vulnerabilities and adversaries

• Cyberspace situational awareness is

not mature (and not at all levels) • PEOPLE, Information and the

C4ISR infrastructure are targets

• Exploitation, disruption, exfiltration,

misinformation or destruction are adversary goals (& bragging rights)

• Malicious cyberspace activity is

increasing in regularity and severity

Cyber

= A National Security Issue

“Attacks on Critical Infrastructure could significantly disrupt the functioning of government and business alike and produce cascading effects far beyond the targeted sector and physical location of the incident.” -- 2007 National Infrastructure Protection Plan

Ubiquitous Presence… Salient Danger…

• 1.5 billion people on the Internet; much of Asia and Africa still to come

(using wireless, which is cheaper to install)

• Upwards of 200B e-mails per day

• Critical to commerce, government,

business processes, safety, etc.

• Exponential demand; 8 hours of

YouTube uploaded every minute • Increasing connections; global

wireless and cellular usage

• Volumetric rise in data everywhere, with no enterprise data security and

tracking approach (Internet = database)

What makes

Cyber

different?

Given Cyber = “virtual” warfare

,

somewhat different from the

kinetic / physical environment we all know well

-- Includes

ALL Offensive and Defensive IT/IO/IA

capabilities and

DOTMPLF, ALL aggregated somehow

--

Essentially a select

critical technical combination of IO/CNO

and IA/CND + more integration

stuff

-- A

different virtual ROE than Kinetic

–

sometimes reversed,

legally constrained (and

what is “an act of War?”)

--

Shared vulnerabilities

mandate a proactive, dynamic defensive

posture –

a “mission kill” is one e-mail away

-- Thus a

crisis of prioritization

,

where everything is urgent,

mandatory… and the

many CoC lines are blurred

11

Cyber

space Characteristics

•

What’s the big deal?

– Man-made domain… complex and insecure by design

– Global stakeholders — public, private and government

– Speed of both action and change – zero separation

– Transcends physical, organizational and geopolitical

boundaries – highly sensitive to political/legal influence

– Anonymity – identity/intent of players not always clear

RoE / CONOPS

Kinetic = virtual

“NO” boundaries

Legal aspects rule

No clear Cyber IFF!

Global reach & impact AND sensors everywhere, ISR/METOC, SPACE, Networks, ETC, Etc, etc!

What “

cyber variables

”

can we affect?

Effective as-is

, or have a lower added ROI

- Prosecution / enforcement –near real-time forensics, global reciprocity?

- Offensive tools – good current capabilities, controlled use, escalation

- Try to fix all issues / problems – as many are intractable, givens, etc. - Continue to emphasize perimeter defense – as they are already in!

Continue to finesse the first set

Go full force on the last!

BEST potential impact and long term effectiveness

- Improve education and training – cyber workforce capital management

- Enterprise risk management – using both threats & consequences

- Effective IA / Cyber Management – enforceable CM & a trust model

- Proactive, dynamic CND / IA defense – DCD, as the best offense

13

NSPD-54/HSPD-23: CNCI ‘12 Initiatives’

(Where are the lines / links / dependencies and CONOPS between all 12?)

Establish a front line of defense

Resolve to secure cyberspace / set conditions for long-term success

Shape future environment / secure U.S. advantage / address new threats

Focus Area 2 Focus Area 1 Focus Area 3 TrustedInternet Connections Deploy Passive SensorsAcross Federal Systems Pursue Deployment of Intrusion Prevention Systems Coordinate and Redirect R&D Efforts Connect Current Centers to Enhance Situational Awareness Develop Gov’t-wide Counterintelligence

Plan for Cyberspace

Increase Security of the Classified

Networks

Expand

Education

Define and Develop Enduring Lead Ahead

Technologies,

Strategies & Programs

Define and Develop Enduring Deterrence

Strategies & Programs

Manage Global

Supply Chain Risk

Define Federal Role for Cybersecurity in Critical Infrastructure Domains

ALL Cyber efforts must leverage the Federal Investments

The HARD part is implementing enterprise integration, interoperability

Integrated CND & IA as a “SoS”

(all defensive “protections” must themselves act as one system)

• It’s all about TRUST – need a common enterprise trust model

– Some HAP/TSM is needed, but where to put which EAL devices?

– Need a common top-down, enforced IA / Cyber architecture / model

– Need an alternative to commercial ISP – leverage existing dark fiber?

• Effective / secure enterprise access control is everything:

– IA&A implementation focus = authorization based access control …

complemented by ABAC, RBAC, even RAdAC as an end-state…

• Proactive/Dynamic Defensive I&W

- Detect abnormal patterns, characteristics, attributes, unusual requests. - Provide auto alerts; divert questionable actions; "wraps" issues/problems

(This is the “catch all” capability, as we can’t protect everything near 99%)

• Life cycle education and training must parallel acquisition

• Integrated Computer Security Operations Centers (eg: GNOSC, etc)

– Centralized V&V / assessment collection and reporting (NCDOC / NIOC)

– Fully integrated with DNDO – dynamic network defensive operations

• Institutionalize Dynamic Cyber Enterprise Management (DCEM)

15

D

ynamic

C

yber

E

nterprise

M

anagement

1 - Institutionalize enforceable configuration management

- Established baselines, manage dynamic “settings ‘C.I.s’” - Properly configured / CCB (servers, routers, firewalls, etc) - Patches, updates, IAVA – “delta / increment” change mgmt - Verification / Auditing / Certification & Accreditation (C&A)

2a - Continuous monitoring & reporting

- Automatic reports / alerts – fed to users & central repository

- Integrated with NetOps and Infocon (IPS-like actions)

2b - Intuitive situational awareness – automated dashboard

- Must have an enterprise network picture – can’t manage unknowns

3 - Life cycle best practices / SOPs – institutionalize rigor

NSA IAD – poor IA management factors (CM, monitoring, follow SOPs) = 80% NCDOC – lack of IA accountability (poor CM, inadequate IAVA, misuse) = 90% Verizon Data Breach Report – not implementing known fixes and capabilities = 87%

2009 SD Cyber Security Summit

Technical actions for leadership

1.

Develop an

enterprise IA/security/cyber strategy

/ vision.

2.

Commission an overall

enterprise risk assessment

(ERA).

3. Prioritize enterprise level mitigations

to best effectively and

affordably resolve the most damaging and impactful risks.

4.

Address the

pervasive lack of basic IA/security hygiene

enterprise wide, especially enforceable CM.

5.

Add a limited set of

new high assurance components

and

capabilities, to the existing IA/CND infrastructure.

(for mapping/implementing requirements across real-world systems and applications)

6. Better

integrate and leverage cyber education & IO/CNO

(optimize cyber overall and ensure synchronization between offensive and defensive parts)

17

Key Tactical Thrusts

• Organize DoN cyber security approach / governance - RACI • Update ERA, prioritize mitigations and resources

• Begin Dynamic Cyber Enterprise Management asap

• Top-down enforcement of IA / Cyber architecture

– Secure enterprise access control / Cyber IFF

– Overall Dynamic Cyber Defense (DCD) approach

• Proactive / dynamic defensive I&W – monitor abnormal behavior

• Virtual storefront – reacts quickly to predictive IO/IA I&W

• IA/CND treated as an integrated “SoS” with lead/lag feedback

– Common enterprise trust model

– Reduce complexity - IA Building blocks / APLs with pedigrees

– Integrate into an enterprise cyber security model / framework

• Execute lifecycle awareness, education, and training

High ROI Activities that get us all moving quickly

95% security incident reduction

Areas of Potential

“IA/Cyber”

Research

•

Global Scale Identity

Management

•

Scalable Trustworthy

Systems

•

Survivability of Time-Critical

Systems

•

Situational Understanding

and Attack Attribution

•

Combating Insider Threats

•

Data Provenance

•

Privacy-Aware Security

•

Enterprise Level Metrics

•

Coping with Malware and

Botnets

•

Usability and Security

•

System Evaluation Lifecycle

•

Network recovery and

reconstitution

•

Cyber Security economic

modeling

•

Finance Sector R&D Agenda

•

Modeling of Internet Attacks

-critical infrastructure

•

Process Control System

(PCS) security

• Software Quality Assurance

19

What can we expect to help us?

•

NSA / GIAP with

CNCI

= better IA/Security stuff

•

Support for “

data/content centric security

–

DCS”

•

Leaders get it, maybe, need to

translate geek speak

•

ESM / PvM

/ ZBAC for automated systems, SOA…

•

“COTS IA”

– commercial suite “B” encryption

•

Going beyond boundary protection

approach

– Effective trust binding between data, layers and domains

•

Public / private cyber

vision

->

enterprise architecture

Where WE can assist

• New technologies, methods, processes

(

CNCI

!)

•

Not so niche areas of general systems engineering,

integration, “

rapid COTS / GOTS insertion

,” etc

• Collaboration

with other innovative companies

• Partner with other security groups

, IA/cyber entities

• Cyber “packages” needed

, not un-integrated SW

• Follow current issues / concerns

– they will stay

•

Think tank, study, and

discovery support efforts

• Top down risk management

, prioritization approach!

21

Overall IA/Security Approach

ANY IA/security environment or capability should include these top-ten elements to ensure a well-integrated and “best value” data protection approach.

1 - Comprehensive security policy (and communication & enforcement)

2 - Distribute clear governance (who does what / when, R&R, resources, ROE)

3 - Build in defense-in-depth (maintain multiple fronts)

4 – Follow a strategy, master plan (use an enterprise architecture)

5 - Configuration management (automated reporting to enable enforcement)

6 - Develop an effective tool suite (stress automation & KISS)

7 - Guard major threat entry points (phased attacks, root kit, Phishing)

8 - Guard malware entry methods (monitor web, content filters, Block URLs)

9 - Test critical elements (COOPs, training, compliance, vulnerabilities)

10 – Risk management plan (current threats, vulnerabilities and impacts)

what is “good enough” or minimally acceptable minimize what you don’t know you don’t know

Summary

•

There are MANY IA/cyber initiatives in the works

–

Follow the CNCI trail

,

that approach should prevail…

•

We still need

cyber

enterprise “

R”equirements

, just as we do

now for IA and IO and C&A and ….

–

What is needed now,

current issues, will exist in cyber

–

W/o an

enterprise risk management approach

, any / all

paths will do… and we stay in the crisis of prioritization

– Enterprise

Hygiene

/ CM mgmt

& access control

are key!

•

We ALL need better collaboration – DOD & Industry

–

Users / leaders must drive

cyber = KISS = commodity

–

YOU - drive

–

we ALL must coalesce, perfect the basics!

Cyber = smarter collaboration with ALL stakeholders in COMMON ways..

23

other IA/Security sites (cont):

http://www.cert.org/ http://www.sse-cmm.org/lib/lib.asp http://www.commoncriteriaportal.org/ http://www.amc.army.mil/amc/ci/matrix /policy/policy_new.htm https://www.sans.org/about/sans.php http://iac.dtic.mil/iatac/ http://www.cerias.purdue.edu/ http://security.sdsc.edu/ http://iase.disa.mil/stigs/index.html

IA/security resources

Main sites https://infosec.navy.mil/docs/index. jsp https://www.portal.navy.mil/netwarc om/navycanda http://iase.disa.mil/index2.html

other IA/Security sites:

https://www.us.army.mil/suite/porta l/index.jsp http://csrc.nist.gov/ http://www.nsa.gov/ia/index.cfm http://www.iatf.net/ Great ISSE / SSE Site This site has almost

everything you need

Great Sites too Navy C&A moved here

[email protected]

CYBER: A Non-Benign Environment

Various Issues • National Threats • Non-Nationals • Criminal Elements • Hackers • Insiders • INFO/EMCON • EMI / RFI / MIJI • Weakest Links • Lack of “CM!”

• Anoniminity

25

SO what are were trying to institute?

IA

&

CND

An integrated “Cyber” System using dynamic lead & lag feedback

Establish proactive, dynamic CND / IA Defense = dynamic cyber defense (DCD)

Red Teams Defensive assessments After-the-fact feedback (lagging indicators) Upgrades Changes (developed & installed) “SA” ****** (Sensors, CNA/E inputs OpSec, Intel, etc…) Users & CoC Upfront/Early feedback (leading indicators) Cyber “I&W” “Virtual Storefront” (takes days to months / years) NMS / Security Management tools Change “soft”

settings (takes secondsto minutes)

threats V&V / C&A Forensics threats Incident results Defensive I&W

IA / Security “Best Practices”

• Best practices are not a panacea, complete or what YOU need to do

• Do you even know your business protection needs? Do you have a current asset inventory?

• Determine what is “good enough” or “minimally acceptable? • Quantify your environment’s threats and vulnerabilities

– your list should have 10 – 50 or so threats assessed

• Have a security policy that’s useful, complete, VIP endorsed

– yes, that’s HAVE A POLICY, choose a model, then enforce it too!

• Run self-assessment on security measures (use accepted tests, STIGs, etc) and compliance (HIPAA, PCI, CFR, SOX, etc)

• Training and awareness programs – needed, but not a black hole

• TEST your continuity, recovery plans, backup – can you restore?

• Encrypt where you can (do you need it for: IM, Chat, e-mail, file transfer, online meetings, storage, backup, etc)

• Be familiar with the “NIST” IA/Security series – they are great!

• Always use capabilities off the preferred products lists (PPLs)

• A risk management plan should roll all these into one aspect You can somewhat control and get what you plan,

27

NSA top items to DO

Computer systems with proper security and network controls should be

able to withstand about 80 percent of known cyberattacks.

There are common steps that people could take to bolster computer

security and make it more difficult for would-be-hackers to gain access,

Richard Schaeffer Jr., the NSA’s information assurance director, told the Senate Judiciary Committee’s Terrorism and Homeland Security Subcommittee today. He identified 3 measures as especially effective. “We believe that if one institutes (1) best practices, (2) proper

configurations [and] (3) good network monitoring that a system

ought to be able to withstand about 80 percent of the commonly known attack mechanisms against systems today,” Schaeffer said. “You can actually harden your network environment to raise the bar such that the adversary has to resort to much, much more sophisticated means,

thereby raising the risk of detection…

http://fcw.com/articles/2009/11/17/nsa-3-steps--better-cybersecurity.aspx?s=fcwdaily_181109

Cyber Security is ALL about effective basic IA hygiene – otherwise the bad actors just stroll in due to shared vulnerabilities in net-centricity

Cyber

Prioritization Crisis

Our paper in distribution – highlights are:

--

Cyber

is fundamentally enacting a

prioritized and balanced

approach

between existing

IO/CNO

(aka offense)

and

IA/CND

(aka defense)

capabilities,

--

with diminishing resources

, while also

addressing dynamic

and emerging threats

through targeted R&D/S&T initiatives

to fill gaps of the cyber vision.

--

The

RoE, CONOPS

, relationships required are

NOT the

same as existing kinetic

processes, and can be reversed!

--

Political / legal aspects of cyber will impede us all

!

-- CoC needs an

effective situational awareness (SA) capability

29

Federal Plan for

Cyber

Security and Information

Assurance (CSIA) R&D

•

Overarching categories

–

Functional Cyber Security Needs

–

Needs for Securing the Infrastructure

–

Cyber Security Assessment and

–

Characterization

–

Foundations for Cyber Security

–

Domain-Specific Security Needs

–

Enabling Technologies for Cyber Security

and Information Assurance R&D

–

Advanced and Next-Generation Systems

and Architecture for Cyber Security

–

Social Dimensions of Cyber Security

From Homeland Security brief

Leadership Summary / Recap / Results

(Cyber Security Collaboration Summit – SD – Nov 2008)

•Common vision / end state / master plan •Governance & more governance

•Specified requirements and then some

•Prescriptive implementation guidance required •What’s “good enough” IA/Security?

•Pedigree approach – simplify V&V / C&A (build it in in)

•What is the IA business basis / ROI?

•What is the future risk environment?

•Training at all levels, especially user and SW development

•Standard architectures / standards / profiles (and a Trust Model!!!)

• SOA security is vague - at best…

31

31

Issues Summary (2008)

Actions to collaborate / facilitate

• What’s our end- state / vision (“start with the end in mind!”) (then

define requirements and determine gaps)

• Who’s in charge anyway? Enforcement? (aka - Governance)

• Prescriptive implementation guidance required (EA, stds, trust

model, CM, etc)

• What’s “good enough” IA/Security? Outcome metrics that matter,

support the business success factors, risk management.

• Complexity is rising versus falling (we can’t begin to do V&V on

SoS – how do we do T&E to prove IA is effective?!)

“IA” is all encompassing, we can’t “win” if we don’t know

where we are collectively going or narrow the playing field

Representative Navy User Concerns

• IA Master Plan;

Architecture vision; clear IA goals

•

IA

Governance

Structure / Consistent Policies

•

Workforce Quals / Certs /

Training

•

"Improve

Speed to Capability

” - Implementing newer

technologies.. HBSS, DAR, etc….

• IA Approach, Strategy consistent

with SYSCOMs and DoD

•

IA Policy/Architecture “

implementation” guidance

• Enterprise Access Control

- "Trust Model"

• Certification & Accreditation

- Aggregation of systems

• Supply Chain Security

/ Defense in Breadth

• Sustain current IA and CND posture

to ensure readiness

Calling things “cyber” will not change the current IA and IO issues

33

Recent

IT/Cyber

Leadership perspectives

A

- Political / legal cyber approach

Cyber offense must be strictly monitored controlled, due to potential escalation & state department implications & countries suing each other

B -

Navy IT FLAG/SES Feb 09 meeting results / paper:

-- Greater accountability, completer visibility, net-centric concepts need to be revisited, can't protect all networks - ensure the C2 / enterprise -- Need better situational awareness, discipline in development and

acquisition, TTPs... And training...

-- focus more resources on defensive posture and key critical actions

(aka - have a risk management approach), closer collaboration…

-- Senior Cyber Advisor’s major conclusions : Stricter CM & SA / inspect traffic

Potential Cyber Way Forward

•

Public Awareness

– Assign to the White House (The Cyber Czar)

– Make it the new “Race to the Moon”

•

Federal Structure and Plans

– Establish a phased plan (start with .mil domain)

– Assign DoD, then DHS (.gov) then outreach

•

Industry Participation – Development

– Subsidize development, assign IP to developers

•

Industry Participation – Application

– Federal standards, liability to suppliers

35

Cyber

space Characteristics

All of the warfighting domains intersect…

Cyberspace Domain is contained within and transcends the others

In relation to other mission areas…

… cyberspace is a blend of exclusive and inclusive ties

The “Venn connections / COIs” are extensive

Numerous dynamic “COIs” dominate relationships

Adding complexity and causing “cross domain” data sharing effects

IA

(Source: derived from JS Cyber 101 brief)

36

Net-centric operations as well as the emerging new joint capabilities and integration development process is where the DoD is headed in the “Business of Warfighting”

Source:  Secretary of State Hillary Clinton Statement, January 21 2009 Source:  SSC Atlantic Cyber Strategy

Cyberspace

Cyber must effectively integrate Business and Warfighter Mission Areas

Cyber

– Spans Warfare and Business Mission Areas

37

DoD CND (and

“

Cyber

”

) Defense in Depth

DoD GIG (JTF-GNO) Navy GIG (NCDOC)

WAN (Enclave) LAN (POP/HUB) HOST TIER I LOCAL ENCLA V E TIER II TIER III

NET Cool View

CAC/PKI Vulnerability Remediation Anti-virus IAVM Compliance IAP Monitoring CND SP - Incident Response / Management - Prometheus - Threat Analysis - Compliance Scans - IAVM Management IDS Firewalls

DNS Blackholes Standard IP Blocks

ACLs NUDOP IAVM Implementation Incident Response Vulnerability Scanning Email AV Alert Filtering System Patching DITSCAP/DIACAP Threat Assessment

Site Compliance Scans

Standard IP Block Lists

DITSCAP/DIACAP ACLs Vulnerability Remediation Firewalls Email AV DNS Blackholing IAVM Compliance

In-Line Virus Scanning IPS

Incident Handling

Threat Analysis NET Cool / INMS View

PROMETHEUS PKI PKI PKI PKI CARS CARS In-Line Filtering Global CND UDOP TRICKLER / CENTAUR In-Line Filtering

NET Cool Data

CONOPS • RNOSC • HBSS • SCCVI-SCRI CENTRIXS Monitoring

NMCI SIPRNET IDS Feeds WAN SA

NET Cool Data

HBSS

Standardized Configurations

Tier 3 SIM

SIPRNET Firewall PPS Policy

Wireless Mapping WIDS WIDS IP Sonar Multi-Layer Protocol Defense GIAP DRRS-N POR Management Insider Threat IWCE Functional NIC Navy DMZ SLIDR IASM TMAT ENMS CDS

CND POR Honey Grid

Deep Packet Inspection

Enterprise DMZ

Enclave DMZ DAR

SIPR NAC TMAT

DAPE

Metrics

Cyber = “mostly” Life-cycle education and proactive, dynamic defense….

Deep Packet Inspection

NMCI NIPRNET IDS Feeds

Content Filtering SCCVI-SCRI CND Data Strategy Operational Operational Proposed or In Development Proposed or In Development Funded and Rolling Out Funded and Rolling Out Operational Operational Proposed or In Development Proposed or In Development Funded and Rolling Out Funded and Rolling Out Tutelage

(From NCDOC briefs)

The “smart” integration and collaboration between MANY needed IO & IA functions

38 2003 / 2004 2005 2007 2008 Capabilities •Mobius Project •Trends Analysis •Online Surveys •IDS Monitoring •Incident Handling •IAVM •IDS Monitoring •Incident Handling •IAVM •Mobius Project •Trends Analysis •Online Surveys •CCZ •NIOSC Construct

•Tactical IDS placement

•DNS Blackhole •IP Block Initiative •CAC/PKI •Network Forensics •Malware Analysis •Signature Development Insider Threat

Zero Day Exploits

Known Trojans and Malware

Indiscriminant Recon Commonly Known Vulnerabilities

Compromised Password Files Stolen Credentials

Social Engineering Web Based Attacks

Soft Cert Searches

New/Custom Trojans Spear Phishing

•CARS initiative

•Mobius to Prometheus

•Cyber Tactical Teams

•Enhanced Compliance •LE/CI integration •Threat Analysis •Process Improvements •IDS Monitoring •Incident Handling •IAVM •Mobius Project •Trends Analysis •Online Surveys •CCZ •NIOSC Construct

•Tactical IDS placement

•DNS Blackhole •IP Block Initiative •CAC/PKI •Network Forensics •Malware Analysis •Signature Development •CARS initiative •Mobius to Prometheus

•Cyber Tactical Teams

•Enhanced Compliance •LE/CI integration •Threat Analysis •Process Improvements •IDS Monitoring •Incident Handling •IAVM •Mobius Project •Trends Analysis •Online Surveys

•Tactical Sensor Pilot

•HBSS Pilot

•SCCVI/SCRI

•Enhanced Collaboration

•IDS to IPS Transition

•CCZ

•NIOSC Construct

•Tactical IDS placement

•DNS Blackhole •IP Block Initiative •CAC/PKI •Network Forensics •Malware Analysis •Signature Development • CARS initiative • Mobius to Prometheus

•Cyber Tactical Teams

•Enhanced Compliance •LE/CI integration •Threat Analysis •Process Improvements •IDS Monitoring •Incident Handling •IAVM •Mobius Project •Trends Analysis •Online Surveys

•Tactical Sensor Pilot

•HBSS Pilot

•SCCVI/SCRI

•Enhanced Collaboration

•IDS to IPS Transition

•HBSS Deployment

•Content Filtering

•Joint Data Strategy

•NMIMC Integration

•SLIDR Pilot

•Insider Threat Tool Pilot

•OCRS / IAVA Spiral

•CCZ

•NIOSC Construct

•Tactical IDS placement

•DNS Blackhole •IP Block Initiative •CAC/PKI •Network Forensics •Malware Analysis •Signature Development

Integration of

Cyber Security

and Defense

2006

Synchronized “cyber” capabilities to narrow the Threat Vectors

(From NCDOC briefs)

Where, lack of “IA CM” is pervasive and

39

Cyber

“Protections” Overview

CMI/KMI

CND

Policy _Training

C&A

Typical IA Acquisition elements

Enterprise Risk Mgmt. IA Services CA Support Multiple players Multiple PEs/Lines Multiple threats Multiple PMW/S/As

“

IO

”

and

CNO

Defend Attack Exploit Requirements

Strategy AND Governance critical to “implementation” success!

“

CIO

” FISMA Operations IAMs PKI/CAC ID Mgmt

(or why “IA/IO/Cyber” is so complex / hard… because it is ALL of this and more!)

IA

IA / Cyber must be E2E!

Thus, the IA/cyber controls and interfaces in each element / boundary must be quantified / agreed to upfront!

Enterprise Site Enclave Network SoS System / services HW/SW/FM “CCE”

Each sub-aggregation is responsible for the IA controls within their boundaries and

also inherit the controls of their environment – need to formalize reciprocity therein!

WE have a “natural” hierarchy in our enterprise IT/network environment, where complexities arise in the numerous interfaces and many to many communications paths typically involved in end-to-end (E2E) transactions

Apps

AND, People and processes TOO!

41

WAN Router

Make IT security a commodity:

Use IA building blocks = APLs/PPLs – “NIAP”

Interoperability and Compose-ability are built in upfront and help dramatically reduce complexity and ambiguity

Thus….establishing known risks & pedigrees: Reduces attack surface, impacts & TOC

Building a Trusted Cyber Infrastructure

“an adequately assured, affordable, net-centric environment”

IA Suite

Distribution Router Core Router

PC

End user devices

Servers

SANS Network_Devices

“Assured” IOS Various EAL

EAL 4- 5

EAL 4 Focus on a few

core capabilities & devices

= PC, routers, IA suite, Servers, & SANS –all with access control

EAL 3 - 4

Secure OS TSM HBSS ZBAC

Standard IA/CND suite FW, A/V, IDS/IPS, CDS,, etc Treat as a “SoS”: with high EAL

HW / FW

Secure OS kernel Secure Virtual Machine

Strict access / ZBAC ALL OSes (MS, Mac, Unix)

Security Monitor EAL

6

EAL 5 – 6

Data centric security Defensive I&W Strict access / ZBAC

IAW: NNE 2016 / NGEN vision

Eval Assur Level (EAL): 3

Glossary

• APL/PPL – approved /preferred

product list

• ACL – access control list

• CA – certification authority

• C&A – certification & accreditation

• CCB – configuration control board

• CI – configuration item

• CIP – critical infrastructure protection

• CNCI – Comprehensive National Cybersecurity Initiative

• CND/CNO – computer network defense/operations

• CSIS – Center for Strategic and International Studies

• DCD – dynamic cyber defense

• DCEM – dynamic cyber enterprise management

• EAL – evaluation assurance level

• ERA – enterprise risk assessment

• HAP – high assurance platform

• HBSS – host based security system

• IAD – Information Assurance

Directorate (@ NSA)

• IAVA – information assurance

vulnerability alert

• IA&A – identification, authentication

and authorization (access control)

• IDS/IPS – intrusion detection/

protection system

• IOS – internetwork operating

system (OS for routers)

• ITMC – IT Management Council

• I&W – indications and warnings

• KM – knowledge management

• NIAP – National IA Partnership

• RAdAC – risk adaptive access control

• SANS – storage area network systems

• TSM – trusted security module

• VM – virtual machine

• V&V – verification and validation

• ZBAC – authoriZation-Based

43

Key Cyber Elements

•

What are

Requirements

?

–

Who sets them… Who knows, agrees?

•

What is our public/private “

value proposition

?”

–

How do we differentiate the largest impacts?

–

What are the ROI and success metrics?

•

Did we include all major factors – “

P3

”?

–

Accommodate

p

eople,

p

rocesses and

p

roducts

–

Show an

integrated, coordinated

cyber package

It used to be “follow the money”

Cyber prioritization makes that “where to put it”

SysEngr C3 Etc….

Presentation Value Proposition

Why did you attend this meeting versus others?

•

Today’s presentation

– Independent view, accommodates commercial and government

– Technical / capability aspects versus organizational / political

– Covers a wide range of assessments and perspectives

– Presents perspectives based on many IA/cyber papers and efforts

•

All questions addressed, initial perspectives answered

– “easy button” ->

[email protected]

– In IA/CND/Cyber – little is new, collaborate & leverage what exists!

•

Bottom line:

We’ll make Cyber interesting and fun

Where what really matters in ‘cyber” is mostly the same as what ails us today and correlating, education, IO/CNO and IA/CND efforts

Warning…. This is an engineer’s perspective, so it’s overly busy and all power point rules are violated! Don’t try to absorb it, but just get a “sense” of it all…;-))

45

What is “

Cyber”

?

“A global domain within the information environment consisting of the interdependent network of information technology

infrastructures, including the Internet, telecommunications networks, computer systems, and embedded processors and controllers.“

-- DoD Definition of Cyberspace

“The military strategic goal is to ensure US military strategic superiority in cyberspace.”

-- National Military Strategy for Cyberspace Operations Cyber space operations = employment of cyber capabilities where the primary purpose is to achieve military objectives or effects in or through cyberspace. Such operations include computer network operations and activities to operate and defend the GIG

It could mean just about anything….

Setting the “

Cyber

” Stage

•

Feb 2008 – Pakistan’s routing mis-configuration denies

YouTube access for 2 hours showing routing vulnerability

•

Aug 2008 – Major vulnerability discovered in DNS

•

Nov 2008 –

Conficker botnet

affects as many as 12 million

computers worldwide (and still out there)

•

Symantec reports

15,000 new types of malware

daily

•

Gartner estimates

3.6M victims lost $3.2B

in the U.S. in

2007 due to phishing attacks

•

Consumer Reports estimates U.S.

consumers lost $8.5B

and replaced 2.1M computers

because of viruses, spyware,

etc. between 2006 and 2008

•

And Many, many, many more …..

http://www.symantec.com/about/news/release/article.jsp?prid=20090910_01

Cyber crime revenues

(which come from YOU!)

47

Who’s in Charge? When? Where?

•

POTUS … (Cyber Security Coordinator, et al)

•

SECDEF / SECSTATE …

•

Congress, DHS, OMB, other agencies…

•

STRATCOM

•

USCYBERCOM

•

FLTCYBERCOM

•

Navy, Army, AF, Marine Corps

•

Federal, Industry, Consumers …

Re: CIP is 85% industry

- No direct federal control, so what then?

Authority and Enforcement are KEY!

“CNCI faces several challenges

in meeting its objectives“ (GAO)

•

Defining

roles and responsibilities

..

•

Establishing

measures of effectiveness

..

•

Establishing an

appropriate level of transparency

..

•

Reaching agreement on the

scope of educational efforts

..

Until these challenges are adequately addressed, there is a risk that CNCI will not fully

achieve its goal to reduce vulnerabilities, protect against intrusions, and anticipate future threats against federal executive branch information systems.

The federal government also faces strategic challenges beyond the scope of CNCI in securing federal information systems:

•

Coordinating actions with

international

entities.. coalitions…

•

Strategically address

identity management & authentication

.

Cyber prioritization & coordination are still key As well as hygiene/CM and effective access control!

49

An end-state stresses encapsulation through a virtualized fabric

What’s a “simple” IA/Cyber end-state / vision look like?

C

omputer

N

etwork

A

ttack /

E

xploit

• Provide near-real time OPSEC to IA

– Effectively leverage the black side Intel into secret (& below) protections

• Establish “Cyber” War Reserve Modes”

– Isolated networks, C2 _{“order wire”, mil using dark fiber, etc}

• Fusion of diverse data, into KM we can use in all of cyber

– All sensors, CNE / A effects, OpSec, Intel, etc = improved CND / IA

• Can’t easily / rapidly tell WHO the bad actors are…

– Need cyber detection / forensic capabilities (Service's responsibility)

– Offensive uses best done by STRATCOM / USCYBERCOM / C10F…

• “Cyber War” / ROE undefined, unclear if win-lose / lose-lose

Offensive cyber methods / tools / activities
