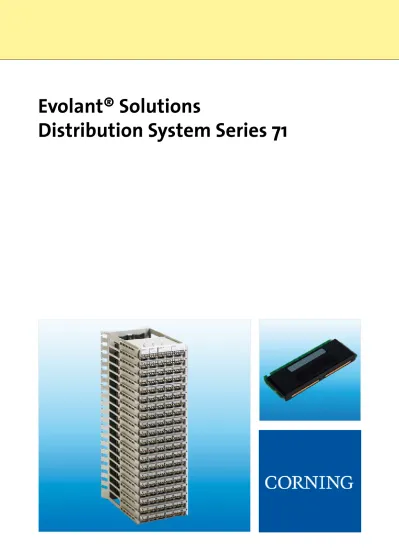

Evolant Solutions Distribution System Series 71

(1)

Evolant® Solutions

(2)

(3)

Distribution System Series 71

Introduction

• Corning Cable Systems – One of the leading Suppliers of MDF Products 04

• An Excellent Quality Management System 05

Technical Principles

• Insulation Displacement Connection 06

• Main Distribution Frame 07

• Overvoltage / Overcurrent Protection 09

• Description 10

Distribution Blocks of Series 71

• 4-pair Distribution Block 11

• 5-pair Distribution Block 12

• Technical Data 13

Protection Magazines of Series 71

• Basic product characteristics and order numbers 15

Accessories for Distribution System

• Connecting Cords 17

• Disconnection and Dummy Plugs, Marking Caps 19

• Termination Tool, Extraction Tool, Tool for jumper support 20

• Labeling Sets 21

Additional Information

(4)

Corning Incorporated is a diversified technology company with a proud history of developing breakthrough innovations that significantly improve people’s lives. We have been changing the world through innovations for more than 150 years, integrating scientific discovery with market need. We focus on high-impact growth opportunities in the telecommunications, flat panel display, environmental, life sciences and semiconductor industries.

As early as 1974, when fiber optic technology was still in its initial stage, Corning was one of the original pioneers, with expertise second to none. We were working with Europe’s leading Public

Telecommunications companies in developing trial

fiber optic cable routes. In 1977 came the first fiber optic route for Deutsche Telekom in Berlin. This was followed in 1979 by further projects in the USA, marking the start of a global business with a string of major commercial contracts.

In 2000 Corning grouped all its cable, hardware and

equipment businesses into Corning Cable Systems

division. Corning Cable Systems now comprises

the former Siecor Corporation, the communication

cables business from BICC (Corning Cables Ltd.),

Siemens´ former Communication Cables division

and RXS Kabelgarnituren.

In the area of copper cabling, the mature Series

71 came out in 1971 as an MDF product with IDC technology, followed by a set of most successful products like in Series 5000 and Series 1000RT.

Today Corning Cable Systems disposes of more than 35 years of rich experience in successful copper IDC

technology. Customers around the world appreciate

Corning MDF products for performance highest

quality and reliability.

Distribution System Series 71

Corning Cable Systems

One of the Leading Suppliers of MDF Products

(5)

Distribution System Series 71

Corning Cable Systems is a reliable partner that meets the communication needs of its customers all

over the world with cost-effective solutions.

Corning Cable systems stands for technical expertise, superior product quality and customized support

services.

Our quality and environmental management systems are certified to DIN EN ISO 9001 and

ISO14001.

Our global presence is your gain because, wherever you are, Corning is close at hand.

Corning Cable Systems

(6)

Distribution System Series 71

Technical Principles

The binary structure of the switching systems (8, 16 or 32 subscribers per line card) is the reason that distribution blocks intended to connect the switching system also have a binary structure, e.g. a 4-pair functional element in the case of the Series 71 or an 8-pair functional element in the Series 5000.

The subscribers are generally connected via cables organized in groups of ten. Accordingly, the distri

-bution blocks have a n x 5 structure for the Series 71 (5-pair functional element) or a n x 10 structure for the Series 5000 (10-pair functional element).

The number of system or subscriber lines to be connected per distribution block depends mainly on the

pair count of the cables used. Most of the subscribers in the central office are therefore connected to the relevant distribution blocks using 100 or 200 pair cables. The same applies to the system side, where 128 wire pair cables are used.

The above described systematics is best supported by the 8- and 10-pair distribution blocks of the

Series 5000 with 100, 128, 200 and 512 wire pairs. Series 71 Distribution Blocks are less space effec

-tive and need twice the number of functional elements to support similar wire pair counts. As described

on page 10, a distribution block basically consists of a metal chassis, functional elements and wire guides. The wire guides ensure that the wires are clearly organized in the distribution block. Each wire pair is led to the relevant IDC contacts through the wire guides.

The importance of having good wire and cable organization increases with the number of users to be

connected. The jumper comb assemblies of the distribution blocks and the jumpering loops of the dis

-tribution frames are therefore just as important to good cable organization as the wire guides.

Insulation Displacement Connection

Soldering methods were replaced by connection techniques via cutting insulation some decades ago. Through this change, time-consuming soldering, screwing or filling procedures have been eliminated. With

this technology, the wire is inserted in the IDC contact (Insulation Dis

-placement Connection) by hand and pressed into it by using a simple termination / punch-down tool. The wire insulation is stripped during the termination process in the IDC contact where the connection is made. DIN IEC 352 describes the requirements for this soldering-, screw- and stripping-free connection in detail.

Double IDC Contact

Functional elements of Series 71 distribution blocks are always fitted with double IDC contacts. The double contact allows interruption-free jumpering. This means that in addition to the existing connection, e.g.

jumpers from the subscriber to the system, a second connection to a

new connecting point can also be established without interrupting the existing connection.

(7)

Distribution System Series 71

Technical Principles

Main Distribution Frame

Tasks

The main distribution frame (MDF) is the interface between

the subscriber cables coming in from all directions and the

switching system. The subscriber cables and the system

cables are all led and connected to the main distribution

frame. The connection between both cable sides is imple

-mented by jumpering. In addition to connecting and orga

-nizing all cables, the main distribution frame also provides the option to install protection against overvoltage and over-

current for service technicians and the switching system itself. Subscriber and system cables can be both checked

and disconnected in the main distribution frame; xDSL

splitters for data transmission can be installed as well.

Options for Application

Main distribution frames are used wherever a large numb

-er of subscrib-ers needs to be connected with the switching

system, for example in networks of telecommunications pro

-viders or in large buildings such as banks, insurance

compa-nies and headquarters of global players.

Jumperin

g

All underground subscriber cables are connected to specific distribution components (line or subscri

-ber block) in the main distribution frame. Not every subscri-ber wire pair is necessarily connected to a subscriber. By the same token spare pairs in subscriber cables do not need to be connected to the switching system. Additional subscriber wire pairs are only connected to the system if required.

Frequently the switching system and the main distribution frame may not be in the same room or even on the same floor. Given that each operating wire pair cannot be guided to the switching system over several floors, the required wire pairs are connected to an additional distribution component (system block to which the system cables are connected). Thus the wire pairs in use are connected in stages to these distribution components. These connections are in turn connected to the switching system via cables (e.g. 128 wire pairs). The cables can then be led over several floors to the switching system without any difficulty.

(8)

Distribution System Series 71

Technical Principles

Distribution Frame Variations

Main distribution frames can be arranged vertically or vertically / horizontally and are available as wall-mounted or free-standing variants.

The choice of the distribution frames depends on the location as well as on the number of subscribers that have to be connected. Corning Cable Systems recommends that merely vertical distributors should be used for less than 5,000 - 10,000 subscribers to be connected. If the number of subscribers is higher,

the need for cross jumpering increases. We therefore recommend using a vertical / horizontal distributi

-on frame which best supports cross jumpering between the horiz-ontal distributi-on blocks. By comparing

the option for cross jumpering of both MDF types, the difference becomes obvious: in a distribution

frame with 13 horizontals there are 12 cross jumpering options, whereas most of the vertical distribution frames offer cross-jumpering only above and below the vertical distribution blocks.

Recommended for

< 5.000 subscribers Recommended for > 5.000 subscribers Recommended for< 5.000 subscribers Recommended for> 5.000 subscribers

Free-standing frame, vertical / horizontal Free-standing frame, vertical Wall-mounted frame, vertical / horizontal Wall-mounted frame, vertical

8

(9)

Distribution System Series 71

Technical Principles

Overvoltage

Overvoltage / Overcurrent Protection

Damage caused by overvoltage / overcurrent is one of the most common causes of malfunctions in

communication devices. Overvoltage / overcurrent can stop individual components or even result in the failure of entire central offices. Without sufficient protection, telecommunication equipment is exposed

to a potentially costly and dangerous threat. Damage can be caused by lightning, electrostatic or elec

-tromagnetic interference or by power lines coming into contact with communications lines.

Primary protection against such damage consists in inserting protection magazines into the distribution

components and in grounding the system in accordance with the relevant requirements.

In the context of telecommunications, a distinction is made between the following types of protection:

Overvoltage Protection (3-Point Protection)

The overvoltage protection magazines / plugs are

fitted with 3-electrode arresters (see the circuit dia

-gram on page 27 et sqq.). In case of overvoltage, an arc is generated in the arrester which discharges the energy towards the ground potential. The arc is

broken when the voltage falls below the nominal re

-sponse direct voltage of the arrester. This reversible

procedure can be repeated a number of times if

ne-cessary.

Overcurrent Protection (2-Point Protection

)

The overcurrent single pair protector is fitted with PTCs, i.e. Positive Temperature Coefficient (see the

circuit diagram on page 27 et sqq.). When the nomi

-nal current of the PTC is exceeded, the component

heats up and the resistance increases exponentially. The PTC therefore limits the current. The PTC cools down in accordance with the load and then returns to its original state. This reversible procedure can also be repeated a number of times if necessary.

(10)

Distribution System Series 71

Description

The distribution components consist of the following elements:

• Metall chassis

used for the stable mounting of the functional elements and wire guides

• 4- or 5-pair functional elements

are fitted with double IDC contacts with and without option for overvoltage protection

• Wire guides with double channels

guide the twisted wire pairs to the IDC contacts

• Jumper combs

used to give a clear structure to the designated bundles of pairs per functional element

The following optional elements may be ordered:

• Protection magazine

3-point (overvoltage) protection magazine with 3-electrode arresters

2-point (overcurrent) protection plug with polymer PTCs – to be installed from the

front side • Accessories

Termination tool

Labeling sets (including label holders and covers)

Label strips Disconnection/dummy plugs Marking caps Cable cover

Technical Principles

10

(11)

Distribution System Series 71

Scope of Delivery: Block + Labeling Set

a b

80

73

Distribution Blocks with 4-Pair Functional Elements

For optional mounting of protection magazines or plugs, we offer the following types:

2-point protection plug

S30264-D1004-S455 (120 mA)

Pairs Position Overvoltage Labels Weight Size Order Number

Protection Option [kg] [mm]

a b

H = Distribution blocks for horizontal installation 48 80 80 256 256 256 H V V H H H -20 x 1 - 8 64 x 1 - 8 64 x 1 - 8 12 x 1 - 8 20 x 1 - 8 -C39104-A61-A1 C39104-A66-A1 C39104-A65-A1 S30264-D1001-S44 C39104-A51-A1 C39104-A51-A4 -900 900 900 87 87 129 180 87

V = Distribution blocks for vertical installation

6.0 1.0 6.0 9.0 ✔ 1.9 1.9 290290 8787

(12)

a b 95

89

Distribution System Series 71

Scope of Delivery: Block + Labeling Set

V = Distribution blocks for vertical installation

Distribution Blocks with 5-Pair Functional Elements

For optional mounting of protection magazines or plugs, we offer the following types:

2-point protection plug

S30264-D1004-S455 (120 mA)

3-point protection magazine

S30264-D1004-S501 (230 V; 20 kA)

3-point protection magazine

S30264-D1004-S502 (230 V; 10 kA)

✔ ✔

Pairs Position Overvoltage Labels Weight Size Order Number

Protection Option [kg] [mm] a b 100 V 10 x 1 - 10 3.2 290 129 C39104-A45-A1 100 V - 10 x 1 - 10 2.6 290 87 C39104-A45-A2 100 V 1 x 1 - 100 3.2 290 129 S30264-D1001-S70 100 V - 1 x 1 - 100 2.6 290 87 S30264-D1001-S35

12

(13)

Distribution System Series 71

Technical Data

IDC Element:

Contact principle acc. to DIN IEC 352 Insulation displacement connection for the accomodation of two lines per IDC terminal

Spring material Spring bronze S23

Contact force > 10 N (0.4 mm wire core diameter)

Contact surface Ag (4 - 7 µm)

Solid conductor with a diameter of 0.35 - 0.80 mm;

Suitable for: Outside diameter of max. 1.2 mm

Clamp for PCM wires with an outside diameter of max. 1.5 mm (with PE or PVC insulation)

Service life A clamp

for 0.35 to 0.6 mm Ø > 400 clampings

for 0.8 mm Ø connected on one side > 50 clampings for 0.8 mm Ø combined with 0.6 mm Ø > 25 clampings

Volume resistance at clamping point < 5 mohms, blank (when new)

acc. to DIN IEC 352-3 > 2 mohms, tin-plated (when new)

Resistance change during the < 1 mohms (based on new)

service life acc. to DIN IEC 352-2

Dielectric strength acc. to DIN IEC 512-2 > 2000 V ~ Current carrying cap. acc. to > 2.5 A at T_u20°C

DIN IEC 512-3 > 1.6 A at T_u 65°C

Insulation resistance under lab. conditions > 1012_ohms _{(when new)}

acc. to DIN IEC 512-2

Coupling capacit. acc. to DIN IEC 512-9 < 3 pF

Surge voltage acc. to VDE 0433 > 1.5 kV (surge discharge 1.2/5 µs)

Module body Polycarbonate

Utilization category acc. to DIN IEC 68 25/100/21 Cold -25°C

Part 1 Dry heat +100°C

(14)

Distribution System Series 71

Protection Magazines Series 71

Communications equipment and systems for data transmission can be damaged or even destroyed by

overvoltages and the resulting current surges or by overcurrent. Protection magazines offer optimum primary protection in such cases. The surge arresters limit overvoltages quickly and safely to uncritical levels and reliably discharge the resulting dangerous currents. Optional PTC in 2-Point Protection Plug

to be installed from the front side limits overcurrent by increasing its resistance and therefore blocking

the current.

(15)

Distribution System Series 71

Protection Class (*) Nominal Voltage [V] Nominal Disch. Current

[kA] Order number (**)

Nominal Current PTC [mA] 2-Point 3-Point 3-Point 3-Point 230 230 230 10 10 20 120 S30264-D1004-S455 S30264-D1004-S282 S30264-D1004-S502 S30264-D1004-S501 Pairs 1 5 5 4

(*) 2-Point-Protection = overcurrent protection 3-Point-Protection = overvoltage protection

(**) Minimum order quantity 10 pieces or multiple of 10 pieces for 3-Point-Protection-Magazines Minimum order quantity 25 pieces or multiple of 25 pieces for 1-Point-Protection-Plugs

---Basic product characteristics and order numbers

(16)

Test and Connecting Cords

16 Distribution System Series 71

A complete range of cords is available for the Series 5000 Distribution System. Cords can be used for short-term jumpering (connecting cords) or for testing and measurement purposes (test cords).

(17)

Distribution System Series 71

Connecting Cords, 2- and 4-Pin, one Plug on each Side

Type Length Plug Connection Order Number

Connecting cord Connecting cord Connecting cord Connecting cord Connecting cord 3.0 m 5.0 m 3.0 m 4.0 m 6.0 m C39195-A346-A4 C39195-A346-A5 C39195-A348-A1 C39195-A348-A16 C39195-A348-A25 a b a‘ b‘ b b b b b a a a a a a‘ a‘ a‘ b‘ b‘ b‘

Other cords on request

Test cord Test cord 10.0 m 3.0 m C39195-A346-A11 C39195-A346-A10 without plug a a‘ b b‘

Test Cord with one Plug

(18)

a

Test cord 1.50 m a’ C39195-A356-A2

b b‘

a’ Black plug

b’ White plug

a Black plug

b White plug

Distribution System Series 71

Test Cord with Banana Jack

Test and Connecting Cords

Other cords on request

Test Cord with Banana Plug

C39195-A356-A40 4.00 m Test cord

18

Black receptacle White receptacle Red plug Blue plug

a

Test cord 0.25 m a’ C39195-A356-A3

b b‘ a Black receptacle b White receptacle C39195-A356-A21 1.50 m Test cord

(19)

Distribution System Series 71

Designation For n Color Order Number

pairs

Disconn. plug 1 Brown C39334-A111-A20

Dummy plug 1 Red C39334-A111-A120

Color Order Number

Lilac C39104-A44-C100 Black C39104-A44-C300 White C39104-A44-C400 Gray C39104-A44-C500 Red C39104-A44-C600 Green C39104-A44-C700 Blue C39104-A44-C800 Yellow C39104-A44-C900

Disconnection and Dummy Plugs

Disconnection plugs are used in disconnection elements for disconnecting indoor and outdoor lines; dummy plugs are used to prevent connections from being disconnec-ted inadvertently.

Marking Caps

Marking Caps are used for the identification of lines on the front side of the functional elements. The caps are attached on the IDC contacts of each wire pair.

(1 pack = 100 pcs per unit ordered)

Disconnection and Dummy Plugs, Marking Caps

(20)

Distribution System Series 71

Tools

Tool for jumper support

This tool supports the installation of jumpers in case of limited space between bays or if jumpers need to be handed over to the other side of free-standing (i.e. double sided) MDF frames.

Designation Order Number

Tool for jumper support C39407-A149-A21

Termination Tool

• For connecting the wires

• Cutting device with lock for optional cutting of excess wire length

• Extraction hook for removing wires

Termination tool C39407-A139-A12

Extraction Tool for Functional Elements

For removing the functional elements.

Extraction tool, 4-pair shielded C39407-A139-A4

Extraction tool, 5-pair C39407-A139-A5

Extraction tool, 4-pair C39407-A139-A6

Extraction Tool for Protection Magazine

For removing the protection magazines from the func-tional elements.

20

Extraction tool for protection C39407-A149-A3

(21)

Distribution System Series 71

C

B A

Labeling Sets for Vertically Mounted Distribution Components

Order Number: C39104-A45-D1 10 x (1...10)

Labeling set for: C39104-A45-A1, -A45-A2,

a1b a2b ... a5b 1 2 20 ... 1 2 20 ... ...

a5b a6b ... a10b

a1b a2b ... a5b a5b a6b ... a10b

C B

A Reihe Leiste Kabel-Nr. DA-Nr .

a1b a2b ... a5b 1 2 20 ... 1 2 20 ... ...

a5b a6b ... a10b 11 12 ... 15

96 97 ... 100

Labeling set for: S30264-D1001-S35, -D1001-S70 Reihe Leiste Kabel-Nr. DA-Nr.

Labeling Sets for Horizontally Mounted Distribution Components

Labeling set for: C39104-A61-A1

Labeling set for: S30264-D1001-S44

... ... ... ... .. 01 02 03 1 2 ... ... ... ... x 01 02 03 01 02 03 C

Additional labeling sets are available for the

purpose of identifying distribution components.

Customized variants can also be produced on

request. The extra labeling sets consist of the following components:

• A Label Holder • B Cover

Labeling components A, B and C do always come with distribution block on first shipment.

(22)

Distribution System Series 71

Contacts

Customer Service Center

EMEA Customer Service Phone: ++49 2331 357 1137 or ++49 2331 357 1114 Fax: ++49 2331 357 1374 E-Mail: [email protected] APAC Customer Service Phone: ++65 6822 6808 Fax: ++65 6822 6807 E-Mail: [email protected] NAFTA Customer Service Phone: ++1 828 901 5000 Fax: ++1 828 325 5060 E-Mail: www.corning.com/cablesystems

22

(23)

Notes

(24)

This publication is the exclusive property of Corning

Cable Systems GmbH & Co. KG. This publication must not be reproduced or copied in any way whatever without the express consent in writing of CCS.

CCS reserves the right to improve, enhance, and

modify the features and specifications of CCS’ products without prior notification.

The information contained within this publication has

been reproduced in good faith and is accurate, to

the best of CCS’ knowledge, at the time of printing. However, CCS makes no warranty as to, and will not

be liable on any basis for, the information contained

Corning Cable Systems GmbH & Co. KG Profilstr. 4

58093 Hagen Germany

Evolant Solutions Distribution System Series 71
