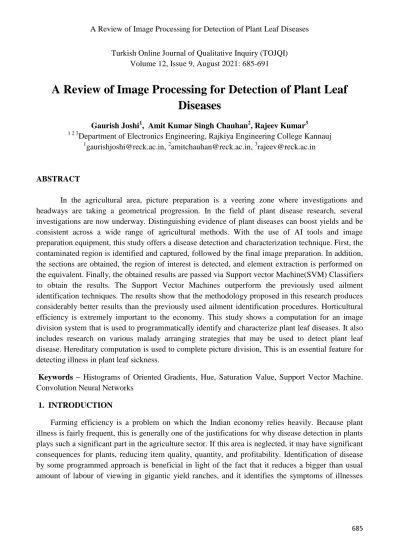

A Review of Image Processing for Detection of Plant Leaf Diseases

Turkish Online Journal of Qualitative Inquiry (TOJQI) Volume 12, Issue 9, August 2021: 685-691

A Review of Image Processing for Detection of Plant Leaf Diseases

Gaurish Joshi¹, Amit Kumar Singh Chauhan², Rajeev Kumar³

1 2 3

Department of Electronics Engineering, Rajkiya Engineering College Kannauj

1[email protected], ²[email protected], ³[email protected]

ABSTRACT

In the agricultural area, picture preparation is a veering zone where investigations and headways are taking a geometrical progression. In the field of plant disease research, several investigations are now underway. Distinguishing evidence of plant diseases can boost yields and be consistent across a wide range of agricultural methods. With the use of AI tools and image preparation equipment, this study offers a disease detection and characterization technique.First, the contaminated region is identified and captured, followed by the final image preparation. In addition, the sections are obtained, the region of interest is detected, and element extraction is performed on the equivalent. Finally, the obtained results are passed via Support vector Machine(SVM) Classifiers to obtain the results. The Support Vector Machines outperform the previously used ailment identification techniques. The results show that the methodology proposed in this research produces considerably better results than the previously used ailment identification procedures. Horticultural efficiency is extremely important to the economy. This study shows a computation for an image division system that is used to programmatically identify and characterize plant leaf diseases. It also includes research on various malady arranging strategies that may be used to detect plant leaf disease. Hereditary computation is used to complete picture division, This is an essential feature for detecting illness in plant leaf sickness.

Keywords – Histograms of Oriented Gradients, Hue, Saturation Value, Support Vector Machine.

Convolution Neural Networks 1. INTRODUCTION

Farming efficiency is a problem on which the Indian economy relies heavily. Because plant illness is fairly frequent, this is generally one of the justifications for why disease detection in plants plays such a significant part in the agriculture sector. If this area is neglected, it may have significant consequences for plants, reducing item quality, quantity, and profitability. Identification of disease by some programmed approach is beneficial in light of the fact that it reduces a bigger than usual amount of labour of viewing in gigantic yield ranches, and it identifies the symptoms of illnesses

after they develop on plant leaves at a horrendously early stage. This paper presents a neural system algorithmic programme for picture division procedure that can be used for programmed discovery as well as plant grouping and an overview of completely different sicknesses arrangement strategies that can be used for plant leaf infection recognition.The hereditary algorithmic programme is used to complete picture division, which is an important component of illness diagnosis in plants. In this day and age, the agricultural land mass is far from being an inspiring source. Agriculture accounts for a large portion of India's economy. Recognizing disease in plants plays an essential function in the agricultural industry in this way. When it comes to diagnosing a plant sickness in its early stages, using a programmed ailment location technique can help. In the United States, for example, little leaf disease is a fatal illness that affects pine trees. The development of the affected tree is halted, and it dies within 6 years. Alabama and Georgia, as well as other regions of the southern United States, are affected. In such cases, early placement could have been advantageous. The present method for identifying plant diseases is simply exposing eye perception by experts, which results in recognised proof and detection of plant diseases.

Ranchers in other nations, on the other hand, do not have access to suitable offices or even know how to contact specialists. As a result, hiring a counsellor is both costly and time-consuming. In these situations, the recommended method of examining huge fields of crops shows to be successful.

By just observing the negative impacts on the plant leaves, it is easier and less expensive to automate the detection of illnesses. Picture-based programmed process control, review, and robot guiding are all possible with machine vision. Plant disease diagnosis by visual means is getting increasingly difficult and, in the meantime, less precise, and should be limited to only the most experienced experts.

A planned discovery approach, on the other hand, requires less efforts, takes less time, and is more exact. Plants can suffer from dark coloured and yellow spots, early and late burn, parasitic, viral, and bacterial illnesses, to name a few. These elements are generally anything that people can readily self-contain and think of as a separate item. Plant leaf images obtained in Jordan's Al-Ghor area were used to create the automated plant leaves-disease detection notion presented in the following sections. A deeper look at the plant disease pictures indicates a number of challenges in detecting potential leaf diseases.

The authors focused on developing methods for classifying leaf diseases automatically using high-resolution multispectral and stereo pictures. Sugar beet leaves are used to assess their approach.

Suger beet leaves can be affected with rusts (Uromycesbetae), powdery mildew, and other diseases (Erysiphebetae). The physiology of a sick leaf differs from that of a healthy leaf. So we can check before the entire leaf becomes sick, lowering production. We can look for contaminated territory.

When the farmer realises there is a problem with the leaf.All of the plants are at risk of becoming infected as a result of that leaf. Before it can happen, the illness must first be identified. Farmers can then try a variety of methods to cure the leaves once they know what they are. The most important factor is symptom, which signifies evidence of something's presence. It is possible to determine

the next phase, which is treating the illness that has infected the leaf, when the ailment has been identified.

The major goal is to identify the diseased region and begin treating the affected area. This is when image processing steps in to save the day. Image capture and background separation are done since it is connected to image processing. This application uses image processing and support vector machines to train data sets and make comparisons between unaffected and infected leaves. Image processing is use for all feature withdrawal and sustain vector machines are used to train data sets and make comparisons between unaffected and infected leaves. The reason of this paper is to present a cram on the detection of illness on various leaves.

2. Existing System

 The most difficult aspect of leaf identification is describing the form of the leaf. Several form options have been extracted so far to explain the leaf form. However, after capturing the leaf's image and identifying its attributes, there is no correct application to classify it. In plant leaf classification, each leaf is classified according to its morphological options. Among the strategies used for categorization are:

 k-Nearest Neighbor Classifier

 Principal Component Analysis

 Fuzzy Logic

3.

Projected Methodology

Figure.1. Flow Chart for Disease Detection

 Image Acquisition:We must first locate the infected plant, then collect the diseased plant's leaf, photograph it, then upload the leaf image to the system.

 Segmentation: It includes repurposing the picture to make it more meaningful and understandable. Super-pixels are the portions of a digital picture that are divided into numerous segments.

4. Plant Disease Analysis

Symptoms of the sickness may usually be seen on the stems, fruits, and leaves of plants. The symptoms of plant leaves were assessed for disease diagnosis in this study. A variety of illnesses can cause brown and yellow patches on plant leaves. Plants can be harmed by early and late scorch, viral, bacterial, and fungal diseases. Frog eye leaf spot, Ash rust, bacterial disease in roses, Sun burn in

lemon leaves, bacterial and fungal disease on bean leaves, and early scorch disease on banana leaves are only a few of the common illnesses that have been studied.

Figure 2: Frog Eye Leaf Spot Figure 3: Ash Rust

5. Methods

5.1 Traditional Threshold Segmentation Methods

In image processing, threshold is a crucial concept that should never be overlooked. The Iterative Method, Otsu Method, and 2-Mode Method are the most prevalent threshold segmentation approaches. This section discusses how to apply these tried-and-true techniques.

5.2 Iterative Method

The Iterative Method can determine the threshold automatically to some extent. To finish the Iterative Method, you must have prior knowledge of the image and noise statistics. By gradually lowering the grey scale mean, the best segmentation threshold may be obtained..

5.3 Otsu Method

The overall grey scale of the picture is determined by the foreground/background split threshold, foreground image ratio, average grey scale, background image ratio, and average grey level.

The optimal segmentation threshold is obtained when the variance value is maximized.

5.4 Mode Method

The image is often composed of normal foliage and diseased area, so the histogram of gray scale can be regarded as two normal distribution functions. There are many security risks to be

criminal activities as these services have information from many organizations and individuals stored in their repositories. First the images of various leaves are acquired using high resolution camera so as to get the better results & efficiency. Then image processing techniques are applied to these images to extract useful features which will be required for further analysis. The basic steps of the system are summarized as:

 RGB image capture

 Remove the masked cells from within the infected cluster's borders.

 Color transformation structure creation and conversion of RGB colour values to the space defined in the structure

 Image segmentation using K means clustering



(hue, saturation and intensity)

 Create SGDM matrices Method for H and S

 Use the GLCM(The Gray Level Co-occurrence Matrix) function to generate the features

 Calculate texture statistics

 Set up a neural network for recognition

 Masking of green pixels

Figure.4. Mode Method Process

6. Processing:

Agriculture is less about people eating and income and more about energy and global warming. Leaf disease has had a significant impact on many elements of agriculture, including productivity, quality, and quantity. Agriculture is the backbone of India's economy. Detecting leaf disease can be beneficial to farmers. Researchers are utilising clever computing to diagnose the illness by looking at images of leaves. Images would be obtained from mobile phones, cameras, and other sources. The pictures are utilized to train the support vector machine and the data sets. Both image processing and supervised learning are required for the following approach to go successfully.

 Detecting the diseased leaf.

 To measure area affected by the disease.

 Identifying the boundary of pretentious area by disease.

 Finding out the color of the precious area.

 Identify the object perfect.

7. Conclusion:-

Each centroid is then set to the arithmetic mean of the cluster to which it belongs. The final centroid set will be utilised to create the classification/clustering of the data provided as input. The approach has been successfully deployed and performance evaluated on real data from soybean leaves. The outcome is highly impressive, with a wide range of adaptation in developing nations, where such information is critical for yield enhancement. The suggested technique captures sick pictures with mobile cameras and does not require any additional expertise or specialised capture gear.

 ROI computation, background separation, and parameter - 163

 Assessment is all entirely automated.

 We have created a completely automatic color image sensing based system for classifying the four most severe diseases.

 It is low cost and has the potential for wide usage in field situations. It uses a simpler segmentation approach and more advanced parameters.

REFRENCES

[1] Dhaygude. (2013). “Agricultural plant leaf disease detection using image processing”. International Journal of Advanced Research in Electrical, Electronics and Instrumentation Engineering, 2(1), 599-602.

[2] Mishra, Satyasis, (2021) "Identification and Classification of Mango Leaf Disease Using Wavelet Transform based Segmentation and Wavelet Neural Network Model." Annals of the Romanian Society for Cell Biology 1982-1989.

[3] Bashir, S. (2012). “Remote area plant disease detection using image processing”. IOSR

[4] Patil, Sanjay B(2011):. "Leaf disease severity measurement using image processing." International Journal of Engineering and Technology 3, no. 5 297-301.

[5] Chaudhary, P. (2012). “Color transform based approach for disease spot detection on plant leaf”International journal of computer science and telecommunications, 3(6), 65-70.

[6] Mishra, S., Ellappan. (2021) “Identification and Classification of Mango Leaf Disease Using Wavelet Transform based Segmentation and Wavelet Neural Network Model” Annals of the Romanian Society for Cell Biology, 1982-1989.

[7] Dhingra, G., Kumar, V. (2018) “Study of digital image processing techniques for leaf disease detection and classification” Multimedia Tools and Applications, 77(15), 19951-20000.

[8] Savary, S., Teng, P. (2006) “Quantification and modeling of crop losses: a review of purposes” Annu. Rev. Phytopathol., 44, 89-112.

[9] Bock, C. H.2010) “Plant disease severity estimated visually, by digital photography and image analysis, and by hyperspectral imaging”Critical reviews in plant sciences, 29(2), 59-107.

[10] Mohammad Asif Iqbal, and Sunil Kumar Gupta (2020). Comparative analysis between numerical simulation of PPV/PCBM and InGaN based solar cells. Materials Today: Proceedings.

10.1016/j.matpr.2020.05.519.

[11] Mohammad Asif Iqbal, “Analysis & Comparison of Various Control Strategy of Hybrid Power Generation,” IEEE, vol. 2, no. Iconce, pp. 184–189, 2014, doi:

10.1109/ICONCE.2014.6808717.

[12] Mohammad Asif Iqbal, Arun Dev Dhar Dwivedi “Modelling & efficiency analysis of ingap/gaas single junction PV cells with BSF,” Int. J. Eng. Adv. Technol., vol. 8, no. 6, pp. 623–

627, 2019, doi: 10.35940/ijeat.F8081.088619.

[13] Mahlein (2016) “Plant disease detection by imaging sensors–parallels and specific demands for precision agriculture and plant phenotyping” Plant disease, 100(2), 241-251.

[14] Colwell, R. (1956) “Determining the prevalence of certain cereal crop diseases by means of aerial photography” Hilgardia, 26(5), 223-286.

[15] Savary, S., Ficke (2012) “Crop losses due to diseases and their implications for global food production losses and food security”.
