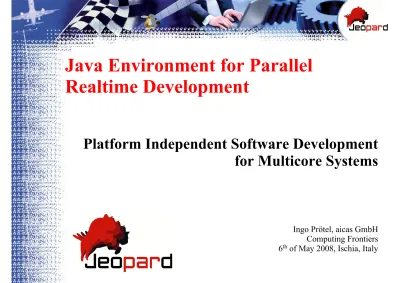

Java Environment for Parallel Realtime Development Platform Independent Software Development for Multicore Systems

(1)

Realtime Development

Platform Independent Software Development

for Multicore Systems

Ingo Prötel, aicas GmbH

Computing Frontiers

(2)

Jeopard—Java Environment for Parallel Realtime Development

Jeopard-Project:

Java Envorinment for Parallel Realtime

Development

Project Details:

z

7th FP Objective ICT-2007.3.4: Computing Systems

z

started January, 2008

z

M-Lead: The Open Group

(3)

(4)

Project Goal

Provide a platform independent software development environment

for

z

complex

z

safe

z

Realtime

z

multicore systems.

Leverage off existing technology and past projects:

z

Java, RTSJ, SC-Java

(5)

Multilayered Approach

z

Applications

z

Tools

z

API (Java and C)‏

z

Java VM

z

Operating Systems (RTOS)‏

z

CPU Architecture

(6)

Corresponds to layered structure of the project

Project Work Package Structure

z

Multi-Java Optimized Processor (JOP)‏

z

HW support for synchronization

(7)

WP 3: OS Layer

Corresponds to layered structure of the project

Project Work Package Structure

z

Extend partitioning OS

–

HAL

–

Microkernel API

–

Kernel validation

z

Coordination between OS and Java

threads

−

CPU usage measurement

−

CPU budget

(8)

WP 3: OS Layer

WP 4: Virtual Machine Layer

Corresponds to layered structure of the project

Project Work Package Structure

z

Realtime Memory Management

−

Parallel and incremental

z

Synchronization

−

Java Monitors

−

GC data structures

−

Sub-word data access

z

AOT-Compiler support

(9)

WP 3: OS Layer

WP 4: Virtual Machine Layer WP 5: API Layer

Corresponds to layered structure of the project

Project Work Package Structure

z

OS level API

z

Java level API

z

Standardization

−

Multicore Association

−

Java Community Process

(10)

WP 3: OS Layer

WP 6: Analysis Tools

Corresponds to layered structure of the project

Project Work Package Structure

z

Static Analysis for Correctness

z

Fresco contract model for Java

z

Concurrent Unit Testing FW

(11)

WP 3: OS Layer

WP 6: Analysis Tools WP 7: Validation

Corresponds to layered structure of the project

Project Work Package Structure

z

Multicore Radar Processor

z

Software Radio

z

Airlines Operation Communication

(12)

WP 3: OS Layer

WP 6: Analysis Tools WP 7: Validation

WP 1: Requirements Analysis

WP 9: Management

Corresponds to layered structure of the project

(13)

(14)

POSIX

Jamaica VM

Multicore platform

P1

P3

Pike OS microkernel

Expected Results: Jamaica on PikeOS

Multicore platform

P1

P3

Pike OS microkernel

Run in partition with POSIX identity using its own

scheduler

(15)

Expected Results

RTOS

Java VM

Multi-JOP

Java application

(16)

Expected Results

RTOS

Java VM

Multi-JOP

DFA

Java application

(17)

Expected Results

RTOS

Java VM

Multi-JOP

DFA

Concurrent

Unit Test

Java VM

Java application

(18)

Some Work Items (1)‏

z

Parallel deterministic garbage collection

−

Root scanning of multiple cores

−

Parallel mark and sweep

−

Locking of global data structures

z

CPU partitioning on a multicore system

(19)

Some Work Items (2)‏

z

Realtime parallel scheduling

−

OS scheduler provides CPU time on a set of CPUs

−

Java scheduler assigns threads to CPUs

−

Use concurrency information from static analysis

(20)

Some Work Items (3)‏

z

Nonfunctional analysis on multicore

−

Show lack of deadlocks

−

Identify race conditions

−

Escape analysis

z

Unit testing for multicore

−

Simulate fully parallel environment

−

Prune test cases

(21)

Expected Technical Impact

Reduced SW Development Cost

through

standardised APIs that permit interoperability and

reuse of code on different platforms

Higher Reliability

through analysis tools

Reduced Time-to-Market

through standardized

development methods (Java) even for critical

embedded applications (e.g., in avionics,

automotive, industrial markets).

(22)

Conclusion

Jeopard will provide

z

standard APIs for Java (multicore RTSJ) and C

(multicore posix threads)‏

z

scheduling technology for multicore RTOS

(multicore PikeOS)

z

scheduling and memory management technology

for realtime Java VM (multicore JamaicaVM)‏
