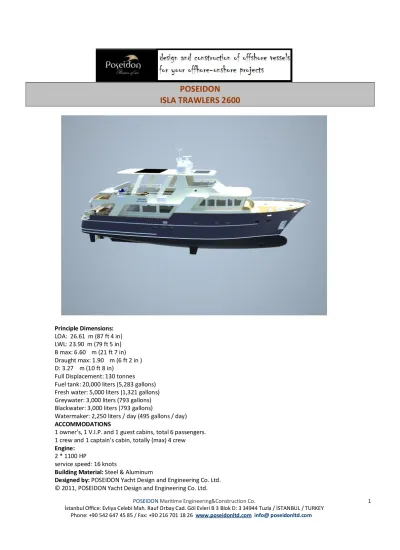

POSEIDON ISLA TRAWLERS 2600

(1)

POSEIDON

ISLA TRAWLERS 2600

Principle Dimensions: LOA: 26.61 m (87 ft 4 in) LWL: 23.90 m (79 ft 5 in) B max: 6.60 m (21 ft 7 in) Draught max: 1.90 m (6 ft 2 in ) D: 3.27 m (10 ft 8 in)

Full Displacement: 130 tonnes Fuel tank: 20,000 liters (5,283 gallons) Fresh water: 5,000 liters (1,321 gallons) Greywater: 3,000 liters (793 gallons) Blackwater: 3,000 liters (793 gallons)

Watermaker: 2,250 liters / day (495 gallons / day) ACCOMMODATIONS

1 owner’s, 1 V.I.P. and 1 guest cabins, total 6 passengers. 1 crew and 1 captain’s cabin, totally (max) 4 crew Engine:

2 * 1100 HP

service speed: 16 knots

Building Material: Steel & Aluminum

(2)

(3)

Mechanical:

Twin MAN hp diesel engines S/S propeller shafts 316 grade

Dripless stern gland for main engine shaft assembly Racor fuel filter

30 gallon 120V hot water heater Pressurized fresh water pump

12V electric blower/extraction fan in engine room 4-bladed bronze propellers

S/S Rudder assemblies Wet exhaust system Hydraulic steering system

Four 12v DC 2000 GPH electric bilge pumps Morse engine throttle & gearbox control Bronze sea cocks, sea strainers & fittings Fuel Management system

Fuel Monitoring System Tandem Racor fuel filters Bow Thruster

Water Maker System Hardware:

Sound insulation in engine room 10 - S/S Cleats (5 per side) Five 16,000 BTU Air Conditioners

Batteries – Four - 8-D (house) + Two - 8-D (starting)

Deck rails/Hand rails: 1-1/2" anodized marine brushed stainless steel 12V Electric Horn

Stairway to upper deck from aft deck Integrated Swim Platform

Built-in Steps to swim platform 12V ceiling lights throughout Tempered Glass Windows International Navigation Lights Bowsprit assembly w/anchor roller 12V Electric Windlass

Rope/chain 150' rope/150' chain 75 lb anchor

Four Fenders w/Fender Holders Four Dock Lines

Electrical:

Two 25 KW diesel generator sets w/sound shield & muffler

Cabin Lights – 12V; eight – salon/galley, three - pilothouse, six – master stateroom, five – per guest stateroom, three – per head

Inverter w/remote panel 120v AC electrical outlets Battery cut off switching panel 12V lights in engine room

(4)

POSEIDONMaritime Engineering&Construction Co. 4 100 amp 220/230V Shore Power supply

Pilothouse:

Helm station centered w/dedicated instrument console, helm seat, storage lockers & drawers Settee & watch berth assembly w/storage

Hi-Lo Table

Access doors - port & starboard – to side decks Teak walls

Teak & Holly sole Flybridge:

Helm station centered w/dedicated instrument console, helm seat, storage lockers & drawers Two Co-pilot helm seat

Three L-shaped benches w/waterproof cushions and storage under Water Resistant Hi-Lo Table

15’ Inflatable Dinghy w/motor Dinghy Crane/Davit

Wet Bar w/Refrigerator & Ice Maker Exterior:

Saloon Windows – tempered safety glass; two on each side to have screens Pilothouse Windows – tempered safety glass

Rub rails extending the length of port and starboard sides Bulbous Bow

Dock line thru-holes – five on each side Hatch in forward VIP stateroom w/screen

Hull and sides are coated with anti-rust and anti-fouling protection/paint – blue hull, white superstructure, red bottom

Non-skid Teak decking

Wet Bar w/Refrigerator & Ice Maker Saloon:

Settee w/storage Hi-Lo table

Two padded swivel chairs Dining table w/six chair Built-in entertainment center

Television, Stereo, VCR/DVD Player, Speakers Teak walls

Teak & Holly sole

Sliding access door to aft deck Day head and sink

Galley:

Cabinets above counters Corian counters

(5)

4 burner AC stove top Microwave cabinet

AC side-by-side refrigerator/freezer S/S double sink w/sprayer

Teak walls Parquet flooring Master Stateroom:

King-size bed w/drawers under Walk-in closet

Built-in bureau/desk w/shelves Built-in night stands

Built-in TV cabinet

Two 12V reading lights – one on each side at head Four 12V ceiling lights

Television, Stereo, VCR/DVD Player, Speakers 110V outlets

Teak walls Carpeted flooring Master Head:

Double vanity unit w/single lever sink & countertop Full vanity-width mirror and medicine cabinet Full-size bath tub

12V electric head 12V exhaust fan 12V overhead lights 110V outlet

Water resistant wall fabric Parquet floorin

VIP Guest Stateroom:

Queen-size bed w/drawers under Closet

Built-in desk w/shelf Built-in night stands Built-in TV cabinet

Two 12V reading lights, at head of bed Three 12V ceiling light

Teak walls Carpeted flooring VIP Guest Head:

Double vanity unit w/single lever sink & countertop Full vanity-width mirror and medicine cabinet Full-size bath tub

12V electric head 12V exhaust fan 12V overhead lights

(6)

POSEIDONMaritime Engineering&Construction Co. 6 110V o

Guest Stateroom 2:

Queen-size bed w/drawers under Closet

Built-in desk w/shelf Built-in night stands Built-in TV cabinet

Two 12V reading lights, at head of bed Three 12V ceiling lights

Teak walls Carpeted flooring Guest Head 2:

Vanity unit w/single lever sink & countertop Full vanity-width mirror and medicine cabinet Single lever shower w/door

12V electric head 12V exhaust fan 12V overhead lights 110V outlet

Water resistant wall fabric Parquet flooring
