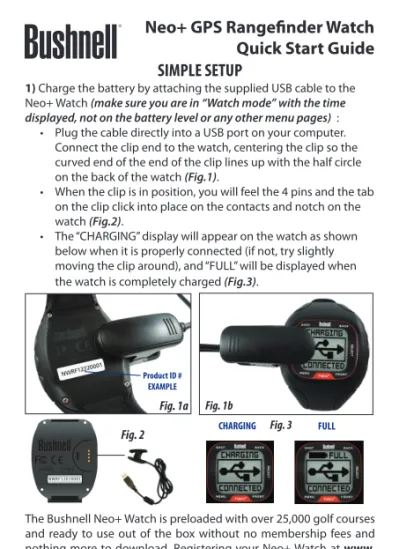

Neo+ GPS Rangefinder Watch
Quick Start Guide
Lit#: 98-2346 / 08-12
Full Manual available at: www.bushnellgolf.com/neowatch
SIMPLE SETUP
Product ID # EXAMPLE
Fig. 1a
Fig. 2 CHARGING Fig. 3 FULL Fig. 1b
The Bushnell Neo+ Watch is preloaded with over 25,000 golf courses and ready to use out of the box without no membership fees and nothing more to download. Registering your Neo+ Watch at www. bushnell.igolf.com is not required. However, doing so will allow you to update the data for a course if it is redesigned, or load a newly added course. Registration is free and takes only a few minutes (you’ll need the product ID# (Fig. 1a) printed on the back of your watch). 1) Charge the battery by attaching the supplied USB cable to the Neo+ Watch (make sure you are in “Watch mode” with the time displayed, not on the battery level or any other menu pages) :
• Plug the cable directly into a USB port on your computer. Connect the clip end to the watch, centering the clip so the curved end of the end of the clip lines up with the half circle on the back of the watch (Fig.1).
• When the clip is in position, you will feel the 4 pins and the tab on the clip click into place on the contacts and notch on the watch (Fig.2).
• The “CHARGING” display will appear on the watch as shown below when it is properly connected (if not, try slightly moving the clip around), and “FULL” will be displayed when the watch is completely charged (Fig.3).
2) When fully charged, take the Neo+ Watch to your course and
make sure you have a clear view of the sky. (Please refer to photo below for button functions)
• Press and hold the Front button (5) until the power turns on.
• Press the Menu button (2). The first item in Menu 1, “Play
Golf” should have an arrow pointing to it (if not, use the Front (5) or Back (3) button to highlight it).
• Press Select (4). The Neo+ Watch will search for a satellite signal.
• After a “GPS Lock”, the Neo+ Watch should automatically set the time*, and display a list of the nearest courses. Scroll the list with the Back or Front buttons, then select your course using the Select button.
• When you select your course, the main screen will display Hole 1, with Front, Center, and Back of the Green distances, and par information (see “Display Overview”). As you play the course, it will automatically advance to the next hole.
*The time can also be manually adjusted in the Settings menu (see “Menu Overview” in this QuickStart Guide.) Manual time adjustments will not take effect unless the watch is outdoors and has a GPS signal.
BUT
TON NAMES / FUNC
TIONS
1
2
3
4
5
Front
Back
Menu
Select
Shot
SIMPLE SETUP
PLAY GOLF MODE : BUTTON FUNCTIONS
1. Track Shot Distance-Pressing the SHOT button will set
your current location (Point A) to “0”. After walking to your ball (Point B), the Neo+ will display the distance between Point A and Point B in a straight line.
2. View Golf Menu Options-The Golf menu allows you to
manually change holes, change the units of measurement (yards or meters), or exit the game.
3. View Larger Back Distance Callout-The Back callout
screen displays for 10 seconds then returns to the main Front, Center, Back (FCB) screen.
4. View Larger Front Distance Callout-The Front callout
screen displays for 10 seconds then returns to the main Front, Center, Back (FCB) screen.
PLAY GOLF MODE : DISPLAY OVERVIEW
Current Hole #
Front of the Green
Distance
Back of the Green
Distance
Center of the Green
Distance
Par Information
MENU OVERVIEW
Press the Menu button (2). Scroll through the 8 menu items (over three menu screens-see below) by pressing the Front (5) and Back (3) buttons. Select a menu item for editing by pressing the Select (4) button. Change the settings (if available) using
Front or Back, then press Menu to go back to the previous
menu screen. See the full manual online for more details.
Menu Screen1:
• Play Golf Mode* – Finds courses within a 20-25 mile
SETTINGS MENU
From the Settings sub-menu, you can manually set the time* (“TimeDate” option), disable the key tones (“Sound”), adjust the units of measurement between US and metric (“Units”), and perform a system reset. *Note: the time zone setting is an offset, relative to UTC
(for example, -06:00=CST). See the full manual online for more details.
• Battery – Displays battery charge level
• Golf Demo – Shows one hole of F/C/B + Shot Distance Menu Screen 2:
• Odometer* – Calculates time/distance via GPS satellites • Alarm – Set Watch Alarm
• Timer – Count Down Timer Menu Screen 3:
• GPS Status* – Turns on GPS without searching courses • Settings – Set Time, DST, Sound, Units, Reset & Software
Version
*GPS feature- using these features requires a satellite signal. To ensure reception, make sure you are outdoors away from tall buildings and trees, with a clear view of the sky.
MENU OVERVIEW (continued)
UPDATING COURSE DATA
Registering your Neo+ at www.bushnell.igolf.com is not required. However, this will allow you to update the preloaded GPS data for a course if changes are made, and load any new courses. Registration is free and gives you access to the latest GPS data.
1. Go to www.bushnell.igolf.com, click Register Now (A), and fill in your info to register your Neo+ Watch and create an account. The serial # of your Watch can be found on the back of the unit as shown on pg. 1 of this QSG. Click “Next” at the end of Step 1 to go to Step 2 and complete your registration.
2. In Step 3, you will download and run an installer for the USB driver for the Neo+ Watch. The installer is compatible with
COMPUTER REQUIREMENTS
PC (Windows 7, Vista, or XP operating system)Windows XP, Vista, and Windows 7 (to date, Mac OS is not supported). For best results, we recommend using Microsoft Internet Explorer.
3. After the driver installation is complete, click Next.
4. Step 4 (optional) provides access to a pdf document with detailed instructions for updating the internal operating software of the Neo+ Watch. A button (web link) is included in the pdf that will take you to the “Software Wizard” that downloads the update. Updating your Watch software will ensure that you have the latest features and operating system. 5. Once you’ve registered your Neo+ Watch and installed the USB driver, you’ll be on the webpage that allows you to search for a golf course. Enter all or part of the course’s name and click “Search”. You’ll be taken to the course page on the iGolf.com site, and can click “Download GPS Course File” (B) to get the latest updated data for the course.
Please see the full manual at www.bushnellgolf.com/
neowatch
If you require further assistance, please review the FAQ and other support documents available online
at www.bushnellgolf.com
www.bushnell.igolf.com
Click “REGISTER NOW”
A
B
Download GPS Course File
Your Bushnell® product is warranted to be free of defects in materials and workmanship for one year after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied by the items listed below: 1) A check/money order in the amount of $10.00 to cover the cost of postage and handling 2) Name and address for product return
3) An explanation of the defect 4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the address listed below:
IN U.S.A. Send To: IN CANADA Send To: Bushnell Outdoor Products Bushnell Outdoor Products Attn.: Repairs Attn.: Repairs 9200 Cody 25A East Pearce Street, Unit 1 Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9
©2012 Bushnell Outdoor Products
Register your product within 30 days of purchase at www.bushnell.com/register
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
ONE YEAR LIMITED WARRANTY
The Neo+ Watch is durable and waterproof. To help ensure reliable operation, the following care and
maintenance guidelines are recommended :
• Avoid exposing the watch to extreme environmental conditions for a prolonged period of time. Store the watch in a dry place when it is not in use.
• Avoid severe impacts on the watch.
• You may clean the watch occasionally with a soft and damp cloth.
• Brush the clip contacts at the bottom of the watch regularly. Dirt build-up on the surface of the contact points may affect normal charging and data transfer. (*Note: Use a soft-bristled brush. Hard bristles or wire brushes may leave scratches on the watch).
• DO NOT expose the watch to strong chemicals such as gasoline and alcohol, as they will damage the watch.
