BlackVault pfSense OpenVPN Tutorial –
nmr (revised. 10-09-2008)This tutorial will teach you how to setup OpenVPN on pfSense completely.

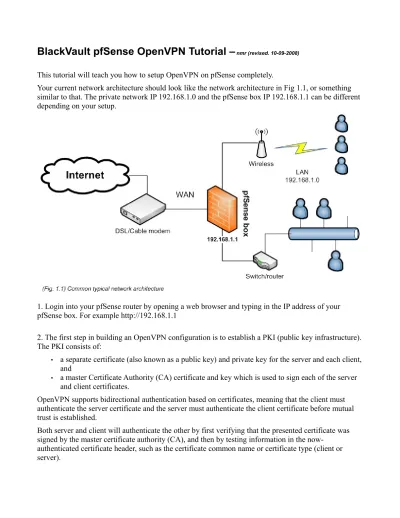

Your current network architecture should look like the network architecture in Fig 1.1, or something similar to that. The private network IP 192.168.1.0 and the pfSense box IP 192.168.1.1 can be different depending on your setup.
1. Login into your pfSense router by opening a web browser and typing in the IP address of your pfSense box. For example http://192.168.1.1
2. The first step in building an OpenVPN configuration is to establish a PKI (public key infrastructure). The PKI consists of:
• a separate certificate (also known as a public key) and private key for the server and each client,
and
• a master Certificate Authority (CA) certificate and key which is used to sign each of the server
and client certificates.
OpenVPN supports bidirectional authentication based on certificates, meaning that the client must authenticate the server certificate and the server must authenticate the client certificate before mutual trust is established.
Both server and client will authenticate the other by first verifying that the presented certificate was signed by the master certificate authority (CA), and then by testing information in the
now-authenticated certificate header, such as the certificate common name or certificate type (client or server).
Generate the master Certificate Authority (CA) certificate & key
Windows
In this section we will generate a master CA certificate/key, a server certificate/key, and certificates/keys for 3 separate clients.
For PKI management, we will use a set of scripts bundled with OpenVPN.
Open up a Command Prompt window and cd to \Program Files\OpenVPN\easy-rsa. Run the following batch file to copy configuration files into place (this will overwrite any preexisting vars.bat and
openssl.cnf files):
cd c:\Program Files\OpenVPN\easy-rsa init-config.bat
Now edit the vars file (called vars.bat on Windows) and set the KEY_COUNTRY, KEY_PROVINCE, KEY_CITY, KEY_ORG, and KEY_EMAIL parameters. Don't leave any of these parameters blank. vars.bat
clean-all.bat build-ca.bat
The final command (build-ca) will build the certificate authority (CA) certificate and key by invoking the interactive openssl command:
C:\Program Files\OpenVPN\easy-rsa>build-ca.bat Loading 'screen' into random state - done
Generating a 1024 bit RSA private key ...++++++
...++++++
writing new private key to 'keys\ca.key'
---You are about to be asked to enter information that will be incorporated into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank
If you enter '.', the field will be left blank.
---Country Name (2 letter code) [US]: State or Province Name (full name) [NY]: Locality Name (eg, city) [New York]:
Organization Name (eg, company) [johndoe]: Organizational Unit Name (eg, section) []:
Common Name (eg, your name or your server's hostname) []:nsa Email Address [[email protected]]:
Note that in the above sequence, most queried parameters were defaulted to the values set in the vars.bat files. The only parameter which must be explicitly entered is the Common Name. In the example above, I used "nsa".
Generate certificate & key for server build-key-server.bat server
As in the previous step, most parameters can be defaulted. When the Common Name is queried, enter "server". Two other queries require positive responses, "Sign the certificate? [y/n]" and "1 out of 1 certificate requests certified, commit? [y/n]".
Generate certificates & keys for 3 clients build-key.bat client1
build-key.bat client2 build-key.bat client3
If you would like to password-protect your client keys, substitute the build-key-pass script.
Remember that for each client, make sure to type the appropriate Common Name when prompted, i.e. "client1", "client2", or "client3". Always use a unique common name for each client.
Generate Diffie Hellman parameters
build-dh.bat Output:
C:\Program Files\OpenVPN\easy-rsa>build-dh.bat Loading 'screen' into random state - done
Generating DH parameters, 1024 bit long safe prime, generator 2 This is going to take a long time
...+...+...+... ...+... ...+... ..+...+...
Key Files
Now we will find our newly-generated keys and certificates in the keys subdirectory. Here is an explanation of the relevant files:
Filename Needed By Purpose Secret
ca.crt server + all clients Root CA certificate NO ca.key key signing machine only Root CA key YES dh{n}.pem server only Diffie Hellman parameters NO server.crt server only Server Certificate NO server.key server only Server Key YES client1.crt client1 only Client1 Certificate NO client1.key client1 only Client1 Key YES client2.crt client2 only Client2 Certificate NO client2.key client2 only Client2 Key YES client3.crt client3 only Client3 Certificate NO client3.key client3 only Client3 Key YES
Setting up OpenVPN service and firewall
Protocol Use TCP for this, although more overhead, it works on all
occasions. We have gotten UDP to work with Shared Key but not PKI for now.
Dynamic IP
Local port 1194 is the universal port for OpenVPN. For more security use another port.
Address pool This is the network address from where OpenVPN clients will be assigned addresses. Your local network address must be different from your OpenVPN network address pool. For example we have to use a network address besides 192.168.1.0/24 here, we chose 10.0.1.0/24.
Use static IPs
Local network The address of your local network you want to be able to share or access over your VPN connection. For example here our local network is 192.168.1.0. Set this to your network address. Client-to-client VPN Check this to enable you to access to another OpenVPN client
which is connected. We suggest you check this after your OpenVPN connection is working properly.
Cryptography Algorithm used. Use BF-CBC (128bit) for now Authentication
Method Shared or PKI (Public Key Infrastructure). Shared, if you want everyone to have the same key. PKI, each client has its own unique key.
CA certificate Paste your CA certificate from the BEGIN and END CERTIFICATE
Server certificate Paste your server certificate from the BEGIN and END CERTIFICATE
Server key Paste your server key from BEGIN and END RSA PRIVATE KEY
DH parameters Paste your Diffie Hellman parameters from the BEGIN and END DH PARAMETERS
DHCP-Opt.: DNS-Domainname DHCP-Opt.: DNS-Server
Enter you DNS server IP address. DHCP-Opt.: WINS-Server DHCP-Opt.: NBDD-Server DHCP-Opt.: NTP-Server DHCP-Opt.: NetBIOS node type
none DHCP-Opt.:
NetBIOS Scope DHCP-Opt.: Disable
NetBIOS
LZO compression Enabling LZO compression makes VPN faster but uses slightly more processing power. Enable this after everything works fine. Custom options push “redirect-gateway def1” -- to automatically setup your default
gateway to go through VPN. Using this option will enable you client to automatically use the VPN connection for all network traffic eg. internet, e-mail, etc.
Description Descriptive name for the VPN settings
8. Go to Firewall > NAT > Outbound. Select 'Manual Outbound NAT rule generation (Advanced Outbound NAT (AON))'. Hit 'Save'. Then add a new mapping according to the VPN network address pool like below. Hit 'Save' again and you're done. This enables your VPN address pool to go beyond the firewall.
VPN Client settings road warrior configuration for Windows
1. Download and install the latest OpenVPN client from http://openvpn.net
2. After installing the Windows OpenVPN client, you should see a new network connection that uses the TAP-Win32 Adapter. Rename the network connection to tap0.
3. Create a new text file with the extension '.ovpn' for example 'blackvaultbox.ovpn' in the path 'c:\program files\openvpn\config' or where you installed the OpenVPN client in the 'config' directory. Make sure the new text file has the extension '.ovpn' else it will not be detected. Setup the new .ovpn file like below. Remove the # in front of comp-lzo if you enabled LZO compression when setting up the OpenVPN server.
float port 1194 dev tun dev-node tap0 proto tcp-client remote blackvaultbox_ip_domain 1194 ping 10 persist-tun persist-key tls-client client ca ca.crt cert client1.crt key client1.key ns-cert-type server #comp-lzo verb 4
4. Copy the ca.crt, client1.crt, client1.key files to the 'c:\program files\openvpn\config' or where you installed the OpenVPN client in the 'config' directory.
5. To test your OpenVPN setup. Connect to the internet from another source besides the network where the server is setup. Launch your OpenVPN client. Right click on the OpenVPN icon on the system tray, hover over 'blackvaultbox' or whatever name you gave your .ovpn file and click on connect. A window should pop up with the connection log and the OpenVPN icon in the system tray should finally turn green. Point your web browser to http://www.copymyiptoclipboard.com and it should show and copy the IP address of the network your server is behind.
