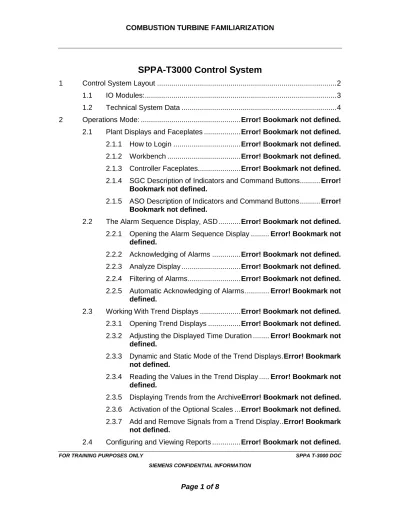

SPPA-T3000 Control System
1 Control System Layout ... 2 1.1 IO Modules: ... 3 1.2 Technical System Data ... 4 2 Operations Mode: ... Error! Bookmark not defined. 2.1 Plant Displays and Faceplates ... Error! Bookmark not defined. 2.1.1 How to Login ... Error! Bookmark not defined. 2.1.2 Workbench ... Error! Bookmark not defined. 2.1.3 Controller Faceplates ... Error! Bookmark not defined. 2.1.4 SGC Description of Indicators and Command Buttons ... Error!
Bookmark not defined.
2.1.5 ASO Description of Indicators and Command Buttons ... Error! Bookmark not defined.
2.2 The Alarm Sequence Display, ASD ... Error! Bookmark not defined. 2.2.1 Opening the Alarm Sequence Display ... Error! Bookmark not
defined.
2.2.2 Acknowledging of Alarms ... Error! Bookmark not defined. 2.2.3 Analyze Display ... Error! Bookmark not defined. 2.2.4 Filtering of Alarms ... Error! Bookmark not defined. 2.2.5 Automatic Acknowledging of Alarms ... Error! Bookmark not
defined.
2.3 Working With Trend Displays ... Error! Bookmark not defined. 2.3.1 Opening Trend Displays ... Error! Bookmark not defined. 2.3.2 Adjusting the Displayed Time Duration ... Error! Bookmark not
defined.
2.3.3 Dynamic and Static Mode of the Trend Displays . Error! Bookmark not defined.
2.4.1 Report Types ... Error! Bookmark not defined. 2.4.2 Adjusting Date and Time Range (From/To). Error! Bookmark not
defined.
2.4.3 Specify a selection of signals: ... Error! Bookmark not defined. 2.4.4 Other settings: ... Error! Bookmark not defined.
SPPA-T3000 Control System
1 CONTROL SYSTEM LAYOUT
Thin Client: enables any computer to access Web applications from any Web Browser over the Internet or a Corporate Intranet without having to install the application on every desktop system.
Network: The Network is an Industrial Ethernet with 100 Mbit/sec, standard protocol TCP/IP. The Network connection points are Optical Switch Modules (OSM)
interconnected with redundant Fiber-optic connections between them.
Application Server: The Application Server runs all the Operations, Monitoring,
Field Bus: The field bus connections carry digital Profibus DP input and output signals to and from the Automation Server rack and the Input Modules.
1.1 IO MODULES:
Standard Input Output modules are distributed ET200M racks with a maximum of 8-IO module cards mounted on each. Types and channels per card are listed below.
Standard I/Os Signal Type Channels
SM 321 DI 24V DC 16 SM 321 DI 24V DC x diag 16 SM 321 DI 48-125V DC, exp. Temp. 16 SM 321 DI 230V AC 16 SM 321 DI 24V DC 32 SM 322 DO 24V DC / 230V AC 8 SM 322 DO 24V DC / 230V AC 8 SM 322 DO 24V DC 16 SM 322 DO 24V DC 32 SM 323 DI 24V DC 16 DO 24V DC 16 SM 323 DI 24V DC 8 DO 24V DC 8 SM 323 DI 24V DC, exp. Temp. 8 DO 24V DC, exp. Temp. 8 SM 331 AI 8
SM 331 AI, safe signal 8
SM 331 AI 16 Bit 8 SM 331 AI 2 SM 33 AI Resistance 8 SM 331 AI Thermocoupler 8 SM 332 AO 4 SM 332 AO 8
Fast IO Modules: AddFEM IO is used to process the high speed IO from and to the Turbine controller. These are capable of 1ms signal time stamping.
Standard I/Os Signal Type Channels
AddFEM SOE 1 ms DI 32
AddFEM AI, 0/4 – 20 mA / + 20 mA /+ 30 mA / 0 – 10 V / + 10 V 12 AO, 0/4 – 20 mA / + 20 mA /+ 30 mA / + 50 mA 8
Counter / Timer + 28 V 3
DO 24 V DC 16
1.2 TECHNICAL SYSTEM DATA
System wide IO capacity The number of IO is not a limiting factor of the system
System wide time accuracy Depending on configured Runtime Container, typically 100ms
SOE accuracy 1ms
Max. amount of User Interfaces / Thin Clients
10
Recommended Internet Browser Microsoft Explorer >= 5.5
Monitors per workplace 2
Concurrent views per workplace in operation mode (all dynamic views)
10
Signals per Trend 10
Display call up time of trends Typical 2s
Number of alarms Up to 20 alarms for each alarm source Concurrent views per workplace in
configuration mode, non dynamic
Up to 10
Application Servers
Max number of Application Servers 1
Automation Servers
Max Number of S7-CPU 20
Archive
Data Storage Event driven, according to data acquisition accuracy
Archived time period on Hard disc 500days (50 events/sec1) Archived time period on DVD 130days (50 Events/ sec1)
Alarm peak 2000 alarms within 2 sec
Project Container
Number of nodes (technological areas) Not restricted
Dynamic Objects (instances) in a view type Typical 50 to guarantee display call up time, maximum 250. Generally not restricted, but with impact on display call-up time
Colors 84 standard, configurable 16,777,216
Line widths Configurable
Shapes Configurable
3D objects Configurable
Fill patterns 68
Function Charts
number of Function Diagram Virtually not restricted, typical <50kb each
Plant Displays
number of Plant Displays Not restricted, typical <50kb each Plant Display Hierarchy Levels >10, in general not restricted Trend Displays
number of Trend Displays Not restricted, typically <50kb each Alarm System
Alarm Types, Priorities, Indicators Standard 8, not restricted, configurable
Blink Rate 1Hz, 2Hz configurable
Runtime Container execution time 10ms to 30s. Generally not restricted, typically 100ms
ETHERNET
Baud rate: 100 mega bits per second
Max. cable length Electrical up to 1.4km / optical up to 150km
Max. number of network participants Not restricted Runtime Container-Runtime Container
communication
<250ms
On board Ethernet ports (physical/redundant) S7-CPU
2/1
PROFIBUS DP
Baud rate Up to 12 Mbps
Max. cable length Electrical: up to 10 km / optical: up to 100 km
Max. amount of PROFIBUS lines per non-redundant Automation Server
6 (2 integrated on S7-CPU1) and additional 4 CP4343-5 EXT) Max. amount of redundant PROFIBUS lines
per redundant Automation Serve
6 (2 integrated on S7-CPU1) and additional 4 CP4343-5 EXT) Max amount of PROFIBUS field devices per
line1)
125
Max. amount of ET200M stations per line 32 Max. amount of signal modules per ET200M station
8
Max. amount of AddFEM devices per line 50
MODBUS
Modbus Master per Automation Server Generally not restricted, limited by overall system configuration. Simultaneous slave communication channels
per master
