2.a) Davit Calculation

MSET ENGINEERING CORPORATION SDN BHD

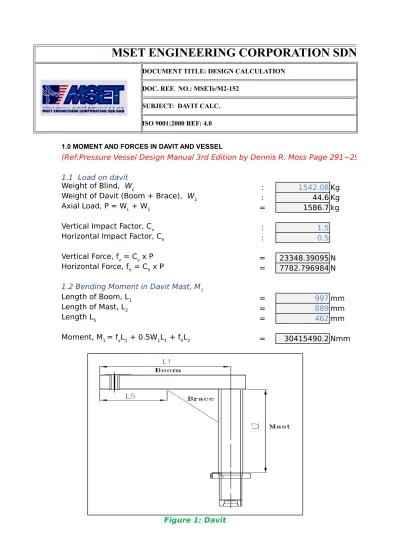

DOC. REF. NO.: MSETe/M2-152 SUBJECT: DAVIT CALC. ISO 9001:2000 REF: 4.0 1.0 MOMENT AND FORCES IN DAVIT AND VESSEL

(Ref:Pressure Vessel Design Manual 3rd Edition by Dennis R. Moss Page 291~295)

1.1 Load on davit : 1542.08Kg : 44.6 Kg = 1586.7 kg : 1.5 : 0.5 = 23348.39095 N = 7782.796984 N = 997mm = 889mm = 462mm = 30415490.2 Nmm Figure 1: Davit Weight of Blind, W_L

Weight of Davit (Boom + Brace), W₁ Axial Load, P = W_L + W₁

Vertical Impact Factor, C_v Horizontal Impact Factor, C_h Vertical Force, f_v = C_v x P Horizontal Force, f_h = C_h x P

1.2 Bending Moment in Davit Mast, M₁

Length of Boom, L₁ Length of Mast, L₂ Length L₅

2.0 STRESS IN DAVIT 2.1 Mast Properties Mast Material : SA 106B SCH 160 = 241.317 = 144.8 = 159.3 = 168.3mm Outside Radius, a = 84.15 mm = 18.26mm = 131.78 mm = 8607.1 = 292087.5 = 24579160.0

Radius of Gyration, r = Sqrt(I/A) = 53.4 mm

= 1.81

= 104.1

≤ 1

Calculate Combined Stress = 0.666

Since Calculate Combined Stress < 1 , Stress on Mast is

2.2 Boom Properties

Boom Material : SA 36

Boom Size : I Beam 152 x 152 x 37.2 kg/m

= 248.22 = 148.9 = 163.8 = 4735 = 91899 = 3.29 = 117.4 ≤ 1

Calculate Combined Stress = 0.739

Since Calculate Combined Stress < 1 , Stress on Boom is

Yield Stress, F_{y N/mm}2

Allowable Axial Stress, F_a = 0.6F_{y N/mm}2

Allowable Bending Stress, F_b = 0.66F_{y N/mm}2

Outside Diameter, D_o Wall Thickness of Davit, t_p Inside Diameter, D_i

Cross Sectional Area, A₁ = π/4 x(D_o2_-D

i2) mm2

Section Modulus, Z₁ = (π/32D_o)x (D_o4_-D

i4) mm3

Moment Inertia, I = π/64 x(D_o4_-D

i4) mm4

Axial Stress at Mast, f_a = P/A N/mm2

Bending Stress at Mast, f_b = M₁/Z_{1 N/mm}2

Combined Stress, f_a/F_a + f_b/F_b

Yield Stress, F_{y N/mm}2

Allowable Axial Stress, F_a = 0.6F_{y N/mm}2

Allowable Bending Stress, F_b = 0.66F_{y N/mm}2

Cross Sectional Area, A_{2 mm}2

Section Modulus, Z_{2 mm}3

Axial Stress at Boom, f_a = P/A N/mm2

Bending Stress at Boom, f_b = (f_v xL₅)/Z_{2 N/mm}2 Combined Stress, f_a/F_a + f_b/F_b

3.0 WELDED DESIGN JOINT

(Ref:Pressure Vessel Handbook 12th Edition by Eugene F. Megyesy Page 459)

3.1 Davit Arm Bracket

Vertical Shear, V = 15128 N

Bending Moment, M = lV = 20180492 Nmm

Horizontal Weld Length,b = 224mm

Vertical Weld Length,d = 257mm

= 962 mm

Fillet Weld Used = 12mm

:

= 79584.3

Allowable load on weld,f = 9600psi

= 66.19

= 15.73 N/mm

= 253.57 N/mm

= 254.06 N/mm

Fillet Weld Leg Size,w =W/f = 3.84 mm

Since Calc. weld size > Weld used = Satisfactory

Length of Weld, A_w

Section Modulus (Bending Moment),S_{w bd +(d}2 _/3)

mm2

N/mm2 Vertical Shear Forces,W_s =V/A_w

Bending Forces, W_b = M/S_w Resultant Force, W =(W_b2 _{+ W}

4.0 DESIGN OF LOCAL STRESS IN CYLINDRICAL SHELL

(Ref:Pressure Vessel Design Manual 3rd Edition by Dennis R. Moss Page 255~290)

4.1 Radial Load for Shell attachment

Half side vertical attachment, Cx =d/2 = 128.5 mm

= 112.0 mm Mean Radius, Rm = 620.6mm Shell thickness,t = 22.2mm Cx/Rm = 0.21 = 0.18 Load on attachment, F = 15128 N Kx from fig 5.13

Half side horizontal attachment, Cø =b/2

Cø/Rm
