F1-1

<F1. System Configuration>

F1. System Configuration

When configuring a control system, the engineer should take the system scale into consideration and create a system configuration (engineering database) that meets the system requirements.

■

Outline of System View

The System View can display the engineering data (folders or files) of the system in a tree view similar to MS Windows Explorer. Via the various menus, create a project, create FCS, HIS, I/O modules that comprise a system and various user-definable operations and monitoring windows as well as Help dialog boxes.

IMPORTANT

Do not use Windows Explorer to change the files handled by System View.

■

Use the System View to Generate System

From System View, the following engineering works can be implemented.

● Create Projects

Create projects that are basic unit for engineering data management.

● Definition of System Configuration

Types of FCS and HIS as well as their connection in the network are defined in the system configuration.

● I/O Module Definition

Create engineering database for specifying the actions of the I/O modules used to acquire process data.

● Create Graphic Windows

Create the user-defined Graphic windows used for operation and monitoring.

SEE ALSO

For Graphic window, see the following:

“■ User-Defined Windows” in E2.1, “ System Windows and User-Defined Windows”

● Help Dialog Box Creation

The user can create arbitrary HELP messages.

(10)

F1-2

<F1.1 System View>

F1.1 System View

System View provides various taskbars in the menu. From the menu, an engineer can create projects which are the basic units for engineering data management, and create various user-definable operation and monitoring windows and Help dialog boxes used for FCS, HIS and I/O modules that comprise the project.

■ System View Menu Items ¡ £

▼ Menu List

A list of the menu items in System View is shown below:

Table System View Menu Item (1/5) ¡ £

Menu Menu item Cascade Description

File Create New

Project... Creates a new project FCS... Creates a new FCS HIS...

BCV... CGW...

Creates a new HIS Creates a new BCV Creates a new CGW

SEBOL User

Function... Creates a new user-defined SEBOL function SFC Sequence... Creates a new SFC sequence

Unit Procedure... Creates a new unit procedure FCS-C Task... Creates a new FCS-C task (*1) Node... Creates a new Node (*2)

IOM... Creates a new I/O module

Window... Creates a new window

Common Block... Creates a new common block (*5) Recipe Group... Creates a new recipe group (*5)

Station... Creates a new non-CS 1000/CS 3000 series

F010101E.EPS

State Transition Matrix... Creates a new State Transition Matrix

Nest... Creates a new Nest (*3)

Trend Acquisition

Pen Assignment... Creates a new trend acquisition pen assignment (*4)

*1: _{¡ £ This menu item is available only on PFCS, SFCS. When applying this package, please contact Yokogawa for} more information.

*2: £ This menu item is available only on KFCS2, KFCS, LFCS2, LFCS, RFCS5 and RFCS2. *3: £ This menu item is available only on RFCS5 and RFCS2.

*4: £ This menu item is available only on CS 3000 system.

*5: This menu item is available only when Batch Management is installed. SEE ALSO

For more information about RFCS5 and RFCS2, see the following:

(11)

F1-3

File

Print Preview

Project Property Displays print preview of the project property Station Property Displays print preview of the FCS and HIS property

IOM Property Displays print preview of the IOM property

Window Hierarchy Displays print preview of the window hierarchy Window List Displays print preview of the window list SEBOL User’s

Function List

Displays print preview of the SEBOL user-defined function list

SFC Sequence List Displays print preview of the SFC Sequence list Unit Procedure List Displays print preview of the unit procedure list FCS-C Program List Displays print preview of the FCS-C program list (*1) Node Property Displays print preview of the node property (*2) Nest Properties Displays print preview of nest properties (*3)

Common Block List Displays print preview of the common block list (*4)

F010102E.EPS

Open

• Opens selected folder • Starts builders to edit the selected files

Delete Deletes selected engineering data

Properties... Changes the properties of selected file or folder Import Window

Hierarchy... Imports window hierarchy information External File

Export Window

Hierarchy... Exports window hierarchy information

Control Drawing List Displays print preview of the control drawing list

*1: _{¡ £ This menu item is available only on PFCS, SFCS.}

(12)

F1-4

File

Print

Project Property Prints the project property Station Property Prints the FCS and HIS property

Nest Properties Prints the properties of nest (*3)

Window Hierarchy Prints the window hierarchy Window List Prints the window list State Transition Matrix

List Prints the list of State Transition Matrixes SEBOL User’s

Function List Prints the SEBOL user-defined function list SFC Sequence List Prints the SFC Sequence list

Unit Procedure List Prints the unit procedure list FCS-C Program List Prints the FCS-C program list (*1) Node Property Prints the node property (*2)

IOM Property Prints the IOM property

Common Block List Prints the common block list (*4) Exit System View Exits System View

F010103E.EPS

Control Drawing List Prints the control drawing list

*1: _{¡ £ This menu item is available only on PFCS, SFCS.}

(13)

F1-5

Edit

Cut Cut

Copy Copy

Paste Paste

Paste Shortcut Pastes shortcut Move Upward

Move Downward Moves down Moves up

View

Toolbar Shows or hides the toolbar Status bar Shows or hides the status bar

Message Display Area Shows or hides the message display area Large Icons Displays the data list area using large icons Small Icons Displays the data list area using small icons List Displays the data list area as a list

Details Displays the details of the data list area

Arrange Icons

System Order Displays the icons in the data list area by System Order By Name Displays the icons in the data list area by name

Refresh Displays the most recent conditions

Tools

Check for Double-Defined Tags... Searches for function blocks with the same tag name Reference All Elements/Tags... Creates a tag cross reference list

Self-Document Printing... Starts up self-document function Print Parameters... Prints FCS tuning parameters

Search by Name... Searches for element numbers and tag names

Logging...

Status Display Setting... Environment Setting...

Set Backup... Start Backup... Linked Part Updating...

Enables/disables user comment logging Opens the status display setting dialog box Opens the environment setting dialog box

Opens the update linked part dialog box Opens the backup setting dialog box Opens the backup specification dialog box All Control Drawing Display Displays all control drawings

By Date Displays the icons in the data list area by date

Builder Quick Start Opens the Builder Quick Start dialog box

Plant Hierarchy Viewer Displays Plant Hierarchy Viewer

Opens fieldbus device information dialog box

Downloads to all field devices in the ALF111 segment or in the FCS

Audit Trail DB Viewer Starts Audit Trail Database Viewer FCS Database Diagnosis Tool... Starts FCS Database Diagnosis Tool Fieldbus

Generate Host File... (*1)

Display Device Information... (*1) Upload All... (*1)

Download All... (*1)

Creates ALF111 host file set for whole project or for whole FCS

Uploads block parameters of all field devices in the ALF111 segment or in the FCS

Tuning Parameters Saving... Starts Tuning Parameter Saving Tool Offline Loading... Starts Offline Loading Tool

(14)

F1-6

Load

Download Project Common Section Downloads common project data to HIS

Download IOM... Downloads I/O module configuration data to FCS Save FCS Tuning Parameter Saves FCS tuning parameters

Off-line

Download to FCS

Download to HIS Downloads engineering data to HIS Download Taglist... Downloads the FCS and BCV tag list to HIS Status Display File Download... Downloads status display files

Offline Download to BCV Off-line Downloads to BCV

Download Tag-List/Gateway Information Downloads taglist of the station (non CS 1000/CS 3000 series station) and gateway information

CGW Download Downloads to CGW

Project

Open Project... Opens an existing project Close Project Closes a project

FCS

HIS

Error Check Checks the consistency of the engineering data within the FCS

Resource Information... Opens a resource information dialog box Test Function (*1) Starts the Test Function

Virtual HIS (*2)

Start HIS functions in virtual mode. Runs Operation and monitoring functions without starting the Test Functions or FCS Simulation.

Help

Using On-line Manual... Displays how to use the online manual

Engineering Tutorial... Displays the Engineering Tutorial (IM 33S04H10-01E) Builder Definition Items... Displays the builder definition item list

Reference Index ... Displays the reference manual index Version Information... Starts the Software Configuration Viewer

F010105E.EPS

Download Off-line Downloads the engineering data to FCS

Save BCV Operation Mark Saves BCV operation marks

Common Block Download (*1) Downloads common blocks

Resolve Invalid Element Modify or recompile to clean the invalid elements after _{project common area modification.}

All Generation... Opens All Generation dialog box

*1: This menu item is available only when Batch Management is installed. *2: This menu is available only when Test Functions Package is installed.

(15)

F1-7

F1.1.1 File Menu of System View

The [File] menu and the submenus under the [File] menu of System View are ex-plained in this section.

■ Create New ¡ £

When menu [File] - [Create New] is selected, a dialog box for creating new project appears, while when menu [File] - [Create New] is selected with a project folder selected, the dialog box for creating the FCS, HIS, IOM or windows appears. Double click an item, a new folder or a new file corresponding to the selected item in the cascade menu may be created.

Table Files and Folders Created for “Create New” Menu Items (1/2) ¡ £

Menu item

Selectable folder

Folder name or file

name File or folder that is created automatically

Project SYSTEMVIEW User specified Hierarchy below the project folder

FCS Project

Folder/user-specified Files under the folder/system-fixed

Hierarchy below FCS folder (excludes I/O modules FCS-C, SEBOL user functions, SFC sequence and user procedure)

HIS Project

Hierarchy below HIS folder (Graphic windows, Help dialog boxes are not included)

BCV Project

Hierarchy below BCV folder

CGW Project

Hierarchy below CGW folder

F010106E.EPS

State Transition Matrix

(16)

F1-8

Table Files and Folders Created for “Create New” Menu Items (2/2) ¡ £

Menu item

Selectable folder

Folder name or

file name File or folder that is created automatically

SEBOL User Function SEBOL_ USER_ FUNCTION File/user-specified File/user-specified File/user-specified

SEBOL user-defined function’s file

SFC sequence’s file SFC Sequence Unit Procedure FCS-C Task (*1) Node (*2) SFC_ SEQUENCE UNIT_ PROCEDURE FCS IOM NODE{n} (*2) NEST{n} (*3) File/task Node number

Unit procedure’s file

FCS-C task’s file Node{n}’s folder

RDT0001 to PDT0982 Group number defined when recipe group was created

Common block files RDT0950 to RDT0982 Common Block (*6) Recipe Group (*6) Station... Menu item COMMON-BLOCK BATCH Project Selectable folder Folder/user-specified Files under the folder/system-fixed

Folder name or file ame

Hierarchy below RG{n}folder

Hierarchy below STN folder

File or folder that is created automatically

IOM

HIS CONFIGU-RATION

IOM slot position and I/O module type/ I/O nest model type defined when IOM

was configured Files under NODE folder of the FCS IOM (*4) Hierarchy below IOM folder of the FCS

Window WINDOW User specified Graphic window’s file and folder HELP User specified Help dialog box’s file

F010107E.EPS

Nest (*3) IOM2 Nest number Nest{n} folder

Trend Acquisition Pen

Assignment (*5)

File/user-specified Trend acquisition pen assignment’s file

*1: ¡ £ This menu item is available only on PFCS, SFCS.

*2: _{£ This menu item is available only on KFCS2, KFCS, LFCS2, LFCS, RFCS5 and RFCS2.} *3: _{£ This menu item is available only on RFCS5, RFCS2.}

*4: ¡ £ This menu item is available only on PFCS and SFCS. *5: £ This menu item is available only on CS 3000 system.

(17)

F1-9

■

Open

When [Open] from the [File] menu is selected while a folder is selected, the folder will open. If the selected file is already opened, no change happens.

When [Open] from the [File] menu is selected while a file is selected in the data list, builders for editing the engineering data will start up.

■

External File

• Import Window Hierarchy

Imports window hierarchy information from a text file.

If there is no window that corresponds to the description in the text file, an import error will occur.

• Export Window Hierarchy

Exports window hierarchy information to a text file.

■

Delete

When [Delete] from the [File] menu is clicked while a file or folder is selected, the selected file or folder may be deleted. However, the folders or files that may be deleted are those created in System View. The current project folder and the default project folder can not be deleted. Furthermore, when selecting a folder or file that can not be deleted, the [Delete] task bar grays out.

● Deleting a State Transition Matrix

If a State Transition Matrix of an FCS is being used, the State Transition Matrix can not be deleted. A warning message will be displayed when try to delete it.

● Deleting an IOM

Note the following when deleting a dual-redundant IOM:

• A dual-redundant IOM (u-s IOM name Dup) cannot be deleted. If deletion operation is executed, a dialog box containing a message “Can not delete ‘u-s IOM name

Dup.edf’.” will appear.

• When the source IOM of a dual-redundant IOM is deleted, the dual-redundant IOM (u-s IOM name Dup) will also be deleted.

(18)

F1-10

■

Properties

When [Properties] from the [File] menu is selected, the property tab of the selected folder or file may be displayed. Properties can be changed in the properties sheet.

IMPORTANT

• For the project with “current” attribute, when clicking [OK] button after changing a FCS folder’s property, the new contents will be off-line loaded to the FCS.

• For the project with “current” attribute, when clicking [OK] button after changing an I/O module’s property, the new contents will be downloaded to the I/O module.

• When clicking [OK] button after changing HIS folder or user-defined windows proper-ties, the new contents may be reflected only after downloading them separately in to HIS.

(19)

F1-11

■

Print Preview

¡

£

To select one of the following items to display the printout image as the print preview. • Project property

• Station property

• State Transition Matrix List • SEBOL user’s function list • SFC sequence list

• Unit procedure list • FCS-C program list (*1) • Node property (*2) • Nest properties (*3) • IOM properties • Control drawing list • Window hierarchy • Window list

• Common block list (*4)

*1: ¡£ The Print Preview for the engineering data is available only on PFCS, SFCS.

*2: £ The Print Preview for the engineering data is available only on KFCS2, KFCS, LFCS2, LFCS, RFCS5 and RFCS2.

*3: £ The print preview for the engineering data is available only on RFCS5 and RFCS2. *4: The Print Preview for the engineering data is available only when Batch Management is installed.

TIP

(20)

F1-12

■

Print

¡

£

Select one of the following items for printing. • Project property

• Station property

• SEBOL user’s function list • SFC Sequence list • Unit procedure list • FCS-C program list (*1) • Node property (*2) • Nest property (*3) • IOM properties • Control drawing list • Engineering unit symbol • Switch position label • Plant hierarchy • Window hierarchy • Window list

• Common block list (*4)

*1: ¡£ Printing out the engineering data is available only on PFCS, SFCS.

*2: _£ Printing out the engineering data is available only onKFCS2, KFCS, LFCS2, LFCS, RFCS5 and RFCS2. *3: £ Printing out the engineering data is available only on RFCS5 and RFCS2.

*4: Printing out the engineering data is available only when Batch Management is installed.

TIP

To run Print, printer details need to be set in Windows system.

■

Select [Copy] from the [Edit] menu to copy the shortcut source file to the clipboard. Then, select a window definition folder in the data tree area of the System View and select [Paste Shortcut] from the [Edit] menu.

[Paste Shortcut] cannot be selected after [Cut].

■

Move Upward

Select a window definition folder in the data tree area, then select [Move Upward] from the [Edit] menu. The display order of the file will move up among the windows in the same hierarchy level.

■

The files will be listed in a fixed order (System Order). When displaying files in this order there will be a check mark at [System Order] taskbar on [Arrange Icons] submenu of [View] menu.

The files will be displayed in the order as the following table when the System Order is checked.

(23)

F1-15

<F1.1 System View> Table Files Displayed by System Order

Folder File Name Type Display

PROJECT\COMMON\MATRIX

MultiPjt.edf Multiple Projects Connection CustomPlant.edf Plant Hierarchy

BlkStsLabel.edf Block Status Character String AlmStsLabel.edf Alarm Status Character String AlmTbl.edf Alarm Processing Table StnConf.edf Station configuration

UserSec.edf Security

OpeMarkDef.edf Operation Mark

EngUnit.edf Engineering Unit Symbol InstLabel.edf Switch Position Label

SysStsLabel.edf System Fixed Status Character String

AlmPri.edf Alarm Priority

StsChange.edf Status Change Command Character String Matrix{m}.edf State Transition Matrix

CommDataWW.edf Communication I/O WBTagDef.edf Communication I/O Tag SwitchDef.edf Common Switch GswitchDef.edf Global Switch ProductWnd.edf Product Control

PROJECT\COMMON Same as listed

left.

By numbers TrainName.edf Train

BATCH\RG{nn} Same as listed

left.

FCS{dd}{nn}\SWITCH Same as listed

left.

FCS{dd}{nn}\FUNCTION_BLOCK

\DR{mmmm} <TagName>.edf Function Block Detail

By defined order SD{nn}01.edf Printout Message

OG{nn}01.edf Operator Guide EV{nn}01.edf Signal Event AN{nn}01.edf Annunciator

FCS{dd}{nn}\MESSAGE Same as listed

left.

<GraphicName>.edf

Graphic <OverviewName>.edf

<ControlName>.edf

<TrendName>.edf Trend display pen assignment

HIS{dd}{nn}\WINDOW By window

hierarchies OpeconDef.edf HIS Constants

Scheduler.edf Scheduler

MsgReqDef.edf Sequence Message Request FuncKey.edf Assign Function Keys PanelSet.edf Panel Set

TR{rrrr}.edf Trend acquisition pen assignment

HIS{dd}{nn}\CONFIGURATION Same as listed

left.

F010108E.EPS

*1: The function blocks are listed in the defined order. *2: Windows are displayed according to their hierarchies.

(24)

F1-16

• By Name

The data list area is displayed in order of the names of the icons. When displayed by name, it is indicated by a check mark beside [By Name] in the [Display] menu. • By Date

The data list area is displayed in order of the date of the icons. When displayed by date, it is indicated by a check mark beside [By Date] in the [Display] menu.

■

All Control Drawing Display

When [All control drawing display] is checked, all control drawings including the empty drawings are displayed in the file list, otherwise only the defined drawings are displayed. [All control drawing display] is the default setting.

■

Refresh

When editing is performed using the builder, the information displayed in System View may be different from the actual engineering data. When [Refresh] is selected, the data tree and the data list in System View are displayed with the most recent information.

(25)

F1-17

F1.1.4 Tool Menu of System View

The [Tools] menu of System View is explained in this section.

■

Builder Quick Start

Displays the builder quick start dialog box. By entering the builder window name, element name, user-defined label or tag name to this dialog box, the corresponding builder can be started directly.

In general, a builder is started by choosing its icon by unfolding the folders in the tree view of System View.

For an example, to start a control drawing builder, open <Project folder> - [FCS] folder-[FUNCTION BLOCK] folder, then choose the control drawing file on the list view of System View can start the control drawing builder.

With this builder quick start dialog box, the control drawing builder can be started (the drawing file is openned) directly by entering a tag name of a function block defined in the control drawing.

Name

F010116E.EPS

Builder Quick Start

HIS-Specific Primitive Information Linked-Part Information Specify items to print

Priority to printer setting

Execute color print or monochrome print regardless of the printer setting

Forced Monochrome Print Forced Color Print

OK Cancel Display Downloading Confirmation Dialog

Generation

(28)

F1-20

● Display Downloading Confirmation Dialog

If you check this check box, the Downloading Confirmation dialog box appears when you perform downloading in a builder related to FCSs. Data downloaded to an FCS is displayed in the Downloading Confirmation dialog box. This information is also displayed in the message display area of System View.

Starting generation Sun Sep 28 17:06:19 2003 Detecting difference start

Converted Generation Time Of Station Converted Generation Time Of Area Detecting difference end

F010117E.EPS Cancel

OK Downloading confirmation dialog

Dowmload to FCS ?

Figure Downloading Confirmation Dialog

Downloading to the FCS is started if you click the [OK] button in the Downloading Confir-mation dialog box. Click the [Cancel] button to cancel downloading to the FCS.

The following Downloading Confirmation dialog box appears for some of the builders related to Fieldbus Builder.

Download to FCS ?

No Yes

F010118E.EPS Downloading Confirmation dialog

Figure Downloading Confirmation Dialog

● Print Window Background Color when Specifying Color Print

The background color is printed if the checkbox is checked.

● Specify Items to Print

Make settings so that only the items necessary for Graphic Builder are printed. If [Print All] is selected, all items are printed. If [Set individually] is selected, Screen Image, Data Bind, Modify Information, HIS Specific Primitive Information, and Linked Part Information can be selected to be printed.

● Execute Color Print or Monochrome Print regardless of the Printer Setting

How items are printed using Graphic Builder can be specified. If [Priority to printer setting] is selected, the selected items are printed according to Windows NT's printer setting. If [Forced Monochrome Print] is selected, they are printed in monochrome regardless of the printer setting. If [Forced Color Print] is selected, they are printed in color regardless of the printer setting.

(29)

F1-21

■

Tuning Parameters Saving

Starts a tool to save the tuning parameters of selected FCSs continuously.

STATION FCS0101 FCS0102 COMM... PFCD-E PFCD-E RESULTS... Before Exe... Before Exe... MODIFIED TIME F010119E.EPS CLOSE

TUNING PARAMETER SAVE

SELECT ALL

ALL CLEAR

PREVIOUS RESULT Tuning parameters save continuously

PROJECT: MYPJT

Figure Tuning Parameters Save Continuously T ool

■

Offline Loading

(30)

F1-22

■ Fieldbus : KFCS2/KFCS £

The following four fieldbus related tasks are displayed in the cascade menu. • Generate Host File

• Upload All • Download All

• Display Device Information

● Generate Host File : KFCS2/KFCS £

Generates a host file set for ALF111 (Fieldbus H1 Communication Module).

SEE ALSO

For more information about generating host file set, see the following:

“■ Host File Set Generation” in D1.5, “Other Engineering Items” in FOUNDATION fieldbus Reference (IM 33Y05P10-01E)

● Upload All : KFCS2/KFCS £

Starts a tool to upload fieldbus device parameters of the whole FCS or whole ALF111 (Fieldbus HI Communication Module) segment.

SEE ALSO

For more information about fieldbus overall upload, see the following:

“■ Fieldbus Overall Upload” in D1.5, “Other Engineering Items” in FOUNDATION fieldbus Reference (IM 33Y05P10-01E)

● Download All : KFCS2/KFCS £

Starts a downloading tool so as to download to all filedbus devices in the segment of ALF111 (fieldbus H1 module) or in the FCS.

SEE ALSO

For more information about fieldbus overall download, see the following:

“■ Download to All Fieldbus Devices” in D1.5, “Other Engineering Items” in FOUNDATION fieldbus Ref-erence (IM 33Y05P10-01E)

● Display Device Information : KFCS2/KFCS £

Opens fieldbus device information dialog box for displaying the information of fieldbus devices.

Starts Audit Trail Database Viewer so as to view the audit trails.

SEE ALSO

• For more information about engineering audit trail database viewer, see the following:

P3.4, “Browsing Audit Trail Data”

(32)

F1-24

F1.1.5 Load Menu of System View

The [Load] menu and the submenus under the [Load] menu of System View are explained in this section.

■

Download Project Common Section

When [Download Project Common Section] is selected on the [Load] menu, a confirmation message box for downloading the common part of the project configuration will appear. Clicking the [OK] button in the message box may download the contents defined in the project builders into HIS, UHMIS (Unified Operation/Monitoring Station) and HP9000. Whenever adding or removing a FCS or HIS, it is required to carry out the project common download from System View.

If a project folder is selected, definition contents are downloaded to every HIS, UHMIS (Unified Operation/Monitoring Station) and HP9000 in the project.

If an HIS folder is selected, it is downloaded only to the selected HIS.

■

Download IOM

When the [Download IOM] on the [Load] menu is clicked while the FCS folder of the current project is selected, the IOM download dialog box will appear. When [OK] is clicked while the IOM is selected from the IOM download dialog box, the engineering data for the se-lected FCS I/O modules will be downloaded.

Choosing an I/O module on the IOM download dialog box can pop out a new box for selecting a signal conditioner card for downloading.

IMPORTANT

IOM download may not be performed to FCS that has not been through off-line FCS download before.

SEE ALSO

For details on FCS off-line download, see the following of later section:

(33)

F1-25

IMPORTANT

When the items indicated below are changed and the IOM download is performed, the I/O module will be stopped.

• When the type of a thermocouple, or the range is changed

• When the attributes of process data such as square root extraction or IOP detection specifications are changed

When the I/O module stops, the following actions occur for the function block connected to the I/O module.

• Input data

The previous value is retained. When the I/O module returns to normal, the new values may be accessed.

• Output date

For analog outputs, output values are retained when the changes do not affect the output values.

In the case of contact outputs, the output may be turned off or to hold previous good value.

SEE ALSO

For the details on the IOM behaviors when IOM downloading is performed, see the following:

(34)

F1-26

■

Save FCS Tuning Parameter

IMPORTANT

• FCS tuning parameter save may not be performed to FCS that has not been through off-line FCS download before.

• The saved tuning parameters take precedence over the constants upon off-line downloading to an FCS, while the constants take precedence over the unsaved tuning parameters upon initial off-line downloading to an FCS.

• When online downloading to an FCS, the constants are compared to the current saved tuning parameters for a modified function block.

If those are not identical, the constants will override the existing tuning parameters on the FCS.

• When saving the tuning parameters, it is recommended to close Control Drawing Builder, the Function Block Overview Builder and the Function Block Detail Builder.

When [Save FCS Tuning Parameter] is selected from the [Load] menu while the FCS folder of the current project is selected, a message dialog box is displayed.

Clicking on [OK] in the message dialog box saves the tuning parameters of the selected FCS.

Perform tuning parameter save for Project 'MYPJT' FCS 'FCS0101' ?

Cancel OK

F010110E.EPS Confirm to Save FCS Tuning Parameter

Figure Confirm to Save FCS Tuning Parameter Dialog Box

During virtual test, the parameters for the FCS within the testing project may be saved. The saving procedure is the same as the procedure for saving parameters in current project.

By using the import operation on the Function Block Overview Builder, Function Block Detail Builder and Control Drawing Builder of the current project, the FCS tuning param-eters of a virtually tested project may be applied to the current project.

(35)

F1-27

■

Offline-Download to FCS

IMPORTANT

When FCS off-line download is executed, the target FCS stops.

● Download

When [Download] is clicked on [Offline-Download to FCS] task bar of the [Load] menu while an FCS folder of the current project or default projects selected, Confirm Offline Downloading to FCS dialog box appears.

Perform offline download to Project 'MYPJT' FCS 'FCS0101' ?

Cancel OK

F010111E.EPS Confirm offline downloading to FCS

Figure Confirm Offline Downloading to FCS Dialog Box

Click [OK] button on the dialog box, a message box prompting for saving tuning param-eters of the selected FCS appears.

When offline downloading to FCS, the tuning parameters will be lost. Save tuning parameters of Project: 'MYPJT', Station: 'FCS0101' ?

No Yes

F010115E.EPS Confirm to save FCS Tuning Parameter

(36)

F1-28

Click [OK] button on “Confirm to Save FCS Tuning Parameter” dialog box to start saving the parameters. Clock [No], download continues without saving the parameters.

If the parameters are saved, the parameters are kept in the FCS database. After the invalid elements are resolved, downloading to FCS starts. During downloading, the process will be indicted by the messages in the Generation Dialog window.

Start Offline Downloading Fri Nov 19 18:30:19 1999 Started off-line load FCS0101 Fri Nov 19 18:30:37 1999 Initializing... FCS

Ioading... FCS program size = 4834928 bytes Ioading... FCS database size = 3805184 bytes Ioading... IOM database size = 5256 bytes Equalize start. HIS0124

Equalize completed successfully. HIS0124 Off-line load ended Fri Nov 19 18:31:51 1999

Completed Offline Downloading Fri Nov 19 18:31:51 1999

F010113E.EPS Close Generation Dialog - [Pjt:MYPJT Stn:FCS0101]

Figure Generation Dialog Box

● Precautions when Offline Downloading

• “Off-line download to FCS” may transfer all FCS related engineering information to the FCS after stopping the FCS.

• When the FCS off-line download is executed, the tuning parameters of the function blocks in the FCS memory will be overwritten. In order to prevent the tuning param-eters from being changed, the tuning paramparam-eters should be saved prior to the FCS off-line download. By saving the tuning parameters to the source files, when the FCS off-line download is executed to the FCS, the saved tuning parameters can be trans-ferred along with the contents defined on the FCS builder. If the tuning parameters are not saved, the default values of the tuning parameters when each function block is created or the parameters saved before previous downloading will be downloaded. • If the fixed constants of the function block are set as parameters, the saved tuning

parameters will have precedence over them.

• When “Off-line download to FCS” is performed for the first time, saving the tuning parameters is not necessary.

(37)

F1-29

■

Download to HIS

When [Download to HIS] is clicked on the [Load] menu while a project folder or hierarchies below the HIS folder of the current project is selected, [Confirm download to HIS] dialog box will be displayed.

Clicking [OK] button in the message box may download the information in the folders below the selected hierarchy to the designated HIS.

IMPORTANT

• When HIS download is executed, trend acquisition will be reset and the previously sampled trend data may be lost. So that save the trend samples before downloading.

SEE ALSO

For details on trend data saving, see the following:

E4.2.1, “Components of Trend Window”

• When running HIS downloading right before the processes of hour-closing (closed at each hour sharp), the trend data maybe excluded from the hour-closing processes. Thus, it is necessary to run HIS downloading at least three minutes before or after the time of hour-closing processes are performed.

When an HIS folder is selected, it is downloaded to the selected HIS.

When windows are selected, they are downloaded to the selected HIS window by window.

■

Download Tag List

When [Download FCS Taglist] is selected on the [Load] menu, a dialog box for selecting the station, source of tag list, and the HIS, destination station of tag list, appears. More than one tag list source station or destination station can be selected.

By clicking the [Equalize] button on the dialog box, the FCS tag list may be downloaded to the HIS. When a BCV is selected to be the source of tag list, the tag list of the control stations connected to the BCV is downloaded to HIS too. Furthermore, the tag list of upper or lower gateways specified in the BCV may also be downloaded to the HIS.

(38)

F1-30

■

Status Display File Download

When [Status Display File Download] is selected from the [Load] menu while a status display file is selected, a dialog box for selecting the download destination station will appear.

Clicking [OK] button after selecting a station will prompt a confirmation message box for downloading. Clicking [OK] button on the message box may download the Status Display File to the selected station.

Vary with different ways of selecting the Status Display Files for downloading, the following files may be downloaded accordingly.

• Selecting and then downloading the DISPLAY folder

All of the selected status display files (control drawing status display files, and logic chart status display files) will be downloaded to the specified station.

• Selecting and then downloading the LOGICCHART folder

All of the logic chart status display files will be downloaded to the specified station. • Selecting the status display files in the data list and then downloading them

Selecting the DISPLAY folder or LOGICCHART folder will display in the data list area a list of the status display files of the selected folder. If a single (or multiple) status display file(s) displayed in the data list is selected and then downloaded, only the selected status display file(s) will be downloaded to the specified station.

Note that the control drawing status display files and logic chart status display files cannot be selected simultaneously.

■

Offline Download to BCV

When [Offline Download to BCV] is selected on the [Load] menu while a BCV folder is selected, a confirmation message box for confirming BCV downloading will appear. Clicking [OK] button in the message box may perform off-line download to BCV. For BCV-H or BCV-L, the database transmitted to the BCV contains a tag list. The BCV starts immediately after the off-line download is completed.

The tag list of the Control Units and the Control Stations on the Control Bus, configured as lower level of the network, will be downloaded to all HISs, UHMISs (Unified Operation/ Monitoring stations) and HP9000 computers.

(39)

F1-31

(40)

F1-32

F1.1.6 Project Menu of System View

The [Project] menu of System View is explained in this section.

■

Open Project

The existing user-defined projects are displayed in System View.

When [Open Project] is selected from the [Project] menu, the open project dialog box is called up. The project to be opened may be selected in the open project dialog box. The current project is always displayed in the System View.

IMPORTANT

Do not drag & drop in the folder list display section of the open project dialog box. Dragging & dropping may damage the engineering data.

■

In the resource information dialog box, the numbers of different types of function blocks used by the FCS and the common items of the station are displayed.

■

Test Function

There are two types of tests: virtual test and target test. When [Test Function] is selected from the [FCS] menu while an FCS folder is selected, either virtual test or target test is started depending on the attribute of the project to which the selected FCS belongs. The conditions for starting each of these test is given below:

• If the attribute of the project to which the selected FCS belongs is current project, the target test may be performed.

• If the attribute of the project to which the selected FCS belongs is user defined project or a default project, the virtual test may be performed.

■

All Generation

When [All Generation] is selected from the [FCS] menu while the FCS folder is being selected, the all generation dialog box will be displayed.

Generation of multiple FCS-related builder files can be performed by a single operation in the all generation dialog box.

SEE ALSO

For more information on all generation, see the following:

(42)

F1-34

F1.1.8 HIS Menu of System View

The [HIS] menu of System View is explained.

■

Virtual HIS

When [Virtual HIS] is selected from the [HIS] menu while the HIS folder is being selected, a dialog to change the HIS to a virtual mode will be displayed.

SEE ALSO

For more information on how to start the virtual HIS, see the following:

Version Information

This menu item starts the software configuration viewer. The software configuration viewer displays the installed engineering function software and its version information.

(44)

F1-36

<F1.2 Creating a New Project>

F1.2 Creating a New Project

Create a project, which is the basic unit of the engineering database management.

■

Projects

A project is a unit manages the database of the FCS and the HIS created by the user. All builder files defined by various builders are managed under the project.

IMPORTANT

Make sure to use the same package revision for each of the PCs if you want to engineer the same project on several PCs.

F010201E.EPS 2 stations

All Folders Opened Folders : MYPJT

Name Type Modified Date SYSTEM VIEW MYPJT COMMON BATCH FCS0101 CONFIGURATION SEQ-LIBRARY IOM SWITCH MESSAGE FUNCTION-BLOCK DISPLAY APPLICATION HIS0124 CONFIGURATION WINDOW HELP -+ +

-System View (CS 1000) -MYPJT

+ +

File Edit View Tools Load Project FCS HIS Help

a z 87

Figure Project Architecture

There are three types of project; the default project, the current project and the user-defined project.

The project attribute (default, current, and user-defined) may be changed using the Project Attribute Change Utility.

SEE ALSO

For details on project attribute change, see the following:

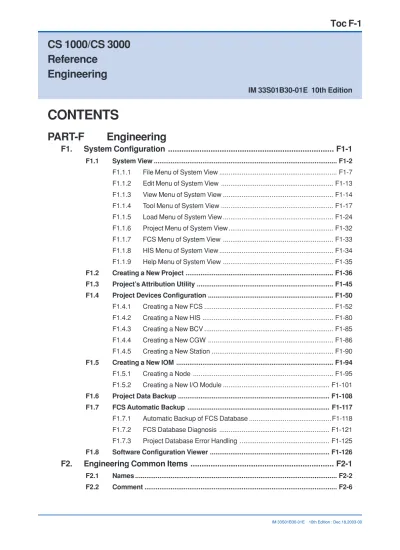

centum vp 1B30_04

Toc F-1

CS 1000/CS 3000

Reference

Engineering

CONTENTS

PART-F

Engineering

F1.

System Configuration ... F1-1

F2.

Engineering Common Items ... F2-1

Toc F-2

F3.

Control Drawing Builder ... F3-1

F4.

Editing Logic Chart ... F4-1

Toc F-3

F5.

Status Display Builder ... F5-1

F6.

Editing SFC ... F6-1

F7.

Windows for Configuring Unit ... F7-1

F8.

FCS Sequence Library... F8-1

F9.

Security Policy ... F9-1

Toc F-4

F10. Scheduler ... F10-1

F11.

Self-Documentation ... F11-1

F12. Graphic Builder ... F12-1

Toc F-5

Toc F-6

Toc F-7

F13. Linked Parts ... F13-1

F14. Graphic Container ... F14-1

F15. All Generation ... F15-1

Toc F-8

F1-1

F1. System Configuration

■

Outline of System View

IMPORTANT

■

Use the System View to Generate System

●

Create Projects

●

Definition of System Configuration

●

I/O Module Definition

●

Create Graphic Windows

●

Help Dialog Box Creation

F1-2

F1.1 System View

■ System View Menu Items ¡ £

F1-3

F1-4

F1-5

F1-6

F1-7

F1.1.1 File Menu of System View

■ Create New ¡ £

F1-8

F1-9

■

Open

■

External File

■

Delete

●

Deleting a State Transition Matrix

●

Deleting an IOM

F1-10
